CN112249538A

CN112249538A - Indoor auto-induction intelligence garbage bin

Info

Publication number: CN112249538A
Application number: CN202011433444.6A
Authority: CN
Inventors: 不公告发明人
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-12-10
Filing date: 2020-12-10
Publication date: 2021-01-22

Abstract

The invention discloses an indoor automatic sensing intelligent trash can, which comprises a box body, the upper surface of the box body is provided with a box cover, the right side of the upper surface of the box cover is provided with a through groove, and the inside of the box body is provided with a box cover. There is a barrel body, the interior of the barrel body is provided with a plurality of partitions, and the outer side of the barrel body is provided with an intelligent identification unit. The indoor automatic sensing smart trash can, through the cooperation between the box body, the box cover, the through slot, the barrel body, the partition and the intelligent identification unit, the color mark identification sensor will identify and transmit the upper color mark block. After the color-coded block of the garbage type relative to the color is located above the color-coded identification sensor, the rotating rod and the tooth column stop rotating. At this time, the operator can put the garbage to be put into the inside of the barrel through the through slot, which can be used for garbage input. In the process, garbage identification, classification and delivery are carried out, and the practical performance is improved.

Description

Indoor auto-induction intelligence garbage bin

Technical Field

The invention relates to the technical field of garbage cans, in particular to an indoor automatic induction intelligent garbage can.

Background

A trash can, also known as a waste bin or dustbin, is a device for holding trash. Most of the garbage cans are made of metal or plastic, and when the garbage cans are used, the garbage cans are placed in plastic bags, and when more garbage cans are used, the garbage cans can be pricked up to be discarded. Most of the garbage cans are covered to prevent peculiar smell of the garbage from dispersing, and some garbage cans can be opened by foot. Such trash cans are commonly used in homes or offices, and can be classified into public trash cans and household trash cans according to use occasions. The garbage containing mode can be divided into an independent garbage can and a classified garbage can. The processed materials can be classified into plastic trash cans, stainless steel trash cans, ceramic trash cans, wooden trash cans, cement trash cans, pulp trash cans, and the like. The opening mode is open, cover-uncovering by treading and the like, the indoor automatic induction intelligent garbage can on the market is general in functionality, the garbage identification function is not available, the classification effect is convenient, and the practicability is general.

Disclosure of Invention

The invention aims to provide an indoor automatic induction intelligent garbage can, and aims to solve the problems that the indoor automatic induction intelligent garbage can on the market is general in functionality, does not have the garbage identification function and is convenient to classify, and the practicability is general.

In order to achieve the purpose, the invention provides the following technical scheme: an indoor automatic induction intelligent garbage can comprises a box body, wherein a box cover is arranged on the upper surface of the box body, a through groove is formed in the right side of the upper surface of the box cover, a can body is arranged inside the box body, a plurality of partition plates are arranged inside the can body, and an intelligent identification unit is arranged outside the can body;

the intelligent identification unit comprises a circular ring, a trapezoidal sliding groove, a trapezoidal sliding block, a tooth ring, a tooth column, a rotating rod, a case, a color code identification sensor, a color code block, a bracket and an identification camera;

the two circular rings are respectively positioned at the upper side and the lower side of the inner center of the box body, the outer wall of the circular ring is fixedly connected with the inner wall of the box body, the inner wall of the circular ring is provided with a trapezoidal sliding chute, the inner sliding of the trapezoidal sliding chute is connected with a trapezoidal sliding block in a clamping manner, the inner side end part of the trapezoidal sliding block is fixedly connected with the outer wall of the barrel body, the tooth ring is positioned at the lower surface of the barrel body, the upper surface of the tooth ring is fixedly connected with the lower surface of the barrel body, the left side of the lower surface of the tooth ring is provided with a tooth column, the outer wall of the tooth column is meshed and connected with the contact surface of the tooth ring, the center of the left surface of the tooth column is provided with a rotating rod, one part of the rotating rod penetrates through the box body and is rotatably connected with the box body through a ball bearing, the outer side end part of the rotating rod is, it is a plurality of the color mark piece is the annular setting around the lower surface of staving, the color mark piece links to each other with the lower fixed surface of staving, the support is located the right surface of box, the support links to each other with the contact surface of box is fixed, the discernment camera is installed on the top right side of support.

Preferably, universal wheels are mounted at four corners of the lower surface of the box body.

Preferably, a U-shaped rod is installed on the right side of the upper surface of the support.

Preferably, a convenient cleaning mechanism is arranged inside the barrel body;

the convenient cleaning mechanism comprises a cylinder, a vertical groove, a vertical plate, a handle and a storage barrel;

the cylinder rigid coupling is at the inside bottom center of staving, the cylinder links to each other with the contact surface of baffle is fixed, cylindrical outer wall is the annular and has seted up a plurality of perpendicular grooves, the inside of erecting the groove is equipped with the riser, the outer wall of riser and the inner wall clearance fit who erects the groove, the upper surface rigid coupling of riser has the handle, the outside surface rigid coupling of riser has the storage cylinder.

Preferably, the inside of the storage barrel is provided with a stability augmentation unit;

the stability augmentation unit comprises a sheet iron, a magnet block and a pasting plate;

the sheet iron is located the inner wall of storage cylinder, the outer wall of sheet iron links to each other with the inner wall of storage cylinder is fixed, the inner wall top of sheet iron is equipped with a plurality of magnet pieces, the magnet piece attracts with the sheet iron mutually, the outside surface of magnet piece is equipped with the flitch, the flitch links to each other with the contact surface of magnet piece is fixed.

Preferably, the right side of the upper surface of the handle of the box cover is provided with a protection unit;

the protection unit comprises a baffle, a pin rod, a rubber ring and a convex block;

the baffle is located the top that leads to the groove, the lower surface left side of baffle is rotated and is connected with the pin rod, the bottom of pin rod links to each other with the contact surface of case lid is fixed, the lower surface rigid coupling of baffle has the rubber circle, the upper surface right side rigid coupling of baffle has the lug.

Compared with the prior art, the invention has the beneficial effects that: this indoor auto-induction intelligence garbage bin for the conventional art, has following advantage:

through the box body, the box cover, the through grooves, the barrel body, the partition board and the intelligent identification unit, garbage dumping personnel place garbage to be thrown in below the identification camera for shooting, identifying and collecting, then identifying and analyzing through a module assembly in the case, the module assembly in the case rotates the rotating rod and the tooth post, the barrel body rotates in the process, the color mark identification sensor can identify and transmit an upper color mark block in the process, when the color mark block corresponding to the type of the thrown garbage to the color is positioned above the color mark identification sensor, the rotating rod and the tooth post stop rotating, at the moment, the operator can throw the garbage to be thrown in into the barrel body through the through grooves, the garbage can be identified, classified and thrown in the garbage throwing process, and the practicability can be improved;

through the matching among the box body, the box cover, the through groove, the barrel body, the partition plates, the intelligent identification unit and the convenient cleaning unit, the storage barrel arranged in the cavity arranged between the partition plates can store the input garbage, and in the subsequent dumping process, the storage barrel can be taken out only by applying force to the handle to upwards apply force to slide the vertical plate, so that convenience is provided for garbage dumping personnel;

through the matching among the box body, the box cover, the through groove, the barrel body, the partition plate, the intelligent identification unit, the convenient cleaning unit and the stability increasing unit, after daily maintenance personnel lay the garbage bag in the storage barrel, the operation personnel can position the magnet block above the inner side of the garbage bag to enable the magnet block to be attracted with the thin iron sheet, and the stability between the garbage bag and the storage barrel can be improved;

through the cooperation between case lid, logical groove and the protection unit, the baffle can protect for the top that leads to the groove, and the rubber circle can offset tightly with the upper surface of case lid simultaneously, can shelter from the protection to the top that leads to the groove, can restrain the outside diffusion of smell simultaneously.

Drawings

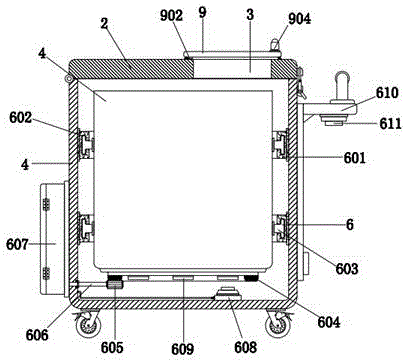

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of a connection structure of the tank and the barrel of FIG. 1;

FIG. 3 is a schematic view of a connection structure of the cover and the shielding mechanism of FIG. 1;

FIG. 4 is a top cross-sectional view of the bucket body;

FIG. 5 is a schematic view of the connection between the cartridge and the stability enhancing mechanism of FIG. 4;

fig. 6 is a schematic view of the connection of the cartridge, column and riser of fig. 4.

In the figure: 1. the intelligent identification device comprises a box body, 2, a box cover, 3, a through groove, 4, a barrel body, 5, a partition plate, 6, an intelligent identification unit, 601, a circular ring, 602, a trapezoidal sliding groove, 603, a trapezoidal sliding block, 604, a tooth ring, 605, a tooth column, 606, a rotating rod, 607, a box, 608, a color mark identification sensor, 609, a color mark block, 610, a support, 611, an identification camera, 7, a cleaning unit, 701, a cylinder, 702, a vertical groove, 703, a vertical plate, 704, a handle, 705, a storage barrel, 8, a stability enhancement unit, 801, a sheet iron, 802, a magnet block, 803, a pasting plate, 9, a protection unit, 901, a baffle plate, 902, a pin rod, 903, a rubber ring, 904 and a bump.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-6, the present invention provides a technical solution: an indoor automatic induction intelligent garbage can comprises a can body 1, a can cover 2 is arranged on the upper surface of the can body 1, a through groove 3 is formed in the right side of the upper surface of the can cover 2, a can body 4 is arranged inside the can body 1, a plurality of partition plates 5 are arranged inside the can body 4, an intelligent identification unit 6 is arranged outside the can body 4, the intelligent identification unit 6 comprises a circular ring 601, a trapezoidal sliding groove 602, a trapezoidal sliding block 603, a tooth ring 604, a tooth column 605, a rotating rod 606, a case 608, a color code identification sensor 608, a color code block 609, a support 610 and an identification camera 611, the two circular rings 601 are respectively positioned on the upper side and the lower side of the inner center of the can body 1, the outer wall of the circular ring 601 is fixedly connected with the inner wall of the can body 1, the trapezoidal sliding groove 602 is formed in the inner wall of the circular ring 601, the trapezoidal sliding block 603 is connected with the trapezoidal sliding block 603 in a sliding, the end part of the inner side of the trapezoidal sliding block 603 is fixedly connected with the outer wall of the barrel body 4, the tooth ring 604 is positioned on the lower surface of the barrel body 4, the upper surface of the tooth ring 604 is fixedly connected with the lower surface of the barrel body 4, the left side of the lower surface of the tooth ring 604 is provided with a tooth column 605, the outer wall of the tooth column 605 is meshed with the contact surface of the tooth ring 604, the center of the left surface of the tooth column 605 is provided with a rotating rod 606, a part of the rotating rod 606 penetrates through the box body 1, the rotating rod 606 is rotatably connected with the box body 1 through a ball bearing, the end part of the outer side of the rotating rod 606 is connected with a case 607, the case 607 is internally provided with a motor, a storage battery, a control module component and the like, the output shaft of the motor is fixedly connected with the rotating rod 606, the storage battery can provide electric energy for each electric component inside the case 607 as well as an identification camera 611 and a color mark identification, a plurality of color marker blocks 609 are the annular setting around the lower surface of staving 4, color marker block 609 links to each other with the lower fixed surface of staving 4, support 610 is located box 1's right surface, support 610 links to each other with box 1's contact surface is fixed, discernment camera 611 is installed on the top right side of support 610, the universal wheel is all installed in box 1's lower surface four corners, the box 1 of being convenient for of universal wheel removes, U type pole is installed on the upper surface right side of support 610, the operating personnel of being convenient for of U type pole carries out the application of force to box 1.

The inside of staving 4 is equipped with just clean mechanism 7, just clean mechanism 7 includes cylinder 701, erect groove 702, riser 703, handle 704 and storage cylinder 705, cylinder 701 rigid coupling is at the inside bottom center of staving 4, cylinder 701 links to each other with the contact surface of baffle 5 is fixed, cylinder 701's outer wall is the annular and has seted up a plurality of perpendicular grooves 702, the inside of erecting groove 702 is equipped with riser 703, the outer wall of riser 703 and the inner wall clearance fit who erects groove 702, the upper surface rigid coupling of riser 703 has handle 704, the outside surface rigid coupling of riser 703 has storage cylinder 705.

The stability augmentation unit 8 is arranged inside the storage barrel 705, the stability augmentation unit 8 comprises an iron sheet 801, magnet blocks 802 and a pasting plate 803, the iron sheet 801 is located on the inner wall of the storage barrel 705, the outer wall of the iron sheet 801 is fixedly connected with the inner wall of the storage barrel 705, a plurality of magnet blocks 802 are arranged above the inner wall of the iron sheet 801, the magnet blocks 802 and the iron sheet 801 are mutually attracted, the pasting plate 803 is arranged on the outer side surface of the magnet block 802, and the pasting plate 803 is fixedly connected with the contact surface of the magnet blocks 802.

Case lid 2 be equipped with protection unit 9 on the right side of the higher authority, protection unit 9 includes baffle 901, pin 902, rubber circle 903 and lug 904, baffle 901 is located logical groove 3's top, baffle 901's lower surface left side is rotated and is connected with pin 902, pin 903 passes through ball bearing and baffle 901 and rotates continuously, pin 902's bottom links to each other with case lid 2's contact surface is fixed, baffle 901's lower surface rigid coupling has rubber circle 903, rubber circle 903 is made for the rubber material, certain toughness has, baffle 901's upper surface right side rigid coupling has lug 904.

When the indoor automatic induction intelligent garbage can is used, firstly, the box body 1 is placed above an indoor proper horizontal plane, a garbage dumping person places garbage to be thrown in below the identification camera 611 for shooting, identifying and collecting, then, identification and analysis are carried out through the module assembly inside the machine box 607, the module assembly inside the machine box 607 rotates the rotating rod 606 and the tooth column 605, the can body 4 can rotate due to the meshing connection relationship between the tooth column 605 and the tooth ring 604, the color mark identification sensor 608 can identify and transmit the upper color mark block 609 in the process, when the type of the corresponding thrown garbage is positioned above the color mark identification sensor 608 relative to the color mark block 609 of the color, the color mark identification sensor 608 can send an instruction to the control module assembly inside the machine box 607 to stop the rotating rod 606 and the tooth column 605, at this time, the operator can throw the garbage to be thrown in the can into the can body 4 through the through groove 3, can be for rubbish drop into the in-process to carry out rubbish discernment and classify and put in, practicality can promote, does benefit to and uses widely.

In the description of the present invention, it is to be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "other end", "upper", "one side", "top", "inner", "front", "center", "both ends", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention.

In the present invention, unless otherwise expressly specified or limited, the terms "mounted," "disposed," "connected," "secured," "screwed" and the like are to be construed broadly, e.g., as meaning fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; the terms may be directly connected or indirectly connected through an intermediate, and may be communication between two elements or interaction relationship between two elements, unless otherwise specifically limited, and the specific meaning of the terms in the present invention will be understood by those skilled in the art according to specific situations.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an indoor auto-induction intelligence garbage bin, includes box (1), its characterized in that: the box body is characterized in that a box cover (2) is arranged on the upper surface of the box body (1), a through groove (3) is formed in the right side of the upper surface of the box cover (2), a barrel body (4) is arranged inside the box body (1), a plurality of partition plates (5) are arranged inside the barrel body (4), and an intelligent identification unit (6) is arranged on the outer side of the barrel body (4);

the intelligent identification unit (6) comprises a circular ring (601), a trapezoidal sliding groove (602), a trapezoidal sliding block (603), a tooth ring (604), a tooth column (605), a rotating rod (606), a case (608), a color code identification sensor (608), a color code block (609), a bracket (610) and an identification camera (611);

the two circular rings (601) are respectively positioned at the upper side and the lower side of the inner center of the box body (1), the outer wall of each circular ring (601) is fixedly connected with the inner wall of the box body (1), the inner wall of each circular ring (601) is provided with a trapezoidal sliding chute (602), a trapezoidal sliding block (603) is slidably clamped in the trapezoidal sliding chute (602), the inner side end part of each trapezoidal sliding block (603) is fixedly connected with the outer wall of the barrel body (4), each tooth ring (604) is positioned on the lower surface of the barrel body (4), the upper surface of each tooth ring (604) is fixedly connected with the lower surface of the barrel body (4), a tooth column (605) is arranged on the left side of the lower surface of each tooth ring (604), the outer wall of each tooth column (605) is meshed and connected with the contact surface of each tooth ring (604), a rotating rod (606) is arranged at the center of the left surface of each tooth column (605), and a part of each rotating rod (606) penetrates, the utility model discloses a wash bucket, including swivel rod (606), color mark piece (609), color mark piece (610), support (610), and identification camera head (611) are fixed continuous with the contact surface of box (1), swivel rod (606) rotates with box (1) through ball bearing and links to each other, the outside end of swivel rod (606) is connected with quick-witted case (607), quick-witted case (607) links to each other with the contact surface of box (1) is fixed, color mark piece (608) are installed on the inside bottom right side of box (1), and are a plurality of color mark piece (609) are the annular and set up around the lower surface of staving (4), color mark piece (609) link to each other with the lower fixed surface of staving (4), support (610) are located the right surface of box (1), support (610) link to.

2. The indoor automatic induction intelligent garbage can according to claim 1, characterized in that: universal wheels are mounted at four corners of the lower surface of the box body (1).

3. The indoor automatic induction intelligent garbage can according to claim 1, characterized in that: and a U-shaped rod is arranged on the right side of the upper surface of the bracket (610).

4. The indoor automatic induction intelligent garbage can according to claim 1, characterized in that: a convenient cleaning mechanism (7) is arranged inside the barrel body (4);

the convenient cleaning mechanism (7) comprises a column (701), a vertical groove (702), a vertical plate (703), a handle (704) and a storage barrel (705);

the inside bottom center of cylinder (701) rigid coupling at staving (4), cylinder (701) links to each other with the contact surface of baffle (5) is fixed, the outer wall of cylinder (701) is the annular and has seted up a plurality of perpendicular grooves (702), the inside of erecting groove (702) is equipped with riser (703), the outer wall of riser (703) and the inner wall clearance fit who erects groove (702), the upper surface rigid coupling of riser (703) has handle (704), the outside surface rigid coupling of riser (703) has storage cylinder (705).

5. The indoor automatic induction intelligent garbage can according to claim 4, characterized in that: a stability augmentation unit (8) is arranged inside the storage barrel (705);

the stability augmentation unit (8) comprises a sheet iron (801), a magnet block (802) and a pasting plate (803);

sheet iron (801) are located the inner wall of storage cylinder (705), the outer wall of sheet iron (801) links to each other with the inner wall of storage cylinder (705) is fixed, the inner wall top of sheet iron (801) is equipped with a plurality of magnet pieces (802), magnet piece (802) and sheet iron (801) attract each other, the outside surface of magnet piece (802) is equipped with flitch (803), flitch (803) link to each other with the contact surface of magnet piece (802) is fixed.

6. The indoor automatic induction intelligent garbage can according to claim 1, characterized in that: a protection unit (9) is arranged on the right side of the upper surface of the handle of the box cover (2);

the protection unit (9) comprises a baffle (901), a pin rod (902), a rubber ring (903) and a bump (904);

the baffle (901) is positioned above the through groove (3), the left side of the lower surface of the baffle (901) is rotatably connected with a pin rod (902), the bottom end of the pin rod (902) is fixedly connected with the contact surface of the box cover (2), the lower surface of the baffle (901) is fixedly connected with a rubber ring (903), and the right side of the upper surface of the baffle (901) is fixedly connected with a bump (904).
