Abstract
本发明公开一种计算机CPU散热器清污设备，其包括机壳、导热片清洁组件、散热风扇清洁组件以及集尘组件，其中，所述机壳的中部设置有固定装置，且所述固定装置向上延伸至机壳外部连接有步进电机，以便对固定的散热器进行小角度转动，所述导热片清洁组件设置在固定装置的左右两侧，用于对导热片的间隙进行清洁；所述散热风扇清洁组件安装在固定装置的正下方，用于对三个风扇叶片进行清洁；所述集尘组件设置在机壳的底端，且通过软管与散热风扇清洁组件相连通，用于收集清扫散热器而脱落的灰尘杂物。
The invention discloses a computer CPU radiator cleaning device, which comprises a casing, a heat-conducting sheet cleaning component, a cooling fan cleaning component and a dust collecting component, wherein a fixing device is arranged in the middle of the casing, and the fixing device A stepper motor is connected up to the outside of the casing, so as to rotate the fixed heat sink at a small angle, and the thermally conductive sheet cleaning components are arranged on the left and right sides of the fixing device to clean the gap between the thermally conductive sheets; the The cooling fan cleaning assembly is installed just below the fixing device for cleaning the three fan blades; the dust collecting assembly is arranged at the bottom end of the casing and communicated with the cooling fan cleaning assembly through a hose for collecting Remove dust and debris from the radiator.
Description
Technical Field
The invention belongs to the technical field of computer decontamination, and particularly relates to a computer CPU radiator decontamination device.
Background
The computer CPU radiator is mainly used for radiating CPU of a computer in operation so as to ensure normal and continuous operation of the computer, and along with the increase of the service time of the computer, the CPU radiator inside the computer often accumulates a lot of dust, thereby greatly influencing the radiating effect and causing the computer to be incapable of operating normally or even damaged, so the computer CPU radiator needs to be cleaned regularly, however, according to the research, the prior computer CPU radiator decontamination method usually has the following problems:
1. the heat conducting fins and the heat radiating fan of the radiator are disassembled to be manually cleaned, so that the efficiency is low, and the cleaned dust is difficult to clean;
2. the dust on the surface of the cooling fan can be cleaned only, but the dust among the blades cannot be cleaned well, and meanwhile, the cleaning effect of the cooling fan with different blades is greatly different and has large limitation;
3. the radiator is cleaned through the single movement mechanism, so that dust can be accumulated at the corners of the radiating fins and cannot be completely cleared, and the dirt cleaning effect is greatly reduced.
Accordingly, one skilled in the art provides a computer CPU heat sink decontamination apparatus to solve the problems set forth in the background art.
Disclosure of Invention
In order to achieve the purpose, the invention provides the following technical scheme: a computer CPU radiator decontamination device comprises a machine shell, a heat conducting fin cleaning assembly, a heat radiating fan cleaning assembly and a dust collecting assembly, wherein a fixing device is arranged in the middle of the machine shell, the fixing device extends upwards to the outside of the machine shell and is connected with a stepping motor so as to rotate the fixed radiator at a small angle, and the heat conducting fin cleaning assembly is arranged on the left side and the right side of the fixing device and is used for cleaning a gap between heat conducting fins;
the cooling fan cleaning component is arranged right below the fixing device and used for cleaning the three fan blades;
the dust collecting component is arranged at the bottom end of the machine shell, is communicated with the cooling fan cleaning component through a hose and is used for collecting dust impurities falling off when the radiator is cleaned.
Further, preferably, the heat conducting sheet cleaning assembly comprises an X-direction pneumatic slide rail, adjusting rods and a cleaning device, the cleaning device is arranged on the X-direction pneumatic slide rail, and the two adjusting rods are fixedly mounted at the bottom end of the X-direction pneumatic slide rail;
and one end of the X-direction pneumatic sliding rail, which is far away from the fixing device, is communicated with the cylinder.
Preferably, the sweeping device comprises an oscillator, a first spring, a swinging rod and an accommodating shell, the middle of the swinging rod is rotatably connected in the accommodating shell, the oscillator is arranged below one end of the swinging rod, which is far away from the fixing device, and two sides of the part of the swinging rod, which is located between the oscillator and the rotating connection point, are fixedly connected through the inner walls of the accommodating shell of the first springs;
the swing rod forms an inclination angle of 36 degrees with the horizontal direction;
the oscillator and the swinging rod are arranged vertically;
the first spring is also perpendicular to the swinging rod.
Further, preferably, one end of the swinging rod, which is far away from the fixing device, is also provided with a cleaning brush, and the cleaning brush is made of a harder material.
Further, preferably, the cooling fan cleaning assembly comprises a hydraulic telescopic rod, an inclined brush device and a fixed rotation mechanism, the hydraulic telescopic rods are fixed on the left side and the right side of the bottom end of the bearing table, and the fixed rotation mechanism is arranged in the middle of the upper end face of the bearing table;
the cross section of plummer is circular, and, its up end is close to outer circumference part and is provided with oblique brush device.
Preferably, the fixed rotation mechanism comprises a micro motor and a first electric telescopic rod, the bottom end of the first electric telescopic rod extends downwards to the bearing table to form an extension part, the bottom end of the extension part is rotatably connected with the bearing table through a bearing, and the micro motor is fixed at the right end of the extension part and is embedded in the bearing table;
the circumferential surface of the lower part of the extension part is distributed with a plurality of straight teeth and is connected with a rotating shaft of the micro motor through gear engagement; and the top end of the electric telescopic rod I is provided with elastic cotton.
Further, preferably, the upper end surface of the bearing table is provided with a plurality of collecting ports, and the collecting ports are all downwards communicated into an arc temporary storage space at the bottom of the bearing table;
the cross section of the collecting port is of an arc-shaped structure; and the two ends of the bearing platform are uniformly distributed on the outer circumference of the upper end surface of the bearing platform;
and an annular baffle is arranged on the outermost circumference of the upper end surface of the bearing table.
Further, preferably, the inclined brush device comprises a rotating motor and a brush head, and the brush head is fixedly connected to the tail end of an output shaft of the rotating motor;
the tail part of the rotating motor is rotatably connected to the bearing table, and a protective shell is sleeved outside an output shaft of the rotating motor;
the middle of the lower end of the protective shell is rotatably connected with a second electric telescopic rod, and the second electric telescopic rod is rotatably connected to the bearing platform.
Further, preferably, the brush head comprises a circular disc body, a buffer plate and a fine adjustment mechanism, the left end face of the circular disc body is fixedly connected with the buffer plate through a plurality of springs II, and a plurality of fine adjustment mechanisms are uniformly distributed on the circumferential side face of the circular disc body;
soft brushes are uniformly distributed on one surface, far away from the spring II, of the buffer plate, the cross section of each soft brush is of a symmetrical arc structure from the middle part to two sides, and the single side of each soft brush tends to be high in the middle part and low in the edge;
the right end face of the circular tray body is also provided with a soft brush which is only distributed on the circumferential surface which is inclined to the outer side.
Further, preferably, the fine adjustment mechanism comprises a sliding rod, a third spring and an arc-shaped plate, the bottom end of the sliding rod is connected to the circular disc body in a sliding mode through the third springs, and the arc-shaped plate is fixed to the other end of the sliding rod through a connecting rod;
the surface of the arc-shaped plate, which is far away from the slide bar, is provided with soft brushes, the occupied range of the soft brushes is matched with the arc surface of the arc-shaped plate, and the cross section of the soft brushes is also of an arc-shaped structure.
Compared with the prior art, the invention has the beneficial effects that:
1. in the equipment, the radiator is integrally fixed on the fixing device, and under the common cooperation of the heat conducting fin cleaning assembly and the cooling fan cleaning assembly, the radiator can be cleaned at one time, so that the cleaning efficiency is greatly improved;
2. in the cooling fan cleaning assembly, the inclined brush device is rotatably arranged on the bearing table, the inclination angle of the brush head can be adjusted through the electric telescopic rod II so as to adapt to cooling fans with different blade numbers and shapes, meanwhile, the brush head is also provided with a buffer plate and a fine adjustment assembly, the buffer plate can adapt to cooling fans with different blade gaps, and the fine adjustment assembly can effectively clean the root parts of the blades in a rotating state of the brush head, so that the cleaning effect is improved;
3. make the swinging arms drive clean brush through the oscillator in the clean subassembly of conducting strip and clean the conducting strip, adjust pole one simultaneously and do short stroke up-and-down motion at clean in-process for clean brush is better to the effect of decontaminating of the edge of conducting strip spare, thereby has improved whole effect of decontaminating.
Drawings

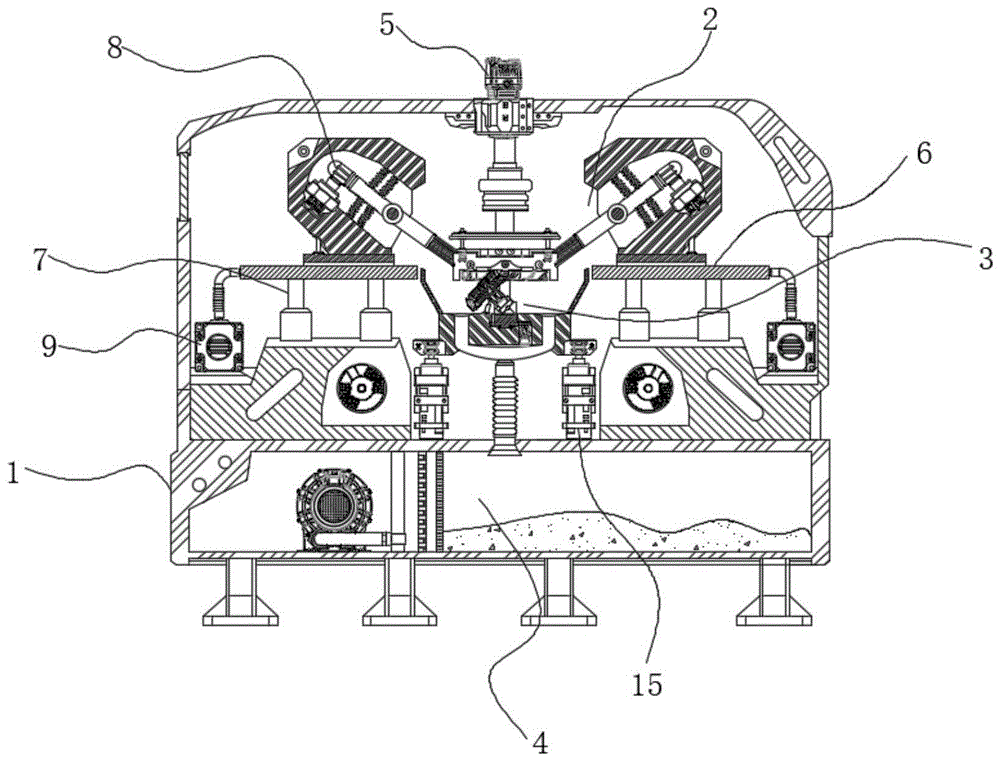

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of a heat conducting fin cleaning assembly according to the present invention;
FIG. 3 is a schematic structural diagram of a cooling fan cleaning assembly according to the present invention;
FIG. 4 is a schematic structural view of a fixed rotation mechanism according to the present invention;
FIG. 5 is a schematic view of the construction of a brush head according to the present invention;
FIG. 6 is an enlarged view of the structure at A of FIG. 5
In the figure: 1. a housing; 2. a heat conducting fin cleaning assembly; 3. a radiator fan cleaning assembly; 4. a dust collection assembly; 5. a stepping motor; 6. an X-direction pneumatic slide rail; 7. adjusting a rod; 8. a cleaning device; 9. a cylinder; 10. an oscillator; 11. a first spring; 12. a swing lever; 13. a housing case; 14. cleaning the brush; 15. a hydraulic telescopic rod; 16. an inclined brush device; 17. a fixed rotation mechanism; 18. a bearing table; 19. a micro motor; 20. a first electric telescopic rod; 21. rotating the motor; 22. a brush head; 23. a second electric telescopic rod; 24. a buffer plate; 25. a fine adjustment mechanism; 26. a second spring; 27. a slide bar; 28. a third spring; 29. an annular baffle; 30. elastic cotton; 31. an arc-shaped plate.
Detailed Description
Referring to fig. 1, in an embodiment of the present invention, a computer CPU heat sink cleaning apparatus includes a housing 1, a heat conducting fin cleaning assembly 2, a cooling fan cleaning assembly 3, and a dust collecting assembly 4, wherein a fixing device is disposed in a middle portion of the housing 1, the fixing device extends upward to an outside of the housing and is connected to a stepping motor 5, so as to rotate the fixed heat sink at a small angle, and the heat conducting fin cleaning assemblies are disposed on left and right sides of the fixing device and are used for cleaning a gap between the heat conducting fins;
the cooling fan cleaning component 3 is arranged right below the fixing device and used for cleaning the three fan blades;
dust collection component 4 sets up in the bottom of casing 1, and is linked together through hose and the clean subassembly 3 of radiator fan for collect clean the radiator and the dust debris that drop, herein, the bottom of casing 1 is passed through the hose intercommunication and is collected the space, just be provided with the dust absorption fan in the collection space, can effectively absorb the dust debris that the cleanness drops, prevent the polluted environment.
In this embodiment, the heat conducting sheet cleaning assembly 2 includes an X-direction pneumatic slide rail 6, an adjusting rod 7 and a cleaning device 8, the cleaning device 8 is arranged on the X-direction pneumatic slide rail 6, and two adjusting rods 7 are fixedly mounted at the bottom end of the X-direction pneumatic slide rail 6;
one end of the X-direction pneumatic slide rail 6, which is far away from the fixing device, is communicated with the cylinder 9, and it is noted that the X-direction pneumatic slide rail 6 is communicated with the cylinder 9 through a soft air pipe, and a certain extra length is left, which is enough to meet the maximum displacement stroke of the adjusting rod 7.
Referring to fig. 2, as a preferred embodiment, the cleaning device 8 includes an oscillator 10, a first spring 11, a swing rod 12 and an accommodating case 13, the middle of the swing rod 12 is rotatably connected in the accommodating case 13, the oscillator 10 is disposed below one end of the swing rod 12 away from the fixing device, and both sides of the portion of the swing rod 12 between the oscillator 10 and the rotation connection point are fixedly connected to the inner wall of the accommodating case 13 through the first springs 11, it should be noted that when the oscillator 10 works, the swing frequency of the swing rod 12 is 300-500 times/min, and a proper frequency can be selected according to the covering degree of dust on the radiator, so that the cleaning device is more intelligent, and the cleaning effect is further improved;
the angle of inclination of the swing rod 12 is 36 degrees with the horizontal direction, and multiple tests prove that the angle of inclination can achieve a good cleaning effect within the range of 33-38 degrees, and the optimal angle is 36 degrees;
the oscillator 10 and the oscillating rod 12 are arranged perpendicular to each other;
the first spring 11 is also arranged perpendicular to the oscillating rod 12.
In this embodiment, fixing device's one end is kept away from to swinging arms 12 still cloth has cleaning brush 14, cleaning brush 14 adopts harder material, because the conducting strip is the metal material, and, its surperficial adnexed dust is comparatively stubborn, consequently, adopts the dust on harder material's cleaning brush 14 more to be favorable to thoroughly cleaning the surperficial dust of conducting strip to improve the effect of decontaminating.
Referring to fig. 3, in the embodiment, the cooling fan cleaning assembly 3 includes a hydraulic telescopic rod 15, an inclined brush device 16 and a fixed rotation mechanism 17, the hydraulic telescopic rods 15 are fixed on the left and right sides of the bottom end of the bearing table 18, and the fixed rotation mechanism 17 is arranged in the middle of the upper end surface of the bearing table 18;
the cross section of the bearing platform 18 is circular, and the upper end surface of the bearing platform is provided with an inclined brush device 16 close to the outer circumferential part.
Referring to fig. 4, in the embodiment, the fixed rotation mechanism 17 includes a micro motor 19 and a first electric telescopic rod 20, a bottom end of the first electric telescopic rod 20 extends downward to the bearing platform 18 to form an extension portion, a bottom end of the extension portion is rotatably connected with the bearing platform 18 through a bearing, and the micro motor 19 is fixed at a right end of the extension portion and is embedded in the bearing platform 18;
a plurality of straight teeth are distributed on the circumferential surface of the lower part of the extension part and are connected with a rotating shaft of the micro motor 19 through gear engagement; the top of the electric telescopic rod I20 is provided with elastic cotton 30, so that acting force between the electric telescopic rod I20 and the cooling fan is elastic force, damage to the cooling fan is prevented, and the elasticity can also increase friction force between the electric telescopic rod I20 and the cooling fan, so that the cooling fan can rotate along with the electric telescopic rod I20.
As a preferred embodiment, a plurality of collecting ports are formed on the upper end surface of the bearing table 18, and the collecting ports all penetrate downwards into the arc temporary storage space at the bottom of the bearing table 18;
the cross section of the collecting port is of an arc-shaped structure; and are uniformly distributed on the outer circumference of the upper end surface of the bearing table 18;
the outermost circumference of the upper end surface of the bearing table 18 is provided with an annular baffle 29, so that dust brushed off by the cooling fin cleaning component 2 can fall into the collecting component 4 through the collecting port, and the environment is prevented from being polluted.
In this embodiment, the inclined brush device 16 includes a rotating motor 21 and a brush head 22, and the brush head 22 is fixedly connected to the tail end of the output shaft of the rotating motor 21;
the tail part of the rotating motor 21 is rotatably connected to the bearing table 18, and a protective shell is sleeved outside an output shaft of the rotating motor;
the middle part of the lower end of the protective shell is rotatably connected with a second electric telescopic rod 23, and the second electric telescopic rod 23 is rotatably connected to the bearing platform 18.
Referring to fig. 5, in this embodiment, the brush head 22 includes a circular disk body, a buffer plate 24 and a fine adjustment mechanism 25, the left end surface of the circular disk body is fixedly connected to the buffer plate 24 through a plurality of second springs 26, and a plurality of fine adjustment mechanisms 25 are uniformly distributed on the circumferential side surface of the circular disk body;
the soft brushes are uniformly distributed on one surface, far away from the second spring 26, of the buffer plate 24, the cross section of each soft brush is of a symmetrical arc structure from the middle part to two sides, and the single side of each soft brush tends to be high in the middle part and low in the edge;
the right end face of the circular tray body is also provided with a soft brush which is only distributed on the circumferential surface which is inclined to the outer side.
Referring to fig. 6, in the embodiment, the fine adjustment mechanism 25 includes a slide rod 27, three springs 28 and an arc plate 31, the bottom end of the slide rod 27 is slidably connected to the circular tray body through the three springs 28, the arc plate 31 is fixed to the other end of the slide rod 27 through a connecting rod, and when the circular tray body rotates, the arc plate 31 is thrown outwards under the action of centrifugal force, so that the brush on the arc plate 31 can contact and fill the root of the blade, and a better dirt cleaning effect is achieved;
the surface of the arc-shaped plate 31, which is far away from the slide bar 27, is provided with soft brushes, the occupied range of the soft brushes is matched with the arc surface of the arc-shaped plate 31, and the cross section of the soft brushes is also of an arc-shaped structure.
Specifically, firstly, a worker installs a radiator to be cleaned on a fixing device, adjusts an X-direction pneumatic slide rail 6 and an adjusting rod 7 to enable a cleaning brush 14 of a cleaning device 8 to extend into a heat conducting sheet, then controls a cooling fan cleaning assembly 3 to move upwards to enable a brush head 22 to be in contact with a cooling fan, starts an oscillator 10 and the adjusting rod 7 to clean the heat conducting sheet, the process is continued for 1min to be enough to clean the heat conducting sheet, after the heat conducting sheet is cleaned, the cleaning device 8 is restored to the original position, the inclination angle of the brush head 22 is approximately the same as the arc profile of a blade by adjusting an electric telescopic rod two 23, the brush head 22 continues to move upwards through a hydraulic telescopic rod 15 to enable the brush head 22 to enter a blade gap, at the moment, the electric telescopic rod one 20 jacks upwards and is in contact with the middle part of the cooling fan, a certain acting force is generated, and the brush head 22 is driven by a rotating motor 21 to sequentially clean the cooling blade, in this process, drive electric telescopic handle 20 through micro motor 19 and rotate certain angle, thereby make the blade rotate certain angle, it needs to notice, when the blade rotates at every turn, clean subassembly 3 of whole radiator fan can a short distance of displacement down, after rotating at every turn, clean subassembly 3 of radiator fan pushes up once more, continue to accomplish and clean, clean time 15s at every turn can, go on repeatedly, until all blades are cleaned completely, rotate motor 21 stop work, clean subassembly 3 of radiator fan resumes to the normal position.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent substitutions or changes according to the technical solution and the inventive concept of the present invention should be covered by the scope of the present invention.
Claims (6)
1. A computer CPU heat sink decontamination apparatus, comprising: casing (1), the clean subassembly of conducting strip (2), the clean subassembly of radiator fan (3) and collection dirt subassembly (4), wherein, the middle part of casing (1) is provided with fixing device, just fixing device upwards extends to casing external connection and has step motor (5) to carry out the small-angle rotation to fixed radiator, its characterized in that: the heat conducting fin cleaning assemblies are arranged on the left side and the right side of the fixing device and used for cleaning gaps of the heat conducting fins;
the cooling fan cleaning component (3) is arranged right below the fixing device and used for cleaning the three fan blades;
the dust collecting component (4) is arranged at the bottom end of the machine shell (1), is communicated with the cooling fan cleaning component (3) through a hose and is used for collecting dust and sundries falling off when the radiator is cleaned;
the cooling fan cleaning assembly (3) comprises a hydraulic telescopic rod (15), an inclined brush device (16) and a fixed rotating mechanism (17), the hydraulic telescopic rod (15) is fixed on the left side and the right side of the bottom end of a bearing table (18), and the fixed rotating mechanism (17) is arranged in the middle of the upper end face of the bearing table (18);
the cross section of the bearing table (18) is circular, and an inclined brush device (16) is arranged on the upper end surface of the bearing table close to the outer circumference;
the fixed rotation mechanism (17) comprises a micro motor (19) and a first electric telescopic rod (20), the bottom end of the first electric telescopic rod (20) extends downwards to the bearing table (18) to form an extension part, the bottom end of the extension part is rotatably connected with the bearing table (18) through a bearing, and the micro motor (19) is fixed at the right end of the extension part and is embedded in the bearing table (18);
the circumferential surface of the lower part of the extension part is distributed with a plurality of straight teeth and is connected with a rotating shaft of a micro motor (19) through gear engagement; the top end of the electric telescopic rod I is provided with elastic cotton (30);
the upper end surface of the bearing table (18) is provided with a plurality of collecting ports, and the collecting ports are all downwards communicated into an arc temporary storage space at the bottom of the bearing table (18);
the cross section of the collecting port is of an arc-shaped structure; and the two are uniformly distributed on the outer circumference of the upper end surface of the bearing table (18);
an annular baffle (29) is arranged on the outermost circumference of the upper end surface of the bearing table (18);
the inclined brush device (16) comprises a rotating motor (21) and a brush head (22), wherein the brush head (22) is fixedly connected to the tail end of an output shaft of the rotating motor (21);
the tail part of the rotating motor (21) is rotatably connected to the bearing table (18), and a protective shell is sleeved outside an output shaft of the rotating motor;
the lower extreme middle part of protective housing rotates and is connected with electric telescopic handle two (23), electric telescopic handle two (23) rotate to be connected on plummer (18).
2. The computer CPU heat sink decontamination apparatus of claim 1, wherein: the heat conducting sheet cleaning assembly (2) comprises an X-direction pneumatic slide rail (6), adjusting rods (7) and a cleaning device (8), wherein the cleaning device (8) is arranged on the X-direction pneumatic slide rail (6), and the bottom end of the X-direction pneumatic slide rail (6) is fixedly provided with two adjusting rods (7);
and one end of the X-direction pneumatic sliding rail (6) far away from the fixing device is communicated with the air cylinder (9).
3. The computer CPU heat sink decontamination apparatus of claim 2, wherein: the cleaning device (8) comprises an oscillator (10), springs (11), a swinging rod (12) and an accommodating shell (13), the middle part of the swinging rod (12) is rotatably connected in the accommodating shell (13), the oscillator (10) is arranged below one end, away from the fixing device, of the swinging rod (12), and two sides of the part, between the oscillator (10) and the rotating connection point, of the swinging rod (12) are fixedly connected with the inner wall of the accommodating shell (13) through the springs (11);
the swing rod (12) forms an inclination angle of 36 degrees with the horizontal direction;
the oscillator (10) and the swinging rod (12) are arranged vertically to each other;
the first spring (11) is also arranged perpendicular to the oscillating rod (12).
4. The computer CPU heat sink decontamination apparatus of claim 3, wherein: cleaning brushes (14) are further distributed at one end, far away from the fixing device, of the swinging rod (12), and the cleaning brushes (14) are made of harder materials.
5. The computer CPU heat sink decontamination apparatus of claim 1, wherein: the brush head (22) comprises a circular disc body, a buffer plate (24) and a fine adjustment mechanism (25), the left end face of the circular disc body is fixedly connected with the buffer plate (24) through a plurality of springs II (26), and a plurality of fine adjustment mechanisms (25) are uniformly distributed on the circumferential side face of the circular disc body;
soft brushes are uniformly distributed on one surface, far away from the second spring (26), of the buffer plate (24), the cross section of each soft brush is of a symmetrical arc structure from the middle part to two sides, and the single side of each soft brush tends to be high in the middle part and low in the edge;
the right end face of the circular tray body is also provided with a soft brush which is only distributed on the circumferential surface which is inclined to the outer side.
6. The computer CPU heat sink decontamination apparatus of claim 5, wherein: the fine adjustment mechanism (25) comprises a sliding rod (27), a third spring (28) and an arc-shaped plate (31), the bottom end of the sliding rod (27) is connected to the circular tray body in a sliding mode through the third springs (28), and the arc-shaped plate (31) is fixed to the other end of the sliding rod (27) through a connecting rod;
the soft brush is arranged on one surface, away from the sliding rod (27), of the arc-shaped plate (31), the occupied range of the soft brush is matched with the arc surface of the arc-shaped plate (31), and the cross section of the soft brush is also of an arc-shaped structure.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011031344.0A CN112246700B (en) | 2020-09-27 | 2020-09-27 | Computer CPU radiator equipment of decontaminating |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011031344.0A CN112246700B (en) | 2020-09-27 | 2020-09-27 | Computer CPU radiator equipment of decontaminating |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN112246700A CN112246700A (en) | 2021-01-22 |
| CN112246700B true CN112246700B (en) | 2021-09-28 |
Family
ID=74233356
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202011031344.0A Active CN112246700B (en) | 2020-09-27 | 2020-09-27 | Computer CPU radiator equipment of decontaminating |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112246700B (en) |
Families Citing this family (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN112904960B (en) * | 2021-02-04 | 2022-06-14 | 安徽商贸职业技术学院 | A computer heat dissipation structure and its processing method |
| CN113900504B (en) * | 2021-11-18 | 2023-04-25 | 秦皇岛职业技术学院 | Self-cleaning computer device based on temperature monitoring |
Citations (18)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JPH10137698A (en) * | 1996-11-06 | 1998-05-26 | Masayuki Matsuoka | Cleaning device, ventilation fan fitting and removing device, ventilation hole and ventilation fan guide device with wheel in air conditioner |
| CN102593084A (en) * | 2011-01-18 | 2012-07-18 | 技嘉科技股份有限公司 | Heat dissipation module and electronic device with heat dissipation module |
| CN203076232U (en) * | 2013-02-08 | 2013-07-24 | 常州中新天马玻璃纤维制品有限公司 | Metal mesh tape cleaning device |
| CN203818885U (en) * | 2014-05-23 | 2014-09-10 | 安徽省皖凯机械有限公司 | Cleaning system for stone carving machine |
| CN204148161U (en) * | 2014-09-17 | 2015-02-11 | 东莞玖龙纸业有限公司 | An automatic cleaning device for calender rollers |
| CN105068626A (en) * | 2015-08-11 | 2015-11-18 | 成都思邦力克科技有限公司 | Heat radiator with multi-position dust removal devices |
| CN204817359U (en) * | 2015-07-29 | 2015-12-02 | 长兴荣力机械有限公司 | Scrub decontamination mechanism |
| CN205020458U (en) * | 2015-09-02 | 2016-02-10 | 天津海晶塑料制品有限公司 | Dust removal cabinet |
| CN107665035A (en) * | 2017-11-15 | 2018-02-06 | 成都汇骏盟邦科技有限公司 | A kind of safe computer power supply |
| CN207308419U (en) * | 2017-09-30 | 2018-05-04 | 胡伊男 | Radiating fin of transformer clearing apparatus |
| CN207668056U (en) * | 2017-11-21 | 2018-07-31 | 广州市冠发散热器有限公司 | A kind of dust-extraction unit for gilled radiator |
| CN207952062U (en) * | 2017-12-24 | 2018-10-12 | 建泰建设有限公司 | A kind of efficient swing type cleaning device of building scrap iron material |
| CN208066830U (en) * | 2017-12-19 | 2018-11-09 | 杭州凯傲科技有限公司 | A kind of cleaning device of casting machine heating station |
| CN208131530U (en) * | 2018-01-31 | 2018-11-23 | 杨雨璇 | A kind of computer heat emission fan dedusting frame |
| CN208188770U (en) * | 2018-03-29 | 2018-12-04 | 南阳医学高等专科学校第一附属医院 | A kind of external heat emission fan of easy-to-clean ash notebook |
| CN208840052U (en) * | 2018-04-23 | 2019-05-10 | 深圳市三烨科技有限公司 | A kind of heat-pipe radiator dust-extraction unit |
| CN209139273U (en) * | 2018-11-27 | 2019-07-23 | 长安大学 | A kind of full-automatic multiple degrees of freedom street lamp cleaning device |
| CN209491091U (en) * | 2019-01-28 | 2019-10-15 | 赣州市超华科技有限公司 | Cleaning device for automobile air-conditioning radiator |
-
2020
- 2020-09-27 CN CN202011031344.0A patent/CN112246700B/en active Active
Patent Citations (18)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JPH10137698A (en) * | 1996-11-06 | 1998-05-26 | Masayuki Matsuoka | Cleaning device, ventilation fan fitting and removing device, ventilation hole and ventilation fan guide device with wheel in air conditioner |
| CN102593084A (en) * | 2011-01-18 | 2012-07-18 | 技嘉科技股份有限公司 | Heat dissipation module and electronic device with heat dissipation module |
| CN203076232U (en) * | 2013-02-08 | 2013-07-24 | 常州中新天马玻璃纤维制品有限公司 | Metal mesh tape cleaning device |
| CN203818885U (en) * | 2014-05-23 | 2014-09-10 | 安徽省皖凯机械有限公司 | Cleaning system for stone carving machine |
| CN204148161U (en) * | 2014-09-17 | 2015-02-11 | 东莞玖龙纸业有限公司 | An automatic cleaning device for calender rollers |
| CN204817359U (en) * | 2015-07-29 | 2015-12-02 | 长兴荣力机械有限公司 | Scrub decontamination mechanism |
| CN105068626A (en) * | 2015-08-11 | 2015-11-18 | 成都思邦力克科技有限公司 | Heat radiator with multi-position dust removal devices |
| CN205020458U (en) * | 2015-09-02 | 2016-02-10 | 天津海晶塑料制品有限公司 | Dust removal cabinet |
| CN207308419U (en) * | 2017-09-30 | 2018-05-04 | 胡伊男 | Radiating fin of transformer clearing apparatus |
| CN107665035A (en) * | 2017-11-15 | 2018-02-06 | 成都汇骏盟邦科技有限公司 | A kind of safe computer power supply |
| CN207668056U (en) * | 2017-11-21 | 2018-07-31 | 广州市冠发散热器有限公司 | A kind of dust-extraction unit for gilled radiator |
| CN208066830U (en) * | 2017-12-19 | 2018-11-09 | 杭州凯傲科技有限公司 | A kind of cleaning device of casting machine heating station |
| CN207952062U (en) * | 2017-12-24 | 2018-10-12 | 建泰建设有限公司 | A kind of efficient swing type cleaning device of building scrap iron material |
| CN208131530U (en) * | 2018-01-31 | 2018-11-23 | 杨雨璇 | A kind of computer heat emission fan dedusting frame |
| CN208188770U (en) * | 2018-03-29 | 2018-12-04 | 南阳医学高等专科学校第一附属医院 | A kind of external heat emission fan of easy-to-clean ash notebook |
| CN208840052U (en) * | 2018-04-23 | 2019-05-10 | 深圳市三烨科技有限公司 | A kind of heat-pipe radiator dust-extraction unit |
| CN209139273U (en) * | 2018-11-27 | 2019-07-23 | 长安大学 | A kind of full-automatic multiple degrees of freedom street lamp cleaning device |
| CN209491091U (en) * | 2019-01-28 | 2019-10-15 | 赣州市超华科技有限公司 | Cleaning device for automobile air-conditioning radiator |
Non-Patent Citations (1)
| Title |
|---|
| 大功率LED灯散热器结构设计;潘裕;《山东工业技术》;20180301;第7-8页 * |
Also Published As
| Publication number | Publication date |
|---|---|
| CN112246700A (en) | 2021-01-22 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN112246700B (en) | Computer CPU radiator equipment of decontaminating | |
| CN115037083A (en) | Improved structure of aviation motor shell | |
| CN118022443A (en) | Wind shielding device and wind shielding method for bag type dust collector | |
| CN218984425U (en) | Dustless grinding device of glass | |
| CN120140159A (en) | A wind power generation device with a heat dissipation mechanism | |
| CN119113673A (en) | A dust cleaning device for computer | |
| CN221872245U (en) | A splash-proof structure | |
| CN108547779B (en) | A kind of self-cleaning exhaust blower | |
| CN212966065U (en) | An easy-to-install computer cooling device | |
| CN119681050A (en) | Cable drawing machine and use method | |
| JP2007330652A (en) | Rotary rotor, vacuum cleaner floor suction tool, vacuum cleaner and air conditioner | |
| CN118778781A (en) | A heat dissipation device for computer power supply | |
| CN117294074B (en) | A DC brushless motor heat dissipation device for household sweeping machine | |
| CN119582022B (en) | Power distribution row cabinet convenient to maintain | |
| CN215878899U (en) | Dust collector for new trend system | |
| CN221816814U (en) | A cleaning device | |
| CN220981490U (en) | Building ventilation device | |
| CN222723899U (en) | Multitube type smoke filter | |
| CN221909009U (en) | A dust removal device for photovoltaic equipment and component manufacturing | |
| CN221724626U (en) | Air source heat pump base | |
| CN214945077U (en) | Air suspension high-speed centrifugal blower | |
| CN119945049B (en) | Motor heat dissipation structure of floor scrubber | |
| CN223795376U (en) | Cleaning assembly for air conditioner and air conditioner | |
| CN112074170A (en) | Electronic radiator with cleaning function | |
| CN218553444U (en) | Device for cleaning a pre-filter of an air filter and air filter |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20241009 Address after: 230000 B-1015, wo Yuan Garden, 81 Ganquan Road, Shushan District, Hefei, Anhui. Patentee after: HEFEI MINGLONG ELECTRONIC TECHNOLOGY Co.,Ltd. Country or region after: China Address before: 422000 Qiliping, Daxiang district, Shaoyang City, Hunan Province Patentee before: SHAOYANG University Country or region before: China |
|
| TR01 | Transfer of patent right | ||
| TR01 | Transfer of patent right |
Effective date of registration: 20250402 Address after: No. 118 Jingui Road, Hangbu Town, Shucheng County, Lu'an City, Anhui Province, China 237000 Patentee after: Anhui Dongchao Lianchuang Technology Co.,Ltd. Country or region after: China Address before: 230000 B-1015, wo Yuan Garden, 81 Ganquan Road, Shushan District, Hefei, Anhui. Patentee before: HEFEI MINGLONG ELECTRONIC TECHNOLOGY Co.,Ltd. Country or region before: China |
|
| TR01 | Transfer of patent right |
