CN112221923B

CN112221923B - Raw materials stone removing device that biological feed production used

Info

Publication number: CN112221923B
Application number: CN202010964031.4A
Authority: CN
Inventors: 龙永久; 高红艳; 王帆林
Original assignee: Hunan Qinong Biotechnology Co Ltd
Current assignee: Hunan Qinong Biotechnology Co Ltd
Priority date: 2020-09-14
Filing date: 2020-09-14
Publication date: 2021-11-09
Anticipated expiration: 2040-09-14
Also published as: CN112221923A

Abstract

The invention provides a raw material stone removal device for biological feed production, which relates to the field of feed processing devices. The raw material stone removal device based on the production of biological feed includes a feeding port provided at the top of the case, a rotating bearing provided at the corresponding position of the inner top of the case and the feeding port, and the inner rotating shaft of the rotating bearing is fixedly connected to the centrifugal The inlet pipe at the top of the cylinder, the center of the bottom end of the centrifugal cylinder is fixedly connected to the driving end of the high-speed motor, the high-speed motor is arranged inside the fixed box, the left and right ends of the fixed box are fixedly connected to one end of the first fixing rod, The bottom end of the chassis is fixedly connected with a collection tank, a collection device is arranged at the bottom opening of the collection tank, a water tank is arranged at the left end of the collection device, and a booster pump is arranged in the water tank. The internal structure is protected by crushing the stone in the centrifugal cylinder, and the internal cleaning is facilitated by the booster pump, which is worthy of vigorous promotion.

Description

Raw materials stone removing device that biological feed production used

Technical Field

The invention relates to the technical field of feed processing devices, in particular to a raw material stone removing device for biological feed production.

Background

The stones in the feed are required to be removed in the process of producing and processing the biological feed, so that the quality of the produced biological feed is ensured.

In the raw materials stone removing device that biological feed production used that exists at present stage, adopt vibrations screening or proportion screening method to go on basically, hardly thoroughly clear away stone impurity, the in-process of stone screening easily appears the stone card simultaneously and is in the inside condition of device, be not convenient for clear up easily simultaneously to each part cause the damage in the device, secondly all take out by the device is inside through artificial mode to the raw materials after handling basically, seriously waste manpower resources, the stone device can't realize inside self-cleaning is removed to most raw materials simultaneously, use inside dust to save too much and then can influence the normal work of each mechanism in the device for a long time.

Disclosure of Invention

Technical problem to be solved

Aiming at the defects of the prior art, the invention provides a raw material stone removing device for biological feed production, which solves the problems that stone removal is not thorough, stones are clamped in the device, the raw materials are inconvenient to take out after treatment and the interior of the device cannot be cleaned.

(II) technical scheme

In order to achieve the purpose, the invention is realized by the following technical scheme: a raw material stone removing device for biological feed production comprises a case, wherein a feed inlet is arranged at the top end of the case, a rotating bearing is arranged at the position, corresponding to the feed inlet, of the top end in the case, a rotating shaft in the rotating bearing is fixedly connected to an inlet pipeline at the top end of a centrifugal cylinder, the center of the bottom end of the centrifugal cylinder is fixedly connected to a driving end of a high-speed motor, the high-speed motor is arranged in a fixed case, the left end and the right end of the fixed case are fixedly connected to one end of a first fixed rod, the other end of the first fixed rod is respectively and fixedly connected to the inner walls of the left side and the right side of the case, a collecting tank is fixedly connected to the bottom end of the case, a collecting device is arranged at the opening at the bottom end of the collecting tank, a water tank is arranged at the left end of the collecting device, a booster pump is arranged in the water tank, a first protective shell is arranged at the bottom end in the centrifugal cylinder, a driving motor is arranged in the first protective shell, driving motor drive end fixed connection is in dwang one end, the dwang other end runs through first protective housing and rotates to be connected on centrifuge tube right side inner wall, dwang a week evenly is provided with a plurality of crushing blades.

Preferably, a switch control valve is arranged at an inlet pipeline of the centrifugal cylinder, and a plurality of holes are uniformly formed in the periphery of the centrifugal cylinder.

Preferably, collection device includes outer box, outer box bottom middle part is provided with double-end motor, the equal fixedly connected with first bevel gear of double-end motor left and right sides drive end, the meshing of first bevel gear top is connected with second bevel gear, the inside center department of second bevel gear is provided with head rod and head rod both ends and rotates respectively and connect on the inner wall at both ends around the outer box, both sides all are provided with rotating gear around the head rod, the equal meshing in rotating gear upper end is connected with the rack board.

Preferably, the rack plate is internally and evenly connected with a second fixed rod in a sliding mode, the left end of the second fixed rod is fixedly connected to the inner wall of the left side of the outer box body, the rack plate is arranged at the bottom end of the collecting box, and an opening is formed in the right end of the outer box body and corresponds to the collecting box.

Preferably, booster pump top water outlet end fixed connection is in L type connecting pipe one end, the L type connecting pipe other end runs through water tank and fixedly connected with metal collapsible tube one end, the metal collapsible tube other end runs through quick-witted case left side top and fixed connection is at the water collection sheet top end of intaking, the water collection sheet right side evenly is provided with a plurality of shower nozzles, water collection sheet left side fixedly connected with connecting block.

Preferably, nut seats are arranged at the front end and the rear end inside the connecting block, screw rods are arranged inside the nut seats and penetrate through the connecting block, the top ends of the screw rods penetrate through the case and are fixedly connected to the driving end of the first alternating current motor, and a second protective shell is arranged outside the first alternating current motor.

Preferably, the top end of the second protective shell is provided with a vertical rod, the inner side of the top end of the vertical rod is rotatably connected to one end of a second connecting rod, the other end of the second connecting rod is fixedly connected to the driving end of a second alternating current motor, and baffles are arranged on two sides of the second connecting rod.

The working principle is as follows: in the process of removing stones from the powdery biological feed raw material, the centrifugal cylinder is driven to rotate by the high-speed motor, under the action of the holes on the surface of the centrifugal cylinder, powder enters the inside of a case through the holes by high-speed centrifugation, enters the inside of the collecting box under the transmission action of the collecting box, and drives the rotation of two first connecting rods under the action of the double-head motor, the first connecting rods drive the rotation of rotating gears with two corresponding ends, so that a rack plate slides on a second fixing rod, thereby realizing the movement of the collecting box in the horizontal direction, finally, the collecting box is moved to an opening at the right end of the outer case body, the powdery biological feed raw material which is processed in the collecting box is transferred, stones in the powdery biological feed raw material cannot penetrate through the holes due to large size, and then are left in the centrifugal cylinder, at the moment, the stones are crushed by the rotation of the rotating rod driven by the driving motor so as to drive the crushing blades, inside the effect that the stone after smashing passes through the high speed motor and drives the centrifugal cylinder and see through the hole and get into the collecting box through the transportation of collecting vat inside the quick-witted case, thereby retrieve the damage that avoids the stone to cause the device inner structure to stone powder, when wasing quick-witted incasement portion, drive the rotation of corresponding screw rod through first AC motor, realize under the effect of nut seat that the connecting block carries out the linear motion on the vertical direction on the screw rod, thereby drive the removal of water-collecting plate, when shower nozzle on the water-collecting plate washs inside, decline or the rising of cooperation water-collecting plate through second AC motor carry out the rolling to metal collapsible tube, thereby realized the washing from top to bottom to quick-witted incasement portion, prevent to pile up the normal work of each mechanism inside the influence device because of the dust.

(III) advantageous effects

The invention provides a raw material stone removing device for biological feed production. The method has the following beneficial effects:

1. according to the invention, the purpose that the powder biological feed raw materials can permeate stone particles and cannot permeate the stone particles is realized under the action of the holes on the centrifugal cylinder by driving the centrifugal cylinder to rotate through the high-speed motor, so that the stone removing quality is improved, and the aim of crushing the stones under the action of the crushing blade by driving the rotating rod through the driving motor in the centrifugal cylinder is fulfilled, so that damage to each mechanism in the case caused by the stones is avoided compared with the traditional stone removing device.

2. According to the invention, the purpose that the collecting tank is driven by the rack plate to move towards the opening at the right end of the outer box body is realized under the action of the rotating gear by driving the first connecting rod to rotate by the double-head motor, so that the powdered biological feed raw materials or the powdered stone materials after the treatment is conveniently taken out manually, and the manpower resources are greatly saved.

3. According to the invention, the first alternating current motor drives the corresponding screw rod to rotate, so that the water collecting plate linearly moves in the vertical direction under the action of the nut seat, and the second alternating current motor is matched with the water collecting plate to descend or ascend so as to roll the metal hose, so that the inside of the case is cleaned from top to bottom, and the influence of dust accumulation on the normal work of each mechanism in the device is prevented.

Drawings

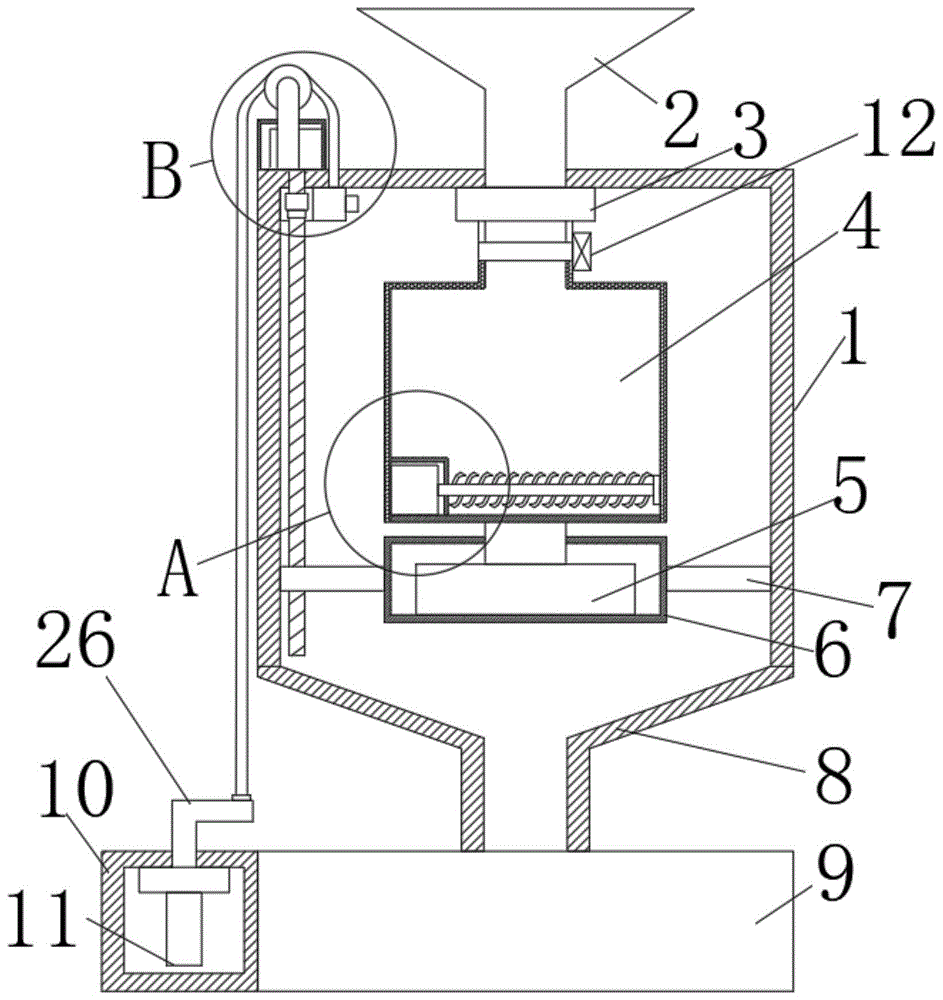

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view taken at A of FIG. 1 in accordance with the present invention;

FIG. 3 is an enlarged view taken at B of FIG. 1 in accordance with the present invention;

FIG. 4 is a cross-sectional view of a collection device of the present invention;

FIG. 5 is a schematic view showing the internal structure of the collecting apparatus of the present invention;

FIG. 6 is a perspective view of a water collection sheet according to the present invention;

fig. 7 is a side view of a second ac motor of the present invention.

Wherein, 1, a case; 2. a feed inlet; 3. a rotating bearing; 4. a centrifugal cylinder; 5. a high-speed motor; 6. a fixed box; 7. a first fixing lever; 8. collecting tank; 9. a collection device; 10. a water tank; 11. a booster pump; 12. switching the control valve; 13. a hole; 14. a first protective case; 15. a drive motor; 16. rotating the rod; 17. a crushing blade; 18. an outer case; 19. a double-headed motor; 20. a first bevel gear; 21. a second bevel gear; 22. a first connecting rod; 23. a rotating gear; 24. a rack plate; 25. a second fixing bar; 26. an L-shaped connecting pipe; 27. a metal hose; 28. a water collection plate; 29. a spray head; 30. connecting blocks; 31. a baffle plate; 32. a nut seat; 33. a screw; 34. a first alternating current motor; 35. a second protective shell; 36. erecting a rod; 37. a second connecting rod; 38. a second alternating current motor; 39. and a collection box.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Example (b):

as shown in FIGS. 1-7, an embodiment of the present invention provides a raw material stone removing device for biological feed production, comprising a casing 1, a feeding port 2 is disposed at the top end of the casing 1, a rotary bearing 3 is disposed at a position corresponding to the feeding port 2 at the top end of the casing 1, a rotating shaft inside the rotary bearing 3 is fixedly connected to an inlet pipeline at the top end of a centrifugal cylinder 4, a center of the bottom end of the centrifugal cylinder 4 is fixedly connected to a driving end of a high speed motor 5, the high speed motor 5 is disposed inside a fixed casing 6, when removing stones from a powdered biological feed, firstly, a mixture enters the centrifugal cylinder 4 through the feeding port 2, the high speed motor 5 drives the centrifugal cylinder 4 to rotate under the action of the rotary bearing 3, both left and right ends of the fixed casing 6 are fixedly connected to one end of a first fixing rod 7, and the other end of the first fixing rod 7 is respectively fixedly connected to inner walls at both left and right sides of the casing 1, the first fixing rod 7 fixes the fixed casing 6, the bottom end of the machine case 1 is fixedly connected with a collecting tank 8, the collecting tank 8 plays a role in conveying powdered biological feed or powdered stone materials, a collecting device 9 is arranged at an opening at the bottom end of the collecting tank 8, a water tank 10 is arranged at the left end of the collecting device 9, the water tank 10 provides a required water source for the interior of the device, a booster pump 11 is arranged in the water tank 10, the booster pump 11 pumps water in the water tank 10 out, a first protective shell 14 is arranged at the bottom end of the interior of the centrifuge tube 4, a driving motor 15 is arranged in the first protective shell 14, a driving end of the driving motor 15 is fixedly connected to one end of a rotating rod 16, the driving motor 15 drives the rotating rod 16 to rotate, the other end of the rotating rod 16 penetrates through the first protective shell 14 and is rotatably connected to the inner wall at the right side of the centrifuge tube 4, thereby realizing the normal rotation of the rotating rod 16, a plurality of crushing blades 17 are uniformly arranged on the circumference of the rotating rod 16, the crushing blade 17 is rotated by the driving motor 15 to crush the stones inside.

4 inlet pipe departments of centrifuge bowl are provided with on-off control valve 12, and on-off control valve 12 opens when the mixture gets into inside of centrifuge bowl 4, closes on-off control valve 12 at the in-process that carries out the rotation to the mixture, and 4 a week of centrifuge bowl evenly is provided with a plurality of holes 13, and the diameter of hole 13 can make powdered object see through, makes the unable separation that sees through of granular object to realize the separation of powdered biological feed and stone.

The collecting device 9 comprises an outer box 18, a double-end motor 19 is arranged in the middle of the bottom end of the outer box 18, first bevel gears 20 are fixedly connected to driving ends of the left side and the right side of the double-end motor 19, the driving ends at two ends of the double-end motor 19 drive the corresponding first bevel gears 20 to rotate, second bevel gears 21 are meshed with the top ends of the first bevel gears 20, the first bevel gears 20 drive the corresponding second bevel gears 21 to rotate, a first connecting rod 22 is arranged in the center of the inner portion of the second bevel gears 21, two ends of the first connecting rod 22 are respectively connected to inner walls of the front end and the rear end of the outer box 18 in a rotating mode, the second bevel gears 21 drive the corresponding first connecting rod 22 to rotate, rotating gears 23 are arranged on the front side and the rear side of the first connecting rod 22, the first connecting rod 22 drives the rotating gears 23 on the two sides to rotate, rack plates 24 are meshed with the upper ends of the rotating gears 23, and the rack plates 24 can move in the horizontal direction.

The inside equal sliding connection of rack plate 24 has second dead lever 25 and the equal fixed connection of second dead lever 25 left end on outer box 18 left side inner wall, the stability of rack plate 24 when the horizontal direction removes has been strengthened to second dead lever 25, rack plate 24 all sets up in collecting box 39 bottom, rack plate 24 drives the removal of collecting box 39, thereby realize transporting the outer purpose of output device with the inside material of collecting box 39, outer box 18 right-hand member is provided with the opening with the corresponding position of collecting box 39, the opening has realized the removal that collecting box 39 and rack plate 24 go on under the effect of double-end motor 19.

11 top water outlet end fixed connection of booster pump is in 26 one end of L type connecting pipe, 26 other ends of L type connecting pipe run through water tank 10 and fixedly connected with metal collapsible tube 27 one end, the metal collapsible tube 27 other end runs through 1 left side top of quick-witted case and the end of intaking at water collection sheet 28 top, water collection sheet 28 right side evenly is provided with a plurality of shower nozzles 29, take out the water in the water tank 10 to the water collection sheet 28 in through booster pump 11, thereby wash quick-witted case 1 inside by the release of shower nozzle 29 again, water collection sheet 28 left side fixedly connected with connecting block 30, connecting block 30 drives the linear motion of water collection sheet 28 on the vertical direction.

Both ends all are provided with nut seat 32 around connecting block 30 is inside, nut seat 32 turns into rotary motion the linear motion on corresponding screw rod 33 through the characteristic of self, nut seat 32 is inside all to be provided with screw rod 33 and screw rod 33 all runs through connecting block 30, case 1 and fixed connection are all run through at the first alternating current motor 34 drive end on screw rod 33 top, first alternating current motor 34 outside all is provided with second protective housing 35, first alternating current motor 34 drives the rotation of corresponding screw rod 33 and realizes connecting block 30 at the ascending linear motion of vertical direction under the effect of nut seat 32 in connecting block 30, thereby drive the removal of water-collecting plate 28, the realization is to the inside washing from top to bottom of case 1.

The top end of the second protective shell 35 is provided with a vertical rod 36, the vertical rod 36 plays a role in fixing, the inner side of the top end of the vertical rod 36 is rotatably connected to one end of a second connecting rod 37, the other end of the second connecting rod 37 is fixedly connected to the driving end of a second alternating current motor 38, baffles 31 are arranged on two sides of the second connecting rod 37, the second alternating current motor 38 is rotatably matched with the water collecting plate 28 to descend or ascend, the metal hose 27 is wound through the rotation of the second connecting rod 37, and the baffles 31 prevent the metal hose 27 from deviating in position.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a raw materials stone removing device for biological feed production, includes quick-witted case (1), its characterized in that: the top end of the case (1) is provided with a feed inlet (2), the top end in the case (1) is provided with a rotating bearing (3) at a position corresponding to the feed inlet (2), a rotating shaft in the rotating bearing (3) is fixedly connected with an inlet pipeline at the top end of the centrifugal cylinder (4), the center of the bottom end of the centrifugal cylinder (4) is fixedly connected with the drive end of a high-speed motor (5), the high-speed motor (5) is arranged in a fixed case (6), the left end and the right end of the fixed case (6) are fixedly connected with one end of a first fixed rod (7), the other end of the first fixed rod (7) is respectively fixedly connected with the inner walls at the left side and the right side of the case (1), the bottom end of the case (1) is fixedly connected with a collecting tank (8), a collecting device (9) is arranged at the opening at the bottom end of the collecting tank (8), and a water tank (10) is arranged at the left end of the collecting device (9), be provided with booster pump (11) in water tank (10), the inside bottom of centrifuge bowl (4) is provided with first protective housing (14), inside driving motor (15) that is provided with of first protective housing (14), driving motor (15) drive end fixed connection is in dwang (16) one end, dwang (16) other end runs through first protective housing (14) and rotate the connection on centrifuge bowl (4) right side inner wall, dwang (16) a week evenly is provided with a plurality of crushing blade (17).

2. The raw material stone removing device for biological feed production according to claim 1, characterized in that: a switch control valve (12) is arranged at an inlet pipeline of the centrifugal cylinder (4), and a plurality of holes (13) are uniformly formed in the periphery of the centrifugal cylinder (4).

3. The raw material stone removing device for biological feed production according to claim 1, characterized in that: collection device (9) are including outer box (18), outer box (18) bottom middle part is provided with double-end motor (19), double-end motor (19) left and right sides drive end equal fixedly connected with first bevel gear (20), first bevel gear (20) top meshing is connected with second bevel gear (21), second bevel gear (21) inside center department is provided with that head rod (22) and head rod (22) both ends rotate respectively and connect on the inner wall at outer box (18) front and back both ends, both sides all are provided with rotating gear (23) around head rod (22), rotating gear (23) upper end equal meshing is connected with rack plate (24).

4. A raw material stone removing device for biological feed production according to claim 3, characterized in that: the rack plate (24) is internally and evenly connected with a second fixing rod (25) in a sliding mode, the left end of the second fixing rod (25) is fixedly connected to the inner wall of the left side of the outer box body (18), the rack plate (24) is arranged at the bottom end of the collecting box (39), and an opening is formed in the right end of the outer box body (18) and the corresponding position of the collecting box (39).

5. The raw material stone removing device for biological feed production according to claim 1, characterized in that: booster pump (11) top goes out water end fixed connection in L type connecting pipe (26) one end, L type connecting pipe (26) other end runs through water tank (10) and fixedly connected with metal collapsible tube (27) one end, the metal collapsible tube (27) other end runs through quick-witted case (1) left side top and fixed connection and intakes the end at water collection sheet (28) top, water collection sheet (28) right side evenly is provided with a plurality of shower nozzles (29), water collection sheet (28) left side fixedly connected with connecting block (30).

6. A raw material stone removing device for biological feed production according to claim 5, characterized in that: both ends all are provided with nut seat (32) around connecting block (30) is inside, nut seat (32) inside all is provided with screw rod (33) and screw rod (33) all runs through connecting block (30), screw rod (33) top all runs through quick-witted case (1) and fixed connection at first alternating current motor (34) drive end, first alternating current motor (34) outside all is provided with second protective housing (35).

7. The raw material stone removing device for biological feed production according to claim 6, characterized in that: the top end of the second protective shell (35) is provided with a vertical rod (36), the inner side of the top end of the vertical rod (36) is rotatably connected to one end of a second connecting rod (37), the other end of the second connecting rod (37) is fixedly connected to the driving end of a second alternating current motor (38), and baffles (31) are arranged on two sides of the second connecting rod (37).
