Abstract
本发明涉及一种铺设装置，尤其涉及一种仿古建筑屋顶瓦片铺设装置。本发明要解决的技术问题是如何设计一种操作简单，能够节省人力，并且降低操作人员在操作时的危险性的仿古建筑屋顶瓦片铺设装置。为了解决上述技术问题，本发明提供了这样一种仿古建筑屋顶瓦片铺设装置，包括有：安装框，其两侧底部均连接有滑套，滑套为弧形设置；连杆，其为多根设置，连杆与滑套滑动配合，多根连杆能相互卡接连接，连杆为可拆卸设置；导轨，其为多根设置，多根导轨分别转动式连接在多根连杆上，多根导轨能相互卡接连接。本发明通过下料机构和卡滞机构配合运作对仿古建筑屋顶进行瓦片的铺设，从而达到铺设瓦片的效果。
The invention relates to a laying device, in particular to a roof tile laying device of an antique building. The technical problem to be solved by the present invention is how to design an antique building roof tile laying device that is easy to operate, can save manpower, and reduce the danger of operators during operation. In order to solve the above technical problems, the present invention provides such a roof tile laying device for antique buildings, which includes: an installation frame, the bottoms of both sides of which are connected with sliding sleeves, and the sliding sleeves are arranged in an arc; connecting rods, which are multiple The connecting rod and the sliding sleeve are slidably matched, and the connecting rods can be connected to each other by clamping, and the connecting rods are detachable; A plurality of guide rails can be connected to each other by snap connection. The invention lays tiles on the roof of the antique building through the coordinated operation of the blanking mechanism and the jamming mechanism, so as to achieve the effect of laying tiles.
Description
Technical Field
The invention relates to a laying device, in particular to a device for laying roof tiles of an archaized building.
Background
The archaized building is a building which is specially used for imitating and replacing ancient buildings, traditional religious temples, traditional landscapes, historical buildings and ancient village groups and restoring historical landscape general. The broad archaized building form refers to the reconstruction of ancient building form according with traditional cultural characteristics by using modern building materials or traditional building materials. In the process of manufacturing the antique building, a layer of tiles is usually laid on the roof of the antique building.
At present, the mode of laying the tile on archaize building roof is usually stood in archaize building roof by the manual work, places the tile afterwards and lays on archaize building, and above-mentioned mode operation process is comparatively loaded down with trivial details, comparatively consumes the manpower during the operation to need the manual work to remove repeatedly at archaize building roof during the operation, the operation is improper to fall from archaize building roof portion easily, has certain danger.
Therefore, it is necessary to develop a device for laying roof tiles of an archaized building, which is simple in operation, can save manpower and reduce the danger of operators during operation.
Disclosure of Invention
(1) Technical problem to be solved
In order to overcome the defects that the operation process is complicated, the labor is consumed during the operation, and certain danger is caused during the operation, the invention aims to solve the technical problem of providing the archaized building roof tile laying device which is simple to operate, can save the labor and reduce the danger of operators during the operation.
(2) Technical scheme
In order to solve the technical problem, the invention provides a device for paving roof tiles of an antique building, which comprises an installation frame, wherein the bottoms of two sides of the installation frame are both connected with sliding sleeves, and the sliding sleeves are arranged in an arc shape; the connecting rods are arranged in a plurality of ways, are in sliding fit with the sliding sleeves and can be connected in a clamping manner, and the connecting rods are arranged in a detachable manner; the guide rails are arranged in a plurality of ways, the guide rails are respectively connected to the connecting rods in a rotating mode, and the guide rails can be connected in a clamping mode; the material frame is connected to the top of the mounting frame; the blanking mechanism is arranged on the mounting frame; and the clamping stagnation mechanism is arranged on the mounting frame, and the blanking mechanism is in transmission connection with the clamping stagnation mechanism.
Preferably, the blanking mechanism comprises two rotating shafts, and the two rotating shafts are respectively connected to two sides of the mounting frame in a rotating manner; the two driving wheels are respectively connected to two sides of one rotating shaft and matched with the guide rail, and a first gear is connected to a transmission shaft of each driving wheel; the two second gears are respectively connected to two sides of the mounting frame in a rotating mode, meshed with the first gear and in transmission connection with the other rotating shaft; the two cams are arranged and are respectively connected to the middle parts of the two rotating shafts; the two sliding plates are respectively connected to the lower parts of the two sides of the mounting frame, the sliding plates are connected with U-shaped clamping rods in a sliding mode, and return springs are connected between the U-shaped clamping rods and the sliding plates.
Preferably, the clamping mechanism comprises two push plates, the two push plates are respectively connected to the lower parts of the two sides of the mounting frame in a sliding manner, and a connecting spring is connected between each push plate and the mounting frame; the two arc-shaped blocks are arranged and are respectively connected to the two push plates; the two connecting rods are arranged and respectively connected to two sides of one U-shaped clamping rod, and the connecting rods are in sliding fit with the sliding sleeves; the wedge-shaped blocks are arranged in two blocks, the two wedge-shaped blocks are connected to the two connecting rods respectively, and the wedge-shaped blocks are matched with the arc-shaped blocks.
Preferably, the material frame further comprises a driving mechanism, the driving mechanism comprises a sleeve, the sleeve is connected to one side of the material frame, a double-shaft motor is installed in the sleeve, and two output shafts of the double-shaft motor are both connected with a reel; the arc rod is connected between one sides of the tops of the two guide rails, and the two sides of the arc rod are connected with discs; the two pull wires are arranged and respectively wound on the two winding wheels and are connected with the disc.
Preferably, the device also comprises a top rod which is connected between the tops of the two guide rails at one side close to the arc rod; and the switch is connected to the other side of the material frame, is electrically connected with the double-shaft motor and can be contacted with the ejector rod.
(3) Advantageous effects
1. According to the tile laying device, the blanking mechanism and the clamping mechanism are matched to operate to lay tiles on the archaized building roof, so that the tile laying effect is achieved.
2. The invention assists the movement of the mounting frame through the driving mechanism, does not need manual operation to move the mounting frame, and effectively saves manpower.
3. The invention only needs to place the device and then adjust the position of the device during operation, has simple operation, effectively saves manpower, does not need manual work to repeatedly move on the roof of the archaized building, and effectively reduces the danger of operators during operation.
Drawings

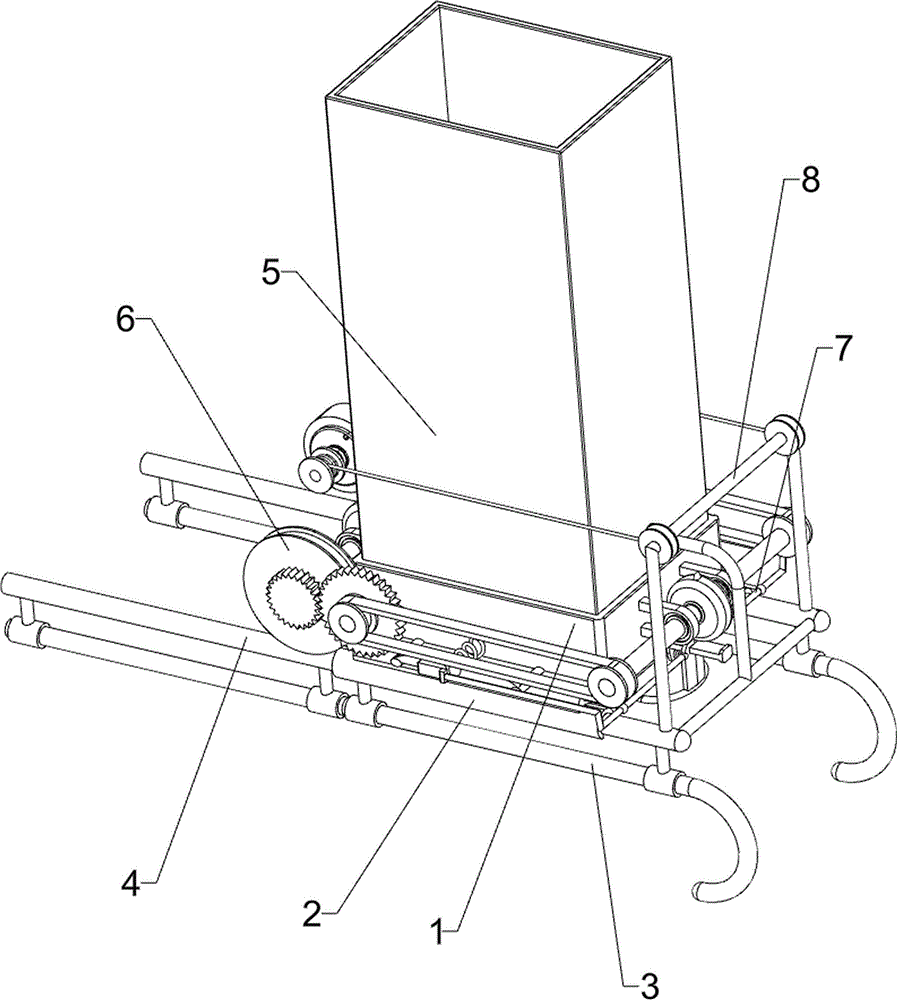

Fig. 1 is a schematic perspective view of the present invention.
Fig. 2 is a partial perspective view of a first embodiment of the present invention.
Fig. 3 is an enlarged view of the portion a of the present invention.
Fig. 4 is a second partial perspective view of the present invention.
The labels in the figures are: 1-mounting frame, 2-sliding sleeve, 3-connecting rod, 4-guide rail, 5-material frame, 6-blanking mechanism, 61-rotating shaft, 62-driving wheel, 63-first gear, 64-second gear, 65-cam, 66-sliding plate, 67-U-shaped clamping rod, 68-return spring, 7-clamping mechanism, 71-pushing plate, 72-connecting spring, 73-arc block, 74-connecting rod, 75-wedge block, 8-driving mechanism, 81-sleeve, 82-double-shaft motor, 83-winding wheel, 84-arc rod, 85-disk, 86-pulling wire, 9-ejector rod and 10-switch.
Detailed Description
The invention is further described below with reference to the figures and examples.
Example 1
The utility model provides a archaize building roof tile laying device, as shown in fig. 1-3, including installing frame 1, sliding sleeve 2, connecting rod 3, guide rail 4 and material frame 5, both sides bottom all is connected with sliding sleeve 2 around installing frame 1, sliding sleeve 2 is the arc setting, sliding connection has connecting rod 3 on sliding sleeve 2, connecting rod 3 is many settings, many connecting rods 3 can joint each other and connect, connecting rod 3 is for dismantling the setting, the rotation type is connected with guide rail 4 on the connecting rod 3, guide rail 4 is many settings, many guide rails 4 can joint each other and connect, 1 top of installing frame is connected with material frame 5, still including unloading mechanism 6 and jamming mechanism 7, be equipped with unloading mechanism 6 and jamming mechanism 7 on the installing frame 1, unloading mechanism 6 is connected with 7 transmissions of jamming mechanism.
Unloading mechanism 6 is including pivot 61, drive wheel 62, first gear 63, second gear 64, cam 65, slide 66, U-shaped kelly 67 and reset spring 68, the equal rotary type in the left and right sides of installing frame 1 is connected with pivot 61, both sides all are connected with drive wheel 62 around the left pivot 61, drive wheel 62 and guide rail 4 cooperation, be connected with first gear 63 on the transmission shaft of drive wheel 62, the equal rotary type in both sides left part is connected with second gear 64 around the installing frame 1, second gear 64 meshes with first gear 63, second gear 64 is connected with the pivot 61 transmission on right side, the middle part of pivot 61 is connected with cam 65, the lower part of the left and right sides of installing frame 1 all is connected with slide 66, the sliding type is connected with U-shaped kelly 67 on slide 66, be connected with reset spring 68 between U-shaped kelly 67 and the slide 66.
Clamping stagnation mechanism 7 is including push pedal 71, coupling spring 72, arc piece 73, connecting rod 74 and wedge 75, and the equal sliding type in both sides lower part has push pedal 71 around installing frame 1, is connected with coupling spring 72 between push pedal 71 and the installing frame 1, is connected with arc piece 73 on push pedal 71, and both sides all are connected with connecting rod 74 around right side U-shaped kelly 67, and connecting rod 74 and sliding sleeve 2 sliding fit are connected with wedge 75 on the connecting rod 74, and wedge 75 cooperates with arc piece 73.
When tiles are required to be laid on a roof, the device can be used, firstly, a user can hang the connecting rods 3 on a roof beam of the roof, then, the connecting rods 3 and the guide rails 4 can be mutually clamped together according to the width of the roof, then, the connecting rods 3 which are clamped together are spliced on the connecting rods 3 hung on the roof beam of the roof, after the connection is finished, the sliding sleeve 2 can be sleeved on the lowest side of the guide rails 4, the driving wheels 62 on the two sides are respectively contacted with the guide rails 4 on the two sides, then, the tiles are stacked in the material frame 5, the lowest tiles are blocked by the U-shaped clamping rods 67, then, the user can push the installation frame 1 to move upwards along the guide rails 4 through the sliding sleeve 2, the installation frame 1 drives the driving wheels 62 to move together when moving, the driving wheels 62 rotate through the guide rails 4 when moving, the driving wheels 62 rotate to drive the first gear 63 to rotate, the first gear 63 rotates to drive the rotating shaft 61 on the right side to rotate through the second gear 64, the transmission wheel 62 drives the left rotating shaft 61 to rotate when rotating, so as to drive the rotating shafts 61 on the two sides to rotate together, the rotating shafts 61 drive the cams 65 to rotate, after the cams 65 rotate to be in contact with the U-shaped clamping rods 67, the cams 65 on the two sides continue to rotate to push the U-shaped clamping rods 67 on the two sides to be away from each other, the reset springs 68 are stretched, the U-shaped clamping rods 67 on the two sides are away from each other and no longer block the tiles, so that the tiles fall on the roof of the antique building, the wedge blocks 75 on the two sides are driven to move by the connecting rods 74 when moving, the wedge blocks 75 on the two sides push the arc blocks 73 on the two sides to be close to each other, the pushing plates 71 on the two sides are driven to be close to each other, the connecting springs 72 are compressed, the pushing plates 71 on the two sides are close to each other to block the tiles above, the tiles on the lowest part fall on the roof, when the cams 65 rotate to be no longer in contact with the U-shaped clamping rods 67, the U-shaped clamping rod 67 resets under the effect of reset spring 68, and the tile is blocked once more in the U-shaped clamping rod 67 resets, and push pedal 71 resets under the effect of reconnection spring 72 after the U-shaped clamping rod 67 resets, and push pedal 71 resets no longer blocks the tile, continues to promote at this moment that the installing frame 1 removes and can lay once more, so relapse, just can lay the tile on the roof.
Example 2
On the basis of embodiment 1, as shown in fig. 4, the device further comprises a driving mechanism 8, the driving mechanism 8 comprises a sleeve 81, a double-shaft motor 82, a reel 83, an arc rod 84, a disc 85 and a pull wire 86, the sleeve 81 is connected to the left side of the material frame 5, the double-shaft motor 82 is installed in the sleeve 81, the reel 83 is connected to two output shafts of the double-shaft motor 82, the arc rod 84 is connected between the right sides of the tops of the two guide rails 4, the discs 85 are connected to the front side and the rear side of the arc rod 84, the pull wire 86 is wound on the reel 83, and the pull wire 86 is connected with the disc 85.
When the installation frame 1 needs to be pulled to move, the double-shaft motor 82 can be started to drive the reel 83 to rotate, the reel 83 packs up the stay wire 86 when rotating, the reel 83 can be made to move towards the direction of the disc 85 due to the fact that the stay wire 86 is packed up by the reel 83, the reel 83 drives the material frame 5 to move when moving, the material frame 5 drives the installation frame 1 to move upwards along the guide rail 4 when moving, therefore, the installation frame 1 does not need to be manually pushed to move, when the stay wire 86 is wound to the limit by the reel 83, the tile is also paved completely, at this moment, the double-shaft motor 82 can be started to rotate reversely, so that the installation frame 1 is reset under the action of gravity, then the guide rail 4 is pulled to move to the position for paving the tile again, so that the installation frame 1 does not need to be manually pushed to move, and manpower is effectively saved.
As shown in fig. 4, the material frame further comprises a top rod 9 and a switch 10, the switch 10 is connected to the right side of the material frame 5, the switch 10 is electrically connected with the double-shaft motor 82, the top rod 9 is connected between the right sides of the two guide rails 4, and the switch 10 can be in contact with the top rod 9.
The material frame 5 drives the switch 10 to move together when moving, when the wire pulling 86 is wound to the limit by the winding wheel 83, the ejector rod 9 just contacts with the switch 10, the ejector rod 9 contacts with the switch 10 to start the double-shaft motor 82 to rotate reversely, and therefore the double-shaft motor 82 does not need to be started to rotate reversely manually, and manpower is effectively saved.
The above examples are merely representative of preferred embodiments of the present invention, and the description thereof is more specific and detailed, but not to be construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, various changes, modifications and substitutions can be made without departing from the spirit of the present invention, and these are all within the scope of the present invention. Therefore, the protection scope of the present patent shall be subject to the appended claims.
Claims (3)
1. The utility model provides a archaize building roof tile laying device which characterized in that, including: the bottom parts of two sides of the mounting frame (1) are connected with sliding sleeves (2), and the sliding sleeves (2) are arranged in an arc shape; the connecting rods (3) are arranged in a plurality of ways, the connecting rods (3) are in sliding fit with the sliding sleeves (2), the connecting rods (3) can be connected in a clamping manner, and the connecting rods (3) are arranged in a detachable manner; the guide rails (4) are arranged in a plurality of ways, the guide rails (4) are respectively connected to the connecting rods (3) in a rotating mode, and the guide rails (4) can be connected in a clamping mode; the material frame (5) is connected to the top of the mounting frame (1); a blanking mechanism (6) arranged on the mounting frame (1); the clamping stagnation mechanism (7) is arranged on the mounting frame (1), and the blanking mechanism (6) is in transmission connection with the clamping stagnation mechanism (7);
unloading mechanism (6) including: two rotating shafts (61) are arranged, and the two rotating shafts (61) are respectively connected to two sides of the mounting frame (1) in a rotating manner; the two transmission wheels (62) are arranged, the two transmission wheels (62) are respectively connected to two sides of one rotating shaft (61), the transmission wheels (62) are matched with the guide rail (4), and a transmission shaft of each transmission wheel (62) is connected with a first gear (63); the two second gears (64) are arranged, the two second gears (64) are respectively connected to two sides of the mounting frame (1) in a rotating mode, the second gears (64) are meshed with the first gear (63), and the second gears (64) are in transmission connection with the other rotating shaft (61); the two cams (65) are arranged, and the two cams (65) are respectively connected to the middle parts of the two rotating shafts (61); the two sliding plates (66) are arranged, the two sliding plates (66) are respectively connected to the lower parts of the two sides of the mounting frame (1), the sliding plates (66) are connected with U-shaped clamping rods (67) in a sliding mode, and return springs (68) are connected between the U-shaped clamping rods (67) and the sliding plates (66);
the clamping stagnation mechanism (7) comprises: the two push plates (71) are arranged, the two push plates (71) are respectively connected to the lower parts of the two sides of the mounting frame (1) in a sliding mode, and a connecting spring (72) is connected between each push plate (71) and the mounting frame (1); the two arc blocks (73) are arranged, and the two arc blocks (73) are respectively connected to the two push plates (71); the two connecting rods (74) are arranged, the two connecting rods (74) are respectively connected to two sides of one U-shaped clamping rod (67), and the connecting rods (74) are in sliding fit with the sliding sleeve (2); the wedge-shaped blocks (75) are arranged in two blocks, the two wedge-shaped blocks (75) are respectively connected onto the two connecting rods (74), and the wedge-shaped blocks (75) are matched with the arc-shaped blocks (73).
2. The laying device for roof tiles of an archaized building according to claim 1, further comprising a driving mechanism (8), wherein the driving mechanism (8) comprises: the sleeve (81) is connected to one side of the material frame (5), a double-shaft motor (82) is installed in the sleeve (81), and two output shafts of the double-shaft motor (82) are connected with reels (83); the arc rod (84) is connected between one sides of the tops of the two guide rails (4), and the two sides of the arc rod (84) are connected with the discs (85); two pull wires (86) are arranged, the two pull wires (86) are respectively wound on the two reels (83), and the pull wires (86) are connected with the disc (85).
3. The apparatus for laying roof tiles of an archaized building according to claim 2, further comprising: the ejector rod (9) is connected between the tops of the two guide rails (4) on one side close to the arc rod (84); and the switch (10) is connected to the other side of the material frame (5), the switch (10) is electrically connected with the double-shaft motor (82), and the switch (10) can be in contact with the ejector rod (9).
