CN112195851A

CN112195851A - Cleaning device

Info

Publication number: CN112195851A
Application number: CN202011033399.5A
Authority: CN
Inventors: 李伟
Original assignee: Guangdong Vocational and Technical College
Current assignee: Guangdong Vocational and Technical College
Priority date: 2020-09-27
Filing date: 2020-09-27
Publication date: 2021-01-08

Abstract

The invention discloses a cleaning device, comprising: a disc body, a handle and several brush bundles, the handle is connected with the top of the disc body, the bottom of the disc body is provided with a slot array, the slot holes Each unit slot of the array is provided with a spring, the brush bundle includes bristles and a binding plate, one end of the bristles is fixedly connected to the lower side of the binding plate, and the binding plate falls into the unit slot correspondingly The upper side of the restraining plate is in contact with one end of the spring, and the other end of the spring is fixedly connected with the top wall of the unit slot. Under the action of the elastic force of the spring, the cleaning device makes the bristles closer to the ground, thereby having a good cleaning effect on the raised ground. The present invention is mainly used in the technical field of daily utensils.

Description

Cleaning device

Technical Field

The invention relates to the technical field of daily appliances, in particular to a cleaning device.

Background

The cleaning device refers to a device for cleaning a road, and the existing cleaning device generally has manual operation or automatic operation. Manually, for example, a broom. If automatic, then can be the street sweeper. Whether manual or automatic, the most central component of the cleaning device is a cleaning brush contacting with the road, and the existing cleaning brush is generally directly arranged by using fixed bristles, but the fixed bristles cannot be adaptively changed according to the bulge of the road, so that the overall cleaning effect is poor.

Disclosure of Invention

It is an object of the present invention to provide a cleaning device that solves one or more of the problems of the prior art, at least providing a useful alternative or creation.

The solution of the invention for solving the technical problem is as follows: a cleaning device, comprising: disk body, handle and a plurality of brush are restrainted, the handle with the top of disk body is connected, the bottom of disk body is equipped with the slotted hole array, all be equipped with the spring in each unit slotted hole of slotted hole array, the brush is restrainted including brush hair and constraint board, the one end of brush hair and the downside fixed connection of constraint board, the constraint board correspondence falls into in the unit slotted hole, the side of going up of constraint board contacts with the one end of spring, the other end of spring and the roof fixed connection of unit slotted hole.

Further, the other ends of the bristles are wavy.

Further, the tray body is circular.

Furthermore, the top of the tray body is provided with a hinged point, and one end of the handle is connected with the top of the tray body through the hinged point.

Further, the other end of the handle is provided with a closed circular ring.

Further, the closed ring is connected with a rubber sleeve.

Further, the bristles are made of plastic.

The invention has the beneficial effects that: there is provided a cleaning device including: disk body, handle and a plurality of brush are restrainted, the handle with the top of disk body is connected, the bottom of disk body is equipped with the slotted hole array, all be equipped with the spring in each unit slotted hole of slotted hole array, the brush is restrainted including brush hair and constraint board, the one end of brush hair and the downside fixed connection of constraint board, the constraint board correspondence falls into in the unit slotted hole, the side of going up of constraint board contacts with the one end of spring, the other end of spring and the roof fixed connection of unit slotted hole. This cleaning device is under the effect of spring force for the brush hair is pressed close to ground more, thereby plays fine cleaning effect to protruding ground.

Drawings

In order to more clearly illustrate the technical solution in the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly described below. It is clear that the described figures are only some embodiments of the invention, not all embodiments, and that a person skilled in the art can also derive other designs and figures from them without inventive effort.

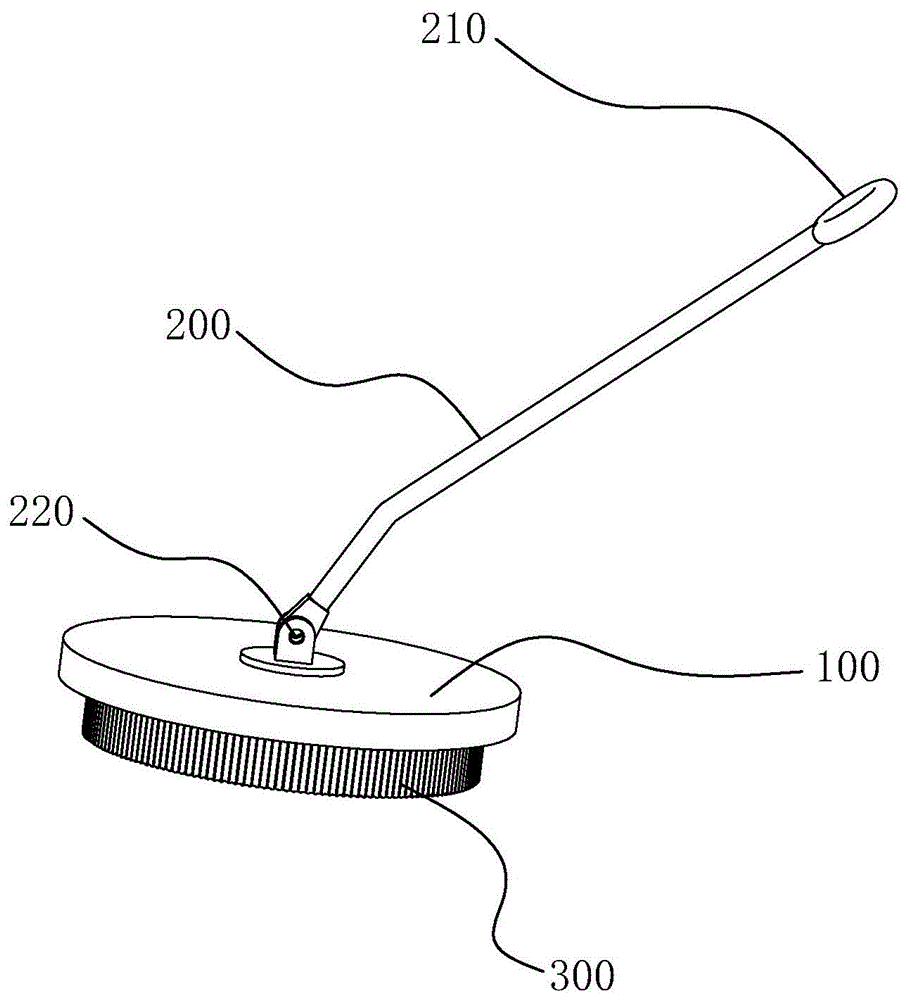

FIG. 1 is a schematic perspective view of a cleaning device;

FIG. 2 is a schematic view of the internal structure of the tray body;

FIG. 3 is an enlarged view of the connection between the brush bundle and the unit slots;

fig. 4 is a bottom side structure diagram of the tray body.

Detailed Description

The conception, the specific structure, and the technical effects produced by the present invention will be clearly and completely described below in conjunction with the embodiments and the accompanying drawings to fully understand the objects, the features, and the effects of the present invention. It is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and those skilled in the art can obtain other embodiments without inventive effort based on the embodiments of the present invention, and all embodiments are within the protection scope of the present invention. In addition, all the coupling/connection relationships mentioned herein do not mean that the components are directly connected, but mean that a better coupling structure can be formed by adding or reducing coupling accessories according to specific implementation conditions. All technical characteristics in the invention can be interactively combined on the premise of not conflicting with each other.

Embodiment 1, referring to fig. 1, 2, 3 and 4, a cleaning device includes: the novel toothbrush comprises a tray body 100, a handle 200 and a plurality of brush bundles 300, wherein the handle 200 is connected with the top of the tray body 100, a slotted array 110 is arranged at the bottom of the tray body 100, a spring 330 is arranged in each unit slotted hole 111 of the slotted array 110, each brush bundle 300 comprises bristles 310 and a binding plate 320, one end of each bristle 310 is fixedly connected with the lower side face of each binding plate 320, each binding plate 320 correspondingly falls into the unit slotted hole 111, the upper side face of each binding plate 320 is in contact with one end of the spring 330, and the other end of each spring 330 is fixedly connected with the top wall of each unit slotted hole 111.

When the cleaning device is operated, the tray 100 is moved by pushing the handle 200, and the bristles 310 are in contact with the floor. Since the binding plate 320 falls into the unit slot 111 and the spring 330 is disposed in the unit slot 111, when the uneven ground is encountered, the raised ground acts on the bristles 310, so that the bristles 310 move upward, and the bristles 310 move upward to drive the binding plate 320 to move, compressing the spring 330. Under the elastic force of the spring 330, the bristles 310 are pressed closer to the ground, thereby providing a good cleaning effect on the raised ground.

In order to make the bristles 310 have better cleaning effect on the floor, in some preferred embodiments, the other ends of the bristles 310 are wavy.

The shape of the tray 100 may be varied, wherein in some preferred embodiments, the tray 100 has a circular shape. The circular tray 100 has a certain aesthetic property, is popular with consumers, and has a good commercial value.

The handle 200 is fixedly connected to the top of the tray body 100, and the specific connection mode is that a hinge point 220 is provided at the top of the tray body 100, and one end of the handle 200 is connected to the top of the tray body 100 through the hinge point 220.

In some preferred embodiments, the other end of the handle 200 is provided with a closed circular ring 210. The cleaning device can be conveniently hung up by closing the circular ring 210, and the cleaning device can be conveniently placed. Wherein, in some embodiments, a rubber sleeve is connected to the closed ring 210.

The bristle 310 is selected from a hard material and has a certain corrosion resistance. In accordance with this principle, in some preferred embodiments, the bristles 310 are plastic.

While the preferred embodiments of the present invention have been illustrated and described, it will be understood by those skilled in the art that the present invention is not limited to the details of the embodiments shown and described, but is capable of numerous equivalents and substitutions without departing from the spirit of the invention and its scope is defined by the claims appended hereto.

Claims

1. A cleaning device, comprising: disk body, handle and a plurality of brush are restrainted, the handle with the top of disk body is connected, the bottom of disk body is equipped with the slotted hole array, all be equipped with the spring in each unit slotted hole of slotted hole array, the brush is restrainted including brush hair and constraint board, the one end of brush hair and the downside fixed connection of constraint board, the constraint board correspondence falls into in the unit slotted hole, the side of going up of constraint board contacts with the one end of spring, the other end of spring and the roof fixed connection of unit slotted hole.

2. A cleaning device as claimed in claim 1, wherein: the other ends of the bristles are wavy.

3. A cleaning device as claimed in claim 1, wherein: the tray body is circular.

4. A cleaning device as claimed in claim 1, wherein: the top of the tray body is provided with a hinged point, and one end of the handle is connected with the top of the tray body through the hinged point.

5. A cleaning device as claimed in claim 1, wherein: the other end of the handle is provided with a closed circular ring.

6. A cleaning device as claimed in claim 5, characterized in that: the closed circular ring is connected with a rubber sleeve.

7. A cleaning device as claimed in claim 1, wherein: the bristles are made of plastic.
