Abstract

本发明涉及一种铝制卷材收卷设备，尤其是涉及卷材收卷技术领域，包括工作台、送料组件、移动组件、升降组件、洗刷组件、清洗组件和收卷组件，所述工作台上开设有凹槽，所述工作台下方设有安装箱，所述送料组件固定设置在工作台一侧，所述移动组件固定设置在凹槽下方，所述升降组件固定设置在移动组件上，所述洗刷组件固定设置在升降组件的工作端，所述收卷组件固定设置在工作台另一侧，本发明大大提高了收卷作业的效率，降低了工作人员的劳动强度，省时省力，大大提高了本装置的实用性。

Figure 202011260840

The present invention relates to an aluminum coil winding device, and in particular to the technical field of coil winding, comprising a workbench, a feeding component, a moving component, a lifting component, a washing component, a cleaning component and a winding component, wherein a groove is provided on the workbench, an installation box is provided under the workbench, the feeding component is fixedly arranged on one side of the workbench, the moving component is fixedly arranged under the groove, the lifting component is fixedly arranged on the moving component, the washing component is fixedly arranged on the working end of the lifting component, and the winding component is fixedly arranged on the other side of the workbench. The present invention greatly improves the efficiency of the winding operation, reduces the labor intensity of the staff, saves time and effort, and greatly improves the practicability of the device.

Figure 202011260840

Description

Aluminum coiled material winding equipment
Technical Field
The invention relates to the technical field of coiled material winding equipment, in particular to aluminum coiled material winding equipment.
Background
The aluminum plate is a metal plate made of aluminum or aluminum alloy, the aluminum plate is an aluminum plate or an aluminum sheet with the thickness of more than 0.2mm and less than 500mm and the width of more than 200mm and the length of less than 16m, the aluminum plate with the length of less than 0.2mm is an aluminum plate and the width of less than 200mm is a row material or a strip material, of course, along with the progress of large equipment, the aluminum plate with the maximum width of 600mm is more, the aluminum plate is a rectangular plate which is processed by rolling aluminum ingots and is divided into a pure aluminum plate, an alloy aluminum plate, a thin aluminum plate, a medium-thickness aluminum plate and a pattern aluminum plate, the aluminum plate can be used for lighting stains, solar reflectors, architectural appearances, indoor decorations, furniture, cabinets, elevator labels, nameplates, cases, automobile internal and external decorations, indoor decorations and other various fields, the aluminum plate can generally clean dust and stains on the coil materials before rolling, but the cleaning effect of the cleaning device in the prior art is not good, the cleaning is not clean enough, wastes time and labor, and wastes water resources seriously.
Disclosure of Invention
The invention aims to provide aluminum coiled material winding equipment to solve the technical problems that a cleaning device in the prior art is poor in cleaning effect, not clean enough, time-consuming and labor-consuming, and serious in water resource waste.
The invention provides aluminum coiled material winding equipment which comprises a workbench, a feeding assembly, a moving assembly, a lifting assembly, a washing assembly, a cleaning assembly and a winding assembly, wherein a groove is formed in the workbench, an installation box is arranged below the workbench, the feeding assembly is fixedly arranged on one side of the workbench, the moving assembly is fixedly arranged below the groove, the lifting assembly is fixedly arranged on the moving assembly, the washing assembly is fixedly arranged at the working end of the lifting assembly, and the winding assembly is fixedly arranged on the other side of the workbench.
Further, the moving assembly comprises a moving seat, moving fixing seats, a first rotating disk, a second rotating disk, a first rotating shaft, a second rotating shaft, a first belt, a third rotating disk, a third rotating shaft, a moving motor, a second belt, a moving block and a moving plate, the moving seat is arranged on one side of the workbench, a moving groove is formed in the moving seat, the four moving fixing seats are symmetrically and fixedly arranged on the moving seat in a pairwise manner, the first rotating disk is arranged between the two moving fixing seats, the second rotating disk is arranged between the other two moving fixing seats, the first rotating shaft penetrates through the first rotating disk and is rotatably arranged on the two moving fixing seats, the second rotating shaft penetrates through the second rotating disk and is rotatably arranged on the other two moving fixing seats, the first belt sleeve is arranged on the first rotating disc and the second rotating disc, the third rotating disc is arranged on one side of the first belt, the three rotating shafts rotate to be arranged on one side of the third rotating disc, the moving motor is fixedly arranged on the moving seat, the other end of the third rotating shaft is fixedly arranged on the output end of the moving motor, the second belt is sleeved on the third rotating disc and the second rotating shaft, the moving block is arranged on the first belt, and the moving block is fixedly arranged above the moving block.
Further, the lifting assembly comprises a first motor, a screw rod, a first moving rod and lifting components, the first motor is fixedly arranged on the movable plate, the screw rod is connected with the output end of the first motor, the first moving rod is in threaded connection with the screw rod, the lifting components are arranged in two groups, and the two groups of lifting components are symmetrically arranged on the movable plate.
Furthermore, the lifting component comprises a fixed seat, a second moving rod, a mounting seat, a first rack, a second rack, a first gear, a second gear, a first connecting rod, a second connecting rod, a third connecting rod, a fourth connecting rod, a transmission rod, a connecting seat and a lifting plate, wherein the fixed seat is fixedly arranged on one side of the moving plate, one end of the second moving rod is connected with the first moving rod, the other end of the second moving rod penetrates through the fixed seat, the second moving rod can move in the fixed seat, the mounting seat is provided with three groups, the three groups of mounting seats are sequentially arranged on one side of the moving plate, the first rack is fixedly arranged at one end of the second moving rod, the second rack is fixedly arranged at the other end of the second moving rod, the first gear is rotatably arranged on one group of mounting seats and is mutually meshed with the first rack, the second gear is rotatably arranged on the other group of mounting seats and is mutually meshed with the second rack, one end of the first connecting rod is rotatably connected with one group of mounting seats, the other end of the first connecting rod is hinged with the second connecting rod, one end of the second connecting rod is hinged with the first connecting rod, the other end of the second connecting rod is connected with the connecting seat, two third connecting rods are arranged, one ends of the two third connecting rods are respectively and rotatably connected with a group of mounting seats, the other ends of the two third connecting rods are hinged with the transmission rod, two fourth connecting rods are arranged, one end of each of the two fourth connecting rods is hinged with the transmission rod, the other end of each of the two fourth connecting rods is connected with the connecting seat, the connecting seat is equipped with three groups, one of them group in three groups of connecting seat is connected with the head rod, and two other two sets of three groups of connecting seat all are connected with two fourth connecting rods, the lifter plate is fixed to be set up on the connecting seat.
Further, the washing component comprises two frame plates, two support seats, two telescopic rods, a platform, a second motor, a fifth gear, a third rack, a fifth connecting rod and a soft brush, the two frame plates are symmetrically arranged on the lifting plate, the two telescopic rods are arranged, one ends of the two telescopic rods are connected with one frame plate, the other ends of the two telescopic rods penetrate through the other frame plate and extend out of the frame plate, the four support seats are arranged and are symmetrically arranged on the two telescopic rods in pairs, the platform is fixedly arranged on the four support seats, the second motor is fixedly arranged on the platform, the fifth gear is connected with the output end of the second motor, the third rack is fixedly arranged on one side of the platform, the fifth gear is meshed with the third rack, the fifth connecting rod is provided with two connecting rods, one end of each of the two fifth connecting rods is connected with a telescopic rod, and the other end of each of the two fifth connecting rods is connected with the soft hairbrush.
Further, wash the subassembly including wasing water tank, connecting pipe, automatic rotary part and shower nozzle, wash water tank fixed station below, automatic rotary part is fixed to be set up on the movable plate, the one end of connecting pipe is connected with wasing the water tank, the other end of connecting pipe is connected with the shower nozzle.
Further, the automatic rotating part comprises a first transmission motor, a first transmission shaft, an arc-shaped block, an installation block, a first concave installation plate, a second transmission shaft, a third transmission shaft, an installation plate and a second concave installation plate, wherein the first concave installation plate is fixedly arranged on the movable plate, the first transmission motor is fixedly arranged on one side of the first concave installation plate, an output shaft of the first transmission motor penetrates through the first concave installation plate, the first transmission shaft is rotatably arranged on the first concave installation plate, one end of the first transmission shaft extends out of the first concave installation plate, the installation block is rectangular, the installation block is fixedly arranged on the first transmission shaft, the number of the second transmission shafts is two, the two second transmission shafts are respectively and fixedly arranged on two sides of the installation block, a sliding groove is formed in the arc-shaped block, one end of the arc-shaped block is connected with the output shaft of the first transmission motor, the second spill mounting panel rotates to be installed two on the second transmission shaft, the fixed setting of third transmission shaft is served at second spill mounting panel, the other end of arc piece is rotated with the one end of third transmission shaft and is connected, the fixed setting of mounting panel is served in the extension of first transmission shaft.
Further, the winding assembly comprises a third motor, a third gear, a fourth gear, a first rotating shaft, a rotating plate, a fixing plate, a supporting column and a material collecting wheel, the third motor is fixedly arranged in the installation box, the third gear is connected with the output end of the third motor, the third gear and the fourth gear are meshed with each other, one end of the first rotating shaft is connected with the fourth gear, the other end of the first rotating shaft penetrates through the installation box and the workbench to be connected with the rotating plate, the rotating plate is fixedly arranged on the first rotating shaft, the fixing plate is arranged above the supporting column, the supporting column is fixedly arranged in the installation box, and the material collecting wheel is fixedly arranged on the rotating plate.
Compared with the prior art, the invention has the beneficial effects that:
the aluminum plate coiling device comprises a feeding assembly, a moving assembly, a washing assembly, a lifting assembly, a washing assembly, a coiling assembly and a washing assembly, wherein the feeding assembly is used for placing an aluminum plate to be coiled, the moving assembly is used for driving the washing assembly to move left and right, the lifting assembly is used for driving the washing assembly to move up and down, the washing assembly is used for washing the aluminum plate, the washing assembly is used for spraying water when the washing assembly works so as to facilitate the work of the washing assembly, and the coiling assembly is used for coiling the washed aluminum plate, so that the efficiency of coiling operation is greatly improved, the labor intensity of workers is reduced, time and labor are saved, and the practicability of the aluminum plate coiling device is greatly improved.
Secondly, the moving assembly is arranged to drive the washing assembly to move left and right, so that the working efficiency is greatly improved, and the quality of the cleaning operation is also ensured.
Thirdly, the lifting assembly can drive the washing assembly to move up and down, so that the height of the washing assembly required by work can be better adjusted, and the working efficiency and the practicability of the device are greatly improved.
Fourthly, the coiled material can be cleaned through the arrangement of the washing component, manual operation is not needed, the labor intensity of workers is greatly reduced, and time and labor are saved.
Fifthly, through the setting of washing the subassembly can be drenched aluminium system coiled material before washing subassembly work, conveniently washes the subassembly and washs the operation, can wash aluminium system coiled material after washing subassembly end work simultaneously, and the rolling subassembly of being convenient for carries out the rolling and deposits, great improvement work efficiency and this device's practicality.
It is six, through receive the setting of material subassembly and can replace the manual work to receive the material, great improvement work efficiency, reduced staff's working strength, improved the practicality of this device greatly.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and other drawings can be obtained by those skilled in the art without creative efforts.

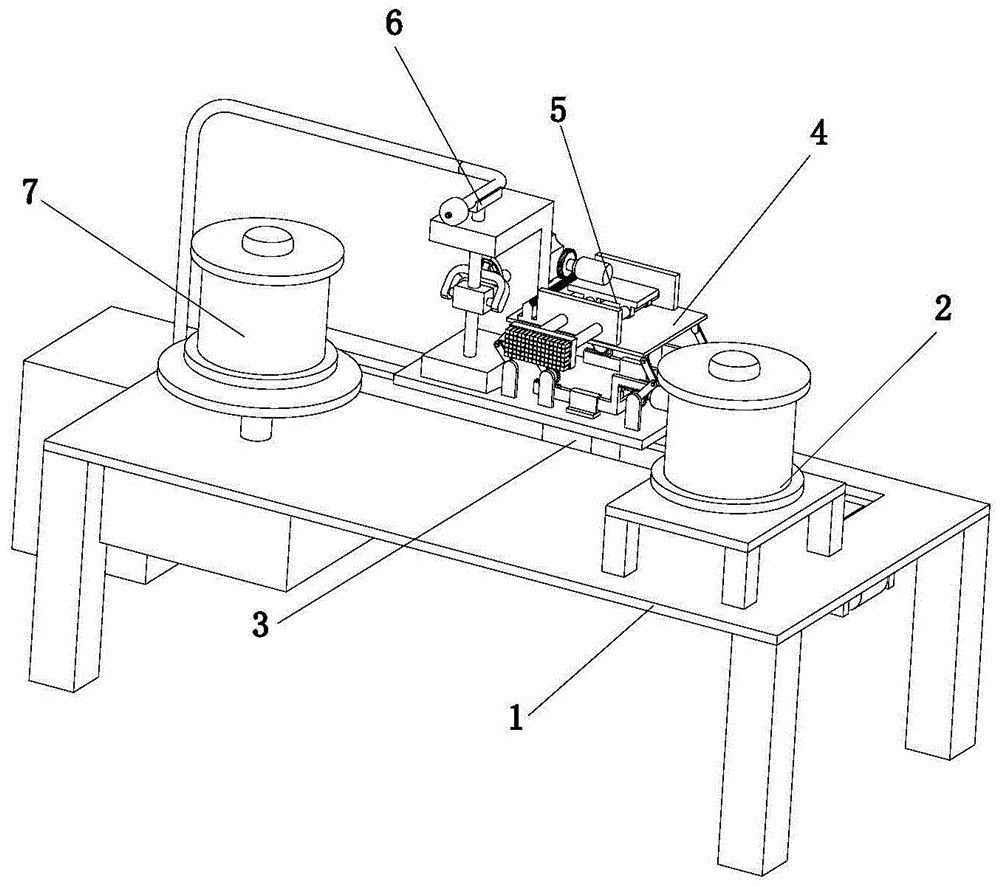

FIG. 1 is a schematic view of a first perspective structure of the present invention;
FIG. 2 is a schematic view of a second perspective structure of the present invention;
FIG. 3 is a schematic view of a first perspective structure of the moving assembly of the present invention;
FIG. 4 is a partial enlarged view at A;
FIG. 5 is a first perspective view of the lift assembly of the present invention;
FIG. 6 is a first perspective structural view of the scrubbing assembly of the present invention;
FIG. 7 is a schematic view of a first perspective view of a cleaning assembly of the present invention;
fig. 8 is a first view structural diagram of the winding assembly of the present invention.
Reference numerals: the working table 1, the feeding assembly 2, the moving assembly 3, the lifting assembly 4, the scrubbing assembly 5, the cleaning assembly 6, the winding assembly 7, the groove 11, the mounting box 12, the mounting table 21, the feeding wheel 22, the moving seat 31, the moving fixed seat 32, the first rotating disk 33, the second rotating disk 34, the first rotating shaft 35, the second rotating shaft 36, the first belt 37, the third rotating disk 38, the third rotating shaft 39, the moving motor 310, the second belt 311, the moving block 312, the moving plate 313, the first motor 41, the screw rod 42, the first moving rod 43, the lifting part 44, the fixed seat 441, the second moving rod 442, the mounting seat 443, the first rack 444, the second rack 445, the first gear 446, the second gear 447, the first connecting rod 448, the second connecting rod 449, the third connecting rod 4410, the fourth connecting rod 4411, the driving rod 4412, the connecting seat 4413, the lifting plate 4414, the frame plate 51, the supporting seat 52, the automatic cleaning device comprises a telescopic rod 53, a platform 54, a second motor 55, a fifth gear 56, a third rack 57, a fifth connecting rod 58, a soft brush 59, a cleaning water tank 61, a connecting pipe 62, an automatic rotating component 63, a spray head 64, a first transmission motor 631, a first transmission shaft 632, an arc-shaped block 633, an installation block 634, a first concave installation plate 635, a second transmission shaft 636, a third transmission shaft 637, an installation plate 638, a second concave installation plate 639, a third motor 71, a third gear 72, a fourth gear 73, a first rotating shaft 74, a rotating plate 75, a fixing plate 76, a supporting column 77 and a material receiving wheel 78.
Detailed Description
The technical solutions of the present invention will be described clearly and completely with reference to the accompanying drawings, and it should be understood that the described embodiments are some, but not all embodiments of the present invention.
The components of embodiments of the present invention generally described and illustrated in the figures herein may be arranged and designed in a wide variety of different configurations. Thus, the following detailed description of the embodiments of the present invention, presented in the figures, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention.
All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The invention provides an aluminum coiled material winding device which comprises a workbench 1, a feeding component 2, a moving component 3, a lifting component 4, a washing component 5, a cleaning component 6 and a winding component 7, wherein the workbench 1 is provided with a groove 11, a mounting box 12 is arranged below the workbench 1, the feeding component 2 is fixedly arranged at one side of the workbench 1, the moving component 3 is fixedly arranged below the groove 11, the lifting component 4 is fixedly arranged on the moving component 3, the washing component 5 is fixedly arranged at the working end of the lifting component 4, the winding component 7 is fixedly arranged at the other side of the workbench 1, in a working state, an aluminum plate to be wound is placed through the feeding component 2, the washing component 5 is driven to move left and right through the arrangement of the moving component 3, the washing component 5 is driven to move up and down through the arrangement of the lifting component 4, the washing component 5 is used for washing the aluminum plate, the washing component 6 is used for spraying water when the washing component 5 works so as to facilitate the work of the washing component 5, and the rolling component 7 is used for rolling the washed aluminum plate.
Specifically, the feeding assembly 2 comprises an installation table 21 and a feeding wheel 22, the installation table 21 is fixedly arranged on one side of the workbench 1, and the feeding wheel 22 is rotatably arranged on the installation table 21.
Specifically, the moving assembly 3 includes a moving base 31, moving fixing bases 32, a first rotating disc 33, a second rotating disc 34, a first rotating shaft 35, a second rotating shaft 36, a first belt 37, a third rotating disc 38, a third rotating shaft 39, a moving motor 310, a second belt 311, a moving block 312 and a moving plate 313, the moving base 31 is disposed on one side of the worktable 1, a moving groove is formed on the moving base 31, four moving fixing bases 32 are disposed, the four moving fixing bases 32 are fixed to the moving base 31 in a pairwise symmetric manner, the first rotating disc 33 is disposed between the two moving fixing bases 32, the second rotating disc 34 is disposed between the other two moving fixing bases 32, the first rotating shaft 35 penetrates through the first rotating disc 33 and is rotatably disposed on the two moving fixing bases 32, the second rotating shaft 36 penetrates through the second rotating disc 34 and is rotatably disposed on the other two moving fixing bases 32, the first belt 37 is sleeved on the first rotating disc 33 and the second rotating disc 34, the third rotating disc 38 is arranged on one side of the first belt 37, the three rotating shafts are rotatably arranged on one side of the third rotating disc 38, the moving motor 310 is fixedly arranged on the moving seat 31, the other end of the third rotating shaft 39 is fixedly arranged on the output end of the moving motor 310, the second belt 311 is sleeved on the third rotating disc 38 and the second rotating shaft 36, the moving block 312 is arranged on the first belt 37, the moving plate 313 is fixedly arranged above the moving block 312, when the moving motor 310 is started, the third rotating shaft 39 drives the third rotating disc to rotate, the third rotating disc drives the second belt 311 to rotate, the second belt 311 drives the second rotating shaft 36 to rotate, the second rotating shaft 36 drives the second rotating disc 34 to rotate, and the second rotating disc 34 drives the first belt 37 to rotate, the moving block 312 fixed on the first belt 37 moves in the moving groove of the moving base 31, so as to drive the moving plate 313 to drive the washing and brushing component 5 to move left and right, and the washing and brushing component 5 can be driven to move left and right by the arrangement of the moving component 3, thereby greatly improving the working efficiency and ensuring the quality of the cleaning operation.
Specifically, the lifting assembly 4 includes a first motor 41, a screw rod 42, a first moving rod 43 and a lifting member 44, the first motor 41 is fixedly disposed on the moving plate 313, the screw rod 42 is connected to an output end of the first motor 41, the first moving rod 43 is in threaded connection with the screw rod 42, two sets of the lifting members 44 are disposed, and the two sets of the lifting members 44 are symmetrically disposed on the moving plate 313.
Specifically, the lifting member 44 includes a fixed seat 441, a second moving rod 442, a mounting seat 443, a first rack 444, a second rack 445, a first gear 446, a second gear 447, a first connecting rod 448, a second connecting rod 449, a third connecting rod 4410, a fourth connecting rod 4411, a transmission rod 4412, a connecting seat 4413 and a lifting plate 4414, the fixed seat 441 is fixedly disposed at one side of the moving plate 313, one end of the second moving rod 442 is connected to the first moving rod 43, the other end of the second moving rod 442 passes through the fixed seat 441 and the second moving rod 442 is movable within the fixed seat 441, the mounting seats 443 are provided with three sets, three sets of mounting seats 443 are sequentially disposed at one side of the moving plate 313, the first rack 444 is fixedly disposed at one end of the second moving rod 442, the second rack 445 is fixedly disposed at the other end of the second moving rod 442, the first gear 446 is rotatably disposed on a set of the mounting seats 443 and is engaged with the first rack 444, the second gear 447 is rotatably arranged on the other set of mounting seats 443 and is engaged with the second rack 445, one end of the first connecting rod 448 is rotatably connected with one set of mounting seats 443, the other end of the first connecting rod 448 is hinged with the second connecting rod 449, one end of the second connecting rod 449 is hinged with the first connecting rod 448, the other end of the second connecting rod 449 is connected with the connecting seat 4413, two third connecting rods 4410 are provided, one end of each of the two third connecting rods 4410 is rotatably connected with one set of mounting seats 443, the other end of each of the two third connecting rods 4410 is hinged with the transmission rod 4412, two fourth connecting rods 4411 are provided, one end of each of the two fourth connecting rods 4411 is hinged with the transmission rod 4412, the other end of each of the two fourth connecting rods 4411 is connected with the connecting seat 4413, the connecting seat 4413 is provided with three sets, one of the three sets of connecting seats 4413 is connected with the first connecting rod 448, the other two groups of the three groups of the connecting seats 4413 are connected with two fourth connecting rods 4411, the lifting plate 4414 is fixedly arranged on the connecting seats 4413, the screw rod 42 is driven to rotate by the first motor 41, the screw rod 42 is in threaded connection with the first moving rod 43, the first moving rod 43 drives the second moving rod 442 to move, the first rack 444 is meshed with the first gear 446, the second rack 445 is meshed with the second gear 447, the first gear 446 drives the first connecting rod 448 to rotate while rotating, the first connecting rod 449 is hinged with the second connecting rod 449, the second gear 447 drives the third connecting rod 4410 to rotate while rotating, the third connecting rod 4410 is hinged with the driving rod 4412, and the fourth connecting rod 4411 is hinged with the driving rod 4412 to drive the lifting plate 4414 to lift, the washing component 448 can be driven to move up and down by the lifting component 4, therefore, the height suitable for the working requirement of the washing component 5 can be better adjusted, and the working efficiency and the practicability of the device are greatly improved.
Specifically, the scrubbing component 5 comprises frame plates 51, support seats 52, telescopic rods 53, a platform 54, a second motor 55, a fifth gear 56, a third rack 57, a fifth connecting rod 58 and a soft brush 59, wherein two frame plates 51 are arranged, the two frame plates 51 are symmetrically arranged on a lifting plate 4414, two telescopic rods 53 are arranged, one end of each telescopic rod 53 is connected with one frame plate 51, the other end of each telescopic rod 53 penetrates through the other frame plate 51 and extends out of the frame plate 51, the number of the support seats 52 is four, the four support seats 52 are symmetrically arranged on the two telescopic rods 53 in pairs, the platform 54 is fixedly arranged on the four support seats 52, the second motor 55 is fixedly arranged on the platform 54, the fifth gear 56 is connected with the output end of the second motor 55, the third rack 57 is fixedly arranged on one side of the platform 54, the fifth gear 56 is meshed with the third rack 57, the number of the fifth connecting rods 58 is two, one end of each of the fifth connecting rods 58 is connected with one telescopic rod 53, the other end of each of the fifth connecting rods 58 is connected with the soft brush 59, the second motor 55 drives the fifth gear 56 to rotate, the fifth gear 56 is meshed with the third rack 57, the platform 54 is driven to move, the telescopic rods 53 are driven to stretch, the position of the soft brush 59 is adjusted to wash the coiled material, the coiled material can be washed through the washing assembly 5, manual operation is not needed, the labor intensity of workers is greatly reduced, and time and labor are saved.
Specifically, wash subassembly 6 including wasing water tank 61, connecting pipe 62, automatic rotary part 63 and shower nozzle 64, wash water tank 61 fixed work platform 1 below, automatic rotary part 63 is fixed to be set up on movable plate 313, the one end of connecting pipe 62 is connected with washing water tank 61, the other end of connecting pipe 62 is connected with shower nozzle 64, connecting pipe 62 is scalable hose.
Specifically, the automatic rotating part 63 includes a first transmission motor 631, a first transmission shaft 632, an arc-shaped block 633, a mounting block 634, a first concave mounting plate 635, a second transmission shaft 636, a third transmission shaft 637, a mounting plate 638 and a second concave mounting plate 639, the first concave mounting plate 635 is fixedly disposed on the moving plate 313, the first transmission motor 631 is fixedly disposed on one side of the first concave mounting plate 635, an output shaft of the first transmission motor 631 penetrates through the first concave mounting plate 635, the first transmission shaft 632 is rotatably mounted on the first concave mounting plate 635, one end of the first transmission shaft 632 extends out of the first concave mounting plate 635, the mounting block 634 is rectangular, the mounting block 634 is fixedly disposed on the first transmission shaft 632, the second transmission shaft 636 is provided with two, the two second transmission shafts 636 are respectively and fixedly mounted on two sides of the mounting block 634, the arc block 633 is provided with a sliding groove, one end of the arc block 633 is connected with an output shaft of a first transmission motor 631, a second concave mounting plate 639 is rotatably mounted on two second transmission shafts 636, a third transmission shaft 637 is fixedly arranged at one end of the second concave mounting plate 639, the other end of the arc block 633 is rotatably connected with one end of the third transmission shaft 637, the mounting plate 638 is fixedly arranged at an extending end of the first transmission shaft 632, the first transmission motor 631 rotates to drive the arc block 633 connected with the arc block to rotate, the arc block 633 rotates to drive the second concave mounting plate 639 connected with the arc block to rotate under the action of the third transmission shaft 637, the second concave mounting plate 639 rotates to drive the first transmission shaft 74 to do semicircular reciprocating motion under the action of the second rotation shaft and the mounting block 634 connected with the second transmission shaft 636, so as to uniformly spray water on the surface of the coiled material, through the arrangement of the cleaning assembly 6, the aluminum coiled material can be wetted before the washing assembly 5 works, the washing assembly 5 is convenient to clean, meanwhile, the aluminum coiled material can be cleaned after the washing assembly 5 finishes working, the winding assembly 7 is convenient to wind and store, and the working efficiency and the practicability of the device are greatly improved.
Specifically, the winding assembly 7 includes a third motor 71, a third gear 72, a fourth gear 73, a first rotating shaft 74, a rotating plate 75, a fixing plate 76, a supporting column 77, and a material receiving wheel 78, the third motor 71 is fixedly disposed in the installation box 12, the third gear 72 is connected to an output end of the third motor 71, the third gear 72 and the fourth gear 73 are engaged with each other, one end of the first rotating shaft 74 is connected to the fourth gear 73, the other end of the first rotating shaft 74 penetrates through the installation box 12 and the workbench 1 to be connected to the rotating plate 75, the rotating plate 75 is fixedly disposed on the first rotating shaft 74, the fixing plate 76 is disposed above the supporting column 77, the supporting column 77 is fixedly disposed in the installation box 12, the material receiving wheel 78 is fixedly disposed on the rotating plate 75, the third gear 72 is driven by the third motor 71 to rotate, and the third gear 72 and the fourth gear 73 are engaged with each other, fourth gear 73 drives first axis of rotation 74 and rotates, and first axis of rotation 74 drives rotor plate 75 and rotates, thereby rotor plate 75 drives and receives material wheel 78 and rotate and carry out the rolling to the coiled material, through receiving the setting of material subassembly and can replacing the manual work to receive the material, great improvement work efficiency has reduced staff's working strength, has improved this device's practicality greatly.
The working principle of the invention is as follows: in the working state, the feeding component 2 is used for placing an aluminum plate to be rolled, the moving component 3 is used for driving the washing component 5 to move left and right, the lifting component 4 is used for driving the washing component 5 to move up and down, the washing component 5 is used for washing the aluminum plate, the washing component 6 is used for spraying water during the operation of the washing component 5 so as to facilitate the operation of the washing component 5, the rolling component 7 is used for rolling the washed aluminum plate, firstly, a worker puts an aluminum coiled material on the feeding component 2, then, the moving component 3 is started by the moving motor 310, the third rotating shaft 39 drives the third rotating disc to rotate, the third rotating disc drives the second belt 311 to rotate, the second belt 311 drives the second rotating shaft 36 to rotate, and the second rotating shaft 36 drives the second rotating disc 34 to rotate, the second rotating disc 34 drives the first belt 37 to rotate, so that the moving block 312 fixed on the first belt 37 moves in the moving groove of the moving base 31, thereby driving the moving plate 313 to drive the brushing assembly 5 to move left and right, then the lifting device 44 drives the screw rod 42 to rotate through the first motor 41, the screw rod 42 is in threaded connection with the first moving rod 43, the first moving rod 43 drives the second moving rod 442 to move, the first rack 444 is meshed with the first gear 446, the second rack 445 is meshed with the second gear 447, the first gear 446 drives the first connecting rod 448 to rotate while rotating, the first connecting rod 448 is hinged with the second connecting rod 449, the second gear 447 drives the third connecting rod 4410 to rotate while rotating, the third connecting rod 4410 is hinged with the transmission rod 4412, and the fourth connecting rod 4411 is hinged with the transmission rod 4412, thereby driving the lifting plate 4414 to lift, then the washing component 5 drives the fifth gear 56 to rotate through the second motor 55, the fifth gear 56 is engaged with the third rack 57 to drive the platform 54 to move, thereby driving the telescopic rod 53 to extend and retract, thereby adjusting the position of the soft brush 59 to wash the coiled material, then the cleaning component 6 drives the arc block 633 connected with the cleaning component 6 through the rotation of the first transmission motor 631, the arc block 633 drives the second concave mounting plate 639 connected with the second concave mounting plate to rotate under the action of the third transmission shaft 637, the second concave mounting plate 639 rotates under the action of the second rotation shaft and the mounting block 634 connected with the second transmission shaft 636 to drive the first rotation shaft 74 to make a semicircular reciprocating motion, so as to uniformly spray water on the surface of the coiled material, finally the rolling component 7 drives the third gear 72 to rotate through the third motor 71, and the third gear 72 is engaged with the fourth gear 73, the fourth gear 73 drives the first rotating shaft 74 to rotate, the first rotating shaft 74 drives the rotating plate 75 to rotate, and the rotating plate 75 drives the material receiving wheel 78 to rotate so as to receive the coiled material.
Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; while the invention has been described in detail and with reference to the foregoing embodiments, it will be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; and the modifications or the substitutions do not make the essence of the corresponding technical solutions depart from the scope of the technical solutions of the embodiments of the present invention.

Claims (8)

1.一种铝制卷材收卷设备，其特征在于：包括工作台(1)、送料组件(2)、移动组件(3)、升降组件(4)、洗刷组件(5)、清洗组件(6)和收卷组件(7)，所述工作台(1)上开设有凹槽(11)，所述工作台(1)下方设有安装箱(12)，所述送料组件(2)固定设置在工作台(1)一侧，所述移动组件(3)固定设置在凹槽(11)下方，所述升降组件(4)固定设置在移动组件(3)上，所述洗刷组件(5)固定设置在升降组件(4)的工作端，所述收卷组件(7)固定设置在工作台(1)另一侧。1. An aluminum coil winding device, characterized in that it comprises a workbench (1), a feeding assembly (2), a moving assembly (3), a lifting assembly (4), a washing assembly (5), a cleaning assembly ( 6) and a winding assembly (7), a groove (11) is formed on the worktable (1), a mounting box (12) is arranged under the worktable (1), and the feeding assembly (2) is fixed It is arranged on one side of the workbench (1), the moving assembly (3) is fixedly arranged under the groove (11), the lifting assembly (4) is fixedly arranged on the moving assembly (3), and the scrubbing assembly (5) ) is fixedly arranged on the working end of the lifting assembly (4), and the winding assembly (7) is fixedly arranged on the other side of the workbench (1). 2.根据权利要求1所述的一种铝制卷材收卷设备，其特征在于：所述移动组件(3)包括移动座(31)、移动固定座(32)、第一旋转盘(33)、第二旋转盘(34)、第一旋转轴(35)、第二旋转轴(36)、第一皮带(37)、第三旋转盘(38)、第三旋转轴(39)、移动电机(310)、第二皮带(311)、移动块(312)和移动板(313)，所述移动座(31)设置在工作台(1)的一侧，所述移动座(31)上开设有移动槽，所述移动固定座(32)设置有四个，四个所述移动固定座(32)两两对称固定设置在移动座(31)上，所述第一旋转盘(33)设置在两个所述移动固定座(32)中间，所述第二旋转盘(34)设置另外两个所述移动固定座(32)中间，所述第一旋转轴(35)贯穿所述第一旋转盘(33)转动设置在两个所述移动固定座(32)上，所述第二旋转轴(36)贯穿所述第二旋转盘(34)转动设置在另外两个所述移动固定座(32)上，所述第一皮带(37)套设在第一旋转盘(33)和第二旋转盘(34)上，所述第三旋转盘(38)设置在第一皮带(37)的一侧，所述三旋转轴转动设置在第三旋转盘(38)的一侧上，所述移动电机(310)固定设置在移动座(31)上，所述第三旋转轴(39)的另一端固定设置在移动电机(310)的输出端上，所述第二皮带(311)套设在第三旋转盘(38)和第二旋转轴(36)上，所述移动块(312)设置在第一皮带(37)上，所述移动板(313)固定设置在移动块(312)上方。2 . The aluminum coil winding device according to claim 1 , wherein the moving assembly ( 3 ) comprises a moving base ( 31 ), a moving fixed base ( 32 ), and a first rotating disc ( 33 ). 3 . ), the second rotating disc (34), the first rotating shaft (35), the second rotating shaft (36), the first belt (37), the third rotating disc (38), the third rotating shaft (39), the moving A motor (310), a second belt (311), a moving block (312) and a moving plate (313), the moving seat (31) is arranged on one side of the workbench (1), and the moving seat (31) There are moving slots, four moving fixing seats (32) are provided, and the four moving fixing seats (32) are symmetrically fixed on the moving seats (31) in twos, and the first rotating disk (33) The second rotating disk (34) is arranged between the other two movable fixing seats (32), and the first rotating shaft (35) penetrates through the second rotating plate (34). A rotating disk (33) is rotatably arranged on the two moving fixed seats (32), and the second rotating shaft (36) passes through the second rotating disk (34) and is rotatably arranged on the other two moving fixed seats (32). On the seat (32), the first belt (37) is sleeved on the first rotary disk (33) and the second rotary disk (34), and the third rotary disk (38) is provided on the first belt (37) ), the three rotating shafts are rotatably arranged on one side of the third rotating disk (38), the moving motor (310) is fixedly arranged on the moving seat (31), and the third rotating shaft (39) ) is fixedly arranged on the output end of the moving motor (310), the second belt (311) is sleeved on the third rotating disk (38) and the second rotating shaft (36), and the moving block ( 312) is arranged on the first belt (37), and the moving plate (313) is fixedly arranged above the moving block (312). 3.根据权利要求2所述的一种铝制卷材收卷设备，其特征在于：所述升降组件(4)包括第一电机(41)、丝杆(42)、第一移动杆(43)和升降部件(44)，所述第一电机(41)固定设置在移动板(313)上，所述丝杆(42)与第一电机(41)的输出端相连接，所述第一移动杆(43)与丝杆(42)螺纹连接，所述升降部件(44)设有两组，两组所述升降部件(44)对称设置在移动板(313)上。3 . The aluminum coil winding device according to claim 2 , wherein the lifting assembly ( 4 ) comprises a first motor ( 41 ), a screw rod ( 42 ), and a first moving rod ( 43 ). 4 . ) and a lifting component (44), the first motor (41) is fixedly arranged on the moving plate (313), the lead screw (42) is connected with the output end of the first motor (41), the first motor (41) is The moving rod (43) is threadedly connected with the screw rod (42), the lifting parts (44) are provided with two groups, and the two groups of the lifting parts (44) are symmetrically arranged on the moving plate (313). 4.根据权利要求3所述的一种铝制卷材收卷设备，其特征在于：所述升降部件(44)包括固定座(441)、第二移动杆(442)、安装座(443)、第一齿条(444)、第二齿条(445)、第一齿轮(446)、第二齿轮(447)、第一连接杆(448)、第二连接杆(449)、第三连接杆(4410)、第四连接杆(4411)、传动杆(4412)、连接座(4413)和升降板(4414)，所述固定座(441)固定设置在移动板(313)的一侧，所述第二移动杆(442)的一端与第一移动杆(43)连接，所述第二移动杆(442)的另一端贯穿固定座(441)且第二移动杆(442)可在固定座(441)内进行移动，所述安装座(443)设有三组，三组安装座(443)依次设置在移动板(313)一侧，所述第一齿条(444)固定设置在第二移动杆(442)的一端，所述第二齿条(445)固定设置在第二移动杆(442)的另一端，所述第一齿轮(446)转动设置在一组安装座(443)上且与第一齿条(444)相互啮合，所述第二齿轮(447)转动设置在另一组安装座(443)上且与第二齿条(445)相互啮合，所述第一连接杆(448)的一端与一组安装座(443)转动连接，所述第一连接杆(448)的另一端与第二连接杆(449)铰接，所述第二连接杆(449)的一端与第一连接杆(448)铰接，所述第二连接杆(449)的另一端与连接座(4413)相连接，所述第三连接杆(4410)设有两根，两根所述第三连接杆(4410)的一端分别与一组安装座(443)转动连接，两根所述第三连接杆(4410)的另一端与传动杆(4412)铰接，所述第四连接杆(4411)设有两根，两根所述第四连接杆(4411)的一端与传动杆(4412)铰接，两根所述第四连接杆(4411)的另一端与连接座(4413)相连接，所述连接座(4413)设有三组，三组所述连接座(4413)中的其中一组与第一连接杆(448)连接，三组所述连接座(4413)的另外两组均与两根第四连接杆(4411)相连接，所述升降板(4414)固定设置在连接座(4413)上。4 . The aluminum coil winding device according to claim 3 , wherein the lifting component ( 44 ) comprises a fixed seat ( 441 ), a second moving rod ( 442 ), and a mounting seat ( 443 ). 5 . , the first rack (444), the second rack (445), the first gear (446), the second gear (447), the first connecting rod (448), the second connecting rod (449), the third connecting rod A rod (4410), a fourth connecting rod (4411), a transmission rod (4412), a connecting seat (4413) and a lifting plate (4414), the fixing seat (441) is fixedly arranged on one side of the moving plate (313), One end of the second moving rod (442) is connected with the first moving rod (43), the other end of the second moving rod (442) penetrates the fixing seat (441), and the second moving rod (442) can be fixed on The seat (441) moves in the seat (441), the mounting seat (443) is provided with three groups, the three groups of mounting seats (443) are sequentially arranged on one side of the moving plate (313), and the first rack (444) is fixedly arranged on the first rack (444). One end of two moving rods (442), the second rack (445) is fixedly arranged on the other end of the second moving rod (442), and the first gear (446) is rotatably arranged on a set of mounting seats (443) and meshes with the first rack (444), the second gear (447) is rotatably arranged on another set of mounting seats (443) and meshes with the second rack (445), the first connection One end of the rod (448) is rotatably connected with a set of mounting seats (443), and the other end of the first connecting rod (448) is hinged with a second connecting rod (449), one end of the second connecting rod (449) Hinged with the first connecting rod (448), the other end of the second connecting rod (449) is connected with the connecting seat (4413), and the third connecting rod (4410) is provided with two, two of the third connecting rods (4410). One end of the three connecting rods (4410) is rotatably connected to a set of mounting seats (443) respectively, the other ends of the two third connecting rods (4410) are hinged with the transmission rod (4412), and the fourth connecting rod (4411) ) is provided with two, one end of the two fourth connecting rods (4411) is hinged with the transmission rod (4412), and the other end of the two fourth connecting rods (4411) is connected with the connecting seat (4413), The connecting seat (4413) is provided with three groups, one of the three groups of the connecting seat (4413) is connected to the first connecting rod (448), and the other two groups of the three connecting seats (4413) are connected to the first connecting rod (448). The two fourth connecting rods (4411) are connected, and the lifting plate (4414) is fixedly arranged on the connecting seat (4413). 5.根据权利要求4所述的一种铝制卷材收卷设备，其特征在于：所述洗刷组件(5)包括机架板(51)、支撑座(52)、伸缩杆(53)、平台(54)、第二电机(55)、第五齿轮(56)、第三齿条(57)、第五连接杆(58)和软毛刷(59)，所述机架板(51)设有两块，两块机架板(51)对称设置在升降板(4414)上，所述伸缩杆(53)设有两根，两根所述伸缩杆(53)的一端均与一组机架板(51)连接，两根所述伸缩杆(53)的另一端贯穿另一组机架板(51)并延伸至机架板(51)外，所述支撑座(52)设有四个，四个所述支撑座(52)呈两两对称设置在两根伸缩杆(53)上，所述平台(54)固定设置在四个支撑座(52)上，所述第二电机(55)固定设置在平台(54)上，所述第五齿轮(56)与第二电机(55)的输出端相连接，所述第三齿条(57)固定设置在平台(54)一侧，所述第五齿轮(56)与第三齿条(57)相互啮合，所述第五连接杆(58)设有两根，两根所述第五连接杆(58)的一端分别与一根伸缩杆(53)连接，两根所述第五连接杆(58)的另一端均与软毛刷(59)相连接。5 . The aluminum coil winding device according to claim 4 , wherein the scrubbing assembly ( 5 ) comprises a frame plate ( 51 ), a support seat ( 52 ), a telescopic rod ( 53 ), Platform (54), second motor (55), fifth gear (56), third rack (57), fifth connecting rod (58) and soft brush (59), the frame plate (51) There are two, two rack plates (51) are symmetrically arranged on the lifting plate (4414), two telescopic rods (53) are provided, and one end of the two telescopic rods (53) is connected to a set of The rack plates (51) are connected, and the other ends of the two telescopic rods (53) penetrate through another group of rack plates (51) and extend to the outside of the rack plates (51). The support base (52) is provided with Four, the four support seats (52) are symmetrically arranged on two telescopic rods (53), the platform (54) is fixedly arranged on the four support seats (52), and the second motor (55) is fixedly arranged on the platform (54), the fifth gear (56) is connected with the output end of the second motor (55), and the third rack (57) is fixedly arranged on the first side of the platform (54). side, the fifth gear (56) and the third rack (57) mesh with each other, the fifth connecting rods (58) are provided with two, one end of the two fifth connecting rods (58) are respectively connected with A telescopic rod (53) is connected, and the other ends of the two fifth connecting rods (58) are both connected with the soft brush (59). 6.根据权利要求5所述的一种铝制卷材收卷设备，其特征在于：所述清洗组件(6)包括清洗水箱(61)、连接管(62)、自动旋转部件(63)和喷头(64)，所述清洗水箱(61)固定工作台(1)下方，所述自动旋转部件(63)固定设置移动板(313)上，所述连接管(62)的一端与清洗水箱(61)连接，所述连接管(62)的另一端与喷头(64)相连接。6. An aluminum coil winding device according to claim 5, characterized in that: the cleaning assembly (6) comprises a cleaning water tank (61), a connecting pipe (62), an automatic rotating part (63) and The spray head (64), the cleaning water tank (61) is fixed below the workbench (1), the automatic rotating part (63) is fixed on the moving plate (313), and one end of the connecting pipe (62) is connected to the cleaning water tank ( 61) is connected, and the other end of the connecting pipe (62) is connected with the spray head (64). 7.根据权利要求6所述的一种铝制卷材收卷设备，其特征在于：所述自动旋转部件(63)包括第一传动电机(631)、第一传动轴(632)、弧形块(633)、安装块(634)、第一凹形安装板(635)、第二传动轴(636)、第三传动轴(637)、安装板(638)和第二凹形安装板(639)，所述第一凹安装板(635)固定设置在移动板(313)上，所述第一传动电机(631)固定设置在第一凹安装板(635)的一侧上，并且所述第一传动电机(631)的输出轴贯穿所述第一凹安装板(635)，所述第一传动轴(632)转动安装在第一凹形安装板(635)上，并且所述第一传动轴(632)的一端延伸出第一凹形安装板(635)外，所述安装块(634)呈矩形，所述安装块(634)固定设置在第一传动轴(632)上，所述第二传动轴(636)设有两个，两个所述第二传动轴(636)分别固定安装在安装块(634)的两侧，所述弧形块(633)上开设有滑动槽，所述弧形块(633)一端与第一传动电机(631)的输出轴连接，所述第二凹形安装板(639)转动安装在两个所述第二传动轴(636)上，所述第三传动轴(637)固定设置在第二凹形安装板(639)一端上，所述弧形块(633)的另一端与第三传动轴(637)的一端转动连接，所述安装板(638)固定设置在第一传动轴(632)的延伸端上。7. An aluminum coil winding device according to claim 6, characterized in that: the automatic rotating part (63) comprises a first transmission motor (631), a first transmission shaft (632), an arc-shaped block (633), mounting block (634), first concave mounting plate (635), second drive shaft (636), third drive shaft (637), mounting plate (638) and second concave mounting plate ( 639), the first concave mounting plate (635) is fixedly arranged on the moving plate (313), the first transmission motor (631) is fixedly arranged on one side of the first concave mounting plate (635), and all The output shaft of the first transmission motor (631) penetrates the first concave mounting plate (635), the first transmission shaft (632) is rotatably mounted on the first concave mounting plate (635), and the One end of a drive shaft (632) extends out of the first concave mounting plate (635), the mounting block (634) is rectangular, and the mounting block (634) is fixed on the first drive shaft (632), There are two second transmission shafts (636), and the two second transmission shafts (636) are respectively fixed and installed on both sides of the mounting block (634), and the arc-shaped block (633) is provided with sliding one end of the arc-shaped block (633) is connected with the output shaft of the first transmission motor (631), and the second concave mounting plate (639) is rotatably mounted on the two second transmission shafts (636) , the third transmission shaft (637) is fixedly arranged on one end of the second concave mounting plate (639), and the other end of the arc-shaped block (633) is rotatably connected with one end of the third transmission shaft (637), so The mounting plate (638) is fixedly arranged on the extension end of the first transmission shaft (632). 8.根据权利要求7所述的一种铝制卷材收卷设备，其特征在于：所述收卷组件(7)包括第三电机(71)、第三齿轮(72)、第四齿轮(73)、第一转动轴(74)、旋转板(75)、固定板(76)、支撑柱(77)和收料轮(78)，所述第三电机(71)固定设置在安装箱(12)内，所述第三齿轮(72)与第三电机(71)的输出端相连接，所述第三齿轮(72)和第四齿轮(73)相互啮合，所述第一转动轴(74)的一端与第四齿轮(73)相连接，所述第一转动轴(74)的另一端贯穿安装箱(12)和工作台(1)与旋转板(75)相连接，所述旋转板(75)固定设置在第一转动轴(74)上，所述固定板(76)设置在支撑柱(77)上方，所述支撑柱(77)固定设置安装箱(12)内，所述收料轮(78)固定设置在旋转板(75)上。8 . The aluminum coil winding device according to claim 7 , wherein the winding assembly ( 7 ) comprises a third motor ( 71 ), a third gear ( 72 ), a fourth gear ( 73), the first rotating shaft (74), the rotating plate (75), the fixing plate (76), the supporting column (77) and the receiving wheel (78), the third motor (71) is fixedly arranged in the installation box ( 12), the third gear (72) is connected with the output end of the third motor (71), the third gear (72) and the fourth gear (73) are meshed with each other, and the first rotating shaft ( One end of 74) is connected with the fourth gear (73), and the other end of the first rotating shaft (74) is connected with the rotating plate (75) through the installation box (12) and the worktable (1), and the rotating The plate (75) is fixedly arranged on the first rotating shaft (74), the fixing plate (76) is arranged above the support column (77), and the support column (77) is fixedly arranged in the installation box (12), the The take-up wheel (78) is fixedly arranged on the rotating plate (75).
