The invention relates to a sponge cutting debris cleaning machine, comprising a cleaning frame; a bending component, including an upper slide and a lower slide, on which a plurality of upper bending rollers for rolling fit are installed, and on the lower slide Several lower bending rollers are installed in rolling fit, and the upper bending roller and the lower bending roller cooperate together to form an opening facing the feeding side of the cleaning frame. The sponge passing through the arc-shaped conveying path; It includes a brush roller, and there is a gap for the brush roller to enter and exit between the upper sliding plate and the lower sliding plate; a conveying assembly arranged on the side of the cleaning frame, including a feeding side of the cleaning frame. Conveyor platform, conveyor belt. The advantages of the present invention are: through the cooperation between the cleaning frame, the bending component, the cleaning component and the conveying component, the cleaning of the residues on the surface of the sponge and the gaps can be realized, which greatly reduces manual labor, is convenient for cleaning, and greatly improves the efficiency of cleaning. Improved cleaning efficiency.

Description

Sponge cutting residue cleaning machine

Technical Field

The invention relates to the field of sponge processing, in particular to a sponge cutting and scrap cleaning machine.

Background

The sponge is a porous material, has good water absorption and can be used for cleaning articles, the sponge is made of wood cellulose fiber or foamed plastic polymer, most of natural sponges are used for body cleaning or drawing, and in addition, synthetic sponges made of three types of other materials are low-density polyether (non-water-absorbing sponge), polyvinyl alcohol (high-water-absorbing material without obvious air holes) and polyester.

At present, in the process of sponge production, foaming is usually carried out to form an integral large sponge, then a cutting machine is utilized to cut the large sponge to form small sponges, gaps or special shapes are cut on the small sponges, and in the process, sponge scraps are inevitably generated,

for example, patent CN110919743A discloses a sponge scrap collecting device for cutting regenerated sponge, which comprises a frame body, a conveyor belt for conveying sponge is wound on the frame body, the input end of the conveyor belt is provided with a sponge scrap cleaning device, and the tail end of the sponge scrap cleaning device is provided with a sponge scrap collecting device. This kind of incomplete bits sponge collection device is used in regeneration sponge cutting provides the incomplete bits of sponge that produce when regeneration sponge cutting and collects the method, can use the automatic sponge clearance and the collection of accomplishing on the conveyer belt of cutting machine during operation, has saved the manpower greatly to on the one hand prevented the remaining incomplete bits of sponge of conveyer belt when the sponge cutting to the influence of cutting machine work, sponge incomplete bits have not had the problem that can put when the incomplete bits of sponge clearance has also been avoided on the other hand.

And foretell this kind of collection device, its conveyer belt that only aims at on the surface adnexed sponge scrap clear up, and can't clear up sponge on the surface scrap, especially when cutting out the gap or some special shapes with the sponge, inevitable have the sponge scrap to stay in the gap of sponge, when clearing up this part of scrap, the means that adopts at present often is the mode of manual cleaning, wastes time and energy, and work efficiency is low moreover.

Disclosure of Invention

The invention aims to provide a sponge cutting residue cleaning machine which is convenient to clean and high in cleaning efficiency.

In order to solve the technical problems, the technical scheme of the invention is as follows: the utility model provides a sponge cutting scrap descaling machine which innovation point lies in: comprises that

One side of the cleaning rack is a feeding side;

the bending assembly is arranged on the cleaning rack and close to the feeding side, the bending assembly comprises an upper slide carriage and a lower slide carriage which are sequentially arranged on the cleaning rack from top to bottom, a plurality of upper bending rollers in rolling fit are arranged on the upper slide carriage, a plurality of lower bending rollers in rolling fit are arranged on the lower slide carriage, the upper bending rollers and the lower bending rollers are distributed in an arc shape, the upper bending rollers and the lower bending rollers are matched together to form a sponge accommodating and passing arc-shaped conveying path with an opening facing the feeding side of the cleaning rack, and a rubber coating roller matched with the arc-shaped conveying path is arranged on the feeding side of the cleaning rack;

the cleaning assembly is arranged on the cleaning rack and comprises a brush roller which is arranged on the side, away from the feeding side of the cleaning rack, of the bending assembly, the brush roller is arranged between the upper slide carriage and the lower slide carriage, and a gap for allowing the brush roller to pass in and out is reserved between the upper slide carriage and the lower slide carriage;

the conveying assembly is arranged beside the cleaning rack and comprises a conveying platform arranged at the feeding side of the cleaning rack, and a conveying belt is arranged on the conveying platform.

Further, the bending component is driven by a first horizontal moving mechanism to move horizontally, and the first horizontal moving mechanism is: a pair of first horizontal moving guide rails are arranged above an upper slide carriage and below a lower slide carriage on a cleaning rack, first horizontal moving slide blocks matched with the first horizontal moving guide rails are further mounted at the upper end of the upper slide carriage and the lower end of the lower slide carriage, the upper slide carriage and the lower slide carriage are connected through a connecting plate to form a whole, a pair of horizontally arranged telescopic lead screws are further connected to two sides of the upper slide carriage, the extending direction of the telescopic lead screws is the same as that of the first horizontal moving guide rails, a pair of worm gear boxes for accommodating the two telescopic lead screws to penetrate correspondingly one by one are further mounted on the cleaning rack, the telescopic lead screws are driven by the worm gear boxes to rotate and pull the upper slide carriage to reciprocate along the first horizontal moving guide rails, the input ends of the two worm gear boxes are connected to the same transmission shaft, and the transmission shaft is driven by a first motor to rotate, thereby driving the two worm and gear boxes to synchronously work.

Further, each upper bending roller and each lower bending roller are driven by a linkage assembly to synchronously rotate, and the linkage assembly is as follows: the linkage is realized through the cooperation of first linkage sprocket and first linkage chain between two adjacent last bending rolls respectively, realize the linkage through the cooperation of second linkage sprocket and second linkage chain between two adjacent lower bending rolls, realize the linkage through the cooperation of third linkage sprocket and third linkage chain between the last bending roll that is located the top and the lower bending roll, the last bending roll that is located the top rotates by the drive of second motor, thereby drive all last bending rolls, lower bending roll carries out synchronous syntropy and rotates.

Further, the brush roller is driven by a second horizontal moving mechanism to move horizontally, and the second horizontal moving mechanism is as follows: install the second removal guide rail that a pair of level set up on the clearance frame, the both sides of brush roller are installed respectively on a cylinder brush fixed plate, install the second removal slider that cooperatees and use with the second removal guide rail in the bottom of cylinder brush fixed plate, still all be connected with a second removal rack that extends along the major axis direction of second removal guide rail in the mutually adjacent one side of two second removal guide rails, two cylinder brush fixed plates are through a through-shaft connection, install respectively in the both sides of through-shaft one with second removal rack matched with second removal gear, the through-shaft is rotated by third motor drive to the pulling brush roller is close to or keeps away from crooked subassembly.

Furthermore, the lower part of the brush roller is also provided with a scrap collecting assembly, the scrap collecting assembly comprises a scrap receiving platform, the feeding side of the scrap receiving platform is positioned under the brush roller, the discharging side of the scrap receiving platform extends to the outer side of the cleaning rack, and a scrap conveying belt is installed on the scrap receiving platform.

Furthermore, both sides of the residual scrap receiving platform are respectively provided with a baffle, the two baffles are distributed in a V shape, and the baffles extend along the conveying direction of the residual scrap conveying belt.

Furthermore, the number of the conveying platforms is three, and the conveying platforms are respectively a first conveying platform, a second conveying platform and a third conveying platform, wherein the first conveying platform and the third conveying platform are distributed in parallel along the horizontal direction, the third conveying platform is positioned on one side close to the cleaning rack, and the second conveying platform is positioned above the third conveying platform.

The invention has the advantages that: according to the cleaning machine, the cleaning rack, the bending assembly, the cleaning assembly and the conveying assembly are matched with one another, so that the residual scraps on the surface of the sponge and in the gap can be cleaned, the manual labor is greatly reduced, the cleaning is convenient, and the cleaning efficiency is greatly improved.

To the design of first horizontal migration mechanism, utilize mutually supporting of parts such as first horizontal migration guide rail, first horizontal migration slider, connecting plate, telescopic screw to realized the horizontal migration of crooked subassembly, adjusted the interval between crooked subassembly and the conveying platform, with the clearance that is applicable to the sponge of multiple not unidimensional, the commonality is stronger.

The design of the linkage assembly utilizes the cooperation between the plurality of groups of linkage chain wheels and the linkage chain to realize the synchronous active rotation of the upper bending roller and the lower bending roller, and further plays a role in auxiliary conveying for the movement of the sponge in the bending assembly, so as to be beneficial to the smooth conveying of the sponge.

To the design of second horizontal migration mechanism, utilize the second to remove the mutual cooperation of parts such as guide rail, second removal slider, second removal gear, second removal rack to realized the horizontal migration of brush roller, the convenience can carry out the adjusting position according to the sponge of equidimension not, and the commonality is stronger, and another is convenient, also can adjust the relative position between brush roller and the crooked subassembly, thereby adjust the light and heavy dynamics of brush roller brush sponge, with the better incomplete bits of getting rid of on the sponge.

The arrangement of the residual scrap collecting assembly is characterized in that residual scraps brushed by the brush roller are uniformly collected and conveyed out of the cleaning rack through the matching of the residual scrap receiving platform and the residual scrap conveying belt, so that personnel can conveniently perform uniform collection treatment on the residual scraps; and to the design of the baffle of incomplete bits receiving platform both sides, then in order to avoid the incomplete bits to drop from the incomplete bits conveyer belt at the in-process of carrying, and adopt V-arrangement shape distribution with two baffles, form open structure, conveniently receive the sponge incomplete bits that drop from the brush roller.

To conveying platform's design, adopt three conveying platform to cooperate to can realize having two sponges to clear up on the descaling machine that operates, improve the cleaning efficiency of sponge.

Drawings

The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.

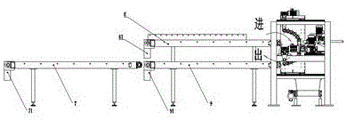

Fig. 1 is a schematic view of a sponge cutting residue cleaner of the present invention.

Fig. 2 is a top view of the sponge cutting and debris removal machine of the present invention.

Fig. 3 is an internal schematic view of the sponge cutting and residue cleaning machine of the present invention.

Fig. 4 is a side view of the sponge cutting and debris removal machine of the present invention.

FIG. 5 is a front view of a conditioning frame of the present invention.

Detailed Description

The following examples are presented to enable one of ordinary skill in the art to more fully understand the present invention and are not intended to limit the scope of the embodiments described herein.

The sponge cutting and residue cleaning machine shown in figures 1-5 comprises

A cleaning rack 1, wherein the cleaning rack 1 is a cuboid frame structure which is composed of a plurality of transverse rods, longitudinal rods and vertical rods, and one side of the cleaning rack 1 in the width direction is limited as a feeding side.

A bending component which is arranged on the cleaning rack 1 and is close to the feeding side of the cleaning rack 1, the bending component comprises an upper slide carriage 2 and a lower slide carriage 3 which are sequentially arranged on the cleaning rack 1 from top to bottom, a plurality of upper bending rollers 21 are arranged on the upper slide carriage 2, two sides of the upper bending rollers 21 are matched with the upper slide carriage 2 through the matching of bearings and bearing seats, a plurality of lower bending rollers 31 are arranged on the lower slide carriage 3, two sides of the lower bending rollers 31 are matched with the lower slide carriage 3 through the matching of bearings and bearing seats, each upper bending roller 21 and each lower bending roller 31 are distributed in an arc shape, all the upper bending rollers 21 and the lower bending rollers 31 are matched together to form a sponge-containing conveying path with an opening facing the feeding side of the cleaning rack 1 through the arc-shaped conveying path, a rubber coating roller 4 matched with the arc-shaped conveying path is arranged at the feeding side of the cleaning rack 1, the two sides of the rubber-coated roller 4 are mounted on the cleaning rack 1 through the matching of a bearing and a bearing seat, and the rubber-coated roller 4 is driven to rotate by a fourth motor 41 mounted on the cleaning rack 1.

Each upper bending roll 21 and lower bending roll 31 are driven by a linkage component to synchronously rotate, and the linkage component is as follows: the linkage is realized through the cooperation of first linkage sprocket and first linkage chain 21 between two adjacent last bending rolls 21 respectively, realize the linkage through the cooperation of second linkage sprocket and second linkage chain 32 between two adjacent lower bending rolls 31, realize the linkage through the cooperation of third linkage sprocket and third linkage chain 23 between the last bending roll 21 that is closest to and the lower bending roll 31, the last bending roll 21 that is located the top rotates by the drive of second motor 24, thereby drive all last bending rolls 21, lower bending roll 31 carries out synchronous syntropy and rotates, and the direction of rotation of going up bending roll 21 is opposite with the direction of rotation of rubber coating cylinder 4. The design of the linkage assembly utilizes the cooperation of a plurality of groups of linkage chain wheels and linkage chains to realize the synchronous active rotation of the upper bending roller 21 and the lower bending roller 31, and further plays a role in auxiliary conveying for the movement of the sponge in the bending assembly, so as to be beneficial to the smooth conveying of the sponge.

The bending component is driven by a first horizontal moving mechanism to move horizontally, and the first horizontal moving mechanism is as follows: a pair of first horizontal moving guide rails 25 are arranged on the cleaning rack 12 above the upper slide carriage 2 and below the lower slide carriage 3, a first horizontal moving slide block 26 matched with the first horizontal moving guide rails 25 is arranged at the upper end of the upper slide carriage 2 and at the lower end of the lower slide carriage 3, the upper slide carriage 2 and the lower slide carriage 3 are connected into a whole through a connecting plate, a pair of horizontally arranged telescopic lead screws 27 are connected at two sides of the upper slide carriage 2, the extending direction of the telescopic lead screws 27 is the same as that of the first horizontal moving guide rails 25, a pair of worm gear boxes 28 for accommodating the two telescopic lead screws 27 to pass through one by one are arranged on the cleaning rack 1, the telescopic lead screws 27 are driven by the worm gear boxes 28 to rotate, so that the horizontal movement of the telescopic lead screws 27 is realized, and the upper slide carriage 2 is pulled to reciprocate along the first horizontal moving guide rails 25, the worm and gear box 28 is fixed on the cleaning rack 1 through bolts, the input ends of the two worm and gear boxes 28 are connected to the same transmission shaft 29, and the transmission shaft 29 is driven by a first motor 30 installed on the cleaning rack 1 to rotate and drive the two worm and gear boxes 28 to synchronously work. For the design of the first horizontal movement mechanism, the first horizontal movement guide rail 25, the first horizontal movement sliding block 26, the connecting plate, the telescopic screw rod 27 and the like are matched with each other, so that the horizontal movement of the bending assembly is realized, the distance between the bending assembly and the conveying platform is adjusted, the cleaning device is suitable for cleaning sponges of different sizes, and the universality is higher.

The cleaning assembly is arranged on the cleaning rack 1 and comprises a brush roller 5 which is arranged on one side of the bending assembly, which is away from the feeding side of the cleaning rack 1, wherein the brush roller 5 is arranged between the upper slide carriage 2 and the lower slide carriage 3, and a gap for accommodating the brush roller 5 to get in and out is reserved between the upper slide carriage 2 and the lower slide carriage 3.

The brush roller 5 is driven by a second horizontal moving mechanism to move horizontally, and the second horizontal moving mechanism is as follows: a pair of second moving guide rails 51 which are horizontally arranged are installed on the cleaning frame 1, two sides of the brush roller 5 are respectively installed on a roller brush fixing plate 53, two sides of the brush roller 51 are matched with the roller brush fixing plate 53 through the matching of a bearing and a bearing seat in a rolling way, the brush roller 51 is driven by a fifth motor 54 which is installed on the roller brush fixing plate 53 to rotate, a second moving slide block 52 which is matched with the second moving guide rails 51 is installed at the bottom end of the roller brush fixing plate 53, one side of the two second moving guide rails 51 which are adjacent to each other is also connected with a second moving rack 55 which extends along the long axis direction of the second moving guide rails 51, the two roller brush fixing plates 53 are connected through a through shaft 56, two sides of the through shaft 56 respectively penetrate through the two roller brush fixing plates 53, the side end of the through shaft 56 is matched with the roller brush fixing plates 53 through the matching of the bearing and the bearing sleeve in a rolling way, a second moving gear engaged with the second moving rack 55 is installed at both sides of the penetration shaft 56, respectively, and the penetration shaft 56 is rotated by a third motor 57 installed at the roller brush fixing plate 53 and pulls the brush roller 5 to approach or separate from the bending assembly. To the design of second horizontal migration mechanism, utilize the second to remove guide rail 51, the second removes slider 52, the second removes the gear, the second removes mutually supporting of parts such as rack 55, thereby realized the horizontal migration of brush roller 5, the position of brush roller 5 apart from the feeding side of clearance frame 1 can just be adjusted according to the sponge of not unidimensional, the commonality is stronger, another convenience, also can adjust the relative position between brush roller 5 and the crooked subassembly, thereby adjust the light and heavy dynamics of brush roller 5 brush sponge, with the better debris of getting rid of on the sponge.

Still be provided with a detritus collection assembly in the below of brush roller 5, the detritus collection assembly includes a detritus receiving platform 6, the length axis direction of detritus receiving platform 6 along brush roller 5 extends, and whole brush roller 5 all is located detritus receiving platform 6 directly over, this detritus receiving platform 6's feed side is located brush roller 5 directly under, the discharge side of detritus receiving platform 6 extends to the outside of clearance frame 1, install a detritus conveyer belt on detritus receiving platform 6, this detritus conveyer belt is driven by the sixth motor 61 of installing on detritus receiving platform 6 and is carried out work. The setting of subassembly is collected to the incomplete bits, through the cooperation between incomplete bits receiving platform 6 and the incomplete bits conveyer belt, unifies the collection with the incomplete bits that brush 5 brush of brush roller to outside transmission out clearance frame 1, make things convenient for personnel to carry out these incomplete bits and carry out unified collection processing.

Two sides of the upper end of the residual scrap receiving platform 6 are respectively provided with a baffle 62, the two baffles 62 are distributed in a V shape, and the baffles 62 extend along the conveying direction of the residual scrap conveying belt. To the design of the baffle plates 62 on both sides of the scrap receiving platform 6, the two baffle plates 62 are distributed in a V shape in order to prevent the scraps from falling off from the scrap conveyor belt in the conveying process, so that the two baffle plates 62 jointly form an open structure, and the sponge scraps falling off from the brush roller can be conveniently received.

And the conveying assembly is arranged at the side of the cleaning rack 1 and comprises a conveying platform arranged at the feeding side of the cleaning rack, and a conveying belt is arranged on the conveying platform.

The number of the first conveying platform is three, the first conveying platform 7, the second conveying platform 8 and the third conveying platform 9 are respectively arranged, wherein the first conveying platform 7 and the third conveying platform 9 are distributed in parallel along the horizontal direction, the third conveying platform 9 is located on one side close to the cleaning rack 1, the second conveying platform 8 is located above the third conveying platform 9, a first conveying belt is installed on the first conveying platform 7 and driven by a seventh motor 71 installed on the first conveying platform 7 to work, a second conveying belt is installed on the second conveying platform 8 and driven by an eighth motor 81 installed on the second conveying platform 8 to work, a third conveying belt is installed on the third conveying platform 9 and driven by a ninth motor 91 installed on the third conveying platform 9 to work. To conveying platform's design, adopt three conveying platform to cooperate to can realize having two sponges to clear up on the descaling machine that operates, improve the cleaning efficiency of sponge.

The working principle is as follows: firstly, the positions of a bending component and a brush roller 5 are adjusted according to factors such as the size and the force of the sponge to be cleaned, then, a first sponge to be cleaned is placed on a second conveyor belt, an eighth motor 81 works to convey the first sponge on the second conveyor belt to an arc-shaped conveying path, a fourth motor 41, a second motor 24 and a fifth motor 54 work to drive a rubber coating roller 4, an upper bending roller 21, a lower bending roller 31 and the brush roller 5 to start rotating, the rubber coating roller 4, the upper bending roller 21 and the lower bending roller 31 are matched with each other to clamp the first sponge for conveying, the first sponge can also bend along with the arc-shaped conveying path when passing through the arc-shaped conveying path, namely, gaps of the sponge can be opened, and when the sponge passes through the brush roller 5, the brush roller 5 can smoothly clean the surface of the sponge and scraps in the gaps of the sponge, the incomplete bits after the clearance can drop on the incomplete bits conveyer belt, and at this moment, sixth motor 61 also can work, and the drive incomplete bits conveyer belt carries out work to carry the incomplete bits on the incomplete bits conveyer belt, avoid the long-time accumulation of incomplete bits.

After the first sponge is separated from the second conveying belt, the second sponge is placed on the second conveying belt to be conveyed, the first sponge is conveyed to the third conveying belt along the arc-shaped conveying path after being processed, at the moment, the ninth motor 91 also starts to rotate to drive the third conveying belt to work, the first sponge is conveyed to the first conveying belt through the third conveying belt, the seventh motor 71 also starts to work to receive the first sponge, at the moment, the first sponge is only cleaned on one surface, when the first sponge moves to the first conveying belt, the second sponge also enters the arc-shaped conveying path to be cleaned, at the moment, the first sponge is directly conveyed to the first conveying belt again, and the sponge is turned over after passing through the first conveying belt, the arc-shaped conveying path and the third conveying belt, so the sponge does not need to be turned over again, directly conveyed to wait for cleaning the other side. The operation is repeated, so that continuous cleaning work is realized, and the waiting time of the sponge due to turnover is reduced.

It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. a sponge cutting debris cleaning machine is characterized in that: comprising:

a cleaning frame, one side of the cleaning frame is the feeding side;

A bending assembly installed on the cleaning frame near the feeding side, the bending assembly includes an upper sliding plate and a lower sliding plate arranged up and down on the cleaning frame in sequence, and a number of upper and lower sliding plates are installed on the upper sliding plate. Bending roller, a number of lower bending rollers are installed on the lower slide plate, the upper bending roller and lower bending roller are distributed in arc shape, and the upper bending roller and the lower bending roller cooperate to form an opening facing the cleaning frame The sponge container on the feeding side passes through the arc-shaped conveying path, and a rubber-coated roller matched with the arc-shaped conveying path is also provided at the feeding side of the cleaning frame;

A cleaning assembly installed on the cleaning frame, the cleaning assembly includes a brush roller disposed on the side of the bending assembly away from the feeding side of the cleaning frame, and the brush roller is located between the upper slide and the lower slide At the same time, there is a gap for the brush roller to enter and exit between the upper sliding plate and the lower sliding plate;

A conveying assembly arranged on the side of the cleaning frame, the conveying assembly includes a conveying platform arranged at the feeding side of the cleaning frame, and a conveying belt is arranged on the conveying platform.

2. The sponge cutting debris cleaning machine according to claim 1, wherein the bending assembly is driven to move horizontally by a first horizontal moving mechanism, and the first horizontal moving mechanism is: A pair of first horizontal moving guide rails are arranged above the upper sliding plate and below the lower sliding plate, and a first horizontal moving guide rail matched with the first horizontal moving guide rail is installed on the upper end of the upper sliding plate and the lower end of the lower sliding plate. Moving the slider, the upper sliding plate and the lower sliding plate are connected to form a whole through the connecting plate, and a pair of horizontally arranged telescopic screws are connected on both sides of the upper sliding plate, and the extension direction of the telescopic screw is the same as that of the first sliding plate. A horizontal moving guide rail extends in the same direction, and a pair of turbine worm boxes are installed on the cleaning frame to accommodate two telescopic screw rods to pass through one by one, and the telescopic screw rods are driven by the turbine worm screw box to rotate and pull up The plate reciprocates along the first horizontal moving guide rail, and the input ends of the two worm gear boxes are connected to the same transmission shaft, which is driven by the first motor to rotate, thereby driving the two worm gear boxes to work synchronously .

3. The sponge cutting debris cleaning machine according to claim 1, wherein each upper bending roller and lower bending roller are driven to rotate synchronously by a linkage assembly, and the linkage assembly is: two adjacent upper bending rollers The rollers are linked through the cooperation of the first linkage sprocket and the first linkage chain respectively, and the two adjacent lower bending rollers are linked through the cooperation of the second linkage sprocket and the second linkage chain. The linkage between the bending roller and the lower bending roller is realized by the cooperation of the third linkage sprocket and the third linkage chain. The upper bending roller located on the uppermost side is driven by the second motor to rotate, thereby driving all the upper bending rollers and the lower bending rollers. Rotate in the same direction synchronously.

4 . The sponge cutting debris cleaning machine according to claim 1 , wherein the brush roller is driven to move horizontally by a second horizontal moving mechanism, and the second horizontal moving mechanism is: on the cleaning frame. 5 . A pair of horizontally arranged second moving guide rails are installed, the two sides of the brush roller are respectively installed on a roller brush fixing plate, and a second moving slide which is used in cooperation with the second moving guide rail is installed at the bottom end of the roller brush fixing plate. A second moving rack extending along the long axis direction of the second moving guide rails is also connected to the adjacent sides of the two second moving guide rails, and the two roller brush fixing plates are connected through a through shaft, A second moving gear matched with the second moving rack is installed on both sides of the through shaft, the through shaft is driven by a third motor to rotate, and pulls the brush roller closer to or away from the bending assembly.

5 . The sponge cutting debris cleaning machine according to claim 1 , wherein a debris collection component is further provided below the brush roller, and the debris collection component includes a debris receiving platform. 5 . The feed side of the chip receiving platform is located just below the brush roller, the discharge side of the chip receiving platform extends to the outside of the cleaning frame, and a chip conveyor belt is installed on the chip receiving platform.

6 . The sponge cutting debris cleaning machine according to claim 5 , wherein a baffle plate is further provided on both sides of the debris receiving platform, and the two baffle plates are distributed in a V shape, and the baffle plates are arranged in a V shape. 7 . Extends in the conveying direction of the scrap conveyor belt.

7. The sponge cutting debris cleaning machine according to claim 1, wherein there are three conveying platforms in total, which are a first conveying platform, a second conveying platform, and a third conveying platform, wherein the first conveying platform The conveying platform and the third conveying platform are distributed side by side along the horizontal direction, and the third conveying platform is located on the side close to the cleaning frame, and the second conveying platform is located above the third conveying platform.
