Abstract
本发明公开了一种低碳环保节能型采暖炉，其包括：炉体，所述炉体靠近前壁的位置设有一倾斜煤仓，其靠近后壁的位置设有烟箱，所述炉体的炉膛底部设有炉排；富氧气化器，其平行设于所述炉膛内的槽体内且其对应炉口的位置设置，所述富氧气化器的两侧分别通过一导向板与所述倾斜煤仓的倾斜水套和挡灰板连接；上下两端的导向板之间围成的区域为烟气混合燃烧区；所述富氧气化器的上方的燃烧区域为气化燃烧区。本发明提供了一种低碳环保节能型采暖炉，其通过设置烟气混合燃烧区和气化燃烧区的设置，不仅可对烟气混合物即未燃烧的一氧化碳和粉尘进行充分助燃，有效增加燃烧行程，大大降低了大气污染物，而且其有效提高燃尽率和取暖效率。
The invention discloses a low-carbon, environment-friendly and energy-saving heating furnace, comprising: a furnace body, wherein a position close to the front wall of the furnace body is provided with an inclined coal bunker, and a position close to the rear wall is provided with a smoke box; The bottom of the furnace is provided with a grate; an oxygen-enriched gasifier is arranged in parallel to the groove in the furnace and at the position corresponding to the furnace mouth, and the two sides of the oxygen-enriched gasifier are respectively connected to the The inclined water jacket of the inclined coal bunker is connected with the ash blocking plate; the area enclosed between the guide plates at the upper and lower ends is the flue gas mixed combustion area; the combustion area above the oxygen-enriched gasifier is the gasification combustion area. The invention provides a low-carbon, environment-friendly and energy-saving heating furnace, which can not only fully support the combustion of the flue gas mixture, ie, unburned carbon monoxide and dust, but also effectively increase the combustion stroke by setting the flue gas mixed combustion zone and the gasification combustion zone. , greatly reducing air pollutants, and it effectively improves the burnout rate and heating efficiency.
Description
Technical Field
The invention relates to a heating stove, in particular to a low-carbon environment-friendly energy-saving heating stove.
Background
Along with the improvement of living standard, people have higher and higher performance requirements on water heating coal-fired heating stoves, namely, a stove which is safe, coal-saving, high in heat efficiency and convenient and fast to use at home is sought, so that the market demand of the current civil water heating coal-fired heating stoves is met; the heating stove is closely related to the environmental protection, is the main pollution source of the atmosphere, and the environmental protection effect is influenced by the blackness of the boiler flue gas, dust, SO2, NOs and CO 2.
Currently, the most commonly used furnaces are still traditional and are the simplest direct combustion mode. This kind of traditional combustion method, flame spread along the natural flow direction of hot flue gas during solid fuel burning, and combustion strength is high, and the firepower is flourishing, can satisfy user's cooking demand, and the shortcoming is that the volatile analysis goes out fast, produces a large amount of black cigarettes.
The reverse combustion stove has the advantages of high stove temperature, full combustion, low particle emission concentration, suitability for high-volatile fuels such as bituminous coal and the like, and suitability for heating.
The forward-burning stove and the reverse-burning stove cannot meet the requirements of cooking and heating at the same time; even if the reverse combustion stove is used for cooking, the effect is not good, the insufficient combustion often exists, the burnout rate is low, and the heating, environment-friendly and energy-saving effects are difficult to achieve.
The problems of insufficient combustion and low burnout rate exist in both a forward combustion furnace and a reverse combustion furnace; at present, the fuel emission pollutants of the heating stove mainly comprise carbon monoxide, nitrogen oxides and smoke dust; for carbon monoxide, when the combustible gas concentration is low or the combustible gas leaves the high temperature combustion zone, there will be residual carbon monoxide when it does not reach sufficient combustion conditions. Therefore, the problem that the emission of carbon monoxide in the heating furnace exceeds the standard exists all the time;
the above-mentioned excessive emissions of carbon monoxide, nitrogen oxides and smoke dust cause the emissions not to meet the regulations of environmental protection requirements; however, the existing stove does not have the measures for reducing the pollutant emission, such as the blackness of smoke, smoke dust and SO, on the combustion mode2、NOx and CO2And the emission requirements of emission standards of atmospheric pollutants for boilers (latest version in 2018) cannot be met.
Meanwhile, it should be noted that most of heating stoves adopt manual deashing at present, however, most of manual deashing not only needs to consume operator's time, but also encounters the problem that the deashing effect is not good if the coal of part coal quality non-deformable appears, and the normal operation of heating and cooking is seriously influenced.
Disclosure of Invention
The invention aims to overcome the defects of the prior art and provides a low-carbon, environment-friendly and energy-saving heating stove which can fully support combustion of flue gas mixture, namely unburned carbon monoxide and dust, effectively increase the combustion stroke, greatly reduce atmospheric pollutants and effectively improve the burnout rate and the heating efficiency by arranging a flue gas mixing combustion area and a gasification combustion area.
The invention also aims to provide a low-carbon, environment-friendly and energy-saving heating stove capable of automatically cleaning ash, which avoids the problem of difficult ash cleaning by arranging an automatic ash cleaning component.
In order to achieve the purpose, the invention adopts the technical scheme that:
a low carbon environmental protection and energy saving type heating stove, it includes:
the furnace body is provided with an inclined coal bunker at a position close to the front wall, a smoke box is arranged at a position close to the rear wall, and a fire grate is arranged at the bottom of a hearth of the furnace body;
the oxygen-enriched gasifier is arranged in parallel in a groove body in the hearth and is arranged at a position corresponding to the furnace mouth, and two sides of the oxygen-enriched gasifier are respectively connected with the inclined water jacket and the ash baffle of the inclined coal bunker through a guide plate; the air inlet of the oxygen-enriched gasifier is arranged at the bottom of the oxygen-enriched gasifier;
an air inlet opening is formed in the side wall, close to the bottom wall, of the furnace body, the air inlet opening is arranged corresponding to an air inlet of the oxygen-enriched gasifier, and a connecting plate and a guide plate at the lower end are arranged on the left side and the right side of the air inlet opening respectively; the area between the connecting plate and the guide plate at the lower end is an air inlet channel;
the area enclosed between the guide plates at the upper end and the lower end is a flue gas mixed combustion area; and the combustion area above the oxygen-enriched gasifier is a gasification combustion area.
As above-mentioned low carbon environmental protection and energy saving type heating stove, wherein, still include:
the fire banking plate is inserted in the slot between the inclined water jacket and the guide plate above the inclined water jacket;
the bottom of the fire banking plate penetrates through the open slot to enter the hearth, and two sides of the bottom end of the open slot are respectively provided with a limiting column to ensure that a distance difference is reserved between the bottom wall of the fire banking plate and the bottom of the hearth;
and the top end of the fire banking plate is provided with a hanging ring and an opening.
As above-mentioned low carbon environmental protection and energy saving type heating stove, wherein, still include:
the automatic ash cleaning component comprises a micro motor, a disc and a pull rod; the rotary shaft of the micro motor penetrates through the opening, one end of the pull rod is connected with the rotary shaft, and the other end of the pull rod is connected with a grate rocker arm externally arranged on the grate to control the irregular ash removal operation of the grate.
The low-carbon environment-friendly energy-saving heating stove comprises a micro motor, a power plug, an intermittent interval timing socket, a rotating mechanism and a rotating mechanism, wherein the micro motor is a micro permanent magnet synchronous alternating current motor, the power plug of the micro motor is plugged in the intermittent interval timing socket, and the rotating time;
the outer wall of the furnace body is provided with a motor support, and the micro motor is arranged on the motor support.
The low-carbon environment-friendly energy-saving heating stove comprises a hearth, a heating chamber and a heating chamber, wherein the hearth is provided with a hollow metal interlayer; the bottom of the hearth of the furnace body is provided with a fire grate and an ash removal drawer arranged at the bottom of the fire grate;
the smoke box is communicated with the hearth and is internally provided with a plurality of heat absorption pipes; the top end of the smoke box is provided with a smoke tube opening, a water outlet and an explosion-proof valve, and the position of the smoke box close to the bottom end is provided with a water inlet; the water inlet and the water outlet are respectively communicated with the interlayer water cavity; and two ends of the heat absorption pipe are respectively communicated with the interlayer water cavity.
The low-carbon environment-friendly energy-saving heating stove comprises an inclined coal bin, a water jacket and a water jacket, wherein the inclined coal bin is formed by a cavity between the inclined plate and the inclined water jacket which are arranged in parallel; the furnace body is arranged in the furnace body and is close to the front side of the furnace body; the open end of the bottom end of the furnace is communicated with the hearth, and the top end of the furnace is provided with a coal bin opening;
the top end of the inclined plate starts from the included angle between the front wall and the top wall of the furnace surface, and the bottom end of the inclined plate is arranged above the slag removal channel after the inclined plate is obliquely arranged;
the inclined water jacket is communicated with the interlayer water cavity; the top end of the inclined water jacket is communicated with the interlayer water cavity close to the coal bunker port, and the bottom end of the inclined water jacket is connected with a guide plate arranged at the upper end;
and the outer walls of the slag removal channel and the ash removal drawer are respectively provided with an air inlet door.
The low-carbon environment-friendly energy-saving heating stove further comprises an air distribution groove; the air distribution groove is in a channel steel shape, and the left side and the right side of the front side of the air distribution groove are provided with air; the air distribution grooves are arranged on the left side and the right side of the slag removal channel and the furnace body,
the bottom of the air distribution groove is communicated with the bottom of the fire grate, and the top end of the air distribution groove is communicated with the hearth;
the air distribution groove is buried in the refractory soil, and the notch of the air distribution groove is flush with the height of the refractory soil.
The low-carbon, environment-friendly and energy-saving heating stove comprises an oxygen-enriched gasifier, a heating furnace and a heating furnace, wherein the oxygen-enriched gasifier is cylindrical or comb-shaped and comprises a gasifier and a ventilation pipe connected with the gasifier, and the ventilation pipe is provided with an air inlet communicated with an inner cavity of the ventilation pipe;
the periphery of the air inlet opening is sealed, and an air inlet door is arranged on the air inlet opening.
The low-carbon environment-friendly energy-saving heating stove comprises a gasifier, a heating pipe, a; the air inlet of the ventilation pipe is arranged on the bottom wall of the gasifier and is rectangular;
each sub-gasification body and the ventilation pipe are rectangular, and the sub-gasification bodies and the ventilation pipe are hollow and communicated with each other;
a plurality of vent holes which are uniformly arranged are arranged on the front, left and right side walls of each sub-gasification body.
The low-carbon, environment-friendly and energy-saving heating stove comprises a gasifier, a ventilating pipe, a heating pipe and a heating pipe, wherein the gasifier is cylindrical and comprises an annular gasification ring and a rectangular ventilating pipe arranged at the bottom end of the gasification ring;
the gasification ring is uniformly divided into a plurality of sub gasification bodies which are annularly wound on the gasification ring;
a plurality of vent holes which are uniformly arranged are arranged on the adjacent side walls of each sub-gasification body;
the sub-gasification body is in a sector ring shape or a cylinder shape.
The low-carbon environment-friendly energy-saving heating stove comprises two fire grates, wherein the two fire grates respectively comprise a fire grate beam and fin strips respectively arranged on two sides of the fire grate beam, and the part of the fire grate beam extending out of the furnace body is a fire grate rocker;
a plurality of conical column-shaped deslagging columns are uniformly distributed on the grate and are vertically welded or integrally cast on the top wall of the grate.
Compared with the prior art, the invention has the following beneficial effects:
according to the low-carbon environment-friendly energy-saving heating stove, due to the arrangement of the flue gas mixed combustion area and the gasification combustion area, unburned carbon monoxide and dust in the stroke from the combustion of the hearth to the gasification combustion area can be fully combusted, the carbon content and the dust content at the outlet of the stove body are greatly reduced, and the atmospheric pollution is effectively reduced;
the low-carbon environment-friendly energy-saving heating stove is characterized in that an oxygen-enriched gasifier is arranged in a hearth, so that a first flame path and a second flame path are formed, and cooking and heating can be carried out on the same stove body; therefore, the integrated cooking and heating operation is realized, the normal cooking is ensured, the energy-saving and emission-reducing characteristics are realized, and the characteristics of improving the burnout rate and the heat efficiency are realized when the heating is carried out;
the low-carbon environment-friendly energy-saving heating stove is also provided with the automatic ash removal component, so that the aim of automatically removing ash can be fulfilled, and the problem of difficult ash removal is avoided; meanwhile, the automatic ash removal component can be additionally arranged on the heating furnace, so that the cost input of a user is effectively reduced;
the low-carbon environment-friendly energy-saving heating stove can burn common coal, and can burn clean coal, biomass briquette coking fuel and other coal which is not deformed before and after combustion; therefore, the automatic ash removal component needs to be adopted to carry out timing ash removal operation on the automatic ash removal component;
the low-carbon, environment-friendly and energy-saving heating stove provided by the invention can effectively improve the burnout rate of fire coal and improve the heating effect.
According to the low-carbon environment-friendly energy-saving heating stove, the inclined coal bin is arranged, so that fire coal can be stored, and the low-carbon environment-friendly energy-saving heating stove is convenient for users to use; further improve the combustion chamber coal sustainable burning, flame keeps the combustion-supporting optimum state of oxygen boosting always, and cooking heating obviously promotes.
Drawings

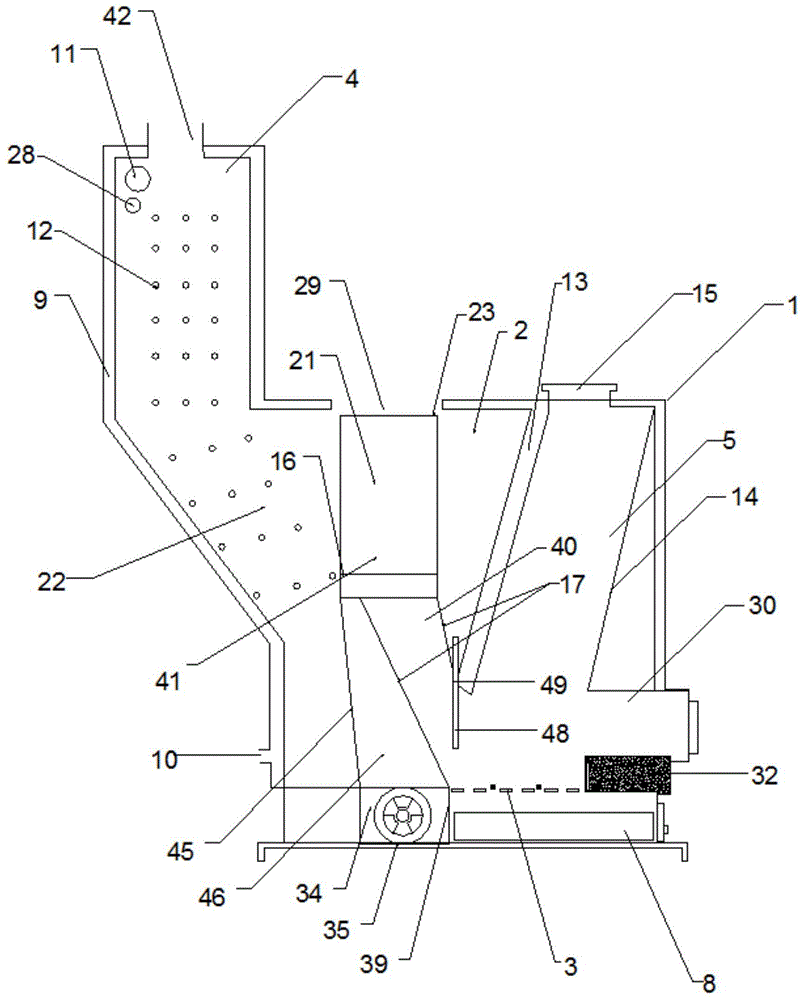

FIG. 1 is a schematic structural diagram of a low-carbon environment-friendly energy-saving heating stove of the invention;
FIG. 2 is another schematic structural diagram of a low-carbon environment-friendly energy-saving heating stove of the invention;
FIG. 3 is another schematic structural diagram of a low-carbon environment-friendly energy-saving heating stove of the invention;
FIG. 4 is a schematic structural view of the automatic ash removal assembly of the present invention;
FIG. 5 is a schematic view of the construction of the fire shield of the present invention;
FIG. 6A is a schematic diagram of the configuration of a comb vaporizer of the present invention;
FIG. 6B is a schematic view of another embodiment of the comb gasifier of the present invention;
FIG. 6C is a schematic structural view of a fan ring gasifier according to the present invention;
FIG. 6D is a schematic diagram of the cylindrical gasifier of the present invention;
FIG. 7 is a schematic structural view of the grate of the present invention;
description of reference numerals:
1. furnace body 2, furnace 3, grate
4. Smoke box 5, inclined coal bunker 6, fire grate rocker
7. Ash cleaning connecting handle 8, ash cleaning drawer 9 and interlayer water cavity
10. Water inlet 11, water outlet 12 and heat absorption pipe
13. Inclined water jacket 14, inclined plate 15 and coal bunker opening
16. Oxygen-enriched gasifier 17, guide plate 18 and micro motor
19. Disc 20, pull rod 21, first flame path
22. Second flame path 23, draft tube 24, ventilation pipe
25. Sub-gasification body 26, vent 27 and motor support
28. Explosion-proof valve 29, furnace mouth 30 and slag removal channel
31. Intermittent interval timing socket 32, refractory soil 33 and air distribution groove
34. Air inlet opening 35, air inlet door 36 and grate beam
37. Fin 38, slag pouring column 39 and ash baffle
40. A flue gas mixed combustion area 41, a gasification combustion area 42 and a chimney port
43. Power plug 44, air inlet 45 and connecting plate
46. Air inlet channel 47, gasification ring 48 and fire banking up plate
49. Slotted 50, spacing post 51, link
52. Opening holes
Detailed Description
In order to facilitate understanding of the objects, technical solutions and effects of the present invention, the present invention will be further described in detail with reference to examples.
As shown in fig. 1, 2, 3, 4 and 5, the low-carbon environmental-friendly energy-saving heating stove of the present invention comprises:
the furnace comprises a furnace body 1, wherein an inclined coal bunker 5 is arranged at the position, close to the front wall, of the furnace body 1, a smoke box 4 is arranged at the position, close to the rear wall, of the furnace body 1, and a fire grate 3 is arranged at the bottom of a hearth 2 of the furnace body 1;
the oxygen-enriched gasifier 16 is arranged in the hearth 2 in parallel and corresponds to the position of the furnace mouth 29, and the bottom end of the oxygen-enriched gasifier 16 is connected with the groove body at the top end of the guide plate 17; the air inlet 44 of the oxygen-enriched gasifier 16 is arranged at the bottom of the oxygen-enriched gasifier, and is communicated with the air inlet opening 34 arranged at the position close to the bottom of the furnace body 1 to form an air inlet channel 46;
the oxygen-enriched gasifier 16 is arranged in parallel in a groove body in the hearth 2 and is arranged at a position corresponding to the furnace mouth 29, and two sides of the oxygen-enriched gasifier 16 are respectively connected with the inclined water jacket 13 and the ash baffle 39 of the inclined coal bunker 5 through a guide plate 17; the air inlet 44 of the oxygen-enriched gasifier 16 is arranged at the bottom of the oxygen-enriched gasifier;
an air inlet opening is formed in the side wall of the furnace body 1 close to the bottom wall, the air inlet opening 34 is arranged corresponding to an air inlet 44 of the oxygen-enriched gasifier 16, and a connecting plate 45 and a guide plate 17 at the lower end are respectively arranged on the left side and the right side; the area between the connecting plate 45 and the guide plate 17 at the lower end is an air inlet channel 46;
the area enclosed between the guide plates 17 at the upper and lower ends is a flue gas mixed combustion area 40; the combustion zone above the oxygen-enriched gasifier 16 is the gasification combustion zone 41.
The low-carbon environment-friendly energy-saving heating stove provided by the embodiment of the application is characterized in that the oxygen-enriched gasifier 16 is arranged inside the hearth 2, so that a flue gas mixed combustion area 40 and a gasification combustion area 41 are formed;
firstly, coal is combusted for the first time in a combustion area of a hearth 2 above a fire grate 3; the flame of the flue gas is influenced by the wind direction of the slag cleaning channel 30 and an air inlet door 35 on the outer wall of the ash cleaning drawer 8 to burn to one side close to the flue, and then enters a flue gas mixed combustion area 40 surrounded by guide plates 17 at two sides;
when unburned carbon monoxide and dust enter the smoke mixed combustion zone 40 and red flame, black smoke and dust which emit black smoke in the hearth 2 collide with each other, the red flame can rapidly support combustion of the black smoke and the dust;
then the oxygen supply amount is controlled by adjusting an air inlet door 35 outside the oxygen-enriched gasifier 16, and the flue gas and the like are influenced by the wind power of the oxygen-enriched gasifier 16, so that the coal gas entering the gasification combustion area 41 is fully combusted;
according to the low-carbon environment-friendly energy-saving heating stove provided by the embodiment of the application, through the arrangement of the flue gas mixed combustion area 40 and the gasification combustion area 41, unburned carbon monoxide and dust in the stroke from the combustion of the hearth 2 to the gasification combustion area 41 can be fully combusted, the carbon content and the dust content at the outlet of the stove body 1 are greatly reduced, and the pollution to the atmosphere is effectively reduced;
the low-carbon environment-friendly energy-saving heating stove is provided with the oxygen-enriched gasifier 16, and a smoke mixed combustion area 40 is formed in the area between the oxygen-enriched gasifier 16 and the grate 3; when the carbon monoxide, the nitrogen oxide, the smoke dust and the like which are combusted in the combustion zone of the grate 3 firstly enter the smoke mixed combustion zone 40 for secondary combustion; then, when the residual flue gas mixture passes through the oxygen-enriched gasifier 16, the residual flue gas mixture can be fully combusted no matter the concentration of combustible gas, and dust particles in the combustible gas are combusted along with the combustible gas, so that not only is energy utilized, but also the problems of overproof carbon monoxide concentration and personal safety hidden danger are solved.
In the low-carbon, environment-friendly and energy-saving heating stove of the embodiment of the application, the air inlet 44 of the oxygen-enriched gasifier 16 is arranged at the bottom of the oxygen-enriched gasifier, and is communicated with the air inlet opening 34 arranged at the position, close to the bottom, of the stove body 1 to form an air inlet channel 46;
specifically, the air inlet channel 46 is vertically communicated with the air inlet opening 34 and the air inlet 44, so that the normal air distribution of the oxygen-enriched gasifier 16 can be ensured; through repeated experiments, the following results are found: the air inlet 44 of the gasification body is arranged at the bottom, and the air inlet opening 34 is arranged at the position of the furnace body 1 close to the bottom wall; after passing through the air inlet channel 46, the air entering from the air inlet door 35 is heated by the heat conduction of the guide plate 17 when reaching the air inlet 44 of the gasification body, and the air inlet temperature is gradually increased, so that the air inlet temperature is increased, and the combustion supporting effect is greatly improved.
As shown in fig. 1 and 5, the low-carbon, environment-friendly and energy-saving heating stove further comprises a fire-sealing plate 48 which is inserted into a slot 49 between the inclined water jacket 13 and the upper guide plate 17; the bottom of the fire banking plate 48 penetrates through the open slot 49 to enter the hearth 2, and two ends of the bottom end of the open slot 49 are respectively provided with a limiting column 50 to ensure that a distance difference is reserved between the bottom wall of the fire banking plate 48 and the bottom of the hearth of the furnace 2; the top end of the fire banking up pipe 48 is provided with a hanging ring 51 and an opening 52.
The fire banking plate 48 is arranged to be placed in the furnace body 2 from a slot 49 between the inclined water jacket 13 and the upper guide plate 17; when the fire banking-up plate 48 is slowly put into the open slot 49, when the fire banking-up plate 40 touches the limit posts 50 arranged at the two sides of the bottom end of the open slot 49, the height of putting the fire banking-up plate 48 into the hearth 2 can be ensured to be only a part of the height;
it should be noted that, the inclined water jacket 13 is connected with the two ends of the bottom of the guide plate 17 by welding or linking, a gap is left in the middle, which is the slot 49 through which the fire-sealing plate 48 can pass, the length of the gap is determined by the width of the furnace, and the width is determined by the thickness of the fire-sealing plate 48, so as to ensure that the fire-sealing plate 48 can be easily lifted and placed; the fire banking up plate 48 is arranged, so that when fire banking up is needed, namely when heating with small fire is needed, the fire banking up plate 48 is lifted up to be separated from the convex column arranged on the guide plate 17 and directly put down; the coal gas which is not burnt out passes through the burning coal, so that the coal gas is fully burnt, and the burn-out rate is improved;
when needs cooking, then hang up with the link 51 on this fire banking up plate 48 top for the couple for this fire banking up plate 48 lifts up until the trompil 52 on it aims at the projection that sets up on the deflector 17 of locating the upper end and can hang it, plays the purpose of location, prevents that this fire banking up plate 48 from falling into fluting 49 and influencing cooking efficiency, thereby effectively improves the efficiency of cooking.
In a preferred embodiment, the height of the fire banking plate 48 is 12cm, and the bottoms of the two sides of the slot 49 are 4cm away from the lower part of the inclined water jacket; when the fire banking plate 48 is lifted and hung on the convex column, cooking is facilitated; to ensure that the smoke which is not fully combusted returns to the combustion area of the red fire on the fire grate 3 to be combusted again under the obstruction of the fire banking plate 48; thereby improving the burnout rate.
As shown in fig. 4, the low-carbon environment-friendly energy-saving heating stove of the present invention comprises: the automatic ash cleaning component comprises a micro motor 18, a disc 19 and a pull rod 20; the disc 19 is provided with an opening, a rotating shaft of the micro motor 18 penetrates through the opening, one end of the pull rod 20 is connected with the rotating shaft, and the other end of the pull rod is connected with the grate rocker arm 6 arranged outside the grate 3 to control the irregular ash removal operation.
As shown in fig. 4, in the low-carbon, environment-friendly and energy-saving heating stove of the present invention, the micro motor 18 is a micro permanent magnet synchronous ac motor, and a power plug 43 thereof is inserted into the intermittent interval timing socket 31, so as to set the rotation time and the interval time according to the coal quality; a motor support 27 is arranged on the outer wall of the furnace body 1, and the micro motor 18 is arranged on the motor support 27.
The low-carbon environment-friendly energy-saving heating stove is provided with an automatic ash removal component;
it should be noted that, because the coal quality is different and the ash content is different, the furnace type is provided with a micro permanent magnet synchronous alternating current motor, a power plug 43 of the micro permanent magnet synchronous alternating current motor is connected with the intermittent interval timing socket 31, and the timing time interval can be set according to the requirement; the ash content is large, the rotation time can be set to be 1-8 hours, the rotation time is 2-120 seconds, and the ash content is set according to the ash content; the ash content is small and the rotation can be not set or set for a longer time so as to keep the coal burned in the hearth 2 in the optimum state to prevent the ash content from being too large, is full of the hearth 2, and the heating effect of the heating stove is difficult to achieve.
Meanwhile, it should be noted that the intermittent interval timing socket 31 used in the embodiment of the present application is a common microcomputer time-controlled switch socket of a household appointment timer on the market, and can be cycled to count down and automatically power off; the type of the miniature permanent magnet synchronous alternating current motor is 68KTYZ alternating current synchronous motor; the micro motor 18 and the intermittent interval timing socket 31 are common articles, such as an intelligent intermittent circulation type timing socket; those skilled in the art are readily available on the market.
When the automatic ash removal component works, after the micro motor 18 starts to work, the rotating shaft drives the pull rod 20, so that the grate rocker arm 6 is driven to swing left and right, and the ash on the grate 3 can fall into the ash removal drawer 8, so that the aim of removing ash at regular time is fulfilled.
It should be noted that the automatic ash removal component can achieve the purpose of automatically removing ash, and can also perform ash removal operation manually, that is, the ash removal connecting handle 7 can be held by hand to drive the grate rocker arm 6, thereby achieving an ash removal mode combining manual operation and automatic operation.
As shown in fig. 1, in the low-carbon, environment-friendly and energy-saving heating stove of the present invention, a fire pulling cylinder 23 is placed on the oxygen-enriched gasifier 16 from a stove mouth 29, and a fire channel in the fire pulling cylinder 23 is the first fire channel 21 for cooking;
the flame on the oxygen-enriched gasifier 16 burns towards the flue under the influence of the suction force of the chimney after the fire pulling cylinder 23 is removed, and the flame path generated by the oxygen-enriched gasifier 16 towards the flue is a second flame path 22 for heating.
In the embodiment of the application, the low-carbon environment-friendly energy-saving heating stove can realize the switching between heating and cooking by placing the fire pulling cylinder 23; when a user needs to cook, the matched fire pulling cylinder 23 is only needed to be placed in the fire hole 29, and the bottom of the fire pulling cylinder is contacted with the gasifier, so that the direction of flame can be ensured to be concentrated at the position of the fire hole 29, the cooking efficiency is improved, and the burnout rate is improved;
when the user finishes cooking, the flame pulling barrel 23 is taken out, the flame on the oxygen-enriched gasifier 16 is influenced by the suction force of the external chimney and burns towards the direction of the flue, and the flame path generated by the oxygen-enriched gasifier 16 towards the flue is a second flame path 22 for heating;
above-mentioned two kinds of modes are this gasification cooking heating stove's daily two kinds of working methods, and it has overcome the cooking efficiency of the heating stove among the prior art low, the coal-fired burn-off rate is low, pollute big scheduling problem.
It should be noted that the flame-drawing cylinder 23 is hollow and covers the oxygen-enriched vaporizer 16, so the shape of the flame-drawing cylinder 23 is the same as the shape of the oxygen-enriched vaporizer 16 used with the furnace body 1; the size of the oxygen-enriched gasifier is related to the size of a furnace opening 29 of the furnace body 1 matched with the size of the oxygen-enriched gasifier, so that the oxygen-enriched gasifier can be placed in the furnace opening 29 and the bottom of the oxygen-enriched gasifier is contacted with the oxygen-enriched gasifier 16;
since the installation position of the gasifier and the type of the gasifier are different in each furnace body 1, the parameters of the draft tube 23 are not fixed, and may be cylindrical or rectangular, depending on the shape of the oxygen-enriched gasifier 16.
As shown in fig. 1, in the low-carbon environment-friendly energy-saving heating stove of the present invention, the inner wall of the hearth 2 is formed by a hollow metal interlayer to form an interlayer water cavity 9; the bottom of the hearth 2 of the furnace body 1 is provided with a fire grate 3 and an ash removal drawer 8 arranged at the bottom of the fire grate 3; the smoke box 4 is communicated with the hearth 2 and is internally provided with a plurality of heat absorption pipes 12; the top end of the smoke box 4 is provided with a smoke tube opening 42, a water outlet 11 and an explosion-proof valve 28, and the position of the smoke box 4 close to the bottom end is provided with a water inlet 10; the water inlet 10 and the water outlet 11 are respectively communicated with the interlayer water cavity 9; two ends of the heat absorption pipe 12 are respectively communicated with the interlayer water cavity 9.
As shown in fig. 1, in the low-carbon environment-friendly energy-saving heating stove of the present invention, the inclined coal bunker 5 is formed by a cavity between an inclined plate 14 and an inclined water jacket 13 which are arranged in parallel; the furnace body is arranged in the furnace body 1 and is close to the front side of the furnace body 1; the open end of the bottom end of the furnace is communicated with the hearth 2, and the top end of the furnace is provided with a coal bin opening 15; the top end of the inclined plate 14 starts from the included angle between the front wall and the top wall of the furnace surface, and the bottom end of the inclined plate is arranged above the slag removal channel 30 after the inclined plate is obliquely arranged; the inclined water jacket 13 is communicated with the interlayer water cavity 9; the top end of the inclined water jacket 13 is communicated with the interlayer water cavity 9 at the position close to the coal bin opening 15, and the bottom end of the inclined water jacket is connected with a guide plate 17 arranged at the upper end; and the outer walls of the slag removal channel 30 and the ash removal drawer 8 are provided with air inlet doors 35.
The embodiment of this application in a low carbon environmental protection and energy saving type heating stove, this slope coal bunker 5's design, it has two big characteristics: firstly, the coal bunker is obliquely arranged in the furnace body 1 and is close to the position of the furnace mouth 29, thereby improving the cooking effect; secondly, after the slag removing channel 30 of the furnace body 1 is lengthened, the burning coal is prevented from falling on the ground during ash removal.
As shown in fig. 2, the low-carbon environment-friendly energy-saving heating stove further comprises an air distribution groove 33; the air distribution groove 33 is in a channel steel shape, and the front left side and the right side of the air distribution groove are provided with air; the air distribution grooves 33 are arranged on the left side and the right side of the slag removal channel 30 and the furnace body 1; the bottom of the air distribution groove 33 is communicated with the bottom of the fire grate 3, and the top end of the air distribution groove is communicated with the hearth 2; the air distribution groove 33 is buried in the refractory soil 32, and the notch thereof is flush with the height of the refractory soil 32.
It should be further explained that the heating stove is provided with the air distribution groove 33 which is in a channel steel shape, the lower end of the air distribution groove 33 is communicated with the air inlet position of the fire grate 3, and the upper end can directly enter the furnace chamber 2; when the furnace ash in the hearth 2 is accumulated, the air distribution operation can be carried out through the air distribution groove 33 when the air distribution through the fire grate 3 is blocked, so that the normal combustion is ensured.
As shown in fig. 6A, fig. 6B, fig. 6C and fig. 6D, in the low-carbon, environment-friendly and energy-saving heating stove of the present invention, the oxygen-enriched vaporizer 16 is cylindrical or comb-shaped, and includes a vaporizer and a ventilation pipe 24 connected thereto, and the ventilation pipe 24 is provided with an air inlet 44 communicated with an inner cavity thereof; the outer periphery of the air inlet opening 34 is sealed, and an air inlet door 35 is arranged on the air inlet opening.
Specifically, when the oxygen-enriched gasifier 16 is arranged in the hearth 2, two ends of the bottom of the oxygen-enriched gasifier are respectively connected with the ash baffle 39 and the inclined water jacket 13 through a guide plate 17, which can form a flue gas mixed combustion area 40 and a gasification combustion area 42 for normal cooking and heating; it has the characteristics of easy operation, good gasification effect, low emission and good cooking and heating effects;
specifically, the air inlet opening 34 is communicated with an air inlet 44 of the gasification body, a connecting plate 45 is arranged between the air inlet opening and the air inlet 44, and an air inlet channel 46 is formed between the connecting plate 45 and the guide plate 17 on the lower side; through repeated experiments, the following results are found: the air inlet 44 of the gasification body is arranged at the bottom, and the air inlet opening 34 is arranged at the position of the furnace body 1 close to the bottom wall; when the air entering from the air inlet door 35 passes through the air inlet channel 46 and reaches the air inlet 44 of the gasification body, the guide plate 17 conducts heat to heat the inlet air, so that the inlet air temperature is gradually increased, and the inlet air temperature is increased, thereby greatly improving the combustion-supporting effect.
The placement position of the oxygen-enriched vaporizer 16 is determined according to parameters such as the shape and size of each furnace body 1; as a preferred embodiment, the oxygen-enriched gasifier 16 is optimally arranged at the position which is at the left side of the fire grate 3 and is close to the bottom wall of the furnace body 1; and the oxygen-enriched gasifier 16 is placed into the furnace body 1 from the furnace mouth 29; an air inlet door 35 is also arranged on the air inlet opening 34; the air inlet door 35 can adjust the size of the inlet air; the shape of the air inlet door 35 applied to the furnace body 1 is similar, and therefore, the description thereof is omitted.
It should be further noted that, at present, some heating stoves are used as gasifiers, but generally, a disk-shaped gasifier is arranged below the stove mouth 29, which only can be used for cooking, and the emission effect is not greatly improved; the gasifier used in the embodiments of the present application is a comb gasifier or a fan-ring gasifier, which can be installed inside the furnace body 1.
As embodiment 1, as shown in fig. 6A and 6B, the low-carbon, environment-friendly and energy-saving heating stove of the present invention comprises a comb-shaped gasifier, which includes a ventilation pipe 24 and a plurality of sub-gasifiers 25 vertically and uniformly disposed on one side of the ventilation pipe 24; the air inlet 44 of the ventilation pipe 24 is arranged on the bottom wall of the gasifier, and the air inlet 44 is rectangular; each sub-gasification body 25 and the ventilation pipe 24 are rectangular bodies, and the sub-gasification bodies and the ventilation pipe are hollow and communicated with each other; a plurality of ventilation holes 26 are uniformly arranged on the front, left and right upper parts of each sub-gasification body 25.
It should be noted that, as shown in fig. 6A, the comb-shaped vaporizer is a single ventilation pipe 24, and the sub-vaporizer 25 is only required to be vertically arranged on one side of the ventilation pipe 24;
as shown in fig. 6B, which is a type of comb gasifier; the two comb-shaped gasifiers are combined into one, and the ventilation pipe 24 is arranged at one end of the two comb-shaped gasifiers so as to ensure uniform air intake;
as embodiment 2, as shown in fig. 6C and 6D, the low-carbon, environment-friendly and energy-saving heating stove of the present invention comprises a cylindrical gasifier, an annular gasifier ring 47 and a rectangular ventilation pipe 24 disposed at the bottom end of the gasifier ring 47, wherein an air inlet 44 of the ventilation pipe 24 is disposed on the bottom wall of the ventilation pipe 24, and the air inlet 44 is rectangular; the gasification ring 47 is uniformly divided into a plurality of sub-gasification bodies 25 which are annularly wound on the gasification ring 47; a plurality of vent holes 26 which are uniformly arranged are arranged on the adjacent side walls of the sub-gasification bodies 25; the sub-gasification body 25 is in a sector ring shape or a cylinder shape.
The above-described mode is only one of the embodiments, and is not intended to be limiting; the above-described gasifier shape is only one of the preferred embodiments and is not intended as a limitation on the particular gasifier type; those skilled in the art can select other types and types of gasifiers to be installed in the furnace body 1 without depending on the creativity, and all of them belong to the protection scope of the present application.
As shown in fig. 7, the low-carbon, environment-friendly and energy-saving heating stove of the present invention comprises two fire grates 3, each of which comprises a fire grate beam 36 and fin bars 37 respectively arranged at two sides of the fire grate beam 36, wherein the part of the fire grate beam 36 extending out of the furnace body 1 is a fire grate rocker arm 6; a plurality of conical column-shaped deslagging columns 38 are uniformly distributed on the grate 3, and are vertically welded or integrally cast on the top wall of the grate 3.
The low-carbon, environment-friendly and energy-saving heating stove can select the common fire grate 3 and is suitable for most of fire coal; when clean coal, fuels of biomass briquette coking and the like which are not deformed before and after combustion need to be used, the fire grate 3 provided with the slag pouring column 38 needs to be used, so that the purpose of destroying the form of the slag is realized, and the automatic ash removal component is matched for performing the timed ash removal operation on the slag.
It should be noted that the included angle between the inclined plate 14 and the outer wall of the furnace body 1 is α, and the inclined plate 14 is arranged in parallel with the inclined water jacket 13; the included angle between the two and the outer wall of the furnace body 1 is 5-45 degrees;
as a preferred embodiment, the present application will be described with an inclination angle of 10 ° as an example; when the angle between the inclined plate 14 and the outer wall of the furnace body 1 is 10 degrees, the inclination is just right, so that after the fire coal is laterally combusted, the flame corresponds to the direction of the furnace mouth 29, and the cooking function is convenient.
The invention relates to a low-carbon environment-friendly energy-saving heating stove, which comprises the following components in the operation process:
a user firstly installs the heating stove, a water inlet 10 and a water outlet 11 of the heating stove are respectively communicated with the heating radiator, and then coal is put into the inclined coal bunker 5; the user can install the automatic ash cleaning component according to the requirement, and the micro motor 18 is installed on a motor support 27 installed on the outer wall of the furnace body 1; the other end of the pull rod 20 is connected with the fire grate rocker arm 6, and a user can insert the power plug 43 of the micro motor 18 into the intermittent interval timing socket 31; the user can determine the interval working time of the intermittent interval timing socket 31 according to the heating stove and coal;
after the preparation work is done, the cooking and heating work can be started:
when cooking is needed, a user firstly puts the fire pulling cylinder 23 in from the position of the fire hole 29 until the bottom wall of the fire pulling cylinder 23 contacts the position above the oxygen-enriched gasifier 16, and at the moment, flame is concentrated on the direction of the fire pulling cylinder 23 along with the direction of the oxygen-enriched gasifier 16 to the position of the fire hole 29 so as to form a first flame path 21; the flame is centralized in the cooking operation, so that the cooking efficiency is greatly improved;
when the cooking operation is finished, the fire pulling cylinder 23 can be removed; at this time, the flame on the oxygen-enriched gasifier 16 is burnt towards the flue under the influence of the suction force of the external chimney, and the flame path generated by the oxygen-enriched gasifier 16 towards the flue is a second flame path 22 for heating; thereby improving the heat absorption efficiency of the heat absorption pipe 12 and greatly improving the heating efficiency;
when the automatic ash removal component works, after the micro motor 18 starts to work, the rotating shaft drives the pull rod 20, so that the grate rocker arm 6 is driven to swing left and right, and the ash on the grate 3 can fall into the ash removal drawer 8, so that the aim of removing ash at regular time is fulfilled.
It should be noted that, this automatic deashing subassembly can realize the purpose of automatic deashing, and it also can manual carry out the deashing operation to realize manual automatic deashing mode that combines each other.
The embodiment of the application provides a low carbon environmental protection and energy saving type heating stove, as it is in normal combustion state, through flue gas analyzer test result as follows: (the following results are taken as an average value of 5 hours of combustion)
| Oxygen (%) | Carbon dioxide (%) | Carbon monoxide (ppm) | Nitrogen oxides (mg/m)3) | Sulfur dioxide (mg/m)3) | |
| |
16 | 4.4 | 50 | 290 | 300 |
| |
15 | 5.3 | 60 | 305 | 350 |
Table 1: the present application relates to a combustion efficiency analysis data of a furnace
From table 1 above, it can be seen that: the emission concentration of particulate matters, sulfur dioxide and nitrogen oxides at the smoke outlet of the furnace and the Ringelmann blackness meet the requirements of national standard GB13271-2014 emission Standard of atmospheric pollutants for boilers;
the important points to be explained are: according to the national standard GB13271-2014 emission Standard of atmospheric pollutants for boilers, the emission of carbon monoxide is up to 2000 ppm; the emission of carbon monoxide of most stoves in the market at present is above 2000ppm, and the stove of this application no matter is in the process of heating or cooking, and the emission of carbon monoxide all is about 100ppm, and its emission is far less than present standard emission.
Experimental analysis:
selecting 10 ordinary stoves and 5 stoves of the application, wherein the 10 ordinary stoves are divided into a reference group 1 and a reference group 2 which are respectively a normal burning stove and a reverse burning stove, and the 5 stoves of the application are used as experimental groups; the experimenter uses the same coal for the experimental group, the control group 1 and the control group 2, burns for 5 hours with the same air distribution amount, and takes the average emission amount, and the specific emission result is as follows:
| oxygen (%) | Carbon dioxide (%) | Carbon monoxide (ppm) | Nitrogen oxides (mg/m)3) | Sulfur dioxide (mg/m)3) | |
| Experimental group | 15.5 | 4.8 | 85 | 312 | 335 |
| Control group 1 | 7.1 | 15.2 | 2080 | 650 | 420 |
| |
6.8 | 16.4 | 1650 | 720 | 406 |
Table 2: experimental results comparison table
When a common stove is in normal combustion, the emission of carbon monoxide is over 1000ppm, and when coal is added, the emission of the carbon monoxide is directly exploded, namely, the serious standard exceeding state of 4000ppm is achieved.
The stove is provided with the flue gas mixed combustion area and the high-temperature oxygen-enriched gasifier, coal is added for 2-3 times a day, and the emission of carbon monoxide is slightly higher than that of carbon monoxide during primary ignition; when the fuel is normally combusted, the emission of carbon monoxide is between 20 and 100 ppm;
the normal combustion discharge amount of the furnace is kept within 100ppm, and is generally kept about 50 ppm; therefore, the method is far ahead of most furnaces on the market in terms of carbon monoxide emission.
From table 2 above, it can be seen that: besides the discharge amount of carbon monoxide is greatly improved, the discharge amounts of nitrogen oxide, sulfur dioxide and carbon dioxide are improved, and the oxygen intake amount of oxygen is also improved; therefore, the stove of the application is superior to the traditional stove in the discharge amount of nitrogen oxides, sulfur dioxide, carbon dioxide and carbon monoxide, and can be widely popularized to the market.
The present invention has been further described with reference to the examples, but the present invention is not limited to the above-described embodiments, and various changes can be made without departing from the spirit of the present invention within the knowledge of those skilled in the art.
Claims (10)
1. The utility model provides a low carbon environmental protection and energy saving type heating stove which characterized in that, it includes:
the furnace body is provided with an inclined coal bunker at a position close to the front wall, a smoke box is arranged at a position close to the rear wall, and a fire grate is arranged at the bottom of a hearth of the furnace body;
the oxygen-enriched gasifier is arranged in parallel in a groove body in the hearth and is arranged at a position corresponding to the furnace mouth, and two sides of the oxygen-enriched gasifier are respectively connected with the inclined water jacket and the ash baffle of the inclined coal bunker through a guide plate; the air inlet of the oxygen-enriched gasifier is arranged at the bottom of the oxygen-enriched gasifier;
an air inlet opening is formed in the side wall, close to the bottom wall, of the furnace body, the air inlet opening is arranged corresponding to an air inlet of the oxygen-enriched gasifier, and a connecting plate and a guide plate at the lower end are arranged on the left side and the right side of the air inlet opening respectively; the area between the connecting plate and the guide plate at the lower end is an air inlet channel;
the area enclosed between the guide plates at the upper end and the lower end is a flue gas mixed combustion area; and the combustion area above the oxygen-enriched gasifier is a gasification combustion area.
2. A low-carbon environmental-friendly energy-saving heating stove according to claim 1, characterized by further comprising:
the fire banking plate is inserted in the slot between the inclined water jacket and the guide plate above the inclined water jacket;
the bottom of the fire banking plate penetrates through the open slot to enter the hearth, and two sides of the bottom end of the open slot are respectively provided with a limiting column to ensure that a distance difference is reserved between the bottom wall of the fire banking plate and the bottom of the hearth;
and the top end of the fire banking plate is provided with a hanging ring and an opening.
3. A low-carbon environmental-friendly energy-saving heating stove according to claim 1, characterized by further comprising:
the automatic ash cleaning component comprises a micro motor, a disc and a pull rod; the disc is provided with an opening, a rotating shaft of the micro motor penetrates through the opening, one end of the pull rod is connected with the rotating shaft, and the other end of the pull rod is connected with a grate rocker arm arranged outside the grate to control the irregular ash removal operation;
the micro motor is a micro permanent magnet synchronous alternating current motor, a power plug of the micro motor is inserted into an intermittent interval timing socket, and rotation time and interval time are set according to the coal quality condition;
the outer wall of the furnace body is provided with a motor support, and the micro motor is arranged on the motor support.
4. A low-carbon environmental-friendly energy-saving heating stove according to claim 1, characterized in that:
the inner wall of the hearth forms an interlayer water cavity by a hollow metal interlayer; the bottom of the hearth of the furnace body is provided with a fire grate and an ash removal drawer arranged at the bottom of the fire grate;
the smoke box is communicated with the hearth and is internally provided with a plurality of heat absorption pipes; the top end of the smoke box is provided with a smoke tube opening, a water outlet and an explosion-proof valve, and the position of the smoke box close to the bottom end is provided with a water inlet; the water inlet and the water outlet are respectively communicated with the interlayer water cavity; and two ends of the heat absorption pipe are respectively communicated with the interlayer water cavity.
5. A low carbon environmental protection energy-saving type heating stove according to claim 4, characterized in that:
the inclined coal bunker is formed by a cavity between an inclined plate and an inclined water jacket which are arranged in parallel; the furnace body is arranged in the furnace body and is close to the front side of the furnace body; the open end of the bottom end of the furnace is communicated with the hearth, and the top end of the furnace is provided with a coal bin opening;
the top end of the inclined plate starts from the included angle between the front wall and the top wall of the furnace surface, and the bottom end of the inclined plate is arranged above the slag removal channel after the inclined plate is obliquely arranged;
the inclined water jacket is communicated with the interlayer water cavity; the top end of the inclined water jacket is communicated with the interlayer water cavity close to the coal bunker port, and the bottom end of the inclined water jacket is connected with a guide plate arranged at the upper end;
and the outer walls of the slag removal channel and the ash removal drawer are respectively provided with an air inlet door.
6. A low-carbon environmental-friendly energy-saving heating stove according to claim 1, characterized in that:
the air distribution groove is also included; the air distribution groove is in a channel steel shape, and the left side and the right side of the front side of the air distribution groove are provided with air; the air distribution grooves are arranged on the left side and the right side of the slag removal channel and the furnace body;
the bottom of the air distribution groove is communicated with the bottom of the fire grate, and the top end of the air distribution groove is communicated with the hearth;
the air distribution groove is buried in the refractory soil, and the notch of the air distribution groove is flush with the height of the refractory soil.
7. A low-carbon environmental-friendly energy-saving heating stove according to claim 1, characterized in that:
the oxygen-enriched gasifier is cylindrical or comb-shaped and comprises a gasification body and a ventilation pipe connected with the gasification body, and the ventilation pipe is provided with an air inlet communicated with an inner cavity of the ventilation pipe;
the periphery of the air inlet opening is sealed, and an air inlet door is arranged on the air inlet opening.
8. A low-carbon environmental-friendly energy-saving heating stove according to claim 7, characterized in that:
the gasifier is comb-shaped and comprises a ventilation pipe and a plurality of sub-gasifiers vertically and uniformly arranged on one side of the ventilation pipe; the air inlet of the ventilation pipe is arranged on the bottom wall of the gasifier and is rectangular;
each sub-gasification body and the ventilation pipe are rectangular, and the sub-gasification bodies and the ventilation pipe are hollow and communicated with each other;
a plurality of vent holes which are uniformly arranged are arranged on the front, left and right side walls of each sub-gasification body.
9. A low-carbon environmental-friendly energy-saving heating stove according to claim 7, characterized in that:
the gasifier is cylindrical and comprises an annular gasification ring and a rectangular ventilation pipe arranged at the bottom end of the gasification ring, and an air inlet of the ventilation pipe is arranged on the bottom wall of the ventilation pipe and is rectangular;
a plurality of vent holes which are uniformly arranged are formed in the adjacent side walls of the sub-gasification bodies on the gasification ring;
the sub-gasification body is in a sector ring shape or a cylinder shape.
10. A low-carbon environmental-friendly energy-saving heating stove according to any one of claims 8 or 9, characterized in that:
the number of the fire grates is two, the fire grates respectively comprise fire grate beams and fin bars respectively arranged on two sides of the fire grate beams, and the part of the fire grate beams, which extends out of the furnace body, is provided with fire grate rocker arms;
a plurality of conical column-shaped deslagging columns are uniformly distributed on the grate and are vertically welded or integrally cast on the top wall of the grate.
Applications Claiming Priority (2)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201921037613 | 2019-07-04 | ||
| CN2019210376137 | 2019-07-04 |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN112178697A true CN112178697A (en) | 2021-01-05 |
Family
ID=72102655
Family Applications (2)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201921279917.4U Active CN211345403U (en) | 2019-07-04 | 2019-08-08 | Low-carbon environment-friendly energy-saving heating stove |
| CN201910731538.2A Pending CN112178697A (en) | 2019-07-04 | 2019-08-08 | Low-carbon environment-friendly energy-saving heating stove |
Family Applications Before (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201921279917.4U Active CN211345403U (en) | 2019-07-04 | 2019-08-08 | Low-carbon environment-friendly energy-saving heating stove |
Country Status (1)
| Country | Link |
|---|---|
| CN (2) | CN211345403U (en) |
Families Citing this family (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN211345403U (en) * | 2019-07-04 | 2020-08-25 | 王本富 | Low-carbon environment-friendly energy-saving heating stove |
Citations (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN2081492U (en) * | 1990-11-19 | 1991-07-24 | 周峰 | Multipurpose dustproof non-mud honeycomb briquet stove with semi-automatic cinder function |
| CN2430625Y (en) * | 2000-04-21 | 2001-05-16 | 高志新 | Environment protection energy saving multipurpose stove |
| CN203375480U (en) * | 2013-07-17 | 2014-01-01 | 辽宁合百意生物质技术开发有限公司 | Civil biomass large stove type warm air furnace |
| CN203375476U (en) * | 2013-07-17 | 2014-01-01 | 辽宁合百意生物质技术开发有限公司 | Biomass semi-gasification cooking heating stove communicated with heatable brick bed |
| CN204648325U (en) * | 2015-04-30 | 2015-09-16 | 石家庄市春燕采暖设备有限公司 | A kind of bi-fuel type clean burning environmental protection and energy saving cooking heating stove and accessory |
| CN109458635A (en) * | 2018-12-06 | 2019-03-12 | 河南城建学院 | A kind of rural area hearth burner hearth |
| CN211345403U (en) * | 2019-07-04 | 2020-08-25 | 王本富 | Low-carbon environment-friendly energy-saving heating stove |
-
2019
- 2019-08-08 CN CN201921279917.4U patent/CN211345403U/en active Active
- 2019-08-08 CN CN201910731538.2A patent/CN112178697A/en active Pending
Patent Citations (7)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN2081492U (en) * | 1990-11-19 | 1991-07-24 | 周峰 | Multipurpose dustproof non-mud honeycomb briquet stove with semi-automatic cinder function |
| CN2430625Y (en) * | 2000-04-21 | 2001-05-16 | 高志新 | Environment protection energy saving multipurpose stove |
| CN203375480U (en) * | 2013-07-17 | 2014-01-01 | 辽宁合百意生物质技术开发有限公司 | Civil biomass large stove type warm air furnace |
| CN203375476U (en) * | 2013-07-17 | 2014-01-01 | 辽宁合百意生物质技术开发有限公司 | Biomass semi-gasification cooking heating stove communicated with heatable brick bed |
| CN204648325U (en) * | 2015-04-30 | 2015-09-16 | 石家庄市春燕采暖设备有限公司 | A kind of bi-fuel type clean burning environmental protection and energy saving cooking heating stove and accessory |
| CN109458635A (en) * | 2018-12-06 | 2019-03-12 | 河南城建学院 | A kind of rural area hearth burner hearth |
| CN211345403U (en) * | 2019-07-04 | 2020-08-25 | 王本富 | Low-carbon environment-friendly energy-saving heating stove |
Also Published As
| Publication number | Publication date |
|---|---|
| CN211345403U (en) | 2020-08-25 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN102620306A (en) | Solid fuel furnace and stepped combined fire grate for same | |
| CN211345403U (en) | Low-carbon environment-friendly energy-saving heating stove | |
| CN107435949A (en) | A kind of energy-saving environment protection fire coal cooking and heating furnace and cooking heating method and purposes | |
| CN204574124U (en) | A kind of environmental protection cooking and heating furnace of the pluralities of fuel that can burn | |
| CN206831570U (en) | High-efficiency coal-fired heating stove that is a kind of while reducing flue dust, sulfur dioxide and discharged nitrous oxides | |
| CN107435952A (en) | A kind of energy-saving environment protection fire coal cooking and heating furnace and cooking heating method and purposes | |
| CN105157222B (en) | A kind of coal-burning boiler of energy-saving dedusting | |
| WO2015054981A1 (en) | Stove with rotating flame | |
| CN204574125U (en) | A kind of environmental protection and energy saving cooking and heating furnace of suitable for multiple fuel | |
| CN207162604U (en) | A kind of energy-saving environment protection fire coal cooking and heating furnace | |
| CN212057387U (en) | Low-nitrogen combustor and low-nitrogen combustion furnace | |
| CN208431746U (en) | A kind of high-temperature oxygen-enriched intelligent power saving environment-friendly household boiler of multi fuel | |
| CN206831568U (en) | A kind of energy-saving environment protection fire coal cooking and heating furnace | |
| CN207584821U (en) | A kind of civilian gasification of biomass stove | |
| CN202947307U (en) | Special boiler fro breeding | |
| CN205090424U (en) | Domestic coal -fired stove | |
| CN204665361U (en) | Pluralities of fuel clean burning cooking and heating furnace | |
| CN2247779Y (en) | Front and back burning high-efficiency coal briquet boiler | |
| CN207146450U (en) | A kind of energy-saving environment protection fire coal cooking and heating furnace | |
| CN216591808U (en) | Commercial firewood and gas dual-purpose furnace | |
| CN216591819U (en) | Large-scale smokeless firewood stove | |
| CN201462808U (en) | Coal-fired boiler | |
| CN110375291B (en) | Chain grate biomass boiler and combustion control method | |
| CN207162605U (en) | A kind of energy-saving environment protection fire coal cooking and heating furnace | |
| CN2636114Y (en) | Domestic cooking/heating two-purpose stove |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
