Abstract
The invention discloses an automobile part sale display device based on the Internet of things, and relates to the technical field of display devices. The invention comprises a base; the fixed enclosure of base top surface fixedly connected with, the fixed inner frame that is provided with between the fixed enclosure internal surface, articulated between the inner frame internal surface have the show mechanism that the bisymmetry set up, the flexible guard shield of equal fixedly connected with bisymmetry setting between the relative surface of two show mechanisms and fixed enclosure, the equal fixed intercommunication in position that fixed enclosure top surface just corresponds two show mechanisms has the malleation to maintain the mechanism. According to the invention, through the design of the annular driving mechanism in the display mechanism, the static display structure of the traditional display device is changed into the dynamic display structure, and when the display device works, under the action of the annular driving mechanism, a part to be displayed can be circularly changed in the display position on one hand, and can circularly move for 360 degrees in the display process on the other hand.
Description
Technical Field
The invention belongs to the technical field of display devices, and particularly relates to an automobile part sale display device based on the Internet of things.
Background
The automobile has become the instrument of riding instead of walk in people's life at people, wherein the spare part kind of constitution automobile is very various, some automobile parts make because the improvement of material and structure makes and have better result of use, in actual life, the automobile parts show stand of the part on the market is generally immobile, can not attract customer's attention, and once only also can not show very many products, the sales rate of automobile parts product has been reduced, and in the in-process of show because the problem of light leads to automobile parts not special clear of seeing, the exquisite degree of automobile parts has been reduced, therefore, need for an automobile parts selling display device of novel structure in urgent need in the market in order to solve above-mentioned technical problem.
Disclosure of Invention
The invention aims to provide an automobile part selling and displaying device based on the Internet of things, and solves the problems that the existing automobile part selling and displaying device cannot be used for dynamic displaying and is poor in displaying effect through the design of a displaying mechanism.
In order to solve the technical problems, the invention is realized by the following technical scheme:
the invention relates to an automobile part sale display device based on the Internet of things, which comprises a base, wherein the top surface of the base is fixedly connected with a fixed enclosure, an inner frame is fixedly arranged between the inner surfaces of the fixed enclosure, two symmetrically arranged display mechanisms are hinged between the inner surfaces of the inner frame, two symmetrically arranged corrugated telescopic shields are fixedly connected between the two display mechanisms and the opposite surfaces of the fixed enclosure, and positive pressure maintenance mechanisms are fixedly communicated with the top surface of the fixed enclosure and the positions corresponding to the two display mechanisms;
a screw rod driving assembly is fixedly arranged between the opposite surfaces of the inner frame and the base, a driving push seat is connected to the peripheral side surface of the screw rod driving assembly, two side surfaces of the driving push seat are respectively hinged with an angle adjusting frame, and one surface of each of the two angle adjusting frames is respectively hinged with a display mechanism at a corresponding position;
the two display mechanisms comprise swing frames, the surfaces of the swing frames are fixedly connected with corrugated telescopic shields, two side faces of the swing frames are hinged to the inner frame and the angle adjusting frame corresponding to the inner frame, annular transmission mechanisms are mounted on the inner walls of the swing frames, annular driving belts are connected to the circumferential side faces of the two annular transmission mechanisms, a group of support lugs distributed at equal intervals are fixedly connected to the surfaces of the annular driving belts, a group of placing modules distributed at equal intervals are hinged between the opposite surfaces of the annular driving belts through the support lugs, and a light supplementing lamp plate and a glass protective plate are fixedly connected between the inner surfaces of the swing frames.
Preferably, the screw rod driving assembly comprises an auxiliary motor, two guide rods and a transmission screw rod, the bottom surface of the auxiliary motor is fixedly connected with the inner frame, two ends of the transmission screw rod are respectively connected with the inner frame and the base in a rotating mode, the circumferential side surface of the transmission screw rod is connected with the driving pushing seat, two ends of the guide rods are respectively fixedly connected with the inner frame and the base, and the circumferential side surface of the guide rods is connected with the driving pushing seat in a sliding mode.
Preferably, it is a set of place the module and all include the hinge that two symmetries set up, two hinge week side is articulated with the journal stirrup that corresponds the position respectively, two fixedly connected with supporting frame seat between the relative surface of hinge, supporting frame seat top surface is connected with a set of show dish that is linear array and distributes through the bearing rotation, supporting frame seat top surface fixed mounting has servo motor, the one end of servo motor output shaft is passed through the chain and is a set of show dish transmission is connected, the inside fixed mounting of servo motor has the outage stopper.
Preferably, the two annular transmission mechanisms respectively comprise a main motor, a driving wheel disc and a driven wheel disc, one surface of the main motor is fixedly connected with the swinging frame, the peripheral side surfaces of the driving wheel disc and the driven wheel disc are rotatably connected with the swinging frame through bearings, one end of an output shaft of the main motor is fixedly connected with the driving wheel disc, and the peripheral side surfaces of the driving wheel disc and the driven wheel disc are respectively connected with the annular driving belts at corresponding positions.
Preferably, the cross sections of the driving wheel disc and the driven wheel disc are of I-shaped structures, and the surfaces of the driving wheel disc and the driven wheel disc are provided with belt pulley grooves matched with the annular driving belt.
Preferably, the cross section of the inner frame is of a U-shaped structure, the light supplementing lamp panels are located on the inner sides of the annular driving belts in the corresponding positions, and light supplementing lamp caps are distributed on the surfaces of the light supplementing lamp panels at equal intervals.
Preferably, two the mechanism is maintained to malleation all includes the ventilation box, ventilation box bottom surface and fixed enclosure fixed connection, the fixed a plurality of ventilation hole groups that are provided with of ventilation box and fixed enclosure intercommunication department, fixed mounting has a set of high pressure positive blower between the ventilation box internal surface, the fixed position that just corresponds the high pressure positive blower below between the ventilation box internal surface has the heating wire, the air-out direction of ventilation box is vertical downwards, the fixed air inlet hole group of having seted up of ventilation box top surface.
Preferably, two the mechanism is maintained to malleation all is located directly over the show mechanism that corresponds the position, the inside fixed cavity of placing that is provided with of show dish, it has the magnetism suction disc to place cavity fixed surface.
Preferably, the inner frame surface fixed mounting has the switch board, the fixed position that the fixed enclosure surface just corresponds the switch board has seted up the through-hole, base bottom surface fixedly connected with a set of universal caster that is the distribution of rectangular array.
The invention has the following beneficial effects:
1. according to the invention, through the design of the annular driving mechanism in the display mechanism, the static display structure of the traditional display device is changed into the dynamic display structure, when the display device works, under the action of the annular driving mechanism, a part to be displayed can be subjected to cyclic change of a display position on one hand, and can be subjected to 360-degree circular motion in the display process on the other hand, and the dynamic display effect of the display device on the part is effectively improved through the cyclic change of the position and the 360-degree circular motion state setting of the part.
2. According to the invention, through the design of the positive pressure maintenance mechanism, positive pressure dust cleaning and positive pressure drying can be carried out on a part to be displayed in the process of displaying the exhibit, through the realization of dust cleaning and drying functions, the occurrence of fouling of the part in the process of displaying can be favorably reduced, and further the attractiveness of the part in the process of displaying can be favorably ensured.
3. According to the automobile part light supplementing lamp, the light supplementing lamp panel is arranged, so that the part can be rapidly supplemented with light, the part display effect can be favorably improved through the light supplementing function, and the stability of the automobile part during display can be effectively improved through the arrangement of the magnetic suction plate.
Of course, it is not necessary for any product in which the invention is practiced to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.
Fig. 1 is a schematic front view structure diagram of an automobile part selling and displaying device based on the internet of things;
FIG. 2 is a schematic structural view of the universal caster, the glass guard plate and the ventilation box body;
FIG. 3 is a schematic cross-sectional view of FIG. 2;
FIG. 4 is a schematic view of a portion of the enlarged structure at A in FIG. 3;
fig. 5 is a schematic structural view of the angle adjusting bracket, the magnetic attraction plate, the supporting frame base and the light supplementing lamp panel;
FIG. 6 is a schematic structural view of the display mechanism;
FIG. 7 is a schematic structural view of the endless drive mechanism;
FIG. 8 is a schematic structural diagram of a placement module;

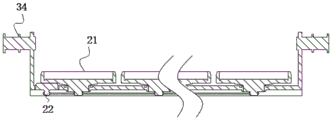

FIG. 9 is a schematic cross-sectional view of FIG. 8;
fig. 10 is a schematic structural diagram of the screw driving assembly.
In the drawings, the components represented by the respective reference numerals are listed below:
1. a base; 2. a fixed enclosure; 3. an inner frame; 4. a display mechanism; 5. a corrugated telescoping shield; 6. a positive pressure maintenance mechanism; 7. a screw rod driving assembly; 8. driving the pushing seat; 9. a corner adjusting frame; 10. a swing frame; 11. an annular transmission mechanism; 12. an endless drive belt; 13. supporting a lug; 14. placing a module; 15. a light supplement lamp panel; 16. a glass guard plate; 17. an auxiliary motor; 18. a guide bar; 19. a drive screw; 20. a support frame seat; 21. a display tray; 22. a servo motor; 23. a main motor; 24. a driving wheel disc; 25. a driven wheel disc; 26. a ventilation box body; 27. a group of ventilation holes; 28. a high pressure fan; 29. an electric heating wire; 30. an air inlet hole group; 31. a control cabinet; 32. a magnetic attraction plate; 33. a universal caster; 34. and (4) a hinge shaft.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-10, the invention relates to an internet of things-based automobile part sales display device, which comprises a base 1, wherein a fixed enclosure 2 is fixedly connected to the top surface of the base 1, an inner frame 3 is fixedly arranged between the inner surfaces of the fixed enclosure 2, two symmetrically arranged display mechanisms 4 are hinged between the inner surfaces of the inner frame 3, two symmetrically arranged corrugated telescopic shields 5 are fixedly connected between the two display mechanisms 4 and the opposite surfaces of the fixed enclosure 2, the corrugated telescopic shields 5 are made of corrosion-resistant rubber, the corrugated telescopic shields 5 have certain telescopic performance, and the corrugated telescopic shields 5 are used for sealing and protecting the device from the side;
the top surface of the fixed enclosure 2 and the positions corresponding to the two display mechanisms 4 are both fixedly communicated with a positive pressure maintenance mechanism 6, the positive pressure maintenance mechanism 6 is used for performing maintenance operation on parts displayed by the device, and the positive pressure maintenance mechanism 6 is specifically used for drying and dust cleaning treatment on the parts to be displayed;
a screw rod driving assembly 7 is fixedly installed between the opposite surfaces of the inner frame 3 and the base 1, the peripheral side surface of the screw rod driving assembly 7 is connected with a driving push seat 8, two side surfaces of the driving push seat 8 are respectively hinged with an angle adjusting frame 9, one surface of each of the two angle adjusting frames 9 is respectively hinged with the display mechanisms 4 at corresponding positions, the screw rod driving assembly 7 is arranged to change an included angle between the two display mechanisms 4, the two display mechanisms 4 are driven to be fully unfolded or quickly stored through the change of the included angle of the two display mechanisms 4, and meanwhile, the occupied area of the device is favorably controlled through the change of the angle;
the two display mechanisms 4 respectively comprise a swinging frame 10, the surface of the swinging frame 10 is fixedly connected with a corrugated telescopic shield 5, two side surfaces of the swinging frame 10 are hinged with the inner frame 3 and the angle adjusting frame 9 at the corresponding position, the inner walls of the two swinging frames 10 are respectively provided with an annular transmission mechanism 11, the peripheral side surfaces of the two annular transmission mechanisms 11 are respectively connected with an annular driving belt 12, the annular transmission mechanisms 11 are used for driving the two annular driving belts 13 to run at a set speed, and after the two annular driving belts 13 run, the positions of the display placing modules 14 are changed in a reciprocating circulation manner, so that the purpose of circulation display is achieved;
the surfaces of the two annular driving belts 12 are fixedly connected with a group of support lugs 13 which are distributed at equal intervals, a group of placing modules 14 which are distributed at equal intervals are hinged between the opposite surfaces of the two annular driving belts 12 through the support lugs 13, a light supplementing lamp plate 15 and a glass protection plate 16 are fixedly connected between the inner surfaces of the two swing frames 10, and the placing modules 14 and the support lugs 13 are hinged, so that the gravity center direction of the placing modules 14 can be always vertically downward in the process that the placing modules 14 are driven by the annular driving belts 12, the placing modules 14 can be always kept horizontal in the operation process through the gravity center direction control of the placing modules 14, and the stability of the device in operation is further ensured through the maintenance of the horizontal state; the glass protection plate 16 and the swing frame 10 are connected in a clamping structure, and the clamping structure is used for facilitating quick detachment of the glass protection plate 16, and facilitating placement and removal of parts by detaching the glass protection plate 16.
Further as shown in fig. 10, the screw driving assembly 7 includes an auxiliary motor 17, two guide rods 18 and a transmission screw 19, the bottom surface of the auxiliary motor 17 is fixedly connected with the inner frame 3, two ends of the transmission screw 19 are respectively rotatably connected with the inner frame 3 and the base 1, the circumferential side surface of the transmission screw 19 is connected with the driving pushing seat 8, two ends of the guide rods 18 are respectively fixedly connected with the inner frame 3 and the base 1, two circumferential side surfaces of the guide rods 18 are respectively connected with the driving pushing seat 8 in a sliding manner, the screw driving assembly 17 is used for driving the driving pushing seat 8 to move up and down along the direction of the guide rods 18, and the up and down movement of the pushing seat 8 is driven, so that the included angle between the two display mechanisms 4 is changed, and the included angle after the change of the display mechanisms 4 can be automatically limited by the arrangement of the transmission screw 19.
Furthermore, each of the placing modules 14 includes two symmetrically arranged hinge shafts 34, the peripheral sides of the two hinge shafts 34 are respectively hinged to the support lugs 13 at corresponding positions, and the support frame 20 can be kept horizontal during operation through the hinged arrangement, and the support frame 20 is used as a counterweight of the device at the same time, so that the display tray 21 can have a certain weight tolerance within a certain range when a display product is placed through the realization of the counterweight function of the support frame 20;
the supporting frame base 20 is fixedly connected between the opposite surfaces of the two hinge shafts 34, the top surface of the supporting frame base 20 is rotatably connected with a group of display discs 21 which are distributed in a linear array mode through bearings, the top surface of the supporting frame base 20 is fixedly provided with a servo motor 22, one end of an output shaft of the servo motor 22 is in transmission connection with the group of display discs 21 through a chain, a power-off brake is fixedly installed inside the servo motor 22, the servo motor 22 can drive the group of display discs 21 to run at the same speed and in the same direction, parts on the display discs 21 can be displayed in 360 degrees without dead angles through the circular motion of the display discs 21, the display effect of the device is effectively improved through the realization of the 360-degree dead angle-free display function, the power-off brake is arranged to effectively limit the related parts automatically when the servo motor 22 is powered off, and through the realization of the self-limiting function, thereby realizing automatic braking of the related components.
As further shown in fig. 7, each of the two annular transmission mechanisms 11 includes a main motor 23, a driving wheel disc 24 and a driven wheel disc 25, one surface of the main motor 23 is fixedly connected with the swing frame 10, peripheral side surfaces of the driving wheel disc 24 and the driven wheel disc 25 are rotatably connected with the swing frame 10 through bearings, one end of an output shaft of the main motor 23 is fixedly connected with the driving wheel disc 24, peripheral side surfaces of the driving wheel disc 24 and the driven wheel disc 25 are connected with the annular driving belt 12 at corresponding positions, and a power-off brake is also arranged inside the main motor 23;
the driving wheel disc 24 and the driven wheel disc 25 are of the I-shaped cross section, the driving wheel disc 24 and the driven wheel disc 25 are provided with belt pulley grooves matched with the annular driving belt 12 on the surfaces, the belt pulley grooves are arranged, the annular driving belt 12 is effectively limited, and the phenomenon of dislocation of the annular driving belt 12 during operation is avoided through the realization of limiting function.
Further as shown in fig. 5 and 6, the cross section of the inner frame 3 is of a U-shaped structure, two the light supplement lamp panel 15 is located inside the annular driving belt 12 corresponding to the position, two light supplement lamp caps are distributed on the surface of the light supplement lamp panel 15 at equal intervals, the light supplement lamp caps are LED lamp caps, and the light supplement lamp panel 15 is used for conducting light supplement operation on articles to be displayed during display operation.
As further shown in fig. 2, 3 and 4, each of the two positive pressure maintenance mechanisms 6 includes a ventilation box 26, a bottom surface of the ventilation box 26 is fixedly connected with the fixed enclosure 2, a plurality of ventilation hole groups 27 are fixedly disposed at a communication position of the ventilation box 26 and the fixed enclosure 2, a group of high pressure fans 28 is fixedly installed between inner surfaces of the ventilation box 26, heating wires 29 are fixedly installed between inner surfaces of the ventilation box 26 and at positions corresponding to the lower portions of the high pressure fans 28, and an air outlet direction of the ventilation box 26 is vertically downward; the fixed inlet opening group 30 of having seted up of ventilation box 26 top surface, heating wire 29 during operation collocation has accuse temperature circuit and accuse temperature resistance, setting through accuse temperature circuit and accuse temperature resistance, thereby effectively guarantee the stability of heating wire 29 during operation, and effectively protect heating wire 29, the positive pressure is maintained the mechanism 6 during operation, high pressure positive blower 28 and heating wire 29 synchronous working, then produce high-pressure hot-blast, through high-pressure hot-blast production, on the one hand, effectively clean the dust on part surface, on the other hand effectively dehumidifies the part surface and dries.
Further as shown in fig. 3 and 5, two positive pressure maintenance mechanism 6 is located directly over the display mechanism 4 of corresponding position, the inside fixed cavity of placing that is provided with of show dish 21, it has magnetic attraction board 32 to place cavity fixed surface, through the setting of magnetic attraction board 32 to the convenience is to the self-limiting of iron part.
Further, 3 fixed surface of inner tower installs switch board 31, and switch board 31 is inside to be provided with fixedly and to be used for controlling the device moving controller, and the controller is the PLC controller of ordinary model, the fixed capsule 2 surfaces and the fixed through-hole of having seted up of position that corresponds switch board 31, a set of universal caster 33 that is the distribution of rectangle array of base 1 bottom surface fixedly connected with, the effect that universal caster 33 set up lies in the quick travel of the device of being convenient for.
Before use, the glass protection plate 16 is detached through the clamping structure, after the glass protection plate 16 is detached, parts to be displayed can be placed in each display disc 21 in a regular mode, after the parts are placed, the glass protection plate 16 is closed, when the device is used, the device is arranged in a place to be displayed, after the arrangement is finished, the included angle between the two display mechanisms 4 can be controlled through the control of the screw rod driving assembly 7, the included angle between the two display mechanisms 4 is changed through the change of the included angle between the two display mechanisms 4, after the included angle is changed, the screw rod driving assembly 7 carries out self-limiting on the display mechanisms 4 with the changed back angle, during display operation, the two light supplementing lamp plates 15 work, during display at the same time, the positive pressure maintenance mechanism 6 and the main motor 23 work, after the main motor 23 works, the annular driving belt 12 is driven to work, and after the annular driving belt 12 works, then the position of each placing module 14 is changed in a circulating manner, during displaying, the servo motor 22 in each placing module 14 is in a working mode, after the servo motor 22 works, the displaying disc 21 is driven to do circular motion, after the displaying disc 21 does circular motion, 360-degree all-around displaying of parts can be achieved, after the positive pressure maintenance mechanism 6 works, hot air is blown out vertically downwards, and along with the movement of the placing modules 14, the positive pressure maintenance mechanism 6 can perform maintenance work on the placing modules 14;
when the device needs to be stored, the included angle of the two display mechanisms 4 is adjusted to be the minimum, and the device can be rapidly stored.
In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the invention disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and the practical application, to thereby enable others skilled in the art to best utilize the invention. The invention is limited only by the claims and their full scope and equivalents.
Claims (9)
1. The utility model provides a display device is sold to automobile parts based on thing networking, includes base (1), its characterized in that:
the top surface of the base (1) is fixedly connected with a fixed enclosure (2), an inner frame (3) is fixedly arranged between the inner surfaces of the fixed enclosure (2), two symmetrically arranged display mechanisms (4) are hinged between the inner surfaces of the inner frame (3), two symmetrically arranged corrugated telescopic shields (5) are fixedly connected between the two display mechanisms (4) and the opposite surfaces of the fixed enclosure (2), and positive pressure maintenance mechanisms (6) are fixedly communicated with the top surface of the fixed enclosure (2) and the positions corresponding to the two display mechanisms (4);
a screw rod driving assembly (7) is fixedly installed between the opposite surfaces of the inner frame (3) and the base (1), the peripheral side surface of the screw rod driving assembly (7) is connected with a driving pushing seat (8), two side surfaces of the driving pushing seat (8) are respectively hinged with an angle adjusting frame (9), and one surface of each of the two angle adjusting frames (9) is respectively hinged with a display mechanism (4) at a corresponding position;
two show mechanism (4) all include swing frame (10), swing frame (10) surface and flexible guard shield of ripple (5) fixed connection, swing frame (10) both sides face all with inner tower (3) and angle modulation frame (9) the articulated, two of corresponding position swing frame (10) inner wall all installs annular drive mechanism (11), two annular drive mechanism (11) week side all is connected with endless drive area (12), two the equal fixedly connected with journal stirrup (13) that a set of equidistance distributes in endless drive area (12) surface, two it has the module of placing (14) that a set of equidistance distributes, two to articulate through journal stirrup (13) between endless drive area (12) the relative surface equal fixedly connected with light filling lamp plate (15) and glass backplate (16) between swing frame (10) the internal surface.
2. The Internet of things-based automobile part selling and displaying device is characterized in that the screw rod driving assembly (7) comprises an auxiliary motor (17), two guide rods (18) and a transmission screw rod (19), the bottom surface of the auxiliary motor (17) is fixedly connected with the inner frame (3), two ends of the transmission screw rod (19) are respectively rotatably connected with the inner frame (3) and the base (1), the circumferential side surface of the transmission screw rod (19) is connected with the driving pushing seat (8), two ends of the guide rods (18) are respectively fixedly connected with the inner frame (3) and the base (1), and the circumferential side surfaces of the two guide rods (18) are both in sliding connection with the driving pushing seat (8).
3. The automobile parts sales display device based on thing networking of claim 1, characterized in that, a set of place module (14) all includes hinge (34) that two symmetries set up, two hinge (34) week side is articulated with journal stirrup (13) that correspond the position respectively, two fixedly connected with carriage (20) between the relative surface of hinge (34), carriage (20) top surface is connected with a set of show dish (21) that are linear array and distribute through the bearing rotation, carriage (20) top surface fixed mounting has servo motor (22), the one end of servo motor (22) output shaft is passed through the chain and is a set of show dish (21) transmission is connected, servo motor (22) inside fixed mounting has the outage stopper.
4. The Internet of things-based automobile part sales display device according to claim 1, wherein the two annular transmission mechanisms (11) comprise a main motor (23), a driving wheel disc (24) and a driven wheel disc (25), one surface of the main motor (23) is fixedly connected with the swinging frame (10), the peripheral sides of the driving wheel disc (24) and the driven wheel disc (25) are rotatably connected with the swinging frame (10) through bearings, one end of an output shaft of the main motor (23) is fixedly connected with the driving wheel disc (24), and the peripheral sides of the driving wheel disc (24) and the driven wheel disc (25) are connected with the annular driving belts (12) at corresponding positions.
5. The Internet of things-based automobile part sales display device according to claim 4, wherein the cross sections of the driving wheel disc (24) and the driven wheel disc (25) are both in an I-shaped structure, and pulley grooves matched with the annular driving belt (12) are formed in the surfaces of the driving wheel disc (24) and the driven wheel disc (25).
6. The Internet of things-based automobile part sales display device according to claim 1, wherein the cross section of the inner frame (3) is of a U-shaped structure, the two light supplement lamp panels (15) are located on the inner sides of the annular driving belts (12) in corresponding positions, and light supplement lamp heads are distributed on the surfaces of the two light supplement lamp panels (15) at equal intervals.
7. The Internet of things-based automobile part selling and displaying device is characterized in that two positive pressure maintenance mechanisms (6) comprise ventilating box bodies (26), the bottom surfaces of the ventilating box bodies (26) are fixedly connected with fixed enclosures (2), a plurality of ventilating hole groups (27) are fixedly arranged at the communication positions of the ventilating box bodies (26) and the fixed enclosures (2), a set of high-pressure fans (28) are fixedly arranged between the inner surfaces of the ventilating box bodies (26), heating wires (29) are fixedly arranged between the inner surfaces of the ventilating box bodies (26) and below the corresponding high-pressure fans (28), the air outlet direction of the ventilating box bodies (26) is vertical downward, and the top surfaces of the ventilating box bodies (26) are fixedly provided with air inlet hole groups (30).
8. The Internet of things-based automobile part sales display device according to claim 1, wherein the two positive pressure maintenance mechanisms (6) are located right above the display mechanism (4) in the corresponding position, a placement cavity is fixedly arranged in the display disc (21), and a magnetic suction plate (32) is fixedly mounted on the surface of the placement cavity.
9. The Internet of things-based automobile part sales display device according to claim 1, wherein a control cabinet (31) is fixedly mounted on the surface of the inner frame (3), a through hole is fixedly formed in the surface of the fixed enclosure (2) and in a position corresponding to the control cabinet (31), and a group of universal casters (33) distributed in a rectangular array is fixedly connected to the bottom surface of the base (1).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011211451.1A CN112167897A (en) | 2020-11-03 | 2020-11-03 | Automobile parts sells display device based on thing networking |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202011211451.1A CN112167897A (en) | 2020-11-03 | 2020-11-03 | Automobile parts sells display device based on thing networking |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN112167897A true CN112167897A (en) | 2021-01-05 |
Family
ID=73916340
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202011211451.1A Pending CN112167897A (en) | 2020-11-03 | 2020-11-03 | Automobile parts sells display device based on thing networking |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN112167897A (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN115500666A (en) * | 2022-10-25 | 2022-12-23 | 湖北方昕科技有限公司 | An item display shelf for Internet sales |
Citations (12)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN203735863U (en) * | 2013-12-19 | 2014-07-30 | 广东日美光电科技有限公司 | Display rack with light box advertising function |
| CN105054682A (en) * | 2015-09-07 | 2015-11-18 | 太仓市华天冲压五金制品厂 | Rotary showing stand |
| CN205410592U (en) * | 2016-01-26 | 2016-08-03 | 王萃明 | Show shelf for grating three -dimensional image |
| CN207855450U (en) * | 2017-11-06 | 2018-09-14 | 淮安柯萨展示道具有限公司 | A kind of rotary contact structure showing stand |
| CN207886040U (en) * | 2017-11-24 | 2018-09-21 | 北京京东广告有限公司 | A kind of showing stand |
| CN109259524A (en) * | 2018-11-20 | 2019-01-25 | 逯壮气 | A kind of multi-functional cosmetics sales showcase |
| CN208740488U (en) * | 2018-01-29 | 2019-04-16 | 湖南工艺美术职业学院 | Environment Design shows device |
| CN110200454A (en) * | 2019-06-03 | 2019-09-06 | 王志善 | Multifunctional painting teaching easel |
| CN209574111U (en) * | 2018-12-11 | 2019-11-05 | 安徽职业技术学院 | A kind of indoor design exhibit rack, display rack easy to use |
| CN210456146U (en) * | 2019-08-20 | 2020-05-05 | 山东方鼎仓储设备制造有限公司 | Intelligent logistics storage goods shelf convenient to store |
| CN111728436A (en) * | 2020-07-02 | 2020-10-02 | 丽水市莲都区凯江云泽机械厂 | A display device for electronic products |
| CN211673485U (en) * | 2019-11-23 | 2020-10-16 | 西安鲁格信息科技有限公司 | Can adjust show stand for enterprise's plan |
-
2020
- 2020-11-03 CN CN202011211451.1A patent/CN112167897A/en active Pending
Patent Citations (12)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN203735863U (en) * | 2013-12-19 | 2014-07-30 | 广东日美光电科技有限公司 | Display rack with light box advertising function |
| CN105054682A (en) * | 2015-09-07 | 2015-11-18 | 太仓市华天冲压五金制品厂 | Rotary showing stand |
| CN205410592U (en) * | 2016-01-26 | 2016-08-03 | 王萃明 | Show shelf for grating three -dimensional image |
| CN207855450U (en) * | 2017-11-06 | 2018-09-14 | 淮安柯萨展示道具有限公司 | A kind of rotary contact structure showing stand |
| CN207886040U (en) * | 2017-11-24 | 2018-09-21 | 北京京东广告有限公司 | A kind of showing stand |
| CN208740488U (en) * | 2018-01-29 | 2019-04-16 | 湖南工艺美术职业学院 | Environment Design shows device |
| CN109259524A (en) * | 2018-11-20 | 2019-01-25 | 逯壮气 | A kind of multi-functional cosmetics sales showcase |
| CN209574111U (en) * | 2018-12-11 | 2019-11-05 | 安徽职业技术学院 | A kind of indoor design exhibit rack, display rack easy to use |
| CN110200454A (en) * | 2019-06-03 | 2019-09-06 | 王志善 | Multifunctional painting teaching easel |
| CN210456146U (en) * | 2019-08-20 | 2020-05-05 | 山东方鼎仓储设备制造有限公司 | Intelligent logistics storage goods shelf convenient to store |
| CN211673485U (en) * | 2019-11-23 | 2020-10-16 | 西安鲁格信息科技有限公司 | Can adjust show stand for enterprise's plan |
| CN111728436A (en) * | 2020-07-02 | 2020-10-02 | 丽水市莲都区凯江云泽机械厂 | A display device for electronic products |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN115500666A (en) * | 2022-10-25 | 2022-12-23 | 湖北方昕科技有限公司 | An item display shelf for Internet sales |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN210330119U (en) | A kind of multifunctional display device for exhibition hall | |
| CN206924978U (en) | A kind of ring gear rotation type hardware varnish-baking device | |
| CN106824854B (en) | A kind of TV cleaning device | |
| CN209130611U (en) | A kind of wall lamp | |
| CN207649269U (en) | A kind of plastic shoes processing drying unit | |
| CN208256232U (en) | A kind of rotary roadside advertising lamp box | |
| CN211483826U (en) | Show shelf for hardware sales | |
| CN108506809A (en) | A kind of LED light bar being easily installed | |
| CN110411182B (en) | Auxiliary drying device for production and processing of heat preservation layer of building assembly | |
| CN215983187U (en) | Noise reduction device for blower dehumidification unit | |
| CN207492464U (en) | A kind of Art Design sample display device | |
| CN209118646U (en) | A kind of mark guide board maintained easily | |
| CN213487810U (en) | Commodity circulation storage supporter | |
| CN116665556A (en) | Liquid crystal display with plug-in card type main board assembly structure | |
| CN220129232U (en) | New material masterbatch processing cooling device | |
| CN223290139U (en) | A curing device for producing raw materials for foamed silica gel | |
| CN210244938U (en) | Mobilizable culture art exchanges exhibition frame | |
| CN208697979U (en) | A kind of parallel arm Descartes oblique coordinates 3D printer | |
| CN214110293U (en) | Novel workstation is used in camera production equipment | |
| CN111728436A (en) | A display device for electronic products | |
| CN221711590U (en) | An adjustable energy-saving and environment-friendly mobile display cabinet | |
| CN220236506U (en) | A display device for cigarettes | |
| CN223525493U (en) | Blowing drying box for plastic hose products | |
| CN213088307U (en) | Novel firm dust protected electric fan | |
| CN222497305U (en) | A shelf for storing grey cloth |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| RJ01 | Rejection of invention patent application after publication |
Application publication date: 20210105 |
|
| RJ01 | Rejection of invention patent application after publication |
