CN112144636A - Drainage pipeline centralized dredging device and dredging method thereof - Google Patents

Abstract

The present invention relates to the technical field of dredging devices, in particular to a centralized dredging device for drainage pipelines and a dredging method thereof. The drainage pipes are connected vertically, the intercepting components are arranged in the silt collecting components, and the top of the intercepting components extends into the drainage pipes; in the method of dredging, step 1, the intercepting components are arranged at intervals in the drainage pipes In the centralized dredging well, a wire brush is arranged in the centralized dredging well; in step 2, the silt falls into the well under the action of gravity, and the slender garbage such as hair and plastic bags is wound on the wire brush under the action of water flow; step 3, Open the manhole cover regularly to clean up the impurities in the centralized dredging well; Step 4, cover the manhole cover. The invention can effectively carry out centralized cleaning of impurities such as sediment, garbage bags, hair, etc., and has simple structure and low production cost.

Description

A kind of centralized dredging device for drainage pipeline and its dredging method

technical field

The invention relates to the technical field of dredging devices, in particular to a centralized dredging device for drainage pipes and a dredging method thereof.

Background technique

In the current urban construction, domestic sewage and rainwater are discharged through drainage pipes. There are various impurities in domestic sewage and rainwater, including sediment, leaves, hair, plastic bags, etc. These impurities enter the drainage pipes, often silting up the pipes, blocking the pipes in severe cases, seriously affecting the drainage capacity of the pipes, making the sewage unable to be drained in time, or even overflowing the pipes, causing urban public safety problems.

For pipeline blockage and siltation, it is necessary to perform pipeline dredging frequently to ensure the normal operation of the pipeline. Therefore, dredging is an important and frequent task. There are various techniques for pipeline dredging, such as winch dredging method, high pressure water jet dredging method, robot dredging technology and water scouring dredging method. All of these methods can achieve the purpose of removing the sludge and restoring the drainage capacity of the pipeline.

However, the cost of robot dredging and high-pressure water jet dredging is relatively high, and it is very expensive to implement such dredging on a large scale in urban pipelines. At present, the winch dredging used in most cities has certain safety hazards, and it needs to manually go down to install bamboo chips. However, the drainage pipeline environment is complex, and it is very dangerous to enter the pipeline manually. The water flushing and dredging method requires a large amount of water to flush the drainage pipes, which consumes a lot of water and causes a waste of water resources.

The patent application number is CN201910691435.8, which discloses a sewer dredging machine, which belongs to the field of pipeline cleaning. It includes a casing; at least two sets of walking mechanisms are installed outside the casing to support the sewer dredging machine to walk on the inner wall of the sewer; the cutting mechanism includes a sludge separation component and a driving component, and the sludge separation component is installed on the casing. On one end; the driving component is installed in the casing, and is connected with the sludge separation component in a driving manner, which is used to drive the sludge separation component to rotate and cut and separate the sludge; the collection mechanism includes a sludge dispersion component, a transmission component and a collection component, and a sludge dispersion component. , the conveying assembly and the collecting assembly are sequentially connected and installed in the casing. The sewer dredging machine can dredging, but its structure is complex and the production cost is high, and it is not suitable for large-scale and large-scale use.

SUMMARY OF THE INVENTION

In order to solve the above problems, the main purpose of the present invention is to provide a centralized dredging device for drainage pipelines and a dredging method thereof, which can effectively clean up impurities such as sediment, garbage bags, hair, etc., and the drainage pipelines are centralized. The dredging device has simple structure and low production cost, and is suitable for large-scale and large-scale use.

Another object of the present invention is to provide a centralized dredging device for drainage pipelines and a dredging method thereof, which are easy to operate, save water, do not need to manually go down the well, are safe for dredging, and do not require robotic operations.

Another object of the present invention is to provide a centralized dredging device for drainage pipelines and a dredging method thereof, which have high dredging efficiency and effectively avoid blockage of drainage pipelines.

For achieving the above object, the technical scheme adopted in the present invention is:

A centralized dredging device for drainage pipelines, characterized in that the centralized dredging device for drainage pipelines comprises: a drainage pipeline, a silt collecting component and an intercepting component, the silt collecting component is in vertical communication with the drainage pipeline, and the intercepting component is arranged in the sludge collecting assembly and the top end of the intercepting assembly extends into the drainage pipe; wherein,

The silt collecting assembly is used for depositing solid substances such as sediment in the drainage pipeline;

The intercepting component is used for intercepting garbage such as plastic bags and hair.

Further, the silt collecting component is a centralized dredging well, and the centralized dredging well is arranged at the bottom end of the drainage pipe.

Further, the interception assembly includes a wire brush and a vertical rod, the vertical rod is vertically arranged on the centralized dredging well, the wire brush is arranged on the top of the vertical rod, and the wire brush extends upward to the drainage in the pipeline.

Further, the centralized dredging device for drainage pipes further includes a manhole cover, the manhole cover is arranged on the top of the drainage pipe, and the manhole cover is located directly above the centralized dredging well.

At the same time, the present invention also provides a dredging method for a centralized dredging device for drainage pipelines, which is characterized by comprising the following steps:

Step 1. Set up centralized dredging wells at intervals in the drainage pipeline, and set up wire brushes in the centralized dredging wells;

Step 2. When sewage and rainwater flow through the centralized dredging well, silt and other silt will fall into the well under the action of gravity and deposit, while slender garbage such as hair and plastic bags will be wrapped around the wire brush under the action of water flow. ;

Step 3: Open the manhole cover regularly to clean up the sludge in the centralized dredging well, and take out the garbage wrapped around the wire brush at the same time.

Step 4: After cleaning, cover the well cover to complete the dredging operation.

The beneficial effects of the present invention are:

1. On the basis of the original drainage pipeline, the present invention only adds a silt collecting component and an intercepting component, which not only can effectively clean up impurities such as sediment, garbage bags, hair, etc., but also has a simple structure of the centralized dredging device for the drainage pipeline. , the production cost is low, and it is suitable for large-scale and large-scale use.

2. The silt in the drainage pipeline can be concentrated in the dredging well, and the silt can be cleaned up by opening the well cover. It is easy to operate, no need to manually go down the well, and the dredging is safe; no robot operation is required, and the cost is low; no need to use high-pressure water Flush sludge, save water, green and environmental protection.

3. The present invention takes into account the characteristics of various impurities and sludge in the pipeline. Heavier impurities such as sediment can be deposited in the well, while hair, plastic bags, etc. can be wrapped around the wire brush.

Description of drawings

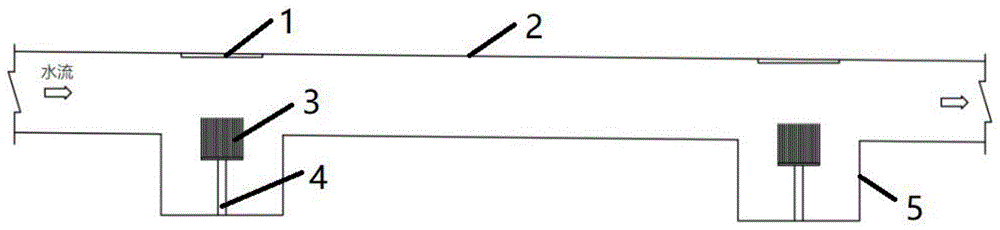

FIG. 1 is a schematic structural diagram of the centralized dredging device for drainage pipes according to the present invention.

Description of reference numerals: 1. Manhole cover; 2. Drainage pipe; 3. Wire brush; 4. Pole; 5. Centralized dredging well.

Detailed ways

Referring to FIG. 1 , the present invention relates to a centralized dredging device for drainage pipelines, characterized in that the centralized dredging device for drainage pipelines includes a drainage pipeline 2 , a silt collecting component and an intercepting component, the silt collecting component and the The drainage pipe 2 is in vertical communication, the interception assembly is arranged in the sludge collecting assembly and the top of the interception assembly extends into the drainage pipe 2; wherein,

The silt collecting assembly is used for depositing solid substances such as sediment in the drainage pipeline 2;

The intercepting component is used for intercepting garbage such as plastic bags and hair;

In the above solution, only the silt collecting component and the intercepting component are added on the basis of the original drainage pipeline 2, which can not only carry out centralized cleaning of impurities such as sediment, garbage bags, hair, etc., but also the structure of the centralized dredging device for the drainage pipeline is simple. , the production cost is low, and it is suitable for large-scale and large-scale use.

In this embodiment, the silt collecting component is a centralized dredging well 5, and the centralized dredging well 5 is arranged at the bottom end of the drainage pipe 2;

In the above solution, the centralized dredging well 5 can collect solid substances such as sediment in the drainage pipeline 2 by the action of gravity, without the need for driving devices and filtering equipment, and has the advantages of simple structure and low production cost.

In this embodiment, the interception assembly includes a wire brush 3 and a vertical rod 4 , the vertical rod 4 is vertically arranged on the centralized dredging well 5 , and the wire brush 3 is arranged on the top of the vertical rod 4 and the wire brush 3 extends upward into the drainage pipe 2;

In the above solution, slender garbage such as hair and plastic bags are wound on the wire brush 3 under the action of water flow; no driving device and absorption equipment are required, and the structure is simple and the production cost is low.

In this embodiment, the centralized dredging device for drainage pipelines further includes a manhole cover 1, which is arranged on the top of the drainage pipeline 2, and the well cover 1 is located directly above the centralized dredging well 5; It is convenient for centralized cleaning of impurities such as sediment, garbage bags, and hair.

At the same time, the present invention also provides a dredging method for a centralized dredging device for drainage pipelines, which is characterized by comprising the following steps:

Step 1. Set up centralized dredging wells 5 at intervals in the drainage pipeline 2, and set wire brushes 3 in the centralized dredging wells 5;

Step 2. When silt such as silt flows through the centralized dredging well 5 with domestic sewage and rainwater, it falls into the well under the action of gravity and is deposited, while slender garbage such as hair and plastic bags is wrapped around the wire brush under the action of the water flow. 3 on;

Step 3: Open the manhole cover 1 regularly, clean the sludge in the centralized dredging well 5 in a centralized manner, and take out the garbage wrapped around the wire brush 3 at the same time.

Step 4: After cleaning, cover the well cover 1 to complete the dredging operation.

Compared with the prior art, the present application has the following advantages:

1. The silt in the drainage pipe 2 can be concentrated in the dredging well, and the silt can be cleaned up by opening the well cover 1. It is easy to operate, no need to manually go down the well, and the dredging is safe; no robot operation is required, and the cost is low; no need to use high-pressure water Flush sludge, save water, green and environmental protection.

2. The dredging device takes into account the characteristics of various impurities in the pipeline. Heavier impurities such as sediment can be deposited in the well, and hair, plastic bags, etc. can be wrapped around the wire brush 3. The dredging efficiency is high, and the drainage pipeline is effectively avoided. 2 blocked.

3. On the basis of the original drainage pipe 2, the device only adds a centralized dredging well 5, a manhole cover 1, a wire brush 3 and a vertical rod 4, the structure is simple, the production cost is low, and it is suitable for large-scale and large-scale use.

The above embodiments are only to describe the preferred embodiments of the present invention, and do not limit the scope of the present invention. On the premise of not departing from the design spirit of the present invention, various modifications and variations of the technical solutions of the present invention made by ordinary engineers and technicians in the art Improvements should all fall within the protection scope determined by the claims of the present invention.

Claims (5)

1. The utility model provides a dredging device is concentrated to drainage pipe, its characterized in that, dredging device is concentrated to drainage pipe contains: the silt collecting component is vertically communicated with the drainage pipeline, the intercepting component is arranged in the silt collecting component, and the top end of the intercepting component extends into the drainage pipeline; wherein,

the silt collecting component is used for depositing solid matters such as silt and the like in the drainage pipeline;

the intercepting component is used for intercepting garbage such as plastic bags and hair.

2. The centralized dredging device for drainage pipelines of claim 1, wherein the dredging assembly is a centralized dredging well, and the centralized dredging well is arranged at the bottom end of the drainage pipeline.

3. The centralized dredging device for drainage pipelines of claim 2, wherein the intercepting component comprises a wire brush and a vertical rod, the vertical rod is vertically arranged on the centralized dredging well, the wire brush is arranged at the top end of the vertical rod, and the wire brush extends upwards into the drainage pipelines.

4. The centralized dredging device for drainage pipelines of claim 3, further comprising a well cover, wherein the well cover is arranged on the top end of the drainage pipelines, and the well cover is positioned over the centralized dredging well.

5. The dredging method for the drainage pipeline centralized dredging device as claimed in claim 4, characterized by comprising the following steps:

step one, arranging centralized dredging wells in the drainage pipeline at intervals, and arranging steel wire brushes in the centralized dredging wells;

step two, when the sludge such as silt flows through the centralized dredging well along with domestic sewage and rainwater, the sludge falls into the well under the action of gravity and is deposited, and slender garbage such as hair, plastic bags and the like is wound on the steel wire brush under the action of water flow;

and step three, opening the well cover periodically, performing centralized cleaning on the sludge in the centralized dredging well, and taking out the garbage wound on the steel wire brush.

And step four, after cleaning, covering the well cover to finish the dredging operation.
