CN112144455A - Sewage separating, purifying, recycling and reusing device for sweeping machine - Google Patents

Sewage separating, purifying, recycling and reusing device for sweeping machine Download PDF

Info

Publication number
CN112144455A
CN112144455A CN202011050893.2A CN202011050893A CN112144455A CN 112144455 A CN112144455 A CN 112144455A CN 202011050893 A CN202011050893 A CN 202011050893A CN 112144455 A CN112144455 A CN 112144455A
Authority
CN
China
Prior art keywords
box
purification
filter
sewage
filtration
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Pending
Application number
CN202011050893.2A
Other languages
Chinese (zh)
Inventor
施伟斌
张道忠
马帅
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Nanjing Freetech Road Maintenance Vehicle Manufacturing Corp
Original Assignee
Nanjing Freetech Road Maintenance Vehicle Manufacturing Corp
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Nanjing Freetech Road Maintenance Vehicle Manufacturing Corp filed Critical Nanjing Freetech Road Maintenance Vehicle Manufacturing Corp
Priority to CN202011050893.2A priority Critical patent/CN112144455A/en
Priority to PCT/CN2020/123122 priority patent/WO2022067912A1/en
Publication of CN112144455A publication Critical patent/CN112144455A/en
Pending legal-status Critical Current

Links

Images

Classifications

    • E—FIXED CONSTRUCTIONS
    • E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
    • E01H—STREET CLEANING; CLEANING OF PERMANENT WAYS; CLEANING BEACHES; DISPERSING OR PREVENTING FOG IN GENERAL CLEANING STREET OR RAILWAY FURNITURE OR TUNNEL WALLS
    • E01H1/00—Removing undesirable matter from roads or like surfaces, with or without moistening of the surface
    • E01H1/005—Mobile installations, particularly for upkeeping in situ road or railway furniture, for instance road barricades, traffic signs; Mobile installations particularly for upkeeping tunnel walls
    • B—PERFORMING OPERATIONS; TRANSPORTING
    • B01—PHYSICAL OR CHEMICAL PROCESSES OR APPARATUS IN GENERAL
    • B01D—SEPARATION
    • B01D29/00—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor
    • B01D29/50—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor with multiple filtering elements, characterised by their mutual disposition
    • B01D29/56—Filters with filtering elements stationary during filtration, e.g. pressure or suction filters, not covered by groups B01D24/00 - B01D27/00; Filtering elements therefor with multiple filtering elements, characterised by their mutual disposition in series connection
    • E—FIXED CONSTRUCTIONS
    • E01—CONSTRUCTION OF ROADS, RAILWAYS, OR BRIDGES
    • E01H—STREET CLEANING; CLEANING OF PERMANENT WAYS; CLEANING BEACHES; DISPERSING OR PREVENTING FOG IN GENERAL CLEANING STREET OR RAILWAY FURNITURE OR TUNNEL WALLS
    • E01H1/00—Removing undesirable matter from roads or like surfaces, with or without moistening of the surface
    • E01H1/10—Hydraulically loosening or dislodging undesirable matter; Raking or scraping apparatus ; Removing liquids or semi-liquids e.g., absorbing water, sliding-off mud
    • E01H1/108—Removing liquids or semi- liquids, e.g. absorbing rain water, sucking-off mud

Landscapes

  • Engineering & Computer Science (AREA)
  • Architecture (AREA)
  • Civil Engineering (AREA)
  • Structural Engineering (AREA)
  • Chemical & Material Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Filtration Of Liquid (AREA)

Abstract

本发明公开了一种扫路车污水分离净化循环再利用装置，过滤器安装在扫路车车厢的后门板的内侧，过滤净化箱和污水循环泵安装在后门板的外侧；垃圾箱里的污水经过过滤器2，进行一级过滤后经过过滤净化箱的的三级过滤，三级过滤后的水经过连接软管7进入高压降尘泵10进行地面降尘使用。过滤净化箱3内的多余的含有杂质的污水回流至垃圾箱。本发明扫路车污水分离净化循环再利用装置，能够分离净化污水，节约水资源。

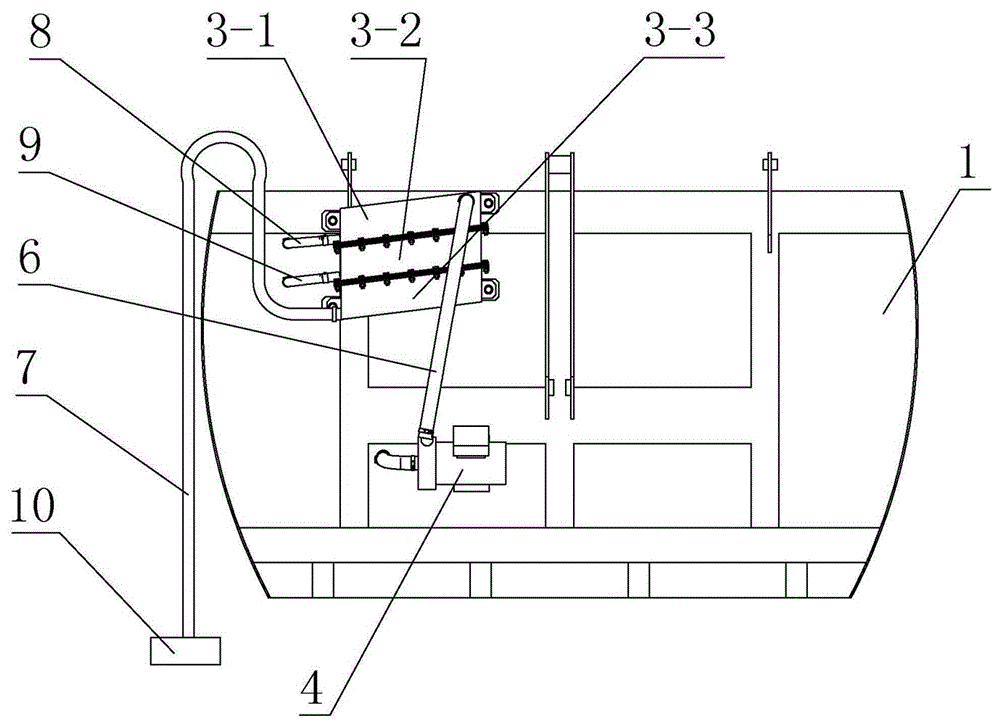

Figure 202011050893

The invention discloses a sewage separation, purification, and recycling device for a road sweeper. A filter is installed on the inner side of a rear door panel of a road sweeper compartment, and a filtering and purification box and a sewage circulation pump are installed on the outer side of the rear door panel. After passing through the filter 2, the first-stage filtration and then the third-stage filtration of the filter purification box, the water after the third-stage filtration enters the high-pressure dust suppression pump 10 through the connecting hose 7 for ground dust reduction. The excess sewage containing impurities in the filtration and purification box 3 is returned to the garbage box. The device for separating, purifying, recycling and reusing the sewage of the road sweeper of the invention can separate and purify the sewage and save water resources.

Figure 202011050893

Description

一种扫路车污水分离净化循环再利用装置A road sweeper sewage separation, purification and recycling device

技术领域technical field

本发明涉及扫路车污水处理处理设备，具体说是涉及一种扫路车污水分离净化循环再利用装置。The invention relates to sewage treatment equipment for road sweepers, in particular to a device for separating, purifying, recycling and reusing road sweeper sewage.

背景技术Background technique

伴随着城镇工业化的发展，扫路车在城市道路整洁干净卫生方面扮演着越来重要的作用。目前，扫路车装备有储存、转运功能的垃圾箱，但其中含有大量洗扫过后的污水，直接倾倒进垃圾收容站，无疑会造成水资源的浪费。另一方面，随着城市道路规模升级，需要洗扫车具有更长的作业时间来满足城市清洁的要求。因此，扫路车清扫收集的垃圾中的污水处理是当前面临的急需解决的问题。With the development of urban industrialization, road sweepers play an increasingly important role in the cleanliness and hygiene of urban roads. At present, road sweepers are equipped with garbage bins with storage and transfer functions, but they contain a large amount of cleaned sewage, which is directly dumped into the garbage storage station, which will undoubtedly cause a waste of water resources. On the other hand, as the scale of urban roads is upgraded, the cleaning vehicles need to have a longer operating time to meet the requirements of urban cleaning. Therefore, the sewage treatment in the garbage collected by the road sweeper is an urgent problem that needs to be solved at present.

发明内容SUMMARY OF THE INVENTION

本发明的目的在于克服现有技术中存在的问题，提供一种扫路车污水分离净化循环再利用装置，能够分离净化污水，节约水资源。The purpose of the present invention is to overcome the problems existing in the prior art, and to provide a device for separating, purifying, recycling and reusing the sewage of a road sweeper, which can separate and purify the sewage and save water resources.

为了达到上述目的，本发明采用如下技术方案：In order to achieve the above object, the present invention adopts the following technical solutions:

扫路车污水分离净化循环再利用装置，包括扫路车车厢内的垃圾箱，扫路车车厢的后门板、过滤器、过滤净化箱、污水循环泵和高压降尘泵。The device for separating, purifying, recycling and reusing the sewage of the road sweeper includes the garbage box in the car of the road sweeper, the rear door panel of the car of the road sweeper, the filter, the filter and purification box, the sewage circulation pump and the high pressure dust suppression pump.

所述过滤器安装在扫路车车厢的后门板的内侧，所述过滤净化箱和污水循环泵安装在后门板的外侧。The filter is installed on the inner side of the rear door panel of the road sweeper compartment, and the filtering and purification box and the sewage circulating pump are installed on the outer side of the rear door panel.

所述过滤器进水口连接垃圾箱底部，过滤器排水口接入到污水循环泵吸水口。The water inlet of the filter is connected to the bottom of the garbage bin, and the water outlet of the filter is connected to the suction port of the sewage circulating pump.

所述过滤净化箱由过滤净化上箱、过滤净化中箱和过滤净化下箱构成，过虑净化箱上箱与过虑净化箱中箱之间设过滤网；过虑净化箱下箱与过虑净化箱中箱之间设过滤网。The filtration and purification box is composed of an upper filtration and purification box, a middle filtration and purification box and a lower filtration and purification box. A filter screen is arranged between the upper box of the filtration and purification box and the middle box of the filtration and purification box; the lower box of the filtration and purification box and the middle box of the filtration and purification box are arranged. There are filters in between.

所述过滤净化上箱设进水口和排污口；污水循环泵出水口连接所述过虑净化上箱的进水口，过虑净化上箱排污口通过后门板接入到扫路车车厢内的垃圾箱。所述过虑净化中箱设有排污口并通过后门板接入到扫路车车厢内的垃圾箱。过虑净化箱下箱设排水口并接入到高压降尘泵的进水口。The filtration and purification upper tank is provided with a water inlet and a sewage outlet; the sewage circulating pump water outlet is connected to the water inlet of the filter and purification upper tank, and the sewage outlet of the filter and purification upper tank is connected to the garbage bin in the carriage of the road sweeper through the rear door panel. The filter and purification middle box is provided with a sewage outlet and is connected to the garbage box in the carriage of the road sweeper through the rear door panel. The lower box of the filter purification box is provided with a water outlet and connected to the water inlet of the high-pressure dust suppression pump.

本发明装置，根据需要也可以安装在车厢的侧板上，后门板换做侧板。这种根据需要直接的简单技术替换，依法仍属于本发明的保护范围。The device of the present invention can also be installed on the side panel of the carriage as required, and the rear door panel can be replaced with the side panel. Such direct and simple technical replacement as needed still falls within the protection scope of the present invention according to law.

本发明扫路车污水分离净化循环再利用装置，能够分离净化污水，节约水资源。The device for separating, purifying, recycling and reusing the sewage of the road sweeper of the invention can separate and purify the sewage and save water resources.

附图说明Description of drawings

图1是本发明污水分离净化循环再利用装置主视图。Fig. 1 is a front view of the sewage separation, purification and recycling device of the present invention.

图2是本发明污水分离净化循环再利用装置侧视图。Fig. 2 is a side view of the sewage separation, purification and recycling device of the present invention.

图3是本发明污水分离净化循环再利用装置后视图。Fig. 3 is a rear view of the sewage separation, purification and recycling device of the present invention.

图4是本发明污水分离净化循环再利用装置后右45 °轴视图。Figure 4 is a right 45° axial view of the sewage separation, purification, and recycling device of the present invention.

图5是本发明污水分离净化循环再利用装置前右45 °轴视图。Fig. 5 is a front right 45° axial view of the sewage separation, purification and recycling device of the present invention.

图6是本发明污水分离净化循环再利用装置的过虑净化箱分解视图。FIG. 6 is an exploded view of the filter and purification box of the sewage separation, purification and recycling device of the present invention.

具体实施方式Detailed ways

下面结合附图和实施例对本发明进行进一步说明。The present invention will be further described below with reference to the accompanying drawings and embodiments.

本发明一种扫路车污水分离净化循环再利用装置，包括：扫路车车厢内的垃圾箱，扫路车车厢后门板1，过滤器2，过滤净化箱3，污水循环泵4，连接软管5，连接软管6，连接软管7，连接软管8，连接软管9，高压降尘泵10。The present invention is a device for separating, purifying, recycling and reusing the sewage of a road sweeper. Pipe 5, connecting hose 6, connecting hose 7, connecting hose 8, connecting hose 9, high pressure dust pump 10.

所述过滤器2设有四个支脚，过滤器2的四个支脚用螺栓固定在后门板1的内侧，过滤器进水口连通垃圾箱底部。过虑净化箱3设有四个支脚，过虑净化箱3的四个支脚用螺栓固定在后门板1的外侧上部。污水循环泵4用螺栓固定在后门板1的下部。过滤器2的排水口与污水循环泵4的吸水口之间用连接软管5进行连接。The filter 2 is provided with four legs, the four legs of the filter 2 are fixed on the inner side of the rear door panel 1 with bolts, and the water inlet of the filter communicates with the bottom of the garbage bin. The filter and purification box 3 is provided with four legs, and the four legs of the filter and purification box 3 are fixed on the upper outer side of the rear door panel 1 with bolts. The sewage circulating pump 4 is fixed to the lower part of the rear door panel 1 with bolts. The drain port of the filter 2 and the suction port of the sewage circulating pump 4 are connected by a connection hose 5 .

所述过滤净化箱由过滤净化上箱3-1、过滤净化中箱3-2和过滤净化下箱3-3构成。过虑净化上箱3-1与过虑净化中箱3-2之间安装有橡胶垫和过滤网3-4并用螺栓连接。过虑净化下箱3-3与过虑净化中箱3-2之间安装有橡胶垫和过滤网3-5并用螺栓连接。过滤净化上箱设有进水口和排污口，过虑净化上箱3-1的进水口与污水循环泵4出水口之间用连接软管6进行连接。过虑净化上箱3-1的排污口与后门板1上的通水孔A之间用连接软管8进行连接，通水孔A通入扫路车车厢内。过虑净化箱中箱3-2与后门板1上的通水孔B之间用连接软管9进行连接，通水孔B通入扫路车车厢内。过虑净化箱下箱3-3与高压降尘泵10之间用连接软管10进行连接。The filtration and purification box is composed of an upper filtration and purification box 3-1, a middle filtration and purification box 3-2 and a lower filtration and purification box 3-3. A rubber pad and a filter screen 3-4 are installed between the filter upper box 3-1 and the filter middle box 3-2 and are connected with bolts. A rubber pad and a filter screen 3-5 are installed between the lower filter box 3-3 and the middle filter box 3-2 and are connected with bolts. The filter and purification upper tank is provided with a water inlet and a sewage outlet, and the connection hose 6 is used to connect the water inlet of the filter and purification upper tank 3-1 and the water outlet of the sewage circulating pump 4 . A connecting hose 8 is used to connect the sewage outlet of the filter and purification upper tank 3-1 with the water hole A on the rear door panel 1, and the water hole A leads into the carriage of the road sweeper. A connecting hose 9 is used to connect the middle box 3-2 of the filter purification box and the water hole B on the rear door panel 1, and the water hole B leads to the interior of the road sweeper. The connection hose 10 is used to connect the filter box lower box 3-3 and the high pressure dust suppression pump 10.

本装置时一种扫路车污水分离净化循环再利用装置工作流程是：首先开启污水循环泵4，从垃圾箱里面抽水，水经过过滤器2，进行一级过滤后经过连接软管5进入污水循环泵4。然后排入过滤净化箱3的过滤净化上箱3-1内，水经过过滤网3-4进行二级过滤，多余的含有杂质的污水经过连接软管8回流至垃圾箱。通过过滤网3-4进行二级过滤后的水再次经过过滤网3-5进行三级过滤，过滤净化中箱3-2内的多余的含有杂质的污水经过连接软管9回流至垃圾箱。三级过滤后的水经过连接软管7进入高压降尘泵10进行地面降尘使用。The working process of the sewage separation, purification and recycling device for a road sweeper in this device is as follows: firstly, the sewage circulating pump 4 is turned on, and water is pumped from the garbage can. Circulation pump 4. Then it is discharged into the filter and purification upper box 3-1 of the filter and purification box 3, the water is filtered through the filter screen 3-4 for secondary filtration, and the excess sewage containing impurities is returned to the garbage box through the connecting hose 8. The water after secondary filtration through the filter screen 3-4 is again filtered through the filter screen 3-5 for tertiary filtration, and the excess sewage containing impurities in the middle box 3-2 is filtered and purified to return to the garbage box through the connecting hose 9. The water after tertiary filtration enters the high-pressure dust suppression pump 10 through the connecting hose 7 for ground dust suppression.

Claims (2)

1.一种扫路车污水分离净化循环再利用装置，包括扫路车车厢内的垃圾箱，扫路车车厢的后门板、过滤器、过滤净化箱、污水循环泵；其特征在于：1. a road sweeper sewage separation, purification and recycling device, comprising the garbage bin in the road sweeper carriage, the rear door panel, filter, filter purification box, sewage circulating pump of the road sweeper carriage; it is characterized in that: 所述过滤器安装在扫路车车厢的后门板的内侧，所述过滤净化箱和污水循环泵安装在后门板的外侧；The filter is installed on the inner side of the rear door panel of the road sweeper compartment, and the filtering and purification box and the sewage circulating pump are installed on the outer side of the rear door panel; 所述过滤器进水口连接垃圾箱底部，过滤器排水口接入到污水循环泵吸水口；The water inlet of the filter is connected to the bottom of the garbage box, and the water outlet of the filter is connected to the suction port of the sewage circulating pump; 所述过滤净化箱由过滤净化上箱、过滤净化中箱和过滤净化下箱构成，过虑净化箱上箱与过虑净化箱中箱之间设过滤网；过虑净化箱下箱与过虑净化箱中箱之间设过滤网；The filtration and purification box is composed of an upper filtration and purification box, a middle filtration and purification box and a lower filtration and purification box. A filter screen is arranged between the upper box of the filtration and purification box and the middle box of the filtration and purification box; the lower box of the filtration and purification box and the middle box of the filtration and purification box are arranged. filter between; 所述过滤净化上箱设进水口和排污口；污水循环泵出水口连接所述过虑净化上箱的进水口，过虑净化上箱排污口通过后门板接入到扫路车车厢内的垃圾箱；所述过虑净化中箱设有排污口并通过后门板接入到扫路车车厢内的垃圾箱。The filtration and purification upper tank is provided with a water inlet and a sewage outlet; the water outlet of the sewage circulating pump is connected to the water inlet of the filter and purification upper tank, and the sewage outlet of the filter and purification upper tank is connected to the garbage box in the carriage of the road sweeper through the rear door panel; The filter and purification middle box is provided with a sewage outlet and is connected to the garbage box in the carriage of the road sweeper through the rear door panel. 2.根据权利要求1所述的一种扫路车污水分离净化循环再利用装置，其特征在于：还设有高压降尘泵，所述过虑净化箱下箱设排水口并接入到高压降尘泵的进水口。2. A device for separating, purifying, recycling and reusing road sweeper sewage according to claim 1, characterized in that: a high pressure dust suppression pump is also provided, and the lower box of the filter purification box is provided with a water outlet and connected to the high pressure dust suppression pump the water inlet.
