CN112138489A - Easy dismouting gas filter device for compressor - Google Patents

Abstract

The invention discloses an easily detachable gas filter device for a compressor, which comprises a cylinder body, a gland and a filter element, the gland is installed on the top of the cylinder body, and the filter element is installed at the bottom of the gland. In the process of gas transmission and filtration, the gas enters the cylinder and is filtered through the filter element and then discharged. When the filter element needs to be cleaned or replaced, it is only necessary to remove the gland and filter element from the top of the cylinder to operate, and there is no need to disassemble the gas pipe during the disassembly process. Road, easy disassembly and assembly, high work efficiency, high disassembly and assembly safety, low disassembly and assembly difficulty and work intensity, which greatly facilitates on-site maintenance.

Description

An easy-to-remove gas filter device for a compressor

technical field

The invention relates to the technical field of compressors, in particular to an easily removable gas filter device for compressors.

Background technique

During the conveying process of compressed gas, in order to prevent the unqualified air quality caused by the liquid water and other impurities contained in the gas conveying, and then lead to various failures caused by this, the gas pipeline system is usually provided with gas. The filter separates the liquid water and various impurities contained in the gas through the gas filter, and then discharges it through the drain valve to ensure the safe operation of the equipment. Under normal circumstances, the gas filter equipped with the compressor adopts a down-rotating disassembly structure or a flange-type lower disassembly structure. In order to meet the application of the above two disassembly structures under high flow or high pressure conditions, the volume and wall thickness of the filter must be increased for conventional gas filters, and the gas pipeline must be disassembled to replace the filter element during disassembly and assembly. It is easy to cause the risk of gas leakage due to the disassembly and assembly of flammable and explosive gas pipelines. The disassembly and assembly are very difficult and work intensity is very large, which brings great difficulties to on-site maintenance and replacement of filter elements.

SUMMARY OF THE INVENTION

In order to solve the technical problems existing in the background art, the present invention proposes an easily detachable gas filter device for a compressor.

An easily detachable gas filter device for a compressor proposed by the present invention comprises: a cylinder body, a gland and a filter element;

The upper part of the cylinder is provided with an air inlet and an air outlet respectively;

The top of the cylinder is an installation part, and a longitudinally arranged installation channel is arranged on the installation part, the installation channel is communicated with the inner cavity of the cylinder, and the gland is inserted into the installation channel and is tightly connected with the cylinder;

A gas channel is arranged on the gland, the filter element is installed on the bottom of the gland and is located at the inlet end of the gas channel, and the outlet end of the gas channel is communicated with the gas outlet.

Preferably, a buffer passage is provided upward along the inner wall of the cylinder from the bottom of the mounting portion, and a transversely arranged air inlet passage is provided on the cylinder body, the air inlet passage communicates with the buffer passage, and the outer end of the air inlet passage forms an air inlet IN.

Preferably, a laterally arranged air outlet channel is provided on the mounting portion, the air outlet channel is communicated with the air outlet end of the air channel, and the outer end of the air outlet channel forms an air outlet.

Preferably, multiple sealing rings are provided between the gland and the mounting portion.

Preferably, the filter element is mounted on the bottom of the gland through a screw connection.

Preferably, a sewage outlet is provided at the bottom of the cylinder.

Preferably, an air inlet port and an air outlet joint are respectively provided on the air inlet and the air outlet.

Preferably, the air inlet pipe and the air outlet pipe are respectively installed on the air inlet joint and the air outlet joint, and pressure gauges are respectively provided on the inlet pipe and the air outlet pipe.

Preferably, the gland is provided with a flange, and the gland is fastened to the top of the cylinder body through the flange and threaded connection.

The present invention also proposes a compressor, comprising the above-mentioned easy-to-remove gas filter device.

In the present invention, the easily detachable gas filter device includes a cylinder body, a gland and a filter element. The gland is installed on the top of the cylinder body, and the filter element is installed at the bottom of the gland. During the gas transmission and filtration process, the gas enters the cylinder body and passes through the filter element for filtering. Then it is discharged. When the filter element needs to be cleaned or replaced, it is only necessary to take out the gland and the filter element from the top of the cylinder to operate. There is no need to disassemble the gas pipeline during the disassembly and assembly process. The disassembly and assembly operation is convenient, the work efficiency is high, and the disassembly and assembly are safe. High, disassembly difficulty and work intensity are small, which greatly facilitates on-site maintenance.

Description of drawings

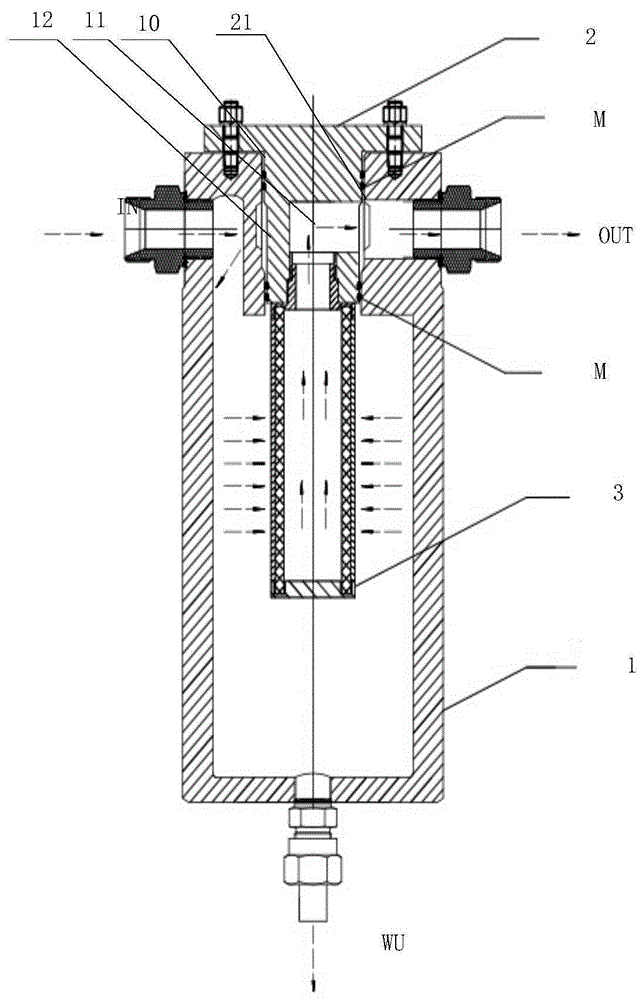

FIG. 1 is a cross-sectional view of an easily detachable gas filter device for a compressor proposed by the present invention.

FIG. 2 is a top view of the gland in FIG. 1 .

Detailed ways

As shown in FIG. 1 , FIG. 1 is a cross-sectional view of an easily detachable gas filter device for a compressor proposed by the present invention, and FIG. 2 is a top view of the gland in FIG. 1 .

Referring to FIG. 1 , an easily detachable gas filter device for a compressor proposed by the present invention includes: a cylinder body 1 , a gland 2 and a filter element 3 ;

The upper part of the cylinder body 1 is respectively provided with an air inlet IN and an air outlet OUT, and the bottom part of the cylinder body 1 is provided with a sewage outlet WU.

The top of the cylinder body 1 is an installation part 10, and a longitudinally arranged installation channel 11 is arranged on the installation part 10, and the installation channel 11 is communicated with the inner cavity of the cylinder body 1;

The gland 2 is inserted into the installation channel 11 and is tightly connected with the cylinder body 1. Multiple sealing rings are arranged between the gland 2 and the mounting part 10 to realize the sealing between the gland 2 and the cylinder body 1. The gland 2 A flange can be set on the top of the cylinder, and the flange is placed on the top of the cylinder body 1 and fastened by means of threads, which is convenient for disassembly and assembly;

Gas passages 21 are provided on the gland 2 . Specifically, the gas passages 21 include longitudinally and laterally arranged and connected air passages. The filter element 3 is mounted on the bottom of the gland 2 by means of threads and is located at the intake end of the gas channel 21 , and the gas outlet end of the gas channel 21 communicates with the gas outlet OUT.

According to the above embodiment, in the process of gas transmission and filtration, the gas enters the cylinder through the air inlet, and after being filtered by the filter element, passes through the gas passage on the gland and then is discharged through the air outlet. When it is necessary to clean or replace the filter element, just remove the gland from the top of the cylinder, take out the gland and filter element; install the cleaned or replaced filter element to the bottom of the gland, and then put it into the cylinder from the top of the cylinder. Tighten the connection. During the disassembly and assembly process, there is no need to disassemble the gas pipeline, the disassembly and assembly operation is convenient, the work efficiency is high, the disassembly and assembly safety is high, the disassembly and assembly difficulty and work intensity are small, and the on-site maintenance is greatly facilitated.

In a specific embodiment, a buffer channel 12 is provided upward along the inner wall of the cylinder body 1 from the bottom of the mounting portion 10 , and a horizontally arranged intake channel is provided on the cylinder body 1 , and the intake channel is communicated with the buffer channel 12 . The outer end forms the air inlet IN. The gas entering from the air inlet first enters the buffer channel 12, and then enters the inner cavity of the cylinder body 1 downward for filtering.

In a specific embodiment, the installation part 10 is provided with a laterally arranged air outlet channel, the air outlet channel is communicated with the air outlet end of the air channel 21 , and the outer end of the air outlet channel forms an air outlet OUT.

Referring to FIG. 1 , the air inlet and the air outlet may be disposed opposite to each other.

In a further embodiment, an air inlet port and an air outlet joint are respectively provided on the air inlet IN and the air outlet OUT, the air inlet pipe and the air outlet pipe are respectively installed on the air inlet joint and the air outlet joint, and the inlet pipe and the air outlet pipe are respectively installed on the inlet pipe and the air outlet pipe. With pressure gauge. Through the pressure displayed by the pressure gauges on the intake pipe and the exhaust pipe, the blockage degree of the filter element in the gas filter device can be judged, so as to control the disassembly and cleaning.

According to the above easily detachable gas filter device, the present invention also provides a compressor, which also has the above technical effects by applying the easily detachable gas filter device disclosed in the above embodiments.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (10)

1. An easily removable gas filter device for a compressor, characterized in that, comprising: a cylinder (1), a gland (2) and a filter element (3); The upper part of the cylinder (1) is provided with an air inlet (IN) and an air outlet (OUT) respectively; The top of the cylinder body (1) is an installation part (10), a longitudinally arranged installation channel (11) is arranged on the installation part (10), and the installation channel (11) is communicated with the inner cavity of the cylinder body (1), and the gland (2) ) is inserted into the installation channel (11) and fastened to the cylinder (1); A gas passage (21) is provided on the gland (2), the filter element (3) is installed at the bottom of the gland (2) and is located at the inlet end of the gas passage (21), and the gas outlet and the outlet of the gas passage (21) (OUT) connected. 2. The easily removable gas filter device for a compressor according to claim 1, characterized in that a buffer channel (12) is provided upward along the inner wall of the cylinder (1) from the bottom of the mounting portion (10), and a buffer channel (12) is provided at the bottom of the mounting portion (10). (1) A transversely arranged air intake passage is provided on the upper part, the air intake passage is communicated with the buffer passage (12), and the outer end of the air intake passage forms an air inlet (IN). 3. The easily detachable gas filter device for a compressor according to claim 1, characterized in that, a laterally arranged gas outlet channel is provided on the mounting portion (10), the gas outlet channel and the gas outlet end of the gas channel (21) Communication, the outer end of the air outlet channel forms an air outlet (OUT). 4. The easily removable gas filter device for a compressor according to claim 1, characterized in that a plurality of sealing rings (M) are provided between the gland (2) and the mounting part (10). 5. The easily detachable gas filter device for a compressor according to claim 1, wherein the filter element (3) is installed on the bottom of the gland (2) through a screw connection. 6 . The easily detachable gas filter device for a compressor according to claim 1 , wherein a sewage outlet (WU) is provided at the bottom of the cylinder body ( 1 ). 7 . 7 . The easily detachable gas filter device for a compressor according to claim 1 , wherein an air inlet and an air outlet are respectively provided on the air inlet (IN) and the air outlet (OUT). 8 . 8. The easy-to-remove gas filter device for a compressor according to claim 7, wherein an air inlet pipe and an air outlet pipe are respectively installed on the air inlet joint and the air outlet joint, and the inlet pipe and the air outlet pipe are respectively provided with pressure surface. 9. The easy-to-remove gas filter device for compressor according to claim 1, characterized in that, the gland (2) is provided with a flange, and the gland (2) is fastened to the cylinder through the flange and threaded connection. Body (1) top. 10. A compressor, characterized by comprising the easily removable gas filter device according to any one of claims 1-9.
