CN112133161A - An art appreciation teaching demonstration device - Google Patents

Abstract

The invention discloses an art appreciation teaching demonstration device, comprising a base and a worktable. One end of the worktable is fixed with a turn sleeve, a turntable is rotatably embedded in the turntable, and a plurality of first rotating drums are circumferentially installed on the upper end surface of the turntable. A first slot is vertically opened on one side of the first rotating drum, and a fixing table is arranged at one end of the worktable away from the rotating sleeve. There are two slots, a drive motor is installed at the bottom of the fixed table; a lifting component is arranged between the worktable and the base, and a fill light is provided on the worktable. The art appreciation teaching demonstration device is provided with a plurality of first reels, which can be used to wind multiple picture scrolls, and use the driving motor to bring the animation scroll to rewind, so as to display various parts of the picture scroll, and the display effect is good; the fill light can be used for the front of the picture scroll. Fill light to avoid the display effect due to insufficient light; lift components are set at the bottom of the workbench to facilitate adjustment of the display height of the picture scroll.

Description

An art appreciation teaching demonstration device

technical field

The invention relates to the technical field of art teaching, in particular to an art appreciation teaching demonstration device.

Background technique

Art appreciation class is an important part of art education and an important way to improve students' artistic quality. The content it involves is extensive and comprehensive. In the teaching process, we should start from the aesthetic characteristics of art, introduce and analyze various excellent art works from ancient and modern times, and guide students to use perception, memory, experience and knowledge to feel, experience, analyze, and judge art works, so as to obtain knowledge, Aesthetic feeling and enjoyment, so as to master the art appreciation method and improve the aesthetic level. Among them, when teaching and displaying traditional Chinese art works, it is difficult to display the scrolls due to the length of the scrolls, and when multiple scrolls need to be displayed, the placement of the scrolls is cluttered, which affects the demonstration effect.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide an art appreciation teaching demonstration device to solve the above-mentioned problems in the background art.

To achieve the above object, the present invention provides the following technical solutions:

An art appreciation teaching demonstration device, comprising a base and a worktable, one end of the worktable is fixed with a turning sleeve, a turntable is rotatably embedded in the turning sleeve, and a plurality of first rotating drums are circumferentially installed on the upper end surface of the turntable. , a first slot is vertically opened on one side of the first rotating drum, and a fixing table is arranged at one end of the working table away from the rotating sleeve. A second rotating drum is rotatably installed on the upper side, a second slot is vertically opened on one side of the second rotating drum, and a driving motor for driving the second rotating drum is installed at the bottom of the fixing table; between the worktable and the base Equipped with lifting components.

As a further solution of the present invention: the lifting assembly includes a fixing sleeve and a lifting plate, the fixing sleeve is fixedly installed on the upper end face of the base, the lifting plate is fixedly installed on the lower end face of the worktable, and the lower end of the lifting plate is movably sleeved on the base Inside the fixed sleeve, a through groove is formed on the fixed sleeve, and a fastening knob penetrating through the through groove is installed on the lifting plate.

As a further solution of the present invention: the upper end of the first drum is provided with a rotary handle.

As a further solution of the present invention: the number of the first rotating drum is six.

As a further solution of the present invention, four corners of the base are provided with mounting holes.

As a further solution of the present invention, the workbench is provided with a fill light, and the fill light is rotatably mounted on the workbench through a hinged seat.

As a further solution of the present invention: the length of the supplementary light is greater than half of the distance between the turntable and the fixed table.

Compared with the prior art, the beneficial effects of the present invention are:

The art appreciation and teaching demonstration device is provided with a plurality of first reels on the upper circumference of the turntable, which can wind multiple picture scrolls in an orderly manner to avoid the clutter of the picture scrolls. The drawing shafts at both ends of the picture scroll are inserted into the first slot and the second slot, and the driving motor is used to bring the animation scroll to rewind, so as to display each part of the picture scroll, and the display effect is good; The front of the picture scroll is filled with light to avoid affecting the display effect due to insufficient light; the bottom of the workbench is equipped with a lifting component to facilitate the adjustment of the display height of the picture scroll, and the operation is convenient and fast.

Description of drawings

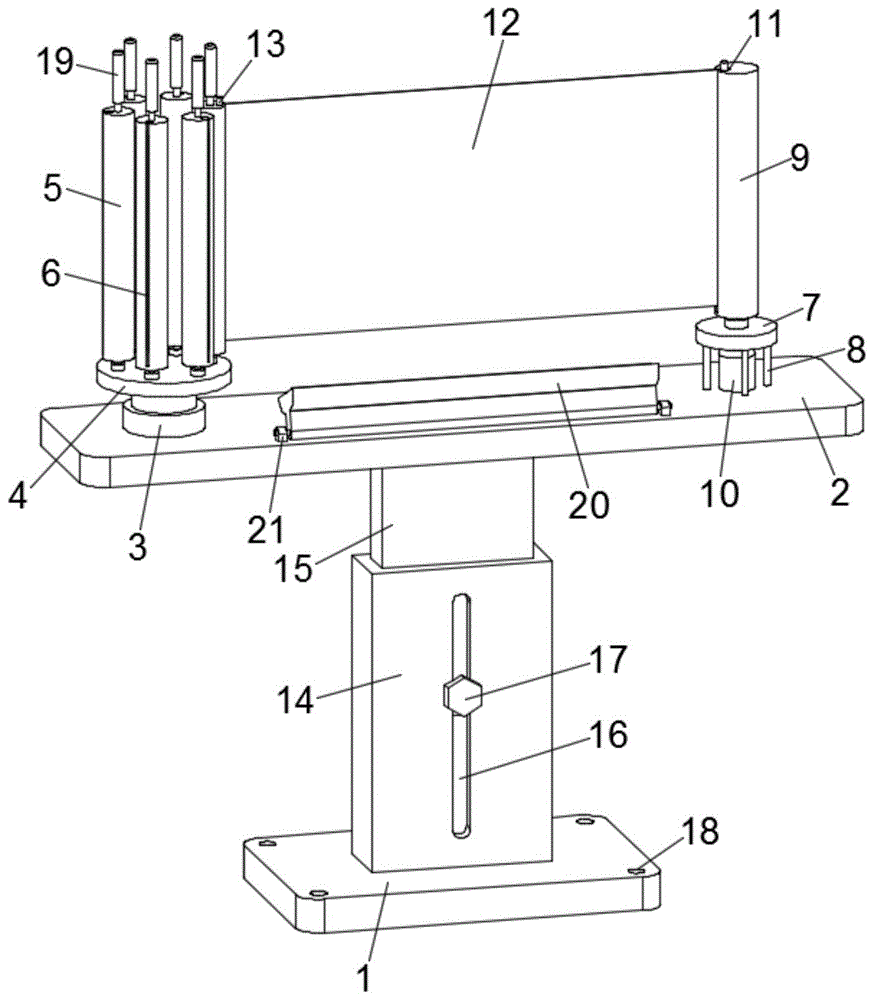

Figure 1 is a three-dimensional view of an art appreciation teaching demonstration device;

Figure 2 is a top view of the art appreciation teaching demonstration device;

FIG. 3 is a perspective view of the first rotating drum in the art appreciation teaching demonstration device.

In the picture: 1-base, 2-table, 3-turn sleeve, 4-turntable, 5-first turntable, 6-first slot, 7-fixed table, 8-support column, 9-second turn Cylinder, 10-drive motor, 11-second slot, 12-scroll, 13-scroll, 14-fixing sleeve, 15-lifting plate, 16-through slot, 17-fastening knob, 18-installation hole, 19- Rotary handle, 20-fill light, 21-articulated seat.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

It should be noted that, if there are directional indications (such as up, down, left, right, front, back, etc.) in the embodiments of the present invention, they are only used to explain the difference between the various components in a certain posture If the specific posture changes, the directional indication also changes accordingly.

In addition, if the description of "first", "second", etc. is involved in the present invention, it is only used for the purpose of description, and should not be understood as indicating or implying its relative importance or implying the indicated technical features. quantity. Thus, a feature delimited with "first", "second" may expressly or implicitly include at least one of that feature. In addition, the technical solutions between the various embodiments can be combined with each other, but must be based on the realization by those of ordinary skill in the art. When the combination of technical solutions is contradictory or cannot be realized, it should be considered that the combination of such technical solutions does not exist. , is not within the scope of protection required by the present invention.

Example 1

Please refer to Figure 1-2, an art appreciation teaching demonstration device, including a base 1 and a workbench 2, a turntable 3 is fixed at one end of the worktable 2, and a turntable 4 is rotatably embedded in the turntable 3. A plurality of first rotating drums 5 are installed on the upper end surface of the turntable 4 in a circumferential direction. A first slot 6 is vertically opened on one side of the first rotating drum 5 , and a fixing table is provided at the end of the worktable 2 away from the rotating sleeve 3 . 7. The fixed table 7 is fixedly installed on the work table 2 through the support column 8, and a second drum 9 is rotatably installed on the fixed table 7, and a second plug is vertically opened on one side of the second drum 9. Slot 11, a drive motor 10 for driving the second drum 9 is installed at the bottom of the fixing table 7; a lifting assembly is arranged between the work table 2 and the base 1;

The specific structure of the lifting assembly is not limited. In this embodiment, preferably, the lifting assembly includes a fixing sleeve 14 and a lifting plate 15. The fixing sleeve 14 is fixedly installed on the upper end surface of the base 1, and the lifting plate 15 It is fixedly installed on the lower end face of the workbench 2, the lower end of the lifting plate 15 is movably sleeved in the fixing sleeve 14, the fixing sleeve 14 is provided with a through slot 16, and the lifting plate 15 is installed with a tightening hole penetrating the through slot 16. Fixed knob 17;

By sliding the lifting plate 15 up and down along the fixing sleeve 14, the height of the worktable 2 can be adjusted. After adjusting to a suitable height, the tightening knob 17 can be tightened to complete the fixing of the lifting plate 15;

Specifically, insert the picture shaft 13 at one end of each picture scroll 12 into the first slot 6 of each first drum 5, and then wind the picture scroll 12 on the first drum 5. When the picture scroll 12 is displayed, the rotary table 4 is rotated, Rotate the corresponding scroll 12 to the side close to the second drum 9, and then pull the scroll 13 at the other end of the scroll 12 to unwind the scroll 12 until the scroll 13 at the other end is inserted into the second slot 11, and then start the drive. The motor 10 drives the second drum 9 to rotate, and can drive the picture scroll 12 to rewind, so that each part of the picture scroll 12 is unfolded in sequence, which is convenient for viewing;

Please refer to FIG. 3 , in order to facilitate the winding of the picture scroll 12 , the upper end of the first rotating drum 5 is provided with a rotating handle 19 . On the cylinder 5, the operation is convenient and quick;

The specific number of the first rotating drums 5 is not limited. In this embodiment, preferably, the number of the first rotating drums 5 is six;

The four corners of the base 1 are provided with mounting holes 18 , so that the base 1 can be fixed on the ground by bolts, so as to prevent the worktable 2 from being accidentally overturned and causing damage to the picture scroll 12 .

The working principle of this embodiment is:

First, insert the scroll 13 at one end of each scroll 12 into the first slot 6 of each first reel 5, and then wind the scroll 12 on the first reel 5. When displaying the scroll 12, turn the turntable 4 to rotate the corresponding scroll 12. The scroll 12 is rotated to the side close to the second drum 9, and then the other end of the scroll 12 is pulled to expand the scroll 12 until the scroll 13 at the other end is inserted into the second slot 11, and then the drive motor 10 is activated. , and driving the second drum 9 to rotate, the picture scroll 12 can be driven to rewind, so that each part of the picture scroll 12 is unfolded in sequence, which is convenient for viewing.

Example 2

An art appreciation teaching demonstration device, comprising a base 1 and a worktable 2, a turntable 3 is fixed at one end of the worktable 2, a turntable 4 is rotatably embedded in the turntable 3, and the upper end face of the turntable 4 rotates circumferentially. A number of first rotating drums 5 are installed, a first slot 6 is vertically opened on one side of the first rotating drum 5, and a fixing table 7 is provided on the end of the working table 2 away from the rotating sleeve 3. The fixing table 7 It is fixedly installed on the worktable 2 through the support column 8, and a second drum 9 is rotatably installed on the fixed table 7, and a second slot 11 is vertically opened on one side of the second drum 9. The fixed table 7. A drive motor 10 for driving the second drum 9 is installed at the bottom; a lifting assembly is arranged between the worktable 2 and the base 1;

When the light is relatively dark, it will affect the display effect of the picture scroll 12. For this reason, the workbench 2 is provided with a fill light 20, and the fill light 20 is rotatably installed on the workbench 2 through the hinge seat 21. The fill light 20 can be rotated around the hinge base 21 to adjust the illumination angle and fill the front of the picture scroll 12 to ensure the display effect;

In order to ensure the fill light effect, the length of the fill light 20 is greater than half of the distance between the turntable 4 and the fixed table 7, so that the illumination range of the fill light 20 can basically cover the entire front of the picture scroll 12 to ensure the display effect .

The art appreciation teaching demonstration device is provided with a plurality of first drums 5 on the upper circumference of the turntable 4, which can be used to wind multiple picture scrolls 12, and the second drum 9 is symmetrically arranged on the turntable 4. During the specific display, any picture scroll 12 can be The drawing shafts 13 at both ends are inserted into the first slot 6 and the second slot 11, and the driving motor 10 is used to take the animation roll 12 to rewind, so as to display each part of the picture roll 12, and the display effect is good; The fill light 20 can fill light on the front of the picture scroll 12 to avoid affecting the display effect due to insufficient light; a lifting component is arranged at the bottom of the worktable 2 to facilitate adjusting the display height of the picture scroll 12, and the operation is convenient and quick.

The above descriptions are only embodiments of the present invention, and common knowledge such as well-known specific structures and characteristics in the solution are not described too much here. It should be pointed out that for those skilled in the art, on the premise of not departing from the structure of the present invention, several modifications and improvements can also be made, which should also be regarded as the protection scope of the present invention, and these will not affect the implementation of the present invention. Effectiveness and utility of patents. The scope of protection claimed in this application should be based on the content of the claims, and the descriptions of the specific implementation manners in the description can be used to interpret the content of the claims.

Claims (7)

1. A fine arts appreciation teaching demonstration device comprises a base (1) and a workbench (2), it is characterized in that one end of the workbench (2) is fixed with a rotary sleeve (3), a rotary table (4) is embedded in the rotary sleeve (3) in a rotating way, a plurality of first rotary drums (5) are arranged on the upper end surface of the rotary table (4) in a circumferential rotating manner, a first slot (6) is vertically arranged on one side of the first rotary drum (5), a fixed table (7) is arranged at one end of the workbench (2) far away from the rotary sleeve (3), the fixed platform (7) is fixedly arranged on the workbench (2) through a support column (8), a second rotary drum (9) is rotatably arranged on the fixed table (7), a second slot (11) is vertically arranged on one side of the second rotary drum (9), a driving motor (10) for driving the second rotary drum (9) is arranged at the bottom of the fixed table (7); and a lifting component is arranged between the workbench (2) and the base (1).

2. The art appreciation and teaching demonstration device according to claim 1, wherein the lifting assembly comprises a fixed sleeve (14) and a lifting plate (15), the fixed sleeve (14) is fixedly mounted on the upper end surface of the base (1), the lifting plate (15) is fixedly mounted on the lower end surface of the workbench (2), the lower end of the lifting plate (15) is movably sleeved in the fixed sleeve (14), the fixed sleeve (14) is provided with a through groove (16), and the lifting plate (15) is provided with a fastening knob (17) penetrating through the through groove (16).

3. Art appreciation and teaching demonstration device according to claim 1, characterised in that the upper end of said first drum (5) is provided with a rotating handle (19).

4. An art appreciation and teaching demonstration device according to claim 3, characterised in that said first rotary drums (5) are six in number.

5. The art appreciation and teaching demonstration device according to claim 2, wherein four corners of the base (1) are provided with mounting holes (18).

6. An art appreciation and teaching demonstration device according to any one of claims 1 to 5 wherein a light supplement lamp (20) is arranged on the workbench (2), and the light supplement lamp (20) is rotatably mounted on the workbench (2) through a hinged base (21).

7. An art appreciation and teaching demonstration device according to claim 6 wherein the light supplement lamp (20) is longer than half the distance between the turntable (4) and the fixed table (7).
