CN112127028A - A self-cleaning brush for steel belt convex disc of spinning frame - Google Patents

Abstract

The invention discloses a self-cleaning brush of steel belt convex disc of a spinning frame, comprising a worktable, a motor protective cover is connected to the right of the worktable, a motor is installed inside the motor protective cover, and a surface of the worktable is provided with a motor protective cover. A sliding rail, a slider is installed on the sliding rail, the left end of the spring is fixedly connected to the surface of the slider, the right end of the spring is fixedly connected to a telescopic rod, the surface of the universal wheel is rotatably connected with a connecting rod, the connecting rod The right end is fixedly connected with a brush. In the invention, the length of the brush can be adjusted through the telescopic rod, and the automatic cleaning effect can be realized through the vibrating device, so that the intarsia clothing can be removed from the gap between the steel belt and the convex disc, which affects the tracking of the yarn bobbin, and the working efficiency of the automatic cleaning brush is improved. The tube tracking accuracy has been greatly improved; at the same time, the slider and the screw can be automatically moved to adjust the position of the brush, which is easy to use and has outstanding cleaning effect.

Description

A self-cleaning brush for steel belt convex disc of spinning frame

technical field

The invention relates to the technical field of textile machinery cleaning, in particular to a self-cleaning brush of a steel belt convex disc of a spinning frame.

Background technique

For TH598J type spinning frame due to steel belt convex disc gap intarsia affecting the bobbin tracking situation, compared with the prior art, only manual cleaning of TH598J type spinning frame steel belt convex disc is currently performed. It needs to be cleaned after each operation or after a period of work. When manual cleaning is performed, the cleaning operation is time-consuming and laborious due to the cumbersome cleaning operation and the large workload. Complete shortcomings, thereby reducing the accuracy of bobbin tracking and greatly affecting work efficiency.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a self-cleaning brush for the steel belt convex disc of the spinning frame with reasonable structural design and high working efficiency, which can effectively automatically clean the steel belt convex disc of the spinning frame and improve the tracking of the bobbin. Accuracy.

In order to achieve the above purpose, a self-cleaning brush with a steel belt convex disc for a spinning frame of the present invention includes a worktable, a motor protective cover is connected to the right of the worktable, a motor is installed inside the motor protective cover, and the working table is A slide rail is arranged on the surface of the table, a slider is installed on the slide rail, the surface of the slider is fixedly connected with the left end of the spring, and the right end of the spring is fixedly connected with a telescopic rod, and the telescopic rods are respectively four sections from left to right. A disassembly cover is installed on the upper surface of the telescopic rod at the left end, and a vibration device is arranged inside the disassembly cover correspondingly. A universal wheel is rotatably connected to the right end of the telescopic rod, and a connecting rod is rotated on the surface of the universal wheel. A brush is fixedly connected to the right end of the connecting rod.

Preferably, the motor output shaft is fixedly connected with the right end of the lead screw, the lead screw rotates through the inside of the worktable, and the left end of the lead screw is connected to the left inside the workbench by rotation.

Preferably, the slider penetrates the surface of the worktable, the rear of the slider extends to the periphery of the surface of the screw rod, the rear of the slider and the screw rod are provided with holes, and the holes are provided with threads, and the rear of the slider is provided with holes. The thread in the hole is engaged with the thread provided on the surface of the screw rod.

Preferably, the vibration device includes a battery and a mini motor, and the battery is installed at the left end of the inner side of the casing.

Preferably, the mini motor is installed between the inner and middle parts of the casing, the battery provides power for the mini motor, and a counterweight is fixedly connected to the output shaft of the mini motor.

Compared with the prior art, the present invention has the following beneficial effects:

(1) The brush can be adjusted to any angle by installing the universal wheel, and the slider can be automatically moved on the slide rail by the motor. Due to the installation of the slide rail, the slide block can be moved on the slide rail. During the moving process The slider can be moved stably through the sliding rail, and the length of the brush can be adjusted through the telescopic rod, so that the self-cleaning brush for the steel belt convex plate of the spinning frame is flexible, and can be used for cleaning the flower clothes in the gap between the steel belt convex plate. The work efficiency and practicability of the self-cleaning brush for the steel belt convex disc of the spinning frame is improved, and the tracking accuracy of the bobbin is greatly improved, and automatic cleaning is realized without manual cleaning.

(2) The mini motor is powered by the battery. Since the output end of the mini motor is installed with a counterweight, centrifugal force is generated when the output shaft of the mini motor rotates, and the centrifugal force can drive the telescopic rod to vibrate, so that the brush also has the effect of vibration and cleaning , by installing the worktable in the middle of one end of the TH598J spinning frame and extending the brush to the other end of the TH598J spinning frame through the telescopic rod, the slider and the screw can be automatically moved to adjust the position of the brush, which is easy to use and clean The effect is outstanding.

Description of drawings

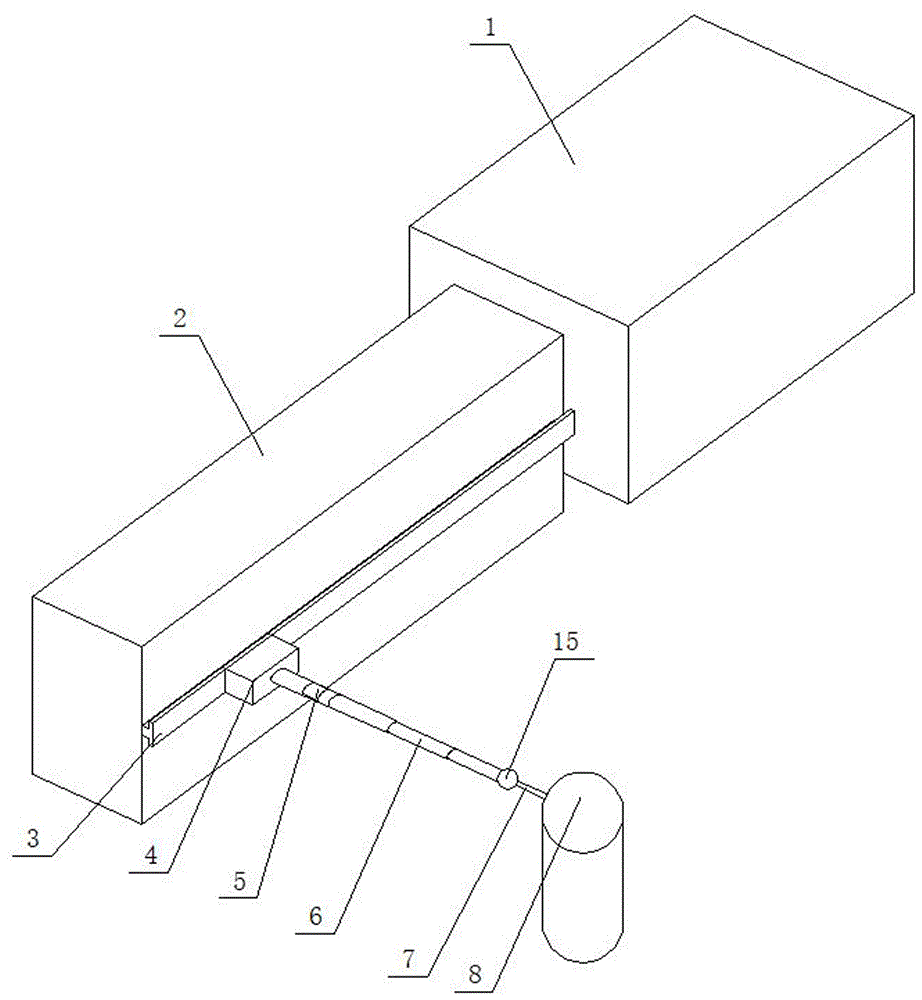

1 is a schematic diagram of the overall structure of a steel belt convex disc self-cleaning brush of a spinning frame of the present invention;

FIG. 2 is a schematic view of the overall structure of the top view of the self-cleaning brush of a steel belt convex disc of a spinning frame according to the present invention;

Fig. 3 is a side view partial structural schematic diagram of a steel belt convex disc self-cleaning brush of a spinning frame of the present invention;

FIG. 4 is an enlarged view of position a in FIG. 3 .

In the picture: 1. Motor protective cover; 2. Workbench; 3. Slide rail; 4. Slider; 5. Removal cover; 6. Telescopic rod; 7. Connecting rod; 8. Brush; 9. Screw rod; 10 , motor; 11, shell; 12, battery; 13, mini motor; 14, counterweight; 15, universal wheel; 16, vibration device; 17, spring.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

As can be seen from Figures 1-4, a self-cleaning brush of the present invention with a steel belt convex disc of a spinning frame includes a workbench 2, a motor protective cover 1 is connected to the right of the workbench 2, and a motor 10 is installed inside the motor protective cover 1. The surface of the worktable 2 is provided with a slide rail 3, on which is mounted a slider 4, the surface of the slider 4 is fixedly connected to the left end of a spring 17, and the right end of the spring 17 is fixedly connected to a telescopic rod 6, the telescopic rods 6 are respectively four. The segments are reduced in turn from left to right, a dismounting cover 5 is installed on the upper surface of the telescopic rod 6 at the left end, and a vibration device 16 is arranged inside the dismounting cover 5 correspondingly. A connecting rod 7 is connected, and a brush 8 is fixedly connected to the right end of the connecting rod 7 .

In the above technical solution, the brush 8 can be adjusted to any angle by installing the universal wheel 15, and the slider 4 is automatically moved on the sliding rail 3 by the motor 10. Since the sliding rail 3 is installed, the sliding block 4 is It can be moved on the slide rail 3 to make it stable when moving. Through the telescopic rod 6, the length of the brush 8 can be adjusted, so that the self-cleaning brush for the steel belt convex disc of the spinning frame has flexibility and can be applied to other equipment or cleaning more. Multi-machine, which improves the working efficiency and practicality of the self-cleaning brush for the steel belt convex disc of the spinning frame.

It should be noted that the output shaft of the motor 10 is fixedly connected with the right end of the lead screw 9, the lead screw 9 rotates and runs through the interior of the workbench 2, and the left end of the lead screw 9 is rotated and connected to the left side of the workbench 2. 10 can drive the sliding block 4 to move, save manpower operation time, reduce manpower resources, and improve the working efficiency of the self-cleaning brush used for the steel belt convex disc of the spinning frame.

It should be noted that the slider 4 runs through the surface of the worktable 2, the rear of the slider 4 extends to the periphery of the surface of the screw 9, the rear of the slider 4 and the screw 9 are provided with holes, and the holes are provided with threads, and the slider 4 The thread in the rear hole is engaged with the thread provided on the surface of the screw rod 9, and the thread of the slider 4 is engaged with the screw thread on the screw rod 9, so that the slider 4 moves, and the sliding rail 3 is used for the movement while moving. The sliding block 4 is stably fixed, so that the sliding block 4 does not rotate with the lead screw 9 .

It should be noted that the vibration device 16 includes a battery 12 and a mini motor 13. The battery 12 is installed at the inner left end of the casing 11, and the mini motor 13 is installed between the inner and middle parts of the casing 11. The battery 12 provides power for the mini motor 13, and the mini motor 13 outputs the shaft. A counterweight block 14 is fixedly connected, and the battery 12 provides power for the mini motor 13. Since the counterweight block 14 is installed at the output end of the mini motor 13, a centrifugal force is generated when the output shaft of the mini motor 13 rotates, and this centrifugal force can drive the connecting rod 7 Vibration, so that the brush 8 also has the effect of vibration cleaning.

Referring to Figures 1-4, the working principle of the self-cleaning brush of the present invention is as follows:

When in use, first use the universal wheel 15 and the telescopic rod 6 to adjust to the length and angle that need to be used during work, after modulation, replace the battery of the vibration device 16 by installing the dismantling cover 5, because the battery 12 provides the mini motor 13. Power, since the output end of the mini motor 13 is installed with a counterweight 14, a centrifugal force is generated when the output shaft of the mini motor 13 rotates, and the centrifugal force can drive the connecting rod 7 to vibrate, so that the brush 8 also has the effect of vibrating and cleaning. The flower coat in the gap between the convex discs is cleaned, and then the motor 10 is started, and the lead screw 9 is connected to the output shaft of the motor 10 so that the motor 10 can drive the slider 4 to move, and the thread of the slider 4 is meshed with the thread on the lead screw 9. , so that the slider 4 moves, and the slider 4 is stably fixed by the slide rail 3 while moving, so that the slider 4 will not follow the rotation of the screw 9, so that the length, angle and distance of the brush can be adjusted. After adjustment, ensure that the battery 12 provides power for the mini motor 13, and then start the motor 10 to realize the automatic cleaning of the brush 8. By installing the worktable 2 on the middle of one end of the TH598J spinning frame, through the telescopic rod 6, the brush 8 Extending to the other end of the TH598J spinning frame, it can be moved automatically through the slider 4 and the screw 9. During the movement, the automatic cleaning effect can be achieved through the vibration device 16, so that the intarsia clothing can be removed from the gap between the steel belt convex disc and the bobbin tracking. The working efficiency of the automatic cleaning brush is improved, and it is not used for manual cleaning to realize automatic cleaning.

It should be noted that the specific model specifications of the motor 10 and the mini motor 13 need to be selected and determined according to the actual specifications, and the specific selection and calculation method adopts the existing technology in the field, so it will not be described in detail.

The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments, and the descriptions in the above-mentioned embodiments and the description are only to illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention will have Various changes and modifications fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (5)

1. A steel belt convex disc self-cleaning brush for a spinning frame, comprising a workbench (2), characterized in that: a motor protective cover (1) is connected to the right of the workbench (2), and the motor protective cover ( 1) A motor (10) is installed inside, a slide rail (3) is provided on the surface of the worktable (2), a slider (4) is installed on the slide rail (3), and the surface of the slide block (4) is The left end of the spring (17) is fixedly connected, and the right end of the spring (17) is fixedly connected with a telescopic rod (6). A dismounting cover (5) is installed on the upper surface, and a vibration device (16) is arranged inside the dismounting cover (5) correspondingly. A universal wheel (15) is rotatably connected to the right end of the telescopic rod (6). 15) A connecting rod (7) is rotatably connected to the surface, and a brush (8) is fixedly connected to the right end of the connecting rod (7). 2. The steel belt convex disc self-cleaning brush of a spinning frame according to claim 1, characterized in that: the output shaft of the motor (10) is fixedly connected with the right end of the lead screw (9), and the lead screw (9) ) rotates through the interior of the workbench (2), and the left end of the lead screw (9) is rotatably connected to the inner left side of the workbench (2). 3. The steel belt convex disc self-cleaning brush for spinning frame according to claim 1, characterized in that: the slider (4) runs through the surface of the worktable (2), behind the slider (4) Extending to the periphery of the surface of the screw (9), the rear of the slider (4) and the screw (9) are provided with holes, and the holes are provided with threads, and the threads in the holes behind the slider (4) and the screw (9) Threaded meshing connection provided on the surface. 4. A self-cleaning brush for steel belt convex disc of spinning frame according to claim 1, characterized in that: the vibration device (16) comprises a battery (12) and a mini motor (13), the battery (12) ) is installed on the inner left end of the housing (11). 5. The steel belt convex disc self-cleaning brush for spinning frame according to claim 4, characterized in that: the mini motor (13) is installed between the inner and middle parts of the casing (11), and the battery (12) Power is provided for the mini motor (13), and the output shaft of the mini motor (13) is fixedly connected with a counterweight (14).
