CN112120726A - A kind of radiology detection auxiliary device supporting body position and using method thereof - Google Patents

Abstract

The invention relates to the technical field of radiology detection assistance, in particular to a radiology detection assistance device supporting body position and a method for using the same. The technical problems to be solved by the present invention are poor flexibility, no structure to support the patient's body position, and inconvenience to move the patient to the test bed. In order to solve the above-mentioned technical problems, the present invention provides a radiology detection auxiliary device supporting body position. The present invention includes a base, and both sides of the top of the base are fixedly connected with electronic hydraulic rods, and the two electronic hydraulic rods are connected to each other. A bracket is fixedly connected to the top, a detection bed mechanism is movably sleeved on the bracket, and a second motor is fixedly connected to the bottom of the bracket. The invention works through an electronic hydraulic rod to drive the bed frame to move up and down, which is convenient for adapting to different needs. For the patient, the turntable is driven to rotate by the second motor, so that the fixed block drives the bed frame to move laterally on the slider, which can assist the patient to adjust the detection position and bring comfort to the patient.

Description

A kind of radiology detection auxiliary device supporting body position and using method thereof

technical field

The invention relates to the technical field of radiology detection assistance, in particular to a radiology detection assistance device supporting body position and a method for using the same.

Background technique

The radiology department is an important auxiliary examination department in the hospital. In the construction of a modern hospital, the radiology department is a department integrating inspection, diagnosis and treatment. Many diseases in clinical departments must be checked by radiology equipment to achieve a clear diagnosis and auxiliary diagnosis. At present, the incidence of tumor diseases caused by poor diet or body organ disease is high. Benign tumors can be treated with adjuvant drugs, and malignant tumors and some benign tumors need to be removed. The radiology department performs an imaging followed by a scan.

There are at least the following problems in the prior art that have not been solved: 1. The existing testing bed has poor flexibility and cannot move up, down, left and right. When a patient is injured in more than one place and needs a radiological examination, the patient needs to adjust the examination position many times, and the patient lies down. Afterwards, self-adjustment is often inconvenient, often unable to reach the required position, prolonging the inspection period and unable to meet the needs of use; 2. At present, when the hospital performs radiotherapy or inspection on patients, the patient needs to lie on the test bed, but some injuries During the test, most of the more serious patients cannot support the body to adjust the position according to the doctor's instructions, resulting in inaccurate test results; 3. There is no auxiliary device to facilitate the patient to lie on the mobile bed, and many patients need medical staff to carry them to the test. In bed, in this case, for some seriously injured patients or the injury is not clear, in the process of moving, it is likely to cause the patient to suffer secondary injuries, causing greater pain to the patient, and there is also a certain security risks.

SUMMARY OF THE INVENTION

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the present invention provides a body position supporting radiology detection auxiliary device and its use method, which solve the problems of poor flexibility, no structure supporting the patient's body position, and inconvenience in moving the patient to the detection bed.

(2) Technical solutions

In order to achieve the above purpose, the present invention is achieved through the following technical solutions: a radiology detection auxiliary device for supporting body position, including a base, and both sides of the top of the base are fixedly connected with electronic hydraulic rods, and two electronic hydraulic rods. A bracket is fixedly connected to the top of the bracket, a detection bed mechanism is movably sleeved on the bracket, and a second motor is fixedly connected to the bottom of the bracket, and the output end of the second motor penetrates the bracket and is fixedly connected to the bottom of the indexing mechanism above it. The top of the indexing mechanism is slidably connected with a fixed block, and both sides of the detection bed mechanism are nested with support mechanisms.

Further preferably, the detection bed mechanism includes a sliding block, and the sliding block is movably sleeved on the bracket, a bed frame is movably interspersed in the sliding block, and a first motor is fixedly connected to one side of the bed frame. The two sides of the inner wall of the bed frame are movably connected with three transmission shafts, and one end of the transmission shaft penetrates the bed frame and is fixedly connected with one end of the pulley on the side thereof. The three pulleys are movably connected by belts, and one of the transmission shafts The rod passes through one of the pulleys and is fixedly connected with the output end of the first motor on one side thereof, and a fixed block is fixedly connected to the bottom of the bed frame.

Further preferably, the indexing mechanism includes a turntable, and the turntable is fixedly connected to the output end of the second motor, the middle of the top surface of the turntable is fixedly connected with a slide rail, and one side of the slide rail is fixedly connected with the third motor. The opposite side of the inner wall of the slide rail is movably connected with a screw rod, and one end of the screw rod penetrates the slide rail and is fixedly connected to the output end of the third motor on one side thereof, and a fixed block is movably connected to the screw rod.

Further preferably, the support mechanism includes a limit frame, and the limit frame is nested on one side of the detection bed mechanism, one side of the limit frame is fixedly connected with two fourth motors, and the inner wall of the limit frame is The opposite side of the motor is movably connected with a reciprocating screw rod and a transmission gear rod, and one end of the reciprocating screw rod and the transmission gear rod respectively penetrates the limit frame and is fixedly connected to the output ends of the two fourth motors on its sides. A limit block is movably sleeved on the rod, one side of the limit block is slidably connected with a support rod, and one side of the support rod is engaged with the transmission gear rod.

Further preferably, five rubber wheels are fixedly sleeved on the transmission shaft, and the tops of the five rubber wheels are all bed frames and extend to the tops thereof.

Further preferably, the bottom of the bed frame is fixedly connected with two sliding bars, and the two sliding bars are movably inserted into the slider.

Further preferably, the support rod is composed of a support block fixedly connected to a rack, and the rack is engaged with the transmission rack.

A method for using a radiology detection auxiliary device supporting body position, comprising the following steps:

S1. First, control the two electronic hydraulic rods to adjust the height at the same time, so that the top of the bed frame is lowered to the same height as the mobile bed. It is connected to the rubber wheel of the drive shaft on the side, and the first motor is activated to drive one of the drive shafts to rotate, and the other two drive shafts (404) rotate along with the cooperation of the belt and the pulley, so as to move the patient. Move smoothly to the top of the bed frame.

S2. Secondly, control the two electronic hydraulic rods to restore the height of the bed frame. By starting the second motor, the turntable is rotated to make the bed frame slide back and forth on the bracket through the slider. Drive the bed frame to move left and right on the slider, so as to adjust the bed frame to reach the appropriate detection position.

S3. Finally, a fourth motor is obtained by starting the fixed connection with the reciprocating screw rod, so that the limit block can drive the support rod to move laterally, and another fourth motor is activated to drive the transmission gear rod to rotate, so that the support rod can move up and down in the limit block. Displacement, so as to match the detection position, adjust the support rod to a suitable position to support the patient's body, so as to better complete the detection of the radiology department.

(3) Beneficial effects

The present invention provides a radiology detection auxiliary device supporting body position and a method for using the same, which have the following beneficial effects:

(1) Work through the electronic hydraulic rod to drive the bed frame to move up and down, which is convenient for patients with different needs. The second motor drives the turntable to rotate, so that the fixed block drives the bed frame to move laterally on the slider, which can assist patients in adjusting The detection position brings comfort to the patient, facilitates finding the best detection point, and makes the detection result more accurate

(2) By activating the two fourth motors to match the limit block and the support rod, the height and lateral position of the support rod can be adjusted, which can facilitate the support rod to support the patient's affected limb, so as to adjust the patient's position. It can be adjusted to the best state and improve the comfort of patients, thereby improving the effect of radiotherapy and the accuracy of test results. It is easy to use and greatly reduces the difficulty of medical staff.

(3) Through the cooperation between the first motor, the pulley and the transmission shaft, it is convenient to move the patient in parallel to a suitable position on the bed frame for detection, which avoids the second injury to the patient in the process of manual transportation and reduces the Pain for patients, while saving test preparation time and improving work efficiency.

Description of drawings

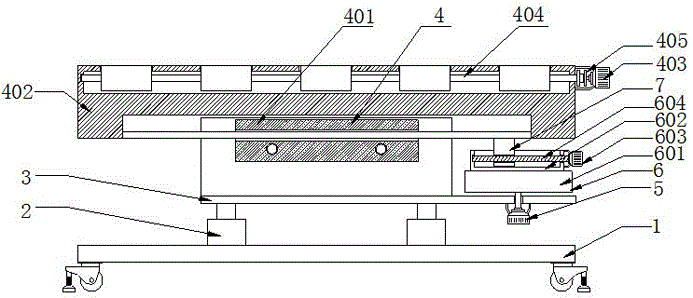

Fig. 1 is the front sectional view of the structure of the present invention;

Fig. 2 is the front view of the structure of the present invention;

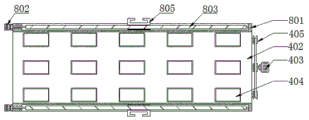

Fig. 3 is the top sectional view of the structure of the present invention;

Fig. 4 is the top sectional view of the structure turntable of the present invention;

FIG. 5 is a top sectional view of the structural support of the present invention.

In the figure: 1, base; 2, electronic hydraulic rod; 3, bracket; 4, detection bed mechanism; 401, slider; 402, bed frame; 403, first motor; 404, transmission shaft; 405, pulley; 5 , the second motor; 6, the indexing mechanism; 601, the turntable; 602, the slide rail; 603, the third motor; 604, the screw; 7, the fixing block; 8, the support mechanism; 801, the limit frame; Motor; 803, reciprocating screw; 804, transmission gear rod; 805, limit block; 806, support rod.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIGS. 1-5 , the present invention provides a technical solution: an auxiliary radiology detection device for supporting body position, comprising a base 1 , electronic hydraulic rods 2 are fixedly connected to both sides of the top of the base 1 , and two electronic A bracket 3 is fixedly connected to the top of the hydraulic rod 2, a detection bed mechanism 4 is movably sleeved on the bracket 3, and a second motor 5 is fixedly connected to the bottom of the bracket 3, and the output end of the second motor 5 penetrates the bracket 3 and is above it. The bottom of the indexing mechanism 6 is fixedly connected, the top of the indexing mechanism 6 is slidably connected with a fixed block 7, and both sides of the detection bed mechanism 4 are nested with support mechanisms 8.

In the present invention, the detection bed mechanism 4 includes a slider 401, and the slider 401 is movably sleeved on the bracket 3, a bed frame 402 is movably interspersed in the slider 401, and a first motor 403 is fixedly connected to one side of the bed frame 402. Two sides of the inner wall of the bed frame 402 are movably connected with three transmission shafts 404, and one end of the transmission shaft 404 penetrates the bed frame 402 and is fixedly connected with one end of the pulley 405 on the side thereof. The three pulleys 405 are movably connected by belts, one of which is The transmission shaft 404 penetrates through one of the pulleys 405 and is fixedly connected to the output end of the first motor 403 on one side thereof, and a fixed block 7 is fixedly connected to the bottom of the bed frame 402 .

In the present invention, the indexing mechanism 6 includes a turntable 601, and the turntable 601 is fixedly connected to the output end of the second motor 5, the middle of the top surface of the turntable 601 is fixedly connected with a slide rail 602, and one side of the slide rail 602 is fixedly connected with a slide rail 602. For the third motor 603, a screw 604 is movably connected to the opposite side of the inner wall of the slide rail 602, and one end of the screw 604 penetrates the slide rail 602 and is fixedly connected to the output end of the third motor 603 on one side thereof, and the screw 604 is movably connected with a fixed Block 7.

In the present invention, the support mechanism 8 includes a limit frame 801, and the limit frame 801 is nested on one side of the detection bed mechanism 4, and two fourth motors 802 are fixedly connected to one side of the limit frame 801. The limit frame 801 The opposite side of the inner wall is movably connected with a reciprocating screw rod 803 and a transmission gear rod 804, and one end of the reciprocating screw rod 803 and the transmission gear rod 804 respectively penetrates the limit frame 801 and the output ends of the two fourth motors 802 on its sides. In a fixed connection, a limit block 805 is movably sleeved on the reciprocating screw rod 803 , and a support rod 806 is slidably connected to one side of the limit block 805 , and one side of the support rod 806 is engaged with the transmission gear rod 804 .

In the present invention, five rubber wheels are fixedly sleeved on the transmission shaft 404, and the tops of the five rubber wheels are the bed frame 402 and extend to the top thereof.

In the present invention, the bottom of the bed frame 402 is fixedly connected with two sliding rods, and the two sliding rods are movably inserted into the sliding block 401.

In the present invention, the support rod 806 is composed of a support block fixedly connected to a rack, and the rack is meshed with the transmission rack 804 .

In the present invention, the electronic hydraulic rod 2 works to drive the bed frame 402 to move up and down, which is convenient for patients with different needs. The second motor 5 drives the turntable 601 to rotate, and the fixed block 7 drives the bed frame 402 to move laterally on the slider 401 , which can assist the patient to adjust the detection position, bring comfort to the patient, facilitate finding the best detection point, and make the detection result more accurate. Adjusting the height and lateral position of the support rod 806 can facilitate the support rod 806 to support the patient's affected limb, so as to adjust the patient's position to the best state, and improve the patient's comfort, so as to improve the effect of radiotherapy and treatment. The accuracy of the detection results is easy to use, which greatly reduces the difficulty of the medical staff's work. Through the cooperation between the first motor 403, the pulley 405, and the transmission shaft 404, it is convenient to move the patient in parallel to a suitable position on the bed frame 402. The detection can avoid the secondary injury of the patient in the process of manual transportation, reduce the pain of the patient, save the preparation time for the detection, and improve the work efficiency.

A method for using a radiology detection auxiliary device supporting body position, comprising the following steps:

S1. First, control the two electronic hydraulic rods 2 to adjust the height at the same time, so that the top of the bed frame 402 is lowered to the same height as the mobile bed. Slightly translate and overlap on the rubber wheel of the transmission shaft 404 located on the side, start the first motor 403 to drive one of the transmission shafts 404 to rotate, and the other two transmission shafts ( 404 ) cooperate with the belt and the pulley 405 It rotates along with it, thereby smoothly moving the patient to the top of the bed frame 402 .

S2. Secondly, control the two electronic hydraulic rods 2 to restore the height of the bed frame 402, and by starting the second motor 5, the turntable 601 is rotated to make the bed frame 402 slide back and forth on the bracket 3 through the slider 401, and by starting the third motor 603 The screw 604 is driven to rotate, so that the fixed block 7 can drive the bed frame 402 to move around the slider 401, so as to adjust the bed frame 402 to reach a suitable detection position.

S3. Finally, the fourth motor 802 is obtained by starting the fixed connection with the reciprocating screw rod 803, so that the limit block 805 can drive the support rod 806 to move laterally, and by starting another fourth motor 802 to drive the transmission gear rod 804 to rotate, so that the support rod The 806 is displaced up and down in the limit block 805, so as to match the detection position, the support rod 806 is adjusted to an appropriate position to support the patient's body, so as to better complete the detection of the radiology department.

Claims (8)

1. The utility model provides a support radiology department of position and detect auxiliary device, includes base (1), its characterized in that: the equal fixedly connected with electron hydraulic stem (2) in both sides at the top of base (1), and the top fixedly connected with support (3) of two electron hydraulic stem (2), detection bed mechanism (4) has been cup jointed in the activity on support (3), and the bottom fixedly connected with second motor (5) of support (3), and the output of second motor (5) run through support (3) and rather than the bottom fixed connection of indexing mechanism (6) of top, the top sliding connection of indexing mechanism (6) has fixed block (7), the both sides that detect bed mechanism (4) all are nested supporting mechanism (8).

2. A radiology detection aid to support body position according to claim 1, wherein: the detection bed mechanism (4) comprises a sliding block (401), the sliding block (401) is movably sleeved on a support (3), a bed frame (402) is movably inserted into the sliding block (401), a first motor (403) is fixedly connected to one side of the bed frame (402), three transmission shaft rods (404) are movably connected to two sides of the inner wall of the bed frame (402), one end of each transmission shaft rod (404) penetrates through the bed frame (402) and is fixedly connected with one end of a belt pulley (405) on the side of the bed frame, the three belt pulleys (405) are movably connected through a belt, one of the transmission shaft rods (404) penetrates through one of the belt pulleys (405) and is fixedly connected with the output end of the first motor (403) on one side of the belt pulleys, and a fixing block (7) is fixedly connected to the bottom of the bed frame (402).

3. A radiology detection aid to support body position according to claim 1, wherein: indexing mechanism (6) are including carousel (601), and carousel (601) fixed connection is on the output of second motor (5), the middle part fixedly connected with slide rail (602) of carousel (601) top surface, and one side fixedly connected with third motor (603) of slide rail (602), the relative one side swing joint of slide rail (602) inner wall has screw rod (604), and the one end of screw rod (604) run through slide rail (602) and rather than the output fixed connection of the third motor (603) of one side, swing joint has fixed block (7) on screw rod (604).

4. A radiology detection aid to support body position according to claim 1, wherein: supporting mechanism (8) are including spacing (801), and spacing (801) nestification is in the one side that detects bed mechanism (4), two fourth motor (802) of one side fixedly connected with of spacing (801), the relative one side swing joint of spacing (801) inner wall has reciprocal lead screw (803) and transmission ratch (804), and the one end of reciprocal lead screw (803) and transmission ratch (804) run through spacing (801) respectively and rather than the output fixed connection of the two fourth motor (802) of avris, stopper (805) have been cup jointed in the activity on reciprocal lead screw (803), and one side sliding connection of stopper (805) has bracing piece (806), and one side and transmission ratch (804) meshing of bracing piece (806).

5. A radiology detection aid to support body position according to claim 2, wherein: five rubber wheels are fixedly sleeved on the transmission shaft rod (404), and the tops of the five rubber wheels are all bedstead (402) and extend to the tops of the five rubber wheels.

6. A radiology detection aid to support body position according to claim 2, wherein: the bottom of the bedstead (402) is fixedly connected with two slide bars, and the two slide bars are movably inserted in the slide block (401).

7. A radiology detection aid to support body position according to claim 4, wherein: the supporting rod (806) is composed of a supporting block fixedly connected with a rack, and the rack is meshed with the transmission toothed bar (804).

8. The use method of the radiology department detection aid for supporting body positions of claim 1, comprising the steps of:

s1, firstly, controlling two electronic hydraulic rods (2) to adjust the height simultaneously, lowering the top of a bed frame (402) to the height same as that of a movable sickbed, enabling a medical worker to pass through an auxiliary bed sheet from one side of the bed frame (402), slightly horizontally moving and lapping the auxiliary bed sheet on a rubber wheel of a transmission shaft rod (404) positioned on the side, starting a first motor (403), enabling the first motor to drive one transmission shaft rod (404) to rotate, and enabling the other two transmission shaft rods (404) to rotate along with the auxiliary bed sheet through the matching of a belt and a belt pulley (405), thereby enabling a patient to stably move to the top of the bed frame (402);

s2, secondly, controlling the two electronic hydraulic rods (2) to restore the height of the bed frame (402), enabling the turntable (601) to rotate to enable the bed frame (402) to slide back and forth on the bracket (3) through the sliding block (401) by starting the second motor (5), and enabling the fixed block (7) to drive the bed frame (402) to move left and right on the sliding block (401) by starting the third motor (603) to drive the screw rod (604) to rotate, so that the bed frame (402) is adjusted to reach a proper detection position;

s3, finally, a fourth motor (802) is obtained by starting and fixedly connecting the reciprocating screw rod (803), the limiting block (805) can drive the supporting rod (806) to transversely displace, and the other fourth motor (802) is started to drive the transmission rack bar (804) to rotate, so that the supporting rod (806) vertically displaces in the limiting block (805), and the supporting rod (806) is adjusted to a proper position to support the body of a patient in cooperation with the detection position, so that the detection of the radiology department can be better completed.
