Abstract

The invention discloses an all-in-one machine for actual combat drills for tour guide business, comprising a machine body, a wireless microphone, a storage box and a placement box. The right side of the machine body is fixedly connected to the placement box, and the top of the placement box is connected to a cover plate through a rotating shaft. The left side of the machine body is provided with a placing plate and a placing frame respectively. This all-in-one machine for actual combat drills for tour guide business better solves the problem that the traditional tour guide business drill machine does not have a strong sense of user substitution during operation by adding a placing box, a placing board and a wireless microphone to the main body of the machine. The guide flag is stored in the inside of the placing box in advance; the guide clothes are stored above the placing board; some necessary tools in the tour guide business are stored in the inside of the placing box, so that the user can wear it during the tour guide business drill. And use, in order to improve the user's sense of substitution in the exercise process, the overall structure is simple, very easy to operate, and strong practicability.

Description

An all-in-one machine for tour guide business actual combat drills

technical field

The invention relates to the technical field of tour guide teaching, in particular to an all-in-one machine for tour guide business actual combat drills.

Background technique

Tour guide is a kind of occupation. Its main job content is to guide tourists to experience the beauty of mountains and rivers, to solve emergencies that may occur during the journey, and to help tourists with food, accommodation, travel, etc. Good professional ethics and humanistic quality, master the basic knowledge of tour guides and operating norms, and have strong tour guide interpretation, tourism reception services and the ability to deal with emergencies.

At present, most of the tour guide business drill machines on the market can only play the role of teaching and rehearsal in the process of use, and cannot achieve the effect of actual tour guide combat. The state cannot be displayed well, and there are certain limitations in use. At the same time, most tour guide business drills have a single function, which cannot meet the various needs of users during the application process.

SUMMARY OF THE INVENTION

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the present invention provides an integrated machine for tour guide business actual combat drills, which solves the problem that most of the tour guide business drill machines on the existing market can only play the role of teaching and training during use, and cannot compare It is good to achieve the effect of the actual tour guide. When the user stands in front of the machine and conducts the drill, the sense of time is not strong, and the state cannot be well displayed. There are certain limitations when using it. At the same time, most tour guide business drills are more functional. Single, in the process of application can not meet the multiple needs of users.

(2) Technical solutions

In order to achieve the above purpose, the present invention is achieved through the following technical solutions: an integrated machine for tour guide business actual combat drills, comprising a machine body, a wireless microphone, a storage box and a placement box, the right side of the machine body is fixedly connected to the placement box, and the The top of the placement box is connected to the cover plate through a rotating shaft, the left side of the machine body is provided with a placement plate and a placement frame, the top of the machine body is provided with a casing, and the top of the casing is installed with a sound box, so The speaker is connected to the wireless microphone through a bluetooth signal, the top of the placement plate is fixedly connected to the side plate, and the wireless microphone is placed on the top of the casing.

Preferably, a display screen is installed inside the casing, a double door is connected to the outside of the machine body through hinges, and a heat dissipation hole is opened on the outside of the double door.

Preferably, the inside of the casing is connected to the pull-out board through a slide rail, the two sides of the pull-out board are fixedly connected to the slide rails, and the keyboard is placed on the pull-out board.

Preferably, the front end of the casing is connected to the folding plate through a rotating shaft, the outside of the folding plate is provided with a non-slip pad, and the lower part of the folding plate is provided with a limit block, and the limit block is fixed on the front end of the shell.

Preferably, a storage box is provided on the top of the casing, the top of the casing is connected to a flip cover through a rotating shaft, the flip cover is covered above the storage box, and the storage boxes are distributed on both sides of the display screen.

Preferably, the side of the placing box is provided with an adsorption block, the bottom of the cover plate is connected to the adsorption block by inlaying, and the adsorption block is made of magnet material.

(3) Beneficial effects

The invention provides an all-in-one machine for tour guide business actual combat drills. Has the following beneficial effects:

(1) This all-in-one machine for tour guide business practice drills, by adding a placing box, a placing board and a wireless microphone on the main body of the machine, better solves the problem that the traditional tour guide business drill machine does not have a strong sense of user substitution during operation. Because the guide flag is stored in the placing box in advance; the guide clothing is stored above the placing board; some necessary tools in the tour guide business are stored in the inside of the placing box, which can be used for the user to conduct the tour guide business drill. Wear and use, so as to improve the user's sense of substitution in the exercise process, so that the user can better understand the details of the tour guide business, and greatly improve the use efficiency of the exercise machine. The overall structure Simple, very easy to operate, and strong practicability;

(2) This all-in-one tour guide business practice drill is equipped with a speaker on the top of the casing combined with a wireless microphone, multiple storage boxes opened on the top surface of the casing, and a hidden pump on the front of the casing. The pull-type structure can better meet the different needs of users during the exercise process. The wireless microphone can imitate the process of using the loudspeaker in the tour guide business process, allowing users to adapt to the loud volume of the tour guide process in advance. Small tools such as whistle can be placed inside the storage box, and the hidden pull-out board can store the keyboard for operating the exercise machine inside, so the integrated exercise machine with more functions has strong functionality, making the machine With the purpose of multi-function, it is very convenient for users to operate and use, and has strong functionality.

Description of drawings

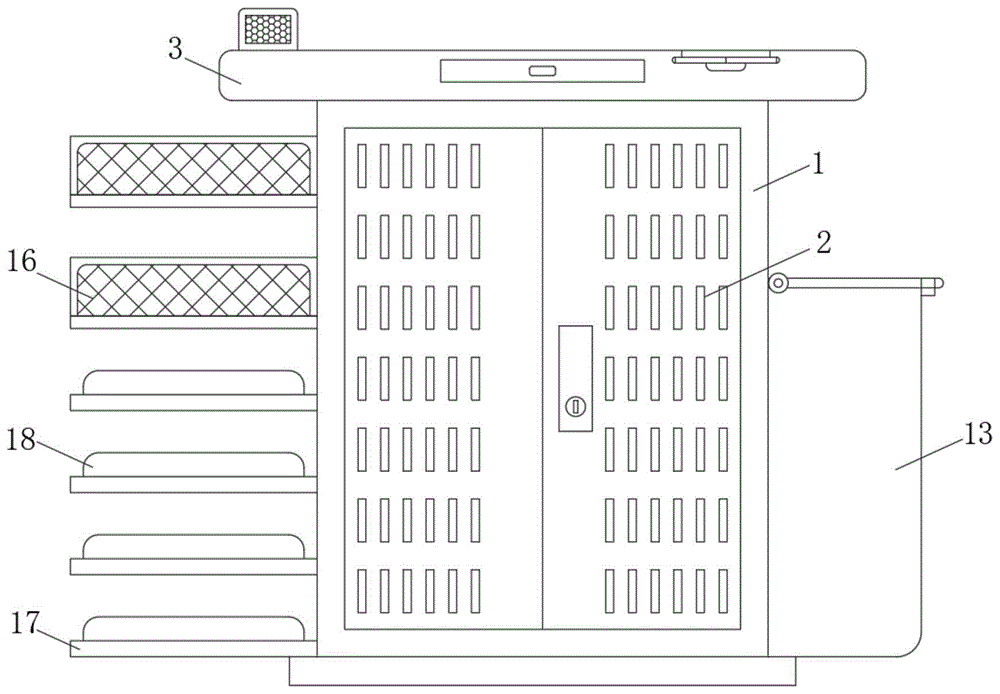

Fig. 1 is the overall structural representation of the present invention;

2 is a top view of the housing of the present invention;

Fig. 3 is a side view of the storage box of the present invention.

In the figure, the main body-1, double doors-2, shell-3, display screen-4, wireless microphone-5, audio-6, pull-out board-7, slide rail-8, folding board-9, anti-skid pad -10, Storage Box-11, Flip Cover-12, Placement Box-13, Adsorption Block-14, Cover Plate-15, Placement Frame-16, Placement Plate-17, Side Plate-18.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Referring to FIGS. 1-3, an embodiment of the present invention provides a technical solution: an all-in-one machine for actual combat drills for tour guide business, including a machine body 1, a wireless microphone 5, a storage box 11, and a placement box 13. The right side of the machine body 1 The side is fixedly connected to the placement box 13, the top of the placement box 13 is connected to the cover plate 15 through the rotating shaft, the left side of the machine body 1 is provided with a placement plate 17 and a placement frame 16 respectively, and the top of the machine body 1 There is a casing 3, a sound 6 is installed on the top of the casing 3, the sound 6 is connected to the wireless microphone 5 through a Bluetooth signal, the top of the placing plate 17 is fixedly connected to the side plate 18, and the wireless microphone 5 is placed on the casing. top of body 3.

A display screen 4 is installed inside the casing 3, and the outside of the machine body 1 is connected to the double door 2 through hinges. The outside of the double door 2 is provided with heat dissipation holes, and the display screen 4 provided is convenient for users. It is more convenient to stand in front of the machine main body 1 to observe the operation.

The inside of the casing 3 is connected to the pull-out plate 7 through the slide rails 8 , the two sides of the pull-out plate 7 are fixedly connected to the slide rails 8 , and the keyboard is placed on the pull-out plate 7 . There is a hidden pull-out plate 7, which can hide the keyboard inside the casing 3, so as to achieve the effect of reducing the space occupied, and has strong functionality.

The front end of the casing 3 is connected to the folding plate 9 through a rotating shaft. The outside of the folding plate 9 is provided with an anti-skid pad 10 , and a limit block is arranged below the folding plate 9 , and the limit block is fixed on the casing 3 . At the front end, a folding plate 9 is provided on the top of the casing 3, which can be opened to place a mouse, which is very convenient for users to operate.

The top of the housing 3 is provided with a storage box 11 , and the top of the housing 3 is connected to a flip 12 through a rotating shaft. The flip 12 covers the top of the storage box 11 , and the storage boxes 11 are distributed on both sides of the display screen 4 . , through the provided multiple storage boxes 11, tools with small volume such as whistle can be stored inside, which is convenient for users to take.

The side of the placement box 13 is provided with an adsorption block 14 , the bottom of the cover plate 15 is connected to the adsorption block 14 by inlaying, and the adsorption block 14 is made of magnet material. The connection method of magnetic suction is adopted between the two, which is convenient for the staff to close after taking the guide flag, the stability of the connection is strong, and it is more practical.

Working principle: When using the tour guide business practice drill all-in-one machine, the user can stand in front of the machine body 1, and then operate the machine body 1 to display the pictures or videos during the tour guide business process, and then according to the displayed picture or The video is used to explain the actual combat explanation process of the tour guide business. At the same time, during the operation, since the audio 6 is installed on the top of the casing 3 combined with the wireless microphone 5, there are also a plurality of storage boxes 11 opened on the top surface of the casing 3, and The hidden pull-out structure provided on the front of the shell 3 can better meet the different needs of users during the exercise process. The wireless microphone 5 can imitate the use process of the loudspeaker in the tour guide business process, allowing users to adapt in advance In the way of speaking at a loud volume during the tour guide, small tools such as whistle can be placed inside the storage box 11, and the hidden pull-out board 7 can store the keyboard for operating the drill inside, and then open the folding board 9. The mouse can be placed on it for sliding operation, so the integrated exercise machine with more functions has strong functionality, which makes the machine have the purpose of multi-function, which is very convenient for users to operate and use. In the process of conducting tour guide business drills, the user can also wear tour guide uniforms, hold tour guide flags, and wear a series of equipment and tools required by tour guides to improve their sense of substitution. Tour guide flag; tour guide clothes are stored above the placement board 17; some necessary tools in the tour guide business are stored in the interior of the placement frame 16, so that the user can wear and use it when conducting tour guide business drills. To improve the user's sense of substitution in the process of the drill, so that the user can better understand the details of the tour guide business, greatly improving the efficiency of the drill machine, the overall structure is simple, very easy to operate, Strong practicality.

In the present invention, the machine body 1, the double door 2, the casing 3, the display screen 4, the wireless microphone 5, the audio system 6, the pull-out board 7, the slide rail 8, the folding board 9, the anti-skid pad 10, the storage box 11, the flip cover 12, The placing box 13, the adsorption block 14, the cover plate 15, the placing frame 16, the placing plate 17, and the side plate 18 are all common standard parts or components known to those skilled in the art, and their structures and principles are available to those skilled in the art Knowing from the technical manual or through the conventional experimental method, the problem solved by the present invention is that most of the existing tour guide business drill machines on the market can only play the role of teaching and rehearsal in the process of use, and cannot achieve a good tour guide. The effect of actual combat, when the user is standing in front of the machine to perform the drill, the feeling of the era is not strong, and the state cannot be well displayed. There are certain limitations in use. At the same time, most tour guide business drills have a single function, which is difficult to use in application. The problems such as the various needs of users cannot be met in the process of production, and the present invention better solves the problem of traditional tour guides by adding a placing box 13, a placing plate 17 and a wireless microphone 5 on the main body 1 of the machine through the mutual combination of the above components. The problem that the user's sense of substitution is not strong during the operation of the business drill machine is due to the fact that the guide flag is stored in the storage box 13 in advance; the guide clothes are stored above the storage board 17; some tour guide services are stored inside the storage box 16 The necessary tools, etc., can be worn and used by users when conducting tour guide business drills, so as to improve the user's sense of substitution during the drill process, so that users can better experience the tour guide more deeply. The details of the business greatly improve the efficiency of the exercise machine, and it is very easy to operate. The storage box 11 and the hidden pull-out structure provided on the front of the casing 3 can better meet the different needs of users during the exercise process, and the wireless microphone 5 can imitate the use process of the amplifier in the tour guide business process , so that the user can adapt to the loud-speaking mode in the tour guide process in advance, and then small-volume tools such as whistle can be placed inside the storage box 11, and the hidden pull-out board 7 can store the keyboard for operating the exercise machine inside, so The integrated exercise machine with more functions has strong functionality, which makes the machine have the purpose of multi-function, which is very convenient for users to operate and use, and has strong functionality.

The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above, and it will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, but without departing from the spirit or essential aspects of the present invention. In the case of the characteristic features, the present invention can be implemented in other specific forms. Therefore, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the invention is to be defined by the appended claims rather than the foregoing description, which are therefore intended to fall within the scope of the claims. All changes within the meaning and range of the equivalents of , are included in the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (6)

1. an all-in-one machine for tour guide business actual combat drills, characterized in that: comprising a machine body (1), a wireless microphone (5), a storage box (11) and a placement box (13), the right side of the machine body (1) A placement box (13) is fixedly connected, the top of the placement box (13) is connected to a cover plate (15) through a rotating shaft, and the left side of the machine body (1) is provided with a placement plate (17) and a placement frame ( 16), a casing (3) is provided on the top of the main body of the machine (1), a sound (6) is installed on the top of the casing (3), and the sound (6) is connected to a wireless microphone (5) through a Bluetooth signal ), the top of the placing plate (17) is fixedly connected to the side plate (18), and the wireless microphone (5) is placed on the top of the housing (3). 2. An all-in-one machine for tour guide business actual combat drills according to claim 1, characterized in that: a display screen (4) is installed inside the casing (3), and the outside of the machine main body (1) passes through a hinge A double door (2) is connected, and heat dissipation holes are provided on the outside of the double door (2). 3. An integrated machine for tour guide business actual combat drills according to claim 1, characterized in that: the inside of the housing (3) is connected to a pull-out plate (7) through a slide rail (8), and the pull-out plate The two sides of (7) are fixedly connected to the slide rails (8), and the keyboard is placed on the pull-out plate (7). 4. An integrated machine for tour guide business actual combat drills according to claim 1, characterized in that: the front end of the casing (3) is connected to the folding plate (9) through a rotating shaft, and the external device of the folding plate (9) is There is an anti-skid pad (10), a limit block is arranged below the folding plate (9), and the limit block is fixed on the front end of the casing (3). 5. An all-in-one machine for tour guide business actual combat drills according to claim 1, characterized in that: a storage box (11) is provided on the top of the casing (3), and the top of the casing (3) is connected by a rotating shaft A flip cover (12), the flip cover (12) covers the top of the storage box (11), and the storage box (11) is distributed on both sides of the display screen (4). 6. The all-in-one machine for tour guide business practice according to claim 1, characterized in that: the side of the placement box (13) is provided with an adsorption block (14), and the bottom of the cover plate (15) is inlaid with The adsorption block (14) is connected to the adsorption block (14), and the adsorption block (14) is made of a magnet material.
