Abstract

The invention particularly relates to a disinfection and cleaning device for medicine application equipment for obstetrics and gynecology. A hydraulic cylinder runs through the left side of the upper end of the box body, one end of the hydraulic cylinder extends to the inside of the box body, the bottom end of the hydraulic rod of the hydraulic cylinder is installed with a vibration motor through a backing plate, and the hydraulic The bottom end of the rod is horizontally provided with a high-temperature sterilization sealing cover. When in use, the high-temperature sterilization sealing cover and the high-temperature sterilization and disinfection lamp are pushed down by a telescopic cylinder, and the medical equipment is covered in it. The sterilization lamp performs oxidation sterilization to ensure the completeness of sterilization and disinfection, and the invention is simple and convenient to operate, and meets the needs of cleaning and disinfection of gynecology and obstetrics medicine equipment, with obvious effect and strong practicability.

Description

A kind of disinfection and cleaning device for gynecology and obstetrics medicine-applying instruments

technical field

The invention belongs to the technical field of obstetrics and gynecology equipment, and in particular relates to a disinfection and cleaning device for gynecological and obstetrics medicine-applied instruments.

Background technique

With the opening of the national two-child policy, there are more and more pregnant women, and the use of obstetrics and gynecology equipment in hospitals is also increasing, and they need to be cleaned and disinfected after use. Cylindrical shape is difficult to clean. The cleaning of obstetrics and gynecology appliances such as ring extractors and midwifery forceps is related to the health of patients. How to ensure the high cleanliness of re-used gynecological appliances is a very important job. The effect of the existing cleaning equipment is not obvious enough, the disinfection condition is not good, it is easy to cause cross-infection, and it is extremely inconvenient to use, and some medical instruments need to be sterilized and poisoned separately, which is very troublesome, and also increases the work intensity of medical staff. .

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a sterilizing and cleaning device for gynecology and obstetrics medicine-applying instruments, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present invention provides the following technical solutions: a device for sterilizing and cleaning medicine-applying instruments for obstetrics and gynecology, comprising a mounting bottom plate, the upper end of the mounting bottom plate is fixedly provided with a box body, and the right side of the box body is located in the The upper end of the installation bottom plate is provided with a mounting frame, the upper end of the mounting frame is placed at the device placement port, one end of the mounting frame is arranged in communication with the right side of the box body, and the inside of the mounting frame is symmetrically arranged with the inside of the box body. There is a transmission wheel mounting frame, and a transmission roller is arranged on the transmission wheel installation frame. One end of the rotating shaft of the transmission roller extends through and extends to one side of the transmission wheel installation frame. A first pulley is externally driven and installed. A hydraulic cylinder runs through the left side of the upper end of the box body, one end of the hydraulic cylinder extends into the box body, and the bottom end of the hydraulic rod of the hydraulic cylinder is installed with a vibration motor through a backing plate, and the bottom end of the vibration shaft of the vibration motor is installed The connection is provided with a water spray pipe, the inner right end of the box body is vertically installed with an installation vertical plate, the right end surface of the installation vertical plate is inclined with a heating fan, and the inner top of the box body on the right side of the installation vertical plate is installed A telescopic cylinder is symmetrically arranged, the bottom end of the hydraulic rod of the telescopic cylinder is horizontally provided with a high-temperature sterilization sealing cover, the inner top of the high-temperature disinfection sealing cover is provided with a high-temperature sterilization and disinfection lamp, and an instrument outlet is provided on the outer right side of the box.

As a further optimization of the technical solution, the top of the box is provided with a water tank, and one end of the connecting water pipe connected to the water tank is connected with a suction pump, the suction pump is fixedly arranged on the top of the box, and the suction pump The output end is connected with an elastic hose, one end of the elastic hose extends to the inside of the box and is connected to the water spray pipe, and the bottom ends of the water spray pipes are evenly provided with cleaning brushes. with sprinkler heads.

As a further optimization of this technical solution, a drive motor is provided on the left side of the transmission wheel mounting frame at the upper end of the mounting base plate, and the output shaft of the drive motor is rotatably connected with a second pulley, and the second pulley passes through the belt. It is in driving connection with the first pulley provided on the rotating shaft of the conveying roller.

As a further optimization of this technical solution, a conveyor belt is provided between the transmission rollers on the transmission wheel mounting frame, the upper surface of the conveyor belt is evenly provided with an instrument placement groove, and the inner bottom end of the instrument placement groove is provided with a rubber A brush pad is provided, and the instrument placement slot is arranged corresponding to the treatment of the water spray pipe.

As a further optimization of this technical solution, the right side of the transmission wheel mounting bracket is located at the upper end of the mounting base plate with an instrument filter placement rack, and the instrument placement rack is vertically corresponding to the high temperature sterilization sealing cover.

As a further optimization of this technical solution, a waste water collection tank is opened on the right side surface of the upper end of the installation base plate, and a drain pipe is connected to the bottom end of the waste water collection tank, and the drain pipe extends through the interior of the installation base plate to the installation base plate outside the right end of the .

The technical effects and advantages of the present invention: the disinfection and cleaning device for gynecology and obstetrics medicine application equipment drives the second pulley to rotate by starting the driving motor to rotate, the second pulley drives the first pulley to rotate through the belt, and simultaneously drives the transmission roller and the conveyor belt to rotate, At this time, the treated instruments are placed in the instrument placement slot set on the conveyor belt through the instrument placement port to move and transport. When the treatment instrument is moved to the vertical position of the water spray pipe, the drive motor stops, and the hydraulic cylinder pushes the vibration motor and water spray. After the cleaning brush set on the pipe and the water spray head are moved down and the treatment equipment in the equipment placement tank is veneered, the vibration motor is activated to drive the water spray pipe and the cleaning brush to vibrate to clean the medical equipment. The water inside is pumped out through the elastic hose and transported to the water spray pipe and sprayed from the water head at the same time, and the medical instruments in the instrument placement tank are brushed with high-pressure water spray. Vibration cleaning is performed on both sides of the medical device at the same time, so that the medical device can be cleaned more thoroughly. Through the multiple device placement slots of different sizes set on the conveyor belt, it can meet the cleaning needs of devices of different sizes, with strong adaptability, and through the cleaning brush It is used in conjunction with the vibration type between the rubber brush pads arranged in the device placement groove to ensure the cleaning effect of medical devices. After cleaning, the medical devices are transferred to the device filter placement rack and the heating fan. The evaporator of the residual water on the medical equipment leaks into the waste water collection tank, and then the high-temperature sterilization sealing cover and the high-temperature sterilization lamp are moved down through the telescopic cylinder, and the medical equipment is covered in it, which can sterilize the medical equipment more laterally. In the disinfection stage, high-temperature sterilization lamps are used for oxidative sterilization to ensure the completeness of sterilization and disinfection, and the device is simple and convenient to use and operate, and meets the needs of cleaning and disinfection of medical equipment in obstetrics and gynecology, with obvious effects and strong practicability.

Description of drawings

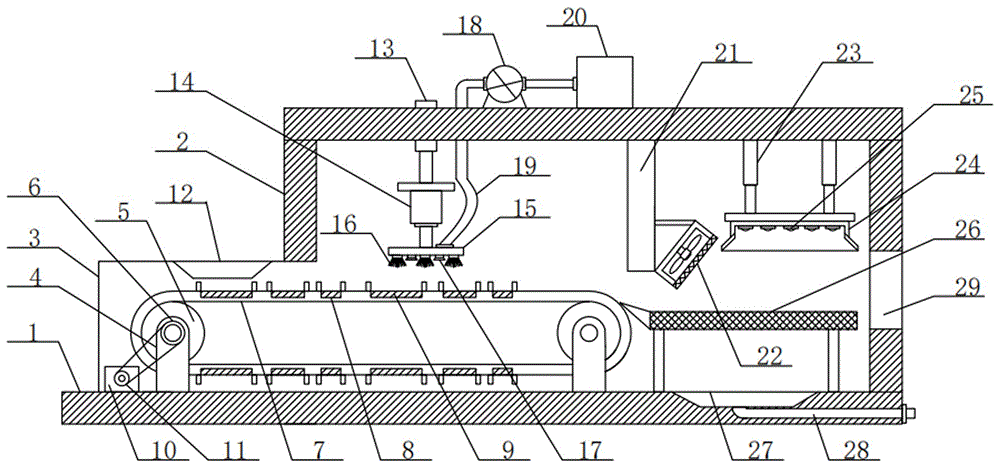

Fig. 1 is the structural representation of the present invention;

Fig. 2 is the top view structure schematic diagram of the conveyor belt of the present invention;

FIG. 3 is a top-view structural schematic diagram of the bottom of the high-temperature sterilization sealing cover of the present invention.

In the figure: 1. Installation bottom plate; 2. Box body; 3. Installation frame; 4. Transmission wheel installation frame; 5. Transmission roller; 6. First pulley; 7. Conveyor belt; Brush pad; 10. Drive motor; 11. Second pulley; 12. Device placement port; 13. Hydraulic cylinder; 14. Vibration motor; 15. Water spray pipe; 16. Cleaning brush; 17. Water spray head; 18. Water pump; 19, elastic hose; 20, water tank; 21, installation vertical plate; 22, heating fan; 23, telescopic cylinder; 24, high temperature disinfection sealing cover; 25, high temperature sterilization lamp; 26, equipment filter placement rack; 27. Waste water collection tank; 28. Drain pipe; 29. Equipment outlet.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

1-3, the present invention provides a technical solution: a disinfection and cleaning device for gynecology and obstetrics medicine-applying instruments, comprising a mounting bottom plate 1, a box body 2 is fixed on the upper end of the mounting bottom plate 1, and the right side of the box body 2 is fixed. A mounting frame 3 is located at the upper end of the mounting base 1. The device placement port 12 at the upper end of the mounting frame 3 is convenient for the placement of dependent instruments. The inside of 2 is symmetrically provided with a transmission wheel mounting frame 4, which is convenient for the installation and setting of the transmission roller 5. The transmission wheel installation frame 4 is provided with a transmission roller 5, and the transmission rollers 5 set on the transmission wheel installation frame 4 are driven with a transmission device. The conveyor belt 7, the setting of the conveyor belt 7 is convenient for the transmission of medical instruments. The upper surface of the conveyor belt 7 is evenly provided with a device placement slot 8, and the bottom end of the device placement slot 8 is provided with a rubber brush pad 9. Through the setting of the rubber brush pad 9 , which is convenient for brushing the bottom surface of the medical device. One end of the rotating shaft of the transfer roller 5 extends through and extends to one side of the transfer wheel mounting frame 4. The first pulley 6 is externally driven and installed, and the left side of the transfer wheel mounting frame 4 is located at the upper end of the installation base plate 1 A drive motor 10 is provided, and the output shaft of the drive motor 10 is rotatably connected with a second pulley 11 .

A hydraulic cylinder 13 runs through the left side of the upper end of the box body 2, one end of the hydraulic cylinder 13 extends to the inside of the box body 2, and the bottom end of the hydraulic rod of the hydraulic cylinder 13 is installed with a vibration motor 14 through a backing plate, which is convenient to drive 16 pairs of cleaning brushes The medical equipment is cleaned, the bottom end of the vibration shaft of the vibration motor 14 is connected with a water spray pipe 15, the device placement slot 8 is arranged corresponding to the treatment of the water spray pipe 15, the top of the box body 2 is provided with a water tank 20, and the water tank 20 is connected to the set. One end of the connecting water pipe is connected with a suction pump 18, which is fixedly arranged on the top of the box body 2, and the output end of the suction pump 18 is connected with an elastic hose 19, and one end of the elastic hose 19 extends to the inside of the box body 2. It is communicated with the water spray pipe 15. The bottom end of the water spray pipe 15 is evenly provided with a cleaning brush 16 and a water spray head 17. The inner right end of the box body 2 is vertically installed with an installation vertical plate 21, and the right end of the installation vertical plate 21 is installed vertically. A heating fan 22 is provided on the inclined surface, and a telescopic cylinder 23 is symmetrically arranged at the top of the inner top of the right side box 2 on which the vertical plate 21 is installed. The top is provided with a high-temperature sterilization lamp 25, the outer right side of the box body 2 is provided with an instrument outlet 29, the right side of the transmission wheel mounting frame 4 is located at the upper end of the mounting base plate 1, and an instrument filter placement rack 26 is provided. The disinfection sealing cover 24 is arranged vertically correspondingly, and a waste water collection tank 27 is opened on the right side surface of the upper end of the installation bottom plate 1. The bottom end of the waste water collection tank 27 is connected with a drain pipe 28. Right side outside.

Specifically, when in use, the second pulley 11 is driven to rotate by starting the driving motor 10, and the second pulley 11 drives the first pulley 6 to rotate through the belt, and at the same time drives the transmission roller 5 and the conveyor belt 7 to rotate. The equipment is placed in the equipment placement slot 8 set on the conveyor belt 7 for moving and conveying. When the processing equipment is moved to the vertical corresponding to the water spray pipe 15, the drive motor 10 stops, and the hydraulic cylinder 13 pushes the vibration motor 14 and the water spray pipe 15. After the set cleaning brush 16 and the water spray head 17 are moved down and the treatment equipment in the equipment placement slot 8 is veneered, the vibration motor 14 is activated to drive the water spray pipe 15 and the cleaning brush 16 to vibrate to perform vibration cleaning of the medical equipment. The water in the water tank 20 is pumped out by the water pump 18 through the elastic hose 19 and sent to the water spray pipe 15 to be sprayed simultaneously from the water spray head 17, and the medical instruments in the instrument placement tank 8 are brushed with high-pressure water spray. The rubber brush pads 9 provided in the device placement slot 8 can vibrate both sides of the medical device at the same time, so that the medical device can be cleaned more thoroughly. The multiple device placement slots 8 with different sizes set on the conveyor belt 7 can adapt to different The cleaning needs of the size instruments, and the adaptability is strong.

Finally, it should be noted that the above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, the The technical solutions recorded in the foregoing embodiments can be modified, or some technical features thereof can be equivalently replaced, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included. within the protection scope of the present invention.
