Abstract

The invention discloses a dynamic exhibition device for museum exhibits, which relates to the technical field of display devices, and includes a case, a display case and an installation case are installed on the top wall of the case, and the installation case is away from the three sides of one side of the display case. A display is installed on the top wall of the chassis, a gap is formed on the top wall of the chassis and the position corresponding to the bottom end of the display box, a column is fixed on the inner bottom wall of the chassis at a position corresponding to the gap, and a display table is fixed on the top of the column, so Exhibits are placed on the display stand, a rotating seat is rotatably installed on the outer side of the display stand, and a first motor is fixed on one side of the bottom wall of the display stand through a mounting plate. The exhibition device of this scheme can realize the safe and stable placement of the exhibits through the setting of each structure, and at the same time use the movable camera to display the exhibits in an all-round dynamic, so that the audience can see each part of the exhibits in more detail. It can be moved conveniently and is more convenient to carry.

Description

A dynamic exhibition installation for museum exhibits

technical field

The invention relates to the technical field of display devices, in particular to a dynamic display device for museum exhibits.

Background technique

Many exhibits in the museum are displayed to the audience, so that the audience can understand the history of the exhibits, and it is also a kind of appreciation and learning of the appearance and production process of the exhibits.

After retrieval, Chinese Patent No. CN 108577384 A discloses a dynamic exhibition device for museum exhibits, which relates to the field of exhibition devices, including an integrated controller, a display case shell and a turntable bearing seat. The bacterial square box groove, the fluorescent tube body is fixedly connected to the top of the sterile square box groove, and the rear side thereof is fixedly connected with the temperature sensor, the light intensity sensor and the air pressure sensor, and the turntable bearing seat is fixedly connected to the sterile square box groove Inside, the integrated controller is fixedly connected at the position close to the upper end of the display cabinet shell, and the integrated controller is provided with a digital display tube, a video identification device and an ID card identification device.

The above solutions and other exhibition devices in the prior art generally display the exhibits in a fixed form after they are placed, that is, the audience generally needs to walk around the exhibition device by themselves in order to fully view all parts of the exhibits, which increases the burden on the audience and also increases the burden on the audience. It reduces the sense of experience, so we propose a dynamic exhibition installation of museum exhibits.

SUMMARY OF THE INVENTION

The purpose of the present invention is to propose a dynamic exhibition device for museum exhibits in order to solve the defects existing in the prior art.

In order to achieve the above object, the present invention adopts the following technical solutions:

A dynamic exhibition device for museum exhibits, comprising a case, a display case and an installation case are installed on the top wall of the case, displays are installed on three sides of the installation case away from the display case, and a display case is installed on the top wall of the case. A gap is provided on the top wall and at the position corresponding to the bottom end of the display box, a column is fixed on the inner bottom wall of the chassis at a position corresponding to the gap, a display stand is fixed on the top of the column, and exhibits are placed on the display stand. A rotating seat is rotatably installed on the outside of the display stand, a first motor is fixed on one side of the bottom wall of the display stand through a mounting plate, a gear is installed on the driving end of the first motor, and a bottom wall of the rotating seat is installed with a gear. The toothed ring, and the toothed ring and the gear are meshed with each other;

A vertical plate is fixed on one side of the rotating seat, a second motor is installed on the bottom wall of the rotating seat and close to the bottom end of the vertical plate, a threaded rod is installed on the driving end of the second motor, and the threaded rod is The two ends are respectively rotatably installed with the top wall of the rotating seat and the top end of the vertical plate. The side wall of the vertical plate is provided with a chute, and a slider is slid in the chute, and the threaded rod is threadedly installed with a movable seat, so The movable seat is fixed with the slider, the other end of the movable seat is installed with a camera, and the camera is electrically connected with the display.

Further, four brackets are installed on the bottom wall of the chassis, and universal wheels are installed at the bottom ends of the brackets.

Further, an annular groove is provided on the outer side of the display stand, and the display stand is rotatably installed with the rotating seat through the annular groove.

Further, the display box is made of transparent glass.

Further, the first motor and the second motor are both servo motors, and are externally connected to a programmable 89S51 single-chip microcomputer.

Further, the vertical plate has an inverted L-shaped structure, the top end of the threaded rod is rotatably mounted on the top end of the vertical plate through a bearing, and the bottom end of the threaded rod is rotatably mounted on the top wall of the rotating seat through the bearing.

Further, the case has a built-in battery, and the battery is electrically connected with the display, the camera, the first motor and the second motor.

Compared with the prior art, the beneficial effects of the present invention are:

1. In this solution, convenient movement can be achieved by setting up a stand and a universal wheel, and the mobile portability of the device can be increased.

2. Through the cooperation of the camera and the display, the photographing and display of the exhibits can be realized. At the same time, the position of the camera can be adjusted vertically and horizontally, which is convenient to obtain the image information of the exhibits in an all-round way and realize the dynamic display of the exhibits.

To sum up, the exhibition device of this scheme can realize the safe and stable placement of the exhibits through the setting of various structures, and at the same time use the movable camera to display the exhibits in an all-round dynamic, so that the audience can see the exhibits in more detail. At the same time, the exhibition device can be moved conveniently, which is more convenient to carry.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention.

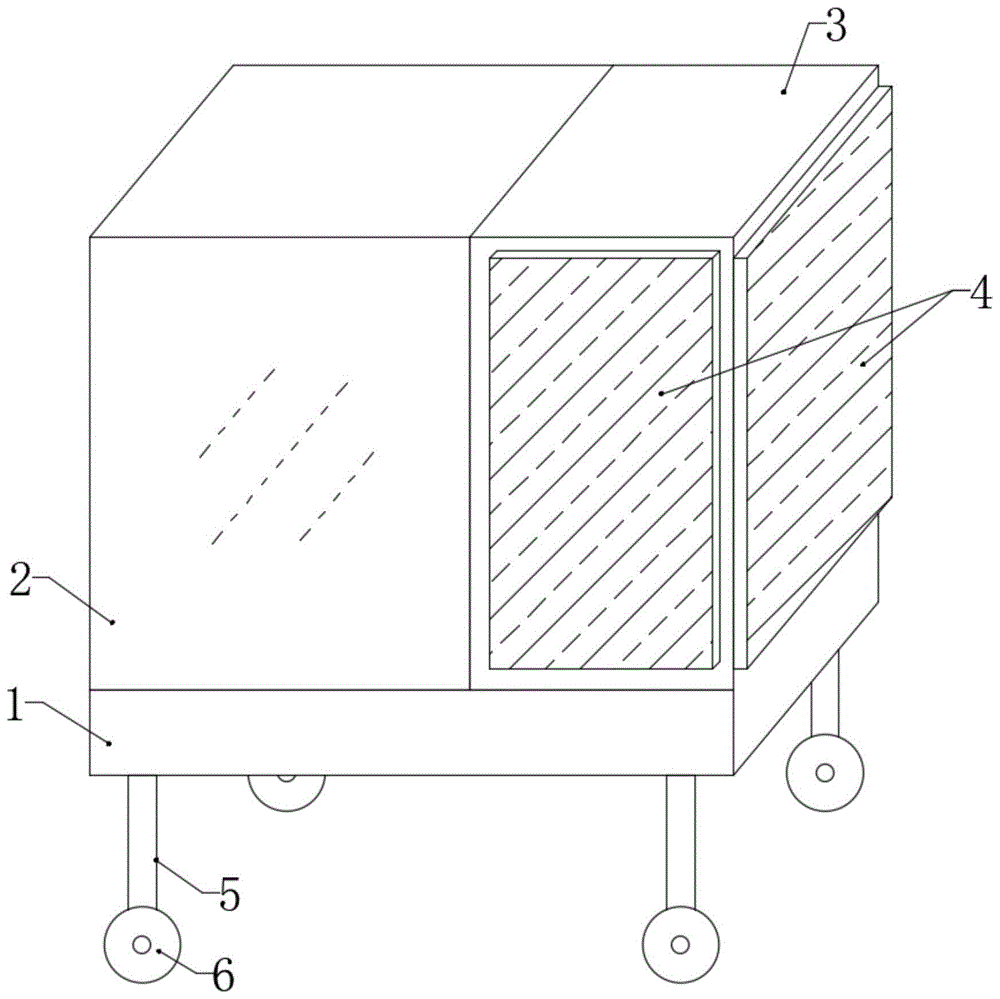

Fig. 1 is the overall structure schematic diagram of a kind of dynamic exhibition device of museum exhibits proposed by the present invention;

Fig. 2 is the front view of a kind of dynamic exhibition device of museum exhibits proposed by the present invention;

Fig. 3 is the rear view of a kind of dynamic exhibition device of museum exhibits proposed by the present invention;

Fig. 4 is an enlarged view of the structure of part a in Fig. 2;

FIG. 5 is an enlarged view of the structure of part b in FIG. 2 .

In the picture: 1 chassis, 2 display boxes, 3 installation boxes, 4 monitors, 5 brackets, 6 swivel wheels, 7 columns, 8 display stands, 9 exhibits, 10 sliders, 11 swivel bases, 12 vertical plates, 13 cameras, 14 annular groove, 15 mounting plate, 16 first motor, 17 gear, 18 gear ring, 19 second motor, 20 threaded rod, 21 moving seat.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments.

In the description of the present invention, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inside", " The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation are therefore not to be construed as limitations of the present invention.

1-5, a dynamic exhibition device for museum exhibits, including a case 1, a display case 2 and an installation case 3 are installed on the top wall of the case 1, and the three sides of the installation case 3 away from the display case 2 are all on the side. A display 4 is installed, a gap is formed on the top wall of the chassis 1 and at the position corresponding to the bottom end of the display box 2, a column 7 is fixed on the inner bottom wall of the chassis 1 at the position corresponding to the gap, and a display stand 8 is fixed on the top of the column 7, which shows An exhibit 9 is placed on the table 8, a rotating seat 11 is installed on the outside of the display table 8, and a first motor 16 is fixed on one side of the bottom wall of the display table 8 through a mounting plate 15, and a gear 17 is installed on the driving end of the first motor 16 , a gear ring 18 is installed on the bottom wall of the rotating seat 11, and the gear ring 18 and the gear 17 mesh with each other; the display box 2 is made of transparent glass material. Available in tempered glass. The display box 2 is fixed on the top of the case 1 by bolts.

When the display case 2 is opened, the exhibits 9 can be placed on the display stand 8 .

A vertical plate 12 is fixed on one side of the rotating seat 11, a second motor 19 is installed on the bottom wall of the rotating seat 11 and close to the bottom end of the vertical plate 12, and a threaded rod 20 is installed on the driving end of the second motor 19, and the threaded rod The two ends of the 20 are respectively rotatably installed with the top wall of the rotating seat 11 and the top of the vertical plate 12. The side wall of the vertical plate 12 is provided with a chute, and the slider 10 is slidably arranged in the chute, and the threaded rod 20 is threadedly installed to move. The seat 21 is fixed to the slider 10 , the other end of the movable seat 21 is installed with the camera 13 , and the camera 13 is electrically connected to the display 4 .

When the rotating base 11 rotates, it drives the vertical plate 12 and the camera head 13 to rotate horizontally, and the second motor 19 drives the threaded rod 20 to threadedly cooperate with the moving base 21 to control the vertical movement of the camera head 13. Therefore, the camera head 13 realizes the adjustment of the horizontal and vertical positions. , the camera 13 shoots the exhibits 9 and displays the images to the visitors through the display 4 . In addition, when the camera 13 moves to the highest point, its height is greater than the top height of the exhibit 9 .

Four brackets 5 are installed on the bottom wall of the chassis 1, and universal wheels 6 are installed at the bottom ends of the brackets 5 to increase the portability of the device. The universal wheel 6 has a manufacturable function.

An annular groove 14 is provided on the outer side of the display stand 8 , and the display stand 8 is rotatably installed with the rotating base 11 through the annular groove 14 .

The first motor 16 and the second motor 19 are both servo motors, and are externally connected to a programmable 89S51 single-chip microcomputer. The forward rotation and reverse rotation of the first motor 16 and the second motor 19 are controlled by the single chip microcomputer.

The vertical plate 12 has an inverted L-shaped structure.

The chassis 1 has a built-in battery, and the battery is electrically connected to the display 4 , the camera 13 , the first motor 16 and the second motor 19 . The battery supplies power to the above electrical equipment. At the same time, the device can be used in a mobile way without having to always rely on a power source.

The working principle and use process of the present invention: The exhibit 9 is placed on the display stand 8, the first motor 16 drives the gear 17 to mesh with the gear ring 18, and drives the rotating seat 11, the vertical plate 12 and the camera 13 to rotate horizontally, and the camera 13 can be Driven by the second motor 19, through the mutual cooperation of the threaded rod 20 and the movable seat 21, the position is adjusted in the vertical height, so the camera 13 can shoot the exhibits 9 in all directions, and through the display 4 to the audience dynamically exhibit.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (7)

1. A dynamic exhibition device for museum exhibits, comprises a case (1) and is characterized in that a display box (2) and an installation box (3) are installed on the top wall of the case (1), the installation box (3) is far away from three surfaces on one side of the display box (2) and is provided with a display (4), the top wall of the case (1) is provided with a notch corresponding to the position of the bottom end of the display box (2), the inner bottom wall of the case (1) is fixed with a stand column (7) corresponding to the notch, the top end of the stand column (7) is fixed with a display stand (8), the exhibits (9) are placed on the display stand (8), the outer side of the display stand (8) is rotatably provided with a rotary seat (11), one side of the bottom wall of the display stand (8) is fixed with a first motor (16) through a mounting plate (15), and a gear (17) is installed at the driving end of the first motor (16), a gear ring (18) is mounted on the bottom wall of the rotating seat (11), and the gear ring (18) is meshed with the gear (17);

one side of roating seat (11) is fixed with riser (12), the diapire of roating seat (11) and the position department that is close to riser (12) bottom install second motor (19), threaded rod (20) are installed to the drive end of second motor (19), and the both ends of threaded rod (20) rotate the installation with the top of roating seat (11) roof and riser (12) respectively, the spout has been seted up on the lateral wall of riser (12), and slides in the spout and be equipped with slider (10), threaded rod (20) threaded mounting removes seat (21), it is fixed with slider (10) to remove seat (21), camera (13) are installed to the other end of removing seat (21), and camera (13) are connected with display (4) electricity.

2. The dynamic exhibition device for the exhibits of museums according to claim 1, characterized in that four brackets (5) are installed on the bottom wall of the cabinet (1), and universal wheels (6) are installed on the bottom ends of the brackets (5).

3. The dynamic exhibition device for the exhibits of the museum according to claim 1, characterized in that the outer side of the exhibition stand (8) is provided with an annular groove (14), and the exhibition stand (8) is rotatably installed with the rotary base (11) through the annular groove (14).

4. The dynamic exhibition device of the museum exhibits according to claim 1, characterized in that the exhibition box (2) is made of transparent glass.

5. The dynamic exhibition device for the exhibits of the museums according to claim 1, characterized in that the first motor (16) and the second motor (19) are both servo motors and are externally connected with a programmable 89S51 type single chip microcomputer.

6. The dynamic exhibition device for the exhibits of the museums according to claim 1, characterized in that the vertical plate (12) is of an inverted L-shaped structure, the top end of the threaded rod (20) is rotatably mounted with the top end of the vertical plate (12) through a bearing, and the bottom end of the threaded rod (20) is rotatably mounted with the top wall of the rotary base (11) through a bearing.

7. The dynamic exhibition device of the museum exhibits according to claim 1, characterized in that the case (1) is internally provided with a storage battery, and the storage battery is electrically connected with the display (4), the camera (13), the first motor (16) and the second motor (19).
