CN112095857A - An energy-saving assembly module for building - Google Patents

Abstract

The invention provides an energy-saving assembly module for building, comprising inner and outer side panels and a connecting bridge arranged between the inner and outer side panels for connecting the inner and outer side panels. The inner plate and the outer plate are staggered in the vertical and horizontal directions so that four edges of the side plate form a groove, and the top of the inner plate is provided with a number of first protrusions. The bottom is provided with a first groove matching the shape and size of the first protrusion. The module of the present invention improves the structure of the traditional energy-saving assembled module, so that the process of self-built houses is more scientific, more environmentally friendly, easier to construct, and more stable in seismic performance. The module has excellent characteristics such as high strength, good thermal insulation, sound insulation, flame retardant, cold resistance, corrosion resistance, moisture resistance, simple and fast construction, etc.

Description

An energy-saving assembly module for building

technical field

The invention belongs to the technical field of building materials, and in particular relates to an energy-saving assembly module for buildings.

Background technique

EPS is the abbreviation of polystyrene foam, which is a kind of light polymer. The energy-saving assembly module used in the building is a composite wall formed by the flame-retardant polystyrene foam plastic module as the template and the thermal insulation layer, the center is poured with concrete, and the surface is plastered. During the construction process, energy-saving EPS is added layer by layer to form an EPS module building. The EPS module building is made of flame-retardant polystyrene foam modules as templates and thermal insulation layers, and the core is poured with concrete surface layer, plastering or radiant board. A new type of house building built with composite walls has the characteristics of fast construction speed and good thermal insulation performance, and is very suitable for the construction of self-built houses in rural areas.

The EPS modular building has the following advantages: various appearance forms; excellent sound insulation effect; high seismic level of technology, which needs to cooperate with professional structural design and professional construction team. It is suitable for areas with seismic fortification intensity of 8 degrees and below; reinforced concrete is integrally cast and formed on site, which is durable; the module itself is B1-class fireproof and self-extinguishing from fire; the main body is completed in 35 days (including the foundation), which shortens the construction period; the inner and outer walls Double-layer thermal insulation, warm in winter and cool in summer, energy saving and environmental protection, effectively avoiding cold (hot) bridges, the overall thermal insulation performance of the building is excellent, and energy consumption is greatly reduced. Because of its advantages as mentioned above, it is widely used in the construction of self-built houses.

However, in practice, it is found that the current EPS modules on the market have the following defects: (1) the module wall is soft as a whole before concrete is poured, which may easily lead to poor wall flatness; (2) the wall thickness (25cm) and the module The thickness (6cm+6cm=12cm) is limited, and the thickness of the concrete wall is 13cm, which makes it easy to cause the concrete to not be compacted during the construction process, causing serious problems to the house structure; the 13cm thick wall is easy to make the concrete of the structural column reinforced. The protective layer cannot reach 2cm, which will affect the structure of the house; (3) The energy-saving assembly module is a non-transparent formwork, and the internal concrete density cannot be detected; (4) When hanging slate or other heavy objects, it is easy to use long expansion screws. Punch through the wall.

SUMMARY OF THE INVENTION

In view of this, the present invention aims to propose an energy-saving assembled module for buildings to solve the above problems.

In order to achieve the above object, the technical scheme of the present invention is achieved in this way:

An energy-saving assembly module for construction, comprising inner and outer side panels and a connecting bridge arranged between the inner and outer side panels for connecting the inner and outer side panels, wherein the inner and outer side panels are composed of an inner panel close to a concrete layer and a connection bridge away from the concrete layer. The inner plate and the outer plate are staggered in the vertical and horizontal directions so that the four edges of the side plate form a groove, the top of the inner plate is provided with a number of first protrusions, and the bottom is provided with There are first grooves matching the shape and size of the first protrusions.

Further, the outer surfaces of the outer panels are provided with reinforced shells, and the materials of the reinforced shells are Class A fire-proof and heat-insulating materials.

Further, the inner and outer plates and the reinforced shell are provided with a number of through holes that penetrate through the inside and outside, the connecting bridge includes a rod body and a claw portion, the claw portion is installed in the through hole, and the two ends of the rod body are installed. A snap-fit groove portion adapted to the claw portion is provided.

Further, the claw portion includes a cap body adapted to the through hole and at least two elastic arm-shaped claw claws arranged on the cap body in the axial direction; The chamfer in the hole; the outer side of the head of the elastic arm-shaped claw is provided with a tapered slope, and at least one of the elastic arm-shaped claw is provided with a barb on the outer side of the elastic arm of the elastic arm-shaped claw. The inner wall of the snap groove portion is provided with a second groove adapted to the shape of the barb.

Further, the side plate and the reinforced shell are provided with at least one observation hole penetrating inside and outside for observing the compactness of the concrete.

Further, a transparent cover is installed in the observation hole.

Further, the shape of the side plate is straight or L-shaped.

Further, the inner plate and the outer plate are integrally formed.

Further, the distance between the inner and outer side plates is 160mm.

Further, a plurality of reinforcing bar fixing grooves are arranged on the rod body at intervals along the length direction of the rod body.

Further, the outer surface of the outer panel is coated with an adhesive layer, and the reinforcing shell is bonded to the outer surface of the outer panel through the adhesive layer.

Compared with the prior art, the energy-saving assembled module for buildings of the present invention has the following advantages:

(1) The outer surface of the energy-saving assembly module for construction of the present invention is added with a reinforced shell of Class A fire protection, so that the fireproof performance of the building is significantly improved;

(2) The sturdy protective shell of the energy-saving assembly module for construction of the present invention effectively eliminates the harassment of the house by rural rodents;

(3) Lightweight pendants such as indoor wall clocks, calligraphy and paintings, etc., constructed using the energy-saving assembly modules for construction of the present invention can be directly hung with steel nails without using expansion bolts everywhere;

(4) The 160cm reinforced concrete wall in the middle of the energy-saving assembly module for building according to the present invention makes the building structure firmer and avoids many potential safety hazards;

(5) The observation hole is reserved in the energy-saving assembly module for building according to the present invention, so as to effectively avoid the situation that the wall concrete is not compacted and the concrete is leaking;

(6) The energy-saving assembled module for building according to the present invention adopts the connecting bridge splicing method, and the module can be shipped in bulk and assembled on site, which greatly reduces the transportation cost;

(7) The reinforced shell in the energy-saving assembly module for construction according to the present invention is mechanically connected to the concrete wall by means of a connector, which itself will not be separated from the concrete wall, and because of its stable and strong material properties, the exterior wall decoration can be ensured. The surface will not fall off as a whole due to the quality of the base layer.

Description of drawings

The accompanying drawings constituting a part of the present invention are used to provide further understanding of the present invention, and the exemplary embodiments of the present invention and their descriptions are used to explain the present invention and do not constitute an improper limitation of the present invention. In the attached image:

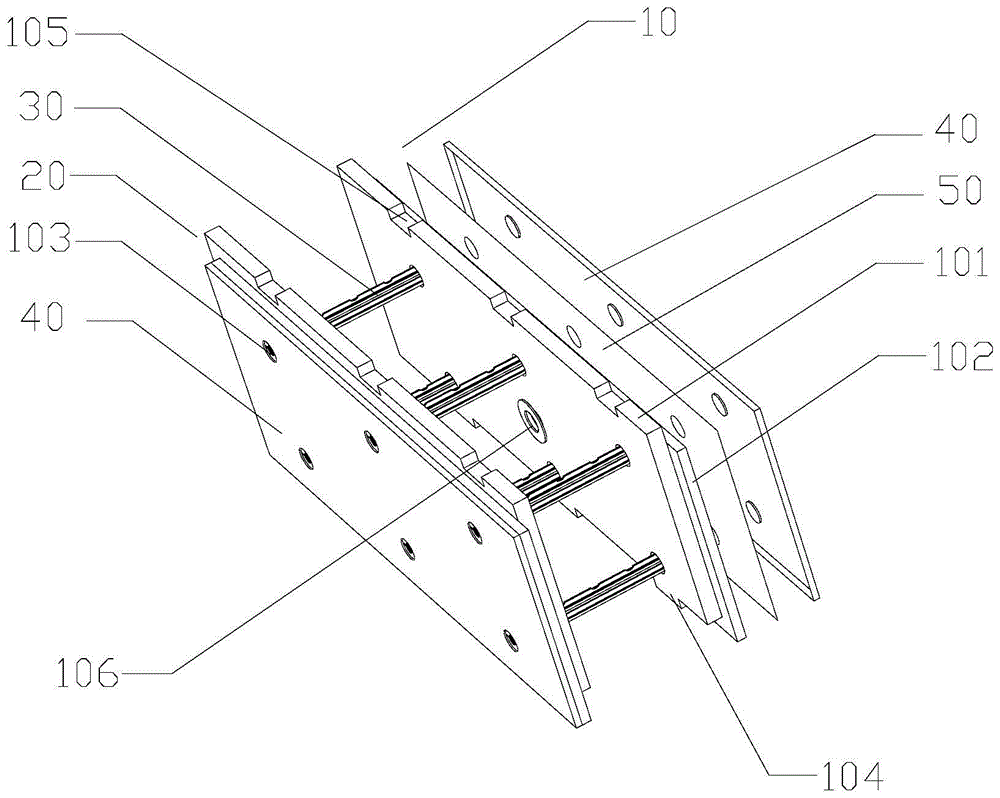

Fig. 1 is the three-dimensional structure schematic diagram of the energy-saving assembled module for building according to Embodiment 1 of the present invention;

Fig. 2 is the exploded schematic diagram of the connecting bridge of the present invention;

3 is a schematic structural diagram of a claw portion of the connecting bridge according to the present invention;

4 is a schematic three-dimensional structure diagram of the energy-saving assembled module for building according to Embodiment 2 of the present invention;

5 is a schematic three-dimensional structure diagram of the energy-saving assembled module for building according to Embodiment 3 of the present invention;

FIG. 6 is a schematic three-dimensional structural diagram of the transparent cover according to Embodiment 1 of the present invention.

Description of reference numbers:

10, inner plate; 20, outer plate; 101, inner plate; 102, outer plate; 103, through hole; 104, first protrusion; 105, first groove; 106, observation hole; 107, transparent cover; 1071 , cylinder body; 1072, ring; 30, connecting bridge; 301, claw part; 3011, cap body; 3012, spring arm claw; 3013, barb; 3014, second protrusion; 302, rod body; 3021 303, the clamping groove; 3031, the second groove; 40, the reinforcement shell; 50, the adhesive layer.

Detailed ways

It should be noted that the embodiments of the present invention and the features of the embodiments may be combined with each other under the condition of no conflict.

In the description of the present invention, it should be understood that the terms "center", "portrait", "horizontal", "top", "bottom", "front", "rear", "left", "right", " The orientation or positional relationship indicated by vertical, horizontal, top, bottom, inner, outer, etc. is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present invention and The description is simplified rather than indicating or implying that the device or element referred to must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as limiting the invention. In addition, the terms "first", "second", etc. are used for descriptive purposes only, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first", "second", etc., may expressly or implicitly include one or more of that feature. In the description of the present invention, unless otherwise specified, "plurality" means two or more.

In the description of the present invention, it should be noted that the terms "installed", "connected" and "connected" should be understood in a broad sense, unless otherwise expressly specified and limited, for example, it may be a fixed connection or a detachable connection Connection, or integral connection; can be mechanical connection, can also be electrical connection; can be directly connected, can also be indirectly connected through an intermediate medium, can be internal communication between two elements. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood through specific situations.

The present invention will be described in detail below with reference to the accompanying drawings and in conjunction with the embodiments.

Example 1

As shown in Figure 1, an energy-saving assembly module (also referred to as a straight mold) for a straight-type building, the module of the present invention is improved on the structure of the traditional energy-saving assembly module, so that the process of self-built houses is more scientific, More environmentally friendly, easier to construct, and more stable in seismic performance. The module has excellent characteristics such as high strength, good thermal insulation, sound insulation, flame retardant, cold resistance, corrosion resistance, moisture resistance, simple and fast construction, etc.

Specifically, the energy-saving assembly module described in this embodiment is composed of an inner panel 10 and an outer panel 20 , and the inner panel 10 and the outer panel 20 are both straight-shaped and made of energy-saving assembly materials.

More specifically, the inner and outer side panels are composed of an inner panel 101 close to the concrete layer and an outer panel 102 away from the concrete layer. The inner and outer panels 102 are integrally formed. Four edges of the side panels are formed with grooves, and the height of the inner panel 101 is greater than the height of the outer panel 102 . The tongue and groove are formed by the staggered arrangement of the inner and outer plates 102, which changes the traditional energy-saving assembly module with three layers of inner and outer layers, reduces the thickness of the module, and then increases the thickness of the concrete wall and improves the firmness of the building structure. It also avoids many security risks.

In addition, in order to make the splicing of the modules in the vertical direction more stable, a number of first protrusions 104 are provided at the top of the inner panel 101 , and first concave grooves adapted to the shape and size of the first protrusions 104 are provided at the bottom. Slot 105. The shape of the first groove 105 may adopt any shape in the prior art, such as a rectangular groove, a dovetail groove, a stepped groove, and the like.

In order to improve the fireproof performance of the house, the outer surface of the outer panel 102 is provided with a reinforced shell 40, and the material of the reinforced shell 40 is a class A fireproof and thermal insulation material. As a preference of this embodiment, the outer surface of the outer panel 102 is coated with an adhesive layer 50 , and the reinforcing shell 40 is bonded to the outer surface of the outer panel 102 through the adhesive layer 50 . Of course, it can also be fixed on the surface of the outer panel 102 by other mechanical connection methods. Since the fire rating of the energy-saving assembled module is basically the B1 fire rating, it can meet the requirement of self-extinguishing from the fire, but once the fire source of the house is in a burning state, the fire will spread rapidly. The fire source will not be extinguished immediately, which poses a great threat to the property safety and personal safety of the residents. A reinforced shell 40 with a class A fire rating is arranged on the surface of the outer panel 102 to suppress the spread of the fire.

In order to connect the inner and outer side panels, a connecting bridge 30 for connecting the inner and outer side panels is provided between the inner and outer side panels, and a plurality of through holes 103 are opened on the inner and outer side panels.

As shown in FIG. 2 and FIG. 3 , the specific structure of the connecting bridge 30 is as follows: the connecting bridge 30 includes a rod body 302 , a claw portion 301 , and a clamping groove portion arranged at both ends of the rod body 302 and adapted to the claw portion 301 . 303. The claw portion 301 includes a cap body 3011 that matches the through hole 103 and at least two elastic arm-shaped claw claws 3012 axially arranged on the cap body 3011 ; The outer side of the head of the elastic arm-shaped claw 3012 is provided with a tapered slope, and all the elastic-arm-shaped claw 3012 have at least one elastic arm-shaped claw 3012. The outer side of the elastic arm is provided with There are barbs 3013 , and a second groove 3031 adapted to the shape of the barbs 3013 is provided on the inner wall of the snap groove portion 303 . After the clamping claw portion 301 is inserted into the clamping groove portion 303 , a certain distance is reserved between the cap body 3011 and the surface of the clamping groove portion 303 for clamping the reinforcement housing 40 .

In the specific assembly process, the through hole 103 is a stepped hole, which is a first stepped hole, a second stepped hole and a third stepped hole in sequence from outside to inside. The size of the first stepped hole matches the size of the cap body 3011. The size of the second stepped hole matches the size of the elastic arm-shaped jaw 3012 , and the size of the third stepped hole matches the size of the engaging groove 303 . Specifically, the sum of the depths of the first stepped hole and the second stepped hole To reinforce the thickness of the casing 40 . However, due to the limitation of the precision of the machining mold in the actual machining process, the depth of the second stepped hole may not reach the distance reserved between the cap body 3011 and the surface of the engaging groove portion 303 , the claw portion 301 and the engaging groove portion 303 After assembly, there will be gaps and shaking, which will cause the inner and outer panels to be weakly connected, causing potential safety hazards. Therefore, in order to avoid the occurrence of the above situation, as a preferred technical solution, a plurality of arcs are arranged on the opposite surface of the engaging groove portion 303 and the claw portion 301 to obtain the second protrusion 3014, and the shape of the second protrusion 3014 is an arc. Of course, protrusions of other shapes are also within the protection scope of the present invention. For example, the reserved distance between the cap body 3011 and the surface of the snap groove portion 303 is 6 mm, and the depth of the second stepped hole after processing is 5 mm. At this time, the thickness of the arc protrusion 3014 can be set to 1.5 mm. The protruding material is the same as that of the connecting bridge and the side plate, both of which are non-rigid materials. After being squeezed, it will deform, and at the same time, a reaction force will be generated to squeeze the reinforcement plate, so that the clamping groove portion 303 and the claw portion 301 are connected. The connection is stronger. The function of the second protrusion 3014 is to compensate for the problem that the connection between the clamping groove portion 303 and the clamping claw portion 301 is not tightly connected due to machining errors.

The rod body 302 is provided with a plurality of reinforcing bar fixing grooves 3021 at intervals along the length direction of the rod body 302 . The reinforcing bar fixing groove 3021 is arc-shaped.

As shown in FIGS. 1 and 2 , the claw portion 301 is installed in the through hole 103 . After the module is formed, first install the claw portion 301 in the through hole 103, and then transport the inner and outer plates 20 and the connecting bridge 30 to the construction site. During the construction process, insert the engaging grooves 303 at both ends of the connecting bridge 30 into the respective slots 303. Connected to the claw portion 301, the assembly of the module is completed, and the module and the connector are shipped and transported in bulk. However, in the formwork of the prior art, the inner and outer panels 20 and the connecting piece are made of the same material and are integrally formed, which requires integral transportation, which not only increases the transportation cost, but also easily causes damage to the module, which further increases the cost. The formwork of the present invention solves the above-mentioned technology. question.

Specifically, the material of the connecting bridge 30 is plastic, and the connecting bridge 30 of other materials can also be used for replacement, such as the connecting bridge 30 made of metal or wood material, which can also achieve corresponding functions. Compared with the existing connectors made of materials such as integrally formed energy-saving assembly or foamed polyurethane, it has a more excellent effect.

Specifically, the specific size of the energy-saving assembled module described in this embodiment is: the distance between the inner and outer side panels is 160 mm, that is, the thickness of the concrete wall reaches 160 mm. As a preference but not limitation, the thickness of the inner panel 101 is 20 mm, the thickness of the outer panel 102 is 12 mm, and the thickness of the reinforced outer shell is 8 mm. Compared with the prior art, the thickness of the concrete wall is increased by 30 mm, and the increase in the internal thickness reduces the cavity caused by the uncompacted vibration of the concrete, and further enhances the stability of the house structure. In addition, before the concrete wall is poured, the steel bars are bound internally. Taking a steel bar with a diameter of 12 mm as an example, the thickness of the wall with a thickness of 13 cm in the prior art is after the steel bars are bound, and the distance between the steel bars and the front and rear side plates is less than 6 cm. In the process of building the wall, if the distance is too small, there will still be a cavity even after the vibrator is vibrated, and the present invention increases the distance between the inner and outer side panels to 160mm, and increases the steel bar and the inner and outer panels. The distance between 20 greatly reduces the existence of cavities and improves the overall safety performance of the house. In addition, due to the difference between the expansion coefficients of the steel bar and the concrete, the distance between the steel bar and the side plate is too close, which will cause the steel bar to break open the concrete protective layer in the later stage, resulting in damage to the wall.

As a preference but not limitation, the bulk density of the module in this embodiment is 25-30 kg/m ³ , and the detailed dimensions are: length 775 mm, width 240 mm, and height 325 mm. The staggered distance between the inner plate 101 and the outer plate 102 is 25 mm, that is, the depth of the formed groove is 25 mm.

In order to further reduce the existence of cavities in the concrete wall, at least one observation hole 106 penetrating inside and outside for observing the condition of the concrete chamber is provided on the inner side panel 10 and the reinforced outer shell 40 . In order to prevent the concrete from flowing out, a transparent cover 107 is installed in the observation hole 106 . The structure of the transparent cover 107 is shown in FIG. 6 , including a cylindrical body 1071 and a ring 1072 disposed at the end of the cylindrical body 1071 and coaxially disposed with the cylindrical body 1071 . The cylinder 1071 is installed in the observation hole 106, and the ring 1072 is arranged on the inner surface of the inner side panel 10 to prevent the transparent cover 107 from falling off during the concrete pouring process.

The assembly process of this embodiment is:

During assembly, the inner plate 101 and the outer plate 102 form a tongue and groove to assemble other modules in four directions, up, down, left, and right, and the first grooves 105 and protrusions 104 at the top and bottom of the inner plate 101 are used to realize the adjacent up and down direction. The module is fastened and assembled to avoid slurry running during the concrete pouring process and ensure the concrete strength. After the module position is fixed, the clamping grooves 303 at both ends of the rod body 302 in the connecting bridge 30 are clamped with the claw parts 301 in the inner and outer plates 20 at the corresponding positions to realize the connection and fixation with the inner and outer plates 20, that is, the module is completed. assembly. The module is prefabricated in the factory as a whole, and then assembled on site, which can effectively reduce the difficulty of on-site construction, speed up the construction speed, and improve the overall quality of the building structure.

Example 2

Referring to FIG. 4 , this embodiment provides an L-shaped building energy-saving assembled module (also referred to as an angle mold), which differs from Embodiment 1 as follows: the inner panel 10 and the outer panel 20 are both L-shaped.

Example 3

Referring to FIG. 5 , this embodiment provides an L-shaped building energy-saving assembly module (also known as a three-way mold), which differs from Embodiment 1 as follows: the shape of the outer plate 20 is a straight plate, and the shape of the inner plate 10 It is L-shaped.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the scope of the present invention. within the scope of protection.

Claims (10)

1. The utility model provides a module is assembled in energy-conservation for building which characterized in that: the concrete bridge comprises an inner side plate, an outer side plate and a connecting bridge (30) arranged between the inner side plate and the outer side plate and used for connecting the inner side plate and the outer side plate, wherein the inner side plate and the outer side plate are both composed of an inner plate (101) close to a concrete layer and an outer plate (102) far away from the concrete layer, the inner plate (101) and the outer plate (102) are arranged in a staggered mode in the vertical and horizontal directions to enable four edges of the side plates to form grooves, a plurality of first bulges (104) are arranged at the top of the inner plate (101), and first grooves (105) matched with the bulges (104) in shape and size are arranged at.

2. The energy-saving assembly module for buildings according to claim 1, characterized in that: the outer surface of the outer plate (102) is provided with a reinforced shell (40), and the reinforced shell (40) is made of A-level fireproof heat-insulating material.

3. The energy-saving assembly module for buildings according to claim 2, characterized in that: interior outer panel (20) and consolidate on shell (40) and be provided with through-hole (103) that link up inside and outside a plurality of, connecting bridge (30) are including the body of rod (302) and jack catch portion (301), jack catch portion (301) are installed in through-hole (103), the both ends of the body of rod (302) are provided with the joint slot part (303) with jack catch portion (301) looks adaptation.

4. The energy-saving assembly module for buildings according to claim 3, characterized in that: the clamping claw part (301) comprises a cap body (3011) matched with the through hole (103) and at least two elastic arm-shaped clamping claws (3012) arranged on the cap body (3011) along the axial direction; a chamfer facilitating the insertion of the clamping claw part (301) into the through hole (103) is arranged at the edge of the cap body (3011); the outer sides of the heads of the elastic arm-shaped clamping claws (3012) are provided with conical inclined planes, the outer side of the elastic arm of at least one elastic arm-shaped clamping claw (3012) in all the elastic arm-shaped clamping claws (3012) is provided with a barb (3013), and the inner wall of the clamping groove part (303) is provided with a second groove (3031) matched with the barb (3013) in shape.

5. The energy-saving assembly module for buildings according to claim 2, characterized in that: the inner and outer side plates (20) and the reinforcing shell (40) are provided with at least one observation hole (106) which is communicated with the inside and the outside and is used for observing the concrete compactness.

6. The energy-saving assembly module for buildings according to claim 5, characterized in that: a transparent cover (107) is arranged in the observation hole (106).

7. The energy-saving assembly module for buildings according to claim 1, characterized in that: the inner and outer side plates (20) are straight or L-shaped, and the inner plate (101) and the outer plate (102) are integrally formed.

8. The energy-saving assembly module for buildings according to claim 1, characterized in that: the distance between the inner side plate and the outer side plate is 160 mm.

9. The energy-saving assembly module for buildings according to claim 4, characterized in that: a plurality of reinforcing steel bar fixing grooves (3021) are arranged on the rod body (302) at intervals along the length direction of the rod body (302).

10. The energy-saving assembly module for buildings according to claim 2, characterized in that: the outer surface of the outer plate (102) is coated with an adhesive layer (50), and the reinforcing shell (40) is adhered to the outer surface of the outer plate (102) through the adhesive layer (50).
