Abstract

The invention discloses a dust-free and environment-friendly electric hammer, which comprises a body of the electric hammer, a drill bit and a fan. A dust filter pipe is installed at the lower part of the pipe, the drill bit is engaged and fixed inside the front end of the electric hammer body, the dust filter pipe is installed at the front end of the fan, and the motor is installed at the rear end of the fan, and the lower part of the dust induction pipe is provided with a mounting hole, and A fixing groove is arranged on the inner wall of the installation hole, and an elastic plate is fixed in the fixing groove, and a filter screen is installed in the dust filter pipe. The dust-free and environment-friendly electric hammer can absorb dust debris from the source of the drill hole during the process of collecting dust debris, which is conducive to complete dust prevention, thereby avoiding the phenomenon of dust debris splashing and floating, and reducing the subsequent impact on the working environment. At the same time, the detachable structure of the dust filter tube is conducive to the segmented cleaning and maintenance of the device, and it improves the service life of the machinery that has been in the dusty working environment for a long time.

Description

A dust-free and environment-friendly electric hammer

technical field

The invention relates to the technical field of dust-free and environment-friendly electric hammers, in particular to a dust-free and environment-friendly electric hammer.

Background technique

Electric hammer is a kind of electric tool. Electric hammer is a kind of electric drill. It is mainly used to drill holes in concrete, floors, brick walls and stone materials. It is specially used for drilling holes on walls, concrete and stone materials. In response to the development and production needs of modern society, many types of electric hammers have appeared on the market. There are electric hammers that can be adjusted to the appropriate position and can be equipped with appropriate drill bits to replace ordinary electric drills and electric hammers used in electric picks. On the basis, a piston with a crankshaft and connecting rod driven by an electric motor is added to reciprocate and compress air in a cylinder, so that the air pressure in the cylinder changes periodically, and the changed air pressure drives the hammer in the cylinder to reciprocate and hit the top of the drill bit. Like we use a hammer to hit the drill bit. So it is called an electric hammer. Because the drill bit of the electric hammer rotates and produces frequent impacts along the direction of the electric drill rod, it can be used in brittle cement concrete and Quickly punch holes in stone and other materials, the high-grade electric hammer can use the switch to make the drill bit of the electric hammer in different working states, that is, only rotate without impact, only impact without rotation, both impact and rotation, in the traditional hammer and iron hammer Drilling with one hammer and one hammer, until the motor drives the drill bit to helically drill, and develops into the current electric hammer cylinder drilling. Step by step, the drilling work is easier, more efficient and labor-saving, and the diameter of the hole, the shape of the hole , the depth of the hole has become controllable, the human operation has been liberated, and the safety and efficiency of the work have also been greatly improved. However, during the development of the point hammer development process, the electric hammer is easy to cause a lot of dust and debris. Flying makes the working environment worse, and the problem of harm to human health has not been effectively solved. The following problems exist in the implementation of the traditional dust-free and environmentally friendly electric hammer;

1. The collection of dust is not perfect enough. Although it can have a concentrated treatment effect on the splashed dust and debris, it cannot guarantee complete removal. For the splashed dust and debris floating in the working environment, it increases the follow-up The cleaning of the environment increases the workload;

2. It is more troublesome to replace the collected debris storage bag, the operation is not convenient enough, and the time-saving and labor-saving effect of the original electric hammer cannot be achieved. It takes a lot of steps for the operator to replace the storage bag, and due to the relationship between the suction of the fan , will make part of the dust move to the direction of the fan, causing pollution to the pipe wall and fan, which is not conducive to subsequent use, and at the same time increases the difficulty of the maintenance and cleaning of the electric hammer as a whole.

So we propose a dust-free and environment-friendly electric hammer to solve the problems mentioned above.

Contents of the invention

The purpose of the present invention is to provide a dust-free and environment-friendly electric hammer to solve the problem that the dust is not complete during the discharging process proposed by the above-mentioned background technology, which makes residual debris prone to appear in the working environment, thus affecting the follow-up work Environmental cleaning work also increases the physical discomfort of personnel caused by environmental problems. The traditional dust-free and environmentally friendly electric hammer is not convenient enough to fix and disassemble the dust collection bag, and the time to replace the bag is often longer than the time for drilling. It is too long, which violates the original intention of saving time and labor of the electric hammer. At the same time, the traditional dust-free and environmentally friendly electric hammer is mostly a one-piece structure, which is not easy to clean and maintain the fan and pipeline, which increases the burden of overall cleaning and maintenance work.

To achieve the above object, the present invention provides the following technical solutions: a dust-free and environment-friendly electric hammer, including a hammer body, a drill bit and a fan, the front end of the hammer body is equipped with a dust cover, and the dust pipe is installed The lower part of the dust collecting hood, and the lower part of the dust pipe is installed with a dust filter pipe, the drill bit is engaged and fixed inside the front end of the hammer body, the front end of the fan is equipped with a dust filter pipe, and the motor is installed at the rear end of the fan, the dust pipe The lower part of the pipe is provided with a mounting hole, and the inner wall of the mounting hole is provided with a fixing groove, and an elastic plate is fixed in the fixing groove, a filter screen is installed in the dust filter pipe, an elastic groove is arranged on the dust filter pipe, and the spring is welded to the elastic plate. The bottom of the groove, and the top of the spring is connected with an elastic plate, and the elastic plate is installed in the elastic groove. It is connected to a layer of outer ring tubes, and a sliding groove is arranged on a layer of outer ring tubes, a layer of inner ring tubes is arranged under the layer of outer ring tubes, and a linkage rod is installed on a layer of inner ring tubes, and the linkage rod Installed on the brake ring, the lower end of the inner ring tube of the first layer is equipped with a connecting column, and the lower part of the connecting column is connected to the inner ring tube of the second layer, and the rotating shaft is installed on the inner ring tube of the second layer, and the rotating shaft is installed on the The two ends of the connecting rod, and the rotating shaft are fixed on the bag lock rod, and the bag lock rod is arranged on the outside of the two-layer outer ring pipe, and the two-layer outer ring pipe is arranged on the outside of the two-layer inner ring pipe.

Preferably, the dust-introducing pipe is in a vertical relationship with the dust-collecting hood, and the dust-collecting hood has a trumpet-shaped structure, and the dust-introducing pipe is engaged with the dust-filtering pipe.

Preferably, two filter screens are fixed inside the dust filter tube, and the filter screens are closely attached to the inner walls of the nozzles at both ends of the dust filter tube.

Preferably, the elastic plate has an "M"-shaped structure, and the springs are equidistantly welded to the elastic plate, and the elastic plate and the springs are mirrored on the dust filter tube.

Preferably, a linkage rod is welded equidistantly on the outer wall of the one-layer inner ring tube, and the other end of the linkage rod is welded to the inner wall of the brake ring, and a connecting column is welded equidistantly to the lower part of the one-layer inner ring tube.

Preferably, the fixed block is in a "T" shape, and the fixed block is welded to both ends of the brake ring, and the fixed block is engaged with the sliding groove.

Preferably, the two-layer inner tube and the rotating shaft form a rotating structure, and the bag-locking rod and the rotating shaft form a rotating structure, and the bag-locking rod forms a sliding structure through the connecting rod and the two-layered outer tube.

Preferably, the bag-locking rod has an "L"-shaped structure, and the bag-locking rods are equidistantly arranged in the second-layer outer ring tube, and one side of the bag-locking rod is zigzag-shaped and engaged with the lower part of the second-layer outer ring tube.

Compared with the prior art, the beneficial effect of the present invention is that the dust-free and environment-friendly electric hammer can absorb dust debris from the source of drilling, which is beneficial to complete dust prevention, thus avoiding dust The phenomenon of debris splashing and floating reduces the subsequent cleaning of the working environment. At the same time, compared with the traditional structure, the fixation and replacement of the dust bag is more simple and efficient, which is conducive to quick installation and disassembly, and reduces operating time and operations. At the same time, the detachable structure of the dust filter tube is conducive to the segmental cleaning and maintenance of the device, and it improves the service life of the machinery that has been in the dusty working environment for a long time;

1. The trumpet-shaped structure of the dust collection cover is conducive to dust adsorption and collection from the source of the drilling work, and can also effectively avoid the debris splashing during the drilling work;

2. The bagging tube is composed of multiple parts to form a composite structure. The rotation of the brake ring mainly drives the inner inner tube of the first layer and the inner tube of the second layer to rotate, so that the inner tube of the second layer passes through the connecting rod to lock the bag rod. Move back and forth to fix and facilitate the replacement of the dust bag, reducing the operation steps when replacing the pair of dust bags, making the operation easier;

3. The opening and disassembly structure formed between the dust filter pipe and the fan and between the dust filter pipe and the dust introduction pipe is conducive to segmental cleaning of the dust filter pipe, fan and dust introduction pipe, which improves the efficiency of cleaning work and makes all components clean It is more thorough and free of dead angles, which is also conducive to the overall maintenance work and improves the service life.

Description of drawings

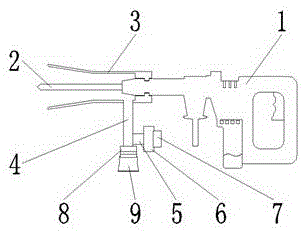

Fig. 1 is a schematic diagram of the overall front view structure of the present invention;

Fig. 2 is a three-dimensional cross-sectional structural schematic diagram of the connection between the dust filter pipe and the fan of the present invention;

Fig. 3 is the schematic diagram of the sectional structure of the dust filter tube of the present invention;

Fig. 4 is a side view structure schematic diagram of the dust filter tube of the present invention;

Fig. 5 is a schematic diagram of the three-dimensional structure of the dust extraction pipe and the fixing groove of the present invention;

Fig. 6 is a schematic cross-sectional structural view of the bagging tube of the present invention;

Fig. 7 is a schematic structural view of the top view of the two-layer inner ring pipe in the bagging pipe of the present invention;

Fig. 8 is a schematic diagram of the structure of a layer of inner ring tube in the bagging tube of the present invention.

In the figure: 1. Electric hammer body; 2. Drill bit; 3. Dust collection cover; 4. Dust introduction pipe; 5. Dust filter pipe; 6. Fan; 7. Motor; 8. Bagging pipe; Coil tube; 802, one-layer inner tube; 803, brake ring; 804, fixed block; 805, two-layer inner tube; 806, two-layer outer tube; 807, sliding groove; 808, linkage rod; 809, Connecting column; 810, connecting rod; 811, rotating shaft; 812, bag lock rod; 9, dust bag; 10, filter screen; 11, elastic plate; 12, elastic groove; 13, spring; 14, fixed groove; 15 ,Mounting holes.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

Please refer to Figures 1-8, the present invention provides a technical solution: a dust-free and environmentally friendly electric hammer, including a hammer body 1, a drill bit 2 and a fan 6, and a dust cover 3 is installed at the front end of the hammer body 1, And the dust pipe 4 is installed in the lower part of the dust collection cover 3, and the dust pipe 4 is installed with a dust filter pipe 5, the drill bit 2 is engaged and fixed inside the front end of the electric hammer hammer body 1, the dust filter pipe 5 is installed at the front end of the fan 6, and the motor 7 Installed on the rear end of the fan 6, the lower part of the dust pipe 4 is provided with a mounting hole 15, and the inner wall of the mounting hole 15 is provided with a fixing groove 14, and an elastic plate 11 is fixed in the fixing groove 14, and a filter screen is installed in the dust filter pipe 5 10. The dust filter pipe 5 is provided with an elastic groove 12, and the spring 13 is welded to the bottom of the elastic groove 12, and the top of the spring 13 is connected with an elastic plate 11, and the elastic plate 11 is installed in the elastic groove 12, and a sleeve is installed at the lower end of the dust extraction pipe 4. Bag tube 8, and the lower part of the bagging tube 8 is fixed with a dust bag 9, the lower end of the dust introduction tube 4 is connected to a layer of outer ring tube 801, and a layer of outer ring tube 801 is provided with a sliding groove 807, and a layer of outer ring tube A layer of inner ring pipe 802 is arranged below 801, and a linkage rod 808 is installed on the layer of inner ring pipe 802, and the linkage rod 808 is installed on the brake ring 803, and a connecting column 809 is installed at the lower end of the layer of inner ring pipe 802, and The lower part of the connecting column 809 is connected to the second-layer inner ring tube 805, and the second-layer inner ring tube 805 is equipped with a rotating shaft 811, the rotating shaft 811 is installed at both ends of the connecting rod 810, and the rotating shaft 811 is fixed on the bag lock rod 812 , and the bag lock rod 812 is arranged on the outer side of the second-layer outer ring pipe 806, and the second-layer outer ring pipe 806 is arranged on the outer side of the second-layer inner ring pipe 805.

The dust-introducing pipe 4 is in a vertical relationship with the dust-collecting hood 3, and the dust-collecting hood 3 is in a horn-shaped structure, and the dust-introducing pipe 4 and the dust-filtering pipe 5 are engaged and connected, which is beneficial to the thoroughness of dust and debris collection, and prevents debris from being generated. The source of crumbs begins to concentrate and attract, while reducing the phenomenon of debris splashing;

There are two filter screens 10 fixed in the dust filter tube 5, and the filter screens 10 are close to the inner walls of the nozzles at both ends of the dust filter tube 5, which is conducive to filtering the debris remaining in the tube attracted by the wind, and reduces the subsequent maintenance of the fan 6 and the tube wall Cleanup workload.

The elastic plate 11 is in an "M" shape, and the springs 13 are equidistantly welded on the elastic plate 11, and the elastic plate 11 and the spring 13 are mirrored on the dust filter pipe 5, which is beneficial to the fan 6, the dust extraction pipe 4 and the dust filter pipe. The installation and disassembly between 5 is convenient for the follow-up cleaning work.

A linkage rod 808 is welded equidistantly on the outer wall of the inner ring pipe 802 of one layer, and the other end of the linkage rod 808 is welded to the inner wall of the brake ring 803, and a connecting column 809 is welded equidistantly on the lower part of the inner ring pipe 802 of the layer, which is conducive to passing through the rotation. The brake ring 803 drives a layer of inner ring pipe 802 to rotate.

The fixed block 804 has a "T"-shaped structure, and the fixed block 804 is welded to both ends of the brake ring 803, and the fixed block 804 is engaged with the sliding groove 807, which is beneficial to the braking ring 803 on the outer ring tube 801 and the second layer. The layers of outer ring tubes 806 rotate stably.

The two-layer inner ring tube 805 and the rotating shaft 811 form a rotating structure, and the bag lock rod 812 and the rotating shaft 811 form a rotating structure, and the bag locking rod 812 forms a sliding structure with the two-layer outer ring pipe 806 through the connecting rod 810, which is beneficial to both The rotation of the inner ring pipe 805 of the layer drives the bag lock rod 812 to move telescopically outside the outer ring pipe 806 of the second layer.

The bag lock rod 812 has an "L" shape structure, and the bag lock rods 812 are arranged in the second-layer outer ring pipe 806 at equal intervals, and one side of the bag lock rod 812 is zigzag-shaped and connected to the lower part of the second-layer outer ring pipe 806, It is beneficial to the fixing of the dust bag 9 and the disassembly and replacement of the dust bag 9 .

The working principle of this embodiment: when using the dust-free and environment-friendly electric hammer, as shown in Figure 1-8, first, connect the external power supply to the electric hammer body 1 and the motor 7, and turn on the electric hammer body 1 and the switch of the motor 7, the drill bit 2 and the blower fan 6 start to work, and the drill bit 2 rotates to carry out the drilling work to generate dust and debris. Due to the suction of the blower fan 6, the dust and debris are collected through the dust collection cover 3 first, and then enter the suction hole. In the dust pipe 4, then flow down along the dust pipe 4, when dust and debris moved to the bottom of the dust pipe 4, a small part of the dust was adsorbed on the filter screen 10 of the dust filter pipe 5 due to wind force, most of the dust and The debris continues to fall down through the bagging tube 8 and falls into the lower dust bag 9 for centralized storage. After the hole opening work is completed, turn off the switch of the hammer body 1 and the motor 7, disconnect the power supply, and rotate the brake ring clockwise 803, the brake ring 803 starts to rotate between the first layer of outer ring tube 801 and the second layer of outer ring tube 806 through the brake ring 803, and the brake ring 803 drives the first layer of inner ring tube 802 and the second layer of inner ring tube 802 through the linkage rod 808 The ring pipe 805 rotates, the rotation of the second-layer inner ring pipe 805 drives the rotating shaft 811 to rotate, the second-layer inner ring pipe 805 drives the connecting rod 810 to make the lock bag rod 812 move to the outside, and removes the fixing of the dust bag 9, and the Dispose of the dust bag 9 of dust and debris, put a new dust bag 9 on the bagging pipe 8, and select the brake ring 803 counterclockwise to lock the dust bag 9 between the locking rod 812 and the second layer. Between the outer ring tubes 806, the replacement of the dust bag 9 is completed, and then the elastic plate 11 is pressed downward, the elastic plate 11 moves downward in the elastic groove 12 and squeezes the spring 13, and the dust filter tube 5 is pulled out backward to make the dust filter tube 5 from the installation hole 15, and at the same time, remove the rear part of the dust filter pipe 5 from the fan 6, and simply clean the two filter screens 10 on the nozzle of the dust filter pipe 5, and clean the fan blades of the fan 6 at the same time, and then Fix the dust filter pipe 5 in the installation hole 15 again, make the dust filter pipe 5 engage with the dust introduction pipe 4, fix the fan 6 on the dust filter pipe 5, and store the electric hammer after the cleaning work is completed.

Although the present invention has been described in detail with reference to the aforementioned embodiments, those skilled in the art can still modify the technical solutions described in the aforementioned embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principles of the present invention, any modifications, equivalent replacements, improvements, etc., shall be included in the protection scope of the present invention.

Claims (8)

1. The utility model provides a dustless environmental protection electric hammer, includes electric hammer body (1), drill bit (2) and fan (6), its characterized in that: dust cage (3) are installed to electric hammer body (1) front end, and draw dirt pipe (4) to install in dust cage (3) lower part to draw dirt pipe (4) lower part to draw dirt pipe (5) to install dust filtering pipe (5) in dust pipe (5) lower part, drill bit (2) block is fixed in inside electric hammer body (1) front end, dust filtering pipe (5) are installed to fan (6) front end, and motor (7) are installed in fan (6) rear end, draw dirt pipe (4) lower part to be provided with mounting hole (15), and be provided with fixed slot (14) on mounting hole (15) inner wall, and fixed slot (14) internal fixation has elastic plate (11), be provided with on dust filtering pipe (5) filter screen (10), be provided with elastic slot (12) on dust filtering pipe (5), and spring (13) weld in elastic slot (12) bottom, and spring (13) top is connected with elastic plate (11), elastic plate (11) are installed in elastic slot (12), draw dirt pipe (4) lower part to be provided with fixed slot (8) and outer lane (801) and one outer lane (801) are connected to be provided with dust layer (801), one deck outer lane pipe (801) below is provided with one deck inner circle pipe (802), and installs gangbar (808) on one deck inner lane pipe (802) to gangbar (808) are installed on brake collar (803), spliced pole (809) are installed to one deck inner lane pipe (802) lower extreme, and spliced pole (809) lower part is connected in two-layer inner lane pipe (805), and install axis of rotation (811) on two-layer inner lane pipe (805), axis of rotation (811) are installed in the both ends of connecting rod (810), and axis of rotation (811) are fixed in on lock bag stick (812), and lock bag stick (812) set up with two-layer outer lane pipe (806) outside, two-layer outer lane pipe (806) set up in two-layer inner lane pipe (805) outside.

2. The dust-free environment-friendly electric hammer as set forth in claim 1, wherein: the dust guiding pipe (4) is vertically connected with the dust collecting cover (3), the dust collecting cover (3) is of a horn-shaped structure, and the dust guiding pipe (4) is connected with the dust filtering pipe (5) in a clamping mode.

3. The dust-free environment-friendly electric hammer as set forth in claim 1, wherein: two filter screens (10) are fixed in the dust filtering pipe (5), and the filter screens (10) are tightly attached to the inner walls of pipe orifices at two ends of the dust filtering pipe (5).

4. The dust-free environment-friendly electric hammer as set forth in claim 1, wherein: the elastic plate (11) is of an M-shaped structure, the springs (13) are welded on the elastic plate (11) at equal intervals, and the elastic plate (11) and the springs (13) are distributed on the dust filtering pipe (5) in a mirror image mode.

5. The dust-free environment-friendly electric hammer as set forth in claim 1, wherein: the linkage rods (808) are welded on the outer wall of the inner ring pipe (802) at equal intervals, the other ends of the linkage rods (808) are welded on the inner wall of the brake ring (803), and the connecting columns (809) are welded on the lower portion of the inner ring pipe (802) at equal intervals.

6. The dust-free environment-friendly electric hammer as set forth in claim 1, wherein: the fixed block (804) is of a T-shaped structure, the fixed block (804) is welded at two ends of the brake ring (803), and the fixed block (804) is connected with the sliding groove (807) in a clamping mode.

7. The dust-free environment-friendly electric hammer as set forth in claim 1, wherein: the two-layer inner ring pipe (805) and the rotating shaft (811) form a rotating structure, the bag locking rod (812) and the rotating shaft (811) form a rotating structure, and the bag locking rod (812) and the two-layer outer ring pipe (806) form a sliding structure through the connecting rod (810).

8. The dust-free environment-friendly electric hammer as set forth in claim 1, wherein: the bag locking bars (812) are of an L-shaped structure, the bag locking bars (812) are arranged in the two-layer outer ring pipe (806) at equal intervals, and one side of each bag locking bar (812) is in a zigzag shape and is connected with the lower part of the two-layer outer ring pipe (806) in a clamping mode.
