Abstract
The invention discloses a transverse moving trolley with a telescopic automatic leveling device for vertical lifting mechanical parking equipment, which comprises a lifting frame and a chassis, wherein a carrier rail is arranged on the lifting frame, and a passive traveling system and an active traveling system are arranged on the chassis; the active traveling system drives the transverse moving trolley to move back and forth along the guide rail on the lifting car, and the carrier can move left and right on the lifting frame along the carrier track; a lifting device is arranged between the lifting frame and the chassis, the lifting device drives the lifting frame to do lifting motion relative to the chassis, and a set of telescopic leveling mechanism capable of independently running is respectively arranged at the left end and the right end of the lifting frame; the flat bed positioning device of each parking space is omitted, when vehicles are parked and taken out, the lifting frame is separated from the chassis after being leveled, the load of the lifting frame acts on a steel structure frame of the mechanical parking equipment, although the length of the chain or the steel wire rope can be changed, the change of the upper position and the lower position of the chassis can be only caused, the lifting frame is not influenced, and the leveling precision can not be reduced.
Description
Technical Field
The invention relates to a transverse moving trolley, belongs to the technical field of mechanical three-dimensional parking equipment, and particularly relates to multi-layer (high) vertical lifting mechanical parking equipment.
Background
With the development of the automobile industry and the improvement of the living standard of people, the popularization of automobiles is more and more extensive, the occupation amount of automobiles of all urban people is continuously increased, the automobiles are still increased at the speed of 20 to 30 percent every year, the problem of automobile parking is more and more prominent, and because the space of the urban ground is limited, the construction of a stereo garage becomes an important method for solving the parking difficulty.
The vertical lifting large-car type tower garage is mechanical parking equipment which can move vehicles on a car by using a transverse trolley plane and realize parking and taking, belongs to a common machine type in storage type parking equipment, and has the characteristics of high intelligence, high-precision control, high-speed operation, large-scale compact design, various forms and the like. The equipment can be combined in various systems according to objective conditions such as buildings, environments and the like, so that the requirement of customers is met to the maximum extent, and the equipment is widely suitable for different areas of cities such as airports, stations, busy commercial areas, stadiums, office buildings and the like, and is one of the most ideal types in mechanical parking garages.
The main components of the equipment are as follows: the intelligent conveying device comprises a steel framework, a lifting driving system, a lifting car, an access device (a built-in rotary table), a transverse moving trolley (or called conveying trolley, a roadway conveyor and a middle sports car), an electrical control system and the like, wherein the intelligent conveyor is arranged on the transverse moving trolley.
The operation principle is as follows: the moving of vehicles in the same parking floor is completed by the transverse moving trolley, the up-down lifting action of the vehicles is completed by the lifting car, the top of the steel structure is provided with a lifting driving system, the lifting driving system drives the lifting chain, the lifting chain is connected with a lifting point seat on the lifting car, the lifting car is driven to move up and down along a vertical track arranged on the steel structure, the processes of storing and taking the vehicles in the multi-layer vertical lifting garage are realized through the cooperation of the lifting driving system and the lifting driving system, and the vehicles are exchanged by an intelligent carrier on the transverse moving trolley and a parking space.
Parking operation: the driver drives the car to the garage and the garage door opens. Under the prompt of the automatic parking guidance indication screen in the garage, a driver drives a vehicle into the entrance, and at the moment, the detection device measures the length, width and height of the vehicle to determine whether the vehicle is suitable for the garage. Then the driver extinguishes, pulls the brake, gets off the vehicle, locks the vehicle door and exits the garage; the personnel detection device can find whether the parking personnel still exist in the garage, when the safety detection fails, the system can send out a warning ring, and the central control room can inform a manager and a driver of adjusting the vehicle or cleaning the personnel through an interphone or a loudspeaker; when the safety detection is passed, the garage door is closed. The lifting car drives the transverse moving trolley to move to an entrance layer, the transverse moving trolley moves to a position corresponding to the entrance, the carrier carries the vehicle at the entrance to the transverse moving trolley of the lifting car, the lifting car carries the vehicle to lift to an appointed parking layer, and finally the intelligent carrier translates the vehicle to an appointed vacant parking space, so that the equipment finishes parking.
Vehicle taking operation: the driver or garage manager inserts a parking card on the control panel, or inputs an instruction on the operation panel. The lifting car is lifted to an appointed parking layer, the transverse moving trolley is moved to a position corresponding to a parking space, the vehicle in the appointed parking space is conveyed to the transverse moving trolley of the lifting car by the conveyor, then the lifting car carries the vehicle to be lifted to an entrance layer, the transverse moving trolley is moved to a position corresponding to the entrance, the vehicle is conveyed to an exit by the conveyor, then the garage door is automatically opened, and a driver drives the vehicle out to finish vehicle taking.
It can be seen that, in the operation process of the automatic mechanical parking equipment, the traversing trolley undertakes important tasks, the carrier and the vehicle on the carrier need to be transported to a specified parking space, when the traversing trolley is butted with a parking space guide rail, the walking track of the carrier and the parking space guide rail are in the same plane, so that the stable operation of the carrier can be ensured.
In order to solve the problems, the applicant of the invention patent application number 2019108250474 on 2019, 9, 3 and named as a transverse moving trolley with a swing arm type automatic leveling device for car type mechanical parking equipment comprises a chassis, a traveling system arranged on the chassis, a carrier guide rail, a carrier traveling rail and a control system, wherein the traveling system drives the transverse moving trolley to move back and forth along a guide rail on a lifting car, the carrier can move left and right on the chassis along the guide rail and the traveling rail, and a set of swing arm type leveling mechanisms capable of operating independently is respectively arranged at the left end and the right end of the transverse moving trolley. The flat-layer positioning device of each parking space is omitted, so that the equipment has the advantages of simpler structure, low production cost, high installation efficiency and convenient debugging, and the walking track of the carrier and the guide rail of the parking space can automatically perform flat-layer action within a certain deviation range. The left end and the right end of the transverse moving trolley are respectively provided with a set of swing arm type leveling mechanism capable of independently operating, the left end and the right end of the transverse moving trolley can be subjected to leveling positioning, only the swing arm type leveling mechanism at the parking space side for parking a vehicle is required to work under normal conditions, when a target parking space is positioned on the left side of a roadway, only the swing arm type leveling mechanism at the left end of the transverse moving trolley is required to act, and when the target parking space is positioned on the right side of the roadway, only the swing arm type leveling mechanism at the right end of the transverse moving trolley is required to act. However, there is still a need for improvement, such as the leveling arm swings under the drive of the swing arm driving motor and abuts against the beam of the steel structure of the three-dimensional parking equipment, and one end of the chassis is lifted, so that the carrier walking track and the left parking space guide rail are in the same plane, and the leveling function is realized; the chassis needs to overcome the self weight of the chassis and the weight of a vehicle and a carrier in the lifting process, a large motor and a speed reducer are needed, and the manufacturing and using cost is high; when the leveling arm is abutted against the cross beam, the impact is applied to the cross beam, and noise and vibration can be generated; the lifting car is driven to ascend and descend by a chain or a steel wire rope through a lifting driving system arranged at the top of the steel structure, after leveling, when a vehicle is stored and taken out, the vehicle is carried to or from a transverse moving trolley of the lifting car by a carrier, the load on the lifting car is changed, the elongation of the chain or the steel wire rope is changed accordingly, the relative position of a track of the intelligent carrier on the transverse moving trolley and a guide rail on a parking space or an access platform is in a changed state, and the leveling precision is reduced.
CN207436611U also discloses a lifting and leveling positioning safety device for an intelligent mechanical garage, which comprises a plurality of lifting columns 18, a lifting tray 17 which performs lifting movement along the lifting columns 18, a speed reducing motor fixing seat 16 fixed at the bottom of the lifting tray 17, a speed reducing motor 15 fixed on the fixing seat 16, a synchronous transmission mechanism connected with the speed reducing motor 15, and a plurality of positioning mechanisms, wherein each positioning mechanism comprises a telescopic rod 5 with a guiding function, and a male tooth-shaped positioning block 2 and a female tooth-shaped positioning block 1 which are pushed by the telescopic rod 5 to be engaged with each other, the telescopic rod 5 is connected with the output end of the synchronous transmission mechanism, and the male tooth-shaped positioning block 2 is fixed on the telescopic rod 5; the female tooth-shaped positioning block 1 is fixed on the elevator upright post 18, and a positioning round hole is formed in the female tooth-shaped positioning block 1; the part of the telescopic rod 5 extending to the outer end of the male tooth-shaped positioning block 2 is in a cylindrical shape corresponding to the positioning round hole. The gear motor 15 drives the telescopic rod 5 with the guiding function to stretch through the synchronous transmission mechanism, the telescopic rod 5 can drive the male tooth-shaped positioning block 2 to be meshed with the female tooth-shaped positioning block 1 as the male tooth-shaped positioning block 2 is fixed on the telescopic rod 5, and meanwhile, the telescopic rod 5 is just inserted into the positioning round hole in the female tooth-shaped positioning block 1 as the part of the telescopic rod 5 extending to the outer end of the male tooth-shaped positioning block 2 is in a cylindrical shape corresponding to the positioning round hole. The positioning round hole is matched with the telescopic rod 5 to ensure the precision of the leveling device, and the positioning error is within the range of 0.1mm (paragraph 0031 and 0032). Its structure does not get rid of the flat bed locate mode of current bolt mode, and this technical scheme's contribution has increased the profile of tooth locating piece, "the profile of tooth locating piece can prevent that the lift tray from upwards playing downwards with the compound setting of location round hole, realizes the function of lift tray bidirectional positioning, and the device location is accurate, and the profile of tooth locating piece can prevent to use for a long time that jack department can wear and tear and lead to the aperture grow location inaccurate, the not long scheduling problem of life. But the technical proposal has obvious defects, and the premise of achieving the technical effect is to ensure that 4 telescopic rods 5 can be smoothly inserted into the positioning round holes, as is well known, the weight of the pallet is relatively heavy, and some pallets are even several tons (paragraph 0033), the elevator car/pallet is driven to ascend and descend by chains or steel cables through an elevating driving system arranged on the top of a steel structure, and the elongation of the 4 chains or steel cables for elevating the elevator car changes along with the time, the elongation of 4 chains or steel wire ropes cannot be completely consistent, so that the heights of 4 hoisting points generate errors, 4 telescopic rods 5 cannot be inserted into the positioning round holes simultaneously and smoothly, especially, the technical scheme has the gap of only 0.1mm, and 4 telescopic rods 5 are difficult to insert into the positioning round holes simultaneously and are limited by the elongation change of the chains or the steel wire ropes.
Disclosure of Invention
The invention aims to provide a transverse moving trolley for vertical lifting mechanical parking equipment, which has low manufacturing and using cost and high leveling precision and is provided with a telescopic automatic leveling device, aiming at overcoming the defects of the prior art. The problem that when the action of storing and taking out the vehicle is carried out, the vehicle is carried to or is moved away from the transverse moving trolley of the lifting car by the carrier, the load on the lifting car is changed, the elongation of a chain or a steel wire rope is changed along with the change of the load, the relative position of a track of the intelligent carrier on the transverse moving trolley and a guide rail on a parking space or an entrance platform is in a changed state, and the leveling precision is reduced in the prior art is solved.
The invention relates to a leveling device and a lifting car, which are separated from each other, so that the influence of the change of the elongation of a chain or a steel wire rope on the leveling precision is eliminated.
The technical scheme adopted by the invention for realizing the purpose is as follows:
the utility model provides a sideslip platform truck for vertical lift type mechanical parking equipment with telescopic automatic flat bed device, includes the chassis, sets up traveling system, carrier track, the control system on the chassis, and traveling system drive sideslip platform truck moves along the guide rail back-and-forth movement on the lift car, and the carrier can remove its characterized in that along the removal of carrier track: still include the crane, the carrier track set up on the crane, be provided with elevating gear between crane and the chassis, elevating gear drive crane is elevating movement for the chassis, be equipped with telescopic flat bed mechanism on the crane, the load of flat bed mechanism during operation crane acts on mechanical type parking equipment's steel construction frame.
By adopting the technical scheme, the flat-layer positioning device of each parking space is omitted, so that the equipment is simpler in structure, low in production cost, high in installation efficiency and convenient to debug. The lifting frame is provided with a telescopic leveling mechanism, the load of the lifting frame acts on a steel structure framework of the mechanical parking equipment when the leveling mechanism works, when the vehicle is stored and taken out, the vehicle is conveyed to the lifting frame or is conveyed away from the lifting frame by the carrier, the load on the lifting car is not changed, the elongation of a chain or a steel wire rope is not changed, the relative position of the track of the intelligent carrier on the transverse moving trolley and the guide rail on the parking space or the access platform is not changed, and the leveling precision is high.
In the transverse moving trolley with the telescopic automatic leveling device for the vertical lifting mechanical parking equipment, the lifting device comprises a left lifting device and a right lifting device, the left lifting device and the right lifting device have the same structure and respectively comprise a positioning block, a lifting device and a lifting speed reduction motor, the lifting device and the lifting speed reduction motor are fixed on a chassis, an output shaft of the lifting speed reduction motor is a double-shaft extension, two ends of the double-shaft extension are respectively connected with one end of a first transmission shaft, the other end of the first transmission shaft is connected with an input end of the lifting device, and the end part of the output shaft of the lifting device is connected with a positioning shaft; the upper end of the positioning block is connected with the lifting frame, and the lower end of the positioning block is provided with a positioning groove corresponding to the positioning shaft.
By adopting the technical scheme, the lower part of the lifting frame is connected with a positioning block with a positioning groove at the lower end, and the end part of the output shaft of the lifter is connected with a positioning shaft; when the output shaft of the lifter rises, the positioning shaft at the upper end of the lifter enters the positioning groove of the positioning block to jack the lifting frame, the positioning groove can limit the lifting frame to move in the left-right direction, and the lifting frame is continuously jacked to enable the lower plane of the lifting frame to be higher than the cross beam of the steel structure of the three-dimensional parking equipment; when the telescopic leveling mechanism works, the leveling arm extends out, the output shaft of the lifter descends, the positioning shaft is separated from the positioning groove of the positioning block, and the leveling arm is lapped on a beam of a steel structure of the three-dimensional parking equipment to realize the leveling function; because the lifter is fixed on the chassis, the positioning shaft is in open insertion connection with the positioning groove of the positioning block, the lifting frame is separated from the chassis after leveling, when the vehicle is stored and taken, the length of the chain or the steel wire rope can be changed, but the change of the upper position and the lower position of the chassis can be caused, the lifting frame is not influenced, and the leveling precision can not be reduced.
Furthermore, the vertical section of the upper end part of the output shaft of the lifter is in an inverted V shape, the positioning shaft penetrates through the inclined plane of the inverted V shape, and the lower end of the positioning block and the upper end part of the output shaft of the lifter are correspondingly provided with a groove with the inverted V-shaped vertical section.
By adopting the technical scheme, when the output shaft of the lifter is lifted, the upper end of the output shaft is inserted into the groove with the inverted V-shaped vertical section at the lower end of the positioning block, and the inclined planes of the two V-shaped grooves are attached to each other, so that the lifting frame can be limited to move in the front-back direction.
In the transverse moving trolley with the telescopic automatic leveling device for the vertical lifting mechanical parking equipment, the telescopic leveling mechanism comprises a left telescopic leveling mechanism and a right telescopic leveling mechanism, the left telescopic leveling mechanism and the right telescopic leveling mechanism have the same structure and respectively comprise a leveling arm and a driving mechanism for driving the leveling arm to extend or retract; the left telescopic leveling mechanism and the right telescopic leveling mechanism are respectively arranged at the left end and the right end of the lifting frame and can independently operate.
Two ends set up one set of telescopic mechanism that can independently operate respectively about the sideslip platform truck, and both ends all can carry out the flat bed location about, and two sets of telescopic mechanism of controlling all work under normal condition. Under special conditions, when a parking space is arranged on only one side of a roadway, if the parking space is arranged on only the left side, the left lifting device at the left end of the trolley and the left telescopic leveling mechanism only need to be transversely moved, a lifting speed reduction motor of the left lifting device drives the lifter to work, a positioning shaft at the upper end of the lifter enters a positioning groove of a positioning block when an output shaft of the lifter is lifted, the left end of the lifter is jacked up, the lower plane at the left end of the lifter is higher than a cross beam of a steel structure of the three-dimensional parking equipment, and the positioning groove can limit the lifter to move in the left and right directions; in the jacking process, a positioning block at the right end of the lifting frame rotates around a corresponding positioning shaft; the telescopic leveling mechanism of left side work, and the leveling arm stretches out, and the output shaft of lift descends, and the location axle breaks away from the constant head tank of locating piece, and leveling arm overlap joint realizes the leveling function on the crossbeam of sky parking equipment steel construction.
Furthermore, each telescopic leveling mechanism comprises 2 leveling arms which are symmetrically arranged front and back, the leveling arms can be slidably arranged on the lifting frame, and the driving mechanism can drive the 2 leveling arms to extend out or retract.
Through adopting above-mentioned technical scheme, 2 flat layer arms share one set of actuating mechanism, simple structure, and the synchronism is good.
Furthermore, a sliding block is connected on the flat layer arm, the sliding block can slide along a guide shaft, two ends of the guide shaft are connected on the lifting frame through a guide shaft seat, the driving mechanism comprises,
a flat layer gear motor connected to the lifting frame, an output shaft of the flat layer gear motor is a double-shaft extension, two ends of the double-shaft extension are respectively connected with one end of a second transmission shaft,
a rack guide seat connected to the lifting frame and provided with a guide sleeve,
one end of the rack shaft is connected with the inner end of the flat layer arm and can slide along the inner hole of the guide sleeve,
a bearing seat connected with the lifting frame,
one end of the second transmission shaft is connected with an output shaft of the flat-layer speed reduction motor, the other end of the second transmission shaft is rotatably connected on the bearing seat and the end part of the second transmission shaft is connected with a driving gear,
the transition gear is meshed with the driving gear and the rack shaft and is rotatably connected to one end of the gear shaft, and the other end of the gear shaft is fixedly connected to the lifting frame;
the leveling speed reducing motor rotates to drive the transmission shaft to rotate, the driving gear at the end part of the transmission shaft drives the transition gear to rotate, and the transition gear drives the leveling arm to extend or retract through the rack shaft;
when the telescopic leveling mechanism does not work, the leveling arm is in a retraction state;
when the telescopic leveling mechanism works, the leveling arm gradually extends out, the lifting device drives the lifting frame to descend, the outer end of the leveling arm is overlapped on a beam of a steel structure of the three-dimensional parking equipment, the lifting frame is separated from the chassis, and a carrier track on the lifting frame and a parking space guide rail/entrance platform guide rail are positioned on the same plane, so that the leveling function is realized.
By adopting the technical scheme, when the transverse moving trolley moves to the position corresponding to the target parking space, the lifting frame is jacked up by the lifter, and the lower plane of the lifting frame is higher than the cross beam of the steel structure of the three-dimensional parking equipment; when the telescopic leveling mechanism works, the leveling arm extends out, then the lifting frame descends along with the output shaft of the lifter, and the leveling arm is lapped on a cross beam of a steel structure of the three-dimensional parking equipment, so that a carrier rail on the lifting frame and a parking space guide rail are positioned on the same plane, and the leveling function is realized.
The invention has the beneficial effects that:
1. a flat-layer positioning device of each parking space is omitted, so that the equipment has simpler structure, low production cost, high installation efficiency and convenient debugging;
2. two ends set up one set of telescopic mechanism that can independently operate respectively about the sideslip platform truck, and both ends all can carry out the flat bed location about, and two sets of telescopic mechanism of controlling all work under normal condition. Under special conditions, when a parking space is arranged on one side of a roadway, only a lifting device and a telescopic leveling mechanism on one side of the parking space need to be arranged to work;
3. the lifting frame is separated from the chassis after leveling, and the load of the lifting frame acts on the steel structure framework of the mechanical parking equipment. When the vehicle is stored and taken out, the length of the chain or the steel wire rope can be changed, but the vertical position of the chassis can be changed, the lifting frame is not affected, and the leveling precision cannot be reduced.
Drawings
FIG. 1 is an axial view of the present invention (with the lay flat arms not extended).
Fig. 2 is an axial schematic view of the present invention (flat arm extended).
Figure 3 is a schematic side view of the invention (crane in lower position).
Figure 4 is a schematic side view of the invention (crane in the raised position).
Figure 5 is a schematic view of the crane of the present invention.
Fig. 6 is a schematic view of a chassis in the present invention.
FIG. 7 is an axial view of the telescopic leveling mechanism of the present invention.
Fig. 8 is a schematic axial view of the lifting device of the present invention.

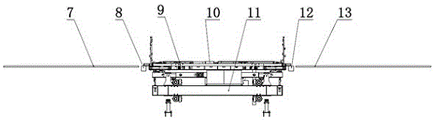

Fig. 9 is a side view of the present invention and a car and parking space.
Fig. 10 is a plan view of the present invention in conjunction with a car and parking space.
In the figure: 1 lifting frame, 1-1 positioning block, 1-2 carrier track, 1-3 motor mounting plate,
2 chassis, 2-1 lifting device mounting base,
3 telescopic leveling mechanism, 3-1 leveling arm, 3-2 rack shaft, 3-3 rack guide seat, 3-4 transition gear, 3-5 driving gear, 3-6 second transmission shaft, 3-7 leveling gear motor, 3-8 guide shaft, 3-9 slide block, 3-10 guide shaft seat and 3-11 bearing seat,
4 a passive walking system, 5 an active walking system,
a 6 lifting device, a 6-1 first transmission shaft, a 6-2 lifter, an output shaft of the 6-3 lifter, a 6-4 positioning shaft, a 6-5 lifting speed reducing motor,
7 left parking spaces, 8 steel structure left beams, 9 transverse trolleys, 10 carriers, 11 lifting cars, 12 steel structure right beams, 13 right parking spaces, 14 vertical rails and 15 hoisting point seats.
Detailed Description
In order to clearly illustrate the technical features of the present solution, the present invention is further illustrated by the following non-limiting examples in combination with the accompanying drawings.
The front, rear, left and right directions of the present invention are described with reference to the front, rear, left and right directions shown in the drawings. For ease of illustration, only the portions relevant to the embodiments of the present invention are shown.
Referring to fig. 1 to 6, a transverse moving trolley with a telescopic automatic leveling device for a vertical lifting mechanical parking device comprises a lifting frame 1, a chassis 2 and a control system, wherein a carrier track 1-2 is arranged on the lifting frame 1, and a passive traveling system 4 and an active traveling system 5 are arranged on the chassis 2; the active traveling system 5 drives the transverse moving trolley 9 to move back and forth along the guide rail on the lifting car 11, and the carrier 10 can move left and right on the lifting frame 1 along the carrier track 1-2;
the traverse trolley 9 is provided with a power supply system, a guardrail, a laser distance measuring device, a detection system such as a vacancy detection device (whether a vehicle exists on a parking space), a vehicle overlong detection device, a vehicle detection device (whether a vehicle exists on the carrier 10), a carrier detection device (whether a carrier 10 exists on the traverse trolley 9) and the like, a wireless communication receiving system and a control system which are all modularized general parts, wherein the control system of the embodiment comprises a PLC, a relay and the like and is arranged in an electric control cabinet (not shown in the figure) in the power supply system.
Referring to fig. 8, a lifting device 6 is arranged between the lifting frame 1 and the chassis 2, and the lifting device 6 drives the lifting frame 1 to perform lifting motion relative to the chassis 2; the lifting device 6 comprises a left lifting device and a right lifting device, the left lifting device and the right lifting device are respectively arranged at two ends of the chassis 2 through a lifting device mounting seat 2-1, the left lifting device comprises a positioning block 1-1, a lifter 6-2 and a lifting speed reduction motor 6-5, the lifter 6-2 and the lifting speed reduction motor 6-5 are fixed on the chassis 2, an output shaft of the lifting speed reduction motor 6-5 is a double-shaft extension, two ends of the double-shaft extension are respectively connected with one end of a first transmission shaft 6-1, the other end of the first transmission shaft 6-1 is connected with an input end of the lifter 6-2, and the end part of an output shaft 6-3 of the lifter is connected with a positioning shaft 6-4; the upper end of the positioning block 1-1 is connected with the lifting frame 1, and the lower end is provided with a positioning groove with a downward opening corresponding to the positioning shaft 6-4 and used for positioning the lifting frame 1 in the left and right directions. The lifter 6-2 is a prior art, such as the utility model No. 201520766666.8 obtained by the applicant, and is not described in detail.
In this embodiment, the output end of the lifting gear motor 6-5 may also be a hollow output shaft and have a structure with a key slot, the first transmission shaft 6-1 matched with the hollow output shaft is a solid shaft with a flat key, and the first transmission shaft 6-1 is connected with the hollow output shaft of the lifting gear motor 6-5 through a key and is radially fixed.
In the embodiment, the vertical section of the upper end part of the output shaft of the lifter is in an inverted V shape, the positioning shaft 6-4 penetrates through the inclined plane of the inverted V shape, and the lower end of the positioning block 1-1 and the upper end part of the output shaft of the lifter are correspondingly provided with a groove with the inverted V-shaped vertical section. When the output shaft 6-3 of the lifter rises, the upper end of the output shaft is inserted into the groove with the inverted V-shaped vertical section at the lower end of the positioning block 1-1, and the two V-shaped inclined planes are attached to each other, so that the lifter 1 can be positioned in the front-back direction. The right lifting device and the left lifting device have the same structure and are not described again.
The left and right ends of the lifting frame 1 are respectively provided with a set of telescopic leveling mechanism 3 capable of independently operating, the telescopic leveling mechanism comprises a left telescopic leveling mechanism and a right telescopic leveling mechanism, the left telescopic leveling mechanism and the right telescopic leveling mechanism are identical in structure and are universal components in the transverse moving trolley 9, the telescopic leveling mechanism is suitable for carriers of a telescopic tooth type and a clamping tire type and is also suitable for carriers of a lifting comb tooth type, please refer to fig. 7, the left telescopic leveling mechanism comprises 2 leveling arms 3-1 which are symmetrically arranged in the front and back, the leveling arms 3-1 can be slidably arranged on the lifting frame 1, and the driving mechanism can simultaneously drive the 2 leveling arms 3-1 to extend or retract. Specifically, 2 sliding blocks 3-9 are connected to the leveling arm 3-1, the sliding blocks 3-9 can slide along a guide shaft 3-8, and two ends of the guide shaft 3-8 are connected to the lifting frame 1 through 1 guide shaft seat 3-10 respectively. The right telescopic leveling mechanism and the left telescopic leveling mechanism have the same structure and are not repeated.
The driving mechanism comprises a rack shaft 3-2, a rack guide seat 3-3, a transition gear 3-4, a driving gear 3-5, a second transmission shaft 3-6, a flat layer speed reducing motor 3-7 and a bearing seat 3-11,
the flat layer gear motor 3-7 is connected to the lifting frame 1 through the motor mounting plate 1-3, the output shaft is a double-shaft extension, and two ends of the double-shaft extension are respectively connected with one end of a second transmission shaft 3-6; the rack guide seat 3-3 is connected to the lifting frame 1 and is provided with a guide sleeve; one end of the rack shaft 3-2 is connected with the inner end of the flat layer arm 3-1 and can slide along the inner hole of the guide sleeve; the bearing seats 3-11 are connected to the lifting frame 1, one end of the second transmission shaft 3-6 is connected with an output shaft of the flat-bed gear motor 3-7, the other end of the second transmission shaft is rotatably connected to the bearing seats 3-11, and the end part of the second transmission shaft is connected with the driving gear 3-5; the transition gear 3-4 is meshed with the driving gear 3-5 and the rack shaft 3-2, the transition gear 3-4 is rotatably connected to one end of the gear shaft, and the other end of the gear shaft is fixedly connected to the lifting frame 1; in the embodiment, the bearing seats 3-11 adopt spherical outside surface ball bearings with square seat jackscrews.
In this embodiment, the output end of the flat-layer gear motor 3-7 may also be a hollow output shaft and have a structure of a key groove, the second transmission shaft 3-6 matched with the output end may be a solid shaft with a flat key, the second transmission shaft 3-6 is connected with the hollow output shaft of the flat-layer gear motor 3-7 through a key and is radially fixed, and the spherical outside surface ball bearing with the square base jackscrew is provided with a jackscrew, and can axially fix the second transmission shaft 3-6.
Referring to fig. 9 and 10, the leveling reduction motor 3-7 rotates to drive the second transmission shaft 3-6 to rotate, the driving gear 3-2 at the end of the second transmission shaft 3-6 drives the transition gear 3-4 to rotate, and the transition gear 3-4 drives the leveling arm 3-1 to extend or retract through the rack shaft 3-2;
when the telescopic leveling mechanism 3 does not work, the leveling arm 3-1 is in a retraction state;
when the telescopic leveling mechanism 3 works, the leveling arm 3-1 gradually extends out, the lifting device 6 drives the lifting frame 1 to descend, the outer end of the leveling arm 3-1 is overlapped on a cross beam of a steel structure of the three-dimensional parking equipment, the lifting frame 1 is separated from the chassis 2, and a carrier track on the lifting frame 1 and a parking space guide rail/entrance platform guide rail are positioned on the same plane, so that the leveling function is realized.
The lifting gear motor 6-5 and the leveling gear motor 3-7 are connected with a control system.
The operation of this embodiment is described below with reference to the accompanying drawings:
fig. 9 and 10 are schematic diagrams of vehicle access, parking spaces are provided on both sides of the roadway, and the operation process of vehicle access in this embodiment is described below by taking a vehicle access in a left parking space as an example.
When the transverse trolley 9 does not store or take vehicles, the telescopic leveling mechanism 3 is in a non-working state, and the leveling arm 3-1 is in a retraction state, so that the normal operation of the transverse trolley 9 in the lifting car 11 is not influenced;
1. initial state: an output shaft 6-3 of a lifter of the lifting device 6 is at a low position of the stroke, and the lifting frame 1 is at the low position at the moment; the leveling arm 3-1 is in a retraction state;
2. storing in the vehicle: the transverse moving trolley 9 and the carrier 10 parked above the transverse moving trolley 9 jointly move to the garage entrance of the parked vehicle, the control system controls the lifting speed reducing motor 6-5 to work, the output shaft 6-3 of the lifter rises, the lifting frame 1 is jacked up, and jacking is continued to enable the lower plane of the lifting frame 1 to be higher than the entrance platform; the control system controls the leveling speed reducing motor 3-7 to work, and the leveling arm 3-1 extends out; the control system controls the lifting speed reducing motor 6-5 to work, the lifting frame 1 descends along with the output shaft 6-3 of the lifter, and the leveling arm 3-1 is lapped on the inlet platform, so that the carrier track on the lifting frame 1 and the inlet platform guide rail are positioned on the same plane, and the leveling function is realized. The control system starts the carrier 10, carries the vehicles parked on the entrance platform onto the carrier 10, and then returns to the transverse trolley 9 together; the control system controls the lifting speed reducing motor 6-5 to work, and the lifting frame 1 rises along with the output shaft 6-3 of the lifter; the control system controls the leveling speed reducing motor 3-7 to work, and the leveling arm 3-1 retracts; the control system controls the lifting speed reducing motor 6-5 to work, the lifting frame 1 descends along with the output shaft 6-3 of the lifter, and the lifting frame 1 is at a low position;
the main lifting driving system drives a lifting chain, the lifting chain is connected with a lifting point seat 15 on a lifting car 11, the lifting car 11 is driven to move to a target parking layer along a vertical rail 14 arranged on a steel structure, then a transverse trolley 9 carries a carrier 10 and a vehicle to jointly move to a designated left parking space 7, the control system controls a lifting speed reduction motor 6-5 to work, an output shaft 6-3 of the carrier is lifted, the lifting frame 1 is lifted, and the lifting frame 1 is continuously lifted to enable the lower plane of the lifting frame 1 to be higher than a cross beam of the steel structure of the three-dimensional parking equipment; the control system controls the leveling speed reducing motor 3-7 to work, and the leveling arm 3-1 extends out; the control system controls the lifting speed reducing motor 6-5 to work, the lifting frame 1 descends along with the output shaft 6-3 of the lifter, and the flat layer arm 3-1 is lapped on a cross beam of a steel structure of the three-dimensional parking equipment, so that a carrier track on the lifting frame 1 and a parking space guide rail are positioned on the same plane, and the flat layer function is realized. The control system starts the carrier 10, the carrier 10 carries the vehicle to the left parking space 7 and then returns to the transverse trolley 9, the control system controls the lifting speed reducing motor 6-5 to work, and the lifting frame 1 rises along with the output shaft 6-3 of the lifting frame; the control system controls the leveling speed reducing motor 3-7 to work, and the leveling arm 3-1 retracts; the control system controls the lifting speed reducing motor 6-5 to work, the lifting frame 1 descends along with the output shaft 6-3 of the lifter, the lifting frame 1 is at a low position, and the initial state is recovered; the vehicle storing action is finished;
3. taking out the vehicle: after a control system issues a vehicle taking-out command, a main lifting driving system drives a lifting chain, the lifting chain is connected with a lifting point seat 15 on a lifting car 11, the lifting car 11 is driven to move to a target parking layer along a vertical rail 14 arranged on a steel structure, a transverse moving trolley 9 carries a carrier 10 to jointly move to a left parking space 7 for storing vehicles, the control system controls a lifting speed reduction motor 6-5 to work, an output shaft 6-3 of the carrier is lifted, a lifting frame 1 is lifted up, and the lifting frame 1 is continuously lifted up to enable the lower plane of the lifting frame 1 to be higher than a cross beam of the steel structure of the three-dimensional parking equipment; the control system controls the leveling speed reducing motor 3-7 to work, and the leveling arm 3-1 extends out; the control system controls a lifting speed reducing motor 6-5 to work, the lifting frame 1 descends along with an output shaft 6-3 of the lifter, and the leveling arm 3-1 is lapped on a cross beam of a steel structure of the three-dimensional parking equipment, so that a carrier track on the lifting frame 1 and a guide rail of a parking space are positioned on the same plane, and the leveling function is realized;
the control system starts the carrier 10, carries the vehicle parked on the left parking space 7 to the carrier 10, and then returns to the transverse trolley 9; the control system controls the lifting speed reducing motor 6-5 to work, and the lifting frame 1 rises along with the output shaft 6-3 of the lifter; the control system controls the leveling speed reducing motor 3-7 to work, and the leveling arm 3-1 retracts; the control system controls the lifting speed reducing motor 6-5 to work, the lifting frame 1 descends along with the output shaft 6-3 of the lifter, and the lifting frame 1 is at a low position;
the main lifting driving system drives a lifting chain, the lifting chain is connected with a lifting point seat 15 on the lifting car 11, the lifting car 11 is driven to move to a parking layer where an exit is located along a vertical rail 14 arranged on a steel structure, and then the trolley 9 carries the carrier 10 and the vehicle to move together to a position corresponding to the exit;
the control system controls a lifting speed reducing motor 6-5 to work, an output shaft 6-3 of the lifter rises, the lifting frame 1 is jacked up, and jacking is continued to enable the lower plane of the lifting frame 1 to be higher than the outlet platform; the control system controls the leveling speed reducing motor 3-7 to work, and the leveling arm 3-1 extends out; the control system controls the lifting speed reducing motor 6-5 to work, the lifting frame 1 descends along with the output shaft 6-3 of the lifter, and the leveling arm 3-1 is lapped on the outlet platform, so that the carrier track on the lifting frame 1 and the guide rail of the outlet platform are positioned on the same plane, and the leveling function is realized. The control system starts the carrier 10, the carrier 10 carries the vehicle to the outlet platform and then returns to the transverse trolley 9, the control system controls the lifting speed reducing motor 6-5 to work, and the lifting frame 1 rises along with the output shaft 6-3 of the lifting frame; the control system controls the leveling speed reducing motor 3-7 to work, and the leveling arm 3-1 retracts; the control system controls the lifting speed reducing motor 6-5 to work, the lifting frame 1 descends along with the output shaft 6-3 of the lifter, the lifting frame 1 is at a low position, and the initial state is recovered; then the garage door is opened automatically, and the driver drives the vehicle out to finish the vehicle taking.
When a parking space is arranged on one side of the roadway, if the parking space is arranged on the left side, and a steel structure beam is not arranged on the right side (if the right side is a wall), the left lifting device and the left telescopic leveling mechanism at the left end of the transverse trolley 9 only need to move, and the right lifting device and the right telescopic leveling mechanism at the right end do not work; a lifting speed reduction motor 6-5 of the left lifting device drives a lifter 6-2 to work, when an output shaft 6-3 of the lifter is lifted, a positioning shaft 6-4 at the upper end of the lifter enters a positioning groove of a positioning block 1-1, the left end of the lifter 1 is jacked up, so that the lower plane of the left end of the lifter 1 is higher than a cross beam of a steel structure of the three-dimensional parking equipment, and the positioning groove can limit the lifter 1 to move in the left and right directions; in the jacking process, a positioning block 1-1 at the right end of the lifting frame 1 rotates around a corresponding positioning shaft 6-4; the left telescopic leveling mechanism works, the leveling arm 3-1 extends out, the output shaft 6-3 of the lifter descends, the positioning shaft 6-4 is separated from the positioning groove of the positioning block 1-1, and the leveling arm 3-1 is lapped on a beam of a steel structure of the three-dimensional parking equipment, so that the leveling function is realized. Other processes for accessing the vehicle are the same as the above embodiment.
In the description of the present invention, it should be noted that the terms "left", "right", "front", "back", "upper", "lower", "inner", "outer", etc., indicate orientations or positional relationships based on those shown in the drawings, and the above terms are only for convenience in describing the present invention and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention.
Unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are intended to be inclusive and mean, for example, that they may be fixedly connected, detachably connected, or integrally connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
In addition to the technical features described in the specification, the technology is known to those skilled in the art.
The above-mentioned embodiments are only for understanding the present invention, and are not intended to limit the technical solutions of the present invention, and those skilled in the art can make various changes or modifications based on the technical solutions described in the claims, and all equivalent changes or modifications should be covered by the scope of the claims of the present invention.
Claims (3)
1. The utility model provides a sideslip platform truck for vertical lift type mechanical parking equipment with telescopic automatic flat bed device, includes the chassis, sets up traveling system, carrier track on the chassis, and traveling system drive sideslip platform truck moves along the guide rail back-and-forth movement on the lift car, and the carrier can remove its characterized in that about the carrier track: the mechanical parking equipment is characterized by further comprising a lifting frame, the carrier rail is arranged on the lifting frame, a lifting device is arranged between the lifting frame and the chassis, the lifting device drives the lifting frame to do lifting motion relative to the chassis, a telescopic leveling mechanism is arranged on the lifting frame, and the load of the lifting frame acts on a steel structure framework of the mechanical parking equipment when the leveling mechanism works;
the lifting device comprises a left lifting device and a right lifting device, the left lifting device and the right lifting device have the same structure and respectively comprise a positioning block, a lifter and a lifting speed reducing motor, the lifter and the lifting speed reducing motor are fixed on the chassis, an output shaft of the lifting speed reducing motor is a double-shaft extension, two ends of the double-shaft extension are respectively connected with one end of a first transmission shaft, the other end of the first transmission shaft is connected with an input end of the lifter, and the end part of the output shaft of the lifter is connected with a positioning shaft; the upper end of the positioning block is connected with the lifting frame, and the lower end of the positioning block is provided with a positioning groove corresponding to the positioning shaft;
the vertical section of the upper end part of the output shaft of the lifter is in an inverted V shape, the positioning shaft penetrates through the inclined plane of the inverted V shape, and the lower end of the positioning block and the upper end part of the output shaft of the lifter are correspondingly provided with grooves with inverted V-shaped vertical sections;
the telescopic leveling mechanism comprises a left telescopic leveling mechanism and a right telescopic leveling mechanism, the left telescopic leveling mechanism and the right telescopic leveling mechanism have the same structure and respectively comprise a leveling arm and a driving mechanism for driving the leveling arm to extend or retract; the left telescopic leveling mechanism and the right telescopic leveling mechanism are respectively arranged at the left end and the right end of the lifting frame and can independently operate;
when the telescopic leveling mechanism does not work, the leveling arm is in a retraction state;
when the telescopic leveling mechanism works, the leveling arm gradually extends out, the lifting device drives the lifting frame to descend, the outer end of the leveling arm is overlapped on a beam of a steel structure of the three-dimensional parking equipment, the lifting frame is separated from the chassis, and a carrier track on the lifting frame and a parking space guide rail/entrance platform guide rail are positioned on the same plane, so that the leveling function is realized.
2. The traverse carriage for a vertical lift type mechanical parking apparatus having a telescopic auto leveling device according to claim 1, characterized in that: each telescopic leveling mechanism all include 2 leveling arms that the front and back symmetry set up, leveling arm slidable ground sets up on the crane, actuating mechanism can drive 2 leveling arms simultaneously and stretch out or retract.
3. The traverse carriage for a vertical lift type mechanical parking apparatus having a telescopic auto leveling device according to claim 2, characterized in that: the leveling arm is connected with a slide block which can slide along a guide shaft, two ends of the guide shaft are connected with the lifting frame through a guide shaft seat, the driving mechanism comprises,
a flat layer gear motor connected to the lifting frame, an output shaft of the flat layer gear motor is a double-shaft extension, two ends of the double-shaft extension are respectively connected with one end of a second transmission shaft,
a rack guide seat connected to the lifting frame and provided with a guide sleeve,
one end of the rack shaft is connected with the inner end of the flat layer arm and can slide along the inner hole of the guide sleeve,
a bearing seat connected with the lifting frame,
one end of the second transmission shaft is connected with an output shaft of the flat-layer speed reduction motor, the other end of the second transmission shaft is rotatably connected on the bearing seat and the end part of the second transmission shaft is connected with a driving gear,
the transition gear is meshed with the driving gear and the rack shaft and is rotatably connected to one end of the gear shaft, and the other end of the gear shaft is fixedly connected to the lifting frame;
the leveling gear motor rotates to drive the second transmission shaft to rotate, the driving gear at the end part of the second transmission shaft drives the transition gear to rotate, and the transition gear drives the leveling arm to extend or retract through the rack shaft.
Priority Applications (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
CN202010970160.4A CN112081438B (en) | 2020-09-16 | 2020-09-16 | Transverse moving trolley with telescopic automatic leveling device for vertical lifting mechanical parking equipment |
Applications Claiming Priority (1)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
CN202010970160.4A CN112081438B (en) | 2020-09-16 | 2020-09-16 | Transverse moving trolley with telescopic automatic leveling device for vertical lifting mechanical parking equipment |
Publications (2)
Publication Number | Publication Date |
---|---|
CN112081438A CN112081438A (en) | 2020-12-15 |
CN112081438B true CN112081438B (en) | 2022-03-04 |
Family
ID=73736757
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
CN202010970160.4A Active CN112081438B (en) | 2020-09-16 | 2020-09-16 | Transverse moving trolley with telescopic automatic leveling device for vertical lifting mechanical parking equipment |
Country Status (1)
Country | Link |
---|---|
CN (1) | CN112081438B (en) |
Families Citing this family (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN112727207B (en) * | 2021-01-30 | 2022-09-09 | 武汉智象机器人有限公司 | Single-motor gear-driven external clamping type carrier for large pneumatic tires and using method |
Family Cites Families (7)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
DE1434831A1 (en) * | 1964-04-03 | 1969-03-27 | Schuechtermann & Kremer Baum A | Device for parking garages |
JP4544441B2 (en) * | 2000-03-27 | 2010-09-15 | Ihi運搬機械株式会社 | Parallel elevator type parking system |
CN206053478U (en) * | 2016-08-23 | 2017-03-29 | 广东明和智能设备有限公司 | A kind of push rod flat bed mechanism |
CN207436611U (en) * | 2017-10-20 | 2018-06-01 | 四川志泰立体车库有限公司 | A kind of intelligent machine Garage lifting flat bed positioning safety device |
CN207905426U (en) * | 2017-12-29 | 2018-09-25 | 广东明和智能设备有限公司 | A kind of stereo garage Transport Vehicle flat bed detent mechanism |
CN110485780B (en) * | 2019-09-03 | 2024-03-26 | 山东天辰智能停车有限公司 | Transverse moving trolley with swing arm type automatic leveling device for car type mechanical parking equipment |
CN110616934A (en) * | 2019-10-15 | 2019-12-27 | 山东天辰智能停车有限公司 | Entrance and exit device with 180-degree rotary disc device for modular parking equipment |
-
2020
- 2020-09-16 CN CN202010970160.4A patent/CN112081438B/en active Active
Also Published As
Publication number | Publication date |
---|---|
CN112081438A (en) | 2020-12-15 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
CN112282462B (en) | Method for storing and taking vehicles by using transverse trolley with leveling device and rotation function | |
CN110485780B (en) | Transverse moving trolley with swing arm type automatic leveling device for car type mechanical parking equipment | |
CN211543559U (en) | Wheel changing system | |
CN112081439B (en) | Method for storing and taking vehicles by using transverse moving trolley with telescopic automatic leveling device | |
CN104234487A (en) | Cylindrical multi-layer parking device with a rotary guide rail support | |
CN112081438B (en) | Transverse moving trolley with telescopic automatic leveling device for vertical lifting mechanical parking equipment | |
CN110748215A (en) | Suspension train warehouse-in and warehouse-out system, suspension train transfer device and suspension garage | |
CN107965186B (en) | Comb-tooth type three-dimensional parking equipment | |
CN112282461B (en) | Sideslip platform truck with telescopic automatic leveling device and gyration function | |
CN210714016U (en) | Transverse moving trolley with swing arm type automatic leveling device for car mechanical parking equipment | |
CN112227789A (en) | Vertical lifting type intelligent stereo garage | |
CN204081604U (en) | A kind of rail brackets rotational circle tubular Multilayer parking equipment | |
CN216341292U (en) | Automobile carrier for stacking type stereo garage | |
CN112478559B (en) | Primary and secondary car | |
CN1351218A (en) | 4-column dual-counterweight car stacker | |
CN210973486U (en) | Positioning device for lifting equipment of AGV (automatic guided vehicle) | |
CN211776256U (en) | Suspension type lifting beam type three-dimensional transfer platform | |
CN210393483U (en) | Longitudinal climbing device for super-huge steel structure | |
CN108999444B (en) | A upper mechanical parking equipment for community | |
CN109537956B (en) | Multi-layer parking equipment with lifting and transverse moving mechanism | |
CN207377224U (en) | A kind of comb-tooth-type automobile transverse direction intelligent carrier | |
CN108678456B (en) | Avoidance-free stereo garage | |
CN209556475U (en) | A kind of melt pit platen in solid bus garage | |
CN109057445B (en) | Roller type car carrying plate storage device for three-dimensional parking lot and three-dimensional parking lot | |
CN221682611U (en) | Space-earth rail stereo garage |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
PB01 | Publication | ||
PB01 | Publication | ||
SE01 | Entry into force of request for substantive examination | ||
SE01 | Entry into force of request for substantive examination | ||
GR01 | Patent grant | ||
GR01 | Patent grant |
