Medical intelligent sharing folding accompanying bed convenient for changing clothes

Technical Field

The invention relates to the field of accompanying beds, in particular to a medical intelligent sharing folding accompanying bed convenient for changing clothes.

Background

More than 8000 million inpatients exist in China, the inpatients have strong psychological demands on companions, and most of the patients hope that the companions accompany the inpatients in the period. Market research shows that each hospital accompanying person is generally self-provided with the bedding for self-purchase or rents simple bedding temporarily, but needs to make an appointment and carry back and forth, and accompanying person's bedding management is often a difficult problem in ward management, and the bedding that removes can influence and whole environment, puts everywhere, blocks up the passageway easily, has the potential safety hazard. The existing nursing bed in hospital is large in size, heavy, large in noise, affects rest, occupies hospital space, namely ward space, wastes resources by adopting beds, occupies manpower resources for managing the beds, needs manual registration when renting the beds, is time-consuming and labor-consuming, is large in folding and opening noise, is not adjustable in width and height, is narrow and uncomfortable for nursing staff to use, is too low to leave the ground, has large peculiar smell, requires full-day nursing for many patients in hospital according to investigation, has the sleeping function only according to the sleeping posture of half lying most comfortable for the investigation, can better care patients, is not used for eating in wards during the long-term nursing period of the hospital, is inconvenient for changing clothes due to public occasions, and cannot take off clothes at night, the toilet is not provided with a mirror, a lot of lady cosmetics can only go to a toilet, a clothes hanger is not used for airing after bed sheets and clothes in hospitals are washed, and disinfection can not be carried out through sufficient ultraviolet rays in sunlight.

Disclosure of Invention

In order to overcome the defects in the background art, the invention discloses a medical intelligent sharing folding accompanying bed convenient for changing clothes, the height and the width of the accompanying bed can be adjusted through a folding mechanism, the intelligent sharing folding accompanying bed can adapt to people of different body types, prevent a user from contacting with peculiar smell on the ground, can be folded, saves space, has firm structure, has large contact area with the ground and is provided with a rubber pad, has low noise, can pull out a curtain through a curtain pulling mechanism, is convenient for accompanying personnel to change clothes, can be taken off at night for sleeping, reduces brightness, improves the sleeping quality of the accompanying personnel, enables the accompanying personnel to eat on the bed through a universal table mechanism, looks after a mirror and the like, has convenient use, small folding occupied space, firm structure and long service life, enables the accompanying personnel to lie half for caring for patients through a headrest mechanism, inflates, expands, is soft and comfortable, is convenient to store, stores components through a storage mechanism, has small occupied space, the movable clothes hanger is convenient and labor-saving to move, can be used as a clothes hanger, and is clean and sanitary.

In order to realize the purpose, the invention adopts the following technical scheme:

a medical intelligent sharing folding accompanying and attending bed convenient for changing clothes comprises a receiving mechanism, wherein a folding mechanism is stored in the receiving mechanism and can be folded; the folding mechanism is not less than ten, the folding mechanism comprises a first assembly, a second assembly, a third assembly and a fourth assembly, wherein a first long rod which is not less than five is fixed on the first assembly at equal intervals, a first short rod which is not less than five is fixed on the first assembly at equal intervals in the direction perpendicular to the first long rod, a second long rod which is not less than five is fixed on the second assembly at equal intervals, a second short rod which is not less than five is fixed on the second assembly at equal intervals in the direction perpendicular to the second long rod, a third long rod which is not less than five is fixed on the third assembly at equal intervals in the direction perpendicular to the third long rod, a fourth long rod which is not less than five is fixed on the fourth assembly at equal intervals in the direction perpendicular to the fourth long rod, and a fourth short rod which is not less than five is fixed on the fourth assembly at equal intervals in the direction perpendicular to the fourth long rod, inserting grooves are formed in the first long rod and the second long rod, inserting pieces are fixed on the third long rod and the fourth long rod and are connected in the inserting grooves in a sliding mode, two pairs of fixing holes are formed in the first short rod, the second short rod, the third short rod and the fourth short rod at equal intervals respectively, fixing rods are inserted into the fixing holes, and guardrails are fixed on the first assembly and the fourth assembly; the folding mechanism is provided with a curtain pulling mechanism, the curtain pulling mechanism comprises a telescopic pipe, the telescopic pipe is fixed on the fourth component, the tail end of the telescopic pipe is fixed with a stopper, the telescopic pipe is connected with a pull ring in a sliding way, a clamp is fixed on the pull ring, and a curtain groove is fixed on the side surface of the fourth component.

The folding table is characterized in that a universal table mechanism is placed on the folding mechanism and comprises two fixing plates, at least three mounting grooves are formed in the two fixing plates respectively, mounting holes penetrating through the fixing plates are formed in the middle of the three mounting grooves respectively, a rotating shaft is inserted into the mounting holes, a table top is fixed on the rotating shaft, and a mirror is fixed on one surface of the table top.

The folding mechanism is provided with a back cushion mechanism, the back cushion mechanism comprises an air bag, and an air inlet one-way valve and a valve are arranged on the air bag.

The folding mechanism is placed in the storage mechanism after being folded, the storage mechanism comprises a box body, a draw-bar box is arranged on the box body, a pull rod is connected to the draw-bar box in a sliding mode, a telescopic rod is fixed to the upper end of the pull rod, a box door is connected to the box body through a hinge, an intelligent lock is installed on the box door, a bed sheet curtain storage sub-cabinet, a universal table storage sub-cabinet and a bed body storage cabinet are installed in the box body, wheels are installed on one side, close to the pull rod, of the bottom of the box body, and the bottom of the box body is provided with a wheel.

Rubber sheets or other shockproof materials are adhered to the bottoms of the second long rod and the third long rod.

The length of the fixing rod is approximately equal to that of the second assembly, and the first short rod, the second short rod, the third short rod and the fourth short rod are close to one of the middle parts of the folding mechanism and are not provided with the folding mechanism.

Due to the adoption of the technical scheme, the invention has the following beneficial effects:

the folding type nursing bed has the advantages that the height and the width of the nursing bed can be adjusted through the folding mechanism, the folding type nursing bed is suitable for people of different body types, peculiar smell of a user contacting with the ground is avoided, the folding type nursing bed is foldable, the space is saved, the structure is firm, the rubber pad is arranged in a large contact area with the ground, the noise is low, the curtain can be pulled out through the curtain pulling mechanism, the nursing personnel can conveniently change clothes, the clothes can be taken off and sleep at night, the brightness is reduced, the sleeping quality of the nursing personnel is improved, the nursing personnel can eat on the bed through the universal table mechanism, the mirror and the like can be looked after, the folding type nursing bed is convenient to use, the occupied space is small, the folding type nursing bed is firm in structure and long in service life, the nursing personnel can semi-lie to care for the patient through the headrest mechanism, the patient can be inflated and expanded, is soft, comfortable and convenient to store, the storage assembly is small in occupied space, convenient and labor-saving to move, and can be used as a clothes hanger, and is clean and sanitary.

Drawings

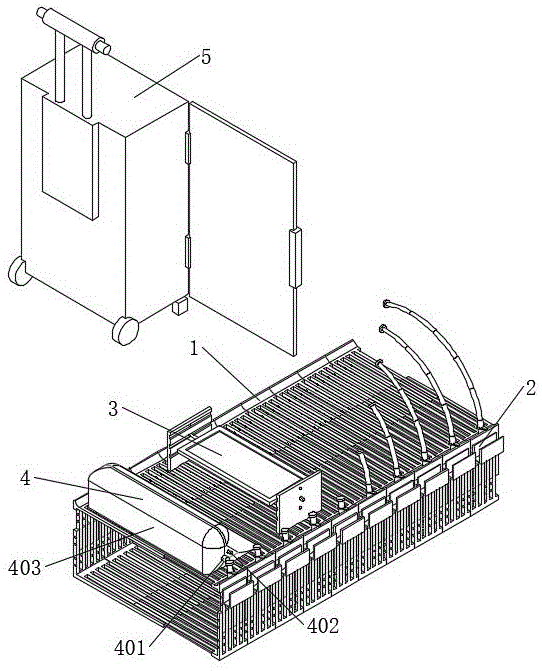

FIG. 1 is a schematic perspective view of the present invention;

FIG. 2 is a schematic perspective view of the curtain mechanism of the present invention;

FIG. 3 is a schematic perspective view of the storage mechanism of the present invention;

FIG. 4 is a schematic perspective view of the universal table mechanism of the present invention;

FIG. 5 is an enlarged view of a portion of the present invention at A;

FIG. 6 is a transverse cross-sectional view of a fixation rod of the present invention;

fig. 7 is a sectional view of the bed surface of the present invention.

1. A folding mechanism; 101. a first component; 102. a first long rod; 103. a first short bar; 104. a second component; 105. a second short bar; 106. a second long rod; 107. a third component; 108. a third long rod; 109. a third short bar; 110. a fourth component; 111. a fourth short bar; 112. a fourth long rod; 113. a plug-in unit; 114. inserting grooves; 115. a fixing hole; 116. fixing the rod; 117. a guardrail; 2. A curtain pulling mechanism; 201. a telescopic pipe; 202. a stopper; 203. a pull ring; 204. a clip; 205. a curtain groove; 3. a universal table mechanism; 301. a fixing plate; 302. mounting holes; 303. mounting grooves; 304. a desktop; 305. a rotating shaft; 4. a headrest mechanism; 401. an air inlet check valve; 402. a valve; 403. an air bag; 5. a storage mechanism; 501. a box body; 502. a rod drawing box; 503. a pull rod; 504. a telescopic rod; 505. a wheel; 506. cushion blocks; 507. a box door; 508. an intelligent lock; 509. a storage sub-cabinet for the bed sheet cord fabric; 510. a universal table storage sub-cabinet; 511. a bed body storage cabinet; .

Detailed Description

The present invention will be explained in detail by the following examples, which are disclosed for the purpose of protecting all technical improvements within the scope of the present invention.

Combine 1~7 of attached drawing a medical intelligence sharing of being convenient for changing dressings folding bed of accompanying and attending to, including receiving mechanism 5, receiving mechanism 5 internal storage has folding mechanism 1, characterized by: the folding mechanism 1 is foldable.

The folding mechanism 1 is not less than ten, the folding mechanism 1 comprises a first component 101, a second component 104, a third component 107 and a fourth component 110, wherein not less than five first long rods 102 are equidistantly fixed on the first component 101, not less than five first short rods 103 are equidistantly fixed on the first component 101 in the direction perpendicular to the first long rods 102, not less than five second long rods 106 are fixed on the second component 104, not less than five second short rods 105 are equidistantly fixed on the second component 104 in the direction perpendicular to the second long rods 106, not less than five third long rods 108 are equidistantly fixed on the third component 107, not less than five third short rods 109 are equidistantly fixed on the third component 107 in the direction perpendicular to the third long rods 108, not less than five fourth long rods 112 are equidistantly fixed on the fourth component 110, not less than five fourth short rods 111 are equidistantly fixed on the fourth component 110 in the direction perpendicular to the fourth long rods 112, the first long rod 102 and the second long rod 106 are provided with inserting grooves 114, the third long rod 108 and the fourth long rod 112 are fixed with inserting pieces 113, the inserting pieces 113 are slidably connected in the inserting grooves 114, the first short rod 103, the second short rod 105, the third short rod 109 and the fourth short rod 111 are respectively provided with two pairs of fixing holes 115 at equal intervals, the fixing holes 115 are inserted with fixing rods 116, and the first component 101 and the fourth component 110 are fixed with guardrails 117.

The folding mechanism 1 is provided with a curtain drawing mechanism 2, the curtain drawing mechanism 2 comprises an extension tube 201, the extension tube 201 is fixed on the fourth component 110, a stopper 202 is fixed at the end of the extension tube 201, a pull ring 203 is connected on the extension tube 201 in a sliding manner, a clip 204 is fixed on the pull ring 203, and a curtain groove 205 is fixed on the side surface of the fourth component 110.

Placed general purpose table mechanism 3 on folding mechanism 1, general purpose table mechanism 3 includes fixed plate 301, and fixed plate 301 has two, has seted up on two fixed plate 301 respectively and is no less than three mounting groove 303, and the mounting hole 302 that runs through fixed plate 301 is seted up respectively at the middle part of three mounting groove 303, and it has pivot 305 to peg graft on the mounting hole 302, is fixed with desktop 304 in the pivot 305, and the one side of desktop 304 is fixed with the mirror.

The headrest mechanism 4 is placed on the folding mechanism 1, the headrest mechanism 4 comprises an air bag 403, and an air inlet one-way valve 401 and a valve 402 are arranged on the air bag 403.

Folding mechanism 1 places in receiving mechanism 5 after folding, receiving mechanism 5 includes box 501, be equipped with on the box 501 and take out pole case 502, sliding connection has pull rod 503 on taking out pole case 502, the upper end of pull rod 503 is fixed with telescopic link 504, there is the chamber door 507 through hinge connection on the box 501, install intelligent lock 508 on the chamber door 507, install sheet curtain cloth storage sub-cabinet 509 in the box 501, general purpose table storage sub-cabinet 510 and bed body storage cabinet 511, wheel 505 is installed to one side that the bottom of box 501 is close to pull rod 503, one side that wheel 505 was kept away from to the bottom of box 501 is fixed with cushion 506.

Rubber sheets or other shockproof materials are adhered to the bottoms of the second long rod 106 and the third long rod 108.

The length of the fixing rod 116 is approximately equal to that of the second component 104, and one of the first short rod 103, the second short rod 105, the third short rod 109 and the fourth short rod 111 near the middle of the folding mechanism 1 is not provided with the folding mechanism 1.

When the intelligent sharing folding accompanying and attending bed is used, when the bed is not used, the pull rod 503 can be pulled out from the pull rod box 502, the box body 501 is inclined, the box body 501 can be conveniently and laborsaving moved under the action of the wheels 505, when clothes need to be aired, the box body 501 is pulled under the sunlight, the pull rod 503 is pulled out, the telescopic rod 504 is expanded in two directions, the clothes can be aired on the telescopic rod 504, when the bed needs to be used, the intelligent lock 508 can be automatically opened only by code scanning for payment, a user firstly takes out the folding mechanism 1, adjusts the proper height, aligns the fixing hole 115 on the first short rod 103 with the fixing hole 115 on the second short rod 105, inserts the front and the rear fixing rods 116 into the front and the rear parts respectively, adjusts the third short rod 109 and the fourth short rod 111 to the same height in the same step, inserts the front and the rear fixing rods 116 into the front and the rear parts respectively, pulls the fourth long rod 112 and the third long rod 108 from the first long rod 102 and the fixing rods 116, adjusting the folding mechanism 1 to a proper width, adjusting another folding mechanism 1 in the same step, finally inserting four fixing rods 116 at the front and rear sides into other folding mechanisms 1, assembling more than ten folding mechanisms 1 to obtain a stable bed body with determined height and width, taking the curtain out of the bed sheet curtain storage sub-cabinet 509, placing the curtain in the curtain groove 205, clamping the same side of the curtain by using the clamp 204, when a user needs to change clothes or sleep, holding the stopper 202 with the hand, pulling the telescopic tube 201 into a semicircular arc shape, pulling the pull ring 203 from one side of the telescopic tube 201 to the other side, driving the curtain to form a closed space by using the telescopic tube 201 as a framework, taking the universal table mechanism 3 out of the universal table storage sub-cabinet 510, selecting a proper height, inserting the rotating shaft 305 into the mounting hole 302 on the fixing plate 301, and matching the rotating shaft 305 and the mounting hole 302 with a certain pre-tightening force, when the face with the mirror on the desktop 304 is rotated to a proper angle, the appearance state can be made up and arranged, when a user eats or operates a computer, the desktop 304 is rotated to a horizontal position, the face with the mirror on the desktop 304 faces downwards, the desktop 304 is clamped into the corresponding mounting groove 303, the position of the desktop 304 is locked, the user can use the device, when the headrest mechanism 4 needs to be used, the headrest mechanism 4 is taken out of the bed curtain storage sub-cabinet 509, the air is inflated into the air bag 403 through the air inlet one-way valve 401 by the air cylinder, the device can be used after being placed at the head of the bed after a certain time, when a patient is discharged or does not use the device, the valve 402 is opened, the air in the air bag 403 is discharged, the headrest mechanism 4 is placed into the bed curtain storage sub-cabinet 509, the universal table mechanism 3 is disassembled in the opposite steps, the universal table storage sub-cabinet 510 is placed, the fixing rods 116 in the fixing holes 115 are sequentially pulled out, and the height of the folding mechanism 1 is adjusted to a lowest state, the fixing rod 116 is inserted back, the folding mechanism 1 is pushed towards the middle, the first long rod 102 and the fourth long rod 112 slide relatively, the width of the folding mechanism 1 can be adjusted to be narrowest, the bed body storage cabinet 511 is placed back, the box door 507 is closed, and the intelligent lock 508 is locked.

It should be noted that the smart lock is a product known in the prior art, such as: the NB-IoT intelligent lock realizes the unlocking of the intelligent lock after the payment is carried out through the conventional payment platform by scanning the two-dimensional code arranged on the box door through the mobile phone.

While the present invention has been particularly shown and described with reference to the preferred embodiments, it will be understood by those skilled in the art that various changes in form and details may be made therein without departing from the spirit and scope of the invention as defined by the appended claims.

Claims

1. An intelligent shared foldable escort bed for medical use, which is convenient for changing clothes, comprising a storage mechanism (5), wherein a folding mechanism (1) is stored in the storage mechanism (5), and is characterized in that: the folding mechanism (1) is a Foldable; the folding mechanism (1) is not less than ten, and the folding mechanism (1) includes a first component (101), a second component (104), a third component (107) and a fourth component ( 110), no less than five first long rods (102) are equidistantly fixed on the first assembly (101), and the first assembly (101) is perpendicular to the first long rods (102) No less than five first short rods (103) are fixed equidistantly, and no less than five second long rods (106) are fixed on the second component (104), and the second component (104) ) are equidistantly fixed with no less than five second short rods (105) in a direction perpendicular to the second long rod (106), and no less than five second short rods (105) are equidistantly fixed on the third component (107). A third long rod (108), no less than five third short rods (109) are fixed equidistantly in a direction perpendicular to the third long rod (108) on the third assembly (107), and the third short rod (109) No less than five fourth long rods (112) are equidistantly fixed on the four components (110), and many fourth long rods (112) are equidistantly fixed on the fourth component (110) in a direction perpendicular to the fourth long rod (112). On the five fourth short rods (111), the first long rod (102) and the second long rod (106) are provided with insertion slots (114), the third long rod (108) and the fourth long rod (108) A plug connector (113) is fixed on the long rod (112), the plug connector (113) is slidably connected in the plug groove (114), the first short rod (103), the second short rod (105) ), the third short rod (109) and the fourth short rod (111) are respectively provided with two pairs of fixing holes (115) equidistantly, and a fixing rod (116) is inserted into the fixing holes (115), and the A guardrail (117) is fixed on the first component (101) and the fourth component (110); a curtain pulling mechanism (2) is installed on the folding mechanism (1), and the curtain pulling mechanism (2) includes a telescopic tube (201) , the telescopic tube (201) is fixed on the fourth component (110), a stopper (202) is fixed at the end of the telescopic tube (201), and a pull ring (203) is slidably connected to the telescopic tube (201). ), a clip (204) is fixed on the pull ring (203), and a curtain groove (205) is fixed on the side of the fourth component (110).

2. The intelligent shared foldable escort bed for medical use which is convenient for changing clothes according to claim 1, characterized in that: a universal table mechanism (3) is placed on the folding mechanism (1), and the universal table mechanism (3) Including fixing plates (301), there are two fixing plates (301), the two fixing plates (301) are respectively provided with not less than three installation grooves (303), the three Mounting holes (302) penetrating the fixing plate (301) are respectively provided in the middle of the mounting slots (303), and a rotating shaft (305) is inserted into the mounting holes (302), and a table top is fixed on the rotating shaft (305). (304), a mirror is fixed on one side of the table top (304).

3 . The intelligent shared foldable escort bed for medical use that is convenient for changing clothes according to claim 1 , wherein: the folding mechanism ( 1 ) is provided with a pillow mechanism ( 4 ), and the pillow mechanism ( 4 ) comprises: 4 . An airbag (403), the airbag (403) is provided with an air intake check valve (401) and a valve (402).

4. The intelligent shared foldable escort bed for medical use that is convenient for changing clothes according to claim 3, wherein the folding mechanism (1) is placed in a storage mechanism (5) after being folded, and the storage mechanism (5) is placed in the storage mechanism (5). ) comprises a box body (501), a draw rod box (502) is arranged on the box body (501), a pull rod (503) is slidably connected to the draw rod box (502), and the upper end of the pull rod (503) A telescopic rod (504) is fixed, a box door (507) is connected to the box body (501) through hinges, a smart lock (508) is installed on the box door (507), and the box body (501) A bed sheet and curtain storage sub-cabinet (509), a universal table storage sub-cabinet (510) and a bed body storage cabinet (511) are installed inside, and wheels are installed on the side of the bottom of the box (501) close to the pull rod (503). (505), a spacer block (506) is fixed on the side of the bottom of the box body (501) away from the wheel (505).

5. The intelligent shared folding escort bed for medical use that is convenient for changing clothes according to claim 1, characterized in that: rubber sheets are adhered to the bottoms of the second long rod (106) and the third long rod (108). or other shockproof materials.

6. The intelligent shared foldable escort bed for medical use that is convenient for changing clothes according to claim 5, characterized in that: the length of the fixing rod (116) is approximately equal to the second component (104), and the first short rod (103), the second short rod (105), the third short rod (109) and the fourth short rod (111) close to the middle of the folding mechanism (1) without the folding mechanism (1).
