Abstract

The invention relates to the technical field of building energy-saving boards, and discloses an environmental protection device for recycling waste materials in the cutting process of building energy-saving boards, comprising a frame, a driving device is fixedly installed at the left end inside the frame, and an upper end inside the frame is rotatably connected with a screw. During the movement of the moving block, the device drives the extrusion rod to move, and the extrusion rod drives the support plate to move. During the movement of the support rod to the support rod on the other side, the extrusion bag can be squeezed, and then the volume of the bag can be squeezed. Reduced, in a deflated state, the compression plate moves upward, so that before cutting, the dust and other substances on the plate can be blown away for easy cutting, and then when the moving block moves to the right, the distance between the two support plates Increase, the compressing plate moves downward, and the squeezing bag inhales air, so that the waste formed after the cutting can be absorbed first, and then the waste is compressed, so as to achieve the effect of convenient recycling and processing of the waste.

Description

An environmental protection device for waste recycling in the cutting process of building energy-saving panels

technical field

The invention relates to the technical field of building energy-saving boards, in particular to an environmental protection device for recycling wastes during the cutting process of building energy-saving boards.

Background technique

Building energy efficiency refers to the process of reducing energy consumption as much as possible and continuously improving energy utilization efficiency during the production of building materials, the construction and use of housing and structures, and under the conditions that the same needs are met.

Existing energy-saving building boards will generate a lot of waste when they are cut, and these wastes will splash around with the cutting blades, and need to manually handle the waste manually, first collect them together, and then put them into the waste. In the bag, it is finally compressed and packed, the recycling process is troublesome, and there will be a lot of dust in the waste during the cutting process, which will pollute the working environment of workers and cause lung infection.

In view of the above-mentioned problems, there is an urgent need for a board cutting device that can not only be cut conveniently, but also can recycle and press the waste material during the cutting process, so as to facilitate the packaging and collection of waste materials. Recycled eco-friendly device.

SUMMARY OF THE INVENTION

(1) Technical problems solved

In view of the deficiencies of the prior art, the present invention provides an environmental protection device for recycling waste materials in the cutting process of building energy-saving boards, which has the advantages of convenient cutting, can recycle waste materials, absorb dust, etc. The problem with the scrap recycling function.

(2) Technical solutions

In order to realize the above-mentioned convenience of cutting, and can recycle waste materials, absorb dust and other purposes, the present invention provides the following technical solutions: an environmental protection device for recycling waste materials during the cutting process of building energy-saving boards, including a frame, and the left end inside the frame is fixedly installed There is a driving device, the upper end of the inside of the frame is rotatably connected with a screw rod, the right end of the screw rod is engaged with a moving block, the lower end of the moving block is fixedly installed with a telescopic device, and the lower end of the telescopic device is fixedly installed with a cutting device, A squeeze rod is movably installed between the telescopic device and the left end of the cutting device, a support plate is fixedly installed between the left end of the squeeze rod and the inner wall of the frame, and the two support plates are fixed by a return spring A squeeze bag is installed, a rubber plate is fixedly installed at the upper and lower ends of the support plate, a guide rod is movably hinged on the upper end of the support plate, and a fixed rod is movably installed inside the support plate at the lower end of the telescopic guide rod, The lower end of the fixed rod is movably installed with a compression plate, the lower end of the support plate is fixedly connected with a transverse plate through the movable rod, the front end of the transverse rod is fixedly installed with a feeding pipe, and the front end of the feeding pipe is fixedly installed with a transverse plate. suction pipe.

Preferably, a transmission chain is fixedly installed between the driving device and the screw rod, and the driving device drives the screw rod to rotate through the transmission chain.

Preferably, the telescopic device includes: an adjustment box, a telescopic rod is movably installed at the lower end of the adjustment box, an electric push rod is fixedly installed on the upper end of the telescopic rod, the moving block is driven by the screw to move, and the moving block drives the telescopic device and the cutting device to move, In the cutting process, the movement of the electric push rod can be controlled by controlling the adjustment box, and the electric push rod drives the movement of the telescopic rod. In conjunction with the cutting device, the cutting device can manually intervene to adjust the cutting depth during the moving cutting process, so as to achieve automatic cutting. and can change the effect of the depth of cut.

Preferably, a sliding groove is fixedly installed between the support plate and the extrusion rod, and the connection relationship between the extrusion rod and the sliding groove is a sliding connection. During the movement of the moving block, the extrusion rod is driven to move, and the extrusion rod drives the support When the plate moves, during the movement of the support rod to the support rod on the other side, the extrusion bag can be squeezed, and then the volume of the extrusion bag is reduced and is in a deflated state, and the compression plate moves upward, so that before cutting, the extrusion bag can be compressed. The dust and other substances on the plate are blown away, which is convenient for cutting, then when the moving block moves to the right, the distance between the two support plates increases, the compression plate moves down, and the squeezing bag inhales air, so that the cutting can be completed first The waste formed after that is absorbed, and then the waste is compressed, so as to achieve the effect of convenient recycling and processing of the waste.

Preferably, the lower end of the fixing rod is provided with a groove cavity, and an adjusting spring is fixedly installed between the upper end of the compression plate and the groove cavity, and the adjusting spring can prevent the compression plate from pressing too much on the cross rod due to excessive waste and crushing.

Preferably, the rubber plate is of arc-shaped design, and the rubber plates at the upper and lower ends of the support plate are of seal design. The advantage of the seal design is to prevent dust from leaking out of the support plate and cause environmental pollution.

Preferably, the squeezing bag is fixedly installed at the rear end of the fixing rod, and when the squeezing bag provides suction, the gas can suck the waste material into the interior of the support plate through the feeding pipe.

Preferably, the suction pipe and the extrusion bag are designed to communicate with each other, and the front end of the feed pipe is provided with a suction groove corresponding to the suction pipe, and the suction groove can only pass gas and cannot enter waste.

(3) Beneficial effects

Compared with the prior art, the present invention provides an environmental protection device for recycling waste materials in the cutting process of building energy-saving boards, which has the following beneficial effects:

1. The environmental protection device for recycling waste during the cutting process of building energy-saving panels, through the movement of the moving block, drives the extrusion rod to move, the extrusion rod drives the support plate to move, and the support rod moves to the support rod on the other side. Squeeze the extrusion bag, then the volume of the extrusion bag is reduced, in a deflated state, and the compression plate moves upward, so that before cutting, the dust and other substances on the plate can be blown away, which is convenient for cutting, and then the block is moved. When moving to the right, the distance between the two support plates increases, and the compression plate moves downward, squeezing the bag to inhale, so that the waste formed after cutting can be absorbed first, and then the waste can be compressed, so as to achieve The effect of convenient recycling and disposal of waste.

2. The environmental protection device for recycling waste during the cutting process of building energy-saving panels, drives the moving block to move through the screw, and the moving block drives the telescopic device and the cutting device to move. The rod drives the telescopic rod to move, and in conjunction with the cutting device, the cutting device can manually intervene to adjust the cutting depth during the moving cutting process, thereby achieving the effect of automatic cutting and changing the cutting depth.

Description of drawings

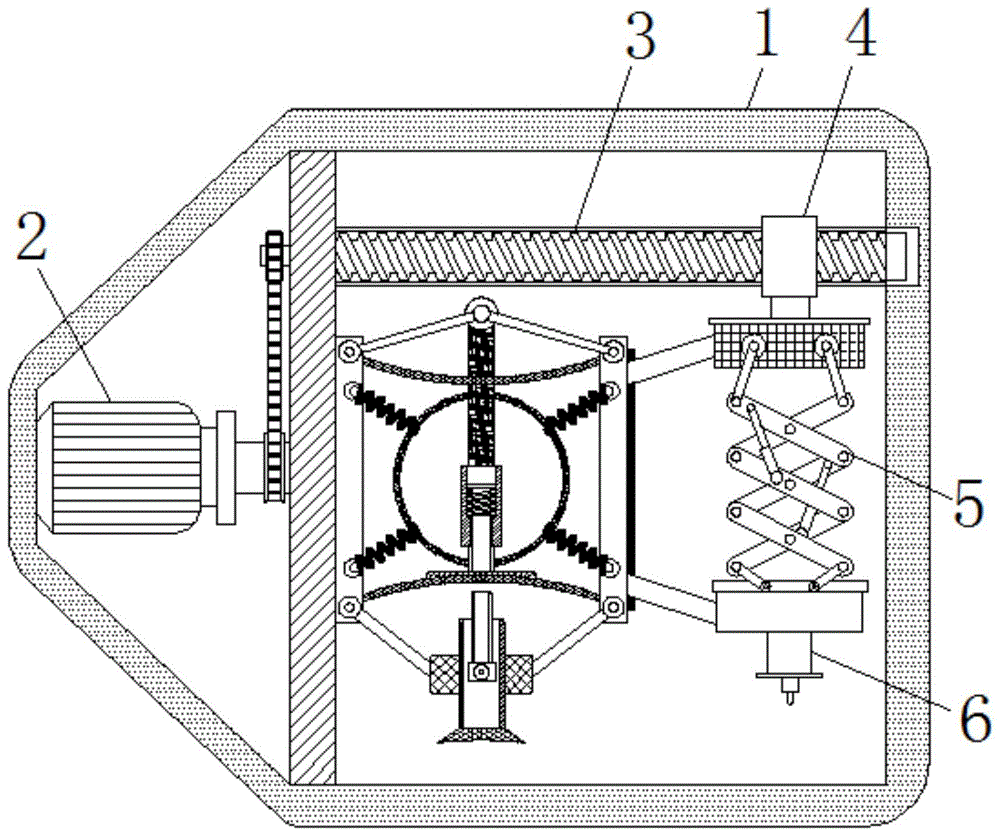

1 is a schematic front view of the overall structure of the present invention;

Fig. 2 is the front schematic view of the support plate structure of the present invention;

Fig. 3 is the enlarged schematic diagram of structure A in Fig. 2 of the present invention;

Figure 4 is a schematic diagram of the rear view of the support plate structure of the present invention;

FIG. 5 is a schematic side view of the crossbar structure of the present invention.

In the picture: 1 frame, 2 driving device, 3 screw rod, 4 moving block, 5 telescopic device, 6 cutting device, 7 extrusion rod, 8 support plate, 9 return spring, 10 extrusion bag, 11 rubber plate, 12 guide rod , 13 fixed rods, 14 compression plates, 15 movable rods, 16 cross rods, 17 feed pipes, 18 suction pipes.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Figures 1-5, an environmental protection device for recycling waste during the cutting process of building energy-saving boards, including a frame 1, a drive device 2 is fixedly installed at the left end of the frame 1, and a transmission chain is fixedly installed between the drive device 2 and the screw 3 , the driving device 2 drives the screw 3 to rotate through the transmission chain, the upper end of the frame 1 is connected with the screw 3 in rotation, the right end of the screw 3 is engaged with the moving block 4, and the lower end of the moving block 4 is fixedly installed with a telescopic device 5. The telescopic device 5 includes : Adjustment box, the lower end of the adjustment box is movably installed with a telescopic rod, and the upper part of the telescopic rod is fixedly installed with an electric push rod. The screw 3 drives the moving block 4 to move, and the moving block 4 drives the telescopic device 5 and the cutting device 6 to move. During the cutting process In the process, the movement of the electric push rod can be controlled by controlling the adjustment box, and the electric push rod drives the movement of the telescopic rod. In conjunction with the cutting device 6, the cutting device 6 can manually intervene to adjust the cutting depth during the moving cutting process, thereby achieving automatic cutting. and effects that can change the depth of cut.

A cutting device 6 is fixedly installed at the lower end of the telescopic device 5 , an extrusion rod 7 is movably installed between the telescopic device 5 and the left end of the cutting device 6 , and a support plate is fixedly installed between the left end of the extrusion rod 7 and the inner wall of the frame 1 8. A sliding groove is fixedly installed between the support plate 8 and the extrusion rod 7. The connection between the extrusion rod 7 and the sliding groove is a sliding connection. During the movement of the moving block 4, the extrusion rod 7 is driven to move, and the extrusion rod 7. Drive the support plate 8 to move. During the movement of the support rod 8 to the support rod 8 on the other side, the squeeze bag 10 can be squeezed, and then the squeeze bag 10 is reduced in volume and is in a deflated state, and the compression plate 14 is upward. so that the dust and other substances on the plate can be blown away before cutting, which is convenient for cutting, and then when the moving block 4 moves to the right, the distance between the two support plates 8 increases, and the compression plate 14 moves downward, The squeezing bag 10 inhales, so that the waste formed after cutting can be absorbed first, and then the waste is compressed, thereby achieving the effect of convenient recycling and processing of the waste.

A squeeze bag 10 is fixedly installed between the two support plates 8 through the return spring 9, and the squeeze bag 10 is fixedly installed at the rear end of the fixing rod 13. When the squeeze bag 10 provides suction, the gas can pass the waste material through the feeding pipe 17 is sucked into the interior of the support plate 8, the upper and lower ends of the support plate 8 are fixedly installed with rubber plates 11, the rubber plates 11 are arc-shaped design, and the rubber plates 11 at the upper and lower ends of the support plate 8 are sealed design, sealed design The advantage is to prevent dust from leaking out of the support plate 8, causing environmental pollution. The upper end of the support plate 8 is hinged with a guide rod 12, and the lower end of the telescopic guide rod 12 is movably installed inside the support plate 8 with a fixed rod 13. The fixed rod The lower end of 13 is provided with a groove cavity, and an adjusting spring is fixedly installed between the upper end of the compression plate 14 and the groove cavity. A compression plate 14 is movably installed at the lower end of the support plate 8, a transverse plate 16 is fixedly connected to the lower end of the support plate 8 through a movable rod 15, a feeding pipe 17 is fixedly installed at the front end of the transverse rod 16, and a suction pipe is fixedly installed at the front end of the feeding pipe 17. 18. The suction pipe 18 and the extrusion bag 10 are designed to communicate with each other. The front end of the feed pipe 17 is provided with a suction groove corresponding to the suction pipe 18. The suction groove can only pass gas and cannot enter waste.

Working principle: In the process of using the device, firstly, the driving device 2 drives the screw 3 to rotate through the transmission chain, the screw 3 drives the moving block 4 to move, and the moving block 4 drives the telescopic device 5 and the cutting device 6 to move. By controlling the adjustment box to control the movement of the electric push rod, the electric push rod drives the movement of the telescopic rod, and in conjunction with the cutting device 6, the cutting device 6 can manually intervene to adjust the cutting depth during the moving cutting process, so as to achieve automatic cutting and can be changed. The effect of cutting depth; during the movement of the moving block 4, it drives the extrusion rod 7 to move, the extrusion rod 7 drives the support plate 8 to move, and the support rod 8 moves to the support rod 8 on the other side. Then, the volume of the extrusion bag 10 is reduced and in a deflated state, the compression plate 14 moves upward, so that before cutting, the dust and other substances on the plate can be blown away, which is convenient for cutting, and then the moving block 4 moves toward When moving to the right, the distance between the two support plates 8 increases, the compression plate 14 moves downward, and the squeezing bag 10 inhales, so that the waste formed after cutting can be absorbed first, and then the waste can be compressed, thereby The effect of convenient recycling and disposal of waste has been achieved.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (1)

1. An environmental protection device for recycling waste in a cutting process of building energy-saving boards, comprising a frame (1), characterized in that a drive device (2) is fixedly installed at the left end inside the frame (1), and the frame (1) The upper end of the interior is rotatably connected with a screw (3), the right end of the screw (3) is engaged with a moving block (4), and a telescopic device (5) is fixedly installed on the lower end of the moving block (4). A cutting device (6) is fixedly installed at the lower end of (5), and a squeeze rod (7) is movably installed between the telescopic device (5) and the left end of the cutting device (6). Two support plates (8) are fixedly installed between the left end and the inner wall of the frame (1), and a squeeze bladder (10) is fixedly installed between the two support plates (8) through a return spring (9), so The upper and lower ends of the support plate (8) are fixedly installed with rubber plates (11), the upper end of the support plate (8) is hinged with a guide rod (12), and the lower end of the guide rod (12) is supported A fixing rod (13) is movably installed inside the plate (8), a compression plate (14) is movably installed at the lower end of the fixing rod (13), and the lower end of the supporting plate (8) is fixedly connected by the movable rod (15). There is a cross bar (16), the front end of the cross bar (16) is fixedly installed with a feed pipe (17), and the front end of the feed pipe (17) is fixedly installed with a suction pipe (18); A transmission chain is fixedly installed between the driving device (2) and the screw rod (3); the telescopic device (5) includes an adjustment box, a telescopic rod is movably installed at the lower end of the adjustment box, and an electric motor is fixedly installed on the upper end of the telescopic rod putter; A sliding groove is fixedly installed between the support plate (8) and the extrusion rod (7), and the connection relationship between the extrusion rod (7) and the sliding groove is a sliding connection; The lower end of the fixing rod (13) is provided with a groove cavity, and an adjusting spring is fixedly installed between the upper end of the compression plate (14) and the groove cavity; the rubber plate (11) is of arc-shaped design and is a support plate (8). ) The rubber plates (11) at the upper and lower ends are designed for sealing; The extrusion bag (10) is fixedly installed at the rear end of the fixing rod (13); the suction pipe (18) and the extrusion bag (10) are designed to communicate with each other, and the front end of the feed pipe (17) is opened There is a suction groove corresponding to the suction pipe (18); During use, firstly, the drive device (2) is activated, and the drive chain drives the screw (3) to rotate, the screw (3) drives the moving block (4) to move, and the moving block (4) drives the telescopic device (5) and the The cutting device (6) moves. During the cutting process, the movement of the electric push rod is controlled by the control adjustment box, and the electric push rod drives the movement of the telescopic rod, and then cooperates with the cutting device (6) to realize the cutting device (6). Intervening to adjust the cutting depth, so as to achieve the effect of automatic cutting and changing the cutting depth; during the movement of the moving block (4), the extrusion rod (7) is driven to move, and the extrusion rod (7) drives the support plate (8) to move, During the movement of the support plate (8) to the support plate (8) on the other side, the squeeze bladder (10) is squeezed, and then the squeeze bladder (10) is reduced in volume and is in a deflated state, and the compression plate (14) ) moves upward, so that before cutting, the dust and other substances on the plate are blown away for easy cutting, and then when the moving block (4) moves to the right, the distance between the two support plates (8) increases, compressing the plate (14) Move downward, and squeeze the bag (10) to inhale, so as to first absorb the waste formed after the cutting is completed, and then compress the waste.
