CN112043419B - Cleaning and sterilizing device for postoperative appliance for minimally invasive surgery - Google Patents

Abstract

The invention belongs to the technical field of postoperative appliance cleaning and disinfection devices, in particular to a postoperative appliance cleaning and disinfection device for minimally invasive surgery, including a casing, the bottom of the casing is provided with a base, and one side of the casing is provided with a set of One side of the casing and one side of the moving door are provided with an operation panel; wherein, a moving slot is opened at the bottom of the inner cavity of the casing, and an installation cavity is opened at the bottom of the moving slot, and an installation cavity is provided in the installation cavity The moving mechanism matched with the moving groove, the top of the moving mechanism is evenly equipped with three installation mechanisms, a number of high-pressure gun heads are evenly arranged on the inner cavity side wall of the casing, an atomizing nozzle is arranged between the two high-pressure gun heads, and the high-pressure gun The connection between the nozzle and the inner wall of the casing and between the atomizing nozzle and the inner wall of the casing are respectively connected by an angle adjustment mechanism; all the utensils fixed on the installation mechanism are thoroughly cleaned and sterilized, which saves the loss of manpower.

Description

A device for cleaning and disinfecting postoperative utensils in minimally invasive surgery

technical field

The invention belongs to the technical field of postoperative appliance cleaning and disinfection devices, and in particular relates to a postoperative appliance cleaning and disinfection device for minimally invasive surgery.

Background technique

Early operations were limited to simple manual methods of cutting, cutting, and suturing on the body surface, such as abscess drainage, tumor resection, and trauma suture. Surgery is thus an operation that destroys the integrity of tissue (incision) or restores tissue whose integrity has been compromised (suturing). With the development of surgery, the field of surgery has been continuously expanded, and it can be performed on any part of the human body.

Because the surgical equipment can be used repeatedly, but after the surgical operation is completed, the used equipment in the surgical process needs to be cleaned and disinfected in time to prepare for the next operation. But at present, most of the cleaning and disinfection of the utensils used in the operation process are done manually by medical staff, and this cleaning and disinfection method will consume a lot of manpower and cost At the same time, after cleaning and disinfecting the appliances, they need to be put into a disinfection and drying device to dry the appliances so that they can be used for the next operation in a short period of time, which makes it cumbersome to carry out the operation on the appliances. Cleaning and disinfection work.

In order to solve the above problems, the present application proposes a device for cleaning and disinfecting postoperative utensils for minimally invasive surgery.

Contents of the invention

In order to solve the problems raised in the above-mentioned background technology. The invention provides a device for cleaning and disinfecting postoperative utensils used in minimally invasive surgery, which has the characteristics of high cleaning and disinfection efficiency.

In order to achieve the above object, the present invention provides the following technical solutions: a device for cleaning and disinfecting postoperative appliances for minimally invasive surgery, including a casing, the bottom of the casing is provided with a base, and one side of the casing is provided with a set of The movable door cooperates with each other, and an operation panel is arranged on one side of the casing and on the side of the movable door; wherein, a moving groove is opened at the bottom end of the inner cavity of the casing, and a moving groove is opened at the bottom end of the moving groove. There is an installation cavity, and a moving mechanism matching the moving slot is arranged in the installation cavity, three installation mechanisms are evenly arranged on the top of the moving mechanism, and a number of high-voltage A gun head, an atomizing nozzle is arranged between the two high-pressure gun heads, and between the high-pressure gun head and the inner wall of the inner cavity of the casing and between the atomizing nozzle and the inner wall of the inner cavity of the casing are respectively They are all connected by an angle adjustment mechanism. Two secondary pressurization devices are respectively arranged inside the casing and on both sides of the inner cavity of the casing, and the two sides of the four secondary pressurization devices are respectively There are main pipes, one main pipe extends to the outside of the casing, and the other main pipe is connected to the front of the high-pressure gun head and between the other main pipe and the atomizing spray head through branch pipes. A number of germicidal lamps are evenly arranged on the top of the inner cavity of the casing, and a number of fans are evenly arranged between every two rows of the germicidal lamps.

As a preferred cleaning and disinfection device for minimally invasive surgery post-operative utensils of the present invention, the moving mechanism includes a moving triangular chassis arranged in the installation cavity, and a moving triangular groove is opened on the top of the moving triangular chassis, and the The inner side of the moving triangular groove is provided with a moving circular groove, and a moving motor is arranged below the moving triangular chassis, and the rotating shaft of the moving motor extends to the top of the moving triangular chassis and is connected with a moving gear, and the outer side of the moving gear Three moving toothed discs are evenly arranged, and a group of moving sliding posts are symmetrically interspersed on the top of one of the moving toothing discs. Mounting mechanism connection.

As a preferred device for cleaning and disinfecting postoperative appliances for minimally invasive surgery of the present invention, the outer wall of each side of the moving triangular groove is respectively provided with a moving installation groove, and the inside of the moving installation groove is provided with a moving rotating rod. The moving rotating rod is connected with the moving installation groove through a rotating shaft.

As a preferred cleaning and disinfection device for post-operative utensils used in minimally invasive surgery in the present invention, the installation mechanism includes installation frames arranged on the top ends of the two moving sliding columns, and a cavity is opened in the transverse direction of the installation frame, and the Two sets of installation cavities are symmetrically opened on the two side walls of the cavity, and the installation components are arranged in the installation cavities, and the fixing components matching the installation components are arranged in the cavity.

As a preferred cleaning and disinfection device for post-operative utensils used in minimally invasive surgery in the present invention, the mounting assembly includes a mounting rack arranged in the mounting cavity, and one side of the mounting rack is provided with a Install the half gear, the side of the installation half gear away from the installation rack is provided with an installation cylinder, the installation cylinder is connected with the installation cavity through the installation shaft, and the installation cylinder is far away from one side of the installation half gear A mounting handle is provided on the side, and the end of the mounting handle away from the mounting cylinder extends to the outside of the mounting frame.

As a preferred cleaning and disinfection device for post-operative utensils used in minimally invasive surgery in the present invention, the installation assembly further includes an installation column arranged on one side of the installation rack, and the installation column is away from the side of the installation rack An installation limit post matched with the fixing assembly is provided, and the installation spring is arranged on the side of the installation post far away from the installation rack, and the bottom end of the installation post is set There is an installation protruding block, and an installation limiting groove matching with the installation protruding block is opened on the installation post.

As a preferred cleaning and disinfection device for postoperative utensils used in minimally invasive surgery in the present invention, the fixing assembly includes a fixing frame arranged in the cavity, and the inner cavity of the fixing frame is evenly provided with three groups of fixing columns, each A number of fixing blocks are respectively arranged on the fixing posts, elastic ropes are arranged at the bottom of the fixing blocks, connecting components are arranged at the bottom of the elastic ropes, and a group of A fixing hole matched with the mounting assembly.

As a preferred cleaning and disinfection device for post-operative utensils used in minimally invasive surgery in the present invention, the connection assembly includes a connection block arranged at the bottom end of the elastic rope, and a connection chute is provided at the bottom end of the connection block, and the connection There are two connecting sliders arranged in the chute, the bottom end of the connecting slider is provided with connecting clips, the inner sides of the two connecting clips are respectively provided with connecting cavities, and one of the connecting clips is located on the connecting clip. A threaded hole is opened above the cavity, and a connecting screw matched with the threaded hole is interspersed on the other connecting clamp and located above the connecting cavity.

As a preferred cleaning and disinfection device for post-operative utensils used in minimally invasive surgery in the present invention, the angle adjustment mechanism includes adjustment shafts arranged on both sides of the atomizing nozzle, and the adjustment shaft is connected to the casing through the adjustment connection block. The side wall of the inner cavity is connected, and an adjustment gear is arranged on one of the adjustment shafts between the adjustment connection block and the atomizing spray head, and a gear is arranged on one side of the adjustment gear, and the gear is far away from the One side of the atomizing spray head is provided with an adjusting motor matched with it, and the adjusting motor is located inside the casing.

Compared with the prior art, the beneficial effect of the present invention is: by setting the moving mechanism, the installation mechanism and other devices to cooperate, so that in the specific use process, by fixing the used appliances in the operation on the installation mechanism, and Driven by the moving mechanism, the reciprocating rotation is realized in the inner cavity of the casing, and the utensils are cleaned through the high-pressure gun head, and the disinfected liquid is sprayed through the atomizing nozzle, and then all the utensils fixed on the installation mechanism can be cleaned. Thorough cleaning and disinfection saves manpower loss, and at the same time, the cleaned and disinfected utensils can be dried.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the description, and are used together with the embodiments of the present invention to explain the present invention, and do not constitute a limitation to the present invention. In the attached picture:

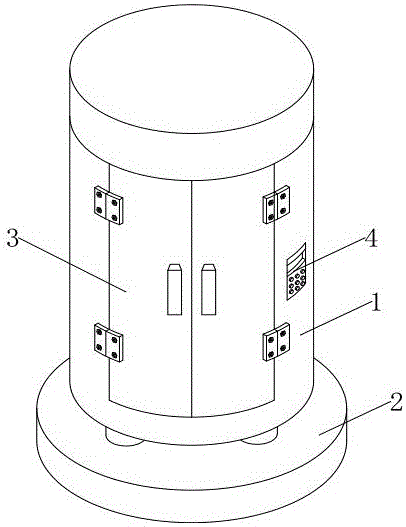

Fig. 1 is a structural representation of the present invention;

Fig. 2 is the cross-sectional structure schematic diagram among the present invention;

Fig. 3 is a schematic structural diagram of a moving mechanism in the present invention;

Fig. 4 is the structural representation of moving rotating rod among the present invention;

Fig. 5 is a structural schematic diagram of the mounting assembly of the present invention;

Fig. 6 is a schematic structural view of the fixing assembly in the present invention;

Fig. 7 is a schematic structural diagram of the connection assembly in the present invention;

Fig. 8 is a structural schematic diagram of the angle adjustment mechanism in the present invention;

In the figure: 1, casing; 101, moving slot; 102, installation cavity; 2, base; 3, moving door; 4, operation panel; 5, moving mechanism; 501, moving triangular chassis; 502, moving motor; 503, Moving gear; 504, moving triangular groove; 505, moving circular groove; 506, moving sliding column; 507, moving installation groove; 508, moving toothed plate; 509, moving rotating rod; 6, installation mechanism; , cavity; 603, installation cavity; 604, installation component; 605, fixed component; 606, installation rack; 607, installation half gear; 608, installation cylinder; 609, installation shaft; 610, installation handle; 611, installation Post; 612, install limit column; 613, install spring; 614, install raised block; 615, install limit groove; 616, fixed frame; 617, fixed post; 618, fixed block; Connection assembly; 621, connection block; 622, connection chute; 623, connection slider; 624, connection clamp; 625, connection cavity; 626, threaded hole; 627, connection screw; 628, fixing hole; ; 8, atomizing nozzle; 9, angle adjustment mechanism; 901, adjustment shaft; 902, adjustment connection block; 903, adjustment gear; 904, gear; 905, adjustment motor; 10, secondary pressure device; 11, main pipe; 12. In charge; 13. Germicidal lamp; 14. Fan; 15. Water collection tank; 16. Water collection hole.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

Example 1

As shown in Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8;

Fig. 1 is a structural representation of the present invention;

Fig. 2 is the cross-sectional structure schematic diagram among the present invention;

Fig. 3 is a schematic structural diagram of a moving mechanism in the present invention;

Fig. 4 is the structural representation of moving rotating rod among the present invention;

Fig. 5 is a structural schematic diagram of the mounting assembly of the present invention;

Fig. 6 is a schematic structural view of the fixing assembly in the present invention;

Fig. 7 is a schematic structural diagram of the connection assembly in the present invention;

Fig. 8 is a schematic structural diagram of the angle adjustment mechanism in the present invention.

A device for cleaning and disinfecting postoperative appliances for minimally invasive surgery. An operation panel 4 is provided on one side of the movable door 3; wherein, a moving groove 101 is provided at the bottom end of the inner cavity of the casing 1, and an installation chamber 102 is provided at the bottom end of the moving groove 101, and a mobile The moving mechanism 5 matched with the groove 101, the top of the moving mechanism 5 is evenly provided with three installation mechanisms 6, and a number of high-pressure gun heads 7 are evenly arranged on the inner cavity side wall of the casing 1, and a number of high-pressure gun heads 7 are arranged between the two high-pressure gun heads 7 The atomizing nozzle 8, the high-pressure gun head 7 and the inner wall of the casing 1, and the atomizing nozzle 8 and the inner wall of the casing 1 are respectively connected by an angle adjustment mechanism 9. The inside of the casing 1 is located in the casing 1. Two secondary pressurization devices 10 are respectively provided on both sides of the inner cavity, and header pipes 11 are respectively arranged on both sides of the four secondary pressurization devices 10. One header pipe 11 extends to the outside of the casing 1, and the other The front of the main pipe 11 and the high-pressure gun head 7, and between the other main pipe 11 and the atomizing nozzle 8 are respectively connected by branch pipes 12. The top of the inner cavity of the casing 1 is evenly equipped with a number of germicidal lamps 13, and between every two rows of germicidal lamps 13 Several blowers 14 are evenly arranged.

In this embodiment: by setting the mobile mechanism 5, the angle adjustment mechanism and other devices to cooperate, so that in the specific use process, each part of each used minimally invasive surgery postoperative appliance can be fully cleaned and disinfected , thereby facilitating the use of medical personnel; meanwhile, by setting a germicidal lamp 13 and a blower fan 14 at the top of the inner cavity of the casing 1, the minimally invasive surgical instruments after cleaning and disinfection can be sterilized and dried; at the same time, the casing The atomizing nozzle 8 and the high-pressure gun head 7 arranged on the left side of the inner cavity of the 1 are connected to the secondary pressurization device 10 on the left side, and the atomizing nozzle 8 and the high-pressure gun head 7 on the right side of the inner cavity of the casing 1 are connected to the secondary pressure device 10 on the right side. The secondary pressurizing device 10 is connected.

As shown in Figure 2, Figure 3, and Figure 4;

Fig. 2 is the cross-sectional structure schematic diagram among the present invention;

Fig. 3 is a schematic structural diagram of a moving mechanism in the present invention;

Fig. 4 is a schematic diagram of the structure of the mobile rotary rod in the present invention.

In an optional embodiment, the moving mechanism 5 includes a moving triangular chassis 501 arranged in the installation cavity 102, a moving triangular slot 504 is opened on the top of the moving triangular chassis 501, and a moving circular slot 505 is opened on the inner side of the moving triangular slot 504. A mobile motor 502 is arranged below the mobile triangular chassis 501, and the rotating shaft of the mobile motor 502 extends to the top of the mobile triangular chassis 501 to connect with the mobile gear 503. A group of moving sliding columns 506 are interspersed symmetrically on the top of the disc 508. The bottom of the moving sliding columns 506 matches the moving triangular groove 504, and the top of the moving sliding columns 506 is connected with the installation mechanism 6. The outer walls of each side of the moving triangular groove 504 are respectively A mobile installation slot 507 is provided, and a mobile rotation rod 509 is arranged inside the mobile installation slot 507, and the mobile rotation rod 509 is connected with the mobile installation slot 507 through a rotating shaft.

In this embodiment: by setting the moving mechanism 5, in the specific use process, the power provided by the moving motor 502 can make the installation mechanism 6 rotate in the inner cavity of the casing 1, so that it can be fixed on the installation mechanism 6 Thoroughly clean post-operative minimally invasive surgical instruments.

As shown in Figure 2, Figure 5, Figure 6 and Figure 7;

Fig. 2 is the cross-sectional structure schematic diagram among the present invention;

Fig. 5 is a structural schematic diagram of the mounting assembly of the present invention;

Fig. 6 is a schematic structural view of the fixing assembly in the present invention;

Fig. 7 is a schematic structural diagram of the connection assembly in the present invention.

In an optional embodiment, the installation mechanism 6 includes an installation frame 601 arranged at the top of the two moving sliding columns 506. A cavity 602 is opened in the transverse direction of the installation frame 601, and the two side walls of the cavity 602 are respectively symmetrical. There are two sets of installation cavities 603 , the installation cavities 603 are provided with installation components 604 , and the cavities 602 are provided with fixing components 605 matching with the installation components 604 .

In this embodiment: by providing the installation mechanism 6, in a specific use process, the fixing assembly 605 is kept stable during the cleaning and disinfection process.

As shown in Figure 5, Figure 6 and Figure 7;

Fig. 5 is a structural schematic diagram of the mounting assembly of the present invention;

Fig. 6 is a schematic structural view of the fixing assembly in the present invention;

Fig. 7 is a schematic structural diagram of the connection assembly in the present invention.

In an optional embodiment, the mounting assembly 604 includes a mounting rack 606 disposed in the mounting cavity 603, one side of the mounting rack 606 is provided with a mounting half gear 607 meshing with it, and the mounting half gear 607 is away from the mounting One side of the rack 606 is provided with a mounting cylinder 608, the mounting cylinder 608 is connected to the mounting cavity 603 through the mounting shaft 609, and the side of the mounting cylinder 608 away from the half gear 607 is provided with a mounting handle 610, and the mounting handle 610 is far away from the mounting cylinder 608 One end extends to the outside of the installation frame 601. The installation assembly 604 also includes an installation column 611 arranged on one side of the installation rack 606. The side of the installation column 611 away from the installation rack 606 is provided with an installation limit that matches the fixing assembly 605. The position column 612, the installation column 611 is away from the side where the rack 606 is installed and the installation spring 613 is arranged on the installation limit column 612, the bottom end of the installation column 611 is provided with an installation protrusion 614, and the installation column 611 is provided with a Install the limiting groove 615 matched with the protruding block 614 .

In this embodiment: by setting the installation assembly 604, the fixing assembly 605 can be installed and released by twisting the installation handle 610 during specific use, which is convenient for medical personnel to use.

As shown in Figure 5, Figure 6 and Figure 7;

Fig. 5 is a structural schematic diagram of the mounting assembly of the present invention;

Fig. 6 is a schematic structural view of the fixing assembly in the present invention;

Fig. 7 is a schematic structural diagram of the connection assembly in the present invention.

In an optional embodiment, the fixing assembly 605 includes a fixing frame 616 arranged in the cavity 602, and the inner cavity of the fixing frame 616 is evenly provided with three groups of fixing columns 617, and each fixing column 617 is respectively provided with a number of fixing columns. Block 618, the bottom of the fixed block 618 is provided with an elastic cord 619, and the bottom end of the elastic cord 619 is provided with a connecting assembly 620, and both sides of the fixed frame 616 are symmetrically provided with a set of fixing holes 628 matched with the mounting assembly 604.

In this embodiment: by setting the fixing component 605, the minimally invasive surgical postoperative appliance can be fixed during specific use, and then each part of the minimally invasive surgical postoperative appliance can be thoroughly cleaned and sterilized.

As shown in Figure 6 and Figure 7;

Fig. 6 is a schematic structural view of the fixing assembly in the present invention;

Fig. 7 is a schematic structural diagram of the connection assembly in the present invention.

In an optional embodiment, the connecting assembly 620 includes a connecting block 621 arranged at the bottom end of the elastic cord 619, and a connecting sliding slot 622 is opened at the bottom end of the connecting block 621, and two connecting sliding blocks 623 are arranged in the connecting sliding slot 622 , the bottom end of the connecting slider 623 is provided with a connecting clip 624, the inner sides of the two connecting clips 624 are respectively provided with a connecting cavity 625, one connecting clip 624 is provided with a threaded hole 626 above the connecting cavity 625, and the other is connected A connecting screw 627 matched with the threaded hole 626 is inserted through the clip 624 and above the connecting cavity 625 .

In this embodiment: by setting the connection assembly 620, in the specific use process, the minimally invasive surgery post-operative appliance can be fully fixed, thereby avoiding the situation that the minimally invasive surgical post-operative appliance falls during the cleaning process , At the same time, a rubber layer is provided in the connecting cavity 625 opened inside the connecting clip 624 .

As shown in Figure 2 and Figure 8;

Fig. 2 is the cross-sectional structure schematic diagram among the present invention;

Fig. 8 is a schematic structural diagram of the angle adjustment mechanism in the present invention.

In an optional embodiment, the angle adjustment mechanism 9 includes adjustment shafts 901 arranged on both sides of the atomizing nozzle 8. The adjustment shafts 901 are connected to the inner cavity side wall of the casing 1 through an adjustment connection block 902. One adjustment shaft 901 An adjustment gear 903 is arranged on the top and between the adjustment connection block 902 and the atomizing nozzle 8, a gear 904 is arranged on one side of the adjustment gear 903, and an adjusting motor 905 is arranged on the side of the gear 904 away from the atomizing nozzle 8 , and the adjusting motor 905 is located inside the casing 1 .

In this embodiment: by setting an angle adjustment mechanism, the spraying angle of the atomizing nozzle 8 and the high-pressure gun head 7 can be adjusted during the specific use process, thereby expanding the spraying of the atomizing nozzle 8 and the high-pressure nozzle 7 area.

The working principle and application process of the present invention: by driving the left installation handle 610 to the right, and driving the right installation handle 610 to the left, the installation handle 610 drives the installation cylinder 608 and the installation half gear 607 to rotate, The installation half gear 607 on the left drives the left installation rack 606 to move to the right, so that the left installation rack 606 drives the installation column 611 and the installation limit column 612 to move to the right and separate from the fixing hole 628. At the same time, The installation half gear 607 on the right side drives the installation rack 606 on the right side to move to the right, so that the installation rack 606 on the right side drives the installation column 611 and the installation limit column 612 to move to the left and separate from the fixing hole 628. Take out the fixed frame 616, and place one end of the tool to be cleaned and sterilized, such as a hemostat, respectively place the two handshake parts of the hemostat in the connecting cavities 625 on the two adjacent connecting components 620, and first pass the A handshake position is fixed, and by rotating the connecting screw 627, the connecting screw 627 is rotatably connected with a connecting clip 624 through a bearing, so that the connecting screw 627 is connected with the threaded hole 626 on the other connecting clip 624, and the two connecting clips 624 Clamp the handshake part of the hemostat, and similarly clamp the other handshake part of the hemostat. At this time, the connection assembly 620 under the hemostat can be rotated. Clamping, after the used utensils are fixed in sequence, the fixing assembly 605 is placed in the installation frame 601 through the cavity 602, and the installation handle 610 on the left side is driven to the left, and the installation handle 610 on the right side is driven to the left. Drive to the right, and then install the fixing assembly 605. After the installation is completed, the medical staff can directly connect the main pipe 11 connected to the atomizing nozzle 8 with the storage tank of the disinfection liquid, and connect the main pipe 11 connected with the high-pressure gun head 7 to the storage tank of the disinfection liquid. The faucet is directly connected. At this time, the operation panel 4 is operated by the medical personnel to make the moving motor 502 of the moving mechanism 5 start to work, and the secondary pressurizing device 10 connected with the high-pressure gun head 7 and the high-voltage gun head 7 are connected. The adjustment motor 905 on the angle adjustment mechanism 9 starts to work, and the moving motor 502 drives the moving gear 503 to start to rotate, and the moving gear 503 drives the moving toothed disc 508. The disc 508 drives the moving sliding column 506 to move, so that the moving sliding column 506 drives the installation mechanism 6 to move. The triangular groove 504 continues to move forward, and when the second moving sliding column 506 on the moving toothed plate 508 moves to the triangle of the moving rotating rod 509, at this moment, the first moving sliding column 506 moves to the moving rotating rod 509 The other end of the moving rod 509 under the action of the rotating shaft, the triangle of the moving rod 509 pushes the second moving sliding column 506 to move to the moving circular groove 505 at the junction of the moving triangular groove 504 and the moving circular groove 505 , at this time, because the moving gear 503 meshes with the side of the moving toothed plate 508 close to the second moving sliding column 506, the end of the moving toothed plate 508 originally located at the rear side moves to the front end, and the rotation is realized. The mounting mechanism 6 above the moving toothed disc 508 also rotates. At the same time, the adjustment motor 905 drives the gear 904 to rotate, and the gear 904 drives the adjustment gear 903 and the adjustment shaft 901. The adjustment shaft 901 and the adjustment connection block 902 are rotated through the bearing rotation connection. , so that the adjustment shaft 901 drives the high-pressure gun head 7 to rotate in a semicircle in the vertical direction, and drives the high-pressure gun head 7 to rotate. After the water after cleaning passes through the water collection tank 15, it flows out through the water collection hole 16. After cleaning , through the operation of the operation panel 4 by medical personnel, the secondary pressurization device 10 connected to the high-pressure gun head 7 stops working, and the secondary pressurization device 10 connected to the atomizing nozzle 8 works and cooperates with the atomizing nozzle 8 The angle adjustment mechanism 9 of the angle adjustment mechanism 9 works to disinfect the utensils after the cleaning. Sterilization and drying operations are carried out, and then the cleaning and disinfection of postoperative equipment for minimally invasive surgery is completed.

Finally, it should be noted that: the above is only a preferred embodiment of the present invention, and is not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it still The technical solutions recorded in the foregoing embodiments may be modified, or some technical features thereof may be equivalently replaced. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included within the protection scope of the present invention.

Claims (1)

1. The utility model provides a cleaning and sterilizing device for postoperative appliances for minimally invasive surgery, includes casing (1), its characterized in that: the bottom end of the shell (1) is provided with a base (2), one side of the shell (1) is provided with a group of mutually matched movable doors (3), and one side of the shell (1) which is positioned on one side of the movable doors (3) is provided with an operation panel (4);

wherein, mobile groove (101) has been seted up to casing (1) inner chamber bottom, installation cavity (102) has been seted up to the bottom of mobile groove (101), be provided with in installation cavity (102) with mobile mechanism (5) of mobile groove (101) matched with, the top of mobile mechanism (5) evenly is provided with three installation mechanism (6), evenly be provided with a plurality of high-pressure rifle heads (7) on the inner chamber lateral wall of casing (1), two be provided with atomizer (8) between high-pressure rifle heads (7), high-pressure rifle heads (7) with between casing (1) inner chamber inner wall with atomizer (8) with all are connected through angle adjustment mechanism (9) respectively between casing (1) inner chamber inner wall, the inside of casing (1) just be located the both sides of casing (1) inner chamber all are provided with two secondary pressure device (10) respectively, and four both sides of secondary pressure device (10) all are provided with respectively (11), one casing (11) extend to casing (1) inner chamber inner wall with atomizer (8) with one main (1) with be connected with between main (1) inner chamber inner wall with atomizer (8) and main (1) inner chamber inner wall respectively, all be provided with atomizer (11) respectively, a plurality of fans (14) are uniformly arranged between every two rows of sterilizing lamps (13);

the angle adjusting mechanism (9) comprises adjusting shafts (901) arranged on two sides of the atomizing nozzle (8), the adjusting shafts (901) are connected with the side wall of the inner cavity of the shell (1) through adjusting connecting blocks (902), an adjusting gear (903) is arranged on one adjusting shaft (901) and located between the adjusting connecting blocks (902) and the atomizing nozzle (8), a gear (904) is arranged on one side of the adjusting gear (903), an adjusting motor (905) matched with the adjusting shaft is arranged on one side, away from the atomizing nozzle (8), of the gear (904), and the adjusting motor (905) is located inside the shell (1); the mobile mechanism (5) comprises a mobile triangular chassis (501) arranged in the mounting cavity (102), a mobile triangular groove (504) is formed in the top end of the mobile triangular chassis (501), a mobile round groove (505) is formed in the inner side of the mobile triangular groove (504), a mobile motor (502) is arranged below the mobile triangular chassis (501), a rotating shaft of the mobile motor (502) extends to the upper side of the mobile triangular chassis (501) to be connected with a mobile gear (503), three mobile fluted discs (508) are uniformly arranged on the outer side of the mobile gear (503), a group of mobile sliding columns (506) are symmetrically inserted on one mobile fluted disc (508), the bottom of each mobile sliding column (506) is matched with the corresponding mobile triangular groove (504), and the top end of each mobile sliding column (506) is connected with the mounting mechanism (6). The outer wall of each side of the movable triangular groove (504) is respectively provided with a movable mounting groove (507), a movable rotating rod (509) is arranged in the movable mounting groove (507), and the movable rotating rod (509) is connected with the movable mounting groove (507) through a rotating shaft; the mounting mechanism (6) comprises mounting frames (601) arranged at the top ends of two movable slide columns (506), a cavity (602) is transversely formed in the mounting frames (601), two groups of mounting cavities (603) are symmetrically formed in the side walls of two sides of the cavity (602), a mounting assembly (604) is arranged in the mounting cavities (603), and a fixing assembly (605) matched with the mounting assembly (604) is arranged in the cavity (602); the mounting assembly (604) comprises a mounting rack (606) arranged in the mounting cavity (603), one side of the mounting rack (606) is provided with a mounting half gear (607) meshed with the mounting rack, one side of the mounting half gear (607) away from the mounting rack (606) is provided with a mounting cylinder (608), the mounting cylinder (608) is connected with the mounting cavity (603) through a mounting shaft (609), one side of the mounting cylinder (608) away from the mounting half gear (607) is provided with a mounting handle (610), and one end of the mounting handle (610) away from the mounting cylinder (608) extends to the outer side of the mounting frame (601); the mounting assembly (604) further comprises a mounting column (611) arranged on one side of the mounting rack (606), a mounting limit column (612) matched with the fixing assembly (605) is arranged on one side of the mounting column (611) away from the mounting rack (606), a mounting spring (613) is arranged on the mounting limit column (612) and positioned on one side of the mounting column (611) away from the mounting rack (606), a mounting protruding block (614) is arranged at the bottom end of the mounting column (611), and a mounting limit groove (615) matched with the mounting protruding block (614) is formed in the mounting column (611); the fixing assembly (605) comprises a fixing frame (616) arranged in the cavity (602), three groups of fixing columns (617) are uniformly arranged in an inner cavity of the fixing frame (616), a plurality of fixing blocks (618) are respectively arranged on each fixing column (617), an elastic rope (619) is arranged at the bottom end of each fixing block (618), a connecting assembly (620) is arranged at the bottom end of each elastic rope (619), and a group of fixing holes (628) matched with the mounting assembly (604) are symmetrically formed in two sides of the fixing frame (616) respectively; coupling assembling (620) is including setting up connecting block (621) of elastic rope (619) bottom, connecting chute (622) have been seted up to the bottom of connecting block (621), be provided with two connection slider (623) in connecting chute (622), the bottom of connecting slider (623) is provided with connecting clamp (624), two connecting cavity (625) have all been seted up respectively to the inboard of connecting clamp (624), one connecting clamp (624) are last and be located threaded hole (626) have been seted up to the top of connecting cavity (625), another connecting clamp (624) are last and be located the top of connecting cavity (625) alternates and be provided with screw hole (626) matched with connecting screw rod (627).
