Abstract
The invention relates to the technical field of waste heat recovery, in particular to a coal boiler waste heat recovery and utilization device, which comprises a waste heat recovery box, a purification box and a connecting pipeline, wherein the waste heat recovery box comprises a flue gas inlet at one end, a flue gas outlet is formed at the other end of the waste heat recovery box, and the outer edges of the flue gas inlet and the flue gas outlet are integrally formed and provided with connecting flanges, so that the coal boiler waste heat recovery and utilization device has the beneficial effects that: can adsorb the waste heat in with the flue gas through two kinds of heat absorption modes of liquid and gas and retrieve, increase the recovery effect, and it has increased exhaust structure to have had the speed that the flue gas passes through recovery unit, can effectively increase the flue gas and pass through efficiency, and exhaust structure end sets up the scraper blade, can strike off the impurity of adhesion on leading to the tobacco pipe inner wall, guarantee to lead to the cleanliness factor of tobacco pipe, prevent impurity influence heat absorption effect, smoke purification device has still been increased, can be with the gas cleaning who absorbs behind the waste heat, make the fume emission make cleaner environmental protection more, increase the protection effect to all ring edge borders.
Description
Technical Field
The invention relates to the technical field of waste heat recovery, in particular to a waste heat recovery and utilization device of a coal boiler.
Background
The waste heat refers to sensible heat and latent heat which are not reasonably utilized by original design in the energy consumption device of the put-in-operation industrial enterprise and are limited by factors such as history, technology, concept and the like, the waste heat comprises high-temperature waste gas waste heat, cooling medium waste heat, waste steam waste water waste heat, high-temperature product and slag waste heat, chemical reaction waste heat, combustible waste gas waste liquid, waste material waste heat and the like, according to investigation, the total waste heat resources of all industries account for 17% -67% of the total fuel consumption, the recyclable waste heat resources account for 60% of the total waste heat resources, a large amount of waste heat can be generated in the using process of a boiler, and the recyclable waste heat device has high recycling value.
In the prior art, the waste heat recovery is generally carried out by water cooling heat absorption, the effect is single, the absorption efficiency is low, the inner wall of the waste heat recovery device can be stained with dust along with the increase of the using time for smoke recovery, the dust is inconvenient to clean, the efficiency of smoke passing through the waste heat recovery device is low, the smoke cannot be effectively purified after the waste heat recovery of the smoke, the smoke is directly discharged into the atmosphere, the environment can be influenced, and the environment protection effect is not facilitated.
Disclosure of Invention
The invention aims to provide a coal boiler waste heat recycling device to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: the utility model provides a coal boiler waste heat recovery utilizes device, includes waste heat recovery case, purifying box and connecting tube, the waste heat recovery case includes the flue gas entry of one end, the waste heat recovery case other end is equipped with the exhanst gas outlet, the integrative flange that is equipped with in flue gas entry and the outer edge of exhanst gas outlet, waste heat recovery case upper end right side welding intercommunication water inlet, upper end left side welding intercommunication gas outlet, waste heat recovery case lower extreme left side welding intercommunication delivery port, lower extreme right side welding intercommunication air inlet, the fixed intercommunication connecting tube of flange is passed through in exhanst gas outlet department, the connecting tube other end purifies the entry through the fixed intercommunication of joining method flange, the purifying box includes the purification entry on right side, the purifying box opposite side is equipped with the net gas export.
Preferably, inside welding of waste heat recovery case is connected with the tobacco pipe way, it forms the waste heat recovery room to lead to between tobacco pipe way and the waste heat recovery case lateral wall, waste heat recovery indoor portion leads to tobacco pipe way outside welding water service pipe and breather pipe, water service pipe and breather pipe are double-deck heliciform and coil in leading to the tobacco pipe way outside, water service pipe upper end right side welding intercommunication water inlet, lower extreme left side welding intercommunication delivery port, breather pipe lower extreme right side welding intercommunication air inlet, upper end left side welding intercommunication gas outlet.
Preferably, lead to the inside both ends welding mount of tobacco pipe way, rotate between the mount and connect the transmission shaft, transmission shaft left side end passes the mount and passes through the transmission output of flange joint motor, the motor passes through bolt fixed connection on the mount of left side, bolt fixed connection motor case is passed through in the motor outside, fixed cover is established and is passed through bolt fixed connection to the cover of transmission shaft outside evenly distributed, fixed cover outside welding flabellum board, the terminal welding scraper blade of flabellum board, the conflict of scraper blade surface leads to the tobacco pipe way inner wall.
Preferably, the inside filter core of pegging graft of purifying box, the socket has been seted up on purifying box lower extreme right side, and the grafting deposition box in the socket, the deposition box is square box-like, and terminal butt to filter core right side, the welding of deposition box outside has the fixed plate, the fixed plate passes through bolt fixed connection on the purifying box right side wall.
Preferably, the filter element comprises a rightmost heat absorption net, the heat absorption net is made of an asbestos net, the left side of the heat absorption net is connected with a filter screen, the filter screen is made of a glass fiber woven net, the left side of the filter screen is connected with a bamboo charcoal adsorption layer, and the left side of the bamboo charcoal adsorption layer is connected with filter cotton.
Compared with the prior art, the invention has the beneficial effects that:
the invention can absorb and recover the waste heat in the smoke through two heat absorption modes of liquid and gas, thereby increasing the recovery effect, increasing the speed of the smoke passing through the recovery device and the exhaust structure, effectively increasing the smoke passing efficiency, and the tail end of the exhaust structure is provided with the scraper which can scrape off the impurities adhered on the inner wall of the smoke passing pipeline, ensuring the cleanness of the smoke passing pipeline, preventing the impurities from influencing the heat absorption effect, and the invention also increases the smoke purification device which can purify the smoke after absorbing the waste heat, thereby ensuring the smoke emission to be cleaner and more environment-friendly and increasing the protection effect on the surrounding environment.
Drawings

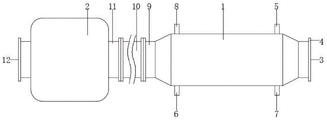

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the internal structure of the waste heat recovery tank according to the present invention;
fig. 3 is a schematic view of the internal structure of the purification tank of the present invention.
In the figure: 1 waste heat recovery box, 2 purification box, 3 flue gas inlet, 4 connecting flange, 5 water inlet, 6 water outlet, 7 air inlet, 8 air outlet, 9 flue gas outlet, 10 connecting pipeline, 11 purification inlet, 12 purified gas outlet, 13 flue gas pipeline, 14 waste heat recovery chamber, 15 water pipe, 16 air pipe, 17 fixing frame, 18 motor, 19 motor box, 20 transmission shaft, 21 fixing sleeve, 22 fan blade plate, 23 scraper blade, 24 filter core, 25 heat absorption net, 26 filter screen, 27 bamboo charcoal adsorption layer, 28 filter cotton, 29 dust box.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1 to 3, the present invention provides a technical solution: the utility model provides a coal boiler waste heat recovery utilizes device, including waste heat recovery case 1, purifying box 2 and connecting tube 10, waste heat recovery case 1 includes the flue gas entry 3 of one end, the 1 other end of waste heat recovery case is equipped with exhanst gas outlet 9, the integrative flange 4 that is equipped with in the edge outside flue gas entry 3 and exhanst gas outlet 9, 1 upper end right side welding intercommunication water inlet 5 of waste heat recovery case, upper end left side welding intercommunication gas outlet 8, 1 lower extreme left side welding intercommunication delivery port 6 of waste heat recovery case, lower extreme right side welding intercommunication air inlet 7, 9 departments of exhanst gas outlet are through the fixed intercommunication connecting tube 10 of connecting flange 4, the connecting tube 10 other end is through the fixed intercommunication purification entry 11 of connection method flange, purifying box 2 includes the purification entry 11 on right side, 2 opposite sides of purifying box are equipped with.
The invention can be further set in such a way that a smoke pipeline 13 is welded inside the waste heat recovery box 1, a waste heat recovery chamber 14 is formed between the smoke pipeline 13 and the side wall of the waste heat recovery box 1, a water pipe 15 and a vent pipe 16 are welded inside the waste heat recovery chamber 14 and outside the smoke pipeline 13, the water pipe 15 and the vent pipe 16 are spirally wound outside the smoke pipeline 13 in a double-layer mode, the right side of the upper end of the water pipe 15 is welded and communicated with a water inlet 5, the left side of the lower end of the water pipe 14 is welded and communicated with a water outlet 6, the right side of the lower end of the vent pipe 16 is welded and communicated with a gas inlet 7, and the left side of the upper end of the vent pipe 16 is welded and communicated with a gas outlet 8.
The invention can be further set that fixing frames 17 are welded at two ends inside the smoke through pipeline 13, a transmission shaft 20 is rotatably connected between the fixing frames 17, the left end of the transmission shaft 20 penetrates through the fixing frames 17 and is connected with the transmission output end of the motor 18 through a flange, the motor 18 is fixedly connected on the left fixing frame 17 through a bolt, the outer side of the motor 18 is fixedly connected with a motor box 19 through a bolt, the outer side of the transmission shaft 20 is uniformly sleeved and fixedly connected with a fixing sleeve 21 through a bolt, a fan blade plate 22 is welded at the outer side of the fixing sleeve 21, a scraper 23 is welded at the tail end of the fan blade plate 22, the outer surface of the scraper 23 is in contact with the inner wall of the smoke through pipeline 13, the efficiency of smoke through the smoke through pipeline 13 can be increased through the fan plate 22, the inner.
The invention can be further set in such a way that the filter element 24 is inserted in the purifying box 2, the right side of the lower end of the purifying box 2 is provided with an insertion opening, the dust box 29 is inserted in the insertion opening, the dust box 29 is in a square box shape, the tail end of the dust box is abutted to the right side of the filter element 24, the outer side of the dust box 29 is welded with a fixing plate, the fixing plate is fixedly connected to the right side wall of the purifying box 2 through bolts, and the purifying box 2 can purify the flue gas, so that the discharged flue gas is cleaner, and the environmental protection.
The invention can be further set that the filter element 24 comprises a rightmost heat absorption net 25, the heat absorption net 25 is made of asbestos gauze, the left side of the heat absorption net 25 is connected with the filter screen 26, the filter screen 26 is made of glass fiber woven mesh, the left side of the filter screen 26 is connected with the bamboo charcoal adsorption layer 27, the left side of the bamboo charcoal adsorption layer 27 is connected with the filter cotton 28, the final heat of the smoke can be absorbed through the heat absorption net 25, the filter element 24 is prevented from being damaged due to overhigh heat, the filter screen 26 filters large particles, the bamboo charcoal adsorption layer 27 can adsorb harmful gas, the smoke pollution effect is reduced, and finally the filter cotton 28 filters smaller particles in the gas, so that the cleanliness of the finally discharged gas is ensured, and the environment protection effect is.
The working principle is as follows: when the waste heat recovery device works, smoke enters the waste heat recovery box 1 through the smoke inlet 3, the smoke enters the smoke through pipeline 13, the motor 18 is started, the motor 18 drives the transmission shaft 20 to rotate, the transmission shaft 20 drives the fixed sleeve 21 and the fan blade plates 23 on the fixed sleeve 22 to rotate, the smoke can flow more smoothly, the scraper 23 is welded at the tail ends of the fan blade plates 23, the scraper 23 can scrape impurities adhered to the inner wall of the smoke through pipeline 13, the cleanness of the inner wall of the smoke through pipeline 13 is ensured, the heat absorption effect is prevented from being influenced, the water through pipeline 15 and the vent pipeline 16 are welded on the outer side of the smoke through pipeline 13, heat absorption liquid is added into the water through pipeline 15 after the smoke enters the smoke through pipeline 13, heat absorption gas is conveyed into the vent pipeline 16, the waste heat attached to the smoke through pipeline 13 can be absorbed through the water through pipeline 15 and the vent pipeline 16, the recovery utilization rate is increased, the smoke enters the connecting pipeline 10 from, and enters the purifying box 2 from the purifying inlet 11, and the smoke purifying port is discharged to the air from the purified gas outlet 12 through the filter element 24 in the purifying box 2, so that the environmental protection effect of smoke discharge can be effectively increased.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a coal boiler waste heat recovery utilizes device, includes waste heat recovery case (1), purifying box (2) and connecting tube (10), its characterized in that: the waste heat recovery tank (1) comprises a flue gas inlet (3) at one end, a flue gas outlet (9) is arranged at the other end of the waste heat recovery tank (1), the outer edges of the flue gas inlet (3) and the flue gas outlet (9) are integrally provided with connecting flanges (4), the right side of the upper end of the waste heat recovery tank (1) is welded and communicated with a water inlet (5), the left side of the upper end is welded and communicated with a gas outlet (8), the left side of the lower end of the waste heat recovery tank (1) is welded and communicated with a water outlet (6), the right side of the lower end is welded and communicated with an air inlet (7), the flue gas outlet (9) is fixedly communicated with a connecting pipeline (10) through a connecting flange (4), the other end of the connecting pipeline (10) is fixedly communicated with a purification inlet (11) through a connecting flange, the purifying box (2) comprises a purifying inlet (11) on the right side, and a purified gas outlet (12) is arranged on the other side of the purifying box (2).
2. The coal boiler waste heat recycling device of claim 1, characterized in that: the waste heat recovery case (1) inside welding is put through tobacco pipe way (13), it forms waste heat recovery room (14) to lead to between tobacco pipe way (13) and waste heat recovery case (1) lateral wall, waste heat recovery room (14) inside, leads to tobacco pipe way (13) outside welding water service pipe (15) and breather pipe (16), water service pipe (15) and breather pipe (16) are double-deck heliciform and coil in leading to tobacco pipe way (13) outside, water service pipe (15) upper end right side welding intercommunication water inlet (5), lower extreme left side welding intercommunication delivery port (6), breather pipe (16) lower extreme right side welding intercommunication air inlet (7), upper end left side welding intercommunication gas outlet (8).
3. The coal boiler waste heat recycling device of claim 2, characterized in that: lead to inside both ends welding mount (17) of tobacco pipe way (13), rotate between mount (17) and connect transmission shaft (20), transmission shaft (20) left side end passes mount (17) and the transmission output through flange joint motor (18), motor (18) are through bolt fixed connection on left side mount (17), bolt fixed connection motor case (19) are passed through in the motor (18) outside, the fixed cover (21) of bolt fixed connection are established and passed through to transmission shaft (20) outside evenly distributed's cover, fixed cover (21) outside welding fan lamina (22), fan lamina (22) end welding scraper blade (23), scraper blade (23) surface supports and touches logical tobacco pipe way (13) inner wall.
4. The coal boiler waste heat recycling device of claim 1, characterized in that: purifying box (2) inside grafting filter core (24), the socket has been seted up on purifying box (2) lower extreme right side, and socket interpolation connects deposition box (29), deposition box (29) are square box-like, and terminal butt to filter core (24) right side, the welding of deposition box (29) outside has the fixed plate, the fixed plate passes through bolt fixed connection on purifying box (2) right side wall.
5. The coal boiler waste heat recycling device of claim 4, characterized in that: the filter element (24) comprises a rightmost heat absorption net (25), the heat absorption net (25) is made of an asbestos net, the left side of the heat absorption net (25) is connected with a filter screen (26), the filter screen (26) is made of a glass fiber woven mesh, the left side of the filter screen (26) is connected with a bamboo charcoal adsorption layer (27), and the left side of the bamboo charcoal adsorption layer (27) is connected with filter cotton (28).
