Abstract

本发明公开了一种轻烃燃气驱动的空气源热泵，包括空气源吸收式热泵系统，还包括高位储箱、气化炉、空气源热泵供热器和空气细化装置；所述气化炉包括炉体，所述炉体内侧下部设置有与高位储箱底部连接的液位球阀；所述炉体内侧底部一体制成有法兰座；所述法兰座上固定有封板；所述封板上嵌有多个单向阀；所述单向阀旋接有多个气化头；所述单向阀另一端通过法兰连接到总管；所述炉体底部设置有底盖；所述底盖上设置有与总管压合的撑座；所述总管一端密封，另一端连接到外单向阀；本发明的轻烃燃气驱动的空气源热泵，采用轻烃燃气进行供热，并对轻烃燃气其打入的空气进行细化和加热后，轻烃燃气燃烧效率高；且整个热利用率高。

Figure 202010632260

The invention discloses an air source heat pump driven by light hydrocarbon gas, comprising an air source absorption heat pump system, a high-level storage tank, a gasifier, an air source heat pump heater and an air refinement device; the gasifier It includes a furnace body, and a liquid level ball valve connected to the bottom of a high-level storage tank is arranged at the lower part of the inner side of the furnace body; a flange seat is integrally formed at the inner bottom of the furnace body; a sealing plate is fixed on the flange seat; A plurality of one-way valves are embedded on the sealing plate; the one-way valves are screwed with a plurality of gasification heads; the other end of the one-way valve is connected to the main pipe through a flange; the bottom of the furnace body is provided with a bottom cover; The bottom cover is provided with a support seat press-fitted with the main pipe; one end of the main pipe is sealed, and the other end is connected to the outer check valve; the light hydrocarbon gas-driven air source heat pump of the present invention uses light hydrocarbon gas for heating, and After refining and heating the air injected into the light hydrocarbon gas, the combustion efficiency of the light hydrocarbon gas is high; and the overall heat utilization rate is high.

Figure 202010632260

Description

一种轻烃燃气驱动的空气源热泵A light hydrocarbon gas-driven air source heat pump

技术领域technical field

本发明涉及一种空气源热泵，具体涉及一种轻烃燃气驱动的空气源热泵，属于空气源热泵技术领域。The invention relates to an air source heat pump, in particular to an air source heat pump driven by light hydrocarbon gas, belonging to the technical field of air source heat pumps.

背景技术Background technique

目前在一般民用建筑物，空调的能耗占了58%以上，给电力供应带来很大的压力；我国已经把太阳能利用作为后续能源战略中可再生能源的重要组成部分，并出台了一系列的政策指导性文件鼓励和支持太阳能转化研究和应用事业的发展；传统的空气源热泵装置，采用压缩机作为机组的驱动部件，磨损程度大，噪音大，使用寿命短；例如：中国专利：CN102012129A中的一种节能型太阳能空气源热泵多功能机，使用压缩机作为驱动部件；传统的吸收式热泵装置大多数采用天然气、工业余热作为机组的驱动力，需要驱动能源购买成本，增加运行费用；例如：中国专利CN201561564U所公开的技术内容中，就是一燃气作为机组运行动力的；传统吸收热泵采用天然气作为驱动力，产生的烟气中带走了大量的热量，能源的利用率低，并且传统热泵机组所用的制冷剂工质的性质决定了其不能在低温下稳定运行；为此，我们研发了一种太阳能空气源吸收式热泵装置（中国专利申请号：201210361473.5），如图1所示，其具体如下：以天然能源太阳能作为机组的驱动能源，通过发生器中加热换热器将太阳能输入到太阳能热泵装置中，提供机组运行的动力。通过空气源热交换盘管吸收空气中的能量，这两部分的能量通过制冷剂蒸汽的冷凝和制冷剂蒸汽与稀溶液的熔解热释放出来，传递给热水，提高能源利用率；融霜时，利用进入空气源热交换盘管的制冷剂蒸汽除霜后与稀溶液溶解后放出的溶解热，保证了在除霜时仍然能够稳定地提供热量的方案；但太阳能供热会受到地区限制，从而无法很好地在各个区域进行推广应用。At present, in general civil buildings, the energy consumption of air conditioners accounts for more than 58%, which brings great pressure to the power supply; China has taken the utilization of solar energy as an important part of renewable energy in the follow-up energy strategy, and has issued a series of The policy guidance document of China encourages and supports the development of solar energy conversion research and application; the traditional air source heat pump device uses the compressor as the driving component of the unit, which has a large degree of wear, high noise and short service life; for example: Chinese patent: CN102012129A One of the energy-saving solar air-source heat pump multi-function machines in the system uses a compressor as a driving component; most of the traditional absorption heat pump devices use natural gas and industrial waste heat as the driving force of the unit, which needs to drive the purchase cost of energy and increase the operating cost; For example, in the technical content disclosed in Chinese patent CN201561564U, a gas is used as the operating power of the unit; the traditional absorption heat pump uses natural gas as the driving force, and the generated flue gas takes away a lot of heat, the utilization rate of energy is low, and the traditional absorption heat pump uses natural gas as the driving force. The nature of the refrigerant used in the heat pump unit determines that it cannot operate stably at low temperatures; for this reason, we have developed a solar air source absorption heat pump device (China Patent Application No.: 201210361473.5), as shown in Figure 1, The details are as follows: natural energy solar energy is used as the driving energy of the unit, and the solar energy is input into the solar heat pump device through the heating heat exchanger in the generator to provide the power for the operation of the unit. The energy in the air is absorbed by the air source heat exchange coil, and the two parts of energy are released by the condensation of the refrigerant vapor and the heat of fusion between the refrigerant vapor and the dilute solution, and transferred to the hot water to improve the energy utilization rate; when defrosting , using the heat of solution released by the refrigerant vapor entering the air source heat exchange coil after defrosting and dissolving with the dilute solution to ensure that the heat can still be stably provided during defrosting; however, solar heating will be limited by regions. Therefore, it cannot be well promoted and applied in various regions.

发明内容SUMMARY OF THE INVENTION

为解决上述问题，本发明提出了一种轻烃燃气驱动的空气源热泵，轻烃燃气燃烧效率高，且热利用率高。In order to solve the above problems, the present invention proposes an air source heat pump driven by light hydrocarbon gas, which has high combustion efficiency of light hydrocarbon gas and high heat utilization rate.

本发明的轻烃燃气驱动的空气源热泵，对我们现有的太阳能空气源吸收式热泵装置进行改进，将其太阳能供热，改为轻烃燃气进行供热，并对轻烃燃气其打入的空气进行细化和加热后，轻烃燃气燃烧效率高；其具体结构如下：包括空气源吸收式热泵系统，还包括高位储箱、气化炉、空气源热泵供热器和空气细化装置；所述气化炉包括炉体，所述炉体内侧下部设置有与高位储箱底部连接的液位球阀；所述炉体内侧底部一体制成有法兰座；所述法兰座上固定有封板；所述封板上嵌有多个单向阀；所述单向阀旋接有多个气化头；所述单向阀另一端通过法兰连接到总管；所述炉体底部设置有底盖；所述底盖上设置有与总管压合的撑座；所述总管一端密封，另一端连接到外单向阀；所述炉体顶部旋接有气化嘴；The light hydrocarbon gas-driven air source heat pump of the present invention improves our existing solar energy air source absorption heat pump device, changes its solar energy heating to light hydrocarbon gas for heating, and injects the light hydrocarbon gas into the air source heat pump. After the air is refined and heated, the light hydrocarbon gas combustion efficiency is high; its specific structure is as follows: it includes an air source absorption heat pump system, and also includes a high-level storage tank, a gasifier, an air source heat pump heater and an air refinement device. The gasification furnace includes a furnace body, and the lower part of the inner side of the furnace body is provided with a liquid level ball valve connected to the bottom of the high-level storage tank; the inner bottom of the furnace body is integrally made with a flange seat; the flange seat is fixed on the There is a sealing plate; a plurality of one-way valves are embedded on the sealing plate; the one-way valve is screwed with a plurality of gasification heads; the other end of the one-way valve is connected to the main pipe through a flange; the bottom of the furnace body a bottom cover is provided; the bottom cover is provided with a support seat pressed with the main pipe; one end of the main pipe is sealed, and the other end is connected to the outer one-way valve; the top of the furnace body is screwed with a gasification nozzle;

所述空气源热泵供热器包括外筒，及设置于外筒内侧的保温层，及设置于保温层内侧的加热夹层；所述加热夹层内侧设置有相变层；及设置于加热夹层内侧，且与相变层浇筑的内管；所述外筒内侧于加热夹层上部设置有气化仓；所述气化仓中部为锥形槽；所述加热夹层底部设置有环槽；所述环槽内侧压合有点火盘；所述点火盘其与加热夹层内侧设置有点火嘴；所述点火嘴通过调压阀连接到气化嘴；所述气化仓内侧设置有换热盘管；所述换热盘管一端连接到外单向阀，另一端连接到空气细化装置；所述内管底端密封，其顶端与气化仓连通；所述气化仓上设置有进液阀和排气阀；所述换热盘管和空气细化装置之间设置有加热仓，所述加热仓内侧设置有多根电热丝；The air source heat pump heater comprises an outer cylinder, a thermal insulation layer arranged on the inner side of the outer cylinder, and a heating interlayer arranged on the inner side of the thermal insulation layer; a phase change layer is arranged on the inner side of the heating interlayer; and a phase change layer is arranged on the inner side of the heating interlayer, and the inner tube poured with the phase change layer; the inner side of the outer cylinder is provided with a gasification chamber on the upper part of the heating interlayer; the middle part of the gasification chamber is a conical groove; the bottom of the heating interlayer is provided with a ring groove; the ring groove An ignition disk is pressed on the inner side; an ignition nozzle is arranged on the inner side of the ignition disk and the heating interlayer; the ignition nozzle is connected to the gasification nozzle through a pressure regulating valve; a heat exchange coil is arranged inside the gasification bin; the One end of the heat exchange coil is connected to the outer one-way valve, and the other end is connected to the air thinning device; the bottom end of the inner pipe is sealed, and the top end is connected to the gasification chamber; the gasification chamber is provided with a liquid inlet valve and a discharge valve. an air valve; a heating bin is arranged between the heat exchange coil and the air thinning device, and a plurality of electric heating wires are arranged inside the heating bin;

所述空气细化装置包括大仓体，所述大仓体内侧设置有多层网板，所述网板上涂覆有远红外涂层；及设置于网板之间的电气石；所述大仓体输入端设置有过滤器和充气风机；所述大仓体输出端通过法兰连接到加热仓；通过远红外涂层和电气石以电磁波的方式把能量释放出来，使其与环境之间发生能量交换，其在常温下高效发射远红外线，频率同空气的远红外吸收频率相吻合，可以克服范德华力，使空气中的分子团簇微细化，团簇越小，同时能够使分子团排列整齐，并将其打入到轻烃油中，从而使轻烃气具备更好地燃烧利用率。The air thinning device includes a large silo body, and the inner side of the large silo body is provided with a multi-layer mesh plate, and the mesh plate is coated with a far-infrared coating; and tourmaline arranged between the mesh plates; the The input end of the warehouse body is provided with a filter and an air blower; the output end of the warehouse body is connected to the heating chamber through a flange; the energy is released in the form of electromagnetic waves through the far-infrared coating and tourmaline, so that it is in harmony with the environment. The energy exchange occurs between them, and it emits far-infrared rays efficiently at room temperature, and the frequency is consistent with the far-infrared absorption frequency of the air, which can overcome the van der Waals force and make the molecular clusters in the air micronized. Arranged neatly and put it into the light hydrocarbon oil, so that the light hydrocarbon gas has better combustion utilization.

作为优选，所述内管为沿加热夹层轴向设置的多根直管或沿加热夹层内侧周向设置的螺旋管。Preferably, the inner pipe is a plurality of straight pipes arranged along the axial direction of the heating interlayer or spiral pipes arranged along the inner circumferential direction of the heating interlayer.

进一步地，所述气化仓为空气源吸收式热泵系统其发生器。Further, the gasification bin is the generator of the air source absorption heat pump system.

进一步地，所述进液阀和排气阀均连接到空气源吸收式热泵系统其发生器。Further, both the inlet valve and the exhaust valve are connected to the generator of the air source absorption heat pump system.

进一步地，所述外单向阀输入端和保温层内面分别设置有在线测温器；所述在线测温器电连接到控制器，所述控制器电连接点火嘴其打火器和电热丝开关。Further, the input end of the outer one-way valve and the inner surface of the insulation layer are respectively provided with an on-line temperature detector; the on-line temperature detector is electrically connected to the controller, and the controller is electrically connected to the ignition nozzle, its igniter and the heating wire. switch.

进一步地，所述气化头包括弧面结构的喷头，及与喷头连通的多排喷嘴。Further, the gasification head includes a spray head with a curved surface structure, and multiple rows of nozzles communicated with the spray head.

进一步地，所述喷头内面贴合有一透气膜。Further, a breathable film is attached to the inner surface of the nozzle.

与现有技术相比较，本发明的轻烃燃气驱动的空气源热泵，采用轻烃燃气进行供热，并对轻烃燃气其打入的空气进行细化和加热后，轻烃燃气燃烧效率高；且整个热利用率高。Compared with the prior art, the light hydrocarbon gas-driven air source heat pump of the present invention adopts the light hydrocarbon gas for heating, and after refining and heating the air injected by the light hydrocarbon gas, the light hydrocarbon gas has high combustion efficiency. ; And the whole heat utilization rate is high.

附图说明Description of drawings

图1是本发明的现有技术结构示意图。FIG. 1 is a schematic structural diagram of the prior art of the present invention.

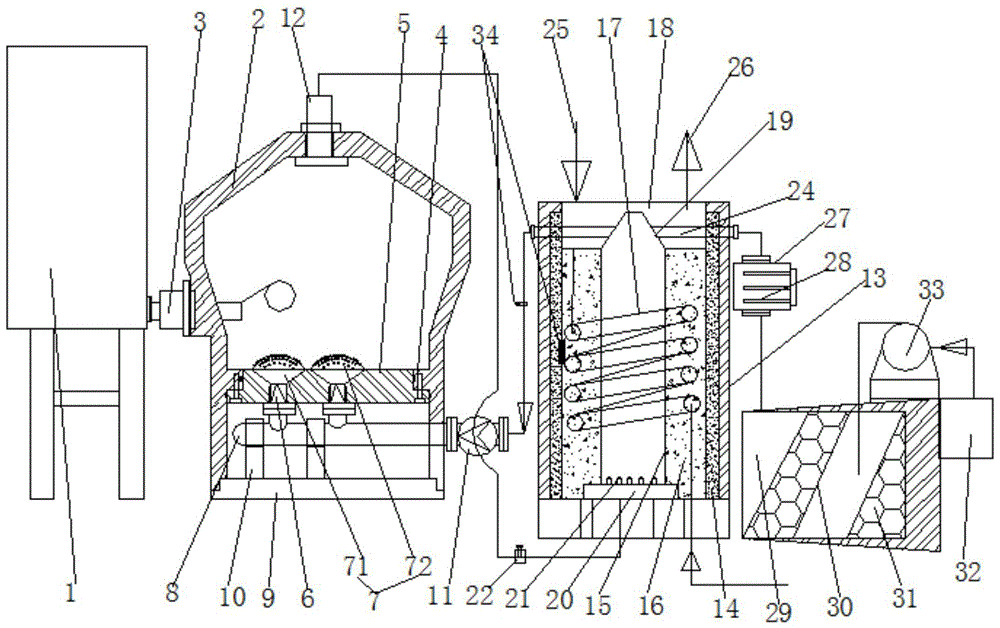

图2是本发明的实施例1结构示意图。FIG. 2 is a schematic structural diagram of Embodiment 1 of the present invention.

具体实施方式Detailed ways

实施例1：Example 1:

如图2所示的轻烃燃气驱动的空气源热泵，对我们现有的太阳能空气源吸收式热泵装置进行改进，且主要改进点在整个系统的发生器处，本发明将太阳能供热，改为轻烃燃气进行供热，并对轻烃燃气其打入的空气进行细化和加热后，轻烃燃气燃烧效率高；其具体结构如下：包括空气源吸收式热泵系统，还包括高位储箱1、气化炉、空气源热泵供热器和空气细化装置；所述气化炉包括炉体2，所述炉体2内侧下部设置有与高位储箱底部连接的液位球阀3；所述炉体2内侧底部一体制成有法兰座4；所述法兰座上固定有封板5；所述封板5上嵌有多个单向阀6；所述单向阀6旋接有多个气化头7；所述单向阀6另一端通过法兰连接到总管8；所述炉体2底部设置有底盖9；所述底盖9上设置有与总管压合的撑座10；所述总管8一端密封，另一端连接到外单向阀11；所述炉体2顶部旋接有气化嘴12；As shown in Figure 2, the light hydrocarbon gas-driven air source heat pump improves our existing solar air source absorption heat pump device, and the main improvement point is at the generator of the whole system. It provides heat for the light hydrocarbon gas, and refines and heats the air injected by the light hydrocarbon gas. The light hydrocarbon gas has high combustion efficiency; its specific structure is as follows: it includes an air source absorption heat pump system and a high-level storage tank. 1. A gasification furnace, an air source heat pump heater and an air refinement device; the gasification furnace includes a furnace body 2, and a liquid level ball valve 3 connected to the bottom of the high-level storage tank is provided at the lower part of the inner side of the furnace body 2; The inner bottom of the furnace body 2 is integrally formed with a flange seat 4; a sealing plate 5 is fixed on the flange seat; a plurality of one-way valves 6 are embedded on the sealing plate 5; the one-way valves 6 are screwed together There are a plurality of gasification heads 7; the other end of the one-way valve 6 is connected to the main pipe 8 through a flange; a bottom cover 9 is provided at the bottom of the furnace body 2; seat 10; one end of the main pipe 8 is sealed, and the other end is connected to the outer one-way valve 11; the top of the furnace body 2 is screwed with a gasification nozzle 12;

所述空气源热泵供热器包括外筒13，及设置于外筒内侧的保温层14，及设置于保温层内侧的加热夹层15；所述加热夹层15内侧设置有相变层16；及设置于加热夹层内侧，且与相变层浇筑的内管17；所述外筒13内侧于加热夹层上部设置有气化仓18；所述气化仓18中部为锥形槽19；所述加热夹层15底部设置有环槽；所述环槽内侧压合有点火盘20；所述点火盘20其与加热夹层内侧设置有点火嘴21；所述点火嘴21通过调压阀22连接到气化嘴12；所述气化仓18内侧设置有换热盘管24；所述换热盘管24一端连接到外单向阀11，另一端连接到空气细化装置；所述内管17底端密封，其顶端与气化仓18连通；所述气化仓18上设置有进液阀25和排气阀26；所述换热盘管24和空气细化装置之间设置有加热仓27，所述加热仓27内侧设置有多根电热丝28；The air source heat pump heater includes an outer cylinder 13, a thermal insulation layer 14 arranged on the inner side of the outer cylinder, and a heating interlayer 15 arranged on the inner side of the thermal insulation layer; a phase change layer 16 is arranged on the inner side of the heating interlayer 15; and Inside the heating interlayer, the inner pipe 17 is poured with the phase change layer; the inner side of the outer cylinder 13 is provided with a gasification chamber 18 on the upper part of the heating interlayer; the middle of the gasification chamber 18 is a conical groove 19; the heating interlayer 15 A ring groove is arranged at the bottom; an ignition disk 20 is pressed on the inside of the ring groove; an ignition nozzle 21 is arranged on the inside of the ignition disk 20 and the heating interlayer; the ignition nozzle 21 is connected to the gasification nozzle through a pressure regulating valve 22 12; a heat exchange coil 24 is arranged inside the gasification chamber 18; one end of the heat exchange coil 24 is connected to the outer one-way valve 11, and the other end is connected to the air thinning device; the bottom end of the inner pipe 17 is sealed , the top of which is communicated with the gasification chamber 18; the gasification chamber 18 is provided with a liquid inlet valve 25 and an exhaust valve 26; a heating chamber 27 is provided between the heat exchange coil 24 and the air refining device, so The inner side of the heating bin 27 is provided with a plurality of heating wires 28;

所述空气细化装置包括大仓体29，所述大仓体29内侧设置有多层网板30，所述网板上涂覆有远红外涂层；及设置于网板之间的电气石31；所述大仓体29输入端设置有过滤器32和充气风机33；所述大仓体29输出端通过法兰连接到加热仓27；通过远红外涂层和电气石以电磁波的方式把能量释放出来，使其与环境之间发生能量交换，其在常温下高效发射远红外线，频率同空气的远红外吸收频率相吻合，可以克服范德华力，使空气中的分子团簇微细化，团簇越小，同时能够使分子团排列整齐，并将其打入到轻烃油中，从而使轻烃气具备更好地燃烧利用率。The air thinning device includes a large warehouse body 29, the inner side of the large warehouse body 29 is provided with a multi-layer mesh plate 30, and the mesh plate is coated with a far-infrared coating; and tourmaline arranged between the mesh plates. 31; The input end of the large warehouse body 29 is provided with a filter 32 and an inflatable fan 33; the output end of the large warehouse body 29 is connected to the heating warehouse 27 through a flange; The energy is released to exchange energy between it and the environment. It emits far-infrared rays efficiently at room temperature, and the frequency is consistent with the far-infrared absorption frequency of the air. It can overcome the van der Waals force and make the molecular clusters in the air micronized. The smaller the cluster, the more neatly arranged the molecular clusters can be, and then driven into the light hydrocarbon oil, so that the light hydrocarbon gas has a better combustion utilization rate.

工作时，空气细化装置将打入加热仓的空气进行细化，细化后的空气打入到加热仓，通过加热仓内的电热丝进行加热，加热后的空气既能够给轻烃油气化提供一个初始潜热；同时，其能够将气化仓内侧的氨液气化，加热和细化的空气打入到气化炉内侧的单向阀，并通过单向阀和气化头将细化热气均匀喷到轻烃油，从而产生轻烃燃气，气化时，高位储箱内的轻烃油通过液位球阀打入到气化炉内侧，从而使气化炉内侧形成浅液面的轻烃油，气化后的轻烃燃气被送至点火嘴出进行点火，由于细化后的热气与轻烃油混合，从而大大提高轻烃燃气的燃烧效率，轻烃燃气利用率高；当轻烃燃气被气化到一定容量时，关闭电热丝，并通过点火嘴进行点火加热，轻烃燃气产生的高温热量被加热夹层内侧的相变层吸收，同时对气化仓进行直接加热，气化仓内侧的氨水被气化，同时气化仓内侧的换热盘管内细化气体被加热，打入到气化炉继续为轻烃油提供潜热，其回收氨气中的部分热量，当点火嘴燃烧到一定时间后，控制器控制点火嘴灭火，相变层内的内管持续进行气化，氨气持续对换热盘管进行加热，能够回收氨气中的部分热量，并持续传递到气化炉中，当气化炉二次点火时，无需电热丝进行二次加热提供潜热；同时，氨气能够持续给空气源吸收式热泵系统的发生器提供蒸发热源；当在线测温器检测到温度降低到一级阈值时，可通过电热丝进行辅助加热，当在线测温器检测到温度降低到二级阈值时，电热丝关闭，此时，点火嘴点火开启，继续为气化仓提供气化热量和相变层存储热量。When working, the air thinning device will thin the air driven into the heating chamber, and the refined air will be driven into the heating chamber and heated by the electric heating wire in the heating chamber. The heated air can not only vaporize light hydrocarbons Provides an initial latent heat; at the same time, it can vaporize the ammonia liquid inside the gasification chamber, and the heated and refined air is injected into the check valve inside the gasifier, and the refined hot gas is passed through the check valve and the gasification head. Evenly spray the light hydrocarbon oil to generate light hydrocarbon gas. During gasification, the light hydrocarbon oil in the high-level storage tank is driven into the inside of the gasifier through the liquid level ball valve, so that light hydrocarbons with shallow liquid surface are formed inside the gasifier. Oil, the gasified light hydrocarbon gas is sent to the ignition nozzle for ignition. Because the refined hot gas is mixed with the light hydrocarbon oil, the combustion efficiency of the light hydrocarbon gas is greatly improved, and the utilization rate of the light hydrocarbon gas is high; When the gas is gasified to a certain capacity, the heating wire is turned off, and the ignition is carried out through the ignition nozzle. The high temperature heat generated by the light hydrocarbon gas is absorbed by the phase change layer inside the heating interlayer, and the gasification chamber is directly heated at the same time. The ammonia water inside is gasified, and at the same time, the refined gas in the heat exchange coil inside the gasification tank is heated, and is driven into the gasifier to continue to provide latent heat for light hydrocarbon oil, which recovers part of the heat in the ammonia gas, and when the ignition nozzle burns After a certain time, the controller controls the ignition nozzle to extinguish the fire, the inner tube in the phase change layer continues to gasify, and the ammonia gas continues to heat the heat exchange coil, which can recover part of the heat in the ammonia gas and continue to transfer it to the gasification. In the furnace, when the gasifier is ignited for the second time, there is no need for the electric heating wire to perform secondary heating to provide latent heat; at the same time, ammonia gas can continue to provide evaporation heat source for the generator of the air source absorption heat pump system; when the online temperature detector detects the temperature When the temperature drops to the first-level threshold, auxiliary heating can be performed through the heating wire. When the online temperature detector detects that the temperature drops to the second-level threshold, the heating wire is turned off. At this time, the ignition nozzle is turned on to continue to provide gasification for the gasification chamber. Heat and phase change layers store heat.

其中，所述内管17为沿加热夹层轴向设置的多根直管或沿加热夹层内侧周向设置的螺旋管；加热气化的氨气上升，热交换液化的氨液通过内管直接回到相变层进行二次加热。Wherein, the inner pipe 17 is a plurality of straight pipes arranged along the axial direction of the heating interlayer or a spiral pipe arranged along the inner circumferential direction of the heating interlayer; the heated and gasified ammonia gas rises, and the ammonia liquid liquefied by heat exchange is directly returned through the inner pipe. To the phase change layer for secondary heating.

再一实施例中，所述气化仓18为空气源吸收式热泵系统其发生器。In yet another embodiment, the gasification chamber 18 is a generator of an air source absorption heat pump system.

再一实施例中，所述进液阀25和排气阀26均连接到空气源吸收式热泵系统其发生器。In yet another embodiment, the inlet valve 25 and the exhaust valve 26 are both connected to the generator of the air source absorption heat pump system.

其中，所述外单向阀11输入端和保温层14内面分别设置有在线测温器34；所述在线测温器34电连接到控制器，所述控制器电连接点火嘴其打火器和电热丝开关。所述气化头7包括弧面结构的喷头71，喷头连通的多排喷嘴72。Wherein, the input end of the outer one-way valve 11 and the inner surface of the insulation layer 14 are respectively provided with an online temperature detector 34; the online temperature detector 34 is electrically connected to the controller, and the controller is electrically connected to the igniter and its lighter and heating wire switch. The gasification head 7 includes a spray head 71 with a curved surface structure, and multiple rows of nozzles 72 communicated with the spray heads.

再一实施例中，所述喷头71内面贴合有一透气膜，通过透气膜能够疏水，同时不影响热量打入到气化炉中。In yet another embodiment, a gas permeable film is attached to the inner surface of the nozzle 71 , and the gas permeable membrane can be hydrophobic, and at the same time, the injection of heat into the gasifier is not affected.

上述实施例，仅是本发明的较佳实施方式，故凡依本发明专利申请范围所述的构造、特征及原理所做的等效变化或修饰，均包括于本发明专利申请范围内。The above embodiments are only preferred embodiments of the present invention, so all equivalent changes or modifications made according to the structures, features and principles described in the scope of the patent application of the present invention are included in the scope of the patent application of the present invention.

Claims (7)

1. The utility model provides a light hydrocarbon gas driven air source heat pump which characterized in that: including air source absorption heat pump system, its characterized in that: the device also comprises a high-level storage tank, a gasification furnace, an air source heat pump heater and an air refining device; the gasification furnace comprises a furnace body, wherein a liquid level ball valve connected with the bottom of the high-level storage tank is arranged at the lower part of the inner side of the furnace body; a flange seat is integrally formed at the bottom of the inner side of the furnace body; a sealing plate is fixed on the flange seat; a plurality of one-way valves are embedded on the sealing plate; the one-way valve is screwed with a plurality of gasification heads; the other end of the check valve is connected to the main pipe through a flange; the bottom of the furnace body is provided with a bottom cover; the bottom cover is provided with a support seat which is pressed with the header pipe; one end of the main pipe is sealed, and the other end of the main pipe is connected to the outer one-way valve; the top of the furnace body is rotatably connected with a gasification nozzle;
the air source heat pump heater comprises an outer barrel, a heat insulation layer and a heating interlayer, wherein the heat insulation layer is arranged on the inner side of the outer barrel, and the heating interlayer is arranged on the inner side of the heat insulation layer; a phase change layer is arranged on the inner side of the heating interlayer; the inner pipe is arranged on the inner side of the heating interlayer and is poured with the phase change layer; a gasification bin is arranged on the upper part of the heating interlayer on the inner side of the outer barrel; the middle part of the gasification bin is provided with a conical groove; the bottom of the heating interlayer is provided with a ring groove; an ignition disc is pressed on the inner side of the ring groove; an ignition nozzle is arranged on the inner side of the ignition disc and the heating interlayer; the ignition nozzle is connected to the gasification nozzle through a pressure regulating valve; a heat exchange coil is arranged on the inner side of the gasification bin; one end of the heat exchange coil is connected to the outer one-way valve, and the other end of the heat exchange coil is connected to the air refining device; the bottom end of the inner pipe is sealed, and the top end of the inner pipe is communicated with the gasification bin; a liquid inlet valve and an exhaust valve are arranged on the gasification bin; a heating bin is arranged between the heat exchange coil and the air refining device, and a plurality of electric heating wires are arranged on the inner side of the heating bin;
the air refining device comprises a large cabin body, wherein a plurality of layers of screen plates are arranged on the inner side of the large cabin body, and far infrared coatings are coated on the screen plates; and tourmaline arranged between the net plates; the input end of the large bin body is provided with a filter and an inflation fan; the output end of the large bin body is connected to the heating bin through a flange.
2. A light hydrocarbon gas driven air source heat pump as claimed in claim 1, wherein: the inner pipe is a plurality of straight pipes axially arranged along the heating interlayer or a spiral pipe circumferentially arranged along the inner side of the heating interlayer.
3. A light hydrocarbon gas driven air source heat pump as claimed in claim 1, wherein: the gasification bin is a generator of an air source absorption heat pump system.
4. A light hydrocarbon gas driven air source heat pump as claimed in claim 1, wherein: the liquid inlet valve and the exhaust valve are both connected to a generator of the air source absorption heat pump system.
5. A light hydrocarbon gas driven air source heat pump as claimed in claim 1, wherein: the input end of the outer one-way valve and the inner surface of the heat insulation layer are respectively provided with an online temperature detector; the online temperature detector is electrically connected to a controller, and the controller is electrically connected with a lighter of the ignition nozzle and a heating wire switch.
6. A light hydrocarbon gas driven air source heat pump as claimed in claim 1, wherein: the gasification head comprises a spray head with a cambered surface structure and a plurality of rows of spray nozzles communicated with the spray head.
7. A light hydrocarbon gas driven air source heat pump as claimed in claim 6, wherein: the inner surface of the spray head is attached with a breathable film.
