CN111998475A - Ecological celestial body air conditioner and air-conditioned vehicle - Google Patents

Abstract

An ecological celestial air conditioner and an air-conditioning vehicle relate to a device for cooling the atmosphere and adjusting the humidity in the air, eliminating haze and increasing rainfall. The invention provides an ecological celestial air conditioner and an air-conditioned vehicle which are simple and easy to operate, can increase rainfall and cool the city in a large area. The ecological celestial air conditioner of the present invention includes an atomization tower, and the top of the atomization tower is provided with a Baoding. A motor is arranged in the middle of the body, and fans are arranged at both ends of the casing; an atomizing cover connected to the water source is arranged at the air outlet of the casing.

Description

Eco-celestial air conditioners and air-conditioned vehicles

technical field

The invention relates to a device for cooling the atmosphere and adjusting the humidity in the air, eliminating haze and increasing rainfall.

Background technique

In recent years, the global temperature has been rising year by year, and the resulting natural disasters such as super typhoons, hurricanes, tsunamis, rainstorms, mudslides, landslides, floods, droughts, insect disasters, plagues and other natural disasters have increased in frequency. ℃, human beings will have nowhere to live.

The main reasons for the above disasters are the destruction of the ecology by human beings, the excessive emission of greenhouse gases such as sulfur dioxide and carbon dioxide into the atmosphere, the destruction of the ecology, the excessive deforestation, the disappearance of thousands of lakes and 10,000 lakes, and the advancement of urbanization. , the emergence of urban heat island, accelerated the destruction of the ecological climate, the population surge, accelerated the demand for destruction of the earth, resulting in the imbalance of the celestial system. Due to the continuous accumulation of the greenhouse effect, the energy absorbed and emitted by the earth-atmosphere system is unbalanced, and the energy is continuously accumulated in the earth-atmosphere system, resulting in an increase in temperature and global warming.

At present, there is no device on the market that can solve the problem of global warming.

SUMMARY OF THE INVENTION

The present invention is aimed at the above-mentioned problems, and provides an ecological celestial air conditioner and an air-conditioned vehicle which are simple and easy to implement, can increase the rainfall, and cool the city in a large area.

In order to achieve the above object of the present invention, the present invention adopts the following technical solutions. The ecological celestial air conditioner of the present invention includes an atomization tower, and the top of the atomization tower is provided with a treasure top, and is characterized in that: an atomizer is arranged on the treasure top, The atomizer includes a casing connected to the top, a motor is arranged in the middle of the casing, and fans are arranged at both ends of the casing; an atomizing cover connected to a water source is arranged at the air outlet of the casing.

As a preferred solution of the ecological celestial air conditioner of the present invention, the atomizing cover comprises a horn-shaped cover body, the small end of the cover body is connected to the air outlet of the casing, and the inner surface of the cover is provided with an inner cover. A water pipe channel is arranged between the cover body and the inner cover, an atomizing nozzle is arranged on the inner cover, and a water inlet pipe connected with the water pipe channel is arranged outside the cover body, and the water inlet pipe is connected with the water source.

As another preferred solution of the ecological celestial air conditioner of the present invention, both the atomizer and the water source are connected to the control system.

The ecological celestial air-conditioning vehicle of the present invention includes a walking vehicle, and is characterized in that: the walking vehicle is provided with an atomizer, and the atomizer includes a casing connected to the walking vehicle, a motor is arranged in the middle of the casing, and an atomizer is arranged in the casing. Fans are arranged at both ends; an atomizing cover connected to the water tank of the traveling vehicle is arranged at the air outlet of the casing.

As a preferred solution of the ecological celestial air-conditioned vehicle of the present invention, the atomizing cover comprises a horn-shaped cover body, the small end of the cover body is connected with the air outlet of the casing, and the inner surface of the cover is provided with an inner cover. A water pipe channel is arranged between the cover body and the inner cover, an atomizing nozzle is arranged on the inner cover, and a water inlet pipe connected with the water pipe channel is arranged outside the cover body, and the water inlet pipe is connected with the water tank.

As another preferred solution of the ecological celestial air-conditioned vehicle of the present invention, the traveling vehicle is provided with an atomizing cover and a control box of the water source control system.

As the third preferred solution of the ecological celestial air-conditioning vehicle of the present invention, a bracket is provided on the traveling vehicle, and the atomizer is arranged on the bracket through a rotating assembly; an angle adjustment rod is also arranged between the bracket and the atomizer.

As the fourth preferred solution of the ecological celestial air-conditioned vehicle of the present invention, a traction rod is arranged on the walking vehicle, and a positioning support rod is arranged at the bottom of the walking vehicle.

The beneficial effects of the present invention are as follows: 1. The present invention can generate water mist, and in the process of water vaporization, it absorbs the heat in the air and cools the city.

2. The water mist sprayed by the present invention forms a cloud, which can form a shield over the city and reduce the radiation energy of the sun shining on the city.

3. The present invention increases the air humidity, increases the thermal conductivity of the air, and effectively dissipates the heat in the air to space.

4. The present invention can increase the frequency of rain, generate a virtuous cycle of rainfall and cooling, and effectively prevent the occurrence of the urban heat island phenomenon.

5. Water vapor can produce physical and chemical reactions with greenhouse gases and smog under sunlight, purify the air, solve the greenhouse effect and air pollution.

Description of drawings

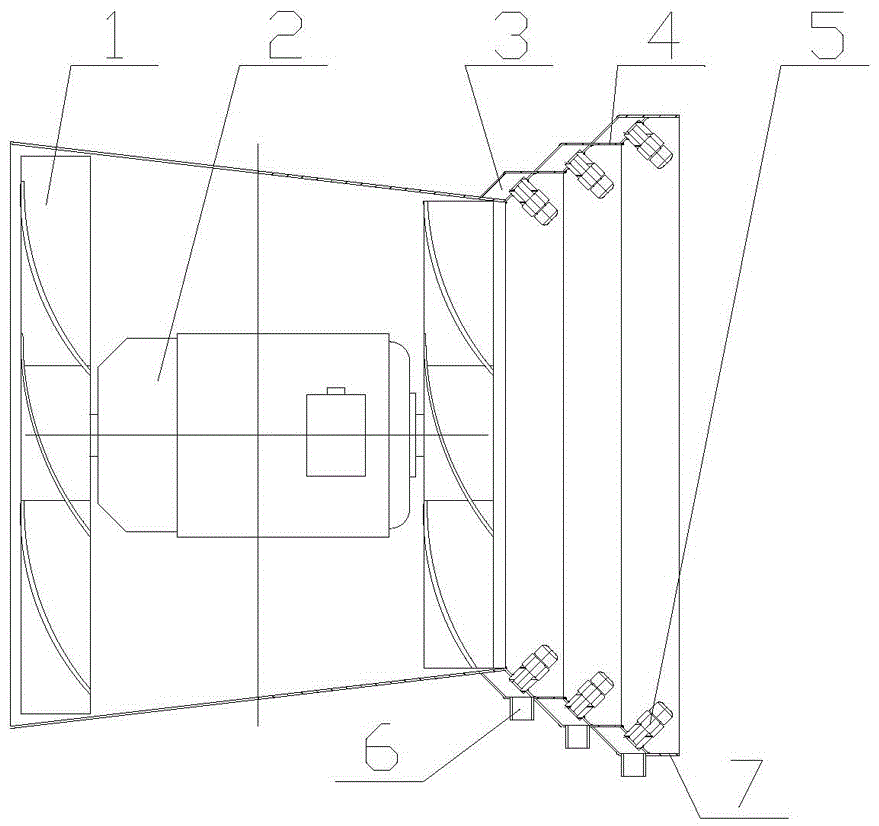

Fig. 1 is a sectional view of the atomizer of the present invention.

Figure 2 is a front view of the atomizer of the present invention.

FIG. 3 is an overall layout diagram of the ecological celestial air conditioner of the present invention.

FIG. 4 is a top view of the layout of the Baoding atomizer of the ecological celestial air-conditioning tower according to the present invention.

Fig. 5 is the side layout view of the Baoding atomizer of the ecological celestial air-conditioning tower of the present invention.

FIG. 6 is a front view of the ecological celestial air-conditioned vehicle of the present invention.

FIG. 7 is a side view of the ecological celestial air-conditioned vehicle of the present invention.

8 is a process flow diagram of the ecological celestial air conditioner of the present invention.

In the accompanying drawings, 1 is a fan, 2 is a motor, 3 is a water pipe channel, 4 is an inner cover, 5 is an atomizing nozzle, 6 is a water inlet pipe, 7 is a cover body, 8 is an atomizer, 9 is a treasure top, and 10 is a The atomization tower, 11 is a control box, 12 is a traction rod, 13 is a traveling vehicle, 14 is an angle adjustment rod, and 15 is a positioning support rod.

Detailed ways

The ecological celestial air conditioner of the present invention includes an atomization tower 10, and a top of the atomization tower 10 is provided with a treasure top 9. It is characterized in that: the treasure top 9 is provided with an atomizer 8, and the atomizer 8 includes a 9. Connected casings, a motor 2 is arranged in the middle of the casing, and fans 1 are arranged at both ends of the casing; an atomizing cover connected to the water source is arranged at the air outlet of the casing.

As a preferred solution of the ecological celestial air conditioner of the present invention, the atomizing cover includes a horn-shaped cover body 7, the small end of the cover body 7 is connected to the air outlet of the casing, and the inner surface of the cover body 7 is provided with an inner surface. Cover 4, a water pipe channel 3 is arranged between the inner cover 4 and the cover body 7, an atomizing nozzle 5 is arranged on the inner cover 4, and a water inlet pipe 6 communicated with the water pipe channel 3 is arranged outside the cover body 7, and the water inlet pipe 6 is connected to the water source. connected.

As another preferred solution of the ecological celestial air conditioner of the present invention, the atomizer 8 and the water source are both connected to the control system.

The water source can be a reservoir at the bottom of the atomization tower 10 and a high-pressure centrifugal water pump.

The ecological celestial air-conditioning vehicle of the present invention includes a traveling cart 13, and is characterized in that: the traveling cart 13 is provided with an atomizer 8, and the atomizing machine 8 includes a housing connected to the traveling cart 13, and the inner part of the housing is provided with an atomizer 8. There is a motor 2 , and fans 1 are provided at both ends of the housing; an atomizing cover connected to the high-pressure water pipe on the traveling vehicle 13 is provided at the air outlet of the housing.

As a preferred solution of the ecological celestial air-conditioned vehicle of the present invention, the atomizing cover includes a horn-shaped cover body 7, the small end of the cover body 7 is connected to the air outlet of the casing, and the inner surface of the cover body 7 is provided with an inner surface. Cover 4, a water pipe channel 3 is arranged between the inner cover 4 and the cover body 7, an atomizing nozzle 5 is arranged on the inner cover 4, and a water inlet pipe 6 communicated with the water pipe channel 3 is arranged outside the cover body 7, and the water inlet pipe 6 is connected to the water tank. connected.

As another preferred solution of the ecological celestial air-conditioned vehicle of the present invention, the traveling vehicle 13 is provided with an atomizing cover and a control box 11 of a water source control system.

As the third preferred solution of the ecological celestial air-conditioning vehicle of the present invention, a bracket is provided on the traveling vehicle 13, and the atomizer 8 is arranged on the bracket through a rotating assembly; an angle adjustment rod is also arranged between the bracket and the atomizer 8 14.

As the fourth preferred solution of the ecological celestial air-conditioned vehicle of the present invention, a traction rod 12 is provided on the traveling cart 13 , and a positioning support rod 15 is provided at the bottom of the traveling cart 13 .

The working process of the ecological celestial air conditioner of the present invention: 1. Water is injected into the reservoir. 2. Turn on the power supply of the control system. 3. Press the start button, at this time, the microcomputer will start the high-pressure centrifugal water pump in groups to supply water to the atomizer 8 of the atomizer tower 10 and the top 9. 4. The microcomputer starts the power supply of the motor 2 of the atomizer 8 at the same time, and the atomizer 8 starts to work for artificial cloud formation. 5. The microcomputer starts 1 to 4 groups of high-pressure centrifugal pumps in turn, and the 8 atomizers and 8 of the 1 to 4 layers work to complete the cloud-making operation.

The working process of the ecological celestial air-conditioning vehicle of the present invention: 1. Connect the high-pressure water pipe to the atomizer 8 . 2. At the same time, start the motor 2 on the atomizer 8, the water atomizer 8 starts to work, humidifies and creates clouds, and completes the working process of the trolley-mounted hydraulic and wind pressure high-speed atomizer 8.

Solutions to Global Warming:

1. Eliminate greenhouse gases, carbon dioxide gas, sulfur dioxide gas, nitrogen oxide gas, fluorine, chlorine, hydrocarbons and other harmful gases.

2. Repair the imbalance between the energy absorbed and emitted by the earth-air system, and the energy cannot be effectively released in the earth-air system, which will cause the temperature to rise and cause global warming.

The present invention is designed to solve the above two problems that cause global warming.

Through the 130-meter-high atomization tower 10, the water is atomized into the atmosphere, and the atomized water is sent into the cloud layer by using the ground-effect heat updraft. The ecological celestial air conditioner is also a cloud generator, which can atomize 500-1500 tons of water per hour, and can create 75,000 square meters of clouds per hour, and 18,000 square kilometers of clouds in 24 hours. The cloud and fog created within 24 hours can cover a city, and the cloud and fog can effectively block the radiation of sunlight and cool the city. Atomizing one ton of water can absorb 500kw of heat in the air. Atomization of 36,000 tons of water can absorb 18,000,000kw of heat in the air. The outdoor temperature of 35°C can be cooled to within 22°C in cities within an area of 18,000 square kilometers. The atomized water sprayed into the cloud layer by the invention can act as a heat-conducting carrier, effectively conducting the ground heat to space, thereby reducing the temperature of the city. The atomized water sprayed into the cloud layer of 36,000 tons can generate a low-temperature cyclone in an area of 18,000 square kilometers. , inhale the surrounding warm and humid air, form rainfall, and completely cool the city.

Using the spray cloud formation method to reduce the atmospheric temperature will inevitably consume a large amount of water. Whether the current freshwater resources in China can effectively support the implementation of the spray cloud formation method?

China is one of the countries with frequent droughts and floods in the world. From a spatial perspective, there is no disaster anywhere in the east, west, north and south. From the point of view of time, there is no harm in the past and present. According to statistics, during the 2155 years from AD 205 to 1949, there were 1,029 floods and 1,056 major droughts in China. Floods and droughts occurred almost every year, and droughts and floods killed more than 10,000 people. It occurs once every 20 years. The root cause of frequent droughts and floods in China has both social and natural factors. In terms of meteorological conditions, China's climate is a typical continental monsoon climate. The distribution of seasons, regions and years is extremely uneven. In terms of geographical environment, China has a complex topography, high in the west and low in the east, and a large area of mountain plateaus. The above are in arid and semi-arid states with a lack of water. Coastal and inland, south and north are very different, which makes floods and droughts and other natural disasters occur frequently. In short, the frequency of disasters, the intensity of disasters and even the losses of disasters are rare in the world, and China is an agricultural country. The impact of natural disasters is very huge. In history, there is a description of "famine at the age of 3, decline at the age of 6, and famine at the age of 12". It shows that drought and flood disasters are one of the important factors restricting the social development of China for a long time.

China's rich source is vast, from Zengmu Shoal in the south to Mohe in the north, with a longitudinal latitude of about 50 degrees, from the Ussuri River in the east to the Pamir Plateau in the west, spanning more than 60 degrees of longitude, with a total land area of about 960 It is one of the largest countries in the world with an area of 10,000 square kilometers. my country's topography is extremely complex, generally in a trend of high in the west and low in the east. There are both plateaus and mountains, both hills and basins and plains, accounting for about 12% of the total land area. The Yangtze River, Yellow River, Heilongjiang, Pearl River, Liaohe, Haihe, Huaihe, Nujiang, Qiantangjiang, Brahmaputra, Poyang Lake, Dongting Lake, Taihu Lake, Hongze Lake, Chaohu and other rivers and lakes contain abundant water resources, which contribute to China's water conservancy cause The development of China has provided very favorable natural conditions. In the vast land of China, there are dense rivers and lakes. According to incomplete statistics, there are more than 5,000 rivers with a drainage area of more than 100 square kilometers.

From the above point of view, China's water resources are not lacking, but very unevenly distributed. We can create a Tianhe by spraying clouds to supply water and cool down in arid areas, adjust climatic conditions in arid areas, and promote vegetation breeding. The increase in crop production and income has enabled Chinese farmers to live a prosperous life.

The biggest difference between the present invention and the existing air conditioner is that it can consume less energy, lower the temperature more, and realize energy saving and emission reduction. It significantly improves the cooling efficiency and energy utilization rate, and reduces the energy consumption cost, especially through the water pressure wind pressure water high-speed atomizer 8, which atomizes the water to form clouds, absorbs the heat in the atmosphere, and the cloud layer can effectively block the sun. The infrared and ultraviolet rays directed to the surface of the earth increase the humidity in the air, which can increase the thermal conductivity of the air, and can direct the heat from the ground to space to achieve greater cooling. So as to solve the problem of global warming and urban heat island.

Example of an ecological celestial air conditioner: on the top 9 of the atomization tower 10, there are 4 layers, 40 atomizers 8, and 4 groups of high-pressure centrifugal water pumps are arranged on the reservoir, and each group of high-pressure centrifugal water pumps is responsible for a layer of fog. The water supply of the chemical machine 8. Three groups of dozens of atomizing nozzles 5 are arranged in the front section of the atomizer 8 , and two groups of fans 1 are arranged in front of and behind the motor 2 . The ecological celestial air conditioner is provided with a main control center cabinet of the control system, and the main control center cabinet activates the atomizers 8 on each floor respectively according to the demand for the amount of atomized water. In the described eco-celestial air conditioner.

The embodiment of the ecological celestial air-conditioning vehicle: the atomizer 8 can be independently carried by the walking cart 13 to perform atomization and cooling in a small area, and can perform cooling in a market, a factory area, a stadium, and a scenic area.

The number of atomizers 8 installed on the top 9 of the atomization tower 10 of the ecological celestial air conditioner of the present invention may be more or less as required. The atomization tower 10 can be high or low as needed. According to the needs of the scene, the atomizer 8 can also use tall buildings and tall buildings in the scene area as the atomization tower 10 to make full use of the existing resources.

The ecological celestial air conditioner and the ecological celestial air-conditioning vehicle of the present invention cool the earth in the following five ways: 1. The water vaporization process absorbs the heat in the air and cools the city.

2. The atomized water draws a curtain to the city sky, effectively blocking the radiant heat energy from the sun to the city.

3. The atomized water sprayed into the atmosphere increases the humidity of the air, increases the thermal conductivity of the air, and effectively dissipates the heat in the air to space.

4. Effectively increase the frequency of rain, which creates a virtuous cycle of rainfall and cooling, and effectively prevents the occurrence of urban heat island phenomenon.

5. Water vapor in the sky can have chemical and physical reactions with greenhouse gas haze under the action of sunlight. For example, carbon dioxide reacts with water vapor to form carbonic acid under the action of sunlight, and sulfur dioxide chemically reacts with water vapor under sunlight. The reaction produces sulfuric acid. Water vapor converts greenhouse gases in the atmosphere into new substances that are brought to the surface in the form of rainfall. Water vapor can condense the haze in the atmosphere into small particles, which are brought to the ground in the form of rainfall, thereby effectively purifying the atmosphere, lowering the atmospheric temperature, and solving the problems of greenhouse effect and air pollution.

It can be understood that the above specific description of the present invention is only used to illustrate the present invention and is not limited to the technical solutions described in the embodiments of the present invention. Those of ordinary skill in the art should understand that the present invention can still be modified or It is equivalent to replacement to achieve the same technical effect; as long as the needs of use are met, they are all within the protection scope of the present invention.

Claims (7)

1. Ecological celestial body air conditioner, including atomizing tower (10), atomizing tower (10) top is provided with treasured top (9), its characterized in that: an atomizer (8) is arranged on the top (9), the atomizer (8) comprises a shell connected with the top (9), a motor (2) is arranged in the middle of the shell, and fans (1) are arranged at two ends in the shell; an atomizing cover connected with a water source is arranged at the air outlet of the shell.

2. The ecological celestial air conditioner of claim 1, wherein: the atomizing cover comprises a horn-shaped cover body (7), one end of a small end of the cover body (7) is connected with an air outlet of the shell, an inner cover (4) is arranged on the inner surface of the cover body (7), a water pipe channel (3) is arranged between the inner cover (4) and the cover body (7), an atomizing nozzle (5) is arranged on the inner cover (4), a water inlet pipe (6) communicated with the water pipe channel (3) is arranged outside the cover body (7), and the water inlet pipe (6) is connected with a water source.

3. The ecological celestial air conditioner of claim 1, wherein: the atomizer (8) and the water source are both connected with a control system.

4. Ecological celestial body air conditioner car, including walking car 13, its characterized in that: an atomizer (8) is arranged on the walking vehicle (13), the atomizer (8) comprises a shell connected with the walking vehicle (13), a motor (2) is arranged in the middle of the shell, and fans (1) are arranged at two ends in the shell; an air outlet of the shell is provided with an atomizing cover connected with a high-pressure water pipe of the walking vehicle (13).

5. The ecological celestial air-conditioned vehicle of claim 4, wherein: the atomizing cover comprises a horn-shaped cover body (7), one end of a small end of the cover body (7) is connected with an air outlet of the shell, an inner cover (4) is arranged on the inner surface of the cover body (7), a water pipe channel (3) is arranged between the inner cover (4) and the cover body (7), an atomizing nozzle (5) is arranged on the inner cover (4), a water inlet pipe (6) communicated with the water pipe channel (3) is arranged outside the cover body (7), and the water inlet pipe (6) is connected with the water tank.

6. The ecological celestial air-conditioned vehicle of claim 4, wherein: the walking vehicle (13) is provided with a bracket, and the atomizer (8) is arranged on the bracket through a rotating assembly; an angle adjusting rod (14) is also arranged between the bracket and the atomizer (8).

7. The ecological celestial air-conditioned vehicle of claim 4, wherein: the walking vehicle (13) is provided with a traction rod (12), and the bottom of the walking vehicle (13) is provided with a positioning support rod (15).
