Abstract

The invention discloses a sign, comprising a frame, a profile and a panel; the frame extends longitudinally, and the cross section of the frame is radial in the center; The side edges are respectively snap-fitted and fixed in the two adjacent profiles. The sign utilizes skeletons, panels and profiles to realize modular assembly, and each component is mostly fixedly connected by assembly, which reduces welding work and facilitates disassembly, maintenance and reuse, thus simplifying the installation, maintenance and re-use of the sign. disassemble. The skeleton has an integrated structure with good integrity. Its quality is concentrated in the radial center, and its structural performance is excellent. It can reduce or even avoid bending deformation during use, avoid tilting and shaking caused by the external environment, and ensure the service life and safety of the sign. and aesthetics.

Description

a sign

technical field

The invention relates to the field of advertising identification, in particular to a sign.

Background technique

Signage is a kind of symbolic building that is mostly used in public places. It transmits relevant information to pedestrians through visual signals such as numbers, text or images.

Taking the signboard currently used in the subway entrance as an example, the existing signboard has many parts and components, and there are many welding parts during assembly, so the installation, maintenance and disassembly are inconvenient. In addition, the structural performance of such signs is difficult to meet long-term use, and it is easy to affect the installation stability of the entire sign and the integrity of the marking information due to local damage.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide an identification plate, which has few parts, is easy to install, disassemble and maintain, has good structural performance and installation performance, and can improve the use effect and service life.

In order to achieve the above purpose, the present invention provides a sign, including a skeleton, a profile and a panel; the skeleton extends longitudinally, and the cross-section of the skeleton is radial in the center; At the outer ends of the plurality of radiating parts, the two side edges of the panel are respectively clamped and fixed in two adjacent profiles.

Preferably, the skeleton includes three of the radiating parts.

Preferably, the lengths of the three radiating parts are the same, and the included angles of any two adjacent radiating parts are the same.

Preferably, the inner side of the profile is provided with a first slot for clipping the radiating portion and two second clip slots for clipping the adjacent edges of the two panels respectively; The two card slots are respectively located on both sides of the first card slot.

Preferably, the outer side of the profile is a circular arc surface; the center of the circular arc surface is close to the center of the skeleton.

Preferably, the panel includes a hollow plate and a bottom plate; the hollow plate is provided with identification information in a way of engraving; the bottom plate is attached to the inner surface of the hollow plate.

Preferably, the outer surface of the hollow board is provided with a fireproof non-stick coating.

Preferably, the bottom plate is a light-transmitting backing plate; a plate-shaped light source assembly is arranged on the inner side of the light-transmitting backing plate; road.

Preferably, the bottom of the skeleton is provided with a base and a foundation pile for pre-embedding in the construction site; the base is fixedly connected to the foundation pile through anchor bolts.

Preferably, the base comprises a stainless steel base plate and an inspection cavity arranged between the stainless steel base plate and the skeleton; at least one surface of the inspection cavity is provided with an inspection door for closing and opening; the inspection door passes through a lock. Connect the access cavity.

Compared with the above-mentioned background technology, the signboard provided by the present invention includes a skeleton, a profile and a panel; the skeleton extends longitudinally, and the cross-section of the skeleton is radial in the center; For the outer ends of the plurality of radiating parts, the two side edges of the panel are respectively clamped and fixed in two adjacent profiles.

The sign utilizes skeletons, panels and profiles to achieve modular assembly, which simplifies installation, maintenance and disassembly of the sign. The skeleton is an integral structure and is used for longitudinal fixing in the construction site. The mass of the skeleton is concentrated in the radial center, and the installation area for the assembly of profiles and panels is formed by the radially outwardly protruding structure. Therefore, the various parts of the sign are mostly fixedly connected by assembly, which reduces welding work and facilitates disassembly, maintenance and reuse; the integrity of the skeleton is good, and the structural performance is excellent, which can reduce or even avoid bending during application. Deformation, avoiding the external environment causing the sign to be tilted and shaking, and ensuring the service life, safety and aesthetics of the sign.

In addition, since the panel of the identification plate is detachably assembled to the profile and the frame, the identification information of the identification plate can be replaced by replacing the panel.

Description of drawings

In order to explain the embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description are only It is an embodiment of the present invention. For those of ordinary skill in the art, other drawings can also be obtained according to the provided drawings without creative work.

1 is a schematic structural diagram of a signboard provided in an embodiment of the present invention in a first direction;

2 is a schematic structural diagram of a signboard provided in an embodiment of the present invention in a second direction;

3 is a schematic structural diagram of the identification plate along the cross-sectional direction provided by an embodiment of the present invention;

Fig. 4 is the axonometric view of the identification plate provided by the embodiment of the present invention;

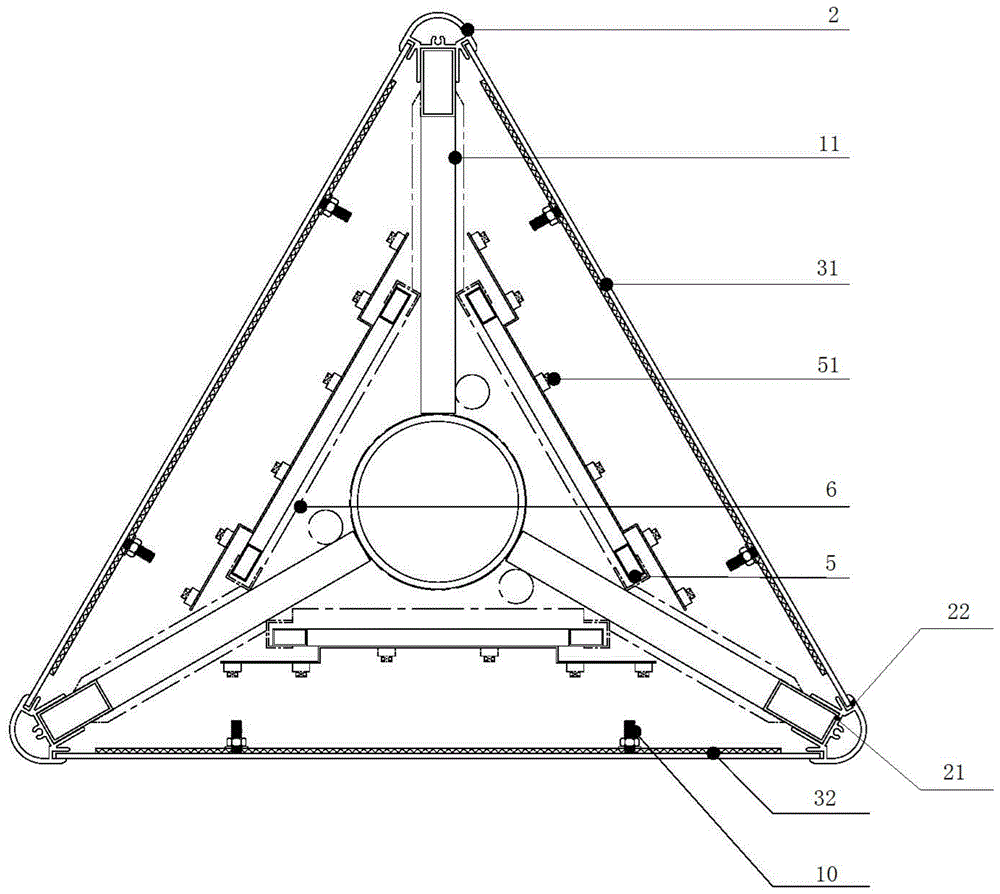

FIG. 5 is a cross-sectional view of an identification plate provided by an embodiment of the present invention.

Among them, 1-frame, 11-radiating part, 2-profile, 21-first slot, 22-second slot, 3-panel, 31-hollow plate, 32-bottom plate, 4-identification information, 5-light source Components, 51-LED light, 6-slide, 7-base, 71-stainless steel bottom plate, 72-access cavity, 73-access door, 8-lock, 9-hoisting ring, 10-welding stud.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

In order to make those skilled in the art better understand the solution of the present invention, the present invention will be further described in detail below with reference to the accompanying drawings and specific embodiments.

Please refer to FIGS. 1 to 5. FIG. 1 is a schematic structural diagram of a signboard provided by an embodiment of the present invention in a first direction; FIG. 2 is a structural schematic diagram of a signboard provided by an embodiment of the present invention in a second direction; FIG. 3 is a schematic structural diagram of a signboard provided by an embodiment of the present invention along a cross-sectional direction; FIG. 4 is an axonometric view of the signboard provided by an embodiment of the present invention; FIG. 5 is a schematic diagram of the signboard provided by an embodiment of the present invention. Cutaway view.

The present invention provides an identification plate, comprising a frame 1, a profile 2 and a panel 3 with identification information 4 recorded on the surface. Among them, the frame 1 extends longitudinally, and the cross section of the frame 1 along the horizontal plane is radial in the center. Taking the longitudinal direction as the axial direction of the skeleton 1 and the horizontal as the radial direction of the skeleton 1 , the radial direction of the skeleton 1 has a plurality of rod-shaped or angular radiating portions 11 protruding outward, and the outer end of any one of the aforementioned radiating portions 11 The profiles 2 are installed on the radiating parts 11 , and a panel 3 is installed between the two adjacent radiating parts 11 , and the panels 3 are inserted and fixed by the profiles 2 .

Taking the frame 1 having four radially protruding radial portions 11 as an example, the profiles 2 and the panels 3 of the sign are arranged in four or four groups. Wherein, if the length of one profile 2 matches the longitudinal length of one radiating portion 11, the number of all profiles 2 is four; or the length of one profile 2 is not enough to match the longitudinal length of one radiating portion 11, then all profiles 2 can be There are four groups, and each group includes a plurality of profiles 2, and the plurality of profiles 2 are sequentially spliced along the longitudinal direction of the same radiating portion 11 during installation. Likewise, whether the panels 3 are arranged in groups of four or four depends on the relationship between the size of a single panel 3 and the size of the frame 1 . In this example, the frame 1, four or four sets of profiles 2 and the panel 3 can be assembled into a quadrangular prism-shaped sign.

As for the outer end of the radiating portion 11 , it refers to the end away from the center of the frame 1 in the radial direction of the frame 1 . In this embodiment, the profile 2 and the skeleton 1, and the profile 2 and the panel 3 can be relatively fixed by shape matching, and the installation process can also be combined with fasteners such as screws to assist in the fixing. For example, one of the profile 2 and the frame 1 is provided with a groove, and the other is provided with a protruding column or a slider that can be inserted into the groove. During installation, the profile 2 and the frame 1 can be assembled by pressing or sliding.

As for the panel 3 , the application site that can be combined with the sign can be set as a metal panel 3 or a non-metal panel 3 . Taking the metal panel 3 as an example, a 3mm aluminum plate can be used.

It can be seen that the identification plate provided by the present invention utilizes the skeleton 1, the panel 3 and the profiles 2 to realize modular assembly, which simplifies the installation, maintenance and disassembly of the identification plate. The skeleton 1 has an integral structure and is used to be fixed in the construction site longitudinally. The mass of the skeleton 1 is concentrated in the radial center, and an installation area for assembling the profile 2 and the panel 3 is formed by the radially outwardly protruding structure. Therefore, the various parts of the sign are mostly fixedly connected by assembly, which reduces welding work and facilitates disassembly, maintenance and reuse; the skeleton 1 has good integrity and excellent structural performance, which can reduce or even avoid the application process. It is bent and deformed to avoid the external environment causing the sign to tilt and shake, and to ensure the service life, safety and aesthetics of the sign.

In addition, since the panel 3 of the identification plate is detachably assembled to the profile 2 and the frame 1 , the identification information 4 of the identification plate can be replaced by replacing the panel 3 .

The identification plate provided by the present invention will be further described below in conjunction with the accompanying drawings and embodiments.

Referring to FIG. 2 , in each embodiment provided by the present invention, the frame 1 is provided with three radially distributed radiating portions 11 in the center, and accordingly, the numbers of the profiles 2 and the panels 3 are set to three or three groups.

In FIG. 2 , the radiating part 11 is in the shape of a plate, the center of the frame 1 and an angular area between two adjacent radiating parts 11 , and the panel 3 is fixed to Between the two adjacent sides of the aforementioned angular area, the panel 3 and the adjacent two radiating portions 11 form a triangular area. Of course, this triangular area is the cross-sectional view shown in FIG. 2 , which means that the panel 3 and the two adjacent radiating parts 11 form a triangular prism area for the entire sign. In this embodiment, the identification plate has three above-mentioned triangular prism regions, and the three triangular prism regions are adjacent to each other, and are spliced together to form a larger triangular prism structure.

As for the included angle of the angular region formed by any two adjacent radiating portions 11 , the angle may be equal or different. When the included angles of the angular regions formed by any two adjacent radiating parts 11 are equal, it means that the included angle between two adjacent reflecting parts is 120°.

Further, in the signboard provided by the present invention, the lengths of the three radiating parts 11 are the same, and the included angles of any two adjacent radiating parts 11 are the same. This means that the three or three groups of panels 3 installed through the profiles 2 at the outer ends of the three radiating parts 11 have the same shape and size, so the sign is in the shape of a triangular prism and its cross section is an equilateral triangle .

Since the three or three groups of panels 3 of the identification plate have the same shape and size, the identification plate has three display surfaces of equal size that can be used to record identification information 4 . When the sign is installed in a public venue, pedestrians can obtain identification information 4 from the three display surfaces of the sign.

Of course, the radial lengths of the three radiating parts 11 of the frame 1 may also be different. In this case, the identification plate has three display surfaces with different areas, which can be used to record different identification information 4 .

For the profile 2 used in the present invention, a first card slot 21 and two second card slots 22 are provided on the inner side thereof, and the two second card slots 22 are located on both sides of the first card slot 21 . The first clamping slot 21 is used for clamping to fix the radiation portion 11 of the connection frame 1, and the second clamping slot 22 is used for clamping the adjacent edges of the two adjacent panels 3 respectively, so as to fix the panel 3 to a pair of profiles. between 2.

Combined with the shape characteristics of the frame 1 and the profile 2, the first slot 21 and the second slot 22 both extend along the axial direction of the frame 1. When the panel 3 is installed between the pair of profiles 2, the profiles 2 can be connected to the frame before they are connected. Step 1: First, install a pair of profiles 2 on both side edges of the panel 3, and then use the aforementioned pair of profiles 2 to fix the panel 3 between two adjacent radiating parts 11 of the frame 1. It is also possible to first install a pair of profiles 2 between two adjacent radiating parts 11 of the frame 1, and then insert the panel 3 from one axial end of the frame 1 to the other end in the axial direction, so that the panel 3 follows the direction of the pair of profiles 2. The first card slot 21 slides to achieve positioning and installation.

In this embodiment, after the panel 3 penetrates into the second slot 22 of the profile 2, the upper end of the profile 2 can also be sealed to prevent external rain, snow, dust and other substances from entering the interior of the sign from the upper end of the profile 2.

The outer side of the profile 2 is an arc surface, and the center of the arc surface is close to the center of the frame 1 . 2, the profile 2 is wrapped around the outer end of the radiating part 11 with a curved surface. When the auxiliary panel 3 is installed, it can smoothly transition the adjacent display surfaces of the sign to avoid sharp edges of the sign. And hurt pedestrians, avoid the aforementioned edge damage and affect the structural strength and aesthetics of the sign.

The panel 3 used in the present invention may specifically include a hollow plate 31 and a bottom plate 32; wherein, the hollow plate 31 is provided with the identification information 4 in a way of engraving, and the bottom plate 32 is attached to the inner surface of the hollow plate 31 to assist the hollow plate 31. 31 displays the aforementioned identification information 4 . In this embodiment, the identification information 4 is displayed in a hollowed-out manner, which can effectively ensure that the murals of the identification information 4 carried by the identification plate are complete, not easy to fall off, and ensure that pedestrians can obtain complete information; Low cost of use and maintenance.

Wherein, the identification information 4 may include numbers, characters and pictures, which should be specifically set according to the application occasion of the identification plate.

On the basis of the above embodiment, the outer surface of the hollow plate 31 is provided with a fireproof non-stick coating, which can quickly and easily clean up the small advertisements pasted on the surface of the sign by illegal traders. Of course, the surface of the hollow plate 31 can also be directly screen-printed with the identification information 4 by screen ink.

As for the bottom plate 32 , it can be set as a light-transmitting backing plate 32 . Correspondingly, a light source assembly 5 is provided on the inner side of the bottom plate 32, and the light source assembly 5 provides light to the bottom plate 32 to ensure that the identification plate can effectively transmit the identification information 4 even in cloudy days or at night when the light is insufficient.

Wherein, the hollow plate 31 and the bottom plate can be fixed by welding nails 10 . The installation position of the welding stud 10 should avoid the identification information on the surface of the hollow plate.

The light source assembly 5 can be provided as a plate-like structure with a plurality of LED lamps 51 fixed on the surface. The identification plate is provided with a slideway 6 between two adjacent radiating parts 11 for the light source assembly 5 to be snapped into, that is to say, the frame 1 and the profile 2, the profile 2 and the panel 3, the frame 1 and the light source assembly 5 are all It can be relatively fixed in the form of assembly, which is convenient for transportation, disassembly and maintenance.

Further, the two adjacent radiating parts 11 are also provided with buckles at the sliding places. After the light source assembly 5 is inserted into the slideway 6 , the light source assembly 5 and the sliding can be fixedly connected by the buckles.

In order to achieve better technical effect, in the signboard provided by the present invention, the bottom of the skeleton 1 is provided with a base 7 and a foundation pile for pre-embedding in the construction site, and the base 7 is fixedly connected to the foundation pile by anchor bolts. In this embodiment, the foundation pile and the base 7 jointly play a supporting and positioning role between the signboard and the construction site. Among them, the pre-embedded depth of the foundation pile should ensure that the skeleton 1, the panel 3 and other structures are stable within the normal stress range.

Further, the base 7 includes a stainless steel bottom plate 71 and an inspection cavity 72 disposed between the stainless steel bottom plate 71 and the frame 1. At least one side surface of the inspection cavity 72 is provided with an inspection door 73 for closing and opening, and the staff can pass through the inspection door 73. The inspection chamber 72 is opened to inspect the circuit structure of the identification plate from the inspection chamber 72 . The maintenance cavity 72 is located above the stainless steel bottom plate 71, and can be set up by supporting rib plates and other structures between the two to avoid problems such as flooding of the power distribution equipment disposed in the maintenance cavity 72 and above, and facilitate the operation of maintenance personnel.

Wherein, the inspection door 73 is connected to the inspection cavity 72 through the lock 8, which improves the operation safety and equipment safety of the sign.

In addition, the upper end of the skeleton 1 can also be provided with a hoisting ring 9, so that the signboard and the application site can be installed by means of hoisting equipment during construction, so as to avoid damage to the surface structure such as the panel of the signboard.

The identification plate provided by the present invention has been introduced in detail above. The principles and implementations of the present invention are described herein by using specific examples, and the descriptions of the above embodiments are only used to help understand the method and the core idea of the present invention. It should be pointed out that for those skilled in the art, without departing from the principle of the present invention, several improvements and modifications can also be made to the present invention, and these improvements and modifications also fall within the protection scope of the claims of the present invention.

Claims (10)

1. A signboard is characterized by comprising a framework (1), a section bar (2) and a panel (3); the framework (1) extends longitudinally, and the cross section of the framework (1) is in a central radial shape; all the sectional materials (2) are buckled at the outer end parts of the plurality of radiating parts (11) of the framework (1) in a one-to-one correspondence mode, and the edges of two sides of the panel (3) are respectively clamped and fixed in the two adjacent sectional materials (2).

2. The signboard of claim 1, wherein the skeleton (1) comprises three of the radiating portions (11).

3. The signboard of claim 2, wherein three of the radial portions (11) have equal lengths and any two adjacent radial portions (11) have equal angles.

4. The signboard of claim 1, wherein the inner side of the profile (2) is provided with a first slot (21) for engaging the radiating portion (11) and two second slots (22) for engaging the adjacent edges of the two panels (3), respectively; the two second clamping grooves (22) are respectively positioned at two sides of the first clamping groove (21).

5. The signboard of claim 4, wherein the outer side of the profile (2) is a circular arc surface; the circle center of the arc surface is close to the center of the framework (1).

6. The signboard of claim 1, wherein the panel (3) comprises a hollowed-out plate (31) and a bottom plate (32); the hollow plate (31) is provided with identification information (4) in a hollow way; the bottom plate (32) is attached to the inner surface of the hollow plate (31).

7. Signboard according to claim 6, characterized in that the outer surface of the hollowed-out plate (31) is provided with a fire-resistant non-stick coating.

8. The signboard of claim 6, wherein the base plate (32) is a light-transmissive liner plate; a plate-shaped light source component (5) is arranged on the inner side of the light-transmitting lining plate; a slide way (6) for the light source component (5) to be clamped in is arranged between every two adjacent radiation parts (11).

9. The signboard of any one of claims 1 to 8, wherein the bottom of the framework (1) is provided with a base (7) and a foundation pile for pre-embedding in a construction site; the base (7) is fixedly connected with the foundation pile through foundation bolts.

10. The signboard of claim 9, wherein the base (7) comprises a stainless steel base plate (71) and a service cavity (72) disposed between the stainless steel base plate (71) and the skeleton (1); an access door (73) for closing and opening is arranged on at least one side surface of the access cavity (72); the access door (73) is connected with the access cavity (72) through a lockset (8).
