CN111973839A - Critical severe medical science is with device of dosing - Google Patents

Abstract

The invention relates to the technical field of drug delivery devices, and discloses a drug delivery device for critical and critical medicine. There is a push rod, the outer side wall of the push rod is pasted and fixed with a circular ring near the lower edge, the front surface of the drug cartridge has a scale, and the front surface of the drug cartridge is pasted and fixed on the left side of the scale. Long board; the long board can slide up and down in the slider, the right side of the long board is connected to the reference bar, the reference bar is facing the scale, the medical staff can turn the handle to adjust the distance between the limit block and the slider. Before the liquid, the medical staff can hold the slider and slide it to make the benchmark bar face the scale value of the liquid medicine to be extracted, and then adjust the handle to make the limit block close to the slider. The required amount of liquid medicine can be directly extracted, and the improved drug delivery device has the characteristics of quick operation and time saving.

Description

A drug delivery device for critically ill medicine

technical field

The invention relates to the technical field of drug delivery devices, in particular to a drug delivery device for critical and critical medicine.

Background technique

Medical treatment has the meaning of healing. In medical treatment, the rescue time of critically ill patients is more valuable. During the treatment of critically ill patients, sometimes medical staff will inject drugs to patients to relieve symptoms, improve patient function, and administer drugs. Therapy is the most common form of treatment.

At present, injection and drug delivery use a syringe to inject medicinal liquid into the patient's body. Sometimes it is necessary to inject an accurate value of medicinal liquid. Once the medicinal liquid is too much or too little, medical staff generally look at the scale on the drug cartridge when extracting medicinal liquid. , extract some less, and push some more, this operation needs to be careful, for rescuing patients, time is precious, and it is easy to lead to wrong optimal treatment time. Secondly, the connection between the drug cartridge on the syringe and the connector The tightness is average, and sometimes the connector will accidentally fall off from the round tube. Also, after injecting the liquid into the patient, the patient cannot press the skin injection port, and the medical staff needs to help the patient, which is likely to cause a waste of manpower and needs to be improved.

SUMMARY OF THE INVENTION

(1) Technical problems solved

In view of the deficiencies of the prior art, the present invention provides a drug delivery device for critical and critical medicine, which solves the problems raised by the above-mentioned background technology.

(2) Technical solutions

In order to achieve the above purpose, the present invention provides the following technical solutions: a drug delivery device for critical and critical care medicine, comprising a drug delivery cartridge, the inner side wall of the drug delivery cartridge is slidably connected with a rubber block, and the bottom end of the rubber block is fixedly connected There is a push rod, the outer side wall of the push rod is pasted and fixed with a ring near the lower edge, the front surface of the drug cartridge has a scale, and the front surface of the drug cartridge is pasted and fixed on the left side of the scale. A long plate, the front surface of the long plate is provided with a threaded hole near the bottom, the inner side wall of the threaded hole is threadedly connected with a screw, the front end of the screw is fixedly connected with a handle, and the rear end of the screw is fixedly connected with a limit block, The interior of the long board is slidably connected with a sliding bar, the front of the sliding bar is attached to the limit block, a reference bar is fixedly connected to the upper right edge of the sliding bar, and the reference bar extends To the outside of the long plate, the bottom end of the slider is fixedly connected with a square plate, the square plate is sleeved on the outside of the push rod, and is slidably connected with the push rod. The top is communicated with a round tube, the outer side wall of the round tube is inserted with a connecting head, the connecting head is detachably connected with the round tube, the top of the connecting head is communicated with a thin needle, and the outer side wall of the round tube is connected with a thin needle. The lower edge is fixedly connected with a threaded ring, the outer side wall of the threaded ring is threadedly connected with a limit ring, the top of the limit ring is fixedly connected with a stop ring, and the inner side wall of the stop ring penetrates the connecting head, so The connecting head is detachably connected to the retaining ring.

Preferably, the distance between the upper surface of the reference strip and the top of the drug cartridge is equal to the distance between the drug cartridge and the square plate.

Preferably, the left side of the drug cartridge is provided with adhesive, one side of the adhesive is pasted with an adhesive tape, the adhesive tape is detachably connected to the adhesive, and a connecting piece is fixedly connected to the top of the adhesive tape.

Preferably, a thread is provided at the lower edge of the inner side wall of the limiting ring, and the connecting head is sleeved inside the limiting ring.

Preferably, the long plate is in the shape of a rectangular parallelepiped with a hollow structure inside and an open lower surface and a right side.

Preferably, the sliding bar includes a rubber sheet and a long rod, the long rod is located on the inner rear surface of the long board and is slidably connected with the long board, and the rubber is pasted and fixed on the front surface of the long rod The front surface of the rubber sheet is attached to the rear surface of the limiting block.

Preferably, ear plates are respectively provided on the left and right sides of the drug administration tube, and the ear plates are fixedly connected with the drug drug tube.

Preferably, the inner diameter of the retaining ring is smaller than the bottom diameter of the connecting head and larger than the top diameter of the connecting head.

Preferably, a square plate is arranged above the ring, the square plate is in the shape of a flat cuboid, and the square plate has a circular groove inside.

(3) Beneficial effects

The invention provides a drug delivery device for critically ill medicine, which has the following beneficial effects:

(1) In the present invention, improvements are made on the basis of the original injection drug delivery device, by adding new growth plates, sliders, square plates, reference bars, threaded rods, limit blocks, etc. The bar and the limit block are installed in the long board, the long board can slide up and down in the slider, the right side of the long board is connected to the reference bar, the reference bar is facing the scale, the medical staff can adjust the limit block and the scale by turning the handle. The distance between the sliders, before the need to inject the liquid medicine, the medical staff can hold the slider and slide it to make the benchmark bar face the scale value of the liquid medicine to be extracted, and then adjust the handle to make the limit block close to the slider, so that , When the medical staff extracts the liquid medicine, the required amount of the liquid medicine can be directly extracted, and the amount of the liquid medicine is accurate, and there is no need to look at the scale during extraction. The improved drug delivery device has the characteristics of quick operation and time saving.

(2) In the present invention, due to the addition of a threaded ring, a limit ring, and a stop ring around the circular pipe, the limit ring and the stop ring have the function of limiting the position of the connecting head, and the medical staff can put the connecting head on the limit At this time, the connector will hang in the retaining ring, and the medical staff will rotate the limit ring and install it on the threaded ring, so that the two can be fixed together, and the position of the connector can be limited, which can prevent the connector from being rounded. If the tube falls off accidentally, when the medical staff needs to remove the connector, it is enough to turn the limit ring to remove it.

(3), in the present invention, by arranging adhesive, adhesive tape and connecting piece on the outer wall of the drug cartridge, due to the existence of the connecting piece, the medical staff is convenient to tear off the adhesive tape from the adhesive, and after tearing it off, it can be placed on the back of the hand, After injecting the liquid medicine, medical staff can use tape to fix the cotton ball on the skin at the needle eye position, without the need for medical staff to manually hold it down. The improved device is convenient for critically ill patients and saves manpower.

Description of drawings

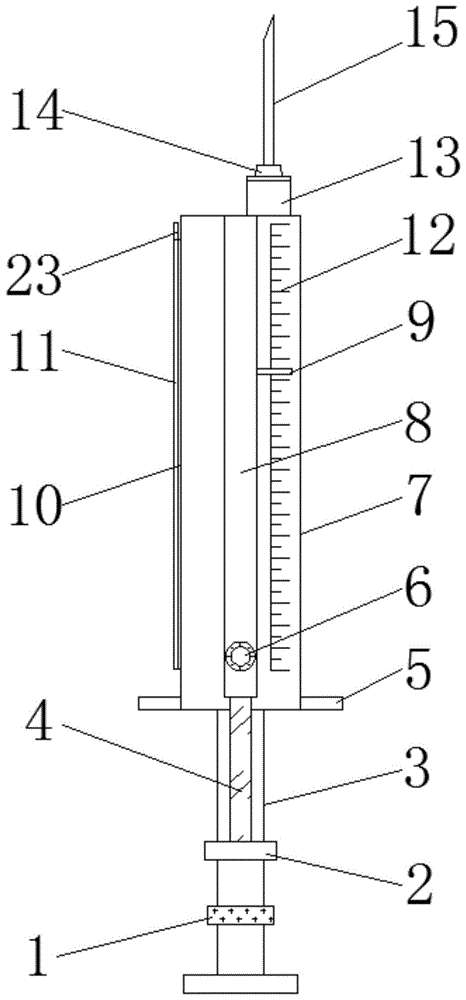

Fig. 1 is the structural representation of the present invention;

Fig. 2 is the sectional structure schematic diagram of the present invention;

Fig. 3 is the enlarged structural schematic diagram of A place in Fig. 2 of the present invention;

FIG. 4 is a schematic diagram of a cross-sectional structure of the left side of the long board in FIG. 1 of the present invention.

In the picture: 1, ring; 2, square plate; 3, push rod; 4, slider; 401, rubber sheet; 402, long rod; 5, ear plate; 6, handle; 7, drug cartridge; 8, Longboard; 9. Benchmark; 10. Viscose; 11. Tape; 12. Scale; 13. Limiting Ring; 14. Connector; 15. Thin Needle; 16. Rubber Block; 17. Stop Ring; 18. Circle Pipe; 19, threaded ring; 20, threaded hole; 21, screw; 22, limit block; 23, connecting piece.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

As shown in Figures 1-4, the present invention provides a technical solution: a drug delivery device for critical and critical care medicine, comprising a drug delivery cartridge 7, and a rubber block 16 is slidably connected to the inner side wall of the drug delivery cartridge 7. The bottom end is fixedly connected with a push rod 3, and the medical staff can hold the push rod 3 by pushing and pulling up and down to extract and push out the medicinal liquid. A ring 1 is pasted and fixed on the outer side wall of the push rod 3 near the lower edge, and the ring 1 is made of plastic material. When the push rod 3 is pushed, the ring 1 will gradually come into contact with the square plate 2, prompting the square plate 2 to move. There is a long plate 8, the front surface of the long plate 8 is provided with a threaded hole 20 near the bottom, the inner side wall of the threaded hole 20 is threadedly connected with a screw 21, the front end of the screw 21 is fixedly connected with a handle 6, and the rear end of the screw 21 is fixedly connected with a limit block 22. By rotating the handle 6, the screw 21 can be moved in the threaded hole 20, and then the limit block 22 can be moved, so that the limit block 22 can be close to and tightly attached to the slider 4, and the inside of the long plate 8 is slidably connected There is a slider 4, the front of the slider 4 is attached to the limit block 22, a reference bar 9 is fixedly connected to the upper edge of the right side of the slider 4, and the reference bar 9 extends to the outside of the long board 8, and the reference bar 9 It is facing the scale 12. Since the reference bar 9 and the slider 4 are fixed together, when the slider 4 moves, the position of the reference bar 9 is also changing. The bottom end of the slider 4 is fixedly connected with the square plate 2. The square plate 2 is sleeved on the outside of the push rod 3, and is slidably connected with the push rod 3, the top of the drug cartridge 7 is communicated with a circular tube 18, the outer side wall of the circular tube 18 is inserted with a connector 14, and the connector 14 is connected with the circular tube 18. Removable connection, the top of the connecting head 14 is connected with a thin needle 15, a threaded ring 19 is fixedly connected to the lower edge of the outer side wall of the circular tube 18, the outer side wall of the threaded ring 19 is threadedly connected to the limit ring 13, and the top of the limit ring 13 A blocking ring 17 is fixedly connected, and the inner side wall of the blocking ring 17 is penetrated by a connecting head 14. The connecting head 14 and the blocking ring 17 are detachably connected. The material is the same, the medical staff can set the connecting head 14 in the limit ring 113, at this time, the connecting head 14 will be suspended in the blocking ring 17, the medical staff will rotate the limit ring 13 and install it on the threaded ring 19, so that the The two are fixed together, thereby limiting the position of the connecting head 14 and preventing the connecting head 14 from accidentally falling off the round tube 18. When the medical staff needs to disassemble the connecting head 14, the limit ring 13 is rotated to connect the limit ring 13 with the thread. The ring 19 is disassembled, and the connector 14 can be poured out.

Further, the distance between the upper surface of the reference strip 9 and the top of the drug cartridge 7 is equal to the distance between the drug cartridge 7 and the square plate 2. After the position of the reference bar 9 is fixed, the amount of liquid medicine is extracted to be aligned with the reference bar 9. The scale 12 has the same numerical value, and the position of the reference bar 9 is manually set before the extraction of the medicinal solution.

Further, the left side of the drug cartridge 7 has an adhesive 10, one side of the adhesive 10 is pasted with an adhesive tape 11, the adhesive tape 11 and the adhesive 10 are detachably connected, and the top of the adhesive tape 11 is fixedly connected with a connecting piece 23, and the connecting piece 23 The design is convenient for medical staff to tear off the tape 11 from the adhesive 10. After injecting the medicinal liquid, the medical staff can use the tape 11 to fix the cotton ball on the skin at the needle eye position.

Further, the lower edge of the inner side wall of the limit ring 13 is provided with threads, and the inside of the limit ring 13 is sleeved with a connecting head 14 .

Further, the long board 8 is in the shape of a rectangular parallelepiped with a hollow structure inside, and the lower surface and the right side are open, the hollow structure and the bottom opening can accommodate the slider 4, the slider 4 can slide out of the long board 8, and the right side is open. The opening is convenient for the reference bar 9 to slide, and the opening on the right side is the passage for the reference bar 9 to slide.

Further, the slider 4 includes a rubber sheet 401 and a long rod 402. The long rod 402 is located on the inner rear surface of the long board 8 and is slidably connected to the long board 8. The front surface of the long rod 402 is pasted and fixed with a rubber sheet 401. The rubber sheet The front surface of 401 is attached to the rear surface of the limit block 22, and the limit block 22 can be tightly squeezed on the rubber sheet 401. The rubber sheet 401 is flexible and deforms when squeezed, which can make the position of the slider 4 more fixed. stable.

Further, ear plates 5 are respectively provided on the left and right sides of the medication cartridge 7, the ear plates 5 are fixedly connected with the medication cartridge 7, and the ear plates 5 are convenient for medical staff to hold.

Further, the inner diameter of the baffle ring 17 is smaller than the bottom diameter of the connecting head 14 and larger than the top diameter of the connecting head 14, the baffle ring 17 is in the shape of a circular ring, the connecting head 14 is sleeved in the baffle ring 17, and the connecting head 14 is not easy to connect with the circular pipe 18. break away.

Further, a square plate 2 is arranged above the ring 1, the square plate 2 is in the shape of a flat cuboid, and the inside of the square plate 2 has a circular groove. It will gradually approach the square plate 2 and cause the square plate 2 to move.

To sum up, the work flow of the present invention is as follows: first, the medical staff holds the slide bar 4 and slides, and the reference bar 9 is opposite to the numerical position of the scale 12 that needs to extract the amount of medicinal liquid. The block 22 is close to the slide bar 4, so that the position of the slide bar 4 is fixed. At this time, the medical staff can insert the fine needle 15 on the drug delivery device into the ampoule, hold the push rod 3 and pull it, and the push rod 3 cannot be moved. When pulling, the liquid medicine is extracted. Then, the medical staff can turn the handle 6 to loosen, and the limit block 22 is not in contact with the slider 4. Then, the medical staff can tear off the tape 11 from the adhesive 10, and after tearing it off, , can be placed on the back of the hand, and the medical staff can inject the liquid medicine to the patient. After that, the tape 11 can be used to fix the cotton ball to the needle eye position on the skin, without the medical staff needing to hold it manually.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (9)

1. A critical and critical medicine is with device of dosing, includes for cartridge (7), its characterized in that: the utility model discloses a medicine storage box, including giving the inside wall sliding connection of cartridge case (7) has rubber piece (16), the bottom fixedly connected with push rod (3) of rubber piece (16), the lateral wall of push rod (3) is close to below edge department and pastes fixedly has ring (1), the front surface of giving cartridge case (7) has scale (12), the front surface of giving cartridge case (7) is close to the left side of scale (12) is pasted fixedly and is fixed with long plate (8), the front surface of long plate (8) is close to below and is seted up screw hole (20), the inside wall threaded connection of screw hole (20) has screw rod (21), the front end fixedly connected with handle (6) of screw rod (21), the rear end fixedly connected with stopper (22) of screw rod (21), the inside sliding connection of long plate (8) has draw runner (4), the place ahead of draw runner (4) with stopper (22) are laminated, the utility model discloses a medicine taking device, including the draw runner, the right side top edge fixedly connected with reference strip (9) of draw runner (4), just reference strip (9) extend to the outside of rectangular board (8), the bottom fixedly connected with square board (2) of draw runner (4), square board (2) cover is established the outside of push rod (3), and with push rod (3) sliding connection, the top intercommunication of giving cartridge case (7) has pipe (18), the lateral wall of pipe (18) is pegged graft and is had connector (14), connector (14) with pipe (18) can be dismantled and be connected, the top intercommunication of connector (14) has fine needle (15), the lateral wall below edge fixedly connected with screw ring (19) of pipe (18), the lateral wall threaded connection of screw ring (19) has spacing ring (13), the top fixedly connected with catch ring (17) of spacing ring (13), keep off the inside wall of ring (17) and run through and have connector (14), connector (14) with keep off ring (17) and can dismantle the connection.

2. The drug delivery device for critical care medicine according to claim 1, characterized in that: the distance between the upper surface of the reference bar (9) and the top of the medicine feeding barrel (7) is equal to the distance between the medicine feeding barrel (7) and the square plate (2).

3. The drug delivery device for critical care medicine according to claim 1, characterized in that: give the left side of cartridge (7) and have viscose (10), one side of viscose (10) is pasted and is had sticky tape (11), sticky tape (11) with connection can be dismantled in viscose (10), the top fixedly connected with connection piece (23) of sticky tape (11).

4. The drug delivery device for critical care medicine according to claim 1, characterized in that: the edge department has the screw thread below the inside wall of spacing ring (13), the inside cover of spacing ring (13) is equipped with connector (14).

5. The drug delivery device for critical care medicine according to claim 1, characterized in that: the long plate (8) is in a cuboid shape with the interior of the long plate being of a hollow structure and the lower surface and the right side of the long plate being open.

6. The drug delivery device for critical care medicine according to claim 1, characterized in that: the draw runner (4) includes sheet rubber (401) and stock (402), stock (402) are located the inside rear surface of long board (8), and with long board (8) sliding connection, the front surface paste of stock (402) is fixed with sheet rubber (401), the front surface of sheet rubber (401) with the rear surface laminating of stopper (22).

7. The drug delivery device for critical care medicine according to claim 1, characterized in that: give the left and right sides of cartridge case (7) and be equipped with otic placode (5) respectively, otic placode (5) with give cartridge case (7) fixed connection.

8. The drug delivery device for critical care medicine according to claim 1, characterized in that: the inner diameter of the baffle ring (17) is smaller than the diameter of the bottom of the connector (14) and larger than the diameter of the top of the connector (14).

9. The drug delivery device for critical care medicine according to claim 1, characterized in that: the top of ring (1) is equipped with square board (2), square board (2) are flat cuboid shape, just the inside of square board (2) has the circular slot.
