Abstract

The embodiments of the present invention relate to a multifunctional device suitable for power tunnel operation and maintenance and a multifunctional flashlight, including a power inspection module, a control module, a detection module and a lighting module connected to the control module, and the multifunctional device suitable for power tunnel operation and maintenance The multi-function device is integrated into one device through the set control module, lighting module, detection module and electricity detection module, so that the device integrates lighting, temperature measurement, electricity measurement, gas measurement, charging and other functions into one, which not only reduces the operation time. It also improves the work efficiency of the operation and maintenance personnel, avoids the operation and maintenance personnel forgetting to bring or misses a certain equipment when entering the power tunnel to work, and improves the safety of the operation and maintenance personnel. The operation and maintenance personnel need to carry a lot of equipment to enter the power tunnel. If the operation and maintenance personnel forget or miss a certain equipment, it will lead to the technical problem of low safety for the operation and maintenance personnel to work in the power tunnel.

Description

A multifunctional device suitable for power tunnel operation and maintenance and its multifunctional flashlight

technical field

The invention relates to the technical field of electric power tools, in particular to a multifunctional device suitable for operation and maintenance of electric power tunnels and a multifunctional flashlight thereof.

Background technique

With the advancement of overhead lines in the urban core area, more power transmission lines are running from "overhead" to "into the ground", but the construction of power tunnels is difficult. The technical requirements are high, and it is difficult to achieve "zero defects" in civil engineering, electrical, operation and maintenance, etc. Therefore, with the improvement of the national economic level, the daily electricity consumption is rising, which promotes the development of power tunnels. Good and stable The power tunnel environment can provide good power supply demand for enterprises and residents, so it is necessary to ensure the safety and stability of power tunnels through operation and maintenance.

The operating environment inside the power tunnel is complex, dark and humid, with poor air circulation, and problems with lighting devices and water pump devices are prone to occur. The equipment that usually needs to be carried when patrolling the power tunnel includes flashlights, gas detectors, electroscopes, mobile phone charging equipment, special maintenance tools and other equipment to enter the tunnel. The flashlight is used for lighting, and the gas detector can warn and protect the operation and maintenance personnel by detecting oxygen, hydrogen sulfide and carbon monoxide in combustible gas. Whether it is charged or not, the mobile phone charging device can help the operation and maintenance personnel to charge the mobile phone in an emergency, and ensure that the operation and maintenance personnel maintain stable communication with the ground command.

At present, operation and maintenance personnel need to carry a variety of tools when entering the power tunnel to work, such as flashlights, gas detectors, electroscopes, mobile phone charging equipment, special maintenance tools, etc. very important. In an emergency, the preparation time of the operation and maintenance personnel is reduced, and there may be negligence in carrying equipment, forgetting or missing a certain equipment, which greatly reduces the safety factor of the operation and maintenance personnel working in the power tunnel.

SUMMARY OF THE INVENTION

The embodiment of the present invention provides a multifunctional device suitable for power tunnel operation and maintenance and a multifunctional flashlight thereof, which are used to solve the problem that existing operation and maintenance personnel need to carry a lot of equipment when entering the power tunnel. A certain kind of equipment causes technical problems with low safety for operation and maintenance personnel to work in power tunnels.

In order to achieve the above purpose, the embodiments of the present invention provide the following technical solutions:

A multifunctional device suitable for power tunnel operation and maintenance, comprising a power inspection module, a control module, a detection module and a lighting module connected to the control module;

The detection module is used to detect the gas concentration and temperature in the power tunnel;

The lighting module is used for lighting;

The power inspection module is used to detect whether a certain position of the power tunnel is charged;

The control module is provided with a power supply sub-module and is used to supply power to the detection module, the lighting module and the electricity detection module, and to control the operation of the detection module and the lighting module, and is also used to monitor the detection module and the lighting module. The gas concentration and temperature detected by the module are analyzed.

Preferably, the detection module includes a gas detection sub-module and a temperature detection sub-module;

The gas detection sub-module is connected to the control module and is used to detect the gas concentration of the gas sucked into the power tunnel by the suction pump, and the gas detection sub-module is also used to transmit the electrical signal of the detected gas concentration to the control module in the module;

The temperature detection sub-module is connected to the control module and is used for detecting the temperature in the power tunnel and transmitting an electrical signal for detecting the temperature to the control module.

Preferably, the multifunctional device suitable for power tunnel operation and maintenance further includes an acousto-optic alarm module connected to the control module, and the acousto-optic alarm module is used to detect the gas detected by the detection module according to the control module. Concentration and temperature analysis results alert operation and maintenance personnel.

Preferably, the multi-function device suitable for power tunnel operation and maintenance further includes a display module connected to the control module, and the display module is configured to display parameters of the multi-function device suitable for power tunnel operation and maintenance. Wherein, the parameters of the multifunctional device suitable for the operation and maintenance of the power tunnel include the alarm gas concentration, the alarm temperature, the amount of power supplied, and the gas concentration and temperature detected by the detection module.

Preferably, the power supply sub-module is used to provide a 5V charging power supply for the mobile terminal, corresponding to a charging interface provided on the control module.

Preferably, the power supply sub-module uses a 10000mAh lithium battery to store power or provide power.

Preferably, the mobile terminal is a mobile phone, an iPad or a smart watch of the power tunnel operation and maintenance personnel.

The present invention also provides a multifunctional flashlight suitable for power tunnel operation and maintenance, including a multifunctional flashlight and the above-mentioned multifunctional device suitable for power tunnel operation and maintenance provided on the multifunctional flashlight.

Preferably, the lighting module is arranged at the front end of the multifunctional flashlight, the control module is arranged in the middle of the multifunctional flashlight, and the temperature detection sub-modules of the electricity detection module and the detection module are both arranged at the handle position of the multifunctional flashlight, The gas detection sub-module of the detection module is arranged at the lower end of the multifunctional flashlight and at the lower part of the control module.

Preferably, the electrometry module is detachably connected to the multifunctional flashlight.

As can be seen from the above technical solutions, the embodiments of the present invention have the following advantages:

1. The multi-function device suitable for power tunnel operation and maintenance is integrated into one device through the set control module, lighting module, detection module and electricity inspection module, so that the device can measure lighting, temperature, electricity, gas, and charging. It not only reduces the equipment time of the operation and maintenance personnel, but also improves the work efficiency of the operation and maintenance personnel, preventing the operation and maintenance personnel from forgetting or missing a certain equipment when entering the power tunnel to work, improving the operation and maintenance personnel. Safety of personnel work; solves the technical problem that the existing operation and maintenance personnel need to carry a lot of equipment to enter the power tunnel. .

2. This multifunctional flashlight suitable for power tunnel operation and maintenance combines lighting, temperature measurement, electricity measurement, gas measurement, charging and other functions into one, so that the operation and maintenance personnel only need to carry the multi-function flashlight when entering the power tunnel to work. The functional flashlight can complete the inspection, operation and maintenance work, which reduces the time for equipment equipment in the early stage, and also reduces the occurrence of dangerous situations caused by the lack of tools; greatly improves the work efficiency of the operation and maintenance personnel, and also improves the operation and maintenance. The safety factor of personnel work; solves the technical problem that the existing operation and maintenance personnel need to carry a lot of equipment when entering the power tunnel. .

Description of drawings

In order to explain the embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description are only These are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained based on these drawings without any creative effort.

FIG. 1 is a frame diagram of a multifunctional device suitable for power tunnel operation and maintenance according to an embodiment of the present invention.

FIG. 2 is a frame diagram of another multi-function device suitable for power tunnel operation and maintenance according to an embodiment of the present invention.

FIG. 3 is a frame diagram of another multi-function device suitable for power tunnel operation and maintenance according to an embodiment of the present invention.

FIG. 4 is a schematic frame diagram of a multifunctional flashlight suitable for power tunnel operation and maintenance according to an embodiment of the present invention.

Detailed ways

In order to make the purpose, features and advantages of the present invention more obvious and understandable, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the following The described embodiments are only some, but not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

The embodiments of the present application provide a multi-function device suitable for power tunnel operation and maintenance and a multi-function flashlight thereof, which are used to solve the problem that existing operation and maintenance personnel need to carry a lot of equipment when entering the power tunnel. Some equipment is installed, which leads to technical problems of low safety for operation and maintenance personnel in the power tunnel.

Example 1:

FIG. 1 is a frame diagram of a multifunctional device suitable for power tunnel operation and maintenance according to an embodiment of the present invention.

As shown in FIG. 1 , an embodiment of the present invention provides a multifunctional device suitable for power tunnel operation and maintenance, including a power inspection module 40 , a control module 10 , a detection module 20 and a lighting module 30 connected to the control module 10 ;

The detection module 20 is used to detect the gas concentration and temperature in the power tunnel;

The lighting module 30 is used for lighting;

The power inspection module 40 is used to detect whether a certain position of the power tunnel is electrified;

The control module 10 is provided with a power supply sub-module 11 and is used to supply power to the detection module 20, the lighting module 30 and the electricity detection module 40, and to control the operation of the detection module 20 and the lighting module 30, and is also used to detect the gas concentration and the detection module 20. temperature is analyzed.

In the embodiment of the present invention, the control module 10 integrates a single-chip microcomputer system, the power supply sub-module 11 is used to provide 5V charging power for the mobile terminal, and the power supply sub-module 11 corresponding to the control module 10 is provided with a charging interface.

It should be noted that the single-chip microcomputer system adopts the system set by the STM32F4 type chip, and the power supply sub-module 11 uses a 10000mAh lithium battery to store power or provide power, so that the control module 10 can not only provide the detection module 20, the lighting module 30 and the electricity inspection module. 40 power supply, it can also output 5v voltage through the charging interface to charge conventional mobile terminals, or charge lithium batteries through the charging interface. The charging interface can be a USB interface, or can be a Mini USB interface, a MicroUSB interface, a Type-C interface, a Lighting interface, or other interfaces. The mobile terminal may be a mobile phone, or may be a communication device with a communication function such as an iPad and a smart watch.

In the embodiment of the present invention, the detection module 20 is mainly used to detect the gas concentration and temperature in the power tunnel, and the detection module 20 transmits the electrical signal of the detected gas concentration and temperature to the control module 10 for analysis and processing.

It should be noted that the gas concentration detected by the detection module 20 includes gas concentrations such as combustible gas, oxygen, hydrogen sulfide, carbon monoxide, and the like.

In the embodiment of the present invention, the lighting module 30 is mainly used for lighting, and the power supply sub-module 11 supplies power to the lighting module 30 to realize lighting.

It should be noted that, the lighting module 30 may select LED lamps to achieve lighting, and may also select lamps with lighting functions such as incandescent lamps or energy-saving lamps to achieve lighting.

In the embodiment of the present invention, the power inspection module 40 is mainly used to detect whether a certain position in the power tunnel is electrified, so as to avoid electric shock accidents for operation and maintenance personnel working in the power tunnel.

It should be noted that when the operation and maintenance personnel work in the power tunnel and encounter water accumulation or other conditions, the multi-functional device suitable for the operation and maintenance of the power tunnel adopts the power inspection module 40 to measure the electricity, and remind the operation and maintenance personnel whether it is live or not. Ensure the safety of operation and maintenance personnel.

A multifunctional device suitable for the operation and maintenance of power tunnels provided by the present invention is integrated into one device through the provided control module, lighting module, detection module and electricity detection module, so that the device integrates lighting, temperature measurement, electricity measurement, and electricity measurement. The integration of gas, charging and other functions not only reduces the equipment time of the operation and maintenance personnel, but also improves the work efficiency of the operation and maintenance personnel, preventing the operation and maintenance personnel from forgetting or missing a certain equipment when entering the power tunnel to work. Improve the safety of the operation and maintenance personnel; solve the problem that the existing operation and maintenance personnel need to carry a lot of equipment when entering the power tunnel. If the operation and maintenance personnel forget or miss a certain equipment, the safety of the operation and maintenance personnel in the power tunnel will be low. technical issues.

In one embodiment of the present invention, the detection module 20 includes a gas detection sub-module 21 and a temperature detection sub-module 22; the gas detection sub-module 21 is connected to the control module 10 and used to detect the gas of the gas sucked into the power tunnel by the suction pump Concentration, the gas detection sub-module 21 is also used to transmit the electrical signal for detecting gas concentration to the control module 10; the temperature detection sub-module 22 is connected to the control module 10 and is used to detect the temperature in the power tunnel and detect the electrical signal of the temperature sent to the control module 10 .

It should be noted that the gas detection sub-module 21 can use a gas sensor to detect the concentration of combustible gas, oxygen, hydrogen sulfide, carbon monoxide and other gases in the power tunnel. The temperature detection sub-module 22 may use a temperature sensor to detect the temperature in the power tunnel.

FIG. 2 is a frame diagram of another multi-function device suitable for power tunnel operation and maintenance according to an embodiment of the present invention.

As shown in FIG. 2 , in an embodiment of the present invention, the multifunctional device suitable for power tunnel operation and maintenance further includes an acousto-optic alarm module 50 connected to the control module 10 , and the acousto-optic alarm module 50 is used for according to the control module 10. Alarm and warn the operation and maintenance personnel of the gas concentration and temperature analysis results detected by the detection module 20.

It should be noted that the detection module 20 transmits the collected gas concentration parameters to the single-chip microcomputer of the control module 10 through serial communication, and the single-chip computer determines whether the gas concentration reaches the preset alarm gas concentration, so that the sound and light alarm module 50 will alarm. Warn the operation and maintenance personnel working in the power tunnel to evacuate. The temperature sensor of the temperature detection sub-module 22 uses infrared temperature measurement technology, and the measured data is transmitted to the single-chip microcomputer of the control module 10 through serial communication through infrared photography of the high-voltage cable joint in the power tunnel. The sound and light alarm module 50 will alarm and warn the operation and maintenance personnel working in the power tunnel.

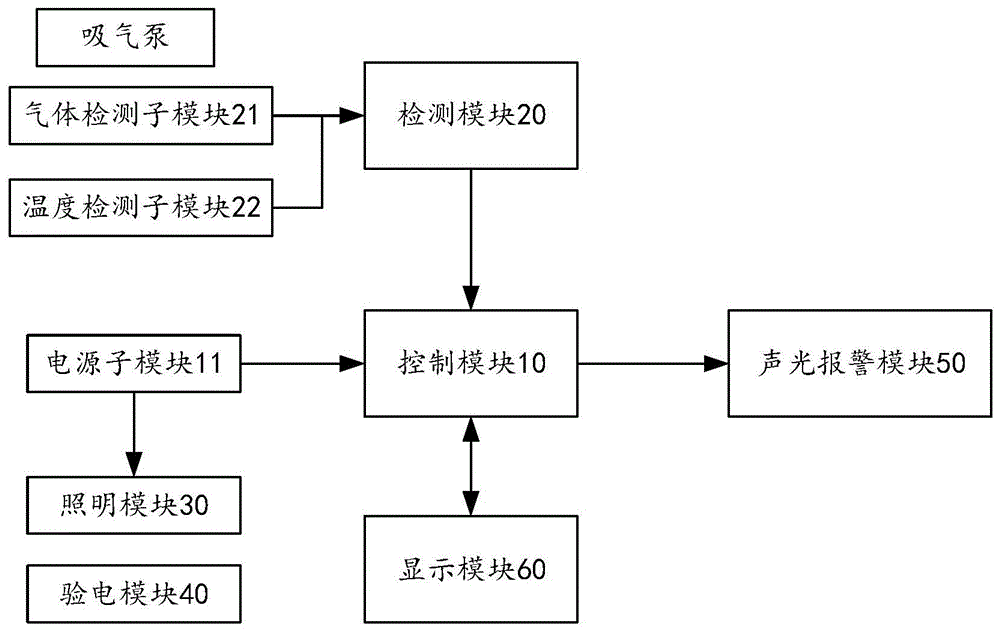

FIG. 3 is a frame diagram of another multi-function device suitable for power tunnel operation and maintenance according to an embodiment of the present invention.

As shown in FIG. 3 , in an embodiment of the present invention, the multifunctional device suitable for power tunnel operation and maintenance further includes a display module 60 connected to the control module, and the display module 50 is used to display the power tunnel operation and maintenance function. Parameters of the multifunctional device; the parameters of the multifunctional device suitable for the operation and maintenance of the power tunnel include the alarm gas concentration, the alarm temperature, the power supply and the gas concentration and temperature detected by the detection module.

It should be noted that the multi-function device suitable for power tunnel operation and maintenance can also set parameters through the display module 60. Before the operation and maintenance personnel enter the power tunnel, the parameters of the multi-function device suitable for power tunnel operation and maintenance can be adjusted. and settings, set the alarm gas concentration, and set the alarm temperature. The display module 60 also detects the gas concentration and temperature in the current power tunnel in real time through the liquid crystal screen display detection module 20 , and the display module 60 also displays the remaining power in the power supply sub-module 11 through the liquid crystal screen.

When the operation and maintenance personnel enter the power tunnel with the tool having the multi-function device suitable for power tunnel operation and maintenance, they can be illuminated by the lighting module 30, the detection module 20 detects the gas concentration and temperature in the power tunnel, and the data detected by the detection module 20 Displayed by the display module 60, the 10000mAh battery of the power supply sub-module 11 is used to supply power for multiple detections and lighting. When the data detected by the control module 10 exceeds the current preset parameters according to the detection module 20, the control module 10 controls the sound and light alarm module 50 to work to issue sound and light warnings to remind the operation and maintenance personnel to pay attention to the possible danger ahead. In an emergency, in order to ensure that the power of the communication equipment of the operation and maintenance personnel meets the communication requirements, the control module 10 charges the communication equipment of the operation and maintenance personnel through the charging interface.

Embodiment 2:

FIG. 4 is a schematic frame diagram of a multifunctional flashlight suitable for power tunnel operation and maintenance according to an embodiment of the present invention.

As shown in FIG. 4 , an embodiment of the present invention further provides a multifunctional flashlight suitable for operation and maintenance of power tunnels, including a multifunctional flashlight and a multifunctional device suitable for operation and maintenance of power tunnels arranged on the multifunctional flashlight.

In the embodiment of the present invention, the lighting module 30 is arranged at the front end of the multifunctional flashlight, the control module 10 is arranged in the middle of the multifunctional flashlight, and the electricity detection module 40 and the temperature detection sub-module 22 of the detection module are both arranged on the handle of the multifunctional flashlight. Position, the gas detection sub-module 21 of the detection module is arranged at the lower end of the multi-function flashlight and at the lower part of the control module 10 . Wherein, the electricity detection module 40 is detachably connected with the multifunctional flashlight.

It should be noted that the front end of the multifunctional flashlight is the lighting module 30 for lighting; the position of the handle of the multifunctional flashlight is integrated with the electricity detection module 40 and the temperature detection sub-module 22, which is convenient to test whether the position of water accumulation in the power tunnel is in an emergency. Live; the middle of the multi-function flashlight is the power supply sub-module 11, which is the power supply part of each module. The battery capacity of the power supply sub-module 11 is relatively large, which can be used for long-term operation and maintenance work. When necessary, the power supply sub-module 11 can also be used for operation and maintenance. The mobile phone of the maintenance personnel is charged to ensure the stable communication of the operation and maintenance personnel; the lower end of the multi-function flashlight is the gas detection sub-module 21. The gas detection sub-module 21 uses a suction pump to inhale gas from the front end of the multi-functional flashlight, analyzes the gas composition, and controls the module 10. According to the gas concentration detected by the gas detection sub-module 21, prompt the operation and maintenance personnel whether the gas in the current power tunnel is safe.

This multi-functional flashlight suitable for power tunnel operation and maintenance has a high degree of integration. It integrates functions such as lighting, temperature measurement, electricity measurement, gas measurement, and charging, which not only reduces the equipment time of operation and maintenance personnel, but also improves the operation and maintenance. Work efficiency of maintenance personnel.

The invention provides a multifunctional flashlight suitable for power tunnel operation and maintenance, which integrates the functions of lighting, temperature measurement, electricity measurement, gas measurement, charging, etc., so that the operation and maintenance personnel only need to Carrying this multifunctional flashlight can complete the inspection, operation and maintenance work, which reduces the time for equipment equipment in the early stage, and also reduces the occurrence of dangerous situations caused by the lack of tools; greatly improves the work efficiency of the operation and maintenance personnel, and also improves the It improves the safety factor of the operation and maintenance personnel; it solves the problem that the existing operation and maintenance personnel need to carry a lot of equipment when entering the power tunnel. If the operation and maintenance personnel forget or miss a certain equipment, the safety of the operation and maintenance personnel in the power tunnel is low. technical issues.

Those skilled in the art can clearly understand that, for the convenience and brevity of description, for the specific working process of the above-described devices and modules, reference may be made to the corresponding processes in the foregoing method embodiments, which will not be repeated here.

In the several embodiments provided in this application, it should be understood that the disclosed apparatus and modules may be implemented in other manners. For example, the apparatus embodiments described above are only illustrative. For example, the division of the modules is only a logical function division. In actual implementation, there may be other division methods. For example, multiple modules or components may be combined or Can be integrated into another system, or some features can be ignored, or not implemented. On the other hand, the shown or discussed mutual coupling or direct coupling or communication connection may be through some interfaces, indirect coupling or communication connection of devices or modules, and may be in electrical, mechanical or other forms.

The modules described as separate components may or may not be physically separated, and components shown as modules may or may not be physical modules, that is, may be located in one place. Some or all of the modules may be selected according to actual needs to achieve the purpose of the solution in this embodiment.

In addition, each functional module in each embodiment of the present invention may be integrated into one processing module, or each module may exist physically alone, or two or more modules may be integrated into one module. The above-mentioned integrated modules can be implemented in the form of hardware, and can also be implemented in the form of software function modules.

If the integrated modules are implemented in the form of software functional modules and sold or used as independent products, they may be stored in a computer-readable storage medium. Based on such understanding, the technical solution of the present invention is essentially or the part that contributes to the prior art, or all or part of the technical solution can be embodied in the form of a software product, and the computer software product is stored in a storage medium , including several instructions for causing a computer device (which may be a personal computer, a server, or a network device, etc.) to execute all or part of the steps of the methods described in the various embodiments of the present invention. The aforementioned storage medium includes: U disk, removable hard disk, Read-Only Memory (ROM, Read-Only Memory), Random Access Memory (RAM, Random Access Memory), magnetic disk or optical disk and other media that can store program codes.

As mentioned above, the above embodiments are only used to illustrate the technical solutions of the present invention, but not to limit them; although the present invention has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand: The technical solutions described in the embodiments are modified, or some technical features thereof are equivalently replaced; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit and scope of the technical solutions in the embodiments of the present invention.

Claims (10)

1. a multifunctional device suitable for power tunnel operation and maintenance, characterized in that it comprises a power inspection module, a control module, a detection module and a lighting module connected with the control module; The detection module is used to detect the gas concentration and temperature in the power tunnel; The lighting module is used for lighting; The power inspection module is used to detect whether a certain position of the power tunnel is charged; The control module is provided with a power supply sub-module and is used to supply power to the detection module, the lighting module and the electricity detection module, and to control the operation of the detection module and the lighting module, and is also used to monitor the detection module and the lighting module. The gas concentration and temperature detected by the module are analyzed. 2. The multifunctional device suitable for power tunnel operation and maintenance according to claim 1, wherein the detection module comprises a gas detection sub-module and a temperature detection sub-module; The gas detection sub-module is connected to the control module and is used to detect the gas concentration of the gas sucked into the power tunnel by the suction pump, and the gas detection sub-module is also used to transmit the electrical signal of the detected gas concentration to the control module in the module; The temperature detection sub-module is connected to the control module and is used for detecting the temperature in the power tunnel and transmitting an electrical signal for detecting the temperature to the control module. 3 . The multifunctional device suitable for power tunnel operation and maintenance according to claim 1 , further comprising an acousto-optic alarm module connected to the control module, and the acousto-optic alarm module is used for controlling according to the control module. 4 . The module alerts the operation and maintenance personnel to the gas concentration and temperature analysis results detected by the detection module. 4 . The multifunctional device suitable for power tunnel operation and maintenance according to claim 1 , further comprising a display module connected to the control module, and the display module is used to display the power tunnel operation and maintenance device suitable for power tunnel operation and maintenance. 5 . parameters of the multifunctional device; Wherein, the parameters of the multifunctional device suitable for the operation and maintenance of the power tunnel include the alarm gas concentration, the alarm temperature, the amount of power supplied, and the gas concentration and temperature detected by the detection module. 5 . The multifunctional device suitable for power tunnel operation and maintenance according to claim 1 , wherein the power supply sub-module is used to provide a 5V charging power supply for the mobile terminal, corresponding to the charging power provided on the control module. 6 . interface. 6 . The multifunctional device suitable for power tunnel operation and maintenance according to claim 5 , wherein the power supply sub-module uses a 10000mAh lithium battery to store power or provide power. 7 . 7 . The multifunctional device suitable for power tunnel operation and maintenance according to claim 5 , wherein the mobile terminal is a mobile phone, iPad or smart watch of the power tunnel operation and maintenance personnel. 8 . 8. A multifunctional flashlight suitable for power tunnel operation and maintenance, characterized in that it comprises a multifunctional flashlight and a multifunctional flashlight suitable for power tunnel operation according to any one of claims 1-7, which is arranged on the multifunctional flashlight. Dimension's multifunctional device. 9. The multifunctional flashlight suitable for power tunnel operation and maintenance according to claim 8, wherein the lighting module is arranged at the front end of the multifunctional flashlight, the control module is arranged in the middle of the multifunctional flashlight, and the electricity inspection Both the module and the temperature detection sub-module of the detection module are arranged at the handle position of the multi-functional flashlight, and the gas detection sub-module of the detection module is arranged at the lower end of the multi-functional flashlight and is located at the lower part of the control module. 10 . The multifunctional flashlight suitable for power tunnel operation and maintenance according to claim 9 , wherein the electricity detection module is detachably connected to the multifunctional flashlight. 11 .
