Abstract

The invention discloses an oral surgical instrument box, comprising a disinfection electric control box, a control panel is fixedly connected to the front of the disinfection electric control box, an instrument storage box is arranged above the disinfection electric control box, and the instrument storage box The upper surface of the box is fixedly hinged with a box cover through two hinges, the front side of the box cover is fixedly connected with a symmetrical lock catch, the front side of the instrument storage box is fixedly connected with a relatively symmetrical lock nut, and the instrument storage box There is a perforated storage plate inside. The oral surgical instrument box is set apart from the sterilization electric control box and the instrument storage box, and uses the air delivery tube to cooperate with the fixed tube, so that the air delivery tube can be communicated by the fixed tube when the disinfection electric control box is in contact with the instrument storage box. The high-temperature gas and ultraviolet sterilization lamps are separated from the disinfection electric control box and the instrument storage box, which can ensure the aseptic effect of the oral surgical instruments and avoid the phenomenon of cross-infection during the secondary use of the oral surgical instruments.

Description

A kind of oral surgery instrument box

technical field

The present invention particularly relates to an oral surgical instrument case.

Background technique

The medical device industry involves many industries such as medicine, machinery, electronics and plastics. It is a multi-disciplinary, knowledge-intensive and capital-intensive high-tech industry. The basic characteristics of high-tech medical equipment are digitization and computerization. And the crystallization of modern high-tech across fields, its products have high technical content and high profits, so they are the commanding heights of competition among major technological countries and large international companies, and the entry threshold is relatively high, even if the overall gross profit margin and investment in the industry are low. Low-level sub-sectors will continue to have products with higher technical content, and some companies with strong profitability will be nurtured from them. Therefore, the overall trend of the industry is high investment and high income.

With the continuous improvement of living standards, more and more people pay more attention to oral health. In the process of oral surgery, a variety of oral instruments are needed, including forceps, mouth mirrors, separators, etc. Reasonable storage of instruments is convenient for medical staff to efficiently and quickly select the required instruments when using them. At the same time, it is also very important to store the instruments aseptically during storage. The oral cavity is more sensitive and prone to bacterial infection. The existing The instrument box can only play the role of storing the instruments, and cannot sterilize the instruments inside the instrument box. When the instruments are used for the second time, it is easy to cause cross-infection. For this reason, we propose an oral surgical instrument box.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide an oral surgical instrument box in view of the shortcomings of the prior art, which solves the problem that the existing instrument box can only play the role of storing instruments, and cannot sterilize the instruments inside the instrument box. When the equipment is used for the second time, it is easy to cause the problem of cross infection.

In order to solve the above technical problems, the oral surgical instrument box provided by the present invention includes a disinfection electric control box, a control panel is fixedly connected to the front of the disinfection electric control box, and an instrument storage box is arranged above the disinfection electric control box. The upper surface of the instrument storage box is fixedly hinged with a box cover through two hinges, the front side of the box cover is fixedly connected with a symmetrical lock catch, and the front side of the instrument storage box is fixedly connected with a relatively symmetrical lock nut. The inside of the device storage box is provided with a porous storage plate, the left and right sides of the porous storage plate are fixedly connected with the inner wall of the device storage box, and the inner wall of the device storage box is fixedly connected with a relatively symmetrical ultraviolet sterilization lamp, The upper surface of the box cover is provided with a vent hole, and the inside of the vent hole is filled with sterilizing cotton.

The inner bottom wall of the device storage box is fixedly connected with an air delivery pipe, the inside of the air delivery pipe is provided with a sliding plate, and the inner side wall of the air delivery pipe is provided with a relatively symmetrical chute, and the interior of each of the chute is A sliding block adapted to the chute is clamped, the left and right sides of the sliding plate are respectively fixedly connected with the side surfaces of the two sliding blocks that are close to each other, and the inner top wall of each of the sliding grooves is fixedly connected with a reset The bottom end of each return spring is fixedly connected with the upper surface of the slider, the upper surface of the sliding plate is fixedly connected with a push rod, and the top end of the push rod is fixedly connected with a cover plate.

The upper surface of the disinfection electric control box is fixedly connected with a fixed pipe, the interior of the disinfection electric control box is fixedly connected with a heating box, the interior of the heating box is fixedly connected with a heating wire, and the interior of the disinfection electric control box is fixed Relatively symmetrical fans are connected, and the output ends of the two fans are respectively in fixed communication with the left and right sides of the heating box through pipes.

Preferably, a base is fixedly connected to the bottom surface of the disinfection electric control box, and two sets of symmetrical anti-skid pads are fixedly connected to the bottom surface of the base.

Preferably, a power cord is fixedly connected to the right side of the disinfection electric control box, and a power plug is electrically connected to one end of the power cord away from the disinfection electric control box.

Preferably, two sets of relatively symmetrical positioning columns are fixedly connected to the upper surface of the disinfection electric control box, and two sets of relatively symmetrical positioning holes are opened on the bottom surface of the instrument storage box.

Preferably, a sign is fixedly connected to the front of the instrument storage box, and a sign is provided on the front of the sign.

Preferably, a handle is fixedly connected to the upper surface of the box cover, and an anti-skid cover is sleeved on the outer surface of the handle.

Preferably, the back of the disinfection electric control box is provided with relatively symmetrical ventilation windows, and the interior of each of the ventilation windows is fixedly connected with a dustproof net.

Preferably, an inspection port is opened on the back of the disinfection electric control box, and an inspection panel is fixedly installed on the front of the inspection port.

Compared with the related art, the oral surgical instrument box provided by the present invention has the following beneficial effects:

The invention provides an instrument box for oral surgery. The upper part of the instrument storage box is provided with a box cover and a handle, and the box cover and the instrument storage box can be fixed under the cooperation of a lock catch and a lock nut, and the handle can be easily carried. And the mobile instrument box, the upper surface of the box cover is provided with an exhaust hole, which can be exhausted when the high-temperature gas is heated, and the ultraviolet sterilization lamp can be used to sterilize the instruments placed on the porous storage plate;

A positioning hole is arranged at the bottom of the instrument storage box, which can cooperate with the positioning column on the upper surface of the disinfection electric control box, so as to avoid the dislocation phenomenon when the instrument storage box is placed above the disinfection electric control box, and the disinfection electric control box can be controlled through the control panel. The internal high-temperature gas equipment works, which is convenient for high-temperature gas sterilization. The ventilation window on the back of the disinfection electric control box and the dust-proof net can be used to ventilate the fan. At the same time, the dust-proof electric control box can be used to prevent dust from entering the interior of the disinfection electric control box. ;

The sterilization electric control box is separated from the instrument storage box, and the air delivery tube is used to cooperate with the fixed tube. When the disinfection electric control box is in contact with the instrument storage box, the air delivery tube can be connected by the fixed tube, so as to ensure the internal sterilization electric control box. High-temperature gas can enter the instrument storage box for high-temperature sterilization. By setting the fan inside the disinfection electric control box to cooperate with the heating wire inside the heating box, high-temperature gas can be generated. Using the return spring to cooperate with the slider and the chute, the electric control box can be sterilized. When it is separated from the instrument storage box, the return spring rebounds, and the cover plate blocks the air delivery pipe to ensure the sterilization effect of the instrument storage box. Ensure the sterile effect of oral surgical instruments and avoid the phenomenon of cross infection.

Description of drawings

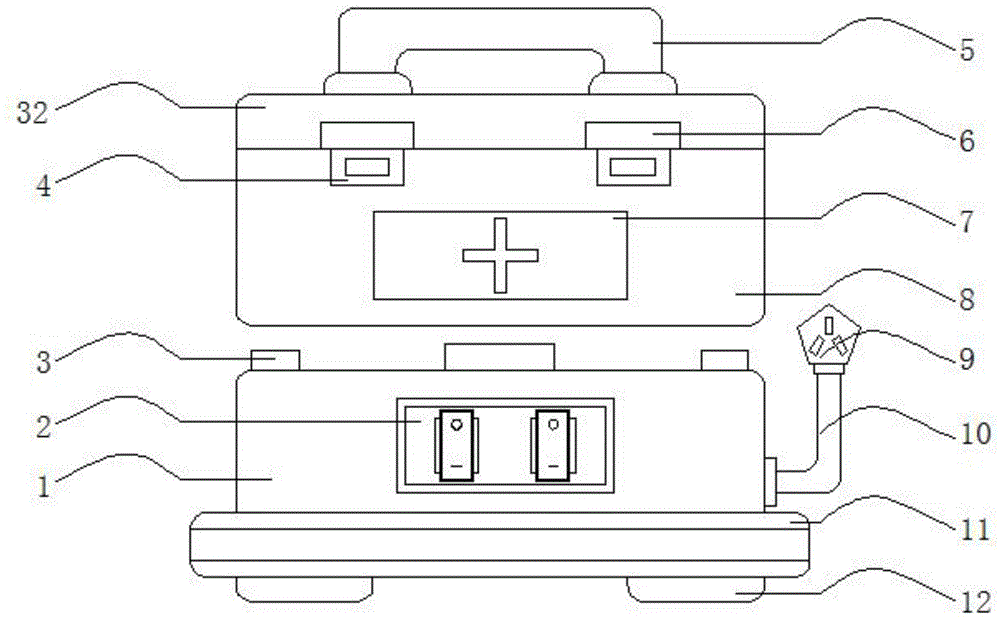

1 is a schematic structural diagram of a preferred embodiment of an oral surgical instrument box provided by the present invention;

Figure 2 is a cross-sectional view of the instrument storage box shown in Figure 1;

Fig. 3 is the sectional view of the disinfection electric control box shown in Fig. 1;

Fig. 4 is the rear view of the disinfection electric control box shown in Fig. 1;

FIG. 5 is a cross-sectional view of the gas delivery tube shown in FIG. 1 .

Labels in the figure: 1. Sterilization electric control box, 2. Control panel, 3. Positioning column, 4. Lock nut, 5. Handle, 6. Lock, 7. Sign, 8. Instrument storage box, 9. Power plug , 10, power cord, 11, base, 12, non-slip mat, 13, vent, 14, cover plate, 15, air pipe, 16, disinfection cotton, 17, ultraviolet sterilization lamp, 18, porous storage plate, 19 , positioning hole, 20, heating box, 21, fixed pipe, 22, heating wire, 23, fan, 24, ventilation window, 25, inspection port, 26, dust filter, 27, ejector rod, 28, sliding plate, 29 , Chute, 30, return spring, 31, slider, 32, box cover.

Detailed ways

The present invention will be further described below with reference to the accompanying drawings and embodiments.

Please refer to Fig. 1, Fig. 2, Fig. 3, Fig. 4 and Fig. 5 in combination, wherein Fig. 1 is a schematic structural diagram of a preferred embodiment of the oral surgical instrument box provided by the present invention; Fig. 2 is the instrument shown in Fig. 1 The sectional view of the storage box; Fig. 3 is the sectional view of the disinfection electric control box shown in Fig. 1; Fig. 4 is the rear view of the disinfection electric control box shown in Fig. 1; The oral surgical instrument box includes a disinfection electric control box 1, the front of the disinfection electric control box 1 is fixedly connected with a control panel 2, an instrument storage box 8 is arranged above the disinfection electric control box 1, and the upper surface of the instrument storage box 8 passes through two The hinge is fixedly hinged with a box cover 32, the front of the box cover 32 is fixedly connected with a symmetrical lock 6, the front of the instrument storage box 8 is fixedly connected with a relatively symmetrical lock nut 4, and the inside of the instrument storage box 8 is provided with a porous storage box. The plate 18, the left and right sides of the porous storage plate 18 are fixedly connected with the inner wall of the instrument storage box 8, and the inner wall of the instrument storage box 8 is fixedly connected with a relatively symmetrical ultraviolet sterilization lamp 17, and the ultraviolet sterilization lamp 17 adopts the international top-level high-tech. The high-quality ultraviolet C lamp has a good sterilization effect. The upper surface of the box cover 32 is provided with an exhaust hole 13 , and the interior of the exhaust hole 13 is filled with sterilization cotton 16 .

The inner bottom wall of the instrument storage box 8 is fixedly communicated with an air delivery pipe 15, the inside of the air delivery pipe 15 is provided with a sliding plate 28, and the inner side wall of the gas delivery pipe 15 is provided with a relatively symmetrical sliding groove 29, and the interior of each sliding groove 29 is clamped. A sliding block 31 is connected with the sliding groove 29, the left and right sides of the sliding plate 28 are respectively fixedly connected with the side surfaces of the two sliding blocks 31 that are close to each other, and the inner top wall of each sliding groove 29 is fixedly connected with reset. For the springs 30, the bottom end of each return spring 30 is fixedly connected to the upper surface of the slider 31, the upper surface of the sliding plate 28 is fixedly connected to the top rod 27, and the top end of the top rod 27 is fixedly connected to the cover plate 14.

The upper surface of the disinfection electric control box 1 is fixedly connected with a fixed pipe 21, the interior of the disinfection electric control box 1 is fixedly connected with a heating box 20, the interior of the heating box 20 is fixedly connected with a heating wire 22, and the interior of the disinfection electric control box 1 is fixedly connected. There are symmetrical fans 23, and the output ends of the two fans 23 are in fixed communication with the left and right sides of the heating box 20 through pipes respectively.

The bottom surface of the disinfection electric control box 1 is fixedly connected with a base 11, and the bottom surface of the base 11 is fixedly connected with two sets of symmetrical anti-skid pads 12, which can play a supporting and anti-slip effect and prevent the lower disinfection electric control box 1 from sliding.

A power cord 10 is fixedly connected to the right side of the disinfection electric control box 1 , and the end of the power cord 10 away from the disinfection electric control box 1 is electrically connected with a power plug 9 , which can be easily connected to the power supply.

The upper surface of the disinfection electric control box 1 is fixedly connected with two sets of relatively symmetrical positioning columns 3, and the bottom surface of the instrument storage box 8 is provided with two sets of relatively symmetrical positioning holes 19, which can achieve the effect of positioning and avoid the need for the disinfection electric control box. 1. The phenomenon of misalignment occurs when it is in contact with the instrument storage box 8.

The front of the instrument storage box 8 is fixedly connected with a sign 7, and the front of the sign 7 is provided with a mark, which can be easily marked and searched.

The upper surface of the box cover 32 is fixedly connected with a handle 5, and the outer surface of the handle 5 is covered with a non-slip cover, which can facilitate the carrying of the instrument storage box 8 and improve the convenience of use.

The back of the disinfection electric control box 1 is provided with relatively symmetrical ventilation windows 24, and the interior of each ventilation window 24 is fixedly connected with a dustproof net 26, which can achieve the effect of ventilation and dust removal.

An inspection port 25 is opened on the back of the disinfection electric control box 1, and an inspection plate is fixedly installed on the front of the inspection port 25, which can facilitate the inspection and maintenance of the equipment.

The working principle of the oral surgical instrument box provided by the present invention is as follows:

When in use, the cleaned and sterilized oral surgical instruments are placed on the porous storage plate 18 inside the instrument storage box 8, and the box cover 32 is connected to the instrument storage box 8 by using the lock nut 4 and the lock buckle 6, and then the medical staff Can hold the handle 5, place the instrument storage box 8 on the upper surface of the disinfection electric control box 1, and use the matching of the positioning column 3 and the positioning hole 19 to make the instrument storage box 8 accurately contact with the disinfection electric control box 1, When the two are in contact, the fixed pipe 21 is inserted into the inside of the gas delivery pipe 15, and under the cooperation of the sliding groove 29 and the slider 31, the fixed pipe 21 pushes the sliding plate 28 and the push rod 27 to move upward, so that the cover plate 14 rises , open the air pipe 15, then insert the power plug 9 into the power supply, start the fan 23 and the heating wire 22 through the control panel 2, and use the fan 23 to cooperate with the heating wire 22 to enter the instrument storage box 8 through the fixed pipe 21 and the air pipe 15, Therefore, the instruments inside the instrument storage box 8 are sterilized by high-temperature gas. After the disinfection is completed, the control panel 2 is controlled to turn off the fan 23 and the heating wire 22. When the instrument storage box 8 is lifted, the return spring 30 rebounds, so that the cover plate 14 is blocked. The trachea 15 uses the dry battery on the back of the instrument storage box 8 to supply power to the ultraviolet sterilization lamp 17, so that the ultraviolet sterilization lamp 17 can sterilize the instrument storage box 8 in real time.

Compared with the related art, the oral surgical instrument box provided by the present invention has the following beneficial effects:

By arranging a box cover 32 and a handle 5 on the upper part of the instrument storage box 8, the box cover 32 and the instrument storage box 8 can be fixed under the cooperation of the lock 6 and the lock nut 4, and the handle 5 can be easily carried and moved. In the instrument box, the upper surface of the box cover 32 is provided with an exhaust hole 13, which can be exhausted when the high-temperature gas is heated, and the ultraviolet sterilization lamp 17 can be used to sterilize the instruments placed on the porous storage plate 18;

The positioning hole 19 is provided at the bottom of the instrument storage box 8, which can cooperate with the positioning column 3 on the upper surface of the disinfection electric control box 1 to avoid the phenomenon of dislocation when the instrument storage box 8 is placed above the disinfection electric control box 1. Through the control panel 2. It can control the operation of the high-temperature gas equipment inside the disinfection electric control box 1, which is convenient for high-temperature gas sterilization. By opening the ventilation window 24 on the back of the disinfection electric control box 1 to cooperate with the dust-proof net 26, the fan 23 can be ventilated. The dust net 26 can prevent dust from entering the interior of the disinfection electric control box 1;

The sterilization electric control box 1 and the instrument storage box 8 are separated and arranged, and the air transmission pipe 15 is used to cooperate with the fixed pipe 21 , so that the air transmission pipe 15 can be communicated with the fixed pipe 21 when the disinfection electric control box 1 is in contact with the instrument storage box 8 , to ensure that the high-temperature gas inside the disinfection electric control box 1 can enter the instrument storage box 8 for high-temperature disinfection. The spring 30 cooperates with the slider 31 and the chute 29, so that when the disinfection electric control box 1 is separated from the instrument storage box 8, the return spring 30 rebounds, and the cover plate 14 blocks the air delivery tube 15, so as to ensure the sterilization effect of the instrument storage box 8 , by separating the high temperature gas and ultraviolet sterilization lamp 17 from the disinfection electric control box 1 and the instrument storage box 8, the aseptic effect of the oral surgical instrument can be ensured, and the phenomenon of cross infection can be avoided.

The above descriptions are only the embodiments of the present invention, and are not intended to limit the scope of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and drawings of the present invention, or directly or indirectly applied to other related technologies Fields are similarly included in the scope of patent protection of the present invention.

Claims (8)

1. The oral surgery instrument box is characterized by comprising a disinfection electric cabinet (1), wherein a control panel (2) is fixedly connected to the front side of the disinfection electric cabinet (1), an instrument storage box (8) is arranged above the disinfection electric cabinet (1), a box cover (32) is fixedly hinged to the upper surface of the instrument storage box (8) through two hinges, symmetrical lock catches (6) are fixedly connected to the front side of the box cover (32), symmetrical lock nuts (4) are fixedly connected to the front side of the instrument storage box (8), a porous storage plate (18) is arranged inside the instrument storage box (8), the left side surface and the right side surface of the porous storage plate (18) are fixedly connected with the inner wall of the instrument storage box (8), symmetrical ultraviolet sterilizing lamps (17) are fixedly connected to the inner side wall of the instrument storage box (8), and exhaust holes (13) are formed in the upper surface of the box cover (32), the interior of the exhaust hole (13) is filled with sterilized cotton (16);

the inner bottom wall of the instrument storage box (8) is fixedly communicated with an air conveying pipe (15), a sliding plate (28) is arranged inside the air conveying pipe (15), symmetrical sliding grooves (29) are formed in the inner side wall of the air conveying pipe (15), sliding blocks (31) matched with the sliding grooves (29) are clamped inside each sliding groove (29), the left side surface and the right side surface of each sliding plate (28) are fixedly connected with one side surface, close to the two sliding blocks (31), of each sliding block (31), the inner top wall of each sliding groove (29) is fixedly connected with a return spring (30), the bottom end of each return spring (30) is fixedly connected with the upper surface of each sliding block (31), an ejector rod (27) is fixedly connected to the upper surface of each sliding plate (28), and a cover plate (14) is fixedly connected to the top end of each ejector rod (27);

the fixed surface intercommunication of the upper surface of disinfection electric cabinet (1) has fixed pipe (21), the inside fixedly connected with heating box (20) of disinfection electric cabinet (1), the inside fixedly connected with heater strip (22) of heating box (20), the symmetrical fan (23) of inside fixedly connected with of disinfection electric cabinet (1), two the output of fan (23) is respectively through the fixed intercommunication of the left and right sides face of pipeline with heating box (20).

2. The oral surgical instrument cartridge of claim 1, wherein: the bottom surface of the disinfection electric cabinet (1) is fixedly connected with a base (11), and the bottom surface of the base (11) is fixedly connected with two groups of symmetrical anti-slip pads (12).

3. The oral surgical instrument cartridge of claim 1, wherein: the right side face of the disinfection electric cabinet (1) is fixedly connected with a power line (10), and one end, far away from the disinfection electric cabinet (1), of the power line (10) is electrically connected with a power plug (9).

4. The oral surgical instrument cartridge of claim 1, wherein: the upper surface of the disinfection electric cabinet (1) is fixedly connected with two groups of symmetrical positioning columns (3), and the bottom surface of the instrument storage box (8) is provided with two groups of symmetrical positioning holes (19).

5. The oral surgical instrument cartridge of claim 1, wherein: the front face of the instrument storage box (8) is fixedly connected with a label (7), and the front face of the label (7) is provided with a mark.

6. The oral surgical instrument cartridge of claim 1, wherein: the upper surface fixed connection of lid (32) has handle (5), the surface cover of handle (5) is equipped with anti-skidding cover.

7. The oral surgical instrument cartridge of claim 1, wherein: symmetrical ventilating windows (24) are formed in the back face of the disinfection electric cabinet (1), and each ventilating window (24) is fixedly connected with a dust screen (26).

8. The oral surgical instrument cartridge of claim 1, wherein: the back of the disinfection electric cabinet (1) is provided with an access hole (25), and the front of the access hole (25) is fixedly provided with an access board.
