Abstract

The invention discloses a wireless charging treasure that is convenient for charging, comprising a main body, a support rod, a connecting rod, a fixing slot, a slideway and a slider, the main body is inlaid with a plug, and the support rod is fixed on one side of the main body On the body wall, a rotating shaft is installed at one end of the support rod close to the main body, a telescopic rod is fixed on one side of the rotating shaft, the connecting rod is clamped between the telescopic rods, and the side body of the main body close to the connecting rod A fixing rod is erected on the wall, and a clamping block is fixed on the side wall of the connecting rod close to the fixing rod. When the main body needs to be charged and the plug is straight and parallel to the main body, the convenient charging wireless power bank uses the rotating shaft to straighten the telescopic rod and parallel to the plug. The minimum compression length supports the main body, makes the main body in a horizontal state, reduces the force on the plug, is convenient to ensure the balance of the main body during charging, and is more convenient for stable charging.

Description

A wireless power bank that is easy to charge

technical field

The invention relates to the technical field of power bank related equipment, in particular to a wireless power bank that is convenient for charging.

Background technique

Although smart phones are very powerful, they consume energy very quickly when they are in use. The battery life of smart phones is not long. People who need to travel on business and need mobile phones to work need to use external power to help them to continue battery life. The power bank is the best portable power source for people to travel. Although there are many types and quantities of wireless charging treasures on the market at present, when most of the wireless charging treasures are charged with a foldable plug, due to the small size of the connection point, the relatively unstable connection, and the inconvenience of charging, there is an urgent need for the market to charge. Technologies that improve the structure of a wireless power bank for easy charging are needed to complete this device.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a wireless charging treasure that is easy to charge, so as to solve the problem that when the wireless charging treasure on the market is charged with a foldable plug, the connection point is small in size and relatively unstable, and the charging is very difficult. of inconvenience.

In order to achieve the above purpose, the present invention provides the following technical solutions: a wireless charging treasure that is convenient for charging, comprising a main body, a support rod, a connecting rod, a fixing groove, a slideway and a slider, the main body is inlaid with a plug, wherein,

The support rod is fixed on one side wall of the main body, a rotating shaft is installed at one end of the support rod close to the main body, a telescopic rod is fixed on one side of the rotating shaft, and the connecting rod is clamped between the telescopic rods, A fixing rod is erected on one side body wall of the main body close to the connecting rod, the fixing groove is opened on one side body wall of the fixing rod, and a clamping block is fixed on the side body wall of the connecting rod close to the fixing rod;

The slideway is opened on one side body wall of the connecting rod, a spring is installed inside the connecting rod, the slider is fixed on one end of the spring, and a clamping rod is installed on the side of the slider close to the spring.

Preferably, a rotating structure is formed between the rotating shaft and the telescopic rod, and the rotation angle of the telescopic rod is in the range of 0-90°.

Preferably, a telescopic structure is formed between the telescopic rod and the connecting rod, and the maximum telescopic distance of the connecting rod does not exceed the length of the self-extending rod of the telescopic rod.

Preferably, a snap connection is formed between the connecting rod and the fixing rod, and the connecting rod and the fixing rod are detachably connected.

Preferably, a sliding connection is formed between the slideway and the slider, and the maximum sliding distance of the slider does not exceed the deformation amount of the spring itself.

Preferably, the clamping rods are arranged in an "L" shape, and there are two clamping rods, and the two clamping rods are symmetrical with respect to the central axis of the connecting rod.

Compared with the prior art, the beneficial effects of the present invention are: the wireless charging treasure that is easy to charge:

1. When the main body needs to be charged, when the plug is straight and parallel to the main body, the telescopic rod is straightened and parallel to the plug using the rotating shaft. The telescopic rod can be compressed to the minimum compression length after being squeezed along with the connection between the plug and the socket Support the main body, make the main body in a horizontal state, reduce the force on the plug, ensure the balance of the main body during charging, and facilitate stable charging;

2. A telescopic rod is provided, which can be fixed by engaging with the clamping block through the fixing slot. When not charging, the telescopic rod can maintain a stable connection with the main body through the clamping, which will not affect the carrying and use of the main body;

3. A retractable clamping rod is installed on the connecting rod. The clamping rod can slide in the slideway of the connecting rod through the spring, and is clamped according to different mobile phones, so that the mobile phone can be charged by the charging treasure. There is a stable connection between the clip and the main body, which is more convenient to use.

Description of drawings

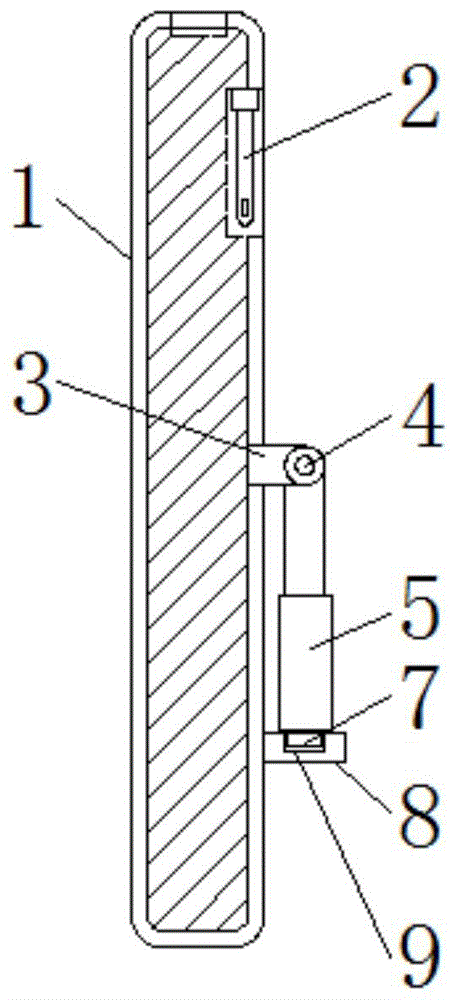

Fig. 1 is the structural representation of the present invention;

Fig. 2 is a left-view structural schematic diagram of the present invention;

FIG. 3 is a schematic diagram of the structure of the connecting rod of the present invention.

In the picture: 1. Main body, 2. Plug, 3. Support rod, 4. Rotating shaft, 5. Telescopic rod, 6. Connecting rod, 7. Fixed rod, 8. Fixed groove, 9. Block, 10. Slideway , 11, spring, 12, slider, 13, clamping rod.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

1-3, the present invention provides a technical solution: a wireless charging treasure that is easy to charge, including a main body 1, a plug 2, a support rod 3, a rotating shaft 4, a telescopic rod 5, a connecting rod 6, and a fixing rod 7 , fixing slot 8, clamping block 9, slideway 10, spring 11, slider 12 and clamping rod 13, the inside of the main body 1 is inlaid with a plug 2, wherein,

The support rod 3 is fixed on one side wall of the main body 1, and a rotating shaft 4 is installed at one end of the support rod 3 close to the main body 1. A telescopic rod 5 is fixed on one side of the rotating shaft 4, and the rotating shaft 4 A rotating structure is formed between the telescopic rod 5, and the rotation angle of the telescopic rod 5 is 0-90°. The rotating telescopic rod 5 can adjust the angle of the telescopic rod 5 according to the charging requirements, which is convenient to use the rotation of the telescopic rod 5 to support The balance of the main body 1, the connecting rod 6 is clamped between the telescopic rods 5, a telescopic structure is formed between the telescopic rod 5 and the connecting rod 6, and the maximum telescopic distance of the connecting rod 6 does not exceed the self-extension of the telescopic rod 5 The length of the rod, when the plug 2 is inserted into the socket, the connecting rod 6 will be pushed and squeezed by the wall to shrink the telescopic rod 5 to the minimum retracted state, so that the main body 1 is supported and balanced by the telescopic rod 5, which is convenient for slowing down the plug 2. The force received makes the charging of the main body 1 more balanced. A fixing rod 7 is erected on the side wall of the main body 1 close to the connecting rod 6. The connecting rod 6 and the fixing rod 7 form a snap connection, and the connection is The connection between the rod 6 and the fixing rod 7 is detachable. After the clamping block 9 installed on the connecting rod 6 is clamped into the fixing groove 8, the rotation of the telescopic rod 5 can be restricted, so that the telescopic rod 5 can be stretched and retracted easily when the telescopic rod 5 is not in use. The stable connection between the rod 5 and the main body 1 will not occupy too much space. The fixing slot 8 is opened on one side of the body wall of the fixing rod 7, and is close to the side wall of the connecting rod 6 of the fixing rod 7. A card block 9 is fixed on it;

The slideway 10 is provided on the side wall of the connecting rod 6, and a sliding connection is formed between the slideway 10 and the slider 12, and the maximum sliding distance of the slider 12 does not exceed the deformation amount of the spring 11. The clamping rod 13 is installed on the 12. When the clamping rod 13 clamps different mobile phones, it will bring different pushing forces to the spring 11, so that the deformation of the spring 11 forces the clamping rod 13 to be clamped according to different mobile phones. When charging, the mobile phone can be firmly connected with the main body 1, which is convenient to use. A spring 11 is installed inside the connecting rod 6, the slider 12 is fixed on one end of the spring 11, and a side of the slider 12 near the spring 11 is installed Clamping rods 13, the clamping rods 13 are set to an "L" shape, and there are two clamping rods 13, and the two clamping rods 13 are symmetrical about the central axis of the connecting rod 6, which is convenient for the left and right sides to be stable The clips close the phone to maintain the stability of the phone.

Working principle: When using the easy-to-charge wireless power bank, you first need to have a simple understanding of the easy-to-charge wireless power bank. When the user needs to charge the main body 1, first straighten the plug 2 and keep it perpendicular to the main body 1. In the state, push the telescopic rod 5 to shrink so that after the clamping block 9 on the connecting rod 6 is stressed, it is detached from the fixing groove 8 on the fixing rod 7, so that the telescopic rod 5 loses the fixed restriction, and then use the rotating shaft 4 to rotate to adjust the telescopic The angle of the rod 5 keeps the telescopic rod 5 horizontal with the plug 2, aligns the telescopic rod 5 with the wall, and the plug 2 is connected to the socket. In order for the main body 1 to be supported and balanced, when the main body 1 needs to be used, after restoring all the devices, place the mobile phone between the two clamping rods 13. After the clamping rod 13 is stressed, it drives the slider 12 to push the spring 11 to deform in the connection. The slideway 10 of the rod 6 slides, adjusts and clamps the mobile phone according to the width of the mobile phone, and then connects the mobile phone with the power bank to use, this is the working process of the device, and the content not described in detail in this description belongs to the art State of the art known to those skilled in the art.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or to perform equivalent replacements for some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the protection scope of the present invention.

Claims (6)

1. The utility model provides a wireless treasured that charges convenient to charge, includes main part (1), bracing piece (3), connecting rod (6), fixed slot (8), slide (10) and slider (12), its characterized in that: a plug (2) is embedded in the main body (1), wherein,

the supporting rod (3) is fixed on one side wall of the main body (1), one end of the supporting rod (3) close to the main body (1) is provided with a rotating shaft (4), one side of the rotating shaft (4) is fixedly provided with a telescopic rod (5), the connecting rod (6) is clamped between the telescopic rods (5), a fixing rod (7) is erected on one side wall of the main body (1) close to the connecting rod (6), the fixing groove (8) is formed in one side wall of the fixing rod (7), and a clamping block (9) is fixed on one side wall of the connecting rod (6) close to the fixing rod (7);

slide (10) are seted up on connecting rod (6) a lateral wall, connecting rod (6) internally mounted has spring (11), slider (12) are fixed in spring (11) one end, are close to spring (11) slider (12) one side is installed clamping bar (13).

2. The wireless treasured that charges convenient to charge of claim 1, characterized by: a rotating structure is formed between the rotating shaft (4) and the telescopic rod (5), and the rotating angle range of the telescopic rod (5) is 0-90 degrees.

3. The wireless treasured that charges convenient to charge of claim 1, characterized by: a telescopic structure is formed between the telescopic rod (5) and the connecting rod (6), and the maximum telescopic distance of the connecting rod (6) is not more than the length of the self extension rod of the telescopic rod (5).

4. The wireless treasured that charges convenient to charge of claim 1, characterized by: the connecting rod (6) and the fixing rod (7) are connected in a clamping manner, and the connecting rod (6) and the fixing rod (7) are detachably connected.

5. The wireless treasured that charges convenient to charge of claim 1, characterized by: the slide way (10) is in sliding connection with the slide block (12), and the maximum sliding distance of the slide block (12) does not exceed the self deformation of the spring (11).

6. The wireless treasured that charges convenient to charge of claim 1, characterized by: the clamping rods (13) are L-shaped, two clamping rods (13) are arranged, and the 2 clamping rods (13) are symmetrical to each other about the central axis of the connecting rod (6).
