Abstract

The invention relates to the technical field of automation equipment, in particular to an injection molding product shaping device. Compared with the prior art, the injection molding product shaping device includes a frame, a shaping module mounting plate, a workbench, and an installation fixing plate. There are three rows of shaping devices installed on the fixing plate, and four shaping devices are arranged on each row. The shaping device is provided with a product placing block, and shaping and pressing devices are arranged at both ends of the product placing block. The shaping and pressing devices include support columns, cantilevers The rod, the pressure block installation block and the shaping pressure block, the lower end of the support column is fixed on the installation fixing plate, the upper end of the support column is an ear-shaped hinge groove, and one end of the cantilever rod is connected to the ear-shaped hinge groove of the support column through a hinge relationship The other end of the cantilever rod is also connected to the pressure block mounting block through a hinge relationship, and the lower end of the pressure block mounting block is fixed with a shaping pressure block; both sides of the middle part of the cantilever rod are hinged with a connecting rod, and the lower end of the connecting rod is fixed with a cylinder telescopic shaft , the cylinder telescopic shaft is connected to a cylinder through the installation fixing plate.

Description

An injection molding product shaping equipment

technical field

The invention relates to the technical field of automation equipment, in particular to an injection molding product shaping equipment.

Background technique

The injection molding products are seriously deformed during the production process, resulting in an increase in the defective rate. Therefore, after taking them out, they should be pressed and reshaped to improve the good rate.

SUMMARY OF THE INVENTION

In order to solve the defects and problems of serious deformation of injection molding products in the prior art, an injection molding product shaping device is provided.

The technical solution adopted by the present invention to solve the technical problem is as follows: an injection molding product shaping device of the present invention includes a frame, the top of the frame is a shaping module mounting plate, and a workbench is arranged on the shaping module mounting plate, Two support plates are erected on both sides of the workbench, and an installation fixing plate is fixedly connected between the supporting plates on both sides. Three rows of shaping devices are installed on the installation and fixing plates, and each row is provided with four shaping devices. The shaping device is provided with a product placing block, and a shaping and pressing device is arranged at both ends of the product placing block. The lower end of the support column is fixed on the mounting plate, the upper end of the support column is an ear-shaped hinge groove, one end of the cantilever rod is connected to the ear-shaped hinge groove of the support column through a hinge relationship, and the other end of the cantilever rod is also connected by a hinge. A connecting rod is hinged on both sides of the middle part of the cantilever rod, and a cylinder telescopic shaft is fixed at the lower end of the connecting rod, and the cylinder telescopic The shaft is connected to a cylinder through the mounting plate.

The front end of the frame is a control panel, and the bottom end of the frame is provided with a universal wheel and a positioning and shrinking rod.

The support plate is provided with slot-shaped through holes, and the slot-shaped through holes are used for ventilation and heat dissipation.

The shaping and pressing devices at both ends of the product placing block are in a symmetrical state and in opposite directions.

The two ends of the shaping pressing block are provided with inner grooves which are matched with the product, and are pressed on the product through the inner grooves.

The cylinder is fixed upside down on a cylinder mounting plate, and the cylinder mounting plate is fixed on the mounting and fixing plate through a fixing rod.

The beneficial effects of the present invention are: compared with the prior art, an injection molding product shaping device of the present invention automatically presses and reshapes the product through a plurality of shaping and pressing devices on three rows of shaping devices, thereby improving the product shaping efficiency and reducing the Reshape the waste rate and reduce the work intensity of employees.

Description of drawings

The following is a further description of an injection molding product shaping device of the present invention with reference to the accompanying drawings and specific embodiments.

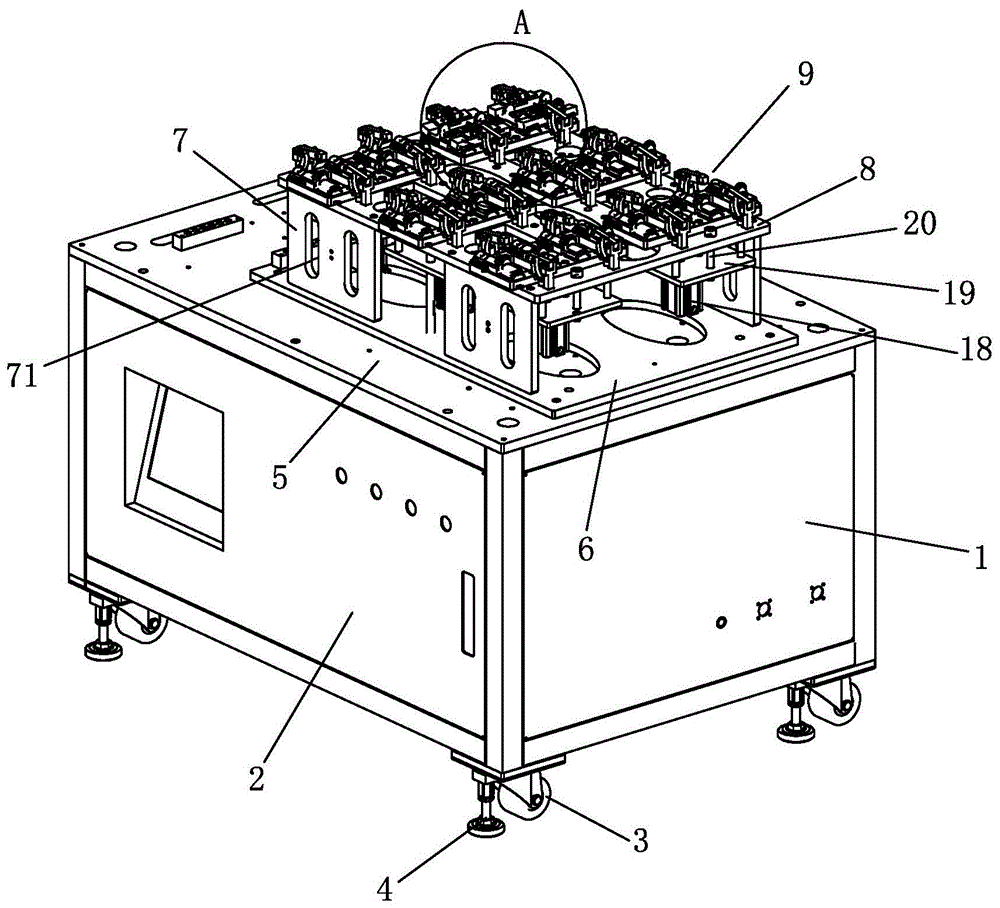

Fig. 1 is a three-dimensional structural schematic diagram of an injection molding product shaping device of the present invention;

FIG. 2 is a schematic diagram of a partially enlarged structure in FIG. 1 .

Detailed ways:

As shown in Figures 1 and 2, an injection molding product shaping device of the present invention includes a frame 1, the front end of the frame 1 is a control panel 2, and the bottom end of the frame 1 is installed with a universal wheel 3 and a positioning and shrinking rod 4, Arbitrary movement can be carried out by the universal wheel 3 , and fixed position positioning can be carried out by the positioning and retracting rod 4 .

As shown in FIG. 1 and FIG. 2 , the top of the rack 1 is a shaping module mounting plate 5 , a worktable 6 is arranged on the shaping module mounting plate 5 , and two support plates 7 are erected on both sides of the worktable 6 . , the support plate 7 is provided with a slot-shaped through hole 71, and the slot-shaped through hole 71 is used for ventilation and heat dissipation. A mounting and fixing plate 8 is fixedly connected between the supporting plates 7 on both sides. Three rows of shaping devices 9 are installed on the mounting and fixing plate 8, four shaping devices 9 are arranged on each row, and a product placing block 10 is arranged on the shaping device 9. , The product placing block 10 is used for placing and positioning the product 0. The two ends of the product placing block 10 are provided with shaping and pressing devices 11. The shaping and pressing devices 11 at both ends of the product placing block 10 are in a symmetrical state and in opposite directions.

As shown in FIGS. 1 and 2 , the shaping and pressing device 11 includes a support column 12 , a cantilever rod 13 , a pressure block mounting block 14 and a shaping pressure block 15 . The lower end of the support column 12 is fixed on the mounting plate 8, the upper end of the support column 12 is an ear-shaped hinge groove 121, and one end of the cantilever rod 13 is connected to the ear-shaped hinge groove 121 of the support column 12 through a hinge relationship. The other end of the cantilever rod 13 is also connected to the pressure block mounting block 14 through a hinge relationship, the lower end of the pressure block mounting block 14 is fixed with a shaping pressure block 15, and the two ends of the shaping pressure block 15 are provided with inner grooves for matching with the product 0. Pressed on product 0 through the inner groove.

As shown in FIG. 1 and FIG. 2 , a connecting rod 16 is hinged on both sides of the middle part of the cantilever rod 13 . A cylinder telescopic shaft 17 is fixed at the lower end of the connecting rod 16 . The cylinder 18 is fixed upside down on a cylinder mounting plate 19 , and the cylinder mounting plate 19 is fixed on the mounting and fixing plate 8 through a fixing rod 20 . When working, first place the product 0 in the product placing block 10, then the cylinder 18 drives the connecting rod 16 to move, and the connecting rod 16 drives the cantilever rod 13 to perform hinge movement, and the two ends of the cantilever rod 13 are driven by the hinge connection. The pressure block mounting block 14 and the shaping pressure block 15 move up and down, and the shaping pressure block 15 presses and reshapes the product 0 .

To sum up, compared with the prior art, an injection molding product shaping device of the present invention automatically presses and reshapes the product through a plurality of shaping and pressing devices on three rows of shaping devices, thereby improving product shaping efficiency and reducing shaping waste. rate and reduce the work intensity of employees.

The present invention has been described in an illustrative rather than a restrictive manner according to the embodiments of the present invention, but it should be understood that the protection scope of the present invention is not limited thereto, without departing from the relevant protection scope defined by the claims. , those skilled in the art can make changes and/or modifications, and any modifications, equivalent replacements, etc. on this basis shall be included within the protection scope of the present invention.

Claims (6)

1. The utility model provides an injection molding product plastic equipment which characterized in that: comprises a frame, a shaping module mounting plate is arranged at the top end of the frame, a workbench is arranged on the shaping module mounting plate, two supporting plates are erected on two sides of the workbench respectively, a mounting fixing plate is fixedly connected between the supporting plates on the two sides, three rows of shaping devices are arranged on the mounting and fixing plate, four shaping devices are arranged on each row, a product placing block is arranged on each shaping device, shaping and pressing devices are arranged at two ends of the product placing block, each shaping and pressing device comprises a supporting column, a cantilever rod, a pressing block mounting block and a shaping pressing block, the lower end of the supporting column is fixed on the mounting fixing plate, the upper end of the supporting column is provided with an ear-shaped hinge groove, one end of the cantilever rod is connected to the ear-shaped hinge groove of the support column through a hinge relationship, the other end of the cantilever rod is also connected to the pressing block mounting block through a hinge relationship, and the lower end of the pressing block mounting block is fixed with the shaping pressing block; and a connecting rod is hinged to two sides of the middle part of the cantilever rod, a cylinder telescopic shaft is fixed at the lower end of the connecting rod, and the cylinder telescopic shaft penetrates through the mounting fixing plate to be connected with a cylinder.

2. The injection molded part product reshaping apparatus of claim 1, wherein: the front end of the frame is a control panel, and the bottom end of the frame is provided with universal wheels and a positioning contraction rod.

3. The injection molded part product reshaping apparatus of claim 1, wherein: the supporting plate is provided with a groove-shaped through hole which is used for ventilation and heat dissipation.

4. The injection molded part product reshaping apparatus of claim 1, wherein: the shaping and pressing devices at the two ends of the product placing block are in a symmetrical state and opposite in direction.

5. The injection molded part product reshaping apparatus of claim 1, wherein: and inner grooves matched with the product are formed in two ends of the shaping pressing block and are pressed on the product through the inner grooves.

6. The apparatus of claim 1, wherein: the cylinder handstand is fixed on a cylinder mounting plate, and the cylinder mounting plate is fixed on a mounting fixing plate through a fixing rod.
