Abstract

The invention discloses a portable clothing drying device after cleaning, which relates to the technical field of drying equipment, and includes a case, a gear column is fixedly installed on the inner wall of the case, and an iron column is welded on the right side of the gear column. The other end of the casing is movably connected with a bearing, and the other end of the bearing is sleeved with a motor, a fixed frame is fixedly installed on the inner wall of the chassis, and a slider is embedded in the inside of the fixed frame, and the opposite surfaces of the sliders are movably connected There are rollers, a roller is nested outside the roller, and an electric push rod is welded on the top of the roller. In the present invention, start the motor and the electric heating pipe, the motor will drive the gear column to rotate, the gear column will drive the gear rod and the rotating column to rotate, the rotating column will drive the fan blade to rotate, and the clothes will be hung on the hanger rod in the gear rod, so that The heating area of the clothes is increased, and the hot air in the cabinet circulates rapidly, which shortens the drying time of the clothes.

Description

A portable clothing drying device after cleaning

technical field

The invention relates to the technical field of drying equipment, in particular to a portable clothing drying device after cleaning.

Background technique

With the development of science and technology and the progress of the times, more and more people use dryers to dry clothes. The dryers have several modes such as belt drying, tumble drying, and box drying. Dryers are typically used to remove moisture from garments and other textiles after water has been removed.

When the existing dryer is drying clothes, the clothes are stacked together, which makes the drying time too long. During the drying process, the hot air inside the dryer is not circulated, so that the heating area of the clothes is not heated. Evenly, some garments will shrink after drying.

SUMMARY OF THE INVENTION

The purpose of the present invention is to solve the problem that when the existing dryer is drying clothes, the clothes are stacked together, which makes the drying time too long, and the hot air inside the dryer is not circulated during the drying process. , so that the heating area of the clothes is uneven, and some clothes will shrink after drying, and a portable clothes drying device after cleaning is proposed.

In order to achieve the above object, the present invention adopts the following technical solutions:

A portable clothing drying device after cleaning, comprising a case, a gear column is fixedly installed on the inner wall of the case, an iron column is welded on the right side of the gear column, the other end of the iron column is movably connected with a bearing, and the bearing The other end is sleeved with a motor, a fixed frame is fixedly installed on the inner wall of the chassis, and a slider is embedded in the inside of the fixed frame, and a roller is movably connected to the opposite surface between the sliders, and the outside of the roller is embedded. A drum is covered, and an electric push rod is welded on the top of the drum, an electric heating pipe is movably installed inside the case, a gear rod is movably connected inside the case, and a clothes hanger rod is fixedly installed on the front of the gear rod, and the gear rod is installed. The outside of the rod is sleeved with a gear bearing.

Preferably, a rotating column is movably connected inside the case, a fan blade is fixedly installed at the other end of the rotating column, a temperature display is installed outside the case, and a hand crank is sleeved at the other end of the gear column.

Preferably, the roller forms a lifting structure between an electric push rod, a sliding block, a roller, a fixed frame and the chassis, and a sliding structure is formed between the sliding block and the fixed frame.

Preferably, the gear column constitutes a rotating structure between the iron column, the bearing, the motor and the chassis, and the iron column is distributed at the center half of the right side of the gear column.

Preferably, the gear rod forms a rotating structure between the gear column, the motor, the gear bearing and the case, and the gear rod is symmetrical about the central axis of the case.

Preferably, the fan blades form a rotating structure between the motor, the gear column, the rotating column and the casing, and the outside of the rotating column is a gear-like structure.

To sum up, due to the adoption of the above-mentioned technical solutions, the beneficial effects of the present invention are:

1. In the present invention, start the motor and the electric heating pipe, the motor will drive the gear column to rotate, the gear column will drive the gear rod and the rotating column to rotate, the rotating column drives the fan blade to rotate, and the clothes are hung on the hanger rod in the gear rod. In this way, the heating area of the clothes is increased, the hot air in the cabinet circulates rapidly, and the drying time of the clothes is shortened.

2. In the present invention, the cleaned clothes are hung on the hanger rod, the electric push rod is activated, and the electric push rod drives the drum to move up and down, and the drum slides in the fixed frame through the pulley and the roller, thus reducing the friction force when the drum is raised and lowered. , the drum moves back and forth on the clothes. Because the surface of the drum is covered with transparent tape, it is easy to remove the dust or paper scraps on the clothes. After cleaning, move the drum to the top or bottom of the clothes, and close the electric push rod. Affects the drying operation of clothes.

3. In the present invention, since some clothes are dried at a certain temperature, the clothes will shrink. People know the temperature in the case through the value displayed by the temperature display. When the temperature in the case reaches a certain temperature, turn off the electric heating pipe, The motor, install the hand crank, manually operate the hand crank, so that the gear column rotates, the gear column drives the gear rod and the rotating column to rotate, and the rotating column drives the fan blade to rotate, so that the drying operation of the clothes is completed, and it will not cause Clothing shrinks.

Description of drawings

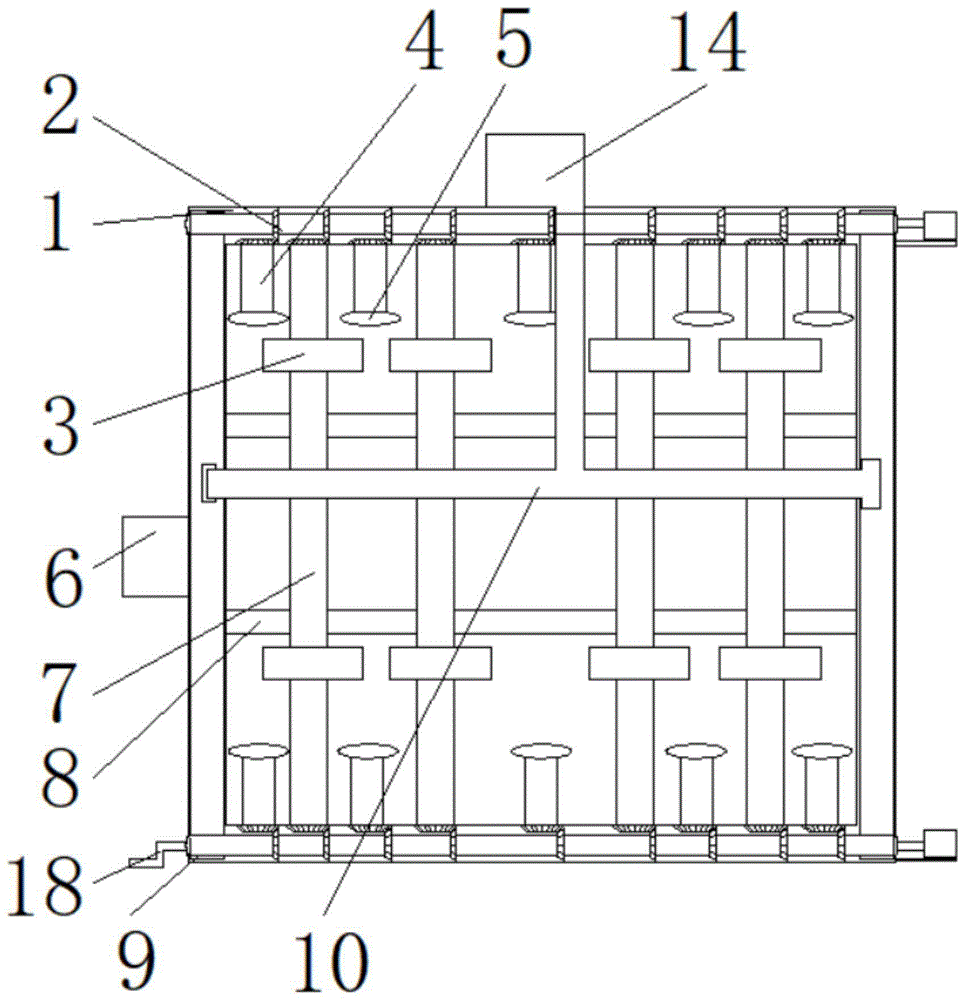

1 is a schematic diagram of the front structure of a drying device in the present invention;

2 is a schematic diagram of the front structure of the rotating column in the present invention;

3 is a schematic diagram of the front structure of the drum in the present invention;

FIG. 4 is a schematic diagram of the front structure of the gear rod in the present invention.

illustration:

1. Chassis; 2. Gear column; 3. Hanger rod; 4. Rotary column; 5. Fan blade; 6. Temperature display; 7. Gear rod; 8. Electric heating pipe; 9. Fixed frame; 10. Roller; 11. Iron column; 12, bearing; 13, motor; 14, electric push rod; 15, slider; 16, roller; 17, gear bearing; 18, hand crank.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Referring to Figures 1-4, a portable clothing drying device after washing includes a case 1, a gear column 2, a hanger rod 3, a rotating column 4, a fan blade 5, a temperature display 6, a gear rod 7, an electric heating tube 8, and a fixed frame 9. The drum 10, the iron column 11, the bearing 12, the motor 13, the electric push rod 14, the slider 15, the roller 16, the gear bearing 17 and the hand crank 18, the gear column 2 is fixedly installed on the inner wall of the case 1, and the gear The right side of the column 2 is welded with an iron column 11, the other end of the iron column 11 is movably connected with a bearing 12, and the other end of the bearing 12 is sleeved with a motor 13, the inner wall of the chassis 1 is fixedly installed with a fixed frame 9, and the fixed frame 9 There is a slider 15 embedded in the inside of the slider 15, and a roller 16 is movably connected to the opposite surface of the slider 15. The roller 10 is nested outside the roller 16, and the top of the roller 10 is welded with an electric push rod 14. The chassis 1 There is an electric heating pipe 8 movably installed inside the case 1 , a gear rod 7 is movably connected to the inside of the case 1 , and the front of the gear rod 7 is fixedly installed with a hanger rod 3 , and a gear bearing 17 is sleeved on the outside of the gear rod 7 .

Further, a rotating column 4 is movably connected to the inside of the chassis 1, and the other end of the rotating column 4 is fixedly installed with a fan blade 5, the outside of the chassis 1 is installed with a temperature display BTM-016, and the other end of the gear column 2 is sleeved with a hand. The crank 18, some clothes drying at a specific temperature will cause the clothes to shrink. People can observe the internal temperature of the chassis 1 through the temperature display 6 to decide whether to turn off the electric heating pipe 8, so that the clothes are not easily shrunk.

Further, the drum 10 forms a lifting structure between the electric push rod 14, the sliding block 15, the roller 16, the fixed frame 9 and the chassis 1, and the sliding structure 15 and the fixed frame 9 form a sliding structure. When there is a lot of paper scraps or dust on the surface of the clothes, start the electric push rod 14, and the electric push rod 14 drives the drum 10 to complete the lifting operation. Paper scraps and dust are cleaned up.

Further, the gear column 2 forms a rotating structure between the iron column 11, the bearing 12, the motor 13 and the chassis 1, and the iron column 11 is distributed in the center half of the right side of the gear column 2, the motor 13 is started, and the motor 13 drives The gear column 2 completes the rotating operation, which is convenient for the gear column 2 to drive the gear rod 7 and the rotating column 4 to complete the rotating operation.

Further, the gear rod 7 forms a rotating structure between the gear column 2, the motor 13, the gear bearing 17 and the case 1, and the gear rod 7 is symmetrical about the central axis of the case 1, the motor 13 is started, and the gear column 2 drives the gear rod 7 to rotate. , so that the clothes on the gear rod 7 can be dried better.

Further, the fan blade 5 forms a rotating structure between the motor 13, the gear column 2, the rotating column 4 and the chassis 1, and the outer part of the rotating column 4 is in a gear-like structure, start the motor 13, and the gear column 2 drives the fan blade 5 to complete the rotating operation. , so that the hot air inside the cabinet 1 circulates rapidly, which is beneficial to the drying operation of the clothes.

Working principle: When using, first hang the washed clothes on the hanger bar 3, so that the clothes are unfolded and the drying time is shorter, and the electric push rod 14 is activated to drive the drum 10 to move back and forth on the clothes, so that it is easy to clearly understand the clothes on the clothes. After cleaning, move the drum 10 to the top or bottom of the clothes, close the electric push rod 14, close the door of the chassis 1, start the motor 13 and the electric heating pipe 8, the motor 13 will drive the gear column 2 to rotate, The gear column 2 drives the gear rod 7 and the rotating column 4 to rotate, the rotating column 4 will drive the fan blade 5 to rotate, and the hanger rod 3 rotates with the gear rod 7, so that the heating area of the clothes increases, and the hot air in the cabinet 1 circulates quickly , which shortens the drying time of the clothes. Since some clothes are dried at a certain temperature, the clothes will shrink. People can operate the cabinet 1 by checking the temperature displayed on the temperature display 6 (model: BTM-01). When the inside of the cabinet 1 When the temperature reaches a certain temperature, turn off the electric heating tube 8 and the motor 13, install the hand crank 18, and manually operate the hand crank 18, so that the gear column 2 rotates, and the gear column 2 drives the gear rod 7 and the rotating column 4 to rotate. The column 4 will drive the fan blade 5 to rotate, which can also dry the clothes without causing the clothes to shrink.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (6)

1. A portable clothing drying device after cleaning, comprising a case (1), characterized in that a gear column (2) is fixedly installed on the inner wall of the case (1), and a right side of the gear column (2) is welded with a gear column (2). An iron column (11), the other end of the iron column (11) is movably connected with a bearing (12), and the other end of the bearing (12) is sleeved with a motor (13), and the inner wall of the chassis (1) is fixedly installed There is a fixed frame (9), and a slider (15) is embedded in the inside of the fixed frame (9), and a roller (16) is movably connected to the opposite surface of the slider (15). The roller (16) A drum (10) is nested on the outside of the drum (10), and an electric push rod (14) is welded on the top of the drum (10). A gear rod (7) is movably connected to the inside of the gear rod (7), a coat hanger rod (3) is fixedly installed on the front of the gear rod (7), and a gear bearing (17) is sleeved on the outside of the gear rod (7). 2. A portable clothing drying device after washing according to claim 1, characterized in that a rotating column (4) is movably connected to the inside of the case (1), and the other end of the rotating column (4) is fixed A fan blade (5) is installed, a temperature display (6) is installed on the outside of the chassis (1), and a hand crank (18) is sleeved on the other end of the gear column (2). 3. A portable clothing drying device after cleaning according to claim 1, characterized in that the drum (10) is fixed by an electric push rod (14), a slider (15), a roller (16), a A lifting structure is formed between the frame (9) and the chassis (1), and a sliding structure is formed between the sliding block (15) and the fixed frame (9). 4. A portable clothing drying device after cleaning according to claim 1, wherein the gear column (2) passes through the iron column (11), the bearing (12), the motor (13) and the chassis (1). A rotating structure is formed between ), and the iron column (11) is distributed at the center half of the right side of the gear column (2). 5. A portable clothing drying device after cleaning according to claim 1, characterized in that the gear rod (7) passes through the gear column (2), the motor (13), the gear bearing (17) and the chassis ( 1) A rotating structure is formed between them, and the gear rod (7) is symmetrical about the central axis of the chassis (1). 6. A portable clothing drying device after cleaning according to claim 2, characterized in that the fan blade (5) passes through the motor (13), the gear column (2), the rotating column (4) and the chassis ( 1) A rotating structure is formed between them, and the outside of the rotating column (4) is a gear-like structure.
