Abstract
The invention discloses a high-oiliness particle filtration efficiency melt-blown material, a preparation method and application thereof, wherein the material comprises the following raw materials in parts by weight: the composite electret agent comprises ultrahigh-flow polypropylene, an antioxidant and a composite electret agent, wherein the composite electret agent is prepared from the following raw materials in parts by weight: tourmaline powder, fluoropolymer and oleophobic agent. The invention aims at the defects that the die head is easy to block in the extrusion process of the existing melt-blown material, the filtering efficiency of oily particles is low, the maintaining time of the filtering efficiency is short, and the like, and solves the problems of uneven filtering efficiency and large effect difference of the material in different equipment and die heads.
Description
Technical Field
The invention relates to the technical field of medical health, in particular to a high-oiliness particle filtration efficiency melt-blown material, a preparation method and application thereof.
Background
The prior art for producing melt-blown cloth mainly adopts a polypropylene chemical degradation method to obtain melt-blown polypropylene (PP), and then adds electret master batches through physical mixing, so that the compatibility of the electret master batches and the melt-blown PP is poor, the dispersion is not uniform enough, a die head is easy to block in the spinning process, crystal points are easy to generate on the surface of the melt-blown cloth, the toughness of the melt-blown cloth is reduced, and partial static effect is easy to lose, so that the produced melt-blown cloth has the problems of low filtration efficiency and the like, and the same material is made in different equipment and die dies, so that the problems of non-uniform filtration efficiency and large difference in filtration effect occur, the filtration effect on oily particles is poor, and the retention time of the filtration efficiency.
CN106048887A discloses a melt-blown non-woven fabric for efficiently filtering PM2.5 and a manufacturing method thereof, wherein the melt-blown non-woven fabric for efficiently filtering PM2.5 is prepared by the following components in percentage by weight: 95-97% of polypropylene and 3-5% of modified tourmaline; the manufacturing method comprises the following steps: (1) firstly, dispersing, uniformly mixing and melting the improved tourmaline particles and polypropylene slices in the proportion by mass percent of 20% to prepare master batches; the granulation adopts an auxiliary agent accounting for 26.1-37.1 mass percent of the improved tourmaline particles; (2) and uniformly mixing and melting the obtained master batch and the polypropylene slices in a mass percentage of 15-25%, extruding, and stretching under high-speed hot air flow to obtain the product. However, the screw extruder used in the melt-blown production line is generally a single screw extruder, so that the mixing and dispersing effects are not ideal enough, the tourmaline is not uniformly distributed in the material, and the problem of non-uniform and stable filtering effect still occurs.
CN 111423663A discloses a long-acting melt-blown polypropylene composite electret material for mask melt-blown cloth and a preparation method thereof, wherein the long-acting melt-blown polypropylene composite electret material comprises the following components in parts by weight: 100 parts of polypropylene resin; 0.1-10 parts of a fluorine-silicon polymer; 0.01-2 parts of an inorganic charge enhancer; 0.1-2 parts of a lubricant; 0.01-0.3 part of antioxidant; the fluorine-silicon polymer is fluorine-containing polysiloxane which takes a siloxane bond as a main chain and a fluoroalkyl group as a side chain. In the long-acting melt-blown polypropylene composite electret material for mask melt-blown cloth, the silicone main chain of the fluorine-silicon polymer is flexible, so that the charge injection depth is favorably improved, the fluorine-alkyl side chain promotes charge capture, dipole directional arrangement is generated, the main chain can be covered, the cloth cover is endowed with good hydrophobicity, the material has a good electret effect, and the long-acting property of the material is effectively improved. And the melting point of the fluorine-silicon polymer is low, the fluorine-silicon polymer is uniformly dispersed, and the melt-blown polypropylene composite electret material is simpler to process and form. But the filtering effect on oily particles is not ideal.
Disclosure of Invention
The invention aims to solve the technical problems that the die head is easy to block in the extrusion process of the existing melt-blown material, the melt-blown cloth has poor toughness, the filtering efficiency is low, the filtering effect distribution is uneven, the filtering effect on oily particles is poor, the filtering efficiency retention time is short and the like, and solves the problems that the material has uneven filtering efficiency and large effect difference in different equipment and die heads, and provides a melt-blown material with high oily particle filtering efficiency, and a preparation method and application thereof.
In order to solve the technical problems, the technical scheme adopted by the invention is as follows: a high-oiliness particle filtration efficiency melt-blown material comprises the following raw materials in parts by weight:
98.5-99.4% of ultrahigh-flow polypropylene
0.1 to 0.5 percent of antioxidant
0.5 to 1 percent of compound electret agent
Wherein the compound electret consists of the following raw materials in parts by weight
20 to 30 percent of tourmaline powder
Fluorine-containing polymer 50-60%
15-30% of oleophobic agent.
The compound electret in the invention has excessive content, which can cause hole blocking, and the probability of hole blocking is gradually increased from more than 1%; and too little content can result in poor and lasting electret effect, which gradually decreases from less than 0.5%. The invention can also increase hindered amine material, the hindered amine has dipole torch polarity, and can neutralize the influence of charge change brought by the outside, thereby ensuring the stable retention of the charge in the material.
The antioxidant in the present invention may be any one or a combination of two or more of antioxidant 1076, antioxidant 1010, antioxidant 168, antioxidant 626 and antioxidant 3114.
In the above technical solution, the ultrahigh flow polypropylene is homopolypropylene, and the melt index thereof is 1400-1800. In the invention, the reason for selecting the homo-polypropylene is that the homo-polypropylene has high crystallinity and can store more space charges after being made into a melt-blown fabric electret.
In the technical scheme, the tourmaline powder comprises 3000-mesh magnesium tourmaline powder and lithium tourmaline powder.
In the above technical scheme, the fluorine-containing polymer comprises any one of polytetrafluoroethylene, polyvinylidene fluoride, fluorinated ethylene propylene, ethylene and tetrafluoroethylene copolymer resin. In the invention, polytetrafluoroethylene is taken as an example, polar fluorine atoms of the polytetrafluoroethylene form more powerful potential traps and have stronger electron capturing capacity, and molecular chains of the polytetrafluoroethylene are nonpolar, so that the stability of charges of the polytetrafluoroethylene is ensured, and the polytetrafluoroethylene has better energy storage capacity. After the polytetrafluoroethylene is added, the initial electrostatic voltage of the material is greatly increased, the attenuation of the electrostatic voltage is obviously weakened, and along with the increase of the content of the polytetrafluoroethylene, the initial electrostatic voltage of the material is increased, and the attenuation amplitude of the voltage is reduced.
In the above technical scheme, the oleophobic agent in the compound electret agent is any one or combination of more than two of fluorocarbon surfactant, fluorosilicone surfactant and the like.
In the above technical scheme, the preparation process of the compound electret agent comprises: ultrasonic crushing tourmaline powder and fluorine-containing polymer in solvent, adding oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powder with particle diameter of 0.2-1.5 μm; after ultrasonic crushing, the particle size of the crushed particles is 0.5-1.0 um; in the mixing process, the stirring frequency during mixing is 40 HZ; in the drying process, the drying temperature is 100 ℃, and the water content after drying is 0.03%. In the ultrasonic process, the frequency of the ultrasonic is 15 KHz-25 KHz, the time of the ultrasonic is 2-3 min, stirring is accompanied in the ultrasonic process, and the stirring frequency is 45-55 Hz.
The particle size of the powdery particles in the present invention is related to the frequency and duration of the ultrasonic wave, and the principle is that the higher the ultrasonic frequency is, the longer the duration is, the higher the energy applied to the powder is, the smaller the particle size of the powder is, and the smaller the particle size distribution is.
In the technical scheme, in the ultrasonic process, the ultrasonic frequency is 15 KHz-25 KHz, the ultrasonic time is 2-3 min, stirring is accompanied in the ultrasonic process, and the stirring frequency is 45-55 Hz.
The invention further provides a preparation method of the high-oiliness particle filtration efficiency melt-blown material, which comprises the following preparation processes according to the formula of the high-oiliness particle filtration efficiency melt-blown material: putting the ultrahigh-flow polypropylene and the antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, adding the compound electret agent mainly through a side feeding port, and extruding at 220-250 ℃ to obtain the high-oiliness particle filtering efficiency melt-blown material.
In order to improve the stability of the polypropylene in the subsequent preparation process, the polypropylene is premixed with an antioxidant to improve the oxidation resistance and the stability of the polypropylene.
The purpose (principle) of adding the compound electret mainly through a side feeding port is that after ultrahigh-flow polymer is subjected to feeding plasticization, the melt strength is reduced, and the compound electret can be better dispersed when being added.
In the technical scheme, the length-diameter ratio of a screw of the double-screw extruder is 40-48; temperature of each temperature control zone: the temperature of the temperature control 1-2 zone is 200-220 ℃, the temperature of the temperature control 3-4 zone is 230-.
The invention further provides an application of the high-oiliness particle filtering efficiency melt-blown material, which is used for preparing a mask as a melt-blown layer.
The invention has the beneficial effects that:
1. by adopting the ultrahigh-flow homopolymerized polypropylene with proper melt index, the melt-blown material has high actual fluidity and stable fluidity.
2. By adopting the compound electret agent containing proper tourmaline and fluoropolymer, more space charges can be filled in the melt-blown cloth electret, the filtration efficiency is high, the retention time is long, and a die head is not easy to block in the spinning process (the die head is cleaned for 4-6 h).
3. By adopting the compound electret treated by the oleophobic agent, the melt-blown fabric micro-fine fiber is not easily wrapped by oily substances when passing through oily particles, the charge retention time is long, and the filtration efficiency is high.
4. The tourmaline powder and the fluorine-containing polymer are uniformly dispersed in the material by a mode of plasticizing, mixing and uniformly extruding and granulating the compound electret agent and the ultrahigh-flow polypropylene in a double screw, and the melt-blown material produced by the process is suitable for a large and small melt-blown cloth production line, and the filtration efficiency of the melt-blown cloth is uniform.
Detailed Description
For the purpose of facilitating an understanding of the present invention, the present invention will now be described by way of examples. It should be understood by those skilled in the art that the examples are only for the understanding of the present invention and should not be construed as the specific limitations of the present invention.
A preparation method of a high-oiliness particle filtration efficiency melt-blown material comprises the following steps in sequence:
the method comprises the following steps: ultrasonic crushing tourmaline powder and fluoropolymer in solvent, adding oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles.
Step two: putting the ultrahigh-flow polypropylene and the antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein the compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The production process of the melt-blown fabric comprises the following steps: the melt-blowing equipment comprises a screw rod with the diameter of 60mm, 6 temperature control heating zones, a single die head, 156 spinneret orifices and 0.2mm spinneret orifice diameter;
melt-blown process parameters: the temperature in zone 1 is 243 ℃, the temperature in zone 2 is 280 ℃, the temperature in zone 3 is 310 ℃,
the temperature of the 4 area is 305 ℃, the temperature of the 5 area is 302 ℃, and the temperature of the 6 area is 308 ℃; the main frequency of the screw is 9.5Hz, the receiving distance is 300mm, the pressure of hot air is 0.4MPa, the temperature of the hot air is 300 ℃, the rotating speed of the roller is 19.4r/min,
setting electret treatment parameters: the voltage of the electret is 12KV, the electret time is 30s, and the electret distance is 2 cm.

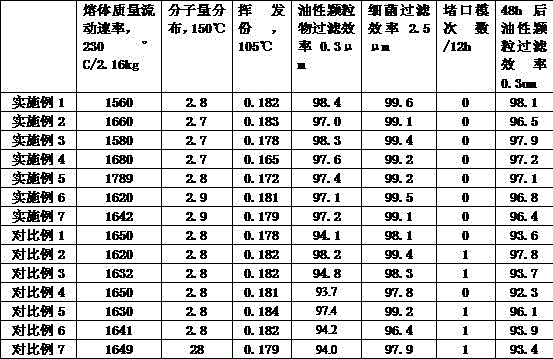

The above production method is explained below by way of examples and comparative examples.
The preparation method of the high oily particle filtration efficiency meltblown material of example 1 sequentially comprises the following steps: the method comprises the following steps: ultrasonic crushing 20% tourmaline powder and 50% fluorine-containing polymer in solvent, adding 30% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 98.5% of ultrahigh-flow polypropylene and 0.5% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 1% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of example 2 sequentially comprises the following steps: the method comprises the following steps: ultrasonic crushing 20% tourmaline powder and 60% fluorine-containing polymer in solvent, adding 20% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 99.4% of ultrahigh-flow polypropylene and 0.1% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.5% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of example 3 sequentially comprises the following steps: the method comprises the following steps: ultrasonic crushing 25% tourmaline powder and 50% fluorine-containing polymer in solvent, adding 25% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 99.0% of ultrahigh-flow polypropylene and 0.2% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.8% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of example 4 sequentially comprises the following steps: the method comprises the following steps: ultrasonic crushing 28% tourmaline powder and 52% fluorine-containing polymer in solvent, adding 20% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 99.1% of ultrahigh-flow polypropylene and 0.2% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.7% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of example 5 sequentially comprises the following steps: the method comprises the following steps: ultrasonic crushing 22% tourmaline powder and 58% fluorine-containing polymer in solvent, adding 22% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 98.9% of ultrahigh-flow polypropylene and 0.5% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.6% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of example 6, comprising the following steps in order: the method comprises the following steps: ultrasonic crushing 29% tourmaline powder and 53% fluorine-containing polymer in solvent, adding 23% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 98.7% of ultrahigh-flow polypropylene and 0.4% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.9% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of example 7, comprising the following steps in order: the method comprises the following steps: ultrasonic crushing 21% tourmaline powder and 57% fluorine-containing polymer in solvent, adding 22% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 99.2% of ultrahigh-flow polypropylene and 0.3% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.5% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of comparative example 1, comprising the following steps in sequence: the method comprises the following steps: ultrasonic crushing 30% tourmaline powder and 51% fluorine-containing polymer in solvent, adding 19% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 99.4% of ultrahigh-flow polypropylene and 0.2% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.4% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of comparative example 2, comprising the following steps in sequence: the method comprises the following steps: ultrasonic crushing 30% tourmaline powder and 50% fluorine-containing polymer in solvent, adding 20% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 98.4% of ultrahigh-flow polypropylene and 0.5% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 1.1% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of comparative example 3, comprising the following steps in sequence: the method comprises the following steps: ultrasonic crushing 20% tourmaline powder and 61% fluorine-containing polymer in solvent, adding 19% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 98.9% of ultrahigh-flow polypropylene and 0.1% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 1.0% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of comparative example 4, comprising the following steps in sequence: the method comprises the following steps: 20% tourmaline powder and 49% fluorine-containing polymer are smashed in a solvent by ultrasonic, 31% oleophobic agent is added and mixed evenly, and the compound electret agent is obtained and is filtered, dried and ground into powder particles. Step two: putting 98.4% of ultrahigh-flow polypropylene and 0.1% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.5% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of comparative example 5, comprising the following steps in sequence: the method comprises the following steps: ultrasonic crushing 31% tourmaline powder and 49% fluorine-containing polymer in solvent, adding 20% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 98.8% of ultrahigh-flow polypropylene and 0.2% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 1.0% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of comparative example 6, comprising the following steps in sequence: the method comprises the following steps: ultrasonic crushing 21% tourmaline powder and 65% fluorine-containing polymer in solvent, adding 14% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 98.8% of ultrahigh-flow polypropylene and 0.2% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 1.0% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
The preparation method of the high oily particle filtration efficiency meltblown material of comparative example 7, comprising the following steps in sequence: the method comprises the following steps: ultrasonic crushing 26% tourmaline powder and 60% fluorine-containing polymer in solvent, adding 14% oleophobic agent, mixing to obtain compound electret, filtering, oven drying, and grinding to obtain powdered particles. Step two: putting 99.3% of ultrahigh-flow polypropylene and 0.2% of antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, wherein 0.5% of compound electret is mainly added through a side feeding port, and extruding to obtain the high-oiliness particle filtering efficiency melt-blown material.
Table 1 shows the main data technical indicators:
| typical characteristics | Typical value | Unit of | Test standard |
| Melt mass flow rate, 230 ℃/2.16kg | 1400-1800 | g/10min | GB/T3682 |
| Molecular weight distribution, 150 deg.C | <3 | / | GPC |
| Volatile matter, 105 deg.C | <0.2 | % | GB/T 2914 |
| Oily particle filtration efficiency, 0.3um | ≥95 | % | / |
| Bacteria filtration efficiency of 2.5um | ≥98 | % | / |
And manufacturing a sample according to the standard to detect various technical properties.
Table 2 shows the properties of the examples
As can be seen from Table 2, when the addition amount of the compound electret is less than 0.5%, the filtration efficiency on oily particles is low, and the filtration efficiency measured after 48 hours is poor; when the addition amount of the compound electret is more than 1.0, the hole blocking phenomenon is easy to occur, and the production efficiency is influenced; when the composition proportion of the compound electret is more than 30 percent and the addition amount of the compound electret is more than 1.0 percent, the holes are easy to be blocked; when the composition proportion of the compound electret is more than 60 percent and the addition amount of the compound electret is more than 1.0 percent, the hole blocking is easy to occur; when the proportion of the composition of the compound electret is less than 20 percent and the addition amount of the compound electret is less than 0.5, the filtering efficiency of the material is lower than the requirement; when the composition proportion of the compound electret is less than 50 percent, the addition proportion of the fluorine-containing polymer is less than 0.5 percent, and the filtering efficiency of the material is lower than the requirement.
The above description is only a preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any changes or substitutions that can be easily conceived by those skilled in the art within the technical scope of the present invention are included in the scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.
Claims (9)
1. The high-oiliness particle filtration efficiency melt-blown material is characterized by comprising the following raw materials in percentage by weight:
98.5-99.4% of ultrahigh-flow polypropylene
0.1 to 0.5 percent of antioxidant
0.5 to 1 percent of compound electret agent
Wherein the compound electret agent consists of the following raw materials in percentage by weight
20 to 30 percent of tourmaline powder
Fluorine-containing polymer 50-60%
15-30% of oleophobic agent.
2. The high oily particle filtration efficiency meltblown material according to claim 1, wherein: the ultrahigh flow polypropylene is homopolypropylene with a melt index of 1400-1800.
3. The high oily particle filtration efficiency meltblown material according to claim 1, wherein: the oleophobic agent is a fluorocarbon surfactant or a fluorine-silicon surfactant, and the molecular chain contains one or more fluorine atoms.
4. The high oily particle filtration efficiency meltblown material according to claim 1, wherein: the tourmaline powder comprises 3000-mesh magnesium tourmaline powder and lithium tourmaline powder.
5. The high oily particle filtration efficiency meltblown material according to claim 1, wherein: the fluorine-containing polymer comprises any one of polytetrafluoroethylene, polyvinylidene fluoride, fluorinated ethylene propylene, ethylene and tetrafluoroethylene copolymer resin.
6. The high oily particle filtration efficiency meltblown material according to claim 1, wherein: the preparation process of the compound electret agent comprises the following steps: ultrasonic crushing tourmaline powder and fluorine-containing polymer in solvent, sequentially adding oleophobic agent, mixing, filtering, oven drying, and grinding to obtain powder with particle diameter of 0.2-1.5 μm; after ultrasonic crushing, the particle size of the crushed particles is 0.5-1.0 um; in the mixing process, the stirring frequency during mixing is 40 HZ; in the drying process, the drying temperature is 100 ℃, and the water content after drying is 0.03%; in the ultrasonic process, the frequency of the ultrasonic is 15 KHz-25 KHz, the time of the ultrasonic is 2-3 min, stirring is accompanied in the ultrasonic process, and the stirring frequency is 45-55 Hz.
7. A preparation method of a melt-blown material with high oily particle filtration efficiency is characterized by comprising the following steps: a formulation for a high oily particle filtration efficiency meltblown material according to any of claims 1-6 prepared by: adding the ultrahigh-flow polypropylene and the antioxidant into a mixer for premixing for 150 s; and (3) putting the mixed polypropylene into a double-screw extruder, adding a compound electret agent through a side feeding port, and extruding at 220-250 ℃ to obtain the high-oiliness particle filtering efficiency melt-blown material.
8. The method for preparing the high oily particle filtration efficiency melt-blown material according to claim 7, wherein the method comprises the following steps: wherein the length-diameter ratio of a screw of the double-screw extruder is 40-48; temperature of each temperature control zone: the temperature of the temperature control 1-2 zone is 200-220 ℃, the temperature of the temperature control 3-4 zone is 230-.
9. Use of a high oily particle filtration efficiency meltblown material, characterized by: use of a high oily particle filtration efficiency meltblown material according to any of claims 1-6 for the manufacture of meltblown fabric masks.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010841333.2A CN111909455A (en) | 2020-08-20 | 2020-08-20 | High-oiliness particle filtering efficiency melt-blown material and preparation method and application thereof |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010841333.2A CN111909455A (en) | 2020-08-20 | 2020-08-20 | High-oiliness particle filtering efficiency melt-blown material and preparation method and application thereof |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN111909455A true CN111909455A (en) | 2020-11-10 |
Family
ID=73278522
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202010841333.2A Pending CN111909455A (en) | 2020-08-20 | 2020-08-20 | High-oiliness particle filtering efficiency melt-blown material and preparation method and application thereof |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN111909455A (en) |
Cited By (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN112647190A (en) * | 2020-12-15 | 2021-04-13 | 浙江华基环保科技有限公司 | Method for manufacturing melt-blown non-woven material |
| CN112708198A (en) * | 2020-12-28 | 2021-04-27 | 台州学院 | High-compatibility polypropylene electret master batch, preparation method thereof and melt-blown fabric |
| CN112876769A (en) * | 2021-01-20 | 2021-06-01 | 称道新材料科技(上海)有限公司 | Oil-resistant melt-blown material and preparation process thereof |
| CN112940396A (en) * | 2021-02-03 | 2021-06-11 | 珠海格力新材料有限公司 | Melt-blown polypropylene with amphiphobic effect and preparation method and application thereof |
| CN113265144A (en) * | 2021-04-26 | 2021-08-17 | 台州学院 | Polyphenylene sulfide/tourmaline composite material, melt-blown fabric and preparation method thereof |
| WO2021248823A1 (en) * | 2020-06-09 | 2021-12-16 | 金发科技股份有限公司 | Long-lasting melt-blown polypropylene composite electret material for mask melt-blown nonwoven fabric and preparation method for long-lasting melt-blown polypropylene composite electret material |
| CN113980328A (en) * | 2021-11-24 | 2022-01-28 | 莱州结力工贸有限公司 | Preparation method of antibacterial electret for virus protection |
| CN114016210A (en) * | 2021-10-11 | 2022-02-08 | 苏州康胜氟材料科技有限公司 | A kind of anti-aging melt-blown nonwoven filter material, manufacturing method and application thereof |
Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN104153119A (en) * | 2013-12-16 | 2014-11-19 | 多氟多化工股份有限公司 | Melt-blow non-woven material capable of effectively filtering PM 2.5 particles, preparation method and production device |
| US20150315071A1 (en) * | 2012-12-20 | 2015-11-05 | 3M Innovative Properties Company | Composite particles including a fluoropolymer, methods of making, and articles including the same |
| CN111235666A (en) * | 2020-03-19 | 2020-06-05 | 道恩高材(北京)科技有限公司 | Melt-blown polypropylene electret with long-term electrostatic retention and preparation method and application thereof |
| CN111393754A (en) * | 2020-06-03 | 2020-07-10 | 江苏金发科技新材料有限公司 | Melt-blown polypropylene material and preparation method and application thereof |
| CN111423663A (en) * | 2020-06-09 | 2020-07-17 | 金发科技股份有限公司 | Long-acting melt-blown polypropylene composite electret material for mask melt-blown cloth and preparation method thereof |
| CN111484678A (en) * | 2020-06-29 | 2020-08-04 | 金发科技股份有限公司 | Electret master batch for melt-blown non-woven fabric for low-resistance mask and preparation method thereof |
| CN111499970A (en) * | 2020-04-21 | 2020-08-07 | 广州市聚赛龙工程塑料股份有限公司 | Electret modified polypropylene material special for melt-blown non-woven fabric applicable to mask and preparation method thereof |
| CN111499979A (en) * | 2020-06-16 | 2020-08-07 | 江苏金发科技新材料有限公司 | Melt-blown polypropylene composition and preparation method and application thereof |
| CN111533995A (en) * | 2020-05-20 | 2020-08-14 | 朴蓝聚烯烃科技发展（上海）有限公司 | Melt-blown nonwoven material with electret effect and preparation method thereof |
-
2020
- 2020-08-20 CN CN202010841333.2A patent/CN111909455A/en active Pending
Patent Citations (9)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20150315071A1 (en) * | 2012-12-20 | 2015-11-05 | 3M Innovative Properties Company | Composite particles including a fluoropolymer, methods of making, and articles including the same |
| CN104153119A (en) * | 2013-12-16 | 2014-11-19 | 多氟多化工股份有限公司 | Melt-blow non-woven material capable of effectively filtering PM 2.5 particles, preparation method and production device |
| CN111235666A (en) * | 2020-03-19 | 2020-06-05 | 道恩高材(北京)科技有限公司 | Melt-blown polypropylene electret with long-term electrostatic retention and preparation method and application thereof |
| CN111499970A (en) * | 2020-04-21 | 2020-08-07 | 广州市聚赛龙工程塑料股份有限公司 | Electret modified polypropylene material special for melt-blown non-woven fabric applicable to mask and preparation method thereof |
| CN111533995A (en) * | 2020-05-20 | 2020-08-14 | 朴蓝聚烯烃科技发展（上海）有限公司 | Melt-blown nonwoven material with electret effect and preparation method thereof |
| CN111393754A (en) * | 2020-06-03 | 2020-07-10 | 江苏金发科技新材料有限公司 | Melt-blown polypropylene material and preparation method and application thereof |
| CN111423663A (en) * | 2020-06-09 | 2020-07-17 | 金发科技股份有限公司 | Long-acting melt-blown polypropylene composite electret material for mask melt-blown cloth and preparation method thereof |
| CN111499979A (en) * | 2020-06-16 | 2020-08-07 | 江苏金发科技新材料有限公司 | Melt-blown polypropylene composition and preparation method and application thereof |
| CN111484678A (en) * | 2020-06-29 | 2020-08-04 | 金发科技股份有限公司 | Electret master batch for melt-blown non-woven fabric for low-resistance mask and preparation method thereof |
Non-Patent Citations (1)
| Title |
|---|
| 刘妙峥 等: ""聚四氟乙烯/聚丙烯杂化熔喷滤料结构与性能"", 《华东大学学报（自然科学版）》 * |
Cited By (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| WO2021248823A1 (en) * | 2020-06-09 | 2021-12-16 | 金发科技股份有限公司 | Long-lasting melt-blown polypropylene composite electret material for mask melt-blown nonwoven fabric and preparation method for long-lasting melt-blown polypropylene composite electret material |
| CN112647190A (en) * | 2020-12-15 | 2021-04-13 | 浙江华基环保科技有限公司 | Method for manufacturing melt-blown non-woven material |
| CN112708198A (en) * | 2020-12-28 | 2021-04-27 | 台州学院 | High-compatibility polypropylene electret master batch, preparation method thereof and melt-blown fabric |
| CN112708198B (en) * | 2020-12-28 | 2022-04-01 | 台州学院 | A kind of highly compatible polypropylene electret masterbatch, its preparation method and meltblown cloth |
| CN112876769A (en) * | 2021-01-20 | 2021-06-01 | 称道新材料科技(上海)有限公司 | Oil-resistant melt-blown material and preparation process thereof |
| CN112940396A (en) * | 2021-02-03 | 2021-06-11 | 珠海格力新材料有限公司 | Melt-blown polypropylene with amphiphobic effect and preparation method and application thereof |
| CN113265144A (en) * | 2021-04-26 | 2021-08-17 | 台州学院 | Polyphenylene sulfide/tourmaline composite material, melt-blown fabric and preparation method thereof |
| CN113265144B (en) * | 2021-04-26 | 2022-04-29 | 台州学院 | Polyphenylene sulfide/tourmaline composite material, melt-blown fabric and preparation method thereof |
| CN114016210A (en) * | 2021-10-11 | 2022-02-08 | 苏州康胜氟材料科技有限公司 | A kind of anti-aging melt-blown nonwoven filter material, manufacturing method and application thereof |
| CN113980328A (en) * | 2021-11-24 | 2022-01-28 | 莱州结力工贸有限公司 | Preparation method of antibacterial electret for virus protection |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN111909455A (en) | High-oiliness particle filtering efficiency melt-blown material and preparation method and application thereof | |
| CN111560140B (en) | Special organic electret master batch for melt-blown non-woven fabric for mask, preparation method of master batch and melt-blown non-woven fabric prepared from master batch | |
| CN111235666B (en) | Long-acting electrostatic-holding melt-blown polypropylene electret and preparation method and application thereof | |
| CN111499979B (en) | Melt-blown polypropylene composition and preparation method and application thereof | |
| CN111423663A (en) | Long-acting melt-blown polypropylene composite electret material for mask melt-blown cloth and preparation method thereof | |
| CN111533995A (en) | Melt-blown nonwoven material with electret effect and preparation method thereof | |
| CN112011126A (en) | Multifunctional polypropylene melt-spraying material and preparation method thereof | |
| CN111849074A (en) | Electret master batch and preparation method and application thereof | |
| CN111410793B (en) | Melt-blown polypropylene composition and preparation and application thereof | |
| CN103061038A (en) | Tourmaline electret polylactic acid melt-blown non-woven cloth and manufacture method | |
| DE1286302B (en) | Thermoplastic molding compound | |
| CN108499220B (en) | Preparation method and application of graphene/polypropylene non-woven fabric filter screen | |
| CN111300680A (en) | Equipment and method for preparing ultralong anti-aging melt-blown polypropylene material and material obtained by equipment and method | |
| CN112662068A (en) | Electret master batch material special for melt-blown fabric and preparation method thereof | |
| CN113463270B (en) | Polypropylene melt-blown non-woven fabric based on composite antibacterial electret master batch and preparation method | |
| JP2012072514A (en) | Propylene-based resin composition for melt spinning-type electrospinning and method of melt-spinning ultra fine fiber using the same | |
| CN108690336B (en) | Biodegradable polylactic acid agricultural mulching film and processing technology thereof | |
| CN113005635A (en) | Application of propane-butadiene copolymerized polypropylene in preparing melt-blown fabric and preparation method thereof | |
| JP2543548B2 (en) | Polypropylene extra fine fiber non-woven fabric | |
| CN107151389A (en) | Ultra-dispersed Masterbatch of a kind of special bright black of polypropylene spunbondeds and preparation method thereof | |
| CN107189223A (en) | A kind of special ultra-dispersed Masterbatch of polypropylene melt spraying and preparation method thereof | |
| KR101969723B1 (en) | Manufacturing method of biodegradable micro-beads by melt electrospray process | |
| CN114163732B (en) | Melt-blown polypropylene material and preparation method and application thereof | |
| CN112724320B (en) | Ethylene binary copolymer, polyethylene melt-blown material and preparation method | |
| CN111945240B (en) | Electret material for high-molecular melt-blown fibers and detection method thereof |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| RJ01 | Rejection of invention patent application after publication | ||
| RJ01 | Rejection of invention patent application after publication |
Application publication date: 20201110 |
