Abstract

The invention relates to the technical field of shearing machines, in particular to a new type of high-precision hydraulic gate shearing machine, comprising a shearing machine body, and the shearing machine body includes a protective shell, the front of the protective shell is fixedly connected with a protective shield The bottom end of the protective shell is fixedly connected with a base, the inner part of the protective shell is connected with a supporting and fastening mechanism, and the supporting and fastening mechanism includes a roller; The top end of the rod is fixedly connected with a clamping limit rod, the front surface of the protective shell is fixedly connected with a chute, the inside of the chute is embedded with a rack, and the inner wall of the clamping limit rod is connected with a connecting rod. The invention can clamp plates of different thicknesses, so that the scope of application is wider. Through the collection in the collection bin, the operation is simpler, the labor burden of the staff is reduced, and the work progress is accelerated. The plates are stored separately for easier access.

Description

A New High Precision Hydraulic Gate Shearing Machine

technical field

The invention relates to the technical field of shearing machines, in particular to a novel high-precision hydraulic gate shearing machine.

Background technique

The gate type shearing machine adopts the frame structure of all-steel welding; the four-corner and eight-sided right-angle guide rails have high precision and good rigidity, and are hydraulically preloaded. The hydraulic system adopts a two-way cartridge integrated valve; the whole system adopts; and can be equipped with digital display of stroke, photoelectric protection device and mobile worktable. It can be adjusted according to the process requirements within the specified range, and the operation is easy to use centralized control of buttons.

In the prior art, during the processing of the shearing machine, the length of the plate to be processed may not be fixed firmly at one end during processing, resulting in shaking during shearing, which directly affects the shearing of the plate. In addition, there is a certain danger that the board at the end of the board will fall to the ground after the board is cut.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a new type of high-precision hydraulic gate type shearing machine, so as to solve the problem in the above-mentioned background technology that the plate processing shaking affects the shearing quality.

In order to achieve the above purpose, the present invention provides the following technical solutions: a new type of high-precision hydraulic gate shearing machine, including a shearing machine body, the shearing machine body includes a protective shell, the front of the protective shell is fixedly connected with a protective plate, the bottom end of the protective shell is fixedly connected with a base, the inner part of the protective shell is connected with a supporting and fastening mechanism, the supporting and fastening mechanism comprises a roller, the front of the protective shell is connected with an adjusting rod, the The top end of the adjustment rod is fixedly connected with a clamping limit rod, the front of the protective shell is fixedly connected with a chute, the inside of the chute is embedded with a rack, and the inner wall of the clamping limit rod is connected with a connecting rod, The outer wall of the connecting rod is fixedly connected with a gear cylinder, the back of the protective shell is fixedly connected with a collecting mechanism, the collecting mechanism includes a guide groove, the back of the protective shell is fixedly connected with a guiding groove, and the back of the protective shell is fixedly connected with a guide groove. A movable slot is fixedly connected, the top of the movable slot is connected with a collection bin, the interior of the collection bin is fixedly connected with a card slot, the interior of the card slot is embedded and connected with a partition plate, and one end of the collection bin is fixedly connected There is a rotating rod, the outer wall of the rotating rod is connected with a support buffer plate, and the top end of the collecting bin is fixedly connected with a support block.

Preferably, the drum is connected by a rotating shaft, and the diameters of both ends of the drum are larger than the diameter of the middle end.

Preferably, the clamping limit rod is set in an L shape, the outside of the adjustment rod is provided with an external thread, the top end of the protective shell is fixedly connected with a collar, and the adjustment rod extends through the interior of the collar to the clamp Hold the bottom end of the limit lever.

Preferably, the connecting rod is provided with external threads, the inside of the gear barrel is hollow, and the two ends of the gear barrel are provided with internal threads.

Preferably, the rotating rod is movably connected to the support buffer plate, the bottom end of the support block is fixedly connected with a spring, one end of the spring is fixedly connected to the support block, and the other end of the spring is fixedly connected to the support buffer plate.

Preferably, the card slots are equidistantly opened inside the collection bin, and shock-absorbing cotton is fixedly connected to the bottom end of the collection bin.

Compared with the prior art, the beneficial effects of the present invention are:

1. During the processing of this new type of high-precision hydraulic gate shearing machine, the end of the plate is fixed by clamping the limit rod, which increases the safety of operation, and makes the plate processing more accurate while fixing. At the same time, through the mutual cooperation between the clamping limit rod and the roller, the plate can be clamped with different thicknesses, so that the scope of application is more extensive.

2. The new type of high-precision hydraulic gate shears collects the processed plates, and can buffer the falling plates during collection, avoiding the direct contact between the corners of the plates and the ground. Wear and tear makes the plate processing more perfect. In addition, when transferring, through the collection of the collection bin, the operation is simpler, the labor burden of the staff is reduced, and the work progress is accelerated. In addition, the plates can be stored separately during collection. , which is more convenient to take.

Description of drawings

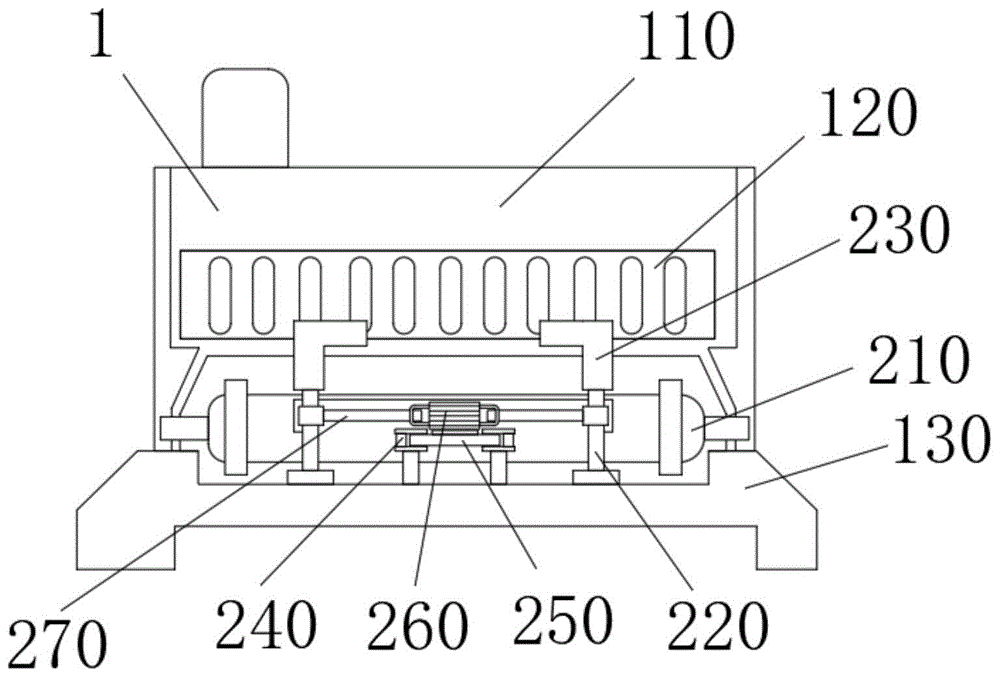

Fig. 1 is the front view structure schematic diagram of the present invention;

Fig. 2 is the top-view structure schematic diagram of the chute and the rack of the present invention;

Fig. 3 is the side view structure schematic diagram of the present invention;

FIG. 4 is a schematic top view of the structure of the guide groove and the collection bin according to the present invention.

In the figure: 1. The body of the shearing machine; 110, the protective shell; 120, the protective plate; 130, the base; 2, the supporting and fastening mechanism; 210, the roller; 220, the adjusting rod; Chute; 250, rack; 260, gear cylinder; 270, connecting rod; 3, collecting mechanism; 310, guide groove; 320, collecting bin; 330, card slot; 340, rotating rod; 350, supporting buffer plate; 360 , dividing plate; 370, support block; 380, movable groove.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Figures 1-4, an embodiment provided by the present invention:

A new type of high-precision hydraulic gate shearing machine includes a shearing machine body 1, the shearing machine body 1 includes a protective shell 110, the front of the protective shell 110 is fixedly connected with a protective plate 120, and the bottom end of the protective shell 110 is fixedly connected There is a base 130 , a supporting and fastening mechanism 2 is connected inside the protective shell 110 , the supporting and fastening mechanism 2 includes a roller 210 , an adjusting rod 220 is connected to the front of the protective shell 110 , and a clamping limit rod is fixedly connected to the top of the adjusting rod 220 230, a chute 240 is fixedly connected to the front of the protective shell 110, a rack 250 is embedded in the chute 240, a connecting rod 270 is connected to the inner wall of the clamping limit rod 230, and a gear cylinder 260 is fixedly connected to the outer wall of the connecting rod 270 , during processing, the end of the plate is supported by clamping, and the connection between the clamping limit rod 230 and the plate is increased, so that the plate is more stable during shearing, avoiding shaking, and then Make the cutting precision of the plate higher.

The collection mechanism 3 is fixedly connected to the back of the protective shell 110, and the collection mechanism 3 includes a guide groove 310. The back of the protective shell 110 is fixedly connected to the guide groove 310. There is a collection bin 320, the interior of the collection bin 320 is fixedly connected with a card slot 330, the interior of the card slot 330 is embedded and connected with a partition plate 360, one end of the collection bin 320 is fixedly connected with a rotating rod 340, and the outer wall of the rotating rod 340 is connected with a support The buffer plate 350, the top of the collection bin 320 is fixedly connected with a support block 370, when the processed panels are collected, the collection bin 320 reduces the labor burden of the staff, and the card slot 330 and the partition plate are collected. The mutual cooperation between the 360 enables the plates to be stored separately, and has a certain functional storage capacity.

Further, the rollers 210 are connected by a rotating shaft, and the diameters of the two ends of the rollers 210 are larger than the diameter of the middle end, which can increase the restriction on the position of the plate.

Further, the clamping limit rod 230 is set in an L shape, the outside of the adjustment rod 220 is provided with an external thread, the top end of the protective shell 110 is fixedly connected with a collar, and the adjustment rod 220 extends through the inner part of the collar to the clamping limit rod. The bottom end of 230, through the coordination between the rotating adjustment rod 220 and the collar, makes the clamping limit rod 230 rise and fall when the adjustment rod 220 is rotated.

Further, the connecting rod 270 is provided with an external thread, the interior of the gear cylinder 260 is hollow, and both ends of the gear cylinder 260 are provided with internal threads. The rotation of 260 drives the clamping limit rods 230 to approach each other, and realizes clamping of plates of different sizes. Through clamping, a series of shaking during shearing is avoided, and the shearing force is increased. precision.

Further, the rotating rod 340 is movably connected to the support buffer plate 350, the bottom end of the support block 370 is fixedly connected with a spring, one end of the spring is fixedly connected to the support block 370, and the other end of the spring is fixedly connected to the support buffer plate 350, The function of the spring plays the role of restoring the partition plate 360. When the plate falls to the top of the support buffer plate 350, the support buffer plate 350 is pressed down and the impact force is slowed down.

Further, the card slots 330 are equidistantly formed inside the collecting bin 320, and the bottom end of the collecting bin 320 is fixedly connected with shock-absorbing cotton, which acts as a shock absorber and avoids damage caused by plate collision.

Working principle: When working, by placing the plate on the top of the drum 210, the drum 210 is driven by pushing the plate and then goes to the inside of the protective shell 110 for shearing. Internally, by adjusting the adjusting rod 220 to clamp the limit rod 230 on the upper end of the plate, the plate is fixed, so that it is more tightened during processing. In addition, when the width of the plate is small , By adjusting the spacing between the clamping limit rods 230, it is convenient for the staff to clamp the plate. During adjustment, the gear cylinder 260 is driven to rotate by pushing the rack 250. When the rotation of the gear cylinder 260 drives The connecting rods 270 are close to each other to realize the adjustment. In addition, after the plate is cut, the sliding of the collecting bin 320 makes the plate fall into the collecting bin 320. When the plate touches the support buffer plate 350 , press down the support buffer plate 350 under the action of gravity, and buffer the impact force through the support buffer plate 350. In addition, when sorting, the plate is placed inside the collection bin 320 and passes between the card slot 330 and the partition plate 360. The mutual cooperation achieves the separation effect.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, but that the present invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. Therefore, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the invention is to be defined by the appended claims rather than the foregoing description, which are therefore intended to fall within the scope of the claims. All changes within the meaning and scope of the equivalents of , are included in the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A new type of high-precision hydraulic gate shearing machine, comprising a shearing machine body (1), characterized in that: the shearing machine body (1) comprises a protective shell (110), the protective shell (110) A protective plate (120) is fixedly connected to the front of the protective shell (110), a base (130) is fixedly connected to the bottom end of the protective shell (110), and a supporting and fastening mechanism (2) is connected to the inside of the protective shell (110). The support and fastening mechanism (2) includes a roller (210), an adjustment rod (220) is connected to the front of the protective shell (110), and a clamping limit rod (230) is fixedly connected to the top of the adjustment rod (220). ), a chute (240) is fixedly connected to the front of the protective shell (110), a rack (250) is embedded in the chute (240), and the inner wall of the clamping limit rod (230) is connected There is a connecting rod (270), the outer wall of the connecting rod (270) is fixedly connected with a gear cylinder (260), the back of the protective shell (110) is fixedly connected with a collecting mechanism (3), the collecting mechanism (3) A guide groove (310) is included, the back of the protective shell (110) is fixedly connected with the guide groove (310), the back of the protective shell (110) is fixedly connected with a movable groove (380), and the movable groove (380) A collection bin (320) is connected to the top end of the container, a card slot (330) is fixedly connected to the inside of the collection bin (320), and a partition plate (360) is embedded and connected to the inside of the card slot (330). One end of the bin (320) is fixedly connected with a rotating rod (340), the outer wall of the rotating rod (340) is connected with a support buffer plate (350), and the top of the collecting bin (320) is fixedly connected with a support block (370) . 2. A new type of high-precision hydraulic guillotine shearing machine according to claim 1, characterized in that: the drum (210) is connected by a rotating shaft, and the diameters of both ends of the drum (210) are larger than the middle diameter diameter of the end. 3. A new type of high-precision hydraulic guillotine shearing machine according to claim 1, characterized in that: the clamping limit rod (230) is arranged in an L shape, and the outside of the adjusting rod (220) An external thread is provided, the top end of the protective shell (110) is fixedly connected with a collar, and the adjusting rod (220) extends through the interior of the collar to the bottom end of the clamping limit rod (230). 4. A new type of high-precision hydraulic guillotine shearing machine according to claim 1, characterized in that: the connecting rod (270) is provided with an external thread, and the inside of the gear barrel (260) is hollow, Both ends of the gear barrel (260) are provided with internal threads. 5. A new type of high-precision hydraulic gate shearing machine according to claim 1, characterized in that: the rotating rod (340) and the support buffer plate (350) are movably connected, and the support block (370) The bottom end is fixedly connected with a spring, one end of the spring is fixedly connected to the support block (370), and the other end of the spring is fixedly connected to the support buffer plate (350). 6. A new type of high-precision hydraulic guillotine shearing machine according to claim 1, characterized in that: the card slots (330) are equidistantly opened in the interior of the collection bin (320), and the collection bin ( The bottom end of 320) is fixedly connected with shock-absorbing cotton.
