Abstract

The invention relates to the technical field of shearing machines, in particular to a hydraulic gate shearing machine with an adjustment structure, comprising a device main body including a control panel and a shearing machine main body, the front of the shearing machine main body is inlaid There is a control panel, a protective mechanism is provided on one side of the main body of the shearing machine, and the protective mechanism includes a first fixing block and a rotating rod. A rotating rod is fixedly connected to the adjacent side of the first fixing block through Zhou Chen, the surface of the rotating rod is all sleeved with a sleeve, and one side of the sleeve is fixed with a protective net. The present invention is provided with a sleeve, a protective net, a collar and a first connecting rod through the mutual cooperation between the protective net and the sleeve, so that during the use of the device, through the mutual cooperation between the structures, the device can be used as a whole. It is safer in the process of using the device, which increases the safety of the device when it is used, and increases the work efficiency of the staff when it is used.

Description

A hydraulic gate shearing machine with adjustment structure

technical field

The invention relates to the technical field of shearing machines, in particular to a hydraulic gate shearing machine with an adjustment structure.

Background technique

The shearing machine is a machine that uses one blade to reciprocate linear motion relative to the other blade to cut the plate. The shearing force is applied to metal plates of various thicknesses by means of the moving upper blade and the fixed lower blade, using a reasonable blade gap, so that the plates can be broken and separated according to the required size. The shearing machine belongs to one of the forging machinery. The main role is the metal processing industry.

However, the above-mentioned shearing machine has the following defects in use: in the process of use, sparks will be sputtered in the process of cutting inside the device, which will cause safety hazards during the use of the staff. Therefore, it is necessary to design A hydraulic gate type shearing machine with an adjustment structure.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a hydraulic guillotine shearing machine with an adjustment structure, so as to solve the problem in the above-mentioned background art that sparks may be sputtered during the cutting process inside the device during the use process, and the working personnel In the process of use, it will cause safety hazards.

In order to achieve the above purpose, the present invention provides the following technical solutions: a hydraulic guillotine shearing machine with an adjustment structure, including a device main body, the device main body includes a control panel and a shearing machine main body, and the front surface of the shearing machine main body is A control panel is inlaid, one side of the main body of the shearing machine is provided with a protective mechanism, the protective mechanism includes a first fixing block and a rotating rod, and both sides of the main body of the shearing machine are fixedly connected with a first fixing block, The adjacent sides of the first fixing blocks of the two groups are all connected with rotating rods through Zhou Chen, the surfaces of the rotating rods are all sleeved with sleeves, and a protective net is fixed on one side of the sleeves. The surfaces of both ends of the rotating rod are sleeved with collars, one end of the collar is movably connected with a first connecting rod, the first connecting rod is movably connected with a second connecting rod, and one end of the second connecting rod is movable A second fixing block is connected, and one side of the main body of the shearing machine is provided with a cleaning mechanism.

Preferably, an adjustment mechanism is provided on one side of the main body of the shearing machine, the adjustment mechanism includes a bearing plate and a roller, a bearing plate is fixedly connected to one side of the main body of the shearing machine, and the inner part of the bearing plate is movably installed There are rollers, both sides of the carrying plate are fixed with fixed plates, the inside of the fixed plate is provided with a first chute, the inside of the first chute is movably connected with a first clamping plate, the first A second clamping plate is movably connected inside a chute.

Preferably, a screw rod is vertically inserted into the interior of the first clamping plate and the second clamping plate, the internal threads of the first clamping plate and the second clamping plate are opposite, and one end of the screw rod is fixed A handle is connected, and a third fixing block is fixedly connected to one side of the handle through a bearing.

Preferably, a first protective pad is fastened to one side of the first clamping plate, a second protective pad is fastened to one side of the second clamping plate, the second protective pad and the first protective pad clamped to each other.

Preferably, the cleaning mechanism includes a sliding rod and a sliding sleeve, a sliding sleeve is sleeved on the surface of the main body of the shearing machine, a cleaning plate is fixedly connected to one side of the sliding sleeve, and one side of the main body of the shearing machine is fixed with a cleaning plate. A filling box is fixedly connected, an introduction plate is fixedly connected inside the filling box, and a filter plate is opened on one side of the filling box.

Preferably, a second chute is opened at the bottom end inside the filling box, a second sliding block is slidably installed inside the second sliding groove, and a storage box is fixedly connected to one side of the second sliding block.

Compared with the prior art, the beneficial effects of the present invention are:

1. By providing a sleeve, a protective net, a collar and a first connecting rod through the mutual cooperation between the protective net and the sleeve, during the use of the device, through the mutual cooperation between the structures, the device can be used as a whole. It is safer in the process of using the device, which increases the safety of the device when it is used, and increases the work efficiency of the staff when it is used.

2. By setting the second clamping plate, the first clamping plate, the handle and the first chute, the device can be adjusted and clamped by rotating the handle, which makes the use of the device more convenient and makes the device as a whole. It is more convenient to use, greatly increases the convenience of the device when it is used, and improves the stability of the device when it is used.

3. By being provided with a filter plate, a storage box, an introduction plate and a second slider, the residual powder on the surface of the device is treated by sliding action, which increases the cleanliness of the device during use. Through the mutual cooperation between the structures, Increases the service life of the device.

Description of drawings

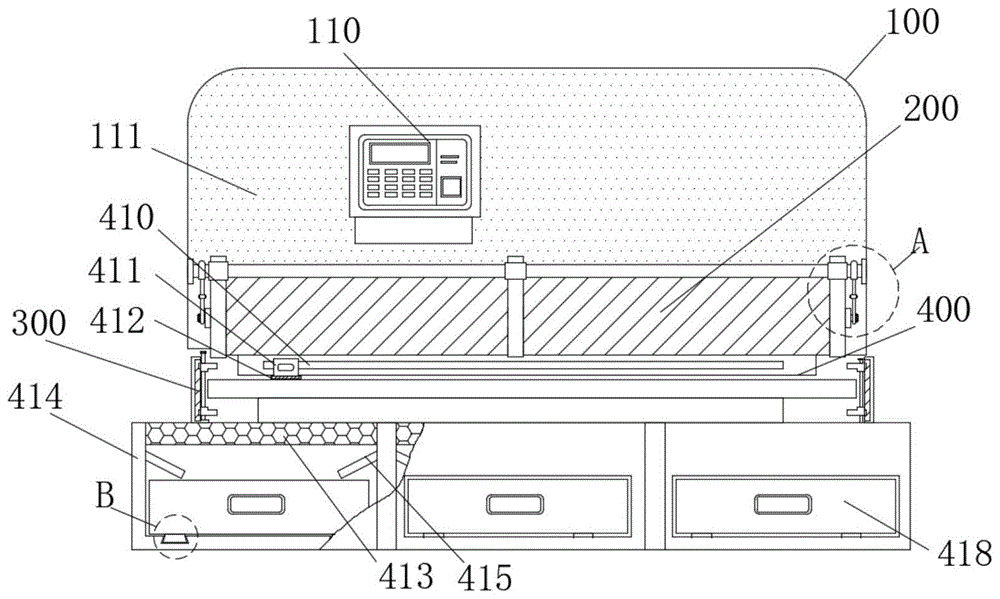

1 is a schematic front view of the structure of the present invention;

2 is a schematic side view of the structure of the present invention;

Fig. 3 is the front sectional schematic diagram of the structure of the adjusting mechanism of the present invention;

Fig. 4 is the partial enlarged cross-sectional schematic diagram of the structure at place A in Fig. 1 of the present invention;

FIG. 5 is a partial enlarged cross-sectional schematic diagram of the structure at B in FIG. 1 of the present invention.

In the figure: 100, the main body of the device; 110, the control panel; 111, the main body of the shearing machine; 200, the protective mechanism; 210, the first fixing block; 211, the rotating rod; 212, the sleeve; Ring; 215, first connecting rod; 216, second connecting rod; 217, second fixing block; 300, adjusting mechanism; 310, bearing plate; 311, roller; 312, fixing plate; 313, first chute; 314 315, the second clamping plate; 316, the third fixing block; 317, the screw; 318, the handle; 319, the first protective pad; 320, the second protective pad; 400, the cleaning mechanism 410, sliding rod; 411, sliding sleeve; 412, cleaning plate; 413, filter plate; 414, filling box; 415, introduction plate; 416, second chute; 417, second slider; .

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Figures 1-5, an embodiment provided by the present invention:

A hydraulic gate type shearing machine with an adjustment structure, comprising a device main body 100, the device main body 100 includes a control panel 110 and a shearing machine main body 111, the front of the shearing machine main body 111 is inlaid with the control panel 110, and the shearing machine main body 111 A protective mechanism 200 is provided on one side of the shearing machine. The protective mechanism 200 includes a first fixing block 210 and a rotating rod 211. Both sides of the shearing machine main body 111 are fixed with a first fixing block 210. The two sets of first fixing blocks 210 are close to each other. One side is fixedly connected with a rotating rod 211 through Zhou Chen, the surface of the rotating rod 211 is sleeved with a sleeve 212, one side of the sleeve 212 is fixed with a protective net 213, and the surfaces of both ends of the rotating rod 211 are sleeved with The collar 214, one end of the collar 214 is movably connected with a first connecting rod 215, the first connecting rod 215 is movably connected with a second connecting rod 216, and one end of the second connecting rod 216 is movably connected with a second fixing block 217, the shear plate One side of the main body 111 is provided with a cleaning mechanism 400 , through the mutual cooperation between the structures, the overall use of the device is made safer and the safety of the device is increased.

Further, an adjusting mechanism 300 is provided on one side of the main body 111 of the shearing machine. The adjusting mechanism 300 includes a bearing plate 310 and a roller 311. A bearing plate 310 is fixedly connected to one side of the main body 111 of the shearing machine, and the inside of the bearing plate 310 is movably installed There are rollers 311, both sides of the carrying plate 310 are fixedly connected with a fixing plate 312, a first chute 313 is opened inside the fixing plate 312, and a first clamping plate 314 is movably connected inside the first chute 313. The inside of the chute 313 is movably connected with a second clamping plate 315 , which makes the use of the device more convenient and makes the overall use of the device more convenient.

Further, the first clamping plate 314 and the second clamping plate 315 are vertically inserted with a screw rod 317 , the internal threads of the first clamping plate 314 and the second clamping plate 315 are opposite, and one end of the screw rod 317 is fixed. A handle 318 is connected, and a third fixing block 316 is fixedly connected to one side of the handle 318 through a bearing, which greatly increases the convenience of the device in use and improves the stability of the device in use.

Further, a first protective pad 319 is fastened to one side of the first clamping plate 314 , a second protective pad 320 is fastened to one side of the second clamping plate 315 , the second protective pad 320 and the first protective pad 319 They clamp each other to deal with the powder remaining on the surface of the device, which increases the cleanliness of the device during use.

Further, the cleaning mechanism 400 includes a sliding rod 410 and a sliding sleeve 411 , a sliding sleeve 411 is sleeved on the surface of the shearing machine body 111 , a cleaning plate 412 is fixedly connected to one side of the sliding sleeve 411 , and one side of the shearing machine body 111 is A filling box 414 is fixedly connected, an introduction plate 415 is fixedly connected inside the filling box 414, and a filter plate 413 is opened on one side of the filling box 414. The mutual friction between the cleaning plate 412 and the material plate increases the use of the device cleanliness of time.

Further, the bottom end of the filling box 414 is provided with a second chute 416 , a second sliding block 417 is slidably installed inside the second sliding groove 416 , and a storage box 418 is fixedly connected to one side of the second sliding block 417 . Through the mutual cooperation between the structures, the service life of the device is increased.

Working principle: when rotating the sleeve 212, the protective net 213 on the side of the rotating rod 211 is rotated, and the collar 214 sleeved on the surface of the rotating rod 211 is rotated through the first connecting rod 215, so that the first connecting rod 215 One end of the protective net 213 is movably connected and rotated through the second connecting rod 216 to rotate the protective net 213 as a whole, and the cutting part of the device is shielded by the surface of the protective net 213 .

By rotating the handle 318 , the second clamping plate 315 and the first clamping plate 314 are brought closer to each other, and the inside of the first chute 313 is passed between the first clamping plate 314 and the second clamping plate 315 For sliding, slide the adjacent side of the first clamping plate 314 and the second clamping plate 315 to cut the material to be cut by the device, so as to better fix the material and prevent it from loosening during use.

During the cutting process, due to the generation of a lot of dust, the sliding sleeve 411 is used to make one side of the cleaning plate 412 closely adhere to the material, and the generated dust is processed. The friction of the copper drum cleaning plate 412 removes the surface The dust falls into the interior of the storage box 418 through the filter plate 413 , and the dust on the device is centrally processed by the action of the filter plate 413 .

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, but that the present invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. Therefore, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the invention is to be defined by the appended claims rather than the foregoing description, which are therefore intended to fall within the scope of the claims. All changes within the meaning and scope of the equivalents of , are included in the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A hydraulic gate shearing machine with an adjustment structure, comprising a device main body (100), characterized in that: the device main body (100) comprises a control panel (110) and a shearing machine main body (111), the A control panel (110) is inlaid on the front of the main body of the shearing machine (111), a protective mechanism (200) is provided on one side of the main body of the shearing machine (111), and the protective mechanism (200) includes a first fixing block ( 210) and a rotating rod (211), the two sides of the shearing machine main body (111) are fixedly connected with a first fixing block (210), and the adjacent sides of the two sets of the first fixing blocks (210) pass through Zhou Chen is fixedly connected with a rotating rod (211), a sleeve (212) is sleeved on the surface of the rotating rod (211), and a protective net (213) is fixedly connected to one side of the sleeve (212). The surfaces of the two ends of the rotating rod (211) are sleeved with a collar (214), and one end of the collar (214) is movably connected with a first connecting rod (215), and the first connecting rod (215) is movable A second connecting rod (216) is connected, one end of the second connecting rod (216) is movably connected with a second fixing block (217), and one side of the shearing machine main body (111) is provided with a cleaning mechanism (400). ). 2. A hydraulic gate shearing machine with an adjustment structure according to claim 1, characterized in that: an adjustment mechanism (300) is provided on one side of the main body (111) of the shearing machine, and the adjustment mechanism (300) comprises a bearing plate (310) and a roller (311), a bearing plate (310) is fixedly connected to one side of the main body of the shearing machine (111), and a roller (310) is movably installed inside the bearing plate (310). 311), both sides of the carrying plate (310) are fixedly connected with a fixing plate (312), a first chute (313) is opened inside the fixing plate (312), and the first chute (313) ) is movably connected with a first clamping plate (314), and the inside of the first chute (313) is movably connected with a second clamping plate (315). 3. A hydraulic ram-type shearing machine with an adjustment structure according to claim 2, characterized in that: the interiors of the first clamping plate (314) and the second clamping plate (315) are vertically interspersed There is a screw rod (317), the inner threads of the first clamping plate (314) and the second clamping plate (315) are opposite, and one end of the screw rod (317) is fixed with a handle (318), so A third fixing block (316) is fixedly connected to one side of the handle (318) through a bearing. 4. A hydraulic gate shearing machine with an adjustment structure according to claim 3, wherein a first protective pad (319) is fixedly connected to one side of the first clamping plate (314), A second protective pad (320) is fixedly connected to one side of the second clamping plate (315), and the second protective pad (320) and the first protective pad (319) are clamped to each other. 5. A hydraulic gate shearing machine with an adjustment structure according to claim 1, characterized in that: the cleaning mechanism (400) comprises a sliding rod (410) and a sliding sleeve (411), the shearing plate A sliding sleeve (411) is sleeved on the surface of the machine main body (111), a cleaning plate (412) is fixedly connected to one side of the sliding sleeve (411), and a side of the shearing machine main body (111) is fixedly connected with a cleaning plate (412). A filling box (414), an introduction plate (415) is fixedly connected inside the filling box (414), and a filter plate (413) is opened on one side of the filling box (414). 6 . The hydraulic gate shearing machine with an adjustment structure according to claim 5 , wherein a second chute ( 416 ) is opened at the bottom end inside the filling box ( 414 ). 7 . A second sliding block (417) is slidably installed inside the second sliding groove (416), and a storage box (418) is fixedly connected to one side of the second sliding block (417).
