Abstract
The invention discloses household garbage extrusion equipment which comprises a rack, a driving mechanism, a scraping mechanism, an extrusion mechanism, a transfusion mechanism and a conveying mechanism, wherein the driving mechanism, the scraping mechanism, the extrusion mechanism, the transfusion mechanism and the conveying mechanism are respectively arranged on the rack, the driving mechanism is used for driving the extrusion mechanism, the transfusion mechanism and the conveying mechanism, an extruded object on the conveying mechanism is extruded through the extrusion mechanism, and the transfusion mechanism is used for conveying extruded liquid. Has the advantages that: simple structure, it is effectual to extrude, and the extrusion is efficient, and the transmission is prevented skidding, multistage extrusion, and multiple liquid is collected, and the flowing back is faster.
Description
Technical Field
The invention relates to the technical field of household garbage treatment, in particular to household garbage extrusion equipment.
Background
The treatment of domestic waste usually adopts the mode of landfill or burning at present, but no matter landfill, still burn, produce very big destructive power to the natural environment, so need make new change to the treatment of domestic waste, there are few enterprises to also be dedicated to the harmless treatment process research of domestic waste, wherein adopt the treatment process of breaking-screening-drying to be the more effective treatment thought at present, but the domestic waste after screening is mixed with not less liquid such as moisture or oil, etc., these liquids have caused the enormous difficulty to dry, the drying time is long, the drying efficiency is low, for this reason it is very good technological trend to push the domestic waste to be dried, drain the liquid.
Disclosure of Invention
The invention aims to overcome the defects of the prior art and provides household garbage extruding equipment which is simple in structure, good in extruding effect, high in extruding efficiency, anti-slip in transmission, capable of realizing multi-stage extrusion, capable of collecting multiple liquids and faster in liquid drainage.
The aim of the invention is achieved by the following technical measures: the utility model provides a domestic waste extrusion equipment, includes frame, actuating mechanism, scraping mechanism, extrusion mechanism, infusion mechanism and conveying mechanism set up in the frame respectively, actuating mechanism is used for drive extrusion mechanism, infusion mechanism and conveying mechanism, extrudees the extruded thing on the conveying mechanism through extrusion mechanism, and infusion mechanism is used for carrying the liquid that is extruded.
Further, conveying mechanism includes driving shaft, driven shaft and conveyer belt, the conveyer belt is closed formula conveyer belt, sets up driving shaft and driven shaft respectively at the both ends of closed formula conveyer belt, the driving shaft includes first installation axle, first connecting plate, connecting rod, second connecting plate and the second installation axle that the order is connected, the connecting rod is many, many connecting rod parallel arrangement encloses into regular polygon's hollow out construction.
Further, the conveyer belt is made of metal or rubber, and a gap for draining liquid is formed in the conveyer belt.
Further, the extrusion mechanism comprises a main roller and carrier rollers, a conveying belt is arranged between the main roller and the carrier rollers, each main roller is matched with 2 carrier rollers for use, and the 2 carrier rollers are respectively arranged on two sides of the main roller matched with the carrier rollers for use.
Further, the main roller comprises a roller shaft, a first roller and a second roller, the roller shaft is arranged at two ends of the first roller respectively, the second roller is sleeved on the outer circumference of the first roller and made of rubber, and the roller shaft drives the first roller and the second roller to rotate simultaneously under the driving of the driving device.
Further, the rubber thickness of the second roller is 40mm +/-5 mm.
Furthermore, the circumferential surface of the second roller is provided with a groove, and the groove is used for the domestic garbage to rapidly pass through during initial extrusion.
Further, a rubber layer is sleeved on the outer circumference of the carrier roller.
Further, the thickness of the rubber layer is 20mm +/-5 mm.
Further, when the number of the main rollers is more than 3, from the feeding end of the household garbage extruding equipment, the gap between the first main roller and the carrier roller used in cooperation is 15mm +/-2 mm, the gap between the second main roller and the carrier roller used in cooperation is 5mm +/-2 mm, the gap between the third main roller and the carrier roller used in cooperation is 3mm +/-2 mm, and the gap between the fourth main roller and the carrier roller used in cooperation is 0 mm.
Furthermore, the scraping mechanism comprises a scraping shaft, a scraping roller and scraping blades, the scraping shaft is respectively arranged at two ends of the scraping roller, and the scraping blades are arranged on the outer circumference of the scraping roller.
Furthermore, the infusion mechanism comprises an infusion driving shaft, an infusion belt and an infusion driven shaft, the infusion driving shaft and the infusion driven shaft are respectively arranged at two ends of the infusion belt, and the surface of the infusion driving shaft is of a regular polygonal hollow structure.
Further, the infusion mechanism is arranged in the annular inner part of the conveying belt and/or at the bottom of the conveying belt.
Furthermore, a liquid receiving groove is formed in the bottom of the rack and is arranged in parallel with the infusion mechanism.
Furthermore, the transfusion mechanism and the horizontal plane form an included angle of 3-6 degrees.
Compared with the prior art, the invention has the beneficial effects that: the utility model provides a domestic waste extrusion equipment, uses through the combination of 1 home roll and 2 bearing rollers, and 3 rollers constitute triangle-shaped, realize effective stable extrusion to domestic waste on the conveyer belt, and the liquid that extrudes flows through the hole on the conveyer belt. Simple structure, extrusion is high-efficient. The rubber material of home roll and bearing roller surface can provide sufficient elastic deformation volume for passing through of large granule solid matter among the domestic waste, guarantees that large granule solid matter passes through home roll and bearing roller smoothly, avoids large granule solid matter to cause the damage to the conveyer belt when the force passes through home roll and bearing roller. The grooves on the circumferential surface of the main roller promote the conveying space between the main roller and the conveying belt, and can ensure that domestic garbage can pass through quickly when being extruded. The surfaces of a driving shaft and an infusion driving shaft of the conveying mechanism are both of regular polygon hollow structures, and under the good driving action, the conveying belt and the infusion belt are effectively prevented from rotating and slipping under the liquid containing condition. The scraping mechanism arranged on the main roller can well clean the surface of the main roller, and the extrusion effect is improved. The arrangement of the transfusion mechanism can discharge the extrusion liquid on the upper layer and the lower layer of the conveying belt, and the additional arrangement of the liquid receiving groove provides a liquid defense line for the bottom of the whole household garbage extrusion equipment. The reasonable angle setting of the transfusion mechanism is more beneficial to the discharge of liquid.
The present invention will be described in detail below with reference to the accompanying drawings and specific embodiments.
Drawings
Fig. 1 is a schematic structural view of a domestic waste extrusion device.

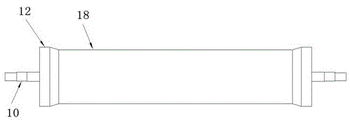

Fig. 2 is a schematic view of the structure of the main roller.
Fig. 3 is a side view of the main roller.
FIG. 4 is a schematic view of the structure of the driving shaft or the infusion driving shaft.
FIG. 5 is a sectional view taken along the line A-A in FIG. 4
Fig. 6 is a schematic structural view of the scraping mechanism.
The automatic material scraping device comprises a rack 1, a driving mechanism 2, a scraping mechanism 3, a driving shaft 4, a driven shaft 5, a conveying belt 6, a liquid receiving groove 7, a main roller 8, a carrier roller 9, a roller shaft 10, a first roller 11, a second roller 12, a first mounting shaft 13, a first connecting plate 14, a connecting rod 15, a second connecting plate 16, a second mounting shaft 17, a groove 18, a scraping shaft 19, a scraping roller 20, a scraping blade 21, a scraping belt 22, an infusion belt 23, an infusion driven shaft 24, an infusion driving shaft 25 and a support ring 25.
Detailed Description
As shown in fig. 1 to 6, a household garbage extruding device comprises a frame 1, a driving mechanism 2, a scraping mechanism 3, an extruding mechanism, a transfusion mechanism and a conveying mechanism, wherein the driving mechanism 2, the scraping mechanism 3, the extruding mechanism, the transfusion mechanism and the conveying mechanism are respectively arranged on the frame 1, the driving mechanism 2 is used for driving the extruding mechanism, the transfusion mechanism and the conveying mechanism, an extruded object on the conveying mechanism is extruded through the extruding mechanism, and the transfusion mechanism is used for conveying extruded liquid. Simple structure, it is effectual to extrude, extrudees efficiently. The driving mechanism 2 is a motor or the like.
Conveying mechanism includes driving shaft 4, driven shaft 5 and conveyer belt 6, conveyer belt 6 is closed type conveyer belt 6, sets up driving shaft 4 and driven shaft 5 respectively at closed type conveyer belt 6's both ends, driving shaft 4 is including the first installation axle 13, first connecting plate 14, connecting rod 15, second connecting plate 16 and the installation axle 17 of second that connect in proper order, connecting rod 15 is many, many connecting rod 15 parallel arrangement encloses into regular polygon's hollow out construction. The connecting rod 15 is enclosed to form a regular polygon hollow structure, namely, the driving shaft 4 is in non-surface contact with the conveying belt 6 through the connecting rod 15, so that the anti-slip effect is realized; hollow out construction can form an holding chamber in regular polygon's inside promptly, when partial domestic waste passed the conveyer belt through the hole of conveyer belt, can scrape into the holding intracavity through connecting rod 15 to the conveyer belt, the domestic waste that will permeate the coming scrapes, plays the effect of clearance conveyer belt, and the conveyer belt does not have of course to adhere to, and the extrusion effect also can ensure. And a support ring 25 is arranged in a regular polygon hollow structure surrounded by the connecting rod 15, and the support ring 25 is used for supporting the connecting rod 15. The gap distance between two adjacent connecting rods 15 is 3-5cm or 6-8 cm. The concrete can be determined according to the diameter of the circumscribed circle of the section of the actual driving shaft 4. In the application, the driving force required for driving the conveyer belt 6 is larger due to the weight of the conveyer belt 6, the weight of the conveyed garbage, the extrusion force born during extrusion and the like, so the used driving shaft 4 is thicker and can be selected from 6-8 cm. The infusion belt 22 is only used for conveying the extruded liquid and the entrained small particle solid, and the weight of the infusion belt is light, so the selected infusion driving shaft 24 can be 3-5 cm. The outer surface of the connecting rod 15 can be provided with anti-skid projections, so that the friction of the driving shaft 4 is further increased, and the special conveying requirements of water and oil containing of the household garbage and the like are better met.
The conveyer belt 6 is made of metal or rubber, and a gap for draining liquid is formed in the conveyer belt 6. The gap may be a circular or elliptical or annular hole, etc.
The extrusion mechanism comprises a main roller 8 and carrier rollers 9, a conveying belt 6 is arranged between the main roller 8 and the carrier rollers 9, each main roller 8 is matched with 2 carrier rollers 9 for use, and the 2 carrier rollers 9 are respectively arranged on two sides of the main roller 8 matched with the carrier rollers for use. Through the combined use of 1 home roll 8 and 2 bearing rollers 9, 3 rollers constitute triangle-shaped, realize effective stable extrusion to domestic waste on the conveyer belt 6, and the liquid that extrudes flows out through the hole on the conveyer belt 6.
The main roller 8 comprises a roller shaft 10, a first roller 11 and a second roller 12, the roller shaft 10 is arranged at two ends of the first roller 11 respectively, the second roller 12 is sleeved on the outer circumference of the first roller 11, the second roller 12 is made of rubber, and the roller shaft 10 drives the first roller 11 and the second roller 12 to rotate simultaneously under the driving of a driving device. The first roller 11 and the second roller 12 are fixedly connected.
The rubber thickness of the second roller 12 is 40mm +/-5 mm. The optimization setting of 12 thickness of second roller to domestic waste's characteristics, realizes that the domestic waste after broken-screening can both effectually pass through every squeeze roll, and this thickness of rubber material can provide sufficient deflection to the squeeze roll when the extrusion, guarantees that the solid particle thing that meets can both pass through the squeeze roll. When the rubber material thickness of second roller 12 was too thick, the elastic deformation volume increase of rubber material can weaken relatively to the extrusion ability of liquid, and when the rubber material thickness of second roller 12 was too thin, the elastic deformation volume of rubber material was too little, and the granule that the solid matter is slightly bigger can't pass through smoothly again, or is detained before the squeeze roll always, or passes through the squeeze roll by force, but can cause the damage to domestic waste conveyer belt 6.
The circumferential surface of the second roller 12 is provided with a groove 18, and the groove 18 is used for the rapid passing of the household garbage during the initial extrusion. The grooves 18 open onto the circumference of the second roller 12. That is, the second roller 12 always keeps a uniform and large passing space with the garbage conveyor 6 during rotation. The inclined planes at the two ends of the groove 18 can also play a regular role in domestic garbage, namely the domestic garbage is gathered in the groove 18. According to the practical situation of domestic waste treatment, a plurality of groups of extrusion rollers (one group of extrusion rollers is used by combining 1 main roller 8 and 2 carrier rollers 9) can be arranged, and multi-stage extrusion operation is realized. During the multi-stage extrusion operation, the opening depth of the groove 18 on the second roller 12 can be gradually reduced, so that the extrusion efficiency can be better improved. A drainage groove can be formed in the groove 18, so that the extruded liquid can be conveniently and quickly separated from the second roller 12.
And a rubber layer is sleeved on the outer circumference of the carrier roller 9. The supporting roller 9 mainly provides a supporting force for the main roller 8 and the conveying belt 6, and simultaneously guarantees the extrusion effect of the extrusion device.
The thickness of the rubber layer is 20mm +/-5 mm. The thickness setting of 9 rubber layers of bearing roller has guaranteed to have certain elastic deformation volume on 9 surfaces of bearing roller, guarantees passing through smoothly of solid particle thing.
According to the main components of domestic waste, this application optimal design extrusion clearance, better satisfied domestic waste's extrusion needs. When the main roller 8 has more than 3, from the pan feeding end of domestic waste extrusion equipment, the clearance between first main roller 8 and the bearing roller 9 that uses coordinately is 15mm 2mm, and the clearance between second main roller 8 and the bearing roller 9 that uses coordinately is 5mm 2mm, and the clearance between third main roller 8 and the bearing roller 9 that uses coordinately is 3mm 2mm, and the clearance between fourth main roller 8 and the bearing roller 9 that uses coordinately is 0mm, extrudees the deliquor promptly step by step. When the main roll 8 has more than 2, the extrusion operation of extrusion device is exactly for multistage extrusion, through the setting that the clearance reduces step by step between every level of main roll 8 and the bearing roller 9 that the cooperation was used, can promote domestic waste's extrusion efficiency and extrusion effect, and the recess 18 on the 8 circumference of pan feeding end main roll is added in the clearance between main roll 8 and the bearing roller 9 that the cooperation was used, and both superpose, can provide bigger space for domestic waste. The closer to the discharge end, the smaller the gap between the main roller 8 and the carrier roller 9 used in cooperation, the shallower the depth of the groove 18 on the circumference of the main roller 8, and the smaller the space for extruding the domestic garbage.
The scraping mechanism 3 comprises a scraping shaft 19, a scraping roller 20 and scraping blades 21, the scraping shaft 19 is respectively arranged at two ends of the scraping roller 20, and the scraping blades 21 are arranged on the outer circumference of the scraping roller 20. The scraping blades 21 are arranged in a V shape. Each main roller 8 is provided with a scraping mechanism 3, so that the outer surface of each main roller 8 is kept clean as much as possible without adhesion, and the extrusion effect is improved. The scraping mechanism 3 can be directly driven by a driving device, and can also be driven by other components, such as a main roller. Of course, a scraping mechanism 3 may also be provided at the discharge end of the conveyor belt 6 to clean the conveyor belt 6.
The infusion mechanism comprises an infusion driving shaft 24, an infusion belt 22 and an infusion driven shaft 23, wherein the infusion driving shaft 24 and the infusion driven shaft 23 are respectively arranged at two ends of the infusion belt 22, and the surface of the infusion driving shaft 24 is of a regular polygonal hollow structure. The surface of the transfusion driving shaft 24 is a regular polygon hollow structure, and the transfusion belt 22 is effectively prevented from rotating and slipping under the condition of containing liquid under the good driving action.
The infusion means are arranged inside the loop of the conveyor belt 6 and/or at the bottom of the conveyor belt 6. The transfusion mechanism and the horizontal plane form an included angle of 3-6 degrees. Conveyer belt 6 is closed type conveyer belt 6, rotates through the rotation of driving shaft 4 and driven shaft 5, infusion mechanism sets up in the annular inside of conveyer belt 6, establishes conveyer belt 6 at infusion mechanism's upper cover promptly, and the upper strata and the extrusion mechanism cooperation of conveyer belt 6 are used, and through the extruded liquid of extrusion mechanism when the upper strata that sees through conveyer belt 6 promptly, directly is caught by infusion mechanism, borrows the one end that infusion mechanism flows to domestic waste extrusion equipment. When the infusion device is arranged at the bottom of the conveyor belt 6, the extruded liquid flows through the two layers of conveyor belts 6 and is finally received by the infusion device for output. Of course, it is also possible to provide a liquid feeding mechanism both in the interior of the loop of the conveyor belt 6 and at the bottom of the conveyor belt 6, where the bottom liquid feeding mechanism functions to receive both the liquid overflowing from the two sides of the liquid feeding mechanism in the interior of the loop of the conveyor belt 6 and the liquid flowing down from the bottom conveyor belt 6. Two defensive lines are adopted, the liquid receiving is better, the overflow is prevented, the uniformly received liquid is uniformly treated, and the environment is more protected.
The bottom of the frame 1 is provided with a liquid receiving tank 7, and the liquid receiving tank 7 is arranged in parallel with the infusion mechanism. The liquid receiving groove 7 is additionally provided with a liquid defense line for the bottom of the whole household garbage extrusion equipment. Even if more liquid is extruded, the liquid is conveyed through the liquid receiving of the first layer of transfusion mechanism or the two layers of transfusion mechanisms, and then the liquid receiving groove 7 at the bottom is added, so that the overflow prevention and the drip prevention are realized.
It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the invention as claimed. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (15)
1. A domestic waste extrusion equipment which characterized in that: including frame, actuating mechanism, scraping mechanism, extrusion mechanism, infusion mechanism and conveying mechanism set up in the frame respectively, actuating mechanism is used for driving extrusion mechanism, infusion mechanism and conveying mechanism, extrudees the extruded thing on the conveying mechanism through extrusion mechanism, and infusion mechanism is used for carrying the liquid that is extruded.
2. The domestic waste extrusion apparatus of claim 1, wherein: conveying mechanism includes driving shaft, driven shaft and conveyer belt, the conveyer belt is closed formula conveyer belt, sets up driving shaft and driven shaft respectively at the both ends of closed formula conveyer belt, the driving shaft includes first installation axle, first connecting plate, connecting rod, second connecting plate and the second installation axle that the order is connected, the connecting rod is many, many connecting rod parallel arrangement encloses into regular polygon's hollow out construction.
3. The domestic waste extrusion apparatus of claim 2, wherein: the conveyer belt is made of metal or rubber, and a gap for draining liquid is formed in the conveyer belt.
4. The domestic waste extrusion apparatus of claim 2, wherein: the extrusion mechanism comprises a main roller and carrier rollers, a conveying belt is arranged between the main roller and the carrier rollers, each main roller is matched with 2 carrier rollers for use, and the 2 carrier rollers are respectively arranged on two sides of the main roller matched with the carrier rollers for use.
5. The domestic waste extrusion apparatus of claim 4, wherein: the main roller comprises a roller shaft, a first roller and a second roller, the roller shaft is arranged at two ends of the first roller respectively, the second roller is sleeved on the outer circumference of the first roller and is made of rubber, and the roller shaft drives the first roller and the second roller to rotate simultaneously under the driving of a driving device.
6. The domestic waste extrusion apparatus of claim 5, wherein: the rubber thickness of the second roller is 40mm +/-5 mm.
7. The domestic waste extrusion apparatus of claim 6, wherein: the circumferential surface of the second roller is provided with a groove, and the groove is used for allowing domestic garbage to rapidly pass through during initial extrusion.
8. The domestic waste extrusion apparatus of claim 4, wherein: and a rubber layer is sleeved on the outer circumference of the carrier roller.
9. The domestic waste extrusion apparatus of claim 8, wherein: the thickness of the rubber layer is 20mm +/-5 mm.
10. The domestic waste extrusion apparatus of claim 4, wherein: when the main roll has more than 3, from the pan feeding end of domestic waste extrusion equipment, the clearance is 15mm 2mm between first main roll and the bearing roller that uses coordinately, and the clearance is 5mm 2mm between second main roll and the bearing roller that uses coordinately, and the clearance is 3mm 2mm between third main roll and the bearing roller that uses coordinately, and the clearance is 0mm between fourth main roll and the bearing roller that uses coordinately.
11. The domestic waste extrusion apparatus of claim 1, wherein: the scraping mechanism comprises a scraping shaft, a scraping roller and scraping blades, the scraping shaft is respectively arranged at two ends of the scraping roller, and the scraping blades are arranged on the outer circumference of the scraping roller.
12. The domestic waste extrusion apparatus of claim 1, wherein: the infusion mechanism comprises an infusion driving shaft, an infusion belt and an infusion driven shaft, the infusion driving shaft and the infusion driven shaft are arranged at two ends of the infusion belt respectively, and the surface of the infusion driving shaft is of a hollow-out structure in the shape of a regular polygon.
13. The domestic waste extrusion apparatus of claim 12, wherein: the infusion mechanism is arranged in the annular inner part of the conveying belt and/or at the bottom of the conveying belt.
14. The domestic waste pressing apparatus according to claim 1, 12 or 13, wherein: the bottom of the frame is provided with a liquid receiving tank which is arranged in parallel with the infusion mechanism.
15. The domestic waste extrusion apparatus of claim 1 or 14, wherein: the transfusion mechanism and the horizontal plane form an included angle of 3-6 degrees.
