Abstract

The invention discloses a sterilization device for animal husbandry in the technical field of animal husbandry. Correspondingly connected with the adjustment box, the inner cavity of the fixed box is provided with a stirring component. In the present invention, by loading water and disinfectant into the fixed box, and through the transmission of the motor and the first bevel gear and the second bevel gear, the second bevel gear is driven. The rotating shaft rotates, and the second rotating shaft drives the stirring blade to rotate through the transmission of the first gear and the second gear, so that the water and the disinfectant are fully mixed. Adapt to the aisles of different widths in the breeding field, and adjust the position of the mobile rack and the spraying pipe, so that the spraying pipe is close to the pens on both sides of the aisle, so that the pens on both sides can be sprayed and disinfected to disinfect the pens.

Description

A kind of livestock house disinfection device

technical field

The invention relates to the technical field of animal husbandry, in particular to a sterilization device for animal husbandry.

Background technique

Animal husbandry refers to the use of livestock, poultry and other animals that have been artificially raised and domesticated by us, or the physiological functions of wild animals such as deer, musk deer, fox, mink, otter, quail, etc., through artificial rearing and breeding, so that forage and feed are used. The production process of animal products such as meat, eggs, milk, wool, cashmere, hides, silk and medicinal materials. It is an extremely important link in the exchange of materials between humans and nature. Animal husbandry is an important part of agriculture, and together with planting industry, it is the two pillars of agricultural production.

Animal husbandry mainly includes pigs, cattle, sheep, horses, donkeys, mules, chickens, ducks, geese, rabbits, bees, camels, sika deer, peacocks and other livestock and poultry, and deer, minks, musk deer, otters and other wild economic animals. This process not only provides raw materials for textile, food, pharmaceutical, oil and other industries, but also provides rich food such as meat, milk, eggs, and poultry for people's lives, and provides draft animals and manure for agriculture. Therefore, doing a good job in animal husbandry is of great significance to improving people's lives, promoting economic development, increasing export materials, and enhancing national unity.

The conditions for the development of animal husbandry are: the natural conditions are suitable, that is, light, heat, water and soil are suitable for the growth and development of various pastures and livestock, the grassland area is large, the quality is good, and there are many types; there is a certain material basis, that is, production potential. It can achieve low investment, quick effect and high income; the majority of farmers have experience and skills in animal husbandry production.

There are many types of animal husbandry, which can be divided into pastoral area animal husbandry, agricultural area animal husbandry and suburban animal husbandry according to the type of feed, the composition of animal species and the management mode.

The animal husbandry mainly based on house feeding in the agricultural area is called the agricultural area animal husbandry. The livestock husbandry in the agricultural area is mainly based on the grain-consuming animal husbandry. The types of livestock are mainly pigs, poultry, draft animals and goats that consume more grain, and the feed source is agricultural products. , fodder grain, straw and weeds, wild vegetables, etc., are generally mainly housed, except for short-term stubble grazing after crops are harvested, the rest of the time is artificially raised in the barn.

In the process of animal husbandry in agricultural areas, special sheds are set up. The excrement, residual feed and other factors discharged from livestock will pollute the environment of the pens, which will not only make the smell of the sheds unpleasant, but also easily lead to the infection of poultry by epidemic diseases. Huge economic losses; in order to prevent the occurrence of diseases in poultry, the pens are usually sterilized and disinfected.

Existing barn disinfection usually adopts pipe spraying or manual spraying. Pipeline spraying is to set up pipes evenly inside the barn, and transport disinfectant water through the pipes for spray disinfection. Time is idle. Therefore, it is wasteful to set up a large number of pipes. Most of the spraying work is carried out manually with a watering can or a high-pressure spray gun. However, it is only time-consuming and laborious to carry out spraying and disinfection with a watering can. Unevenness and incompleteness etc.

Based on this, the present invention designs a sterilization device for livestock pens to solve the above problems.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a sterilizing device for livestock pens, so as to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the present invention provides the following technical solutions: a sterilization device for animal husbandry, comprising a base, the bottom of the base is provided with a moving wheel, a fixed box is fixed in the middle of the top surface of the base, and the top surface of the fixed box is provided with a conveyor. There is a water inlet in the middle of the top surface, an adjustment box is symmetrically fixed on the left and right sides of the fixed box, and a spraying component is symmetrically arranged on the front and rear sides. connect;

A vertical partition plate is symmetrically fixed at the bottom of the inner cavity of the fixed box, and a liquid storage tank is set between the two partition plates, and a stirring assembly is arranged in the liquid storage tank, and the two ends of the stirring assembly correspond to the adjustment boxes on both sides. connect.

Preferably, the conveying assembly includes a main water pipe fixed on the top surface of the fixed box, a vertical pipe is fixed in the middle of the bottom of the main water pipe, and one end of the vertical pipe extends into the fixed box, and is connected with a spray pump, and the spray pump is provided with a water inlet pipe The bottom end of the water inlet pipe passes through the partition on the corresponding side and extends into the liquid storage tank. The two ends of the main water pipe are symmetrical and fixed in parallel with two side water pipes. The side water pipes are evenly provided with a plurality of moving pipes along the length direction. One end of the moving pipe is connected with the spraying assembly and the other end is slidably connected with a connecting pipe, and one end of the connecting pipe is fixedly connected with the side water pipe, and the other end extends into the moving pipe and is fixed with a boss, and the boss is connected to the moving pipe. There are springs between the ends.

Preferably, an L-shaped branch water pipe is fixed in the outer middle part of the main water pipe, a horizontal intermediate nozzle pipe is fixed at the bottom end of the branch water pipe, the intermediate nozzle pipe is fixedly connected with the base, and the bottom surface of the intermediate nozzle pipe is uniformly provided with a plurality of The nozzles, through the intermediate nozzles, spray and disinfect the passages between the houses to improve the scope and effect of disinfection.

Preferably, the spraying assembly includes a rectangular moving frame, a plurality of vertical spraying pipes are evenly arranged on the outer side of the moving frame, two fixing seats are fixed on the moving frame corresponding to the positions of each spraying pipe, and the spraying pipes are fixed with the corresponding fixed seats. The bases are fixedly connected, and two adjusting rods are symmetrically fixed on the side of the moving frame close to the fixed box, and one end of the adjusting rods extends into the adjusting box, and a plurality of teeth are uniformly fixed on the extending section along the length direction.

Preferably, a rotating cavity is provided in the middle of the inside of the adjusting box, two moving grooves are symmetrically arranged at the top and bottom of the rotating cavity, and the middle part of the moving groove is communicated with the rotating cavity, and the adjusting rod on one of the moving frames is slidably connected to the adjusting rod. In the moving groove on the upper part of the box, the adjusting rod on the other moving frame is slidably connected with the moving groove on the lower part of the adjusting box, and a rotating gear is arranged in the rotating cavity. Meshing, a rotating cylinder is fixed at the center of the rotating gear, the two ends of the rotating cylinder are respectively rotatably connected with the outer side wall of the adjustment box and the outer side wall of the fixed box, and one end of the rotating cylinder extends out of the adjustment box and is connected with a motor.

Preferably, the stirring assembly includes a first rotating shaft that is rotatably connected between the two partitions, a plurality of stirring blades are uniformly fixed on the first rotating shaft, and both ends pass through the partitions and are fixed with first gears, and the first gears mesh with each other. There is a second gear, a second rotating shaft is fixed at the center of the second gear, the two second rotating shafts are respectively rotatably connected with the inner wall of the rotating cylinder on the corresponding side, and one end of one of the second rotating shafts extends out of the rotating cylinder, and is fixed with the first rotating shaft. A bevel gear, the first bevel gear is meshed with a second bevel gear, and the second bevel gear is connected with a motor.

Preferably, the two rotating drums are provided with connecting components, which are connected to the second rotating shaft in the rotating drum correspondingly through the connecting components. The outer side wall of the fixed shell is fixedly connected, a spring plate is slidably connected in the fixed shell, an electromagnet is arranged on the side of the spring plate away from the rotating cylinder, and an electromagnet is also fixed on the corresponding surface of the fixed shell, and the two electromagnets are electrically connected with a power supply and a switch , the other side of the spring plate is provided with a spring, and a spring rod is fixed. One end of the spring rod protrudes from the fixed shell and is fixed with an arc-shaped pressure plate. The side wall of the rotating cylinder is evenly provided with a plurality of notches along the circumferential direction. A spring block is slidably connected in the slot, an arc-shaped plate is fixed on the outer end of the spring block, and the inner side radius of the pressing plate is the same as the outer side radius of the arc-shaped plate.

Preferably, the two ends of the pressing plate are symmetrically fixed with side plates, and the outer sides of the side plates are arranged along the radial direction of the pressing plate, and the adjacent pressing plates are connected correspondingly by the side plates. When the two ends of the pressure plate are in contact with the ends of the adjacent pressure plates respectively, and form a complete circular slide, when the rotating drum rotates, the arc plate slides along the circular slide, and the adjacent plates are enlarged by the side plates at both ends of the pressure plate. The contact area between the platens limits the position of the platens.

Preferably, a medicine storage box is fixed on one side of the top surface of the fixed box, a medicine inlet is fixed in the middle of the top surface of the medicine storage box, a cover is threadedly connected to the top of the medicine inlet, and the bottom of the medicine storage box extends into the fixed box , and located on the inner side of the partition, the bottom of the medicine storage box is set as a bucket, and a vertical outlet pipe is fixed at the center of the bottom surface, a sealing assembly is provided on the partition, and the sealing assembly is correspondingly connected with the bottom end of the medicine outlet pipe .

Preferably, the sealing assembly includes a limit chute arranged on the upper part of the partition plate, the limit chute is slidably connected to the limit slider in the vertical direction, and both ends of the limit slider protrude from the limit chute and are symmetrically fixed. Limit slides, and the two limit slides are slidably connected to the two sides of the partition respectively. The limit slides are used to keep the limit chute in a closed state to avoid liquid splashing through the limit chute during the dosing and stirring process. A connecting shaft is fixed on the outer limit slide plate, a rotating wheel is correspondingly rotatably connected on the partition, a ring gear is fixed on the outer side of the rotating wheel, the ring gear meshes with the second gear, and a cam groove is arranged on the end surface of the rotating wheel, and The connecting shaft is slidably connected in the cam groove, a horizontal sealing plate is fixed on the limit slide plate located on the inner side, a sealing plug is fixed on the sealing plate corresponding to the position of the drug discharge pipe, and a fixing plate is connected under the sealing plate through a spring, and is fixed The plate is fixedly connected to the partition.

Compared with the prior art, the beneficial effects of the present invention are:

1. The present invention loads water and disinfectant into the fixed box through the water inlet, and makes the second shaft rotate through the transmission of the motor and the first bevel gear and the second bevel gear, and the second shaft passes through the first gear and the second bevel gear. The transmission of the gear makes the first shaft drive the stirring blade to rotate, so that the water and the disinfectant are fully mixed;

2. The present invention adjusts the distance between the movable racks on both sides by adjusting the box, so that the device can adapt to the aisles of different widths in the breeding field, and by adjusting the positions of the movable rack and the spraying pipe, the spraying pipe is close to the sheds on both sides of the aisle. , in order to spray and disinfect the houses on both sides to disinfect the houses, and the disinfection is more uniform and sufficient;

3. In the present invention, by energizing the electromagnet, the two electromagnets in the same fixed shell repel each other, so that the spring block is tightly pressed on the second rotating shaft, and the position of the rotating cylinder and the second rotating shaft is relatively fixed. The complete circular slide rail rotates the rotating cylinder through the spring block, so that the rotating gear rotates along with it. While stirring, adjust the position of the moving frame. After the adjustment, the electromagnet can be powered off, and the operation is simple and convenient. ;

4. The present invention drives the movement of the sealing component through the stirring component, intermittently enters the disinfectant into the water in the fixed box, and keeps stirring while adding the medicine, so that the medicine and water are mixed more quickly and evenly, and the efficiency and effect of stirring and mixing are improved.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

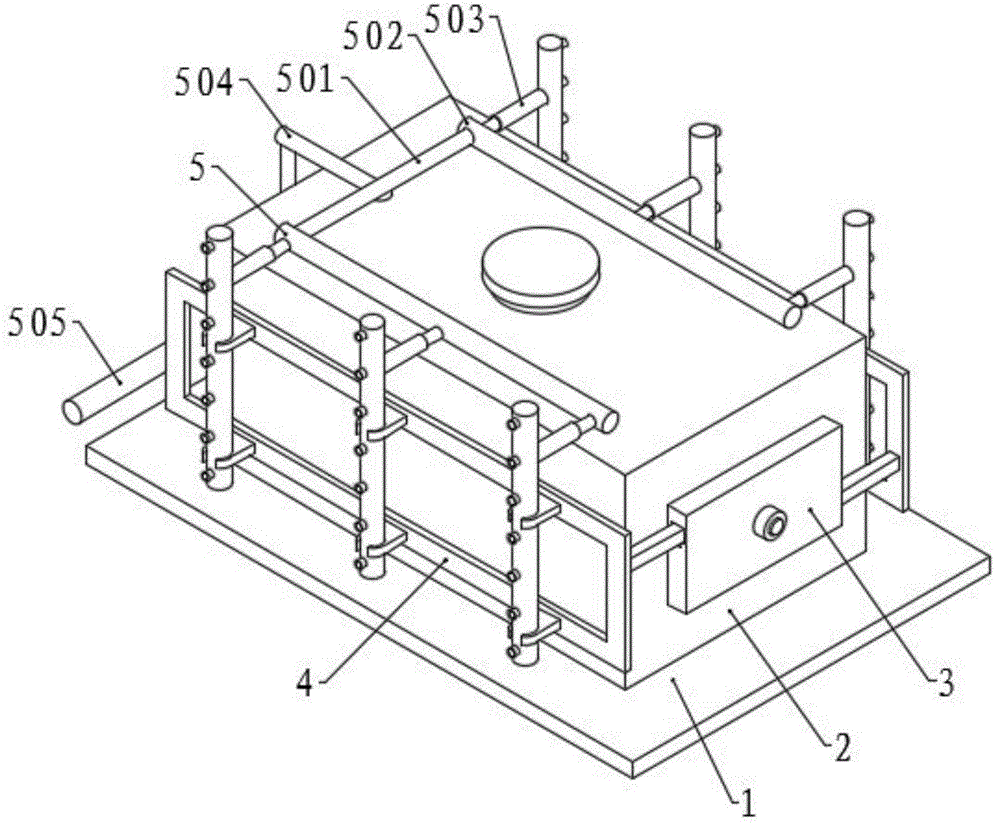

Fig. 1 is the structural representation of the present invention;

Fig. 2 is the structural schematic diagram of the spray assembly of the present invention;

Fig. 3 is the structural representation of the connecting pipe of the present invention;

Fig. 4 is the structural representation of the adjustment box of the present invention;

5 is a schematic diagram of the internal structure of the fixed box of the present invention;

Fig. 6 is the connection schematic diagram of the second rotating shaft and the rotating drum of the present invention;

7 is a schematic structural diagram of a connecting assembly of the present invention;

Fig. 8 is the top structure schematic diagram of the fixed box of the present invention;

Fig. 9 is the structural representation of the medicine storage box of the present invention;

10 is a schematic structural diagram of the sealing assembly of the present invention;

FIG. 11 is a schematic structural diagram of the rotating wheel of the present invention.

In the accompanying drawings, the list of components represented by each number is as follows:

1- base;

2-fixed box, 201-water inlet, 202-first shaft, 203-stirring blade, 204-first gear, 205-second gear, 206-second shaft, 207-first bevel gear;

3-regulating box, 301-moving groove, 302-rotating cavity, 303-rotating gear, 304-rotating cylinder, 305-spring block, 306-curved plate, 307-pressing plate, 308-fixed shell, 309-electromagnet;

4-Spraying components, 401-moving frame, 402-fixing seat, 403-adjusting rod, 404-teeth, 405-spraying pipe;

5-conveying components, 501-main water pipe, 502-side water pipe, 503-moving pipe, 504-branch water pipe, 505-intermediate nozzle, 506-spray pump, 507-water inlet pipe, 508-connecting pipe;

6-medicine storage box, 601-medicine outlet pipe;

7-sealing assembly, 701-rotating wheel, 702-cam groove, 703-connecting shaft, 704-limiting slide plate, 705-limiting slider, 706-sealing plate, 707-fixing plate.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, not all of the embodiments. The embodiments of the present invention, and all other embodiments obtained by those of ordinary skill in the art without creative efforts, fall within the protection scope of the present invention.

Example 1

Please refer to the accompanying drawings, the present invention provides a technical solution: a sterilization device for animal husbandry, comprising a base 1, a moving wheel is arranged at the bottom of the base 1, a fixed box 2 is fixed in the middle of the top surface of the base 1, and the fixed box 2 The top surface is provided with a conveying assembly 5, and the middle of the top surface is provided with a water inlet 201, the left and right sides of the fixed box 2 are symmetrically fixed with an adjustment box 3, and the front and rear sides are symmetrically provided with a spraying assembly 4, and the top of the spraying assembly 4 and the The conveying assembly 5 is connected, and the two sides are correspondingly connected with the two adjustment boxes 3;

The bottom of the inner cavity of the fixed box 2 is symmetrically fixed with a vertical partition, and a liquid storage tank is set between the two partitions, and a stirring assembly is arranged in the liquid storage tank, and the two ends of the stirring assembly and the adjustment boxes on both sides 3 corresponds to the connection.

The conveying assembly 5 includes a main water pipe 501 fixed on the top surface of the fixed box 2, a vertical pipe is fixed in the middle of the bottom of the main water pipe 501, and one end of the vertical pipe extends into the fixed box 2, and is connected with a water jet pump 506. A water inlet pipe 507 is provided, and the bottom end of the water inlet pipe 507 passes through the partition plate on the corresponding side and extends into the liquid storage tank. The two ends of the main water pipe 501 are symmetrically and parallelly fixed with two side water pipes 502. The upper edge of the side water pipe 502 A plurality of moving pipes 503 are evenly arranged in the length direction. One end of the moving pipes 503 is connected with the spray assembly 4 and the center of the other end is slidably connected with a connecting pipe 508. One end of the connecting pipe 508 is fixedly connected with the side water pipe 502, and the other end extends into the moving A boss is fixed in the tube 503 , and a spring is provided between the boss and the end of the moving tube 503 .

The spraying assembly 4 includes a rectangular moving frame 401 , a plurality of vertical spraying pipes 405 are evenly arranged on the outer side of the moving frame 401 , and two fixed seats 402 are fixed on the moving frame 401 corresponding to each spraying pipe 405 . 405 is fixedly connected with the corresponding fixed seat 402, two adjusting rods 403 are symmetrically fixed on the side of the moving frame 401 close to the fixed box 2, and one end of the adjusting rod 403 extends into the adjusting box 3, and extends into the upper length of the section A plurality of teeth 404 are fixed uniformly in the direction.

There is a rotating cavity 302 in the middle of the inner part of the adjusting box 3 . The top and bottom of the rotating cavity 302 are symmetrical and parallel with two moving grooves 301 . The middle part of the moving grooves 301 communicates with the rotating cavity 302 . 403 is slidably connected to the moving groove 301 on the upper part of the adjusting box 3, the adjusting rod 403 on the other moving frame 401 is slidably connected to the moving groove 301 on the lower part of the adjusting box 3, and the rotating cavity 302 is provided with a rotating gear 303, and the rotating gear 303 The upper part and the lower part are respectively meshed with the teeth 404 on the two adjusting rods 403, the rotating cylinder 304 is fixed at the center of the rotating gear 303, and the two ends of the rotating cylinder 304 are respectively connected with the outer side wall of the adjustment box 3 and the outer side of the fixed box 2. The wall is rotatably connected, and one end of the rotating cylinder 304 extends out of the adjustment box 3 and is connected with a motor, wherein the rotating cylinder 304 can be directly or indirectly connected with the output shaft of the motor through a transmission structure, so that the motor drives the rotating cylinder 304 to rotate, and Through the action of the rotating gear 303 and the adjusting rod 403 , the moving frame 401 is moved to adjust the position of the spray assembly 4 .

The stirring assembly includes a first rotating shaft 202 that is rotatably connected between two partitions. A plurality of stirring blades 203 are evenly fixed on the first rotating shaft 202, and both ends pass through the partitions and are fixed with a first gear 204. The first gear 204 is meshed with a second gear 205, a second rotating shaft 206 is fixed at the center of the second gear 205, the two second rotating shafts 206 are respectively connected with the inner wall of the rotating cylinder 304 on the corresponding side for rotation, and one end of one of the second rotating shafts 206 extends. Out of the rotating drum 304, a first bevel gear 207 is fixed, the first bevel gear 207 is meshed with a second bevel gear, and the second bevel gear is connected with a motor.

The working principle of this embodiment is as follows: water and disinfectant are loaded into the fixed box 2 through the water inlet 201, and the second shaft 206 is rotated through the transmission of the motor and the first bevel gear 207 and the second bevel gear, and the second The rotating shaft 206 makes the first rotating shaft 202 drive the stirring blade 203 to rotate through the transmission of the first gear 204 and the second gear 205, so that the water and the disinfectant are fully mixed for subsequent disinfection, wherein the mixing of the disinfectant and water is in the box. to avoid problems such as direct contact with the user by the splash of disinfectant, and improve the safety of use;

The rotating cylinder 304 is rotated by the motor, and the rotating cylinder 304 drives the rotating gear 303 to rotate, so that the adjustment rods 403 on the upper and lower sides move outward or inward at the same time, so as to adjust the distance between the moving frames 401 on both sides, so that the device can adapt to The aisles of different widths in the breeding grounds, and by adjusting the positions of the moving frame 401 and the spraying pipe 405, the spraying pipe 405 is close to the houses on both sides of the aisle. 405 drives the moving pipe 503 to move relative to the connecting pipe 508, so that the connecting pipe 508 and the moving pipe 503 form a telescopic pipe structure, which is adapted to the movement of the spray pipe 405;

Then, start the spray pump, the disinfection water enters the main water pipe 501 through the action of the water inlet pipe 507 and the spray pump, and enters the spray pipe 405 through the side water pipe 502, the connecting pipe 508 and the moving pipe 503, and passes through the spray pipe 405. The nozzle sprays out, and at the same time moves the device to move along the aisle, so as to spray and disinfect the houses on both sides, and the disinfection is more uniform and sufficient. The moving wheel at the bottom of the device can be driven and controlled by a motor instead of manual operation. promote.

Embodiment 2

The structure of this embodiment is basically the same as that of the first embodiment, the difference is that a medicine storage box 6 is fixed on one side of the top surface of the fixed box 2, a medicine inlet is fixed in the middle of the top surface of the medicine storage box 6, and the medicine inlet The top is screwed with a cover, the bottom of the medicine storage box 6 extends into the fixed box 2 and is located on the inner side of the partition, the bottom of the medicine storage box 6 is set as a bucket, and a vertical outlet pipe is fixed at the center of the bottom surface, A sealing assembly 7 is provided on the separator, and the sealing assembly 7 is correspondingly connected with the bottom end of the drug discharge pipe 601 .

The sealing assembly 7 includes a limit chute arranged on the upper part of the partition plate, and a limit slider 705 is slidably connected in the limit chute along the vertical direction, and both ends of the limit slider 705 extend out of the limit chute and are symmetrically fixed. The limit slide 704, and the two limit slides 704 are slidably connected to the two sides of the partition, respectively. The limit slide 704 makes the limit chute in a closed state to avoid liquid splashing through the limit slide during the dosing and stirring process. A connecting shaft 703 is fixed on the limit slide plate 704 located on the outer side, and a rotating wheel 701 is correspondingly connected to the partition plate. The outer side of the rotating wheel 701 is fixed with a ring gear. The ring gear meshes with the second gear 205. There is a cam groove 702 on the end face of the cam, and the connecting shaft 703 is slidably connected to the cam groove 702. A horizontal sealing plate 706 is fixed on the limit slide plate 704 located on the inner side. For the sealing plug, a fixing plate 707 is connected to the lower part of the sealing plate 706 through a spring, and the fixing plate 707 is fixedly connected to the partition plate.

When in use, put water into the fixed box 2, add disinfectant to the medicine storage box 6, and when the disinfectant needs to be configured, the second rotating shaft 206 is driven by the motor and the transmission of the first bevel gear 207 and the second bevel gear. Rotating, the second rotating shaft 206 drives the first rotating shaft 202 to drive the stirring blade 203 to rotate through the transmission of the first gear 204 and the second gear 205, so that the water in the fixed box 2 is stirred, and at the same time, the second gear 205 and the ring gear make the rotation The wheel 701 rotates, the cam groove 702 on the rotating wheel 701 cooperates with the connecting shaft 703, so that the structures such as the limit slider 705 and the sealing plate 706 reciprocate up and down, and intermittently enter the disinfectant into the water in the fixed box 2, and add the medicine At the same time, it keeps stirring, so that the medicine and water are mixed more quickly and evenly, and the efficiency and effect of stirring and mixing are improved.

Embodiment 3

The structure of this embodiment is basically the same as that of the first embodiment, the difference is that the two rotating cylinders 304 are provided with connecting components, and are connected to the second rotating shaft 206 in the rotating cylinder 304 through the connecting components correspondingly. A plurality of fixed shells 308 are uniform in the circumferential direction of the rotating cylinder 304, and the fixed shells 308 are fixedly connected with the outer side wall of the adjustment box 3, and a spring plate is slidably connected in the fixed shell 308, and the side of the spring plate away from the rotating cylinder 304 is provided with electromagnetic Iron 309, and an electromagnet 309 is also fixed on the corresponding surface of the fixed shell 308. The two electromagnets 309 are electrically connected with a power supply and a switch. The other side of the spring plate is provided with a spring, and a spring rod is fixed, and one end of the spring rod extends Out of the fixed shell 308, and fixed with an arc-shaped pressure plate 307, the side wall of the rotating cylinder 304 is evenly provided with a plurality of notches along the circumferential direction, and a spring block 305 is slidably connected in the notches, and the outer end of the spring block 305 is fixed with an arc The radius of the inner side of the pressing plate 307 is the same as the radius of the outer side of the arc-shaped plate 306 .

Both ends of the pressing plate 307 are symmetrically fixed with side plates, and the outer sides of the side plates are arranged along the radial direction of the pressing plate 307, and the adjacent pressing plates 307 are connected correspondingly by the side plates. When the inner side moves, the two ends of the pressing plate 307 are in contact with the ends of the adjacent pressing plates 307 respectively, and form a complete circular slideway. The side plates at the ends increase the contact area between the adjacent pressing plates 307 and limit the position of the pressing plates 307 .

When stirring is required, the first rotating shaft 202 and the second rotating shaft 206 are rotated by the motor and the corresponding transmission structure, and stirred by the stirring blade 203. When the position of the moving frame 401 needs to be adjusted, the electromagnet 309 is energized, and the same fixed The two electromagnets 309 in the shell 308 repel each other, so that the spring plate drives the pressing plate 307 to move in the direction of the rotating cylinder 304, contacts with the arc-shaped plate 306, and presses the spring block 305 on the second rotating shaft 206, and the rotating cylinder 304 The position of the second rotating shaft 206 is relatively fixed. At this time, a plurality of pressing plates 307 form a complete circular sliding rail, and the arc-shaped plate 306 is in contact with the circular sliding rail. When the second rotating shaft 206 rotates, the spring block 305 makes the rotating cylinder rotate. 304 rotates with it, so that the rotating gear 303 rotates with it. While stirring, the position of the moving frame 401 is adjusted. After the adjustment, the electromagnet 309 is powered off, the spring plate and the spring block 305 and other structures are out of contact, and the rotating gear 303 Stop turning and do not move with the stirring assembly.

Embodiment 4

The structure of this embodiment is basically the same as that of the first embodiment, the difference is that an L-shaped branch water pipe 504 is fixed at the outer middle of the main water pipe 501, and a horizontal intermediate nozzle pipe 505 is fixed at the bottom end of the branch water pipe 504. The intermediate nozzle pipe 505 It is fixedly connected to the base 1, and the bottom surface of the intermediate nozzle 505 is evenly provided with a plurality of nozzles along the length direction.

When the conveying assembly 5 is working, the disinfection water is conveyed into the spray pipe 405, and at the same time, the disinfection water is conveyed into the intermediate nozzle 505 through the branch pipe 504, so that the ground in the aisle is sprayed with the disinfection water through the intermediate nozzle 505 to carry out disinfection treatment, Improve the overall disinfection effect in the breeding field.

In the description of this specification, description with reference to the terms "one embodiment," "example," "specific example," etc. means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one aspect of the present invention. in one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The above-disclosed preferred embodiments of the present invention are provided only as an aid to illustrate the present invention. The preferred embodiments do not describe all the details and do not limit the invention to specific embodiments only. Obviously, many modifications and variations are possible in light of the contents of this specification. The present specification selects and specifically describes these embodiments in order to better explain the principles and practical applications of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is to be limited only by the claims and their full scope and equivalents.

Claims (10)

1. a sterilizing device for animal husbandry, comprising a base (1), and the bottom of the base (1) is provided with a moving wheel, it is characterized in that, a fixed box (2) is fixed in the middle of the top surface of the base (1), The top surface of the fixed box (2) is provided with a conveying assembly (5), and the middle of the top surface is provided with a water inlet (201). A spraying assembly (4) is arranged symmetrically on the side, and the top of the spraying assembly (4) is connected with the conveying assembly (5), and the two sides are correspondingly connected with the two adjustment boxes (3); The bottom of the inner cavity of the fixed box (2) is symmetrically fixed with a vertical partition plate, and a liquid storage tank is set between the two partition plates, and a stirring component is arranged in the liquid storage tank, and the two ends of the stirring component are connected to the two partitions. The adjustment box (3) on the side is connected correspondingly. 2. The livestock house disinfection device according to claim 1, wherein the conveying assembly (5) comprises a main water pipe (501) fixed on the top surface of the fixed box (2), and the main water pipe (501) has a A standpipe is fixed in the middle of the bottom, and one end of the standpipe extends into the fixed box (2), and is connected with a water jet pump (506), the water jet pump (506) is provided with a water inlet pipe (507), and the water inlet pipe (507 The bottom end of the main water pipe (501) is symmetric and fixed in parallel with two side water pipes (502), the upper edge of the side water pipe (502). A plurality of moving pipes (503) are evenly arranged in the length direction, one end of the moving pipes (503) is connected with the spraying assembly (4) and the center of the other end is slidably connected with a connecting pipe (508), and one end of the connecting pipe (508) is slidably connected It is fixedly connected with the side water pipe (502), the other end extends into the moving pipe (503), and a boss is fixed, and a spring is arranged between the boss and the end of the moving pipe (503). 3. The livestock house disinfection device according to claim 2, wherein an L-shaped branch water pipe (504) is fixed in the outer middle of the main water pipe (501), and the bottom end of the branch water pipe (504) is fixed with an L-shaped branch pipe (504). A horizontal intermediate nozzle (505), the intermediate nozzle (505) is fixedly connected with the base (1), and the bottom surface of the intermediate nozzle (505) is uniformly provided with a plurality of nozzles along the length direction. 4 . The sterilizing device for livestock pens according to claim 2 , wherein the spraying assembly ( 4 ) comprises a rectangular moving frame ( 401 ), and the outer side of the moving frame ( 401 ) is evenly provided with a plurality of vertical The spray pipes (405) are fixed on the moving frame (401) at the positions corresponding to each spray pipe (405) with two fixed seats (402), and the spray pipes (405) are fixed with the corresponding fixed seats (402). connection, two adjusting rods (403) are symmetrically fixed on the side of the moving frame (401) close to the fixed box (2), and one end of the adjusting rods (403) extends into the adjusting box (3), and extends into the adjusting box (3). A plurality of teeth (404) are uniformly fixed on the segment along the length direction. 5. The sterilizing device for animal husbandry according to claim 4, characterized in that a rotating cavity (302) is provided in the middle of the inside of the regulating box (3), and the top and bottom of the rotating cavity (302) are symmetrical and parallel Two moving grooves (301) are provided, the middle of the moving grooves (301) is communicated with the rotating cavity (302), and an adjusting rod (403) on one of the moving frames (401) is slidably connected to the upper part of the adjusting box (3) In the moving groove (301) of the other moving frame (401), the adjusting rod (403) on the other moving frame (401) is slidably connected to the moving groove (301) at the lower part of the adjusting box (3), and the rotating cavity (302) is provided with a rotating Gear (303), the upper and lower parts of the rotating gear (303) mesh with the teeth (404) on the two adjusting rods (403) respectively, and a rotating cylinder (304) is fixed at the center of the rotating gear (303), Both ends of the rotating cylinder (304) are respectively rotatably connected with the outer side wall of the adjustment box (3) and the outer side wall of the fixed box (2), and one end of the rotating cylinder (304) extends out of the adjustment box (3) and is connected with a motor . 6 . The sterilizing device for livestock pens according to claim 5 , wherein the stirring assembly comprises a first rotating shaft ( 202 ) rotatably connected between the two partitions, and the first rotating shaft ( 202 ) is evenly distributed on the first rotating shaft ( 202 ). A plurality of stirring blades (203) are fixed, and both ends pass through the partition plate and are fixed with a first gear (204), the first gear (204) is meshed with a second gear (205), and the center of the second gear (205) A second rotating shaft (206) is fixed at the place, the two second rotating shafts (206) are respectively rotatably connected with the inner wall of the rotating cylinder (304) on the corresponding side, and one end of one of the second rotating shafts (206) extends out of the rotating cylinder (304). 304), and is fixed with a first bevel gear (207), the first bevel gear (207) is meshed with a second bevel gear, and the second bevel gear is connected with a motor. 7. The sterilizing device for animal husbandry according to claim 6, wherein the two rotating drums (304) are provided with connecting components, and the connecting components are connected to the second rotating drum (304) through the connecting components. The two rotating shafts (206) are correspondingly connected, and the connecting assembly includes a plurality of fixed shells (308) that are uniform along the circumferential direction of the rotating cylinder (304), and the fixed shells (308) are fixedly connected to the outer side wall of the adjustment box (3), A spring plate is slidably connected to the fixed shell (308), an electromagnet (309) is arranged on the side of the spring plate away from the rotating cylinder (304), and an electromagnet (309) is also fixed on the corresponding surface of the fixed shell (308). , the two electromagnets (309) are electrically connected with a power supply and a switch, the other side of the spring plate is provided with a spring, and a spring rod is fixed, one end of the spring rod protrudes from the fixed shell (308), and is fixed with a An arc-shaped pressing plate (307), a plurality of notches are uniformly arranged on the side wall of the rotating cylinder (304) along the circumferential direction, and a spring block (305) is slidably connected in the notches, and the outer end of the spring block (305) is fixed There is an arc-shaped plate (306), and the radius of the inner side surface of the pressing plate (307) is the same as the radius of the outer side surface of the arc-shaped plate (306). 8 . The sterilizing device for livestock pens according to claim 7 , wherein side plates are symmetrically fixed at both ends of the pressing plate (307), and the outer side surfaces of the side plates are arranged along the radial direction of the pressing plate (307). 9 . , the adjacent pressure plates (307) are connected correspondingly by the side plates. When the multiple pressure plates (307) are simultaneously moved inward by the action of the electromagnets (309), the two ends of the pressure plates (307) are respectively connected to the adjacent pressure plates (307) end contact. 9. The sterilizing device for animal husbandry according to claim 6, characterized in that a medicine storage box (6) is fixed on one side of the top surface of the fixed box (2), and the top surface of the medicine storage box (6) is fixed on one side. The medicine inlet is fixed in the middle, the top of the medicine inlet is screwed with a cover, the bottom of the medicine storage box (6) extends into the fixed box (2), and is located on the inner side of the partition, the medicine storage box ( 6) The bottom is in a bucket shape, and a vertical outlet pipe is fixed at the center of the bottom surface, a sealing assembly (7) is provided on the partition, and the sealing assembly (7) and the bottom end of the drug outlet pipe (601) corresponding connection. 10 . The sterilizing device for livestock pens according to claim 9 , wherein the sealing assembly ( 7 ) comprises a limit chute arranged on the upper part of the partition plate, and the limit chute is slidably connected in a vertical direction. 11 . Limiting sliders (705), both ends of the limiting sliders (705) extend out of the limiting chute, and the limiting sliding plates (704) are symmetrically fixed, and the two limiting sliding plates (704) are respectively connected to two parts of the partition. Side sliding connection, a connecting shaft (703) is fixed on the limit slide plate (704) located on the outer side, a rotating wheel (701) is correspondingly rotatably connected on the partition, and a ring gear is fixed on the outer side of the rotating wheel (701), The ring gear meshes with the second gear (205), the end surface of the rotating wheel (701) is provided with a cam groove (702), and the connecting shaft (703) is slidably connected to the cam groove (702), and the A horizontal sealing plate (706) is fixed on the limit slide plate (704), a sealing plug is fixed on the sealing plate (706) at a position corresponding to the medicine outlet pipe (601), and a lower part of the sealing plate (706) is connected with a spring through a spring. The fixing plate (707) is fixedly connected with the partition.
