Abstract

本发明公开了一种装配式建筑幕墙组件连接构造，属于建筑幕墙领域，其技术方案要点包括铝合金横梁、幕墙板组件和至少为一组的镀锌钢板，每组所述镀锌钢板均由上下两个L型钢板构成，两个所述L型钢板均通过膨胀螺栓对称设置在建筑物墙面上，所述铝合金横梁通过不锈钢螺栓固定在两个L型钢板之间，所述铝合金横梁的一侧设置有用于安装幕墙板组件的安装模块，且所述幕墙板组件卡接于安装模块的内部，所述安装模块的一侧设置有用于密封幕墙板组件的压块，且压块的一侧卡接有铝合金盖板，本发明使幕墙组件的组装较为方便，同时幕墙组件的安装对位十分方便，大大缩短了幕墙组件的安装时长。

Figure 202010580533

The invention discloses a connection structure of prefabricated building curtain wall components, belonging to the field of building curtain walls. The main points of the technical solution include aluminum alloy beams, curtain wall panel components and at least one group of galvanized steel plates, each group of the galvanized steel plates is composed of The upper and lower L-shaped steel plates are composed of two L-shaped steel plates. The two L-shaped steel plates are symmetrically arranged on the wall of the building through expansion bolts. The aluminum alloy beam is fixed between the two L-shaped steel plates through stainless steel bolts. The aluminum alloy One side of the beam is provided with an installation module for installing the curtain wall panel assembly, and the curtain wall panel assembly is clamped inside the installation module, and one side of the installation module is provided with a pressing block for sealing the curtain wall panel assembly, and the pressing block An aluminum alloy cover plate is clamped on one side of the curtain wall. The invention makes the assembly of the curtain wall assembly more convenient, and at the same time, the installation and alignment of the curtain wall assembly is very convenient, which greatly shortens the installation time of the curtain wall assembly.

Figure 202010580533

Description

Assembly type building curtain wall component connecting structure
Technical Field
The invention relates to the field of building curtain walls, in particular to an assembly type building curtain wall assembly connecting structure.
Background
The building curtain wall is a light wall with decorative effect commonly used for modern large-scale and high-rise buildings, and consists of a structural frame and an embedded plate, and the building envelope structure does not bear the load and the function of the main structure.
The existing assembly type building curtain wall is mostly in a dry hanging type installation mode when being installed, when being connected, a curtain wall assembly assembled in advance is installed on a keel frame, but in the actual use process, the curtain wall assembly needs to consume a large amount of time, the assembled curtain wall assembly is fixed on the keel frame, the position of the curtain wall assembly needs more time to be adjusted, the alignment is difficult simultaneously, and the installation effect of the curtain wall assembly is influenced.
Disclosure of Invention
1. Technical problem to be solved
Aiming at the problems in the prior art, the invention aims to provide an assembly type building curtain wall component connecting structure which has the advantages that the assembly of a curtain wall component is convenient, meanwhile, the installation and the alignment of the curtain wall component are very convenient, and the installation time of the curtain wall component is greatly shortened.
2. Technical scheme
In order to solve the above problems, the present invention adopts the following technical solutions.
The utility model provides an assembly type structure curtain subassembly joint construction, includes aluminum alloy crossbeam, curtain board subassembly and is a set of galvanized steel sheet at least, every group galvanized steel sheet constitutes two L shaped steel boards from top to bottom, two L shaped steel board all sets up on the building wall through expansion bolts symmetry, the aluminum alloy crossbeam passes through stainless steel bolt to be fixed between two L shaped steel boards, one side of aluminum alloy crossbeam is provided with the installing module who is used for installing the curtain board subassembly, just curtain board subassembly joint is in the inside of installing module, one side of installing module is provided with the briquetting that is used for sealed curtain board subassembly, and one side joint of briquetting has aluminum alloy cover plate, the top of aluminum alloy crossbeam still is through bolt fixedly connected with aluminum alloy frame, the side of curtain board subassembly is put into in the inside of aluminum alloy frame.
Further, the curtain wall board assembly comprises at least two panels, and a metal partition strip is arranged between the two panels.
Furthermore, a vertical keel is fixedly connected between every two adjacent aluminum alloy cross beams through a machine-made bolt.
Further, the installation module includes the mount pad, the top and the bottom of mount pad one side all are provided with gluey groove, the inside joint in gluey groove has the adhesive tape, the adhesive tape is hugged closely on the panel surface rather than the contact, the equal fixedly connected with chevron type bracket in top and the bottom of mount pad, two the panel is placed respectively in the inside of chevron type bracket, the opposite side of mount pad is provided with quantity and is three connecting plate, one side of aluminum alloy crossbeam is provided with the square hole that uses with the connecting plate cooperation, the connecting plate passes through the inside that the square hole extended to the aluminum alloy crossbeam.
Further, the briquetting passes through mechanism bolt and mount pad fixed connection, one side of briquetting is provided with the recess, the inner wall of recess is provided with the cushion, one side of mount pad is provided with the lug that uses with the recess cooperation, lug and recess interference fit, one side that the briquetting is close to the mount pad also is provided with gluey groove, and the inside in gluey groove also is provided with the adhesive tape.
Furthermore, the top both sides of chevron type bracket all are provided with the arc wall with adhesive tape assorted.
Further, the inner wall top and the inner wall bottom of aluminum alloy cover plate all are provided with the arc fixture block, the draw-in groove that uses with the cooperation of arc fixture block has all been seted up to the top and the bottom of briquetting.
Further, the inner wall of aluminum alloy frame openly all is provided with the socket with the inner wall back, the breach has all been seted up to the top and the bottom of aluminum alloy frame, the bottom of aluminum alloy frame is provided with the L type locking plate that is located curtain board subassembly both sides through the breach, the one end block of L type locking plate is located in the inside of socket the L type locking plate of curtain board subassembly one side passes through self-tapping screw to be fixed on aluminum alloy cover plate, is located the L type locking plate of curtain board subassembly opposite side passes through the bolt fastening on the aluminum alloy crossbeam, and the bolt runs through aluminum alloy crossbeam and three connecting plate in proper order.
Furthermore, a sealing gasket is arranged at the joint of the aluminum alloy frame and the panel.
Furthermore, the panel is any one of a glass section, an aluminum-plastic plate, a clay plate and a sunlight plate.
3. Advantageous effects
Compared with the prior art, the invention has the advantages that:
(1) according to the scheme, the installation module is arranged, when the curtain wall assembly is assembled, the upper side and the lower side of the curtain wall assembly can be placed into the installation module, then the pressing block is matched with the installation module to block the joint, then the pressing block is covered by the aluminum alloy frame, the sealing performance of the joint is further guaranteed, the aluminum alloy frame and the two sides of the curtain wall assembly are assembled, other precise equipment is not needed in the whole process, only the size needs to be measured in advance, the curtain wall assembly can be installed on site, and the installation is convenient;
(2) according to the scheme, the square hole is formed in the aluminum alloy cross beam, when the curtain wall assembly is installed, the L-shaped locking plate is placed in the socket, the connecting plate is inserted into the square hole, positioning can be quickly completed without adjusting the L-shaped locking plate, then the L-shaped locking plate is fixed on the aluminum alloy cross beam through the bolt, the three connecting plates can be sequentially fixed in the installation process of the bolt, the installation module, the aluminum alloy cross beam and the aluminum alloy frame can be fixed at the moment, installation is very convenient and quick, and the fixing effect is better than that of transmission single type fixing;
(3) this scheme is fixed on aluminum alloy cover plate through using self tapping screw with the L type locking plate of one side, fixes between L type locking plate, aluminum alloy cover plate and the briquetting through self tapping screw, when reinforcing aluminum alloy cover plate stability, also has better supporting effect to the aluminum alloy frame, uses safelyr.
Drawings

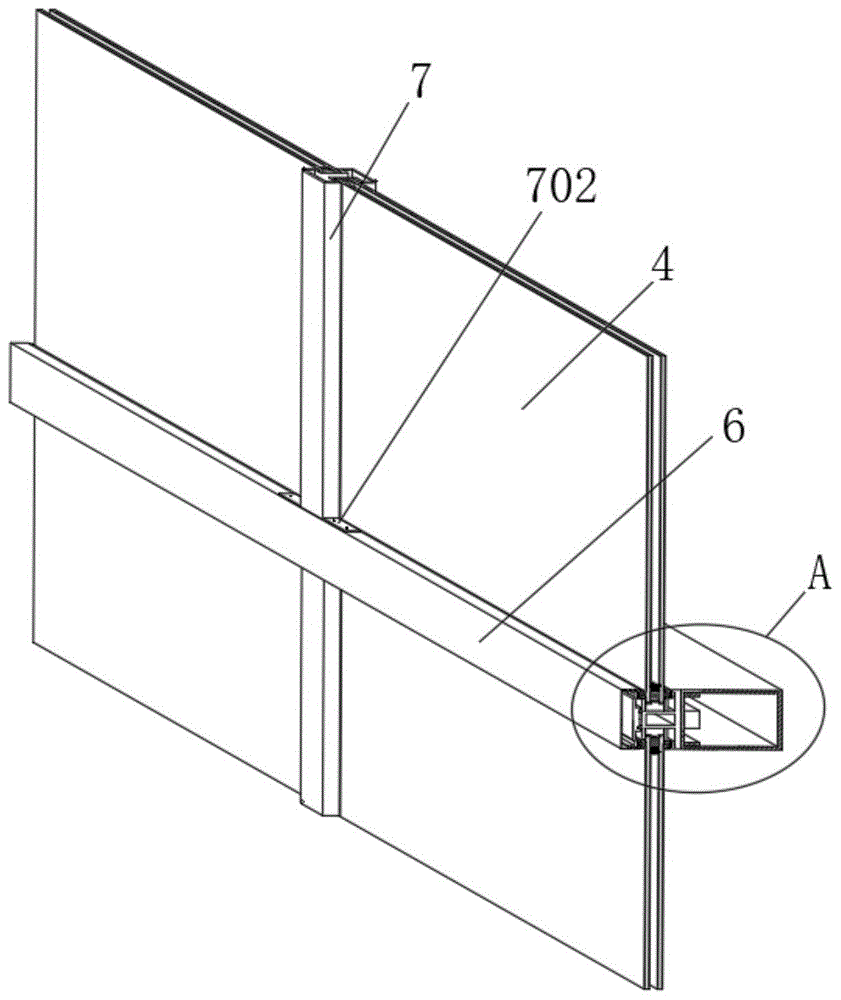

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a cross-sectional view of the present invention;
FIG. 3 is an enlarged view of the invention at A in FIG. 1;
FIG. 4 is an enlarged view of the invention at B of FIG. 2;
FIG. 5 is an exploded view of the installation module, the pressing block and the aluminum alloy pressing plate according to the present invention
FIG. 6 is a side view of an aluminum alloy surround of the present invention.
The reference numbers in the figures illustrate:
1. a galvanized steel sheet; 2. an aluminum alloy beam; 3. installing a module; 301. a mounting seat; 302. a glue groove; 303. An adhesive tape; 304. a bracket shaped like a Chinese character 'shan'; 305. a connecting plate; 4. a curtain wall plate component; 401. a panel; 402. A metal parting strip; 5. briquetting; 6. an aluminum alloy cover plate; 601. an arc-shaped fixture block; 7. an aluminum alloy frame; 701. A socket; 702. an L-shaped locking plate; 8. a vertical keel; 9. a groove; 10. a bump; 11. a card slot; 12. And (4) square holes.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention; it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by those skilled in the art without any inventive work are within the scope of the present invention.
Referring to fig. 1-6, in the embodiment of the present invention, an assembly type building curtain wall assembly connection structure includes an aluminum alloy beam 2, a curtain wall plate assembly 4, and at least one set of galvanized steel plates 1, each set of galvanized steel plates 1 is composed of an upper L-shaped steel plate and a lower L-shaped steel plate, the two L-shaped steel plates are symmetrically disposed on a building wall surface through expansion bolts, the aluminum alloy beam 2 is fixed between the two L-shaped steel plates through stainless steel bolts, one side of the aluminum alloy beam 2 is provided with an installation module 3 for installing the curtain wall plate assembly 4, and the curtain wall plate component 4 is clamped inside the installation module 3, one side of the installation module 3 is provided with a pressing block 5 for sealing the curtain wall plate component 4, and one side joint of briquetting 5 has aluminum alloy cover plate 6, and bolt fixedly connected with aluminum alloy frame 7 is still passed through at the top of aluminum alloy crossbeam 2, and the side of curtain board subassembly 4 is put into in the inside of aluminum alloy frame 7.
Referring to fig. 2 to 3, the curtain wall board assembly 4 includes at least two panels 401, the panels 401 are any one of glass profiles, aluminum-plastic panels, clay plates and sunlight plates, the double-layer panels 401 have better sound insulation and noise reduction effects, and a metal spacer 402 is disposed between the two panels 401 to support the two panels 401, so as to enhance the stability between the two panels 401 and make the two panels contact with the installation module 3 more tightly.
Referring to fig. 2, a vertical keel 8 is fixedly connected between two adjacent aluminum alloy beams 2 through a machine-made bolt for enhancing the stability of the aluminum alloy beams 2.
Referring to fig. 2 to 4, the mounting module 3 includes a mounting base 301, a glue groove 302 is disposed at both the top and the bottom of one side of the mounting base 301, a glue strip 303 is clamped inside the glue groove 302, the glue strip 303 is tightly attached to the surface of a panel 401 contacting with the glue groove, a bracket 304 is fixedly connected to both the top and the bottom of the mounting base 301, two panels 401 are respectively disposed inside the bracket 304, the bracket 304 is used for spacing the two panels 401, the glue strip 303 is tightly attached to the panel 401 at one side for sealing the gap between the panel 401 and the bracket 304, three connection plates 305 are disposed at the other side of the mounting base 301, a square hole 12 used in cooperation with the connection plate 305 is disposed at one side of the aluminum alloy beam 2, the connection plate 305 extends into the aluminum alloy beam 2 through the square hole 12, and the connection plate 305 is inserted into the aluminum alloy beam 2, a align for accomplishing curtain board subassembly 4 fast, follow-up only need use the retaining member fixed can.
Referring to fig. 3 to 4, briquetting 5 is through mechanism bolt and mount pad 301 fixed connection, one side of briquetting 5 is provided with recess 9, the inner wall of recess 9 is provided with the cushion, one side of mount pad 301 is provided with lug 10 that uses with the recess 9 cooperation, lug 10 and recess 9 interference fit, through the inside of lug 10 card at recess 9, the effect of increasing resistance of cooperation cushion, make briquetting 5 tentatively block on mount pad 301, be convenient for follow-up use mechanism bolt fixes a position it, one side that briquetting 5 is close to mount pad 301 simultaneously also is provided with rubber slot 302, and the inside of rubber slot 302 also is provided with adhesive tape 303.
Referring to fig. 4, arc-shaped grooves matched with the adhesive tape 303 are formed in two sides of the top of the chevron-shaped bracket 304, so that the contact area between the chevron-shaped bracket 304 and the adhesive tape 303 is increased, the sealing range is larger, and the sealing effect is better.
Referring to fig. 3 to 4, the top and the bottom of the inner wall of the aluminum alloy cover plate 6 are provided with the arc-shaped fixture blocks 601, the top and the bottom of the pressing block 5 are provided with the clamping grooves 11 matched with the arc-shaped fixture blocks 601, and the aluminum alloy cover plate 6 can be fixed on the mounting base 301 by clamping the arc-shaped fixture blocks 601 in the clamping grooves 11, so that the fixing effect is achieved.
Referring to fig. 4 and 6, the front surface and the back surface of the inner wall of the aluminum alloy frame 7 are provided with sockets 701, the top and the bottom of the aluminum alloy frame 7 are provided with notches, the bottom of the aluminum alloy frame 7 is provided with L-shaped locking plates 702 positioned at two sides of the curtain wall plate assembly 4 through the notches, one end of each L-shaped locking plate 702 is clamped inside the socket 701, the L-shaped locking plate 702 positioned at one side of the curtain wall plate assembly 4 is fixed on the aluminum alloy cover plate 6 through self-tapping screws, the L-shaped locking plate 702 at one side is fixed on the aluminum alloy cover plate 6 through the self-tapping screws, the L-shaped locking plate 702, the aluminum alloy cover plate 6 and the pressing block 5 are fixed through the self-tapping screws, the stability of the aluminum alloy cover plate 6 is enhanced, the aluminum alloy frame 7 is also well supported, the use is safer, the L-shaped locking plate 702 positioned at the other side of the curtain wall plate assembly 4 is fixed on the aluminum alloy beam 2 through bolts, and the bolt runs through aluminum alloy crossbeam 2 and three connecting plate 305 in proper order, when advancing curtain wall board subassembly 4's installation, put into socket 701 inside with L type locking plate 702, and peg graft inside square hole 12 connecting plate 305, can accomplish the location fast, need not to adjust it again, then use the bolt to fix L type locking plate 702 on aluminum alloy crossbeam 2, and the bolt is at the in-process of installation, can fix three connecting plate 305 in proper order, can make installation module 3 this moment, obtain fixing between aluminum alloy crossbeam 2 and the aluminum alloy frame 7, the installation is very convenient and fast, and it is fixed than driven simplex formula, fixed effect is better.
Referring to fig. 4, a sealing gasket is disposed at a joint of the aluminum alloy frame 7 and the panel 401, and the sealing gasket is used for sealing a gap between the aluminum alloy frame 7 and the panel 401 to prevent water from entering the panel 401.
The working principle of the invention is as follows: when assembling the curtain wall component, the upper side and the lower side of the curtain wall component can be placed into the installation module 3, then the pressing block 5 is used for being matched with the installation module 3 to block the joint, then the pressing block 5 is covered by the aluminum alloy frame 7, the sealing performance of the joint is further ensured, then the aluminum alloy frame 7 and the two sides of the curtain wall component are assembled, other precise equipment is not needed in the whole process, only the size needs to be measured in advance, the installation is convenient, when the curtain wall plate component 4 is installed, the L-shaped locking plate 702 is placed into the socket 701, the connecting plate 305 is inserted into the square hole 12, the positioning can be completed quickly without adjusting the L-shaped locking plate, then the L-shaped locking plate 702 is fixed on the aluminum alloy cross beam 2 by using bolts, and the three connecting plates 305 are fixed in sequence during the installation process of the bolts, can make this moment and fix between installing module 3, aluminum alloy crossbeam 2 and the aluminum alloy frame 7, install very convenient and fast, and fixed than driven simplex formula, fixed effect is better.
The foregoing is only a preferred embodiment of the present invention; the scope of the invention is not limited thereto. Any person skilled in the art should be able to cover the technical scope of the present invention by equivalent or modified solutions and modifications within the technical scope of the present invention.

Claims (9)

1.一种装配式建筑幕墙组件连接构造，其特征在于，包括铝合金横梁(2)、幕墙板组件(4)和至少为一组的镀锌钢板(1)，每组所述镀锌钢板(1)均由上下两个L型钢板构成，两个所述L型钢板均通过膨胀螺栓对称设置在建筑物墙面上，所述铝合金横梁(2)通过不锈钢螺栓固定在两个L型钢板之间，所述铝合金横梁(2)的一侧设置有用于安装幕墙板组件(4)的安装模块(3)，且所述幕墙板组件(4)卡接于安装模块(3)的内部，所述安装模块(3)的一侧设置有用于密封幕墙板组件(4)的压块(5)，且压块(5)的一侧卡接有铝合金盖板(6)，所述铝合金横梁(2)的顶部还通过螺栓固定连接有铝合金边框(7)，所述幕墙板组件(4)的侧边置入于铝合金边框(7)的内部，所述安装模块(3)包括安装座(301)，所述安装座(301)一侧的顶部和底部均设置有胶槽(302)，所述胶槽(302)的内部卡接有胶条(303)，所述胶条(303)紧贴在与其接触的面板(401)表面，所述安装座(301)的顶部和底部均固定连接有山字型托座(304)，两个所述面板(401)分别置于山字型托座(304)的内部，所述安装座(301)的另一侧设置有数量为三个的连接板(305)，所述铝合金横梁(2)的一侧设置有与连接板(305)配合使用的方孔(12)，所述连接板(305)通过方孔(12)延伸至铝合金横梁(2)的内部。1. a prefabricated building curtain wall assembly connection structure is characterized in that, comprises aluminum alloy beam (2), curtain wall panel assembly (4) and at least one group of galvanized steel sheet (1), each group of said galvanized steel sheet (1) Both are composed of two upper and lower L-shaped steel plates, the two L-shaped steel plates are symmetrically arranged on the wall of the building through expansion bolts, and the aluminum alloy beam (2) is fixed to the two L-shaped steel plates through stainless steel bolts. Between the steel plates, an installation module (3) for installing the curtain wall panel assembly (4) is provided on one side of the aluminum alloy beam (2), and the curtain wall panel assembly (4) is clamped on the side of the installation module (3). Inside, one side of the installation module (3) is provided with a pressing block (5) for sealing the curtain wall panel assembly (4), and one side of the pressing block (5) is clamped with an aluminum alloy cover plate (6), so the The top of the aluminum alloy beam (2) is also fixedly connected with an aluminum alloy frame (7) by bolts, and the side edge of the curtain wall panel assembly (4) is placed inside the aluminum alloy frame (7), and the installation module ( 3) Including a mounting seat (301), the top and bottom of one side of the mounting seat (301) are provided with a glue groove (302), and a glue strip (303) is clamped inside the glue groove (302), so The rubber strip (303) is closely attached to the surface of the panel (401) in contact with it, the top and bottom of the mounting seat (301) are fixedly connected with a chevron-shaped bracket (304), and the two panels (401) They are respectively placed inside the mountain-shaped brackets (304), the other side of the mounting seat (301) is provided with three connecting plates (305), and one side of the aluminum alloy beam (2) is provided with There is a square hole (12) used in cooperation with the connecting plate (305), and the connecting plate (305) extends to the inside of the aluminum alloy beam (2) through the square hole (12). 2.根据权利要求1所述的一种装配式建筑幕墙组件连接构造，其特征在于：所述幕墙板组件(4)包括至少两个的面板(401)，两个所述面板(401)之间设置有金属隔条(402)。2. A kind of prefabricated building curtain wall assembly connection structure according to claim 1, characterized in that: the curtain wall panel assembly (4) comprises at least two panels (401), and between the two panels (401) A metal spacer (402) is arranged between them. 3.根据权利要求1所述的一种装配式建筑幕墙组件连接构造，其特征在于：相邻的两个所述铝合金横梁(2)之间通过机制螺栓固定连接有竖龙骨(8)。3 . The connection structure of an assembled building curtain wall assembly according to claim 1 , wherein a vertical keel ( 8 ) is fixedly connected between two adjacent aluminum alloy beams ( 2 ) through mechanical bolts. 4 . 4.根据权利要求1所述的一种装配式建筑幕墙组件连接构造，其特征在于：所述压块(5)通过机制螺栓与安装座(301)固定连接，所述压块(5)的一侧设置有凹槽(9)，所述凹槽(9)的内壁设置有胶垫，所述安装座(301)的一侧设置有与凹槽(9)配合使用的凸块(10)，所述凸块(10)与凹槽(9)过盈配合，所述压块(5)靠近安装座(301)的一侧也设置有胶槽(302)，且胶槽(302)的内部也设置有胶条(303)。4. The connection structure of a prefabricated building curtain wall assembly according to claim 1, wherein the pressing block (5) is fixedly connected to the mounting seat (301) by means of machine bolts, and the One side is provided with a groove (9), the inner wall of the groove (9) is provided with a rubber pad, and one side of the mounting seat (301) is provided with a bump (10) for use with the groove (9) , the bump (10) is in interference fit with the groove (9), the pressure block (5) is also provided with a glue groove (302) on the side close to the mounting seat (301), and the glue groove (302) is A glue strip (303) is also provided inside. 5.根据权利要求1所述的一种装配式建筑幕墙组件连接构造，其特征在于：所述山字型托座(304)的顶部两侧均设置有与胶条(303)相匹配的弧形槽。5. The connection structure of a prefabricated building curtain wall assembly according to claim 1, characterized in that: both sides of the top of the mountain-shaped bracket (304) are provided with arcs that match the rubber strip (303). groove. 6.根据权利要求1所述的一种装配式建筑幕墙组件连接构造，其特征在于：所述铝合金盖板(6)的内壁顶部和内壁底部均设置有弧形卡块(601)，所述压块(5)的顶部和底部均开设有与弧形卡块(601)配合使用的卡槽(11)。6. A prefabricated building curtain wall assembly connection structure according to claim 1, characterized in that: the inner wall top and the inner wall bottom of the aluminum alloy cover plate (6) are provided with arc-shaped clamping blocks (601), so Both the top and the bottom of the pressing block (5) are provided with a clamping slot (11) for cooperating with the arc-shaped clamping block (601). 7.根据权利要求1所述的一种装配式建筑幕墙组件连接构造，其特征在于：所述铝合金边框(7)的内壁正面和内壁背面均设置有插座(701)，所述铝合金边框(7)的顶部和底部均开设有缺口，所述铝合金边框(7)的底部通过缺口设置有位于幕墙板组件(4)两侧的L型锁紧板(702)，所述L型锁紧板(702)的一端卡合于插座(701)的内部，位于所述幕墙板组件(4)一侧的L型锁紧板(702)通过自攻螺丝固定在铝合金盖板(6)上，位于所述幕墙板组件(4)另一侧的L型锁紧板(702)通过螺栓固定在铝合金横梁(2)上，且螺栓依次贯穿铝合金横梁(2)和三个连接板(305)。7. The connection structure of a prefabricated building curtain wall assembly according to claim 1, wherein the aluminum alloy frame (7) is provided with sockets (701) on the front and the back of the inner wall, and the aluminum alloy frame (7) is provided with a socket (701). The top and bottom of (7) are provided with notches, and the bottom of the aluminum alloy frame (7) is provided with L-shaped locking plates (702) located on both sides of the curtain wall panel assembly (4) through the notches. One end of the tightening plate (702) is engaged with the inside of the socket (701), and the L-shaped locking plate (702) located on one side of the curtain wall panel assembly (4) is fixed to the aluminum alloy cover plate (6) by self-tapping screws , the L-shaped locking plate (702) located on the other side of the curtain wall panel assembly (4) is fixed on the aluminum alloy beam (2) by bolts, and the bolts pass through the aluminum alloy beam (2) and the three connecting plates in turn. (305). 8.根据权利要求1所述的一种装配式建筑幕墙组件连接构造，其特征在于：所述铝合金边框(7)与面板(401)的连接处设置有密封垫。8 . The assembled building curtain wall assembly connection structure according to claim 1 , wherein a gasket is provided at the connection between the aluminum alloy frame ( 7 ) and the panel ( 401 ). 9 . 9.根据权利要求2所述的一种装配式建筑幕墙组件连接构造，其特征在于：所述面板(401)为玻璃型材，铝塑板，陶土板和阳光板中的任意一种。9 . The assembled building curtain wall assembly connection structure according to claim 2 , wherein the panel ( 401 ) is any one of glass profiles, aluminum-plastic panels, terracotta panels and sun panels. 10 .
