Abstract

The invention discloses a dual-blade humidification heater, comprising a casing, a heating assembly and a humidification assembly located in the casing, the heating assembly and the humidification assembly are independently arranged in the casing, and a warm air is formed between the heating assembly and the casing The air inlet channel (a) and the warm air outlet channel (b) are provided with a warm air inlet corresponding to the warm air inlet channel on the shell, and a heating fan is arranged in the warm air inlet channel (a); humidification A humidification air inlet channel is formed between the component and the housing, the housing is provided with a humidification air inlet (1c) corresponding to the humidification air inlet channel (c), and a humidification fan (5) is arranged in the humidification air inlet channel (c). The humidification air outlet channel (d) is communicated with the warm air outlet channel (b). The present invention can not only solve the problem of air drying in the heating process, but also have a sufficiently high safety factor, and there is no danger of high temperature water vapor hurting people. There is no hidden danger of electrical safety.

Description

A kind of double fan blade humidification heater

technical field

The invention relates to the technical field of air conditioning, in particular to a dual-blade humidification heater.

Background technique

In cold winters, especially in areas without heating, many people choose to use electric heaters for indoor heating, but the use of heaters will inevitably cause the indoor humidity to decrease and the air to dry, which will cause long-term exposure to such an environment. Human discomfort; especially the heater, because it has a fan to force hot air convection, which will aggravate indoor drying;

At present, there are some natural convection heaters in the world that use an open water box outside the body, and use the heating temperature of the heater to evaporate the water to humidify the room, but the evaporation of water in this way is small, and the humidification effect is not ideal;

Chinese patent document CN 107621060 A adopts the method of adding a heating tube in the body, and a water tank is arranged on the body. After the heating tube heats the water, water vapor is brought out into the air for humidification. This form not only has a complex structure, high noise, and high cost High temperature, and high water vapor temperature, there is a danger of scalding, and there are potential safety hazards; if an independent humidifier is used to humidify, it will increase the user's cost of use, and it is not energy-saving and environmentally friendly;

In addition, a humidifier wet pad carrier is arranged in the air passage between the air inlet and outlet of the heater, and when the air flows through the wet pad carrier, the moisture on the upper part is taken away to humidify the air; At the same time, it will flow through the surface of the motor or the heating body of the fan, such as the Chinese patent document CN207050106 U, which also has potential safety hazards and affects its service life.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a dual-blade humidification heater, which can not only solve the problem of air drying in the heating process, but also have a sufficiently high safety factor, without the danger of high-temperature water vapor hurting people, and without electrical safety. hidden danger.

To achieve the above object, the present invention adopts the following technical solutions:

A dual-blade humidification heater, comprising a casing, a heating assembly and a humidification assembly located in the casing, the heating assembly and the humidification assembly are independently arranged in the casing, the heating assembly and the A warm air inlet channel and a warm air outlet channel are formed between the shells, and the shell is provided with a warm air intake port and a warm air outlet corresponding to the warm air intake channel and the warm air outlet channel, A heating fan is arranged in the warm air inlet channel; a humidification air inlet channel and a humidification air outlet channel are formed between the humidification assembly and the housing, and the housing is provided with a humidification air inlet channel corresponding to the humidification air inlet channel. The humidification air inlet is provided with a humidification fan in the humidification air inlet channel, and the humidification air outlet channel is communicated with the warm air outlet channel.

A grid is provided at the connection between the humidification air outlet channel and the warm air outlet channel.

Or preferably, the housing is further provided with a humidification air outlet communicated with the humidification air outlet channel, and the humidification fan inhales external air from the humidification air inlet into the humidification air inlet channel, and passes through the humidification air inlet. The humidification component is humidified and then discharged from the humidification air outlet after passing through the humidification air outlet channel.

The heating assembly is arranged above the humidification assembly, the humidification assembly is located in the cavity formed by the lower part of the casing, and is detachably connected with the casing.

The warm air inlet and the humidification air inlet are arranged on the same side of the casing, and the warm air outlet and the humidification air outlet are arranged on the other opposite side of the casing.

The warm air outlet, the warm air inlet and the humidification air inlet are respectively provided with an air net.

The humidification assembly includes a water tank located at the bottom of the casing and a wet curtain support vertically arranged in the water tank, and a wet curtain is installed on the wet curtain support. When the humidification assembly is installed in the chamber, The wet curtain separates the chamber to form the humidification air inlet channel and the humidification air outlet channel.

The water tank is also provided with an automatic water-filling tank, and the bottom of the automatic water-filling tank is connected with the water tank through a smart valve assembly.

The heating assembly includes a bracket and a PTC heating body mounted on the bracket, and the PTC heating body divides the air passage into the warm air inlet channel and the warm air outlet channel in the housing.

The technical scheme of the present invention has the following advantages:

A. The present invention adopts the separate setting of heating and humidification, and a fan is respectively set at the warm air inlet channel and humidification air inlet channel to realize independent air supply, and the warm air airflow and humidification airflow are only generated when the air is discharged. Air flow mixing, that is, the warm air flow formed by heating the heating element and the humidified air flow formed by passing through the wet curtain are mixed and discharged into the room. The humidified water vapor does not pass through the heating element and the heating fan, and has a high enough safety factor. It avoids the danger of high temperature water vapor hurting people, and there is no hidden danger of electrical safety, which is more beneficial to the service life of electrical devices, and solves the problem of air drying in the heating process.

B. The present invention also has heating and humidifying functions, which can be used at the same time or separately. One machine is multi-purpose, and the air is adjusted to make the user feel more comfortable and have a good experience.

C. The present invention adopts an independent and detachable humidifying assembly, which is more convenient for cleaning the water tank, water tank and housing chamber, and is more beneficial to the environment and personal health.

Description of drawings

In order to illustrate the specific embodiments of the present invention more clearly, the following will briefly introduce the accompanying drawings used in the specific embodiments. As far as technical personnel are concerned, other drawings can also be obtained based on these drawings without any creative effort.

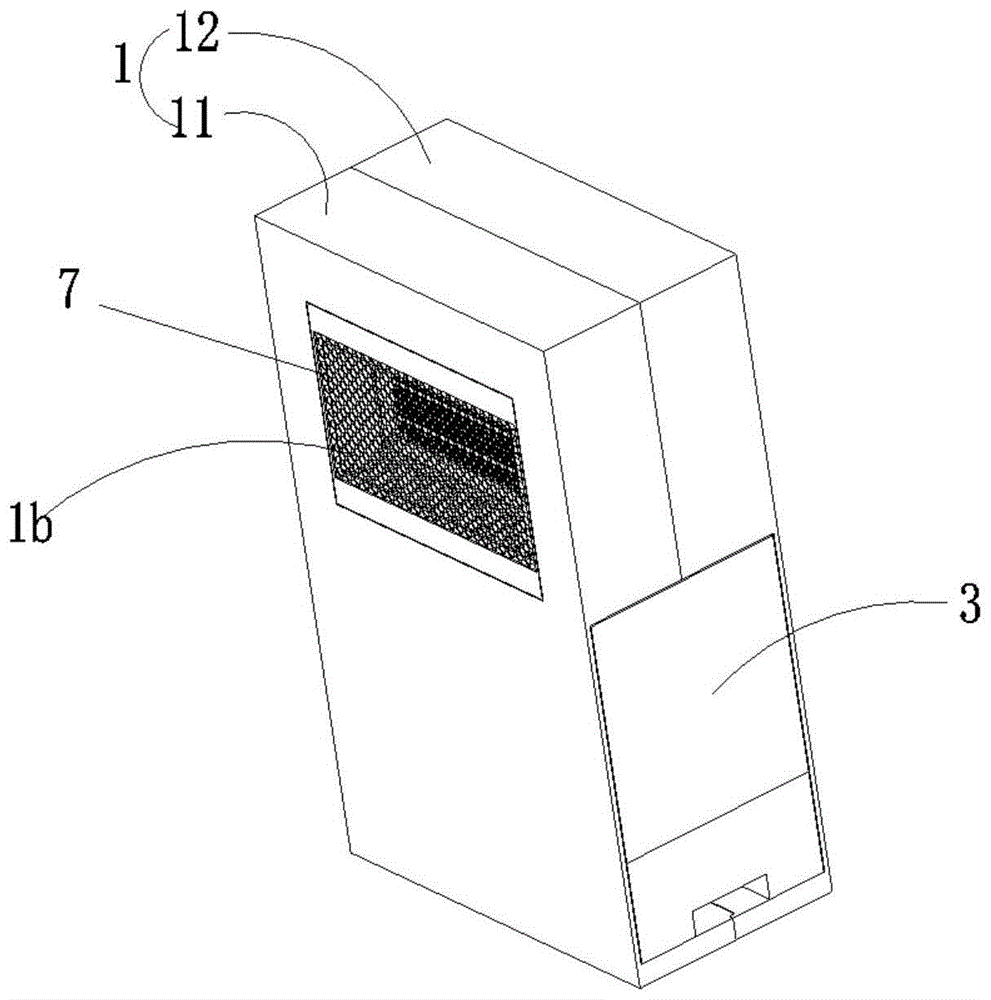

Fig. 1 is the three-dimensional schematic diagram of the first embodiment provided by the present invention;

FIG. 2 is a schematic structural diagram when the humidification assembly in the structure shown in FIG. 1 is separated;

3 is a schematic cross-sectional structure diagram of the first embodiment provided by the present invention;

Fig. 4 is the schematic diagram of heating and humidifying according to the first embodiment of the present invention;

FIG. 5 is a schematic structural diagram of the humidification assembly in the second embodiment provided by the present invention when it is separated;

FIG. 6 is a schematic diagram of the heating and humidifying shown in FIG. 5 .

The figure is marked as follows:

1-shell, 11-front shell, 12-rear shell

2- Heating components

21-bracket, 22-PTC heating element

3- Humidification components

31-Sink, 32-Wet curtain bracket, 33-Wet curtain, 34-Automatic water tank

4- Heating fan

5-humidification fan; 6-grid; 7-wind net;

a- warm air inlet channel, b- warm air outlet channel, c- humidification air inlet channel

d- humidification air outlet, e-chamber

1a- warm air inlet, 1b- warm air outlet

1c- humidification air inlet, 1d- humidification air outlet.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below with reference to the accompanying drawings. Obviously, the described embodiments are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Example 1

As shown in Figure 1, Figure 2, Figure 3 and Figure 4, the present invention provides a dual-blade humidification heater, comprising a casing 1, a heating assembly 2 and a humidification assembly 3 located in the casing 1, and the heating assembly 2 It is independent from the humidification assembly 3 in the casing 1, and a warm air inlet channel a and a warm air outlet channel b are formed between the heating assembly 2 and the casing 1, and the casing 1 is provided with the warm air intake channel a and The warm air inlet 1a and the warm air outlet 1b corresponding to the warm air outlet channel b, and the warm air inlet channel a is provided with a heating fan 4; the humidification component 3 and the housing 1 form a humidification air inlet channel c and humidification The air outlet channel d is provided with a humidification air inlet 1c corresponding to the humidification air inlet channel c on the housing 1, and a humidification fan 5 is arranged in the humidification air inlet channel c. The humidification air outlet channel d and the warm air outlet channel b connected. The casing 1 here is preferably composed of a front casing 11 and a rear casing 12, wherein the heating assembly 2 is connected to the front casing 11, the warm air inlet 1a and the humidification air inlet 1c are preferably arranged on the same side of the casing 1, and the warm air exits The tuyere 1b is provided on the other opposite side of the casing 1 . At the same time, a wind net 7 is set at each air outlet.

In the present invention, preferably, a grid 6 is further provided at the connection between the humidification air outlet channel d and the warm air outlet channel b. The heating assembly 2 is preferably arranged above the humidification assembly 3 , and the humidification assembly 3 is located in the chamber e formed by the lower part of the casing 1 and is detachably connected to the casing 1 . The humidification components and the heating components may also be arranged in other manners in the housing, such as left and right parallel arrangement, which can be set according to specific conditions, and will not be repeated here.

As shown in Figure 2, the humidification assembly 3 includes a water tank 31 at the bottom of the housing 1 and a wet curtain support 32 vertically arranged in the water tank 31. The wet curtain support 32 is provided with a wet curtain 33, and the lower part of the wet curtain 3 is immersed in In the water tank 31, the wet curtain is gradually wetted by the siphon effect. When the humidification assembly 3 is installed in the chamber e, the wet curtain 33 separates the chamber e to form a humidification air inlet channel c and a humidification air outlet channel d. In the present invention, an automatic water filling tank 34 is also arranged in the water tank 31, and the bottom of the automatic water filling tank 34 is connected with the water tank 31 through a smart valve assembly, and the water in the water tank can be automatically filled according to the water level in the water tank 31; When the water is insufficient, just pull out the humidification assembly 3 from one side of the housing 1, take out the water tank from the water tank and fill it with water, or directly open the upper cover of the water tank and inject water, and then push the humidification assembly 3 into the housing as a whole. in the lower chamber. The above-mentioned wet curtain is a carrier with good water absorption with many via holes, which is not specifically limited in the present invention.

The use of independent and detachable humidification components is convenient for cleaning, and the breeding of bacteria and dirt can be more effectively inhibited and reduced.

The heating assembly 2 includes a bracket 21 and a PTC heating body 22 mounted on the bracket 21 . The PTC heating body 22 divides the air passage into the warm air inlet channel a and the warm air outlet channel b in the housing 1 . The bracket is connected with the front shell.

As shown in Fig. 2, the present invention is provided with a chamber at the lower side of the housing for the humidification component to be inserted, wherein the automatic water-filling tank is arranged on one side of the water tank, and the wet curtain bracket that brings the wet curtain connects the water tank to one side. It is divided into two parts, so as to form a humidification air outlet channel and a humidification air inlet channel respectively with the front shell and the rear shell at the positions on both sides. Push the water tank of the humidification assembly into the chamber along the bottom of the chamber. When the water tank is fully installed in place, the automatic water tank directly seals the opening of the chamber, making the whole more beautiful.

When heating is used, driven by the heating fan 4, the air outside the housing is brought out into the room through the wind net 7 of the warm air outlet 1b after passing through the PTC heating element;

As shown in Figure 4, when the humidification function is used, the humidification fan 5 drives the air outside the body to pass through the wet curtain, and the moisture on the wet curtain is brought from the grid 6 to the warm air outlet channel, and is connected to the warm air outlet. The warm air is collected, and the mixed and humidified air is brought out into the room, that is, the entire heating and humidifying function is completed.

Example 2

As shown in FIG. 5 and FIG. 6 , different from Embodiment 1, the present invention is also provided with a humidification air outlet 1d connected to the humidification air outlet channel d on the housing 1, and the humidification air outlet 1d is located at the warm air outlet Below 1b, the humidification air outlet channel d is directly connected to the humidification air outlet 1d, that is, the heating and humidification channels are separated.

As shown in FIG. 5 , the fan blade grille is installed at the humidification air outlet 1d, and the blowing direction can be adjusted by adjusting the angle of the fan blade grille. The humidifying fan 5 sucks external air from the humidifying air inlet 1c into the humidifying air inlet channel c, and is humidified by the humidifying component 3 and then discharged through the humidifying air outlet 1d through the humidifying air outlet channel d.

When heating is used, driven by the heating fan 4, the air outside the housing 1 passes through the PTC heating element, and is taken out into the room through the air net at the warm air outlet to complete the entire heating function.

When the humidification function is used, the humidification fan 5 drives the air outside the housing to pass through the wet curtain, and takes the moisture on the wet curtain out of the humidification air outlet into the room, that is, the entire humidification function is completed.

The present invention adopts a separate setting for heating and humidification or mixes the heated airflow with the humidified airflow passing through the wet curtain and then discharges it into the room, which can not only solve the problem of air drying during the heating process, but also has a high enough safety factor to avoid It avoids the danger of high temperature water vapor hurting people, and there is no hidden danger of electrical safety.

Obviously, the above-mentioned embodiments are only examples for clear description, and are not intended to limit the implementation manner. For those of ordinary skill in the art, changes or modifications in other different forms can also be made on the basis of the above description. There is no need and cannot be exhaustive of all implementations here. However, the obvious changes or changes derived therefrom still fall within the protection scope of the present invention.

Claims (9)

1. A dual-blade humidifying heater, comprising a casing (1), a heating assembly (2) and a humidifying assembly (3) located in the casing (1), characterized in that the heating assembly (2) ) and the humidifying assembly (3) are independently disposed in the casing (1), and a warm air inlet channel (a) and a warm air outlet are formed between the heating assembly (2) and the casing (1). A channel (b), the housing (1) is provided with a warm air inlet (1a) and a warm air outlet corresponding to the warm air inlet channel (a) and the warm air outlet channel (b) (1b), a heating fan (4) is arranged in the warm air inlet passage (a); a humidification air inlet passage (c) and a humidification outlet are formed between the humidification assembly (3) and the housing (1). Air passage (d), the housing (1) is provided with a humidification air inlet (1c) corresponding to the humidification air inlet passage (c), and a humidification fan is arranged in the humidification air inlet passage (c) (5), the humidification air outlet channel (d) is communicated with the warm air outlet channel (b). 2 . The dual-blade humidifying heater according to claim 1 , wherein a grid ( 6 ) is provided at the connection between the humidifying air outlet passage (d) and the warm air outlet passage (b). 3 . . 3. The dual-blade humidifying heater according to claim 2, wherein the housing (1) is further provided with a humidifying air outlet (1d) that communicates with the humidifying air outlet passage (d). , the humidification fan (5) inhales external air from the humidification air inlet (1c) and enters the humidification air inlet passage (c), and is humidified by the humidification assembly (3) and then passes through the humidification air outlet passage ( d) and then discharged from the humidification air outlet (1d). 4. The dual-blade humidifying heater according to any one of claims 1-3, wherein the heating assembly (2) is arranged above the humidifying assembly (3), and the humidifying assembly (3) ) is located in the chamber (e) formed by the lower part of the casing (1), and forms a detachable connection with the casing (1). 5. The dual-blade humidifying heater according to claim 4, wherein the warm air inlet (1a) and the humidifying air inlet (1c) are arranged on the same side of the housing (1), so The warm air outlet (1b) and the humidification air outlet (1d) are arranged on the other opposite side of the casing (1). 6. The dual-blade humidifying heater according to claim 5, wherein the warm air outlet (1b), the warm air inlet (1a) and the humidifying air inlet (1c) are respectively provided with a wind net (7). 7. The dual-blade humidifying heater according to claim 4, wherein the humidifying assembly (3) comprises a water tank (31) located at the bottom of the casing (1) and a water tank (31) vertically arranged in the water tank In the wet curtain support (32) in (31), a wet curtain (33) is installed on the wet curtain support (32), and when the humidification assembly (3) is installed in the chamber (e), the The wet curtain (33) separates the chamber (e) to form the humidification air inlet passage (c) and the humidification air outlet passage (d). 8 . The dual-blade humidifying heater according to claim 7 , wherein an automatic water-filling tank (34) is further provided in the water tank (31), and the bottom of the automatic water-filling tank (34) is the same as the The water tanks (31) are connected through a smart valve assembly. 9. The dual-blade humidifying heater according to claim 1, wherein the heating assembly (2) comprises a bracket (21) and a PTC heating element (22) mounted on the bracket (21), The PTC heating element (22) divides the air passage into the warm air inlet passage (a) and the warm air outlet passage (b) in the housing (1).
