Abstract

The invention provides an anti-blocking electrocatalytic cell, relates to the technical field of electrocatalytic cells, and mainly solves the technical problem that the inlet and outlet pipes of the electrocatalytic cell used for sewage treatment in the prior art are easily blocked. . The anti-blocking electrocatalytic cell includes a filter rod assembly, the filter rod assembly is located in the electrocatalytic cell, and the filter rod assembly is provided with a filter hole, the size of the filter hole is not larger than the size of the catalyst in the raw solution to be filtered in the electrocatalytic cell, and the filter rod assembly and Inlet and/or outlet connections. The inlet and outlet pipes are equipped with filter rod assemblies, which increases the contact area between the inlet and outlet pipes and sewage, and also ensures that the height difference between the inlet and outlet pipes in the electrocatalytic cell can be set. Realize the sewage circulation in the electrocatalytic cell to ensure the sewage treatment efficiency.

Description

An anti-clogging electrocatalytic cell

technical field

The invention relates to the technical field of electrocatalytic cells, in particular to an anti-blocking electrocatalytic cell.

Background technique

Electrocatalytic technology is a new type of treatment process in industrial wastewater treatment. It energizes the electrode plate and oxidizes the pollutants in the sewage under the synergistic effect of the catalyst, and finally achieves the purpose of oxidative degradation of COD.

Electrocatalytic technology is very effective in treating sewage, so catalytic technology is a necessary process in the sewage treatment system at this stage. However, in practical applications, the catalyst often blocks the inlet and outlet pipes of the electrocatalytic cell, resulting in the paralysis of the entire sewage treatment system.

Referring to Fig. 1 and Fig. 2, in order to prevent the catalyst from entering the water inlet and outlet pipes of the electrocatalytic cell at this stage, the following two methods are usually adopted: 1. Filter type. 2. Stencil type plus support structure.

For the first method, the filter is only perforated on the surface of the plate with the size of the pipe, and is directly bonded to the end of the pipe with glue. Although this method is simple to process, the contact area between the pipe surface and the sewage is small, and it is easy to block. The water inlet pipe is slightly blocked, causing the outlet pressure of the water supply pump of the electrocatalytic cell to increase. The outlet pipe is slightly blocked, and the inlet pressure of the drain pump increases. Both conditions can cause damage to the filter, allowing the catalyst to enter and block the line.

For the second method, the mesh plate type adds a support structure. The mesh plate is easy to deform, and many support plates are needed, so the gap between the support plates is small, so that there is no large catalyst extraction hole at the bottom of the electrocatalytic cell. At the same time, the inlet and outlet pipes need to be separated by a partition, and the nozzles of the inlet and outlet pipes are located at the same height of the electrocatalytic cell, which is not conducive to the circulation of sewage in the electrocatalytic cell and reduces the efficiency of sewage treatment.

SUMMARY OF THE INVENTION

One of the purposes of the present invention is to provide an anti-blocking electrocatalytic cell, which solves the technical problem that the inlet and outlet pipes of the electrocatalytic cell used for sewage treatment in the prior art are easily blocked. In the preferred embodiment of the present invention, many beneficial effects can be achieved, which are described in detail below.

For achieving the above object, the invention provides the following technical solutions:

The anti-blocking electrocatalytic cell of the present invention comprises a filter rod assembly, the filter rod assembly is located in the electrocatalytic cell, and the filter rod assembly is provided with a filter hole, the size of the filter hole is not larger than the size of the catalyst in the raw solution to be filtered in the electrocatalytic cell, and the filter rod is filtered. The rod assembly is connected to the inlet and/or outlet pipes.

According to a preferred embodiment, the filter hole ring and filter rod assemblies are distributed around.

According to a further preferred technical solution, the filter rod assembly is detachably connected to the water inlet pipe and/or the water outlet pipe.

According to a further preferred technical solution, the anti-blocking electrocatalytic cell further comprises a detachable connector, one end of the detachable connector is connected with the filter rod assembly, and the other end of the detachable connector is connected with the water inlet pipe and/or the water outlet pipe, and The filter rod assembly is detachably connected to the water inlet pipe and/or the water outlet pipe through a detachable connecting piece.

According to a further preferred technical solution, the detachable connector is located in the electrocatalytic cell.

According to a further preferred technical solution, the detachable connector is a union.

According to a further preferred technical solution, the filter rod assembly is arranged horizontally.

According to a further preferred technical solution, the water inlet pipe and/or the water outlet pipe are vertically arranged in the electrocatalytic cell.

According to a further preferred technical solution, the filter rod assembly includes a filter tube and a direction change connector, the filter tube is connected with the direction change connector, and the direction change connector is connected with the water inlet pipe and/or the water outlet pipe.

According to a further preferred technical solution, the direction changing connector is a tee and/or a pipe elbow.

According to a further preferred technical solution, the filter rod assembly further includes a cap, which is located at the end of the filter tube and connected to the filter tube, so as to prevent the catalyst in the electrocatalytic cell from entering the filter tube from the end of the filter tube through the cap.

According to a further preferred technical solution, filter holes are provided on the filter tube, the direction changing connector and/or the cap.

The anti-blocking electrocatalytic cell provided by the present invention at least has the following beneficial technical effects:

In the anti-blocking electrocatalytic cell of the present invention, filter holes are arranged on the filter rod assembly to increase the contact area between the filter rod assembly and the sewage in the electrocatalytic cell, that is, to increase the number of filter holes used for sewage filtration, so as to prevent the electrocatalytic cell from entering the electrocatalytic cell. The inlet and/or outlet pipes are blocked by the catalyst in the electrocatalytic cell. In the present invention, the filter rod assembly is used to increase the contact area between the nozzle of the water inlet pipe and/or the nozzle of the water outlet pipe and the sewage in the electrocatalytic cell, and no support plate is required. The catalyst accumulated at the bottom of the catalytic cell was pulled out. In addition, the filter rod assemblies of the inlet and outlet pipes are independent of each other, and the heights of the inlet and outlet pipes can be set as required to promote sewage circulation in the electrocatalytic cell and improve sewage treatment efficiency.

In the electrocatalytic cell of the preferred technical solution of the present invention, the filter rod assembly is detachably connected to the water inlet pipe and the water outlet pipe, so as to facilitate the replacement and/or maintenance of the filter rod assembly.

In the electrocatalytic cell of the preferred technical solution of the present invention, the filter rod assembly is simple in structure and low in production cost, and the filter rod assembly is directly connected with the inlet and outlet pipes of the electrocatalytic cell in the prior art. The electrocatalytic cells described in this application can be improved from the electrocatalytic cells in the prior art at low cost.

Description of drawings

In order to explain the embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description are only These are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained according to these drawings without creative efforts.

Fig. 1 is the schematic diagram of the electrocatalytic cell whose water inlet pipe and water outlet pipe orifices are filters in the prior art;

Fig. 2 is the schematic diagram of water inlet pipe and water outlet pipe orifice filter sheet in the prior art;

Fig. 3 is the schematic diagram of the electrocatalytic cell mesh plate type and supporting structure in the prior art;

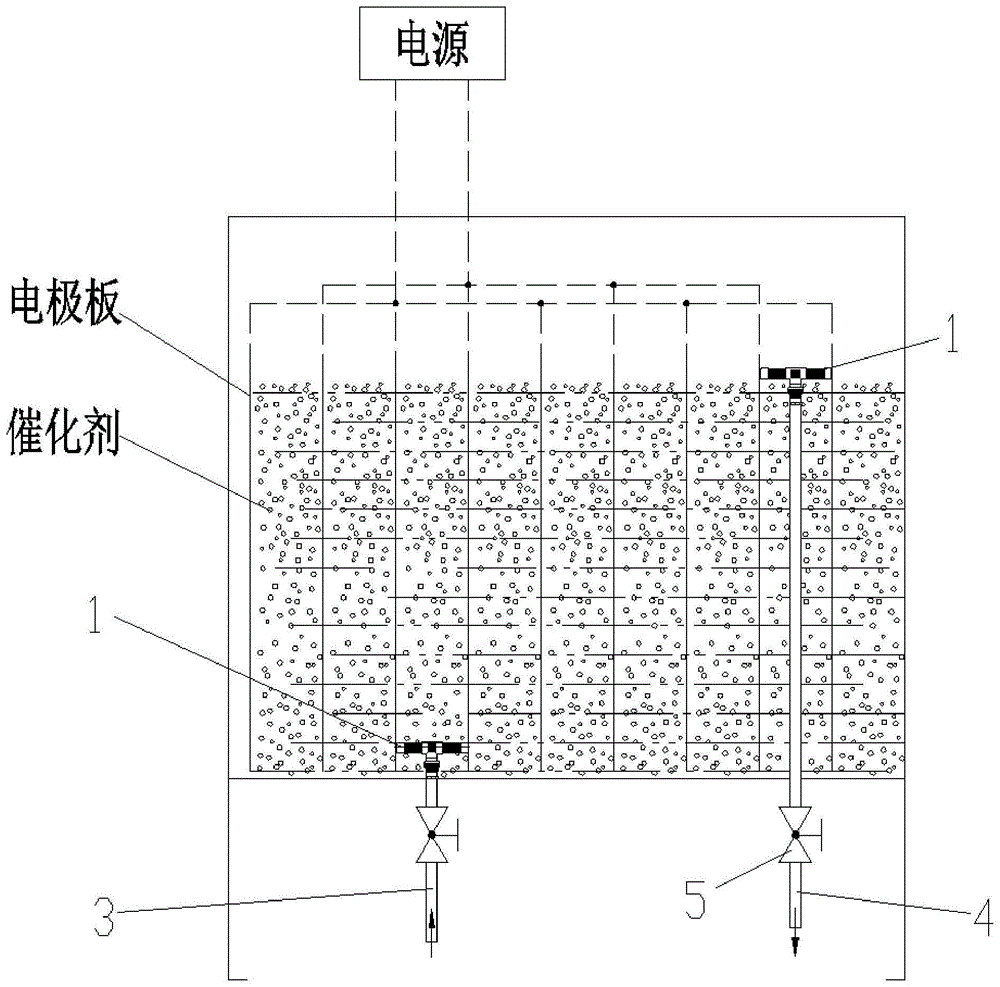

Fig. 4 is a schematic diagram of the anti-blocking electrocatalytic cell according to a preferred embodiment of the present invention;

Fig. 5 is the assembly drawing of the filter rod assembly of the inlet pipe and outlet pipe of the anti-blocking electrocatalytic cell according to the first preferred embodiment of the present invention;

6 is an exploded view of the filter rod assembly of the inlet pipe and outlet pipe of the anti-blocking electrocatalytic cell according to the first preferred embodiment of the present invention;

7 is an assembly diagram of the filter rod assembly of the inlet pipe and outlet pipe of the anti-blocking electrocatalytic cell according to the second preferred embodiment of the present invention.

In the figure: 1-filter rod assembly; 11-filter hole; 12-filter pipe; 13-direction changing connector; 14-cap; 15-PVC pipe; 2-removable connector; 3-water inlet pipe; 4-outlet Water pipe; 5-ball valve; 6-external thread direct joint.

Detailed ways

In order to make the objectives, technical solutions and advantages of the present invention clearer, the technical solutions of the present invention will be described in detail below. Obviously, the described embodiments are only some, but not all, embodiments of the present invention. Based on the embodiments of the present invention, all other implementations obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Referring to FIGS. 4 to 7 , an anti-clogging electrocatalytic cell according to a preferred embodiment of the present invention includes a filter rod assembly 1 . The filter rod assembly 1 is located in the electrocatalytic cell, and the filter rod assembly 1 is provided with a filter hole 11, the size of the filter hole 11 is not larger than the size of the catalyst in the raw liquid to be filtered in the electrocatalytic cell, and the filter rod assembly 1 and the water inlet pipe 3 and/or The outlet pipe 4 is connected.

Compared with the electrocatalytic cell of the nozzle of the filter-type water inlet pipe 3 and the nozzle of the water outlet pipe 4 in the prior art, the above preferred embodiment adds the nozzle of the water inlet pipe 3 and the pipe of the water outlet pipe 4. The contact area between the port and the raw liquid to be filtered in the electrocatalytic cell, that is, the contact area of the sewage to be filtered in the electrocatalytic cell, so that the sewage in the electrocatalytic cell can enter the nozzle of the water outlet pipe 4 from more filter holes 11, and the liquid in the water inlet pipe 3 can be removed from the water. Many filter holes 11 enter the electrocatalytic cell, thereby solving the technical problem that the nozzle of the water inlet pipe 3 and the nozzle of the water outlet pipe 4 are easily blocked. Further, the present application adopts the method of filter rod assembly 1 to increase the contact area of the nozzle of the sewage water inlet pipe 3 and the nozzle of the water outlet pipe 4 and the sewage, and there is no need to set a support plate at the bottom of the electrocatalytic cell, so it will not affect the bottom catalyst extraction port. The size allows users to set different catalyst extraction ports according to their needs.

Further, compared with the design of the inlet pipe 3 and the outlet pipe 4 of the existing mesh plate type and supported, the above-mentioned preferred embodiment can set the height of the filter rod assembly 1 as required, which is convenient for sewage circulation in the electrocatalytic pool. . Specifically, the design of the inlet pipe 3 and outlet pipe 4 with mesh plate support, the inlet pipe 3 and outlet pipe 4 have the same height and are located at the bottom of the electrocatalytic cell, which is not conducive to the sewage circulation at the top of the electrocatalytic cell. , reducing the sewage treatment efficiency in the electrocatalytic cell.

As a further preferred embodiment of the present invention, the filter rod assembly 1 is detachably connected to the water inlet pipe 3 and/or the water outlet pipe 4 . As a preferred embodiment, the filter rod assembly 1 is connected with the water inlet pipe 3 and/or the water outlet pipe 4 through a detachable connector. The user realizes the disassembly of the filter rod assembly 1 by disconnecting the connecting piece between the filter rod assembly 1 and the water inlet pipe 3 and/or the water outlet pipe 4 .

As another preferred embodiment, the filter rod assembly 1 is directly connected with the water inlet pipe 3 and/or the water outlet pipe 4 through a detachable connection, such as screw connection. The user realizes the disassembly of the filter rod assembly 1 by twisting the filter rod assembly 1 .

A further preferred embodiment of the electrocatalytic cell of the present invention further comprises a detachable connector 2, one end of the detachable connector 2 is connected to the filter rod assembly 1, and the other end of the detachable connector 2 is connected to the water inlet pipe 3 and/or the outlet The water pipe 4 is connected, and the filter rod assembly 1 is detachably connected with the water inlet pipe 3 and/or the water outlet pipe 4 through the detachable connector 2 . Preferably, the detachable connector 2 is a live joint.

In the above preferred embodiment, the operator can disassemble the filter rod assembly 1 by disassembling the joint.

Referring to FIG. 4 , as a further preferred embodiment of the present invention, the detachable connector 2 is located in the electrocatalytic cell.

In the above preferred embodiment, the detachable connector 2 is arranged in the electrocatalytic cell. The operator only needs to disconnect the detachable connecting piece 2 to realize the disassembly of the filter rod assembly 1 .

Referring to FIG. 4 , as a further preferred embodiment of the present invention, the filter rod assembly 1 is horizontally arranged in the electrocatalytic cell. Further preferably, the filter rod assembly 1 of the nozzle of the water inlet pipe 3 is horizontally arranged at the bottom of the electrocatalytic cell, and the filter rod assembly 1 of the nozzle of the water outlet pipe 4 is horizontally arranged close to the sewage liquid level in the electrocatalytic cell.

4, as a further preferred embodiment of the present invention, the water inlet pipe 3 and/or the water outlet pipe 4 are arranged vertically.

5 to 7, as a further preferred embodiment of the present invention, the filter rod assembly 1 includes a filter tube 12 and a direction-changing connector 13, the filter tube 12 is connected with the direction-changing connector 13, and the direction-changing connector 13 is connected with Connect the inlet pipe 3 and/or the outlet pipe 4. Referring to FIG. 5 and FIG. 6 , as a further preferred embodiment of the present invention, the direction changing connector 13 is a tee and/or a pipe elbow.

Referring to FIG. 5 , as a preferred embodiment, the connection between the direction changing connector 13 and the detachable connector 2 is connected by a PVC pipe 15 .

5 to 7 , as a preferred embodiment, the filter rod assembly 1 further includes an externally threaded direct joint 6 to be threadedly connected to the water inlet pipe 3 and/or the water outlet pipe 4 through the externally threaded direct joint 6 . Further preferably, the connection between the external thread direct joint 6 and the detachable connector 2 is through a PVC pipe 15 .

The filter rod assembly 1 in the electrocatalytic cell described in the above preferred embodiment has a simple structure, low manufacturing cost and simple transformation method. Specifically, the electrocatalytic cell described in the above preferred embodiment can be directly transformed from the electrocatalytic cell in the prior art in which the nozzles of the water inlet pipe 3 and the water outlet pipe 4 are filter sheets.

Referring to FIGS. 5 and 6 , as a preferred embodiment, the water inlet pipe 3 and/or the water outlet pipe 4 are connected to the middle of the filter pipe 12 . Specifically, a tee is provided in the middle of the filter pipe 12, and the water inlet pipe 3 and/or the water outlet pipe 4 are connected with the filter pipe 12 through the tee pipe. Preferably, the direction changing connector 13 is provided with filter holes 11.

As a further preferred embodiment of the present invention, the filter rod assembly 1 further includes a cap 14, which is located at the end of the filter tube 12 and is connected to the filter tube 12, so as to prevent the catalyst in the electrocatalytic cell from passing from the filter tube 12 through the cap 14. The ends enter the filter tube 12 . Preferably, the cap 14 is provided with filter holes 11 above.

3, as a preferred embodiment, the water inlet pipe 3 and the water outlet pipe 4 are provided with a ball valve 5. Further preferably, the ball valve 5 is located outside the electrocatalytic cell.

The above are only specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto. Any person skilled in the art can easily think of changes or substitutions within the technical scope disclosed by the present invention. should be included within the protection scope of the present invention. Therefore, the protection scope of the present invention should be based on the protection scope of the claims.

Claims (10)

1. An anti-blocking electrocatalytic cell, characterized in that, comprising a filter rod assembly (1), the filter rod assembly (1) is located in the electrocatalytic cell, and the filter rod assembly (1) is provided with a filter hole (11 ), the size of the filter hole (11) is not larger than the size of the catalyst in the raw solution to be filtered in the electrocatalytic cell, and the filter rod assembly (1) is connected to the water inlet pipe (3) and/or the water outlet pipe (4) . 2 . The anti-blocking electrocatalytic cell according to claim 1 , wherein the filter rod assembly ( 1 ) is detachably connected to the water inlet pipe ( 3 ) and/or the water outlet pipe ( 4 ). 3 . 3. The anti-blocking electrocatalytic cell according to claim 2, characterized in that it further comprises a detachable connector (2), one end of the detachable connector (2) being connected to the filter rod assembly (1) , the other end of the detachable connector (2) is connected with the water inlet pipe (3) and/or the water outlet pipe (4), and the filter rod assembly (1) is connected with the water inlet pipe (3) And/or the water outlet pipe (4) is detachably connected through the detachable connecting piece (2). 4 . The anti-blocking electrocatalytic cell according to claim 3 , wherein the detachable connector ( 2 ) is located in the electrocatalytic cell. 5 . 5 . The anti-blocking electrocatalytic cell according to claim 3 , wherein the detachable connector ( 2 ) is a live joint. 6 . 6 . The anti-blocking electrocatalytic cell according to claim 1 , wherein the filter rod assembly ( 1 ) is horizontally arranged in the electrocatalytic cell. 7 . 7. The anti-clogging electrocatalytic cell according to claim 6, wherein the water inlet pipe (3) and/or the water outlet pipe (4) are arranged vertically. 8. The anti-blocking electrocatalytic cell according to any one of claims 1 to 7, wherein the filter rod assembly (1) comprises a filter tube (12) and a direction-changing connector (13), the The filter pipe (12) is connected with the direction-changing connecting piece (13), and the direction-changing connecting piece (13) is connected with the water inlet pipe (3) and/or the water outlet pipe (4). 9 . The anti-blocking electrocatalytic cell according to claim 8 , wherein the direction changing connector ( 13 ) is a tee and/or a pipe elbow. 10 . 10. The anti-blocking electrocatalytic cell according to claim 8, wherein the filter rod assembly (1) further comprises a cap (14), and the cap (14) is located at the end of the filter tube (12) It is connected to the filter tube (12) to prevent the catalyst in the electrocatalytic cell from entering the filter tube (12) from the end of the filter tube (12) through the cap (14).
