The invention discloses a beef curing device in a bottled beef paste production process, which comprises an installation base and a group of opposite overturning installation bases fixedly installed on the installation base, wherein a jacketed kettle is movably installed on each overturning installation base, a stirring mechanism is arranged on each jacketed kettle, and a scraping mechanism is arranged on one side of each jacketed kettle. The invention has the beneficial effects that beef in the jacketed kettle can be effectively stirred by the stirring mechanism positioned on the jacketed kettle, the cooked beef can be pressed by the circular meat pressing plate, the beef is prevented from being cured incompletely, the froth filter screen can filter froth generated during beef curing, the froth filter screen is of a detachable structure, impurities in the froth filter screen can be conveniently cleaned, the scraping mechanism can automatically scrape beef soup remaining in the kettle after the material is poured in the jacketed kettle, the manual scraping labor force is reduced, the jacketed kettle can be automatically cleaned by the cleaning head, the cooked beef can be conveyed to the next production line by the conveyor belt, and the beef curing efficiency is effectively improved.
Description
Technical Field
The invention relates to the field of bottled beef paste production, in particular to a beef curing device in a bottled beef paste production process.
Background
Beef paste is a seasoning mainly containing beef. The beef paste is prepared by frying the beef paste by adopting the traditional process and skillfully combining the Yuchu formula. The taste is pure, is an indispensable seasoning for table service of common people at home, and can be directly eaten.
In the production process of the bottled beef paste, the thawed beef needs to be cured and processed. Most of existing beef curing equipment cures through a jacketed kettle, a large amount of floating foam can be generated in the beef curing process, the floating foam cannot be cleaned in time, the quality of follow-up beef paste can be affected, the beef after curing cannot be cleaned in time, the beef cannot be poured thoroughly, the beef soup remained in the kettle needs to be scraped manually, the jacketed kettle needs to be cleaned manually after being used, the beef curing efficiency is low, and the market demand cannot be met.
Disclosure of Invention
Aiming at the defects, the invention provides a beef curing device in the production process of bottled beef paste, and aims to solve the problem of the production curing of the bottled beef paste.
In order to achieve the purpose, the invention adopts the following technical scheme:
a beef curing device in the production process of bottled beef paste comprises an installation base and a group of opposite overturning installation bases fixedly installed on the installation base, wherein a jacketed pan is movably installed on each overturning installation base, a stirring mechanism is arranged on each jacketed pan, and a scraping mechanism is arranged on one side of each jacketed pan;
the stirring mechanism comprises a stirring installation seat, a stirring connection frame, a first fixed end shaft, a second fixed end shaft, a hydraulic oil cylinder, a stirring motor, a stirring shaft, a pot cover, a group of opposite sliding chutes, a hollow connecting rod, a rectangular installation frame, a froth filter screen, an n-shaped installation frame, a sliding rod, a pulling handle, a fixed block, a first spring, a floating ball, a circular meat pressing plate, a plurality of circular through holes and stirring blades, wherein the stirring installation seat is installed at the rear end of the upper surface of an installation base, the stirring connection frame is movably hinged to the upper end of the stirring installation seat and is in an inverted L shape, the first fixed end shaft is positioned on one side of the stirring installation seat, the second fixed end shaft is installed on one side of the bottom of the stirring connection frame, one end of the hydraulic oil cylinder is movably hinged to the first fixed end shaft, the other end of the hydraulic oil cylinder is movably hinged to the second fixed, the stirring shaft is arranged on the rotating end of the stirring motor, the pot cover is arranged at the upper end of the stirring shaft, a group of opposite chutes are arranged on two sides of the upper end of the stirring shaft, the rear end of the hollow connecting rod is movably arranged in the chute, the rectangular mounting frame is arranged at the front end of the hollow rod, the froth filter screen is arranged in the rectangular mounting frame, and is of a detachable structure, the n-shaped mounting frame is arranged on the rectangular mounting frame, the sliding rod is movably inserted on the n-shaped mounting frame, the pulling handle is arranged at the upper end of the sliding rod, the fixed block is arranged on the sliding rod, the spring is sleeved on the sliding rod, the bottom of the stirring shaft is connected with a fixed block, the floating ball is arranged at one side of the rectangular mounting frame, the circular meat pressing plate is arranged on the stirring shaft, the stirring blades are arranged at the bottom of the stirring shaft;
the scraping mechanism comprises a group of opposite turning shafts, a worm wheel, a motor base, a stepping motor, a worm, a rotating rod, an incomplete bevel gear I, a scraping mounting seat, a transmission rod, a bevel gear II, a scraping rod, an electric push rod, a scraping mounting plate, a limiting groove, a sliding scraper, a limiting plate, a spring II, a rectangular conveying groove, a belt conveyor, a driving motor, a plurality of strip-shaped holes, a cleaning pipeline, a plurality of cleaning heads and a sewage collecting inner cavity, wherein the group of opposite turning shafts are respectively and movably mounted inside the group of opposite turning mounting seats, the front end of one turning shaft extends out of the turning mounting seat, the worm wheel is mounted at the front end of the turning shaft extending out of the turning mounting seat, the motor base is mounted on one side of the turning mounting seats, the stepping motor is horizontally mounted on the mounting base, the worm is mounted at the rotating end of the stepping motor, the automatic material scraping device comprises a rotating rod, an incomplete bevel gear, a scraping mounting seat, a transmission rod, a bevel gear II, a limiting groove, a limiting plate, a spring sleeve, a spring and a limiting plate, wherein the rotating rod is mounted at the front end of a worm, the incomplete bevel gear I is mounted at the front end of the rotating rod, the scraping mounting seat is mounted at the front end of the upper surface of a mounting base, the transmission rod is transversely mounted on the scraping mounting seat, the bevel gear II is mounted on one side of the transmission rod and is meshed with the incomplete bevel gear I, the scraping rod is fixedly mounted on the transmission rod, the electric push rod is mounted at the front end of the scraping rod, the scraping mounting plate is mounted at the telescopic end of the electric push rod and is arc-shaped, the limiting groove is opened in the scraping mounting plate, the sliding scraper is movably mounted in the limiting groove, the limiting plate, band conveyer installs in rectangle conveying groove, driving motor installs in band conveyer one side, and a plurality of bar hole is transversely opened on the installation base, and corresponding with intermediate layer bottom of a boiler portion, it installs at the bar downthehole to wash the pipeline, and a plurality of cleaning head is evenly installed on wasing the pipeline, sewage is collected the inner chamber and is opened in the installation base, and just communicates with the bar hole.
Furthermore, a pot mouth is arranged on one side of the upper end of the interlayer pot.
Furthermore, a group of opposite connecting rods are installed on two sides of the bottom of the stirring connecting frame, and the bottoms of the connecting rods are connected with the pot cover.
Furthermore, the rear end of the hollow connecting rod is slidably mounted in the sliding groove through a sliding block.
Furthermore, the number of the froth filter screen is two, the froth filter screen has the same size, and the positions of the froth filter screen are staggered.
Furthermore, the rectangular mounting frame and the froth filter screen are provided with corresponding fixing grooves, and the bottom of the sliding rod is movably inserted in the fixing grooves.
Further, the first partial helical gear is formed by the meshing teeth and the meshing bars.
Further, install the conveyer belt in the band conveyer, evenly open on the conveyer belt and have a plurality of to place the recess, place the recess top and place and collect the basin.
Further, the cleaning pipeline is communicated with an external water pipe.
Furthermore, a sewage discharge outlet is formed in one side of the sewage collection inner cavity.
The invention provides a beef curing device in the production process of bottled beef paste, which has the following beneficial effects that beef in a jacketed kettle can be effectively stirred by a stirring mechanism positioned on the jacketed kettle, a circular meat pressing plate can press the cooked beef to prevent the beef from being cured incompletely, a froth filter screen can filter froth generated during beef curing, the froth filter screen is of a detachable structure and is convenient to clean impurities in the froth filter screen, a scraping mechanism can automatically scrape beef soup remaining in the kettle after the material is poured in the jacketed kettle, the labor force of manual scraping is reduced, a cleaning head can automatically clean the jacketed kettle, a conveyor belt can convey the cured beef to the next production line, and the beef curing efficiency is effectively improved.
Drawings

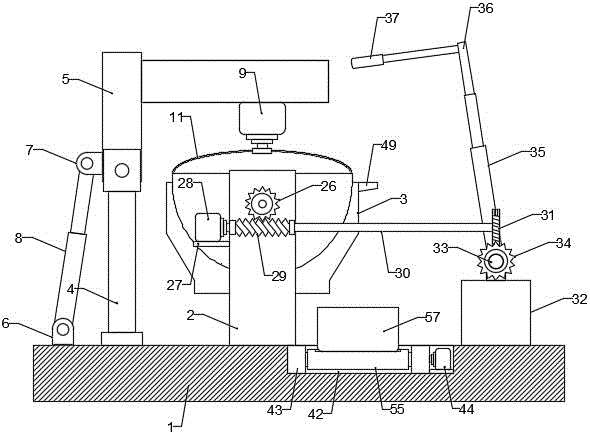

FIG. 1 is a schematic diagram of a beef ripening device in the production process of bottled beef paste.
FIG. 2 is a schematic diagram of the meshing between the first incomplete bevel gear and the second bevel gear according to the present invention.
Fig. 3 is a top view of the conveyor belt of the present invention.
Fig. 4 is a cross-sectional view of the scraper mounting plate of the present invention.
Fig. 5 is a schematic view of the stirring mechanism of the present invention.
Fig. 6 is a partial enlarged view of a portion a of fig. 5 according to the present invention.
FIG. 7 is a schematic view of a rectangular mounting frame according to the present invention.
Fig. 8 is a top view of the froth filter screen according to the present invention.
Fig. 9 is a top view of the circular meat pressing plate of the present invention.
Fig. 10 is a schematic view of the scraping mechanism of the present invention.
Fig. 11 is a cross-sectional view of the scraping mechanism of the present invention.
FIG. 12 is a schematic view of the jacketed kettle cleaning of the present invention.
In the figure: 1. installing a base; 2. overturning the mounting seat; 3. a jacketed pan; 4. a stirring mounting seat; 5. a stirring connecting frame; 6. a first fixed end shaft; 7. a second fixed end shaft; 8. a hydraulic cylinder; 9. a stirring motor; 10. a stirring shaft; 11. a pot cover; 12. a chute; 13. a hollow connecting rod; 14. a rectangular mounting frame; 15. a froth filter screen; 16. an n-type mounting frame; 17. a slide bar; 18. pulling the handle; 19. a fixed block; 20. a first spring; 21. a floating ball; 22. a circular meat pressing plate; 23. a circular through hole; 24. a stirring blade; 25. a turning shaft; 26. a worm gear; 27. a motor base; 28. a stepping motor; 29. a worm; 30. rotating the rod; 31. incomplete bevel gear I; 32. a scraping mounting seat; 33. a transmission rod; 34. a second bevel gear; 35. a scraping rod; 36. an electric push rod; 37. a scraping mounting plate; 38. a limiting groove; 39. a sliding blade; 40. a limiting plate; 41. a second spring; 42. a rectangular conveying groove; 43. a belt conveyor; 44. a drive motor; 45. a strip-shaped hole; 46. cleaning a pipeline; 47. a cleaning head; 48. a sewage collection inner cavity; 49. a pot mouth; 50. a connecting rod; 51. a slider; 52. fixing grooves; 53. meshing teeth; 54. an engagement strip; 55. a conveyor belt; 56. placing a groove; 57. a collection basin; 58. a sewage draining outlet.
Detailed Description
The invention is described in detail below with reference to the accompanying drawings, as shown in FIGS. 1-12: a beef curing device in the production process of bottled beef paste comprises an installation base 1 and a group of opposite overturning installation bases 2 fixedly installed on the installation base 1, wherein interlayer pots 3 are movably installed on the overturning installation bases 2, stirring mechanisms are arranged on the interlayer pots 3, and scraping mechanisms are arranged on one sides of the interlayer pots 3;
the stirring mechanism comprises a stirring installation seat 4, a stirring connection frame 5, a first fixed end shaft 6, a second fixed end shaft 7, a hydraulic oil cylinder 8, a stirring motor 9, a stirring shaft 10, a pot cover 11, a group of opposite sliding grooves 12, a hollow connecting rod 13, a rectangular installation frame 14, a froth filter screen 15, an n-shaped installation frame 16, a sliding rod 17, a pulling handle 18, a fixed block 19, a first spring 20, a floating ball 21, a circular meat pressing plate 22, a plurality of circular through holes 23 and stirring blades 24, wherein the stirring installation seat 4 is arranged at the rear end of the upper surface of the installation base 1, the stirring connection frame 5 is movably hinged at the upper end of the stirring installation seat 4 and is inverted L-shaped, the first fixed end shaft 6 is positioned at one side of the stirring installation seat 4, the second fixed end shaft 7 is arranged at one side of the bottom of the stirring connection frame 5, one end of the hydraulic oil cylinder 8 is movably hinged with the first fixed end shaft 6, and, the stirring motor 9 is arranged at the bottom of the stirring connecting frame 5, the rotating end of the stirring motor is vertically downward, the stirring shaft 10 is arranged at the rotating end of the stirring motor 9, the pot cover 11 is arranged at the upper end of the stirring shaft 10, a group of opposite sliding grooves 12 are arranged at two sides of the upper end of the stirring shaft 10, the rear end of the hollow connecting rod 13 is movably arranged in the sliding grooves 12, the rectangular mounting frame 14 is arranged at the front end of the hollow rod 13, the floating foam filter screen 15 is arranged in the rectangular mounting frame 14 and is of a detachable structure, the n-type mounting frame 16 is arranged on the rectangular mounting frame 14, the sliding rod 17 is movably inserted on the n-type mounting frame 16, the pulling handle 18 is arranged at the upper end of the sliding rod 17, the fixed block 19 is arranged on the sliding rod 17, the first spring 20 is sleeved on the sliding rod 17, the bottom of the first spring, the circular meat pressing plate 22 is arranged on the stirring shaft 10 and is positioned below the rectangular mounting frame 14, the plurality of circular through holes 23 are uniformly formed in the circular meat pressing plate 22, and the stirring blades 24 are arranged at the bottom of the stirring shaft 10;
the scraping mechanism comprises a group of opposite turning shafts 25, a worm wheel 26, a motor base 27, a stepping motor 28, a worm 29, a rotating rod 30, a first incomplete bevel gear 31, a scraping mounting seat 32, a transmission rod 33, a second bevel gear 34, a scraping rod 35, an electric push rod 36, a scraping mounting plate 37, a limiting groove 38, a sliding scraper 39, a limiting plate 40, a second spring 41, a rectangular conveying groove 42, a belt conveyor 43, a driving motor 44, a plurality of strip-shaped holes 45, a cleaning pipeline 46, a plurality of cleaning heads 47 and a sewage collecting inner cavity 48, wherein the group of opposite turning shafts 25 are respectively and movably mounted on the inner sides of the group of opposite turning mounting seats 2, the front end of one turning shaft 25 extends out of the turning mounting seats 2, the worm wheel 26 is mounted at the front end of the turning shaft 25 extending out of the turning mounting seats 2, the motor base 27 is mounted on one side of the turning mounting seats 2, the stepping motor 28 is horizontally, the worm 29 is arranged at the rotating end of the stepping motor 28 and is meshed with the worm wheel 26, the rotating rod 30 is arranged at the front end of the worm 28, the incomplete helical gear 31 is arranged at the front end of the rotating rod 30, the scraping installation seat 32 is arranged at the front end of the upper surface of the installation base 1, the transmission rod 33 is transversely arranged on the scraping installation seat 32, the helical gear II 34 is arranged at one side of the transmission rod 33 and is meshed with the incomplete helical gear 31, the scraping rod 35 is fixedly arranged on the transmission rod 33, the electric push rod 36 is arranged at the front end of the scraping rod 35, the scraping installation plate 37 is arranged at the telescopic end of the electric push rod 36 and is arc-shaped, the limiting groove 38 is arranged in the scraping installation plate 37, the sliding scraper 39 is movably arranged in the limiting groove 38, the limiting plate 40 is arranged at the upper end of the sliding scraper 39, and the spring II 41 is sleeved at, and be connected with limiting plate 40, rectangle conveying groove 42 is opened on installation base 1, and is located a set of relative upset mount pad 2 and scrapes between the material mount pad 32, band conveyer 43 installs in rectangle conveying groove 42, driving motor 44 installs in band conveyer 43 one side, and a plurality of bar hole 45 transversely opens on installation base 1, and corresponding with 3 bottoms of intermediate layer pot, it installs in bar hole 45 to wash pipeline 46, and a plurality of cleaning head 47 is evenly installed on washing pipeline 46, sewage is collected inner chamber 48 and is opened in installation base 1, and communicates with bar hole 45.
A pot mouth 49 is arranged on one side of the upper end of the jacketed pot 3.
A set of relative connecting rods 50 is installed on two sides of the bottom of the stirring connecting frame 5, and the bottom of each connecting rod 50 is connected with the pot cover 11.
The rear end of the hollow connecting rod 13 is slidably mounted in the sliding groove 12 through a sliding block 51.
The floating foam filter screens 15 are two in number, have the same size and are staggered in position.
The rectangular mounting frame 14 and the froth filter screen 15 are provided with corresponding fixing grooves 52, and the bottom of the sliding rod 17 is movably inserted in the fixing grooves 52.
The first partial helical gear 31 is formed by the meshing teeth 53 and the meshing strip 54.
The belt conveyor 43 is internally provided with a conveyor belt 55, the conveyor belt 55 is uniformly provided with a plurality of placing grooves 56, and a collecting basin 57 is placed above the placing grooves 56.
The purge line 46 communicates with an external water pipe.
A sewage outlet 58 is arranged on one side of the sewage collecting cavity 48.
The working principle of the embodiment is as follows: the electric equipment used by the device is controlled by an external controller, the jacketed kettle 3 is heated by steam, the cleaning pipeline 46 is communicated with an external water pipe, when the jacketed kettle 3 is not used, the kettle cover 11 covers the jacketed kettle 3, as shown in figure 1, dust can be effectively prevented from entering the jacketed kettle 3, when the device is used, a user firstly opens a switch of a hydraulic oil cylinder 8, one end of the hydraulic oil cylinder 8 is movably hinged with a first fixed end shaft 6, the other end of the hydraulic oil cylinder is movably hinged with a second fixed end shaft 7, a stirring connecting frame 5 is movably hinged at the upper end of a stirring mounting seat 4, the hydraulic oil cylinder 8 contracts to drive the kettle cover 11 to be opened, and the user sequentially adds beef, water and seasonings to be cured into the jacketed kettle 3;
during stirring: after the materials are placed, the hydraulic oil cylinder 8 extends to drive the pot cover 11 to cover the jacketed kettle 3, so that the heat loss during beef cooking can be reduced, the stirring motor 9 starts to work to drive the stirring shaft 10 on the rotating end to rotate slowly, a group of opposite sliding grooves 12 are formed in two sides of the upper end of the stirring shaft 10, the rear end of the hollow connecting rod 13 is movably arranged in the sliding grooves 12 through sliding blocks 51, as shown in fig. 6, the rectangular mounting frame 14 is arranged at the front end of the hollow rod 13, the froth filter screen 15 is arranged in the rectangular mounting frame 14 and is of a detachable structure, the number of the froth filter screens 15 is two, the sizes are the same, the positions are staggered mutually, as shown in fig. 8, the stirring shaft 10 drives a group of froth filter screens 15 to rotate, the froth filter screen 15 cleans froth generated during beef cooking, the float ball 21 is arranged on one side of the rectangular mounting frame 14, the float ball 21 can enable the froth filter screen 15 in the rectangular, the circular meat pressing plate 22 is installed on the stirring shaft 10 through a fastening bearing and is positioned below the rectangular installation frame 14, a plurality of circular through holes 23 are uniformly formed in the circular meat pressing plate 22, as shown in fig. 9, the circular meat pressing plate 22 can press beef in the jacketed pan 3, when the beef is prevented from being steamed, the beef floats on the water surface and is not thoroughly cooked, the stirring blades 24 are installed at the bottom of the stirring shaft 10, the stirring blades 24 can slowly stir the beef in the jacketed pan 3, the beef cooking effect is improved, when impurities in the froth filter screen 15 need to be cleaned, a user pulls the pull handle 18, the n-type installation frame 16 is installed on the rectangular installation frame 14, the sliding rod 17 is movably inserted on the n-type installation frame 16, the fixed block 19 is installed on the sliding rod 17, the first spring 20 is sleeved on the sliding rod 17, the bottom of the first spring is connected with the fixed block 19, corresponding fixing grooves 52 are formed in the rectangular installation frame 14 and the froth filter screen 15, the bottom of the sliding rod 17 is movably inserted into the fixing groove 52, as shown in fig. 7, when a user pulls and pulls the handle 18, the first spring 20 is stressed and compressed, the bottom of the sliding rod 17 slides out of the fixing groove 52 of the froth filter screen 15 to take out the froth filter screen 15 and clean impurities in the froth filter screen 15, beef in the jacketed kettle 3 can be effectively stirred through a stirring mechanism on the jacketed kettle 3, the cooked beef can be pressed by the circular meat pressing plate 22 to prevent the beef from being cured incompletely, the froth filter screen 15 can filter froth generated during beef curing, and the froth filter screen 15 is of a detachable structure, so that the impurities in the froth filter screen 15 can be cleaned conveniently;
when scraping materials: after beef in the jacketed kettle 3 is cooked, the hydraulic oil cylinder 8 drives the kettle cover 11 to be opened, then the stepping motor 28 starts to work, the stepping motor 28 drives the worm 29 on the rotating end to start rotating, the worm 29 and the worm wheel 26 are meshed with each other, the worm wheel 26 is installed at the front end of the turning shaft 25 extending out of the turning installation seat 2, the turning shaft 25 is fixedly connected with the jacketed kettle 3, the turning shaft 25 drives the jacketed kettle 3 to turn, a kettle mouth 49 is arranged on one side of the upper end of the jacketed kettle 3, the rectangular conveying groove 42 is formed in the installation base 1 and is positioned between a set of opposite turning installation seat 2 and the scraping installation seat 32, the belt conveyor 43 is installed in the rectangular conveying groove 42, the driving motor 44 is installed on one side of the belt conveyor 43, the belt conveyor 43 is internally provided with a conveyor belt 55, the conveyor belt 55 is uniformly provided with a plurality of placing grooves 56, the collecting basin 57, cured beef and soup in the jacketed kettle 3 are poured into the collection basin 57 through the kettle mouth 49, the rotating rod 30 is installed at the front end of the worm 28, the incomplete bevel gear I31 is installed at the front end of the rotating rod 30, the scraping installation seat 32 is installed at the front end of the upper surface of the installation base 1, the transmission rod 33 is transversely installed on the scraping installation seat 32, the bevel gear II 34 is installed at one side of the transmission rod 33 and is meshed with the incomplete bevel gear I31, the rotating rod 30 drives the transmission rod 33 to slowly rotate while the jacketed kettle 3 rotates, the scraping rod 35 is fixedly installed on the transmission rod 33, the electric push rod 36 is installed at the front end of the scraping rod 35, the scraping installation plate 37 is installed at the telescopic end of the electric push rod 36 and is arc-shaped, when the jacketed kettle 3 is poured, the scraping installation plate 37 rotates to the inner bottom of the jacketed kettle 3 to automatically scrape the beef and soup remaining in the jacketed kettle 3, the limit groove 38 is opened, the sliding scraper 39 is movably arranged in the limiting groove 38, the limiting plate 40 is arranged at the upper end of the sliding scraper 39, the second spring 41 is sleeved at the upper end of the sliding scraper 39 and is connected with the limiting plate 40, as shown in fig. 4, the bottom of the sliding scraper 39 is tightly attached to the bottom in the jacketed kettle 3, the electric push rod 36 contracts to drive the sliding scraper 39 to move backwards, the second spring 41 is stressed and stretched to scrape beef and soup residual in the jacketed kettle 3 into the collecting basin 57, after scraping, the conveying belt 55 conveys the collecting basin 57 to the next process, the stepping motor 28 continues to rotate to drive the jacketed kettle 3 to continue to turn over, the incomplete helical gear 31 is composed of meshing teeth 53 and meshing strips 54, as shown in fig. 2, at the moment, the meshing strips 54 are meshed with the second helical gear 34, the helical gear 34 does not rotate, a plurality of strip-shaped holes 45 are transversely arranged on the mounting base 1 and correspond to the bottom of the jacketed kettle 3, cleaning tube 46 installs in bar hole 45, a plurality of cleaning head 47 is evenly installed on cleaning tube 46, cleaning head 47 can carry out self-cleaning to jacketed kettle 3, sewage collection inner chamber 48 is opened in installation base 1, and communicate with bar hole 45, sewage after the washing flows into in sewage collection inner chamber 48, as shown in fig. 12, after jacketed kettle 3 washs the completion, step motor 28 antiport, drive jacketed kettle 3 and scrape the material pole 35 and reset, scrape the material mechanism and can be after the material pouring of jacketed kettle 3, carry out the automatic scraping to remaining beef soup in the pot, reduce artifical scraping labour, cleaning head 47 can carry out self-cleaning to jacketed kettle 3, conveyer belt 22 can carry the beef after the curing to next production line, effectively improve beef curing efficiency.
The technical solutions described above only represent the preferred technical solutions of the present invention, and some possible modifications to some parts of the technical solutions by those skilled in the art all represent the principles of the present invention, and fall within the protection scope of the present invention.
Claims (10)
1. A beef curing device in the production process of bottled beef paste comprises a mounting base (1) and a group of opposite overturning mounting bases (2) fixedly mounted on the mounting base (1), and is characterized in that interlayer pots (3) are movably mounted on the overturning mounting bases (2), a stirring mechanism is arranged on the interlayer pots (3), and a scraping mechanism is arranged on one side of each interlayer pot (3);
the stirring mechanism comprises a stirring mounting seat (4), a stirring connecting frame (5), a first fixed end shaft (6), a second fixed end shaft (7), a hydraulic oil cylinder (8), a stirring motor (9), a stirring shaft (10), a pot cover (11), a group of opposite sliding grooves (12), a hollow connecting rod (13), a rectangular mounting frame (14), a foam floating filter screen (15), an n-shaped mounting frame (16), a sliding rod (17), a pulling handle (18), a fixing block (19), a first spring (20), a floating ball (21), a circular meat pressing plate (22), a plurality of circular through holes (23) and stirring blades (24), wherein the stirring mounting seat (4) is mounted at the rear end of the upper surface of the mounting base (1), the stirring connecting frame (5) is movably hinged at the upper end of the stirring mounting seat (4) and is inverted L-shaped, the first fixed end shaft (6) is positioned on one side of the stirring mounting seat (4), the stirring device is characterized in that a second fixed end shaft (7) is arranged on one side of the bottom of a stirring connecting frame (5), one end of a hydraulic oil cylinder (8) is movably hinged with a first fixed end shaft (6), the other end of the hydraulic oil cylinder is movably hinged with the second fixed end shaft (7), a stirring motor (9) is arranged at the bottom of the stirring connecting frame (5), the rotating end of the stirring motor faces downwards vertically, a stirring shaft (10) is arranged at the rotating end of the stirring motor (9), a pot cover (11) is arranged at the upper end of the stirring shaft (10), a group of opposite sliding chutes (12) are formed in two sides of the upper end of the stirring shaft (10), the rear end of a hollow connecting rod (13) is movably arranged in the sliding chutes (12), a rectangular mounting frame (14) is arranged at the front end of a hollow rod (13), a floating foam filter screen (15) is arranged in the rectangular mounting frame (14) and is of a detachable structure, and an, the device comprises a sliding rod (17), a pulling handle (18), a fixed block (19), a spring I (20), a floating ball (21), a circular meat pressing plate (22), a plurality of circular through holes (23), stirring blades (24) and a support, wherein the sliding rod (17) is movably inserted into an n-shaped mounting frame (16), the pulling handle (18) is mounted at the upper end of the sliding rod (17), the fixed block (19) is mounted on the sliding rod (17), the spring I (20) is sleeved on the sliding rod (17), the bottom of the spring I is connected with the fixed block (19), the floating ball (21) is mounted on one side of a rectangular mounting frame (14), the circular meat pressing plate (22) is mounted on a stirring shaft (10) and is positioned below the rectangular mounting frame (14), the circular;
the scraping mechanism comprises a group of opposite turning shafts (25), a worm wheel (26), a motor base (27), a stepping motor (28), a worm (29), a rotating rod (30), an incomplete bevel gear I (31), a scraping mounting seat (32), a transmission rod (33), a bevel gear II (34), a scraping rod (35), an electric push rod (36), a scraping mounting plate (37), a limiting groove (38), a sliding scraper (39), a limiting plate (40), a spring II (41), a rectangular conveying groove (42), a belt conveyor (43), a driving motor (44), a plurality of strip-shaped holes (45), a cleaning pipeline (46), a plurality of cleaning heads (47) and a sewage collecting inner cavity (48), wherein the group of opposite turning shafts (25) are respectively and movably mounted at the inner sides of the group of opposite turning mounting seats (2), and the front end of one turning shaft (25) extends out of the turning mounting seats (2), the worm wheel (26) is arranged at the front end of a turnover shaft (25) extending out of the turnover mounting seat (2), the motor base (27) is arranged on one side of the turnover mounting seat (2), the stepping motor (28) is horizontally arranged on the mounting base (27), the worm (29) is arranged on the rotating end of the stepping motor (28) and is meshed with the worm wheel (26), the rotating rod (30) is arranged at the front end of the worm (28), the incomplete helical gear I (31) is arranged at the front end of the rotating rod (30), the scraping mounting seat (32) is arranged at the front end of the upper surface of the mounting base (1), the transmission rod (33) is transversely arranged on the scraping mounting seat (32), the helical gear II (34) is arranged on one side of the transmission rod (33) and is meshed with the incomplete helical gear I (31), the scraping rod (35) is fixedly arranged on the transmission rod (33), electric putter (36) are installed and are being scraped material pole (35) front end, scrape material mounting panel (37) and install and serve in electric putter (36) is flexible, and be the arc, spacing recess (38) are opened and are being scraped material mounting panel (37), slip scraper blade (39) movable mounting is in spacing recess (38), limiting plate (40) are installed in slip scraper blade (39) upper end, two (41) suit of spring are in slip scraper blade (39) upper end, and are connected with limiting plate (40), rectangle conveying groove (42) are opened on installation base (1), and are located a set of relative upset mount pad (2) and scrape between material mount pad (32), band conveyer (43) are installed in rectangle conveying groove (42), driving motor (44) are installed in band conveyer (43) one side, and a plurality of bar hole (45) are transversely opened on installation base (1), and corresponding with intermediate layer pot (3) bottom, wash pipeline (46) and install in bar hole (45), a plurality of cleaning head (47) are evenly installed on washing pipeline (46), sewage is collected inner chamber (48) and is opened in installation base (1), and communicates with bar hole (45).
2. The beef ripening device in the production process of bottled beef paste as claimed in claim 1, wherein a pot mouth (49) is provided on one side of the upper end of the jacketed pot (3).
3. The beef ripening device in the production process of bottled beef paste as claimed in claim 1, wherein a set of opposing connecting rods (50) are installed on both sides of the bottom of the stirring connecting rack (5), and the bottom of the connecting rods (50) is connected with the pot cover (11).
4. The beef ripening device in the production process of bottled beef paste as claimed in claim 1, wherein the rear end of the hollow connecting rod (13) is slidably mounted in the chute (12) through a slider (51).
5. The beef maturation device during the production of bottled beef paste, according to claim 1, wherein said froth filter nets (15) are two in number, of the same size and staggered in position.
6. The beef curing device in the bottled beef paste production process according to claim 1, wherein the rectangular mounting frame (14) and the froth filter screen (15) are provided with corresponding fixing grooves (52), and the bottom of the sliding rod (17) is movably inserted into the fixing grooves (52).
7. The beef maturation device in the production process of bottled beef paste, as claimed in claim 1, wherein said partial helical gear (31) is formed by a combination of a meshing tooth (53) and a meshing strip (54).
8. The beef curing device in the bottled beef paste production process according to claim 1, wherein a conveyor belt (55) is installed in the belt conveyor (43), a plurality of placing grooves (56) are uniformly formed in the conveyor belt (55), and a collecting basin (57) is placed above the placing grooves (56).
9. The beef maturation device during the production of bottled beef paste, according to claim 1, wherein said cleaning conduit (46) is in communication with an external water pipe.
10. The beef curing device in the bottled beef paste production process according to claim 1, wherein a drain outlet (58) is formed at one side of the sewage collection cavity (48).
