CN111776398A - A multipurpose coffee packaging box - Google Patents

Abstract

The invention discloses a multi-purpose coffee packaging box, which comprises two symmetrical half box bodies with the same structure. A front indentation line is arranged on the front side, and a first arc insertion part is also arranged below the front indentation line. When the panel part above the front indentation line is folded inward along the side indentation line, the insertion flap can be Insert the first arc insertion part; both sides of the half box body are provided with side indentation lines, so that the side of the half box body has a triangle that can be folded along the side indentation line; A second arc insertion part is arranged below the side indentation line, and after the triangle is folded inward along the side indentation line, the apex of the triangle can just be inserted into the second arc insertion part. Not only can it be used for normal commodity packaging, but it can also be folded into two symmetrical and neat half-box spaces for consumers to store and share coffee.

Description

A multipurpose coffee packaging box

technical field

The invention belongs to the technical field of packaging boxes, in particular to a multipurpose coffee packaging box.

Background technique

At present, the packaging boxes of instant coffee on the market mostly use tubular cartons. This kind of box has a single function, is inconvenient to hold and place coffee, and wastes paper, which increases the production cost accordingly.

SUMMARY OF THE INVENTION

The purpose of the present invention is to overcome the deficiencies of the prior art, and to provide a multipurpose coffee packaging box, which is rich in functions, low in cost, and can better meet the needs of consumers.

The present invention is achieved through the following technical solutions:

A multipurpose coffee packaging box, comprising two symmetrical half box bodies with the same structure, the half box bodies comprising a bottom surface, a front surface, a back surface and two side surfaces;

The top edges of the backs of the two half-boxes are connected, and the connecting edge is a notch line; the front side of the half-boxes is provided with a frontal indentation line, the frontal indentation line is parallel to the incision line, and the frontal indentation line is parallel to the notch line. The top edge of the front side is provided with a flap, and the flap is divided into three sections, which are the insert flap in the middle and the longer adhesive flaps on both sides of the insert flap; in the half box There is also a first arc insertion part below the front indentation line on the front of the body. When the panel part above the front indentation line of the half box body is folded inward along the side indentation line, the insertion flap can just be inserted. the first arc plug-in part, so that the folded panel can fit on the front inner wall of the half box body;

Both sides of the half box body are provided with side indentation lines, one end of the side indentation line is connected to the indentation line, and the other end of the side indentation line is connected to the front indentation line of the half box body, so that the The side of the half box body has a triangle that can be folded along the side indentation line; a second circular arc plug-in part is arranged below the side indentation line on the side of the half box body. When the triangle is folded inward along the side indentation line , the apex angle of the triangle can just be inserted into the second arc plug-in part, so that the triangle fits on the inner wall of the side surface of the half box body.

In the above technical solution, the distance between the front indentation line and the bottom surface of the half box body is 2/3 of the total height of the front side of the half box body.

In the above technical solution, the flaps are arranged along the top edge of the front side of the half box body, the flap flap height is 1cm, and the total length of the flap flaps is consistent with the top side length of the front side of the half box body.

In the above technical solution, the length of the plug flap is 1-1.5 cm.

In the above technical solution, the bottom edges of the two sides of the half box body are connected with triangular flaps, and the triangular flaps are bonded to the bottom surface of the half box body, so that the bottom surface and the side surfaces are fixed.

In the above technical solution, a small rectangular flap is connected to the outer edges of the two sides of the half box body, and the small rectangular flap is bonded to the front side of the half box body, so that the front side and the side surface are fixed.

In the above-mentioned technical scheme, the two sides of the panel above the front indentation line of the half box body are respectively connected with small rectangular flaps, and the small rectangular flaps are bonded to the triangular inner wall of the side of the half box body, thereby Secure the panels above the front indentation line and the triangles on the sides.

In the above technical solution, the multi-purpose coffee packaging box is made from a whole box blank.

The method of using the multipurpose coffee packaging box is as follows:

1. Use as a box to pack coffee: put the bagged coffee into two half boxes, then fold the adhesive flaps of the two half boxes inwards 90 degrees, and stick them together with glue to make Two half boxes are packaged into a complete box for sale and use;

2. The consumer opens the box from the junction of the adhesive flaps to form two half boxes, and then folds the triangle on the side of the half box inward along the side indentation line, and inserts the top corner of the triangle into the second arc The insertion part, so that the triangle fits on the inner wall of the side of the half box body; the panel part above the front indentation line of the half box body is folded inward along the side indentation line, so that the insertion flap is inserted into the first arc socket. so as to make the folded panel fit on the inner wall of the front of the half box body; thus forming two neat half box bodies, one for coffee and the other for placing some small debris; in addition, you can cut along the middle The trace line divides the two half boxes into two independent boxes, which are suitable for good friends, buy one thing to share, or put one half at home, and the other half for company or school use.

The advantages and beneficial effects of the present invention are:

The coffee packaging box of the present invention can not only be used for normal commodity (coffee) packaging, but also can be folded into two symmetrical and neat half-box spaces, one for containing coffee, and the other half for storing small sundries. In addition, Since the structure on both sides of this box is the same, and the incision line is set in the middle, it can be divided into two independent boxes along the incision line. Keep half at home and the other half for company or school use.

It can be reused. After drinking coffee, this box can also be used for multiple purposes, which is convenient for storing daily scattered small items. Students can use it to hold pens, note pads, knives, tapes and other odds and ends; office workers can put them after they are used up. Use it on your desk to hold paper towels.

In addition, the packaging box is made of a single box blank, which saves costs, uses less glue, can be automatically produced, and provides maximum economic benefits for enterprises.

Description of drawings

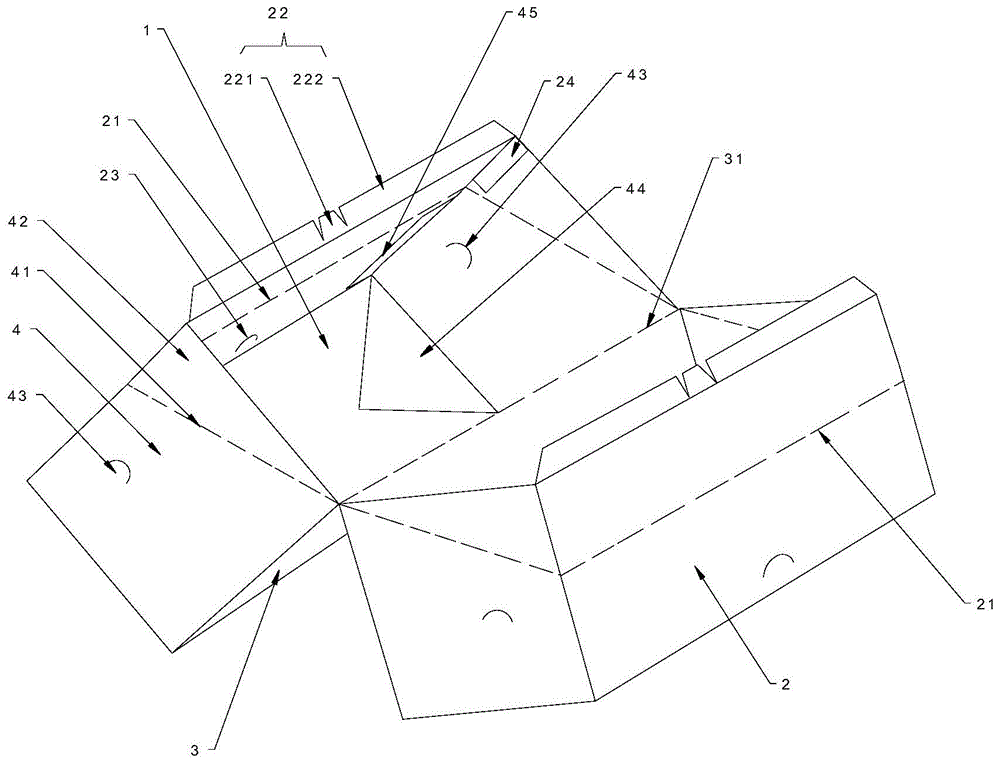

FIG. 1 is a schematic structural diagram of the multipurpose coffee packaging box of the present invention in an open state.

FIG. 2 is a schematic structural diagram of the multipurpose coffee packaging box of the present invention as a complete box body.

3 is a schematic structural diagram of the multipurpose coffee packaging box of the present invention after it is folded into two connected half boxes.

FIG. 4 is a schematic structural diagram of the multipurpose coffee packaging box of the present invention after it is divided into two independent boxes.

5 is a schematic structural diagram of the blank of the multipurpose coffee packaging box of the present invention.

in:

1: Bottom, 2: Front, 3: Back, 4: Side, 21: Front indentation line, 22: Flap, 23: First arc insert, 24: Small rectangle flap, 221: Insert flap Pieces, 222: Adhesive flap, 31: Incision line, 41: Side indentation line, 42: Triangle, 43: Second arc socket, 44: Triangular flap, 45: Small rectangular flap.

For those of ordinary skill in the art, other related drawings can be obtained from the above drawings without any creative effort.

Detailed ways

In order to make those skilled in the art better understand the solutions of the present invention, the technical solutions of the present invention are further described below with reference to specific embodiments.

Example 1

Referring to Figures 1-4, a multipurpose coffee packaging box includes two symmetrical half boxes with the same structure. The half boxes include a bottom surface 1, a front surface 2, a back surface 3 and two side surfaces 4.

The top edges of the back surfaces 3 of the two half boxes are connected, and the connecting edge is a notch line 31 . The bottom surface 1 of the half box body is rectangular. The front side of the half box body is provided with a front side indentation line 21, the front side indentation line 21 is parallel to the incision line 31, and the distance between the front side indentation line 21 and the bottom surface 1 of the half box body is the total height of the front side of the half box body. 2/3, the top edge of the front of the half box body is provided with a flap 22, the flap is arranged along the top edge of the front side of the half box body, the flap height is 1cm, and the total length of the flap is the same as that of the front side of the half box body. The length of the top edge is the same, and further, the flap is divided into three sections, which are respectively the insert flap 221 with a length of 1-1.5 cm located in the middle part and the longer bond on both sides of the flap. A flap 222; a first circular arc plug-in portion 23 is also provided below the front indentation line on the front of the half box body. When the panel portion above the front indentation line of the half box body is folded inward along the side indentation line , the insertion flap 221 can just be inserted into the first arc insertion part 23, so that the folded panel can be attached to the inner wall of the front side of the half box body to prevent it from lifting.

Both sides 4 of the half box body are provided with side indentation lines 41, one end of the side indentation line is connected to the indentation line, and the other end of the side indentation line is connected to the front indentation line of the half box body, This gives the side of the half box a triangle 42 that can be folded along the side indentation line. Further, a second arc insertion portion 43 is provided below the side indentation line on the side of the half box body. When the triangle 42 is folded inward along the side indentation line 41, the apex of the triangle 42 can just be inserted into the first arc. The two arc insertion parts 43 make the triangle fit on the inner wall of the side surface of the half box body and prevent the triangle from lifting.

Further, the bottom edges of the two sides of the half box are all connected with triangular flaps 44, and when assembling, the triangular flaps are bonded to the bottom surface 1 of the half box body, so that the bottom surface 1 and the side 4 are fixed; A small rectangular flap 45 is connected to the outer sides of the two sides of the half box body. When assembling, the small rectangular flap 45 is bonded to the front face 2 of the half box body, so that the front face 2 and the side face 4 are fixed.

Further, the two sides of the panel above the front indentation line 21 of the half box are respectively connected with a small rectangular flap 24, and when assembling, the small rectangular flap 24 is bonded to the side of the half box. Triangle 42 inside wall, so that the panel above the front indentation line and the side triangle are fixed.

Embodiment 2

The method of using the multipurpose coffee packaging box is as follows:

1. Use as a box to pack coffee: put the bagged coffee into two half boxes, then fold the adhesive flaps 222 of the two half boxes inwards by 90 degrees, and bond them together with glue. The two half boxes are packaged into a complete box (Figure 2) for sale use.

2. The consumer opens the box from the junction of the adhesive flaps 222 to form two half boxes, and then folds the triangle 42 on the side of the half box inward along the side indentation line 41, and inserts the top corner of the triangle 42 into The second arc plug-in portion 43, so that the triangle fits on the inner wall of the side surface of the half box body; the panel part above the front indentation line of the half box body is folded inward along the side indentation line, so that the insertion flap 221 Insert the first arc socket 23, so that the folded panel fits on the inner wall of the front of the half box body; thus forming two neat half box bodies (Figure 3), one for coffee, the other for small miscellaneous In addition, the two half boxes can be divided into two independent boxes along the incision line in the middle (Figure 4), which is suitable for good friends, buy one thing to share, or put it in half at home, and the other half. Half for company or school use.

Embodiment 3

The multi-purpose coffee packaging box is made from a whole box blank. The shape and structure of the box blank is shown in FIG. 5 .

The present invention has been exemplarily described above. It should be noted that, without departing from the core of the present invention, any simple deformation, modification, or other equivalent replacements that can be performed by those skilled in the art without any creative effort fall into the scope of the present invention. the scope of protection of the invention.

Claims (10)

1. A multipurpose coffee packing box, characterized in that: it comprises two symmetrical half-box bodies with the same structure, and the half-box bodies comprise a bottom surface, a front surface, a back surface and two side surfaces; The top edges of the backs of the two half-boxes are connected, and the connecting edge is a notch line; the front side of the half-boxes is provided with a frontal indentation line, the frontal indentation line is parallel to the incision line, and the frontal indentation line is parallel to the notch line. The top edge of the front side is provided with a flap, and the flap is divided into three sections, which are the insert flap in the middle and the longer adhesive flaps on both sides of the insert flap; in the half box There is also a first arc insertion part below the front indentation line on the front of the body. When the panel part above the front indentation line of the half box body is folded inward along the side indentation line, the insertion flap can just be inserted. the first arc plug-in part, so that the folded panel can fit on the front inner wall of the half box body; Both sides of the half box body are provided with side indentation lines, one end of the side indentation line is connected to the indentation line, and the other end of the side indentation line is connected to the front indentation line of the half box body, so that the The side of the half box body has a triangle that can be folded along the side indentation line; a second circular arc plug-in part is arranged below the side indentation line on the side of the half box body. When the triangle is folded inward along the side indentation line , the apex angle of the triangle can just be inserted into the second arc plug-in part, so that the triangle fits on the inner wall of the side surface of the half box body. 2 . The multipurpose coffee packaging box according to claim 1 , wherein the distance between the front indentation line and the bottom surface of the half box body is 2/3 of the total height of the front side of the half box body. 3 . 3. The multipurpose coffee packing box according to claim 1 is characterized in that: the flap is arranged along the top edge of the front of the half box body, the flap height is 1cm, and the total length of the flap is the top of the front side of the half box body. Side lengths are the same. 4. The multipurpose coffee packaging box according to claim 1, wherein the length of the plug-in flap is 1-1.5 cm. 5. The multipurpose coffee packing box according to claim 1, wherein the length of the plug-in flap is 1.2 cm. 6. The multipurpose coffee packing box according to claim 1, wherein the bottom edges of the two side surfaces of the half box body are all connected with triangular flaps, and the triangular flaps are bonded on the bottom surface of the half box body, thereby Secure the bottom and sides. 7. The multipurpose coffee packing box according to claim 1, wherein a small rectangular flap is connected to the outer edges of the two sides of the half box body, and the small rectangular flap is bonded to the half box body the front, so that the front and sides are fixed. 8. The multi-purpose coffee packaging box according to claim 1, wherein the two sides of the panel above the front indentation line of the half box body are respectively connected with small rectangular flaps, and the small rectangular flaps It is bonded to the triangular inner wall of the side of the half box body, so that the panel above the front indentation line and the side triangle are fixed. 9 . The multipurpose coffee packaging box according to claim 1 , wherein the multipurpose coffee packaging box is made from a whole box blank. 10 . 10. The method of using the multipurpose coffee packing box according to one of claims 1-9, characterized in that: 1. Use as a box to pack coffee: put the bagged coffee into two half boxes, then fold the adhesive flaps of the two half boxes inwards by 90 degrees, and stick them together with glue to make Two half boxes are packaged into a complete box for sale and use; 2. The consumer opens the box from the junction of the adhesive flaps to form two half boxes, and then folds the triangle on the side of the half box inward along the side indentation line, and inserts the top corner of the triangle into the second arc The insertion part, so that the triangle fits on the inner wall of the side of the half box body; the panel part above the front indentation line of the half box body is folded inward along the side indentation line, so that the insertion flap is inserted into the first arc socket. so as to make the folded panel fit on the inner wall of the front of the half box body; thus forming two neat half box bodies, one for coffee and the other for placing some small debris; in addition, you can cut along the middle The trace line divides the two half boxes into two separate boxes for the sharing of coffee, or separate storage.
