Abstract

The invention provides a sterilization device applied to medical surgery, which relates to the technical field of medical equipment. The sterilization device applied to medical surgery includes a sterilization box, a sterilization moving device is arranged on the right side of the sterilization box, a sterilization drying device is arranged on the rear side of the sterilization box, and a left side of the sterilization box is arranged with a sterilization and drying device. A sterilization device is provided with a holding device inside the sterilization box. Through two disinfections, the disinfection is more thorough. At the same time, when the second disinfection is performed, the drying is carried out at the same time, so that after the disinfection is completed, it can be put into use, reducing the waiting time. At the same time, the drying lamp can adjust the internal temperature, so that the disinfectant can fully function It has high disinfection efficiency. By using the limit plate and the placement plate, medical equipment with difficult lengths can be placed in it stably, avoiding shaking during disinfection and movement, so as not to collide, reduce damage, and more Disinfection of medical equipment is more efficient.

Description

A sterilization device applied in medical surgery

technical field

The invention relates to the technical field of medical equipment, in particular to a sterilization device applied to medical surgery.

Background technique

Surgery is a science that studies the occurrence, development and clinical manifestations, diagnosis, prevention and treatment of surgical diseases. With the application of microsurgical techniques, surgery has been greatly developed. The principles for setting up specialties in surgery in each hospital are similar to those in internal medicine, and usually correspond to internal medicine. Surgical diseases fall into five broad categories: trauma, infection, tumor, deformity, and dysfunction.

The main method of surgical treatment is surgery, and most medical devices need to be in contact with the internal cells of the human body and enter the human body. Therefore, the recovery of the patient is hindered and the patient's condition is more serious. The existing surgical disinfection device is slow in efficiency. After use, it takes a long time to the next use, delaying the treatment of the patient, and during the disinfection process, the medical supplies are bumped. , prone to damage.

SUMMARY OF THE INVENTION

(1) Technical problems solved

In view of the deficiencies of the prior art, the present invention provides a sterilization device applied to medical surgery, which solves the problems of slow sterilization speed and easy damage of medical supplies.

(2) Technical solutions

In order to achieve the above purpose, the present invention is achieved through the following technical solutions: a sterilization device applied to medical surgery, comprising a sterilization box, the right side of the sterilization box is provided with a sterilization mobile device, and the rear side of the sterilization box is provided with There is a sterilization drying device, a sterilization device is arranged on the left side of the sterilization box, and a holding device is arranged inside the sterilization box.

Preferably, the sterilization box includes a box body, a first chute is provided inside the box body, a second chute is provided inside the box body and located on the right side of the first chute, and the box body is provided with a second chute. The front surface of the box body is provided with a door plate, the front surface of the door plate is fixedly connected with a door handle, the lower surface of the box body is fixedly connected with a support column, the right side of the box body is fixedly connected with a first support plate, the A second support plate is fixedly connected to the rear side of the box body, and a waste liquid outlet is arranged on the left side of the box body.

Preferably, the disinfection mobile device includes a cylinder, an output end of the cylinder is fixedly connected with a telescopic rod, an end of the telescopic rod away from the cylinder is fixedly connected with a mounting block, the cylinder is fixedly connected with the first support plate, the The mounting block is movably connected with the first chute, and one end of the telescopic rod away from the cylinder extends to the inside of the box.

Preferably, the sterilization and drying device includes a motor, the output end of the motor is fixedly connected with a lead screw, the side surface of the lead screw is fixedly connected with a lead screw nut, and the left side of the lead screw nut is fixedly connected with a lead screw. an installation plate, the left side of the installation plate is fixedly connected with the ultraviolet germicidal lamp, the left side of the installation plate is fixedly connected with the drying lamp above the ultraviolet germicidal lamp, and the motor is fixedly connected with the second support plate , the end of the lead screw away from the motor extends to the inside of the box.

Preferably, the disinfection device includes a liquid storage tank, the upper surface of the liquid storage tank is fixedly connected with a pump body, the output end of the pump body is fixedly connected with a liquid outlet pipe, and the liquid outlet pipe is away from the end of the pump body A spray head is fixedly connected, and a liquid inlet pipe is fixedly connected to the input end of the pump body.

Preferably, the holding device includes a placing plate, the upper surface of the placing plate is movably connected to a limit plate, a support rod is fixedly connected to the upper surface of the limit plate, and an end of the support rod away from the limit plate is fixed A mounting plate is attached.

Preferably, one end of the liquid inlet pipe away from the pump body extends to the inside of the liquid storage tank, one end of the liquid outlet pipe away from the pump body extends to the inside of the tank body, and the spray head is fixedly connected to the mounting block.

Preferably, the placement plate has a stepped shape, the placement plate is fixedly connected to the bottom of the box body, the limiting plate and the placement plate are both provided with placement holes, and the placement holes are in one-to-one correspondence.

Working principle: Place surgical medical supplies, such as scalpels, tweezers, etc., on the placement plate 504 according to different lengths, the bottom of which is incorporated into the placement hole 505 inside the limiting plate 502 to make it a fixed position. During the transfer process, do not move to prevent damage, place the limit plate 502 on the placing plate 501, spray the disinfectant through the pump body 402, clean and disinfect the medical appliances, and at the same time pass the waste liquid outlet. The liquid is discharged, and after the disinfection is completed, the utensils can be sterilized and dried again by the ultraviolet germicidal lamp 305 and the drying lamp 306, so that the utensils can be quickly put into use.

(3) Beneficial effects

The present invention provides a sterilizing device applied to medical surgery. Has the following beneficial effects:

1. The disinfection device used in medical surgery can be sterilized more thoroughly through two sterilizations. At the same time, during the second sterilization, drying is carried out at the same time, so that after the sterilization is completed, it can be put into use, reducing the waiting time, and drying at the same time. The lamp can adjust the internal temperature, so that the effect of the disinfectant can be fully exerted, and the disinfection efficiency is high.

2. The sterilization device used in medical surgery uses a limit plate and a placement plate, so that the medical equipment with difficult lengths can be placed in it stably, avoiding shaking during disinfection and movement, so that it does not collide and reduce damage. .

3. The disinfection device used in medical surgery can increase the disinfection area by setting a disinfection mobile device, and can disinfect more medical appliances at the same time, and can carry out disinfection, drying and other work more comprehensively, so that the sterilized Efficiency increases.

Description of drawings

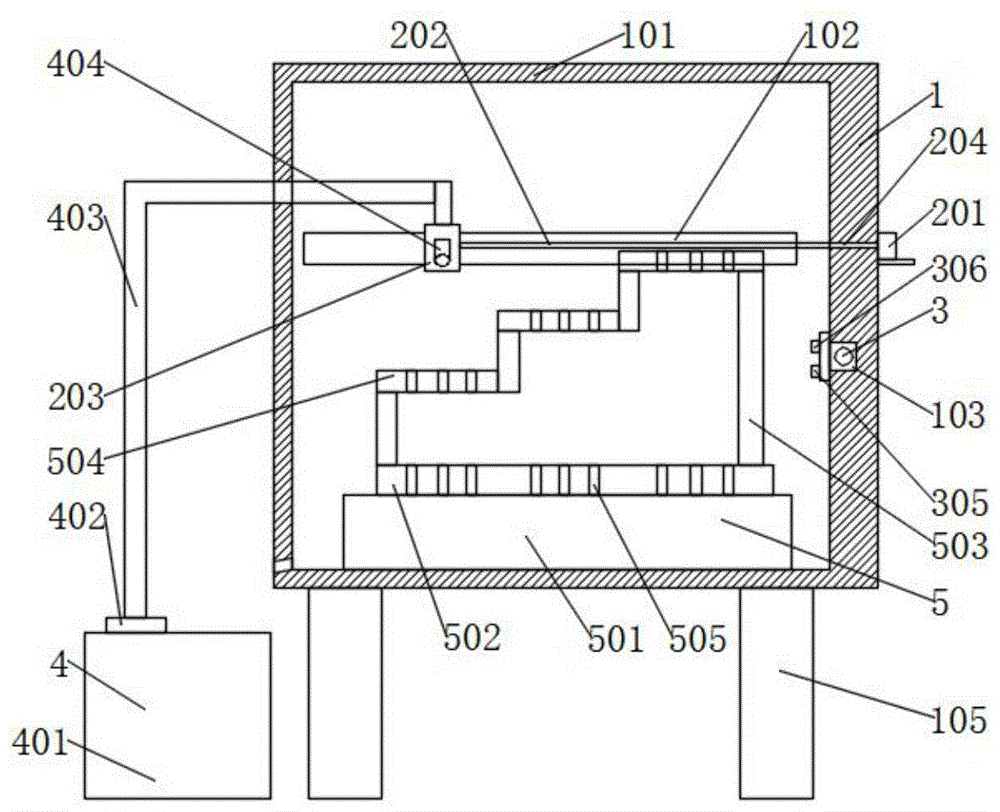

Fig. 1 is the internal structure schematic diagram of the present invention;

Fig. 2 is the overall structure schematic diagram of the present invention;

3 is a side view of the overall structure of the present invention;

4 is a side view of the internal structure of the present invention;

FIG. 5 is an enlarged view of the structure at A in FIG. 4 of the present invention.

101, the box body; 102, the first chute; 103, the second chute; 104, the door panel; 105, the support column; 106, the door handle; 107, the first support plate; 108, the first 2. Supporting plate; 2. Disinfection moving device; 201, Air cylinder; 202, Telescopic rod; 203, Mounting block; 3. Sterilization and drying device; 301, Motor; 302, Lead screw; 303, Lead screw nut; 304, Mounting plate ; 305, ultraviolet germicidal lamp; 306, drying lamp; 4, disinfection device; 401, liquid storage tank; 402, pump body; 403, liquid outlet pipe; 404, nozzle; 405, liquid inlet pipe; 5, holding device 501, placing plate; 502, limiting plate; 503, supporting rod; 504, placing plate; 505, placing hole.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Example:

As shown in FIGS. 1-5 , an embodiment of the present invention provides a sterilization device applied to medical surgery, the package includes a sterilization box 1 , a place for sterilizing surgical instruments, and a sterilization mobile device 2 is arranged on the right side of the sterilization box 1 . , the disinfection device 4 is moved to increase the disinfection area, the rear side of the disinfection box 1 is provided with a sterilization drying device 3, and the medical appliances are sterilized while drying, and the left side of the disinfection box 1 is provided with a disinfection device 4 , to rinse and sterilize the medical appliances, the interior of the sterilization box 1 is provided with a holding device 5 for placing the medical appliances, which is convenient for sterilization.

The sterilization box 1 includes a box body 101. A first chute 102 is arranged inside the box body 101, which is convenient for the nozzle 404 to move, clean and sterilize. The groove 103 is convenient for the movement of the mounting plate 304. The front surface of the box body 101 is provided with a door plate 104, which is convenient for taking and placing the disinfection supplies and closing the box body 101. The front surface of the door plate 104 is fixedly connected with a door handle 106, which is convenient for Open the door panel 104, the lower surface of the box body 101 is fixedly connected with the support column 105 to support the box body 101, the right side of the box body 101 is fixedly connected with the first support plate 107, the supporting cylinder 201, and the rear side of the box body 101 is fixedly connected There is a second support plate 108 to support the motor 301, and the left side of the box body 101 is provided with a waste liquid outlet and an outlet for the disinfectant after cleaning.

The sterilizing mobile device 2 includes a cylinder 201, which provides the power to move the mounting block 203. The output end of the cylinder 201 is fixedly connected with a telescopic rod 202, and one end of the telescopic rod 202 away from the cylinder 201 is fixedly connected with the mounting block 203, and the nozzle 404 is installed. The first support plate 107 is fixedly connected, and the mounting block 203 is movably connected with the first chute 102 , so that the mounting block 203 is easy to slide inside the box 101 , and the end of the telescopic rod 202 away from the cylinder 201 extends to the inside of the box 101 .

The sterilization and drying device 3 includes a motor 301, which provides the power to move the mounting plate 304. The output end of the motor 301 is fixedly connected with a lead screw 302, which provides rotational power. The side surface of the lead screw 302 is fixedly connected with a lead screw nut 303 to rotate The power is converted into power for parallel movement, the left side of the screw nut 303 is fixedly connected with a mounting plate 304, and an ultraviolet germicidal lamp 305 and a drying lamp 306 are installed to perform secondary disinfection and drying of medical supplies. A UV germicidal lamp 305 is fixedly connected to the left side for killing bacteria and secondary disinfection, and a drying lamp 306 is fixedly connected to the left side of the mounting plate 304 and located above the UV germicidal lamp 305 to evaporate the disinfectant and make the medical treatment When the product is dry, the motor 301 is fixedly connected to the second support plate 108 , and the end of the lead screw 302 away from the motor 301 extends into the interior of the box 101 to facilitate the movement of the mounting plate 304 .

The disinfection device 4 includes a liquid storage tank 401, which stores disinfectant. The upper surface of the liquid storage tank 401 is fixedly connected with a pump body 402 to provide power for suction. The output end of the pump body 402 is fixedly connected with a liquid outlet pipe 403. Pipe, the end of the liquid outlet pipe 403 away from the pump body 402 is fixedly connected with a spray head 404 to spray the disinfectant, and the input end of the pump body 402 is fixedly connected with a liquid inlet pipe 405, the pipeline for the disinfectant to enter.

The holding device 5 includes a placing plate 501, which supports a medical product placing rack. The upper surface of the placing plate 501 is movably connected to a limit plate 502 to limit the movement of medical products. The upper surface of the limit plate 502 is fixedly connected with a support rod 503. The support rod An end of 503 away from the limiting plate 502 is fixedly connected with a mounting plate 504 for placing medical supplies.

The end of the liquid inlet pipe 405 away from the pump body 402 extends to the interior of the liquid storage tank 401, which is convenient for absorbing the disinfectant. The end of the liquid outlet pipe 403 away from the pump body 402 extends to the inside of the tank body 101, and the nozzle 404 is fixedly connected to the mounting block 203. , the nozzle 404 can move with the movement of the mounting block 203 .

The placement plate 504 is stepped in shape, and can place knives, tweezers, etc. of different lengths. The placement plate 501 is fixedly connected to the bottom of the box 101, and the support position is fixed. The interior of the limiting plate 502 and the placement plate 504 are provided with placement holes. 505, the placement holes 505 are in one-to-one correspondence, which can limit the position of the placed medical supplies and prevent them from colliding with each other.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (8)

1. A disinfection device for medical surgery, comprising a disinfection tank (1), characterized in that: the right flank of disinfect box (1) is provided with disinfection mobile device (2), the trailing flank of disinfect box (1) is provided with drying device (3) that disinfects, the left side of disinfect box (1) is provided with degassing unit (4), the inside of disinfect box (1) is provided with holds device (5).

2. A disinfection device for medical surgery as set forth in claim 1, wherein: disinfect box (1) includes box (101), the inside of box (101) is provided with first spout (102), the inside of box (101) and the right side that is located first spout (102) are provided with second spout (103), the front surface of box (101) is provided with door plant (104), the front surface fixedly connected with door handle (106) of door plant (104), the lower fixed surface of box (101) is connected with support column (105), the first backup pad (107) of right flank fixedly connected with of box (101), the trailing flank fixedly connected with second backup pad (108) of box (101), the left surface of box (101) is provided with the waste liquid export.

3. A disinfection device for medical surgery as set forth in claim 1, wherein: disinfecting mobile device (2) includes cylinder (201), output fixedly connected with telescopic link (202) of cylinder (201), the one end fixedly connected with installation piece (203) of cylinder (201) are kept away from in telescopic link (202), cylinder (201) and first backup pad (107) fixed connection, installation piece (203) and first spout (102) swing joint, the one end that cylinder (201) were kept away from in telescopic link (202) extends to the inside of box (101).

4. A disinfection device for medical surgery as set forth in claim 1, wherein: sterilizing and drying device (3) includes motor (301), output fixedly connected with lead screw (302) of motor (301), the side surface fixedly connected with screw nut (303) of lead screw (302), the left surface fixedly connected with mounting panel (304) of screw nut (303), the left surface fixedly connected with ultraviolet germicidal lamp (305) of mounting panel (304), the left surface of mounting panel (304) and the top fixedly connected with stoving lamp (306) that is located ultraviolet germicidal lamp (305), motor (301) and second backup pad (108) fixed connection, the one end that motor (301) were kept away from to lead screw (302) extends to the inside of box (101).

5. A disinfection device for medical surgery as set forth in claim 1, wherein: degassing unit (4) include liquid reserve tank (401), the last fixed surface of liquid reserve tank (401) is connected with the pump body (402), output fixedly connected with drain pipe (403) of the pump body (402), one end fixedly connected with shower nozzle (404) of the pump body (402) are kept away from drain pipe (403), input fixedly connected with feed liquor pipe (405) of the pump body (402).

6. A disinfection device for medical surgery as set forth in claim 1, wherein: the containing device (5) comprises a placing plate (501), a limiting plate (502) is movably connected to the upper surface of the placing plate (501), a supporting rod (503) is fixedly connected to the upper surface of the limiting plate (502), and the supporting rod (503) is fixedly connected to one end, far away from the limiting plate (502), of the placing plate (504).

7. A disinfection device for medical surgery as set forth in claim 5, wherein: one end that the pump body (402) was kept away from in feed liquor pipe (405) extends to the inside of liquid reserve tank (401), the one end that the pump body (402) was kept away from in drain pipe (403) extends to the inside of box (101), shower nozzle (404) and installation piece (203) fixed connection.

8. A disinfection device for medical surgery as set forth in claim 6, wherein: lay board (504) for the notch cuttype, place the bottom fixed connection of board (501) and box (101), limiting plate (502) all are provided with the inside of laying board (504) and place hole (505), place hole (505) upper and lower one-to-one.
