Abstract

The invention provides a hand-push type environmental protection dust removal vehicle with a collection function, which relates to the technical field of environmental protection equipment, so as to solve the problem that in the process of dust removal and absorption, it is easy to cause dust gas to be mixed back in a dust removal box, so as to remove dust containing dust particles The air is directly impacted, and the dust removal effect is not good, and in the process of dust removal, because more and more dust is collected, it is easy to be mixed in the circulating water, resulting in the problem that the dust removal effect will be greatly reduced, including the main body of the cart; The rear end of the top plane of the main body of the cart is vertically upwardly fixed with two left-right symmetrical batteries, and the main body of the cart between the two batteries is fixedly installed with a circulation mechanism. In the present invention, two bent clean air discharge pipes communicated with the inside are installed symmetrically and reversely on the upper end plane of the dust removal box, so that the support plate and the edge plate can play the role of filtering, thereby improving the spray effect. , prolong the usable time of circulating water.

Description

A hand-push type environmental protection dust collector with collection function

technical field

The invention relates to the technical field of environmental protection equipment, more particularly, to a hand-push type environmental protection dust removal vehicle with a collection function.

Background technique

In complex underground work, there is a large amount of exhaust emissions from mechanical operations. In addition, there is a large amount of dust and harmful gases in blasting, which causes great harm to operators, and the number of people suffering from occupational diseases continues to increase every year.

Therefore, a dust removal vehicle has appeared, such as an underground dust collection vehicle in the patent application CN201420808552.0, which includes a vehicle body, a vehicle bottom plate is arranged on the vehicle body, and an exhaust fan, a dust purification box and a harmful gas purification box are installed on the vehicle bottom plate. The air outlet of the first replacement fan is communicated with the dust purification box, the dust purification box is communicated with the harmful gas purification box through the second replacement fan, and the harmful gas purification box is communicated with the exhaust fan. The underground dust collecting vehicle provided by the utility model can solve the problem of large underground dust and harmful gas, has good effect of collecting underground dust and harmful gas, creates a good air environment for underground operation, reduces occupational diseases, and improves work efficiency.

In the process of dust removal and absorption, due to the strong fluidity of dust gas, it is difficult for the natural adsorption method to achieve the expected dust removal effect, while the fan adsorption method is easy to cause the dust gas to be mixed back in the dust removal box, thereby removing the The dust gas containing dust particles is directly impacted, and the dust removal effect is not good. In the process of dust removal, because more and more dust is collected, it is easy to be mixed in the circulating water, which will greatly reduce the dust removal effect.

Therefore, in view of this, the existing structure and defects are studied and improved, and a hand-push type environmental protection dust collector with a collection function is provided, in order to achieve a more practical purpose.

SUMMARY OF THE INVENTION

In order to solve the above technical problems, the present invention provides a hand-push type environmental protection dust removal vehicle with a collection function, so as to solve the problem that in the process of dust removal and absorption, due to the strong fluidity of dust gas, the natural adsorption method is difficult to achieve expectations. The dust removal effect is good, and the adsorption method of the fan is easy to cause the dust to be mixed in the dust box, so that the dust containing dust particles is directly impacted out, and the dust removal effect is not good. There is more and more dust, and it is easy to be mixed in the circulating water, which will greatly reduce the dust removal effect.

The purpose and effect of the hand-push type environmentally friendly dust collector with collection function of the present invention are achieved by the following specific technical means:

A hand-push type environmental protection dust collector with a collection function includes a main body of the cart; two left-right symmetrical batteries are fixed vertically upward at the rear end of the top plane of the main body of the cart, and the main body of the cart between the two batteries A circulation mechanism is fixedly installed on the top; the main body of the cart includes a fixed sleeve and a push rod, and two door-shaped fixed sleeves parallel to each other in the front and rear are fixed vertically upward at the rear end of the top plane of the main body of the cart. The cover frame encloses the battery pack, and the upper end of the fixed cover frame at the rear end is fixedly installed with a horizontal push rod vertically backward; The lower part of the middle part is fixedly installed with a dust suction mechanism that communicates with the inside, and the upper end and the lower end of the circulation mechanism are also fixedly connected with the upper end and the lower end of the back of the dust removal box respectively; the upper end of the inner cavity of the dust removal box is opposite to the upper end of the circulation mechanism A spraying mechanism is fixedly installed at the top; the circulation mechanism includes a circulation pump, an upper circulation pipe and a lower circulation pipe, a circulation pump is fixedly installed on the circulation mechanism, and the upper end of the circulation pump passes through the upper circulation pipe and the spray in the dust box. The mechanism is fixedly connected, and the lower end of the circulating pump is connected to the inner cavity of the circulating protection mechanism in the dust box through the lower circulating pipe;

A turbulence mechanism is fixed horizontally in the inner cavity of the dust removal box below the spray mechanism; two rows of anti-recoil mechanisms with uniform upper and lower intervals are fixedly installed in the dust removal box below the turbulence mechanism; A longitudinal inverted V-shaped air intake protection mechanism is fixedly installed at the position corresponding to the dust suction mechanism;

Further, the dust removal box includes a clean air discharge pipe, an air intake pipe and an activated carbon adsorption column, and two bent clean air discharge pipes communicated with the inside are installed symmetrically and reversely in the upper end plane of the dust removal box, and the dust removal is carried out. The central part of the front side wall of the box and the rear end of the dust suction mechanism are fixedly installed with an air intake pipe with an upwardly bent end. There are two symmetrical activated carbon adsorption columns connected to the seal.

Further, the vacuuming mechanism includes a vacuuming fan, a hanger plate and a shroud, a vacuuming fan is fixedly installed in the middle of the vacuuming mechanism, and the upper and lower ends of the vacuuming mechanism are respectively fixed through an isosceles trapezoid. The hanger plate is installed on the dust removal box, and the rear end of the dust suction mechanism is fixedly connected with a shroud with a wide front end and a narrow rear end.

Further, the spraying mechanism includes a spraying head, the bottom of the spraying mechanism is a downwardly convex isosceles trapezoidal spraying head, and the three side walls of the spraying head are all provided with spray holes, and The sprinkler head is placed above the middle of the spoiler mechanism.

Further, the spoiler mechanism includes a spoiler hanging plate, a hanging rope and a counterweight ball, a horizontal spoiler hanging board is longitudinally slidably inserted in the middle of the spoiler mechanism, and the middle of the spoiler hanging board is provided with up and down. The same through holes are connected, and a counterweight ball is fixedly connected to the bottom plane of the spoiler hanging plate through a hanging rope.

Further, the anti-recoil mechanism includes a check plate, the main body of the anti-recoil mechanism is an inverted T-shaped structure, and an umbrella-shaped check plate is fixedly installed on the upper end of the anti-recoil mechanism.

Further, the air inlet protection mechanism includes a fin block and an air inlet groove, the middle parts of the inclined surface walls at the left and right ends of the air inlet protection mechanism are fixedly installed with wedge-shaped fin blocks, and the bottom of the air inlet protection mechanism is provided with an inlet. Air groove, and the intake pipe is placed in the air groove.

Further, the circulation protection mechanism includes a support plate, a water permeable hole and an edge plate, and the left end edge and the right end edge of the bottom plane of the circulation protection mechanism are respectively fixed and installed at the bottom of the inner cavity of the dust box through inclined support plates. On the plane, the top of the bracket plate is fixedly installed at the downward positions along the two inclined surfaces of the circulation protection mechanism on the left and right sides. Position between two support plates.

Compared with the prior art, the present invention has the following beneficial effects:

Since the upper plane of the dust box is symmetrically and reversely installed with two bent clean air discharge pipes that communicate with the inside, the middle part of the side wall of the front end of the dust box and the rear end of the dust suction mechanism are fixedly installed with the ends bent upward. The lower end of the dust box is a sloping plate structure inclined inward on the left and right sides, and the low recess at the lower end of the dust box is longitudinally screwed and sealed with two symmetrical activated carbon adsorption columns. Further adsorption is carried out through the activated carbon adsorption column at the bottom to ensure the availability of the remaining water. When the accumulation reaches a certain level, only the activated carbon adsorption column needs to be replaced, and the left edge and the right edge of the bottom plane of the circulation protection mechanism are respectively It is fixedly installed on the bottom plane of the inner cavity of the dust box through the inclined bracket plate, and the bracket plate is fixedly installed at the downward position along the left and right inclined faces of the circulation protection mechanism. The water permeable holes are evenly spaced, and the inner end of the lower circulation pipe is placed between the two bracket plates, which can prevent the dust absorbed by the circulating water from entering the lower circulation pipe, so that the bracket plate and the edge plate can play the role of filtering , which can improve the spray effect and prolong the usable time of circulating water.

Since the middle of the spoiler mechanism is longitudinally slidably inserted with a horizontal spoiler hanging plate, the middle of the spoiler hanging plate is provided with a through hole that communicates up and down, and the bottom plane of the spoiler hanging plate is fixedly connected with a counterweight ball through a hanging rope. , The turbulent flow is generated by the shaking of the counterweight ball, which blocks the rise of dust and gas, and increases the time for adsorption and mixing of dust and circulating water.

Because wedge-shaped fins are fixedly installed in the middle of the inclined surface walls at the left and right ends of the intake protection mechanism, the bottom of the intake protection mechanism is provided with an intake groove, and the intake pipe is placed in the intake groove to avoid spraying. The circulating water enters the intake pipe, and can guide the dust and gas from the bottom of the intake protection mechanism to the top to be discharged, increasing the path for reaction and mixing.

Other advantages, objects, and features of the present invention will appear in part from the description that follows, and in part will be appreciated by those skilled in the art from the study and practice of the invention.

Description of drawings

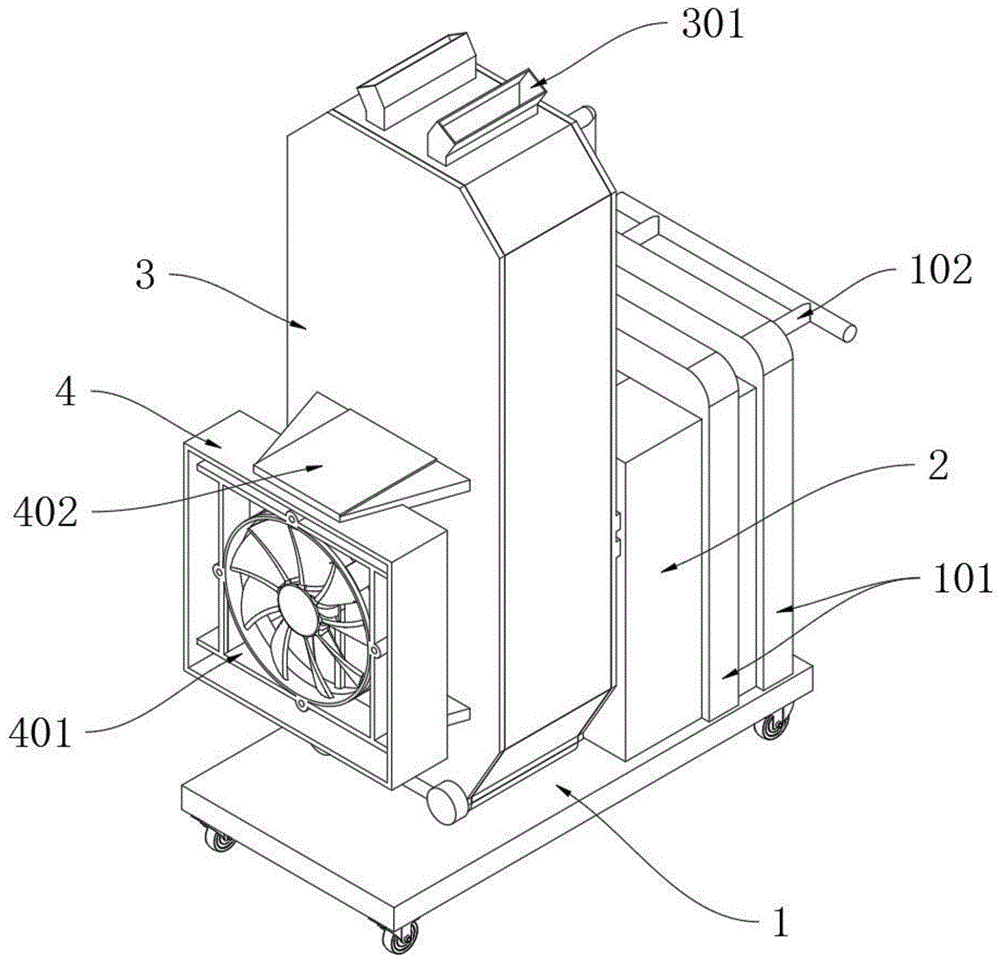

FIG. 1 is a schematic structural diagram of the front right upper axial view of the present invention.

FIG. 2 is a schematic diagram of the left rear upper axial view structure of the present invention.

FIG. 3 is a schematic diagram of an axial view structure in a disassembled state of the present invention.

FIG. 4 is a schematic top view of the structure of the present invention.

FIG. 5 is a schematic cross-sectional structural diagram of part A-A in FIG. 4 of the present invention.

FIG. 6 is a schematic diagram of a partial axial view of the dust collecting mechanism of the present invention.

FIG. 7 is a schematic diagram of the axial view of the dust box of the present invention when the cover is partially opened.

FIG. 8 is a schematic view of the top axial view of the dust box according to the present invention in a state where the cover is partially opened.

In the figure, the corresponding relationship between component names and drawing numbers is:

1. Main body of the cart; 101. Fixed sleeve; 102. Push rod; 2. Battery; 3. Dust removal box; 301. Clean air discharge pipe; 302, Air intake pipe; 401, vacuum fan; 402, hanger plate; 403, shroud; 5, circulation mechanism; 501, circulation pump; 502, upper circulation pipe; 503, lower circulation pipe; 6, spray mechanism; 601, spray Head; 7, spoiler mechanism; 701, spoiler hanging plate; 702, hanging rope; 703, counterweight ball; 8, anti-recoil mechanism; 801, non-return plate; 9, air intake protection mechanism; 901, fin block ; 902, air inlet slot; 10, circulation protection mechanism; 1001, bracket plate; 1002, permeable hole; 1003, along the plate.

Detailed ways

The embodiments of the present invention will be described in further detail below with reference to the accompanying drawings and examples. The following examples are intended to illustrate the present invention, but not to limit the scope of the present invention.

In the description of the present invention, unless otherwise stated, "plurality" means two or more; the terms "upper", "lower", "left", "right", "inner", "outer" The orientation or positional relationship indicated by , "front end", "rear end", "head", "tail", etc. are based on the orientation or positional relationship shown in the accompanying drawings, and are only for the convenience of describing the present invention and simplifying the description, not An indication or implication that the referred device or element must have a particular orientation, be constructed and operate in a particular orientation, is not to be construed as a limitation of the invention. Furthermore, the terms "first," "second," "third," etc. are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection. Ground connection; it can be a mechanical connection or an electrical connection; it can be directly connected or indirectly connected through an intermediate medium. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example:

As shown in accompanying drawings 1 to 8:

The present invention provides a hand-push type environmental protection dust collector with a collection function, comprising a cart main body 1; the rear end of the top plane of the cart main body 1 is vertically upwardly fixed with two left-right symmetrical batteries 2, and one of the two batteries 2 A circulation mechanism 5 is fixedly installed on the cart main body 1 between the two parts; the cart main body 1 includes a fixed sleeve 101 and a push rod 102, and the rear end of the top plane of the cart main body 1 is vertically upwardly fixed with two parallel door-shaped front and rear. The fixed sleeve 101 is enclosed by the battery 2, and the upper end of the fixed sleeve 101 at the rear end is fixed and installed with a horizontal push rod 102 vertically backward; the front end of the top plane of the cart body 1 is fixed vertically upward A dust removal box 3 is installed, and a dust suction mechanism 4 that communicates with the inside is fixedly installed at the lower part of the middle of the front side wall of the dust removal box 3. The upper and lower ends of the circulation mechanism 5 are also fixedly connected to the upper and lower ends of the back of the dust removal box 3 respectively. The upper end of the inner cavity of the dust box 3 and the upper end of the circulation mechanism 5 are fixedly installed with a spray mechanism 6; the circulation mechanism 5 includes a circulation pump 501, an upper circulation pipe 502 and a lower circulation pipe 503. Circulation pump 501, the upper end of the circulation pump 501 is in fixed communication with the spray mechanism 6 in the dust box 3 through the upper circulation pipe 502, and the lower end of the circulation pump 501 is connected to the inner cavity of the circulation protection mechanism 10 in the dust box 3 through the lower circulation pipe 503 The spraying mechanism 6 includes a spraying head 601, the bottom of the spraying mechanism 6 is a downwardly convex isosceles trapezoid-shaped spraying head 601, and the three side walls of the spraying head 601 are provided with spraying holes, And the shower head 601 is placed above the middle of the spoiler mechanism 7, and the circulating water can be evenly sprayed onto the spoiler mechanism 7 through the spray mechanism 6, so as to block the passage of dust and gas;

A turbulence mechanism 7 is installed horizontally in the inner cavity of the dust box 3 below the spray mechanism 6; the dust box 3 below the turbulence mechanism 7 is also fixedly installed with two rows of anti-recoil mechanisms 8 with uniform upper and lower intervals; A longitudinal inverted V-shaped air intake protection mechanism 9 is fixedly installed at the position corresponding to the dust suction mechanism 4 in the middle; 10. The circulation protection mechanism 10 includes a bracket plate 1001, a water permeable hole 1002 and an edge plate 1003. The left end edge and the right end edge of the bottom plane of the circulation protection mechanism 10 are respectively fixed and installed in the inner cavity of the dust box 3 through the inclined bracket plate 1001. On the bottom plane of the upper part of the bracket plate 1001, the edge plate 1003 is fixedly installed at the downward positions of the left and right inclined faces of the circulation protection mechanism 10, and the bracket plate 1001 covered by the edge plate 1003 is provided with evenly spaced permeable holes 1002. The inner end of the lower circulation pipe 503 is placed between the two support plates 1001, which can prevent the dust adsorbed by the circulating water from entering the lower circulation pipe 503, so that the support plate 1001 and the edge plate 1003 can play the role of filtering, Thereby, the spraying effect can be improved and the usable time of the circulating water can be prolonged.

Wherein, the dust box 3 includes a clean air discharge pipe 301, an air intake pipe 302 and an activated carbon adsorption column 303, and two bent clean gas discharge pipes 301 communicating with the interior are installed symmetrically and reversely on the upper end plane of the dust box 3. The central part of the front end side wall of the dust removal box 3 is connected with the rear end of the dust suction mechanism 4, and an air intake pipe 302 whose end is bent upward is fixedly installed. There are two symmetrical activated carbon adsorption columns 303 longitudinally screwed and sealed in the low recess at the lower end. When the dust is adsorbed in the water and precipitated, it can be further adsorbed by the activated carbon adsorption column 303 at the bottom, so as to ensure the availability of the remaining water. After the level is reached, only the activated carbon adsorption column 303 needs to be replaced.

Among them, the vacuuming mechanism 4 includes a vacuuming fan 401, a hanger plate 402 and a shroud 403. The vacuuming fan 401 is fixedly installed in the middle of the vacuuming mechanism 4, and the upper and lower ends of the vacuuming mechanism 4 are respectively fixed through an isosceles ladder. The shaped hanger plate 402 is installed on the dust box 3, and the rear end of the dust suction mechanism 4 is fixedly docked with a shroud 403 with a wide front end and a narrow rear end. The trachea 302 is fixed and communicated, and the dust in the air can be sucked in by the dust suction mechanism 4, so as to facilitate adsorption treatment.

The spoiler mechanism 7 includes a spoiler hanging plate 701, a hanging rope 702 and a weight ball 703. A horizontal spoiler hanging plate 701 is inserted longitudinally in the middle of the spoiler mechanism 7, and the middle of the spoiler hanging plate 701 is opened. There are through holes connecting up and down, and a counterweight ball 703 is fixedly connected to the bottom plane of the spoiler hanging plate 701 through a hanging rope 702, and the counterweight ball 703 shakes to generate a spoiler, block the rise of dust, and increase dust and circulation. Time for water adsorption and mixing.

Among them, the anti-recoil mechanism 8 includes a check plate 801, the main body of the anti-recoil mechanism 8 is an inverted T-shaped structure, and the upper end of the anti-recoil mechanism 8 is fixedly installed with an umbrella-shaped check plate 801 to avoid a large amount of dust and gas. Carry it upside down on high-speed air pressure to improve the dust removal effect.

The intake protection mechanism 9 includes a fin block 901 and an intake groove 902 . Wedge-shaped fin blocks 901 are fixedly installed in the middle of the inclined surface walls at the left and right ends of the intake protection mechanism 9 , and the bottom of the intake protection mechanism 9 is provided with a fin block 901 . The air intake groove 902, and the air intake pipe 302 is placed in the air intake groove 902, which can prevent the sprayed circulating water from entering the air intake pipe 302, and can guide the dust and gas from the bottom of the air intake protection mechanism 9 to the top to be discharged out. Added paths for reactive mixing.

The specific usage mode and function of this embodiment:

During use, the vacuuming mechanism 4 and the circulating mechanism 5 are turned on. When the dust is inhaled, since the vacuuming fan 401 is fixedly installed in the middle of the vacuuming mechanism 4, the upper and lower ends of the vacuuming mechanism 4 are respectively fixed by isosceles The trapezoidal hanger plate 402 is installed on the dust box 3 , and the rear end of the dust suction mechanism 4 is fixedly docked with a shroud 403 with a wide front end and a narrow rear end. The air intake pipe 302 is fixedly connected, and the dust in the air can be inhaled by the dust suction mechanism 4 to facilitate adsorption treatment. The dust gas enters the dust removal box 3 through the air intake pipe 302. Two bent clean air discharge pipes 301 communicated with the inside are fixedly installed, and the middle part of the front side wall of the dust box 3 is connected with the rear end of the dust suction mechanism 4 is fixedly installed with an upwardly bent air intake pipe 302 to remove dust. The lower end of the box 3 is a sloping plate structure inclined inward on the left and right sides, and two symmetrical activated carbon adsorption columns 303 are longitudinally screwed and sealed in the low recess at the lower end of the dust box 3. When the dust is adsorbed in the water and precipitated, it can pass through the bottom. The activated carbon adsorption column 303 is further adsorbed in order to ensure the availability of the remaining water. When the accumulation reaches a certain level, only the activated carbon adsorption column 303 needs to be replaced;

When the circulating pump 501 is turned on, since the bottom of the spray mechanism 6 is a downward convex isosceles trapezoid-shaped spray head 601, the three side walls of the spray head 601 are provided with spray holes, and the spray head 601 It is placed above the middle of the spoiler mechanism 7, and the circulating water can be evenly sprayed onto the spoiler mechanism 7 through the spray mechanism 6, so as to block the passage of dust and gas, and the middle of the spoiler mechanism 7 is longitudinally sliding and plugged with a The horizontal spoiler hanger 701 has through holes connected up and down in the spoiler hanger 701 , and a counterweight ball 703 is fixedly connected to the bottom plane of the spoiler hanger 701 through a hanging rope 702 , and the counterweight ball 703 The turbulence is generated by the shaking, which blocks the rise of dust and gas, and increases the adsorption and mixing time of dust gas and circulating water. In addition, the main body of the anti-recoil mechanism 8 is an inverted T-shaped structure, and the upper end of the anti-recoil mechanism 8 is fixedly installed. The umbrella-shaped non-return plate 801 prevents a large amount of dust from being carried up by high-speed air pressure and improves the dust removal effect, while the left edge and the right edge of the bottom plane of the circulation protection mechanism 10 are respectively fixed and installed by the inclined bracket plate 1001 On the bottom plane of the inner cavity of the dust box 3, along the two inclined downward positions of the left and right sides of the circulation protection mechanism 10 above the support plate 1001, there is a fixed installation of the edge plate 1003, and the bracket plate 1001 where the edge plate 1003 covers is provided with a space on the support plate 1001. Uniform water permeable holes 1002, and the inner end of the lower circulation pipe 503 is placed between the two support plates 1001, which can prevent the dust absorbed by the circulating water from entering the lower circulation pipe 503, so that the support plate 1001 and the edge plate 1003 can be It plays the role of filtration, which can improve the spray effect and prolong the usable time of circulating water.

The embodiments of the present invention are presented for purposes of illustration and description, and are not intended to be exhaustive or to limit the invention to the form disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to better explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention for various embodiments with various modifications as are suited to the particular use.

Claims (8)

1. A hand-push type environmental protection dust collector with a collection function, characterized in that it comprises a cart body (1); A battery (2), and a circulation mechanism (5) is fixedly installed on the cart body (1) between the two batteries (2); the cart body (1) includes a fixed sleeve (101) and a push rod ( 102), the rear end of the top plane of the main body (1) of the cart is vertically upwardly fixed with two door-shaped fixing sleeves (101) parallel to each other in the front and the rear, and the fixing sleeves (101) wrap the battery (2). The upper end of the fixed sleeve frame (101) at the rear end is fixedly installed with a horizontal push rod (102) vertically backward; the front end of the top plane of the main body of the cart (1) is vertically upwardly fixed and installed with a dust removal box (3) , and the dust collecting mechanism (4) communicated with the inside is fixedly installed at the lower part of the middle of the front side wall of the dust box (3), and the upper and lower ends of the circulation mechanism (5) are also respectively connected with the upper and lower ends of the back of the dust box (3). The lower ends are fixedly connected; the upper end of the inner cavity of the dust box (3) and the upper end of the circulation mechanism (5) are fixedly installed with a spray mechanism (6); the circulation mechanism (5) comprises a circulation pump (501), The upper circulation pipe (502) and the lower circulation pipe (503), a circulation pump (501) is fixedly installed on the circulation mechanism (5), and the upper end of the circulation pump (501) passes through the upper circulation pipe (502) and the dust removal box (3). The spray mechanism (6) in the ) is fixedly connected, and the lower end of the circulation pump (501) is connected to the inner cavity of the circulation protection mechanism (10) in the dust box (3) through the lower circulation pipe (503); A turbulence mechanism (7) is fixed horizontally in the inner cavity of the dust box (3) below the spray mechanism (6); Anti-recoil mechanisms (8) with uniform upper and lower intervals are arranged; a longitudinal inverted V-shaped air intake protection mechanism (9) is fixedly installed in the dust box (3) at a position corresponding to the dust suction mechanism (4); A house-shaped circulation protection mechanism (10) is fixedly installed at the lower end of the inner cavity of the dust box (3) corresponding to the lower end of the circulation mechanism (5). 2. The hand-push type environmentally friendly dedusting vehicle with collection function according to claim 1, wherein the dedusting box (3) comprises a clean air discharge pipe (301), an air intake pipe (302) and an activated carbon adsorption column (303) ), the upper end plane of the dust box (3) is symmetrically and reversely installed with two bent clean air discharge pipes (301) communicating with the inside, and the middle part of the front side wall of the dust box (3) is connected to the dust suction mechanism. (4) An air intake pipe (302) with an upwardly bent end is fixedly installed at the connecting part of the rear end. The lower end of the dust removal box (3) is a sloping plate structure inclined inward on the left and right sides, and the lower end of the dust removal box (3) is concave. There are two symmetrical activated carbon adsorption columns (303) which are longitudinally screwed and sealed. 3. The hand-push type environmental protection dust collector with a collection function according to claim 1, wherein the dust suction mechanism (4) comprises a dust suction fan (401), a hanger plate (402) and a shroud (402). 403), a dust suction fan (401) is fixedly installed in the middle of the dust suction mechanism (4), and the upper and lower ends of the dust suction mechanism (4) are respectively fixed and installed on the dust collector through an isosceles trapezoid-shaped hanger plate (402). On the box (3), the rear end of the dust suction mechanism (4) is fixedly docked with a shroud (403) with a wide front end and a narrow rear end, and the rear end of the shroud (403) is in contact with the middle of the front end of the dust box (3). The air intake pipe (302) is fixed and communicated. 4. The hand-push type environmental protection dust collector with a collection function according to claim 1, wherein the spray mechanism (6) comprises a spray head (601), and the bottom of the spray mechanism (6) is a bottom A convex isosceles trapezoid-shaped shower head (601), the three side walls of the shower head (601) are all provided with spray holes, and the shower head (601) is placed at the bottom of the spoiler mechanism (7). Above the middle. 5. The hand-push type environmental protection dust collector with a collection function according to claim 1, wherein the spoiler mechanism (7) comprises a spoiler hanging plate (701), a hanging rope (702) and a counterweight ball (701). 703), a horizontal spoiler hanging plate (701) is longitudinally slidably inserted in the middle of the spoiler mechanism (7), and the spoiler hanger (701) is provided with a through hole that communicates up and down, and the spoiler hangs A counterweight ball (703) is fixedly connected to the bottom plane of the board (701) through a hanging rope (702). 6. The hand-push type environmental protection dust collector with a collection function according to claim 1, wherein the anti-recoil mechanism (8) comprises a check plate (801), and the anti-recoil mechanism (8) has a The main body is an inverted T-shaped structure, and an umbrella-shaped check plate (801) is fixedly installed on the upper end of the anti-recoil mechanism (8). 7. The hand-push type environmental protection dust collector with a collection function according to claim 1, wherein the air intake protection mechanism (9) comprises a fin block (901) and an air intake groove (902), and the air intake protection mechanism (9) comprises a Wedge-shaped fins (901) are fixedly installed in the middle of the inclined surface walls at the left and right ends of the protection mechanism (9), and an intake groove (902) is opened at the bottom of the intake protection mechanism (9), and the intake pipe (302) Then it is placed in the air inlet groove (902). 8. The hand-push type environmental protection dust collector with a collection function according to claim 1, wherein the circulation protection mechanism (10) comprises a support plate (1001), a water permeable hole (1002) and an edge plate (1003), The left end edge and the right end edge of the bottom plane of the circulation protection mechanism (10) are respectively fixed and installed on the bottom plane of the inner cavity of the dust box (3) through the inclined support plate (1001), above the support plate (1001) An edge plate (1003) is fixedly installed along the downward positions of the left and right inclined surfaces of the circulation protection mechanism (10), and the bracket plate (1001) at the place covered by the edge plate (1003) is provided with uniformly spaced permeable holes (1002) , and the inner end of the lower circulation pipe (503) is placed between the two support plates (1001).
