Abstract

The invention discloses a folding mold for a swivel chair long leg tube, which belongs to the technical field of molds and includes an upper mold and a lower mold. , the lower mold includes a lower mounting plate, the upper surface of the lower mounting plate is symmetrically arranged with a third limit plate, a support plate is arranged between the third limit plates, the upper surface of the support plate is symmetrically arranged with a third slider, the third slider A second slider is arranged on the upper surface, a second limit plate is symmetrically arranged at one end of the support plate, a fifth limit plate is arranged at one end of the support plate far from the second limit plate, and a first slider is arranged on the side of the second limit plate near the support plate , a fourth slider is arranged on the side of the fifth limit plate near the support plate, a mold core is arranged in the middle of the fourth slider, a forming groove is arranged at the corresponding position of the first slider and the mold core, and a first pressure plate, a With four pressing plates, the present invention sequentially completes the forming and hemming work of the swivel chair long leg tube, the forming process is more accurate, and the quality of the finished product is obviously improved.

Description

A swivel chair long leg pipe folding mold

technical field

The invention relates to the technical field of molds, in particular to a folding mold for a long leg tube of a swivel chair.

Background technique

Chairs are a common piece of furniture in daily life. With the continuous improvement of technology, more and more types of chairs have emerged. Swivel chairs are one of them. In order to keep the structure simple, the base of swivel chairs often only contains trays, Column, leg tube, runner and other structures, among which leg tube includes long leg tube and short leg tube. In the production process of long leg tube, hemming is an important process. This process is mainly completed by folding die. In the process of edge folding, the side mold often simply presses and preliminarily forms the raw material plate of the long leg tube through the clamping of the upper mold and the lower mold. The quality of the finished product is not high, and the subsequent cooperation with the runner and the short leg tube is also affected to a certain extent. Based on this situation, how can the molding process of the long leg tube be more accurate so that the quality of the finished product of the long leg tube can be effectively improved? It has become an urgent problem for relevant technicians to solve.

SUMMARY OF THE INVENTION

In order to solve the above-mentioned technical problems, the present invention provides a folding mold for the leg tube of a swivel chair.

A swivel chair long leg tube hemming mold, comprising an upper mold and a lower mold, characterized in that: the upper mold includes an upper mounting plate, and the bottom of the upper mounting plate is symmetrically provided with a second pressure plate and a third pressure plate, and the lower mold It includes a lower mounting plate, a third limiting plate is symmetrically arranged on the upper surface of the lower mounting plate, a supporting plate is arranged between the third limiting plates, and a third sliding block is symmetrically arranged on the upper surface of the supporting plate, and the A second sliding block is arranged on the upper surface of the third sliding block, the second pressing plate is arranged corresponding to the third sliding block, the third pressing plate is arranged corresponding to the second sliding block, and one end of the supporting plate is arranged symmetrically The second limit plate, the end of the support plate far from the second limit plate is provided with a fifth limit plate, the side of the second limit plate close to the support plate is provided with a first slider, the fifth limit plate A fourth sliding block is provided on the side of the limiting plate near the support plate, a mold core is provided in the middle of the fourth sliding block, a forming groove is provided at the corresponding position of the first sliding block and the mold core, and the upper mounting plate is The bottom is provided with a first pressing plate and a fourth pressing plate, the first pressing plate is arranged correspondingly with the first sliding block, and the fourth pressing plate is arranged correspondingly with the fourth sliding block.

Further, the end of the second pressing plate and the third sliding block, the end of the third pressing plate and the second sliding block, the end of the first pressing plate and the first sliding block , The ends of the fourth pressing plate and the fourth sliding block are both inclined surface structures.

Further, the lengths of the first pressure plate, the second pressure plate, the third pressure plate and the fourth pressure plate are ranked from long to short as the first pressure plate, the fourth pressure plate, the second pressure plate, and the third pressure plate.

Further, a fifth pressing plate is arranged in the middle of the upper mounting plate.

Further, fourth limit plates are symmetrically arranged at both ends of the fourth sliding block, and a first limit plate is arranged at the bottom of the upper mounting plate.

Further, limit posts are symmetrically arranged on the surface of the support plate, a first limit groove is arranged through the surface of the second slider, a second limit slot is arranged through the surface of the third slider, and the limit column penetrates through. the first limiting slot and the second limiting slot.

Further, a sixth limiting plate is disposed on the upper surface of the third limiting plate, and both the second pressing plate and the third pressing plate penetrate through the sixth limiting plate.

Further, a slot is provided on the surface of the lower mounting plate, and the second limiting plate, the third limiting plate and the fifth limiting plate are all fixedly plugged into the slot.

Further, the upper surface of the upper mounting plate is provided with a top plate, and the lower surface of the lower mounting plate is provided with a bottom plate.

The beneficial effects of a swivel chair long leg tube folding die of the present invention are:

1. During the mold clamping process of the upper and lower molds, the first, fourth, second, and third pressure plates will squeeze and push the first slider, the fourth slider, the third slider, and the third slider, respectively. The two sliders move forward to complete the forming and hemming work of the swivel chair leg tube in turn. Compared with the simple and rough pressing process of the traditional hemming die, the forming process is more accurate, and the quality of the swivel chair leg tube produced is significantly improved. ;

2. The cooperation of the limit column with the first limit slot and the second limit slot, and the design of the second pressure plate and the third pressure plate passing through the sixth limit plate, so that the movement of the second slider and the third slider can always be maintained. Within the linear stroke defined by the first limit slot and the second limit slot, the fourth limit plate restricts the fourth slider so that the movement of the fourth slider is always kept in the straight line defined by the fourth limit plate In the stroke, combined with the stroke limit of the first limit plate to the fourth slider and the forming groove at the corresponding position of the first slider and the mold core, the forming process is further accurate, and the quality of the swivel chair long leg tube produced is further improved. ;

3. After the preliminary forming and hemming work are completed, the fifth pressure plate continues to move down until it is completely fitted with the upper surface of the long leg tube, so as to achieve the final shape, and the accuracy of the forming process and the quality of the finished product are further guaranteed.

Description of drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the accompanying drawings required for the description of the embodiments or the prior art are briefly introduced below, but are not intended to limit the protection scope of the present invention.

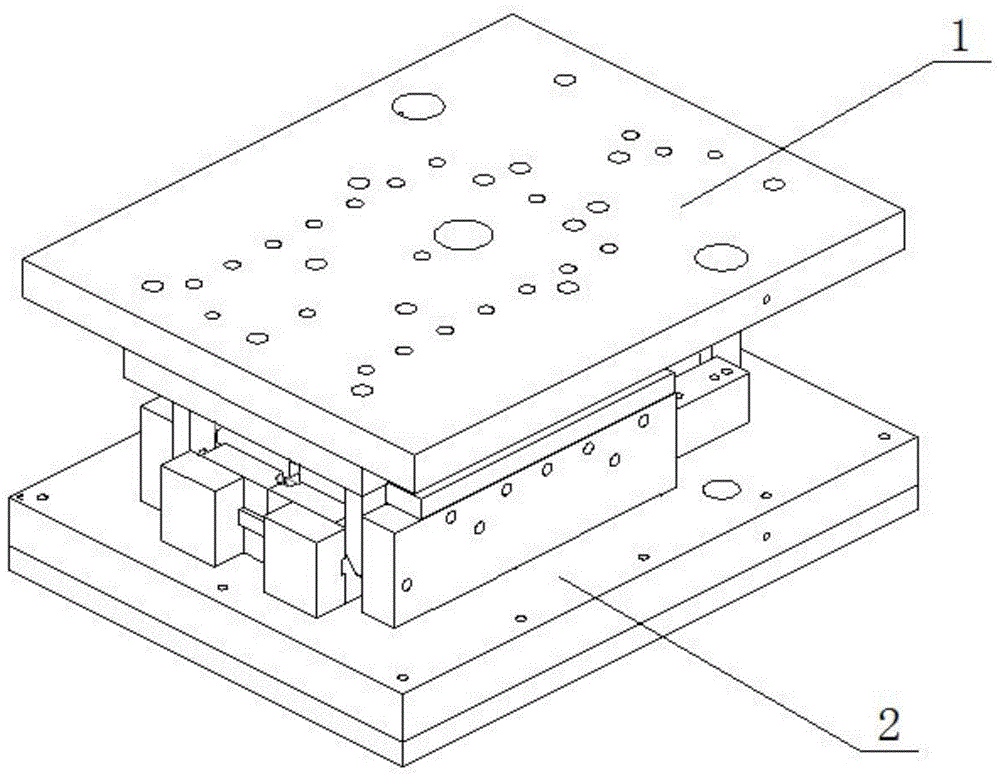

1 is a schematic diagram of the overall structure of a swivel chair long leg tube folding die according to the present invention;

2 is a schematic structural diagram (1) of an upper die of a swivel chair long leg tube folding die of the present invention;

3 is a schematic structural diagram (2) of an upper die of a swivel chair long leg tube folding die of the present invention;

4 is a schematic structural diagram (1) of a lower die of a swivel chair long leg tube folding die according to the present invention;

5 is a schematic structural diagram (2) of a lower die of a swivel chair long leg tube folding die according to the present invention;

FIG. 6 is a schematic structural diagram (1) of the joint part of the upper die and the lower die of a swivel chair long leg tube folding die according to the present invention;

Fig. 7 is a structural schematic diagram (2) of the joint part of the upper die and the lower die of a swivel chair long leg tube folding die of the present invention;

8 is a schematic structural diagram of a swivel chair long leg tube produced by a swivel chair long leg tube folding die according to the present invention.

Among them, 1-upper die, 2-lower die, 3-first platen, 4-second platen, 5-fifth platen, 6-third platen, 7-first limit plate, 8-fourth platen, 9-upper mounting plate, 10-top plate, 11-second limit plate, 12-third limit plate, 13-lower mounting plate, 14-bottom plate, 15-fourth limit plate, 16-fifth limit plate plate, 17-sixth limit plate, 18-first slider, 19-support plate, 20-second slider, 21-third slider, 22-limit column, 23-first limit groove, 24-Second limit slot, 25-Slot, 26-Mold core, 27-Fourth slider.

Detailed ways

In order to make the description clearer, a swivel chair long leg tube folding mold of the present invention will be further described with reference to Figures 1 to 8 of the accompanying drawings.

A swivel chair long leg tube hemming mold, comprising an upper mold 1 and a lower mold 2, characterized in that: the upper mold 1 includes an upper mounting plate 9, and the bottom of the upper mounting plate 9 is symmetrically arranged with a second pressing plate 4, a third Pressing plate 6, the lower mold 2 includes a lower mounting plate 13, a third limit plate 12 is symmetrically arranged on the upper surface of the lower mounting plate 13, and a support plate 19 is arranged between the third limit plates 12, and the support A third sliding block 21 is symmetrically arranged on the upper surface of the plate 19, a second sliding block 20 is arranged on the upper surface of the third sliding block 21, the second pressing plate 4 is correspondingly arranged with the third sliding block 21, The third pressure plate 6 is arranged corresponding to the second slider 20 , the second limit plate 11 is symmetrically arranged at one end of the support plate 19 , and the fifth limit plate is arranged at one end of the support plate 19 far from the second limit plate 11 . 16. A first sliding block 18 is provided on the side of the second limiting plate 11 near the support plate 19, and a fourth sliding block 27 is provided on the side of the fifth limiting plate 16 near the supporting plate 19. The A mold core 26 is provided in the middle of the fourth slider 27, a molding groove is provided at the corresponding position of the first slider 18 and the mold core 26, and a first pressing plate 3 and a fourth pressing plate 8 are arranged at the bottom of the upper mounting plate 9, so The first pressing plate 3 is arranged corresponding to the first sliding block 18 , and the fourth pressing plate 8 is arranged corresponding to the fourth sliding block 27 .

Further, the end of the second pressing plate 4 and the third sliding block 21 , the third pressing plate 6 and the end of the second sliding block 20 , the first pressing plate 3 and the first The end of the sliding block 18 , the fourth pressing plate 8 and the end of the fourth sliding block 27 are all inclined surface structures.

Further, the lengths of the first pressure plate 3 , the second pressure plate 4 , the third pressure plate 6 and the fourth pressure plate 8 are sorted from long to short as the first pressure plate 3 , the fourth pressure plate 8 , the second pressure plate 4 , and the third pressure plate 8 . Platen 6.

Further, a fifth pressing plate 5 is provided in the middle of the upper mounting plate 9 .

Further, fourth limiting plates 15 are arranged symmetrically at both ends of the fourth sliding block 27 , and a first limiting plate 7 is arranged at the bottom of the upper mounting plate 9 .

Further, limit posts 22 are arranged symmetrically on the surface of the support plate 19 , first limit grooves 23 are formed through the surface of the second slider 20 , and second limit grooves 24 are formed through the surface of the third slider 21 . The limiting post 22 penetrates the first limiting groove 23 and the second limiting groove 24 .

Further, a sixth limiting plate 17 is disposed on the upper surface of the third limiting plate 12 , and both the second pressing plate 4 and the third pressing plate 6 penetrate through the sixth limiting plate 17 .

Further, a slot 25 is provided on the surface of the lower mounting plate 13 , and the second limiting board 11 , the third limiting board 12 , and the fifth limiting board 16 are all fixedly plugged into the slot 25 .

Further, the upper surface of the upper mounting plate 9 is provided with a top plate 10 , and the lower surface of the lower mounting plate 13 is provided with a bottom plate 14 .

The working principle of a swivel chair long leg pipe folding mold of the present invention is as follows: the staff places the long leg pipe raw material on the upper surface of the support plate 19, the suspension system suspends the upper mold 1 directly above the lower mold 2, and Slowly move the upper die 1 downward. During the downward movement of the upper die 1, the following processes occur in sequence: the first pressing plate 3 squeezes and pushes the first sliding block 18 to move relatively until the two sets of first sliding blocks 18 are in complete contact, and the fourth pressing plate 8. Squeeze and push the fourth slider 27 to move forward until the fourth The adjacent vertical planes of the three sliding blocks 21 are in complete contact, the third pressing plate 6 presses and pushes the second sliding block 20 to move relatively until the third pressing plate 6 is in complete contact with the vertical plane adjacent to the second sliding block 20, and the fifth pressing plate 5 Continue to move down until it is in full contact with the upper surface of the long leg tube. Through the above five processes, the initial forming, edge folding and final shaping of the long leg tube are completed in turn. The staff takes out the finished long leg tube to complete a working cycle. .

The above are only specific embodiments of the present invention, but the protection scope of the present invention is not limited thereto, and any changes or substitutions that are not conceived of without creative work should be included within the protection scope of the present invention. Therefore, the protection scope of the present invention should be based on the protection scope defined by the claims.

Claims (9)

1. A swivel chair long leg tube folding mold, comprising an upper mold (1) and a lower mold (2), characterized in that: the upper mold (1) comprises an upper mounting plate (9), and the upper mounting plate ( 9) A second pressing plate (4) and a third pressing plate (6) are symmetrically arranged at the bottom, the lower die (2) includes a lower mounting plate (13), and the upper surface of the lower mounting plate (13) is symmetrically provided with a third limit A position plate (12), a support plate (19) is arranged between the third limit plates (12), and a third slider (21) is symmetrically arranged on the upper surface of the support plate (19). A second sliding block (20) is arranged on the upper surface of the block (21), the second pressing plate (4) is arranged corresponding to the third sliding block (21), and the third pressing plate (6) is connected to the second sliding block (21). The sliders (20) are correspondingly arranged, one end of the supporting plate (19) is symmetrically provided with a second limiting plate (11), and one end of the supporting plate (19) far from the second limiting plate (11) is provided with a fifth limiting plate (11). A position plate (16), a first slider (18) is arranged on the side of the second limit plate (11) near the support plate (19), and the fifth limit plate (16) is close to the support plate (19) A fourth slider (27) is arranged on one side, a mold core (26) is arranged in the middle of the fourth slider (27), and the first slider (18) corresponds to the mold core (26). A forming groove is provided, a first pressing plate (3) and a fourth pressing plate (8) are arranged at the bottom of the upper mounting plate (9), and the first pressing plate (3) is correspondingly arranged with the first sliding block (18), The fourth pressing plate (8) is arranged corresponding to the fourth sliding block (27). 2 . The swivel chair long leg tube hemming die according to claim 1 , wherein the end of the second pressing plate ( 4 ) and the third sliding block ( 21 ), the third pressing plate (6) and the end of the second sliding block (20), the first pressing plate (3) and the end of the first sliding block (18), the fourth pressing plate (8) and the The ends of the fourth sliding block (27) are all inclined surfaces. 3. A swivel chair long leg tube hemming die according to claim 1, characterized in that the first pressing plate (3), the second pressing plate (4), the third pressing plate (6), the fourth pressing plate ( 8) The lengths are sorted from long to short as the first pressing plate (3), the fourth pressing plate (8), the second pressing plate (4), and the third pressing plate (6). 4. A swivel chair long leg tube hemming mold according to claim 1, characterized in that a fifth pressing plate (5) is arranged in the middle of the upper mounting plate (9). 5. A swivel chair long leg tube hemming mold according to claim 1, characterized in that a fourth limiting plate (15) is symmetrically arranged at both ends of the fourth sliding block (27), and the upper mounting plate (9) A first limit plate (7) is arranged at the bottom. 6. A swivel chair long leg tube hemming die according to claim 1, characterized in that limit posts (22) are symmetrically arranged on the surface of the support plate (19), and limit posts (22) are symmetrically arranged on the surface of the second slider (20) A first limit groove (23) is arranged through the surface, a second limit slot (24) is arranged through the surface of the third slider (21), and the limit column (22) penetrates through the first limit slot (23). ), the second limit groove (24). 7. A swivel chair long leg tube folding mold according to claim 1, characterized in that, a sixth limit plate (17) is provided on the upper surface of the third limit plate (12), and the second limit plate (17) is provided on the upper surface of the third limit plate (12). Both the pressing plate (4) and the third pressing plate (6) penetrate through the sixth limiting plate (17). 8. A swivel chair long leg tube folding mold according to claim 1, characterized in that a slot (25) is provided on the surface of the lower mounting plate (13), and the second limiting plate (11), Both the third limiting plate (12) and the fifth limiting plate (16) are fixedly inserted into the slot (25). 9. A swivel chair long leg tube hemming die according to claim 1, wherein a top plate (10) is provided on the upper surface of the upper mounting plate (9), and a lower mounting plate (13) is provided on the upper surface of the upper surface The surface is provided with a bottom plate (14).
