CN111720936A - Humidification system and humidification method of data center - Google Patents

Abstract

The present application discloses a humidification system and a humidification method for a data center, and relates to the technical field of humidification of a data center used in applications including but not limited to cloud computing, cloud storage, big data, and deep learning. The specific implementation plan is as follows: the humidification system of the data center includes a fresh air fan and a cooling tower; the air supply port of the fresh air fan is used to supply air to the data center; the air inlet of the fresh air fan and the air outlet of the cooling tower are connected through a recovery pipe, and the recovery pipe is used to The moist air discharged from the cooling tower is introduced into the fresh air fan. The humidification system and humidification method of the data center of the present application have relatively good humidification effect.

Description

Humidification system and humidification method of data center

technical field

The embodiments of the present application relate to the technical field of humidification, and in particular, to a humidification system and a humidification method for a data center used in applications including but not limited to cloud computing, cloud storage, big data, and deep learning.

Background technique

A large number of servers and power supplies are stored in data centers used in applications such as cloud computing, cloud storage, cloud services, big data, and deep learning. These devices have certain requirements on the humidity of the data center, that is, when the humidity When the humidity is too high, the metal parts of the equipment are prone to rust; when the humidity is too low, static electricity is easily generated between the equipment, and both static electricity and corrosion are fatal to the equipment in the data center. Therefore, in order to ensure that these devices in the data center can work properly, it is necessary to use a humidification system to keep the humidity in the data center within an appropriate range.

SUMMARY OF THE INVENTION

The present application provides a humidification system and a humidification method for a data center.

According to an aspect of the present application, a humidification system of a data center is provided, the humidification system of the data center includes a fresh air fan and a cooling tower; an air supply port of the fresh air fan is used for supplying air to the data center; an air inlet of the fresh air fan and cooling tower The air outlet of the tower is communicated through a recovery pipe, which is used to introduce the humid air discharged from the cooling tower into the fresh air blower.

In a possible implementation manner, the recovery pipe is provided with an air exchange port communicating with the inside and outside of the recovery pipe, and the air exchange port is provided with a first regulating valve; the first regulating valve is used to adjust the opening of the air exchange port.

In a possible implementation manner, the recovery pipe is further provided with a humidity sensor for detecting the air humidity in the recovery pipe; the humidity sensor is arranged downstream of the first regulating valve.

In a possible implementation manner, the humidity sensor is connected in communication with the first regulating valve; the first regulating valve adjusts the opening of the air exchange port in response to the humidity detected by the humidity sensor.

In a possible implementation manner, the recovery pipe is further provided with a first on-off valve for controlling on/off of the recovery pipe; the first on-off valve is located between the humidity sensor and the first regulating valve.

In a possible implementation, it also includes a condensation return pipe; one end of the condensation return pipe is connected to the part of the recovery pipe between the first on-off valve and the cooling tower, and the other end of the condensation return pipe is connected to the water inlet of the cooling tower .

In a possible implementation manner, at least part of the recovery pipe is arranged horizontally, and the first regulating valve is located in the horizontal section of the recovery pipe; and/or, one end of the condensate return pipe is connected to the horizontal section of the recovery pipe.

In a possible implementation manner, the recovery tuyere of the recovery pipe is located above the air outlet of the cooling tower, and the linear distance between the recovery tuyere and the air outlet of the cooling tower is between 1.5 meters and 4 meters.

In a possible implementation manner, the included angle between the plane where the recovery tuyere of the recovery pipe is located and the horizontal plane is between 0° and 45°.

In a possible implementation manner, the recovery tuyere of the recovery pipe is provided with a filter screen.

In a possible implementation manner, the recovery tuyere of the recovery pipe is provided with a second regulating valve; the second regulating valve is used to adjust the opening of the recovery tuyere.

In a possible implementation manner, the air inlet of the fresh fan is provided with a second on-off valve for controlling the opening/closing of the air inlet.

In a possible implementation manner, the air supply port of the fresh air blower supplies air to the data center through an air supply pipe, the air supply pipe includes a branch pipe, and the air outlet of the branch pipe is provided with a third regulating valve; The opening of the air outlet.

According to another aspect of the present application, a humidification method for a data center is provided, the humidification method for the data center includes: recovering humid air from a cooling tower; mixing ambient air into the humid air; sending the mixed air into the data center .

In a possible implementation manner, before sending the mixed air into the data center, the method further includes: treating the mixed air.

In a possible implementation manner, the method further includes: adjusting the flow rate of humid air and/or the flow rate of ambient air to control the humidity of the mixed air.

The technology according to the present application solves the problem of poor humidification effect of the data center and waste of water resources, and provides a humidification system and humidification method with good humidification effect and saving water resources.

It should be understood that the content described in this section is not intended to identify key or critical features of the embodiments of the application, nor is it intended to limit the scope of the application. Other features of the present application will become readily understood from the following description.

Description of drawings

The accompanying drawings are used for better understanding of the present solution, and do not constitute a limitation to the present application. in:

1 is a schematic diagram of a humidification system of a data center provided in Embodiment 1 of the present application;

2 is a schematic structural diagram of a cooling tower of a humidification system of a data center provided in Embodiment 1 of the present application;

3 is a schematic diagram of a humidification system of a data center provided in Embodiment 2 of the present application;

4 is a schematic diagram of a humidification system of a data center provided in Embodiment 3 of the present application;

5 is a schematic diagram of a humidification system of a data center provided in Embodiment 4 of the present application;

6 is a schematic diagram of a humidification system of a data center provided in Embodiment 5 of the present application;

7 is a schematic diagram of a humidification system of a data center provided in Embodiment 6 of the present application;

8 is a schematic diagram of a humidification system of a data center provided in Embodiment 7 of the present application;

FIG. 9 is a schematic diagram of a humidification system of a data center provided in Embodiment 8 of the present application.

Description of reference numbers:

10-fresh fan; 11-air supply pipe; 111-branch pipe; 20-cooling tower; 21-air inlet; 22-water inlet; 23-water outlet; 24-air outlet; 30-recovery pipe; 31-air exchange port 311-first regulating valve; 32-humidity sensor; 33-first on-off valve; 34-recovery air outlet; 341-filter; 35-second regulating valve; 36-second on-off valve; 37-third regulating valve ; 40-condensation return pipe; 50-machine room.

Detailed ways

Exemplary embodiments of the present application are described below with reference to the accompanying drawings, which include various details of the embodiments of the present application to facilitate understanding, and should be considered as exemplary only. Accordingly, those of ordinary skill in the art will recognize that various changes and modifications of the embodiments described herein can be made without departing from the scope and spirit of the present application. Also, descriptions of well-known functions and constructions are omitted from the following description for clarity and conciseness.

A data center is usually equipped with a cooling system to cool the data center, a fresh air system to pressurize the data center, and a humidification system to humidify the data center room. Among them, the cooling system includes a cooling tower; the fresh air system includes a fresh air fan and an air supply pipe connected to the computer room of the data center; the humidification system includes a humidifier and a pure water preparation device that provides pure water for the humidifier.

In refrigeration systems, however, cooling towers cool the data center by exchanging heat with hot, dry air from the outside environment. During the heat exchange process, a large amount of water vapor will be formed in the cooling tower, and the water vapor will be directly discharged into the atmosphere, thus being wasted.

In the humidification system, on the one hand, the humidifier not only humidifies slowly and has an unsatisfactory humidification effect, but also easily accumulates water inside and breeds bacteria; on the other hand, the pure water preparation device not only has low water production efficiency, but also easily wastes water resources. , the obtained purified water is of poor quality, which may easily lead to scaling inside the humidifier.

To this end, embodiments of the present application provide a humidification system and a humidification method for a data center, which relate to the technical field of humidification of data centers used in applications such as cloud computing, cloud storage, big data, and deep learning. The humidification system and the humidification method can recover the water vapor generated in the cooling tower to the fresh air fan to humidify the data center in industries such as the Internet and cloud computing, thereby not only saving water resources, but also solving the existing humidification of the data center. The problem of poor system humidification.

Example 1

FIG. 1 is a schematic diagram of a humidification system of a data center provided in Embodiment 1 of the present application.

As shown in FIG. 1 , this embodiment provides a humidification system of a data center, where the humidification system of the data center includes a fresh air fan 10 and a cooling tower 20 .

Specifically, the fresh air blower 10 includes an air supply port and an air intake port. The air supply port of the fresh air blower 10 is used to supply air to the data center. Exemplarily, the air supply port of the fresh air blower 10 can communicate with the computer room 50 of the data center through the air supply duct 11 . For air supply, of course, the air supply port of the fresh fan 10 can also directly supply air to the computer room of the data center; the air inlet of the fresh fan 10 is communicated with the air outlet 24 of the cooling tower 20 through the recovery pipe 30, and the recovery pipe 30 is used to The humid air discharged from the air outlet 24 of the cooling tower 20 is introduced into the fresh air fan 10 through the air inlet of the fresh air fan 10, and the humid air entering the fresh air fan 10 is processed by the fresh air fan 10 and sent from the air supply port of the fresh air fan 10 to the data center. in the engine room.

Among them, the fresh air fan 10 adopts a high air pressure and large flow fan to process the obtained humid air and send it to the computer room of the data center. The air volume is large and the humidification effect is good; During the process, the air that is about to enter the data center will be cooled, filtered, disinfected and sterilized to ensure the cleanliness of the air entering the data center, which is beneficial to ensure the equipment in the data center. can operate safely.

Under normal circumstances, a cooling module is provided inside the fresh air blower 10. Exemplarily, the cooling module includes a condenser, a compressor, an evaporator, etc. The cooling module is used to cool the humid air entering the interior of the fresh air blower, so as to ensure the humidity The temperature of the air meets the requirements in the room fed into the data center. The interior of the fresh air fan is also provided with a filter module. Exemplarily, the filter module may include a primary filter, a medium-efficiency electrostatic filter, a chemical filter, etc., wherein the chemical filter is used to filter sulfur-containing substances in the air to avoid The equipment in the equipment room of the data center is corroded.

FIG. 2 is a schematic structural diagram of a cooling tower of a humidification system of a data center provided in Embodiment 1 of the present application.

As shown in FIG. 2 , the cooling tower 20 of this embodiment utilizes direct contact between dry and cold air and hot water for heat exchange, and then obtains cold water, and at the same time discharges wet air. The air inlet 21 enters the cooling tower 20, and the hot water can enter the cooling tower 20 from the water inlet 22 on the upper part of the cooling tower under the action of the water pump. A water film is formed to increase the contact area between the hot water and the dry and cold air, so as to facilitate sufficient heat exchange between the dry and cold air and the hot water, so that the cold water can be discharged from the water outlet 23 at the bottom of the cooling tower. The moist air is discharged from the air outlet 24 at the top of the cooling tower, and the moist air discharged from the air outlet 24 of the cooling tower is close to saturated moist air, and the water vapor carried in the moist air has reached the standard of distilled water. In the prior art, all the humid air discharged from the air outlet 24 of the cooling tower enters the atmosphere, thereby causing waste of water resources.

When specifically implemented, the fresh air fan 10 introduces the humid air discharged from the cooling tower into the fresh air fan 10 through the recovery pipe 30, and the humid air entering the fresh air fan 10 is discharged from the fresh air fan 10 after a series of operations such as cooling, filtration, disinfection and sterilization. The air supply port is sent to the computer room 50 of the data center. On the one hand, the computer room of the data center is pressurized to maintain positive pressure in the computer room of the data center to prevent outdoor air impurities from infiltrating into the computer room; Humidify the equipment room to keep the humidity in the equipment room of the data center within an appropriate range to prevent the humidity from being too high, causing corrosion of the metal parts of the equipment in the equipment room, or causing static electricity between the equipment in the equipment room when the humidity is too low. , affecting the normal operation of the equipment in the equipment room.

In a possible implementation, the recovery tuyere of the recovery pipe 30 may be located above the air outlet 24 of the cooling tower 20, and the straight-line distance between the recovery tuyere 34 and the air outlet 24 of the cooling tower 20 is 1.5 m-4 between meters.

In the specific implementation, since the air outlet 24 of the cooling tower 20 is provided with a fan, in order to avoid the violent vibration of the recovery pipe 30 during the rotation of the fan and affect the life of the recovery pipe 30, the recovery air outlet 34 of the recovery pipe 30 can be set to be away from the cooling tower 20. The straight-line distance between the air outlets is between 1.5 meters and 4 meters. Exemplarily, the straight-line distance between the recovery tuyere 34 of the recovery pipe 30 and the air outlet 24 of the cooling tower 20 can be set to be 1.5 meters, 2 meters, 2.5 meters meter, 3 meters, 3.5 meters or 4 meters, or, the straight-line distance between the recovery tuyere 34 of the recovery pipe 30 and the air outlet 24 of the cooling tower 20 can be set to any value between 1.5 meters and 4 meters; When the straight-line distance between the recovery tuyere 34 of the pipe and the air outlet 24 of the cooling tower is less than 1.5 meters, the recovery pipe 30 is relatively greatly affected by the fan, that is, the recovery pipe 30 vibrates more violently during the rotation of the fan, thereby causing the recovery pipe The structural fatigue and strength of the 30 reduce the service life of the recovery pipe; when the straight-line distance between the recovery tuyere 34 of the recovery pipe and the air outlet 24 of the cooling tower is greater than 4 meters, the moist air discharged from the air outlet 24 of the cooling tower 20 There will be a large amount of loss before entering the recovery tuyere 34 of the recovery pipe 30, thereby reducing the collection efficiency of the recovery pipe 30 for the moist air discharged from the air outlet 24 of the cooling tower.

In another possible implementation, the recovery tuyere of the recovery pipe can directly set the entire air outlet of the cooling tower therein, so that all the moist air discharged from the air outlet of the cooling tower can enter the recovery pipe, so that not only The collection efficiency of the recovery pipe for the moist air discharged from the air outlet of the cooling tower can be improved; and impurities in the air can be prevented from being mixed into the moist air.

In other implementations, the arrangement of the recovery tuyere of the recovery pipe at the air outlet of the cooling tower can also be adjusted according to actual needs, as long as the recovery tuyere of the recovery pipe in this embodiment can be used to collect the air outlet of the cooling tower to be discharged The function of the moist air is enough, and it will not be repeated here.

In a possible implementation manner, in order to enable the recovery tuyere 34 of the recovery pipe 30 to collect as much moist air discharged from the air outlet 24 of the cooling tower as possible, the plane where the recovery tuyere 34 of the recovery pipe is located and the horizontal plane may be set. The included angle between them is between 0°-45°.

In specific implementation, under the condition that the installation position and diameter of the recovery pipe 30 remain unchanged, the angle between the plane where the recovery tuyere 34 of the recovery pipe is located and the horizontal plane can be adjusted. The area of the recovery tuyere 34 can meet the requirements of practical applications; on the other hand, the scope of the recovery tuyere 34 of the recovery pipe to recover wet air can be changed according to actual needs to meet the needs of practical applications; exemplarily, the recovery tuyere of the recovery pipe The angle between the plane where 34 is located and the horizontal plane can be set to 0°, 10°, 20°, 30°, 40° or 45° according to actual needs, or, between the plane where the recovery air outlet 34 of the recovery pipe is located and the horizontal plane The included angle can also be set to any value between 0° and 45° according to actual needs, as long as it can meet the requirements for the recovery air outlet 34 of the recovery pipe in this embodiment, which will not be repeated here.

In other implementations, the angle between the plane where the recovery tuyere 34 of the recovery pipe is located and the horizontal plane can also be adjusted according to actual needs to be greater than 45° or less than 0°, as long as the recovery tuyere 34 of the recovery pipe in this embodiment can be realized The function of collecting the moist air discharged from the air outlet 24 of the cooling tower is sufficient, which will not be repeated here.

Further, in order to prevent the humid air entering the recovery pipe 30 from being mixed with dust and impurities in the ambient air, a filter screen 341 may be provided at the recovery air outlet 34 of the recovery pipe.

In the specific implementation, the moist air discharged from the air outlet 24 of the cooling tower 20 will first pass through the filter screen 341 provided in the recovery air outlet 34 of the recovery pipe 30 during the process of entering the recovery pipe 30 through the recovery air outlet 34 of the recovery pipe 30, The filter screen 341 can filter out the dust and impurities mixed in the moist air, so as to prevent the dust or impurities from entering the recovery pipe 30 with the moist air, and further entering the fresh air fan 10, so as to ensure the entry into the fresh air fan 10. cleanliness of moist air.

The humidification system of the data center in this embodiment includes a fresh air fan 10 and a cooling tower 20. The humid air discharged from the air outlet 24 of the cooling tower 20 is introduced into the fresh air fan 10, and is processed by the fresh air fan 10 and then sent to the data center. It can not only pressurize the computer room of the data center to maintain positive pressure in the computer room of the data center to prevent the outdoor air impurities from infiltrating into the computer room; but also can humidify the computer room of the data center, so that the Keep the humidity in the equipment room within an appropriate range to prevent the high humidity from causing corrosion of the metal parts of the equipment in the equipment room, or, if the humidity is too low, static electricity is generated between the equipment in the equipment room, affecting the normal operation of the equipment in the equipment room. Work. Moreover, on the one hand, due to the relatively large air volume delivered by the fresh air blower to the computer room of the data center, the humidification effect of the fresh air blower on the computer room of the data center is better; on the other hand, since the water vapor contained in the humid air has reached the The standard of distilled water, so the humid air will not scale in the fresh air fan and the recovery pipe. At the same time, because the humid air keeps flowing in the recovery pipe and the fresh air fan, and the moisture in the humid air is gaseous, so the fresh air fan is in a state of constant flow. It is not easy for the water to breed bacteria. In addition, the cooling tower in this embodiment may be a cooling tower in the cooling system of the data center, and the fresh air fan may be a fresh air fan in the fresh air system of the data center, so that it is not necessary to equip the data center with a special humidifier and a humidifier for the data center. The pure water preparation device that provides pure water is conducive to reducing the energy consumption of the data center and saving the equipment cost of the data center; and humidifying the data center by recycling the humid air discharged from the air outlet of the cooling tower is conducive to saving water in the data center resource.

Embodiment 2

FIG. 3 is a schematic diagram of a humidification system of a data center provided in Embodiment 2 of the present application.

As shown in FIG. 3 , on the basis of the humidification system of the data center provided in the first embodiment, the recovery pipe 30 of the humidification system of the data center provided in this embodiment is provided with an air exchange port 31 that communicates with the inside and outside of the recovery pipe 30 , and , a first regulating valve 311 is installed on the air exchange port 31. The first regulating valve 311 is used to adjust the opening of the air exchange port 31 to adjust the flow rate of ambient air entering the recovery pipe 30 from the air exchange port 31. The air entering the recovery pipe 30 can be mixed with the moist air to change the humidity of the moist air.

In the specific implementation, the humid air discharged from the air outlet 24 of the cooling tower 20 enters the recovery pipe 30 through the recovery air outlet 34 of the recovery pipe 30, and the ambient air enters the recovery pipe 30 through the air exchange port 31, and the humid air can interact with the environment. Air mixing, because the ambient air is usually relatively dry, the humidity of the mixed air obtained after mixing the humid air with the ambient air will be lower than the original humidity of the humid air, but higher than the original humidity of the ambient air. Therefore, the opening degree of the air exchange port 31 can be changed by adjusting the first regulating valve 311 according to actual needs, so as to change the flow rate of the ambient air entering the recovery pipe 30 mixed with the humid air, so that the adjustment of the mixing of the humid air and the ambient air can be achieved. the purpose of the humidity of the air.

The humidification system of the data center in this embodiment is based on the humidification system of the data center provided in the first embodiment, by setting the air exchange port 31 connecting the inside and outside of the recovery pipe 30 on the recovery pipe 30, and installing the air exchange port 31 The first regulating valve 311 capable of adjusting the opening of the air exchange port 31, so that ambient air can enter the recovery pipe 30 through the air exchange port 31, and mix with the humid air in the recovery pipe 30 to obtain air with a lower humidity than humid air Further, by adjusting the first regulating valve 311, the opening of the air exchange port 31 can be changed, that is, the flow rate of the ambient air entering the recovery pipe 30 through the air exchange port 31 can be changed, and the ambient air with different flow rates can be changed. The humidity of the mixed air obtained by mixing with the moist air will also change, so that the first regulating valve 311 can be adjusted according to actual needs to change the humidity of the mixed air, that is, the humidity of the air entering the air inlet of the fresh fan.

Embodiment 3

FIG. 4 is a schematic diagram of a humidification system of a data center provided in Embodiment 3 of the present application.

As shown in FIG. 4 , on the basis of the humidification system of the data center provided in the second embodiment, the recycling pipe 30 of the humidification system of the data center provided in this embodiment is further provided with a humidity sensor for detecting the air humidity in the recycling pipe 30 32 , and the humidity sensor 32 is arranged downstream of the first regulating valve 311 .

The humidity sensor 32 of the present embodiment can detect the humidity of the mixed air formed by mixing the ambient air entering the recovery pipe 30 from the air exchange port 31 with the humid air entering the recovery pipe 30 from the recovery tuyere 34 , thereby facilitating the operator The humidity of the mixed air entering from the air inlet of the fresh air blower 10 into the fresh air blower 10 is obtained, so as to better control the humidity in the equipment room of the data center.

Further, the humidity sensor 32 in this embodiment can be connected in communication with the first regulating valve 311, so that the first regulating valve 311 can adjust the opening of the air exchange port 31 in response to the humidity of the mixed air detected by the humidity sensor 32, That is, when the humidity sensor 32 detects that the humidity of the mixed air in the recovery pipe 30 is relatively low, the first regulating valve 311 can reduce the opening of the air exchange port 31 to reduce the amount of air entering the recovery pipe 30 through the air exchange port 31 When the humidity sensor 32 detects that the humidity of the mixed air in the recovery pipe 30 is relatively high, the first regulating valve 311 can be adjusted to be larger The opening of the air exchange port 31 is to increase the flow rate of the ambient air entering the recovery pipe 30 through the air exchange port 31, thereby reducing the humidity of the mixed air obtained by mixing ambient air and moist air.

Exemplarily, under normal circumstances, the humidity of the mixed air entering from the air inlet of the fresh air fan 10 to the fresh air fan 10 needs to be kept in the range of 40% to 60%. The humidity of the mixed air formed after the ambient air in the pipe 30 is mixed with the humid air entering the recovery pipe 30 from the recovery tuyere 34 is kept in the range of 40% to 60%, that is, when the humidity sensor 32 detects the humidity of the mixed air When the humidity is lower than 40%, the first regulating valve 311 can reduce the opening of the air exchange port 31 to reduce the flow rate of the ambient air entering the recovery pipe 30, so that the humidity of the mixed air is increased to more than 40%; when When the humidity sensor 32 detects that the humidity of the mixed air is higher than 60%, the first regulating valve 311 can increase the opening of the air exchange port 31 to increase the flow rate of the ambient air entering the recovery pipe 30, so as to make the mixed air flow. Humidity drops below 60%.

The humidification system of the data center in this embodiment is based on the humidification system of the data center provided in the second embodiment, by setting the humidity sensor 32 for detecting the air humidity in the recovery pipe 30, so that the operator can obtain the information from the fresh air fan 10. The humidity of the mixed air entering the fresh fan 10 from the air inlet is beneficial to better control the humidity in the computer room of the data center; and, by setting the humidity sensor 32 to communicate with the first regulating valve 311, the first regulating valve 311 can adjust the opening of the air exchange port 31 in response to the humidity of the mixed air detected by the humidity sensor 32, which is beneficial to control the humidity of the mixed air entering into the fresh air blower 10 through the air inlet of the fresh air blower 10 within a suitable range Inside.

Embodiment 4

FIG. 5 is a schematic diagram of a humidification system of a data center provided in Embodiment 4 of the present application.

As shown in FIG. 5 , on the basis of the humidification system of the data center provided in the third embodiment, the recovery pipe 30 of the humidification system of the data center provided in this embodiment is further provided with a first on-off valve 33 . The first on-off valve 33 It is used to control the opening and closing of the recovery pipe 30 , and the first on-off valve 33 is located between the humidity sensor 32 and the first regulating valve 311 .

In specific implementation, when the data center does not need humidification, the first switch valve 33 can be closed so that the first switch valve 33 cuts off the passage of the recovery pipe 30, and at the same time, the first regulating valve 311 can be fully opened to make the air exchange port 31 open. At this time, the humid air entering the recovery pipe 30 from the recovery tuyere 34 will be discharged from the recovery pipe 30 through the air exchange port 31, which is beneficial to ensure the clean and dry inside the recovery pipe 30 and avoid the breeding of bacteria; when the data center When humidification is required, the first on-off valve 33 can be opened so that the first on-off valve 33 can open the passage of the recovery pipe 30, and at the same time, the first regulating valve 311 can be adjusted according to actual needs to keep the air exchange port 31 at a suitable opening degree to The humidity of the mixed air obtained by mixing the ambient air entering the recovery pipe 30 with the moist air meets the requirements.

The humidification system of the data center in this embodiment is based on the humidification system of the data center provided in the third embodiment, by setting the first on-off valve 33 that can control the on or off of the recovery pipe 30, and the first on-off valve 33 is set in the Between the humidity sensor 32 and the first regulating valve 311, not only can the working state of the humidification system of the data center of this embodiment be changed; but also when the humidification system of the data center of this embodiment is not working, the first switch valve 33 can be cut off The recovery pipe 30, on the one hand, prevents the moist air from entering the air inlet of the fresh air fan 10 to breed bacteria; on the other hand, prevents the moist air from remaining in the recovery pipe 30 to breed bacteria; at the same time, it can also play a certain role in the humidity sensor 32. protective effect.

Embodiment 5

FIG. 6 is a schematic diagram of a humidification system of a data center provided in Embodiment 5 of the present application.

As shown in FIG. 6 , on the basis of the humidification system of the data center provided in the fourth embodiment, the humidification system of the data center provided by this embodiment further includes a condensation return pipe 40 , specifically, one end of the condensation return pipe 40 and a recovery pipe The part of 30 located between the first on-off valve 33 and the cooling tower 20 is in communication, and the other end of the condensation return pipe 40 is in communication with the water inlet of the cooling tower 20 .

In specific implementation, the humid air entering the recovery pipe 30 may condense to form a small amount of condensed water due to the decrease in temperature. Exemplarily, the recovery pipe 30 can be set to be inclined toward the position where the condensation return pipe 40 is connected, so that the condensation water in the recovery pipe 30 flows to the condensation return pipe 40 and is discharged from the condensation return pipe 40 , thereby helping to ensure the recovery pipe 30 The inside is clean and dry to avoid the breeding of bacteria.

In other feasible embodiments, at least part of the recovery pipe 30 may be horizontally arranged according to actual needs, for example, a part of the recovery pipe 30 near the cooling tower may be arranged horizontally, and the first regulating valve 311 may be arranged in the horizontal section of the recovery pipe 30 On the one hand, the ambient air that is convenient to enter the recovery pipe 30 from the first regulating valve 311 can be fully contacted and mixed with the moist air at the horizontal section of the recovery pipe 30; on the other hand, when the first switch valve 33 is closed, the first When the regulating valve 311 is opened, the moist air entering into the horizontal section of the recovery pipe can be smoothly discharged from the first regulating valve 311 , which is beneficial to ensure that the recovery pipe 30 is clean and dry. In addition, one end of the condensation return pipe 40 can also be connected to the horizontal section of the recovery pipe 30 so that the condensed water in the recovery pipe 30 can be discharged from the condensation return pipe 40 smoothly, thereby helping to ensure clean and dry inside the recovery pipe 30 .

The humidification system of the data center in this embodiment is based on the humidification system of the data center provided in the fourth embodiment, by setting the condensation return pipe 40, and one end of the condensation return pipe 40 and the recovery pipe 30 are located between the first switch valve 33 and the first switch valve 33. The part between the cooling towers 20 is connected, and the other end of the condensation return pipe 40 is communicated with the water inlet of the cooling tower 20, so that the condensed water generated by the humid air in the recovery pipe 30 can be returned to the cooling tower 20, and not only has It is beneficial to save water resources, and is also beneficial to ensure the cleanness and dryness of the recovery pipe 30 to avoid the breeding of bacteria.

Embodiment 6

FIG. 7 is a schematic diagram of a humidification system of a data center provided in Embodiment 6 of the present application.

As shown in FIG. 7 , on the basis of the humidification system of the data center provided in any of the above embodiments, the recovery tuyere 34 of the recovery pipe 30 of the humidification system of the data center provided by this embodiment is provided with a second regulating valve 35 , and the second regulating valve 35 is provided. The second regulating valve 35 is used to regulate the opening of the recovery tuyere 34 .

In specific implementation, by adjusting the second regulating valve 35, the opening degree of the recovery air outlet 34 of the recovery pipe 30 can be changed, and then the flow rate of the humid air entering the recovery pipe 30 can be changed, that is, when the required flow rate of the humid air is relatively large At this time, the second regulating valve 35 can be adjusted to increase the opening of the recovery tuyere 34, and the flow rate of the moist air entering the recovery pipe 30 will increase at this time; when the required flow rate of the moist air is relatively small, the first The second regulating valve 35 is used to reduce the opening of the recovery air outlet 34. At this time, the flow rate of the humid air entering the recovery pipe 30 will be reduced, so that it is convenient for the operator to adjust the flow rate of the humid air entering the recovery pipe 30 according to actual needs. , which is beneficial to adjust the humidity of the mixed air in the recovery pipe 30 .

The humidification system of the data center in this embodiment is based on the humidification system of the data center provided by any one of the above embodiments, by setting the second regulating valve 35 at the recovery air outlet 34 of the recovery pipe 30, so that the second regulating valve 35 is used for Adjusting the opening degree of the recovery tuyere 34 can adjust the flow rate of the humid air entering the recovery pipe 30 , which is beneficial to adjust the humidity of the mixed air in the recovery pipe 30 . In addition, when the humidification system of the data center stops working, the second regulating valve 35 can be completely closed to prevent the humid air from continuing to enter the recovery pipe 30 , thereby helping to ensure clean and dry inside the recovery pipe 30 and avoid breeding of bacteria.

Embodiment 7

FIG. 8 is a schematic diagram of a humidification system of a data center provided in Embodiment 7 of the present application.

As shown in FIG. 8 , on the basis of the humidification system of the data center provided by any of the above embodiments, the air inlet of the fresh air fan 10 of the humidification system of the data center provided by this embodiment is provided with a second on-off valve 36 . The on-off valve 36 is used to control the opening and closing of the air inlet of the fresh air blower 10 .

During the specific implementation, since the humidification system of the data center is usually equipped with at least two fresh air fans 10 , some of the fresh air fans 10 are used as the main fresh air fans, and the other part of the fresh air fans 10 are used as backup fresh air fans. The setting of the second on-off valve 36 is convenient for The operator can flexibly switch between the main fresh air blower and the standby fresh air blower, thereby helping to ensure the reliability of the humidification system of the data center in this embodiment.

The humidification system of the data center in this embodiment is based on the humidification system of the data center provided by any one of the above embodiments, by setting the air inlet of the fresh air fan 10 to control the opening and closing of the air inlet of the fresh air fan 10. The second on-off valve 36 facilitates the operator to flexibly switch between the main fresh air blower and the standby fresh air blower, thereby helping to ensure the reliability of the humidification system of the data center in this embodiment.

Embodiment 8

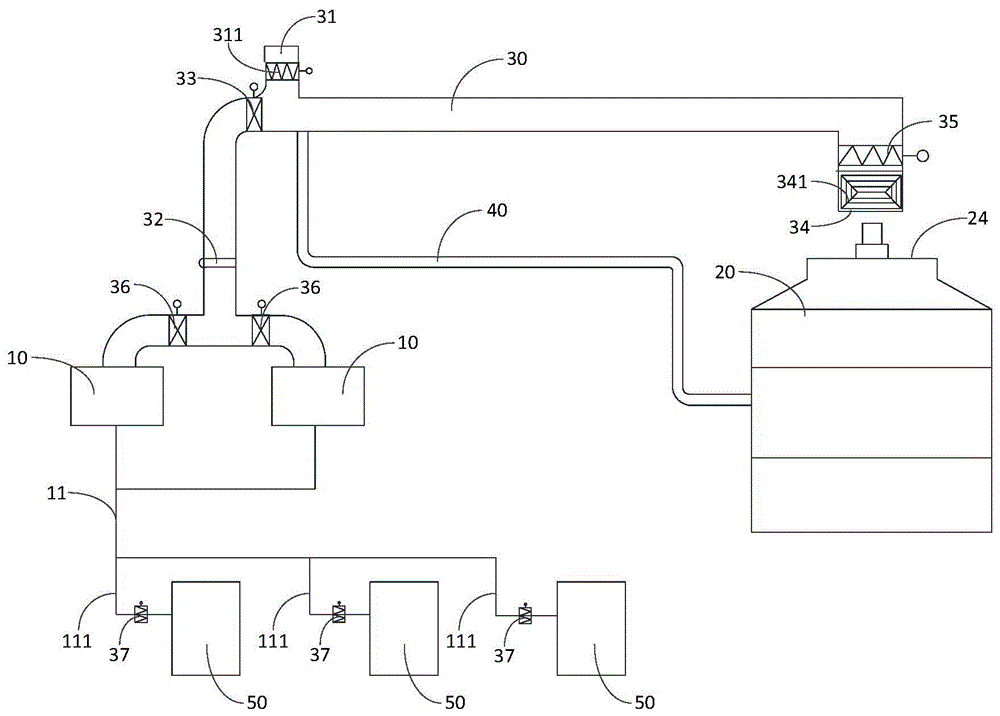

FIG. 9 is a schematic diagram of a humidification system of a data center provided in Embodiment 8 of the present application.

As shown in FIG. 9 , on the basis of the humidification system of the data center provided by any of the above embodiments, the air supply port of the fresh fan 10 of the humidification system of the data center provided by this embodiment supplies air to the data center through the air supply pipe 11 , wherein, the air supply pipe 11 includes a branch pipe 111, the branch pipe 111 is used to connect with the computer room 50 of the data center, the air outlet of the branch pipe 111 is provided with a third regulating valve 37, and the third regulating valve 37 is used to adjust the air outlet of the branch pipe 111. opening.

In specific implementation, the air sent from the air supply port of the fresh fan 10 can be sent into each computer room 50 of the data center through the air supply pipe 11 and the branch pipe 111 of the air supply pipe, and the third regulating valve 37 disposed at the air outlet of the branch pipe 111 can The opening degree of the air outlet of the branch pipe 111 is adjusted to control the air flow into the computer room 50 , which is beneficial to control the humidity in the computer room 50 .

The humidification system of the data center in this embodiment is based on the humidification system of the data center provided in any of the above-mentioned embodiments, by setting the air outlet of the branch pipe 111 of the air supply pipe 11 to adjust the opening of the air outlet of the branch pipe 111 The third regulating valve 37 is adjusted to change the air flow into the computer room 50 of the data center, so as to help control the humidity in the computer room 50 within an appropriate range.

Embodiment 9

Based on the humidification system for a data center provided by any of the foregoing embodiments, this embodiment provides a humidification method for a data center, including:

Recycle the moist air of the cooling tower, exemplarily, the moist air discharged from the air outlet of the cooling tower can be recovered through the recycling pipe; and the moist air is mixed with the ambient air; the air after mixing the moist air and the ambient air is sent to the data center , to humidify the data center.

Further, before the mixed air is sent into the data center, the mixed air can also be processed. Exemplarily, the mixed air can be sent into the fresh air fan through the air inlet of the fresh air fan for cooling and filtering. , disinfection and sterilization operations to ensure that the air sent into the data center can meet the requirements, which is conducive to ensuring the safe and reliable operation of the equipment in the data center.

Further, the humidity of the mixed air can also be controlled by adjusting the flow rate of the moist air and/or the flow rate of the ambient air. Exemplarily, the opening degree of the recovery tuyere can be controlled at the recovery tuyere where the moist air is recovered from the recovery pipe. The second regulating valve, and/or, a first regulating valve for controlling the opening of the air exchange port is provided at the air exchange port of the recovery pipe for the ambient air to enter, so that the second regulating valve and/or the first regulating valve can be adjusted, In order to control the flow rate of humid air and/or the flow rate of ambient air, the purpose of controlling the humidity of the air after the humid air is mixed with the ambient air is achieved.

The humidification method for a data center in this embodiment is based on the humidification system for a data center provided in any of the above-mentioned embodiments. On the one hand, the humidification method for a data center in this embodiment is conducive to saving water resources of the data center; Better humidification effect.

The above-mentioned specific embodiments do not constitute a limitation on the protection scope of the present application. It should be understood by those skilled in the art that various modifications, combinations, sub-combinations and substitutions may occur depending on design requirements and other factors. Any modifications, equivalent replacements and improvements made within the spirit and principles of this application shall be included within the protection scope of this application.

Claims (16)

1. A humidification system of a data center comprises a fresh air fan and a cooling tower;

the air supply outlet of the fresh air fan is used for supplying air to the data center; and the air inlet of the fresh air fan is communicated with the air outlet of the cooling tower through a recovery pipe, and the recovery pipe is used for introducing wet air exhausted by the cooling tower into the fresh air fan.

2. The humidification system of a data center according to claim 1, wherein an air exchange port communicating with the inside and the outside of the recovery pipe is provided on the recovery pipe, and a first regulating valve is installed at the air exchange port;

the first adjusting valve is used for adjusting the opening of the air exchange port.

3. The humidification system of a data center according to claim 2, wherein a humidity sensor for detecting the humidity of the air in the recovery pipe is further provided on the recovery pipe;

the humidity sensor is disposed downstream of the first regulator valve.

4. The data center humidification system of claim 3, wherein the humidity sensor is in communication with the first regulator valve;

the first adjusting valve responds to the humidity detected by the humidity sensor and adjusts the opening degree of the air exchange port.

5. The humidification system of a data center according to claim 3, wherein a first switch valve is further provided on the recovery pipe for controlling on/off of the recovery pipe;

the first switch valve is located between the humidity sensor and the first regulating valve.

6. The data center humidification system of claim 5, further comprising a condensate return;

one end of the condensation water return pipe is communicated with the part of the recovery pipe, which is positioned between the first switch valve and the cooling tower, and the other end of the condensation water return pipe is communicated with the water inlet of the cooling tower.

7. The data center humidification system of claim 6, wherein at least a portion of the recovery tubes are horizontally disposed, the first regulator valve being located in a horizontal section of the recovery tubes; and/or the presence of a gas in the gas,

one end of the condensation water return pipe is connected with the horizontal section of the recovery pipe.

8. The humidification system of a data center of any one of claims 1 to 7, wherein a recovery air port of the recovery tube is located above an air outlet of the cooling tower, and a linear distance between the recovery air port and the air outlet of the cooling tower is between 1.5 and 4 meters.

9. The humidification system of a data center according to any one of claims 1 to 7, wherein an angle between a plane in which the recovery tuyere of the recovery pipe is located and a horizontal plane is between 0 ° and 45 °.

10. The humidification system of a data center according to any one of claims 1 to 7, wherein a recovery tuyere of the recovery pipe is provided with a filter screen.

11. The humidification system of a data center according to any one of claims 1 to 7, wherein a recovery tuyere of the recovery pipe is provided with a second regulating valve;

and the second regulating valve is used for regulating the opening of the recovery tuyere.

12. The humidification system of a data center according to any one of claims 1 to 7, wherein the inlet of the fresh air blower is provided with a second switching valve for controlling opening/closing of the inlet.

13. The humidification system of a data center according to any one of claims 1 to 7, wherein an air supply outlet of the fresh air fan supplies air to the data center through an air supply pipe, the air supply pipe comprises a branch pipe, and an air outlet of the branch pipe is provided with a third regulating valve;

and the third regulating valve is used for regulating the opening degree of the air outlet of the branch pipe.

14. A humidifying method of a data center comprises the following steps:

recovering the wet air of the cooling tower;

mixing ambient air into the humid air;

the mixed air is sent to a data center.

15. The method of humidifying a data center of claim 14, further comprising, prior to said sending the mixed air into the data center:

and treating the mixed air.

16. The humidification method of a data center according to claim 14 or 15, further comprising:

adjusting the flow rate of the humid air and/or the flow rate of the ambient air to control the humidity of the mixed air.
