Abstract

The invention relates to the field of pipeline installation brackets, in particular to a snap-on pressing mechanism. The mechanism includes a card seat, a pressure block, a hook, an elastic block and a guide rod. The elastic block includes a first elastic block and a second elastic block. The pressure block is connected to the card seat through the first elastic block. The guide rod penetrates through the pressure block. It is fixedly connected to the card seat, the pressing block moves directionally along the guide rod, or moves directionally along the guide rod under the action of the first elastic block, the hook is connected to the pressing block, and the card seat is provided with a hook Matching self-locking groove, press the pressure block to make the hook snap into the self-locking groove and lock the pressure block on the card seat. The bottom of the card seat is provided with a fixing groove for placing the object to be fixed, and one end of the second elastic block is fixed It is connected to the bottom of the pressing block, and the other end is connected with the object to be fixed elastically after pressing the pressing block. The operation of the mechanism is extremely simple, one press can be pressed, and one clamp can be released, and the operation efficiency is very high.

Description

A snap-on pressing mechanism

technical field

The invention relates to the field of pipeline installation brackets, in particular to a snap-on pressing mechanism.

Background technique

Existing pipe mounting bracket products include: saddle-type compactor, rotary handle compactor, pipe tie, and pull-up tape. These fixing brackets have the following problems:

Defects of saddle-type compactors, tube ties, and drawstrings: complex and laborious compaction operations; poor flexibility

Defects of the rotary handle compactor: the operation efficiency of pressing and loosening is low, there is no elastic force, and it cannot adapt to the application of thermal expansion and contraction.

SUMMARY OF THE INVENTION

The invention provides a snap-type pressing mechanism, aiming at solving the problem of low pressing and loosening operation efficiency of the existing mounting bracket.

The present invention provides a snap-on pressing mechanism, which includes a clip seat, a pressing block, a hook, an elastic block and a guide rod. The elastic block includes a first elastic block and a second elastic block, and the pressing block passes through the first elastic block. The elastic block is connected to the card seat, and the guide rod penetrates through the pressure block and is fixedly connected to the card seat. Press the pressure block to move in a directional compression along the guide rod, or move along the guide rod under the action of the first elastic block. Directional pop-up movement, the hook is connected to the pressure block, and the card seat is provided with a self-locking slot matched with the hook. Pressing the pressure block makes the hook snap into the self-locking groove and lock the pressure block in the clip. On the seat, the bottom of the card seat is provided with a fixture groove for placing the object to be fixed, one end of the second elastic block is fixedly connected to the bottom of the pressure block, and the other end of the second elastic block is elastically attached to the object to be fixed after pressing the pressure block. connect. The pressure block realizes the directional movement on the card seat through the guide rod, which determines the moving direction of the pressure block when pressing and contacting and fixing. It helps the pressing block to pop up. When pressing, it cooperates with the hook and the self-locking groove, so that the pressing block is fixed on a certain height of the card holder and the object to be fixed is pressed.

As a further improvement of the present invention, the pressing block is provided with a guide hole, the guide rod passes through the guide hole and is fixed on the card seat, the top of the guide rod is provided with a rod cap, and the diameter of the guide hole is larger than that of the guide rod The diameter of the rod body is smaller than the diameter of the rod cap, and when the pressure block bounces up, the rod cap tops the top of the column pressure block and limits the height at which the pressure block bounces. The rod cap acts as a limit for the spring up of the pressure block, preventing the pressure block from bouncing too much and causing it to be separated from the card seat and fall apart.

As a further improvement of the present invention, the guide rod is a shaft screw, the first elastic block is a spring, the clip is provided with a threaded hole, and one end of the spring is attached to the bottom of the pressing block and aligned with the guide hole. The other end is attached to the top of the card holder and aligned with the threaded holes, and the shaft screws pass through the guide holes and the springs and are then tightened in the threaded holes. The shaft screw is inserted into the spring and then connected to the card holder. The shaft screw plays a guiding role. The spring provides elastic force and acts on the guiding direction of the shaft screw. Components can reduce costs.

As a further improvement of the present invention, the clamping hook includes a clamping strip and a rotating shaft, the pressing block is provided with a clamping strip groove, the clamping strip is arranged in the clamping strip groove and is fixed on the pressing block through a rotating shaft, the The clip is connected with the rotating shaft, the elastic block includes a third elastic block, the third elastic block is connected between the top of the clip and the slot of the clip and provides an outward elastic force to the top of the clip, the clip The bottom of the strip is provided with barbs, and the clips are snapped into the self-locking grooves through the barbs. The clip is placed in the slot of the clip, and it will shake left and right when it is fixed. The clip can rotate around the rotation axis. The setting of the third elastic block can ensure that the top of the clip has an elastic force to open outward all the time. The barb to the bottom of the clip has the elastic force to fit the wall of the card seat until it slides to the self-locking slot, and the barb can directly spring into the self-locking slot for self-locking.

As a further improvement of the present invention, the hook includes a limit post, the bottom of the clip is provided with a limit post hole, and the limit post is inserted into the self-locking slot through the limit post hole. The limit post can replace the barb. When the bottom of the clip moves to the self-locking slot, the self-locking function can also be realized by pressing or screwing the limit post into the self-locking slot, and it can reduce the number of third The use of elastic blocks, but can achieve the same function.

As a further improvement of the present invention, the sides of the card seat are provided with shaping chute, the pressing block is connected in the shaping chute and moves directionally in the shaping chute, and the self-locking slot is arranged on the side of the shaping chute. On the inner wall, when the pressing block is pressed, the hook is inserted into the self-locking slot along the inner wall of the shaping chute. The shaping chute acts as a directional limit for the pressing and bouncing movement of the pressing block, preventing the pressing block from swaying left and right.

As a further improvement of the present invention, the card holder is provided with multi-level self-locking grooves with different heights. The multi-level self-locking groove design realizes a variety of different self-locking heights for pressing objects of different heights.

As a further improvement of the present invention, a boss is provided at the bottom of the pressing block, a through slot is provided at the corresponding position of the boss, the second elastic block is a spring, and one end of the spring is fixed on the boss , the other end of which passes through the through slot and is connected to the object to be fixed. The object to be fixed is directly compressed by the spring, and fixed by elastic force, which is suitable for the environmental application of thermal expansion and cold contraction.

As a further improvement of the present invention, the object to be fixed includes a first object to be fixed and a second object to be fixed, the bottom of the card holder is fixedly connected to the first object to be fixed, and the second object to be fixed is placed on the fixed In the groove of the object, the second elastic block presses the second object to be fixed on the first object to be fixed after the pressing block is self-locked. The snap-on pressing mechanism can be used alone as a mounting bracket, and the two objects are fixedly connected by pressing the pressing block.

As a further improvement of the present invention, the snap-on pressing mechanism includes a guide rail, a guide rail groove is provided at the bottom of the card holder, the card holder is connected to the guide rail through the guide rail groove, and the guide rail is fixedly connected to the first object to be fixed On the top, the second object to be fixed is placed in the groove of the fixture, slide the clip to the pressing station, press the pressure block to lock itself, and the second elastic block presses the second object to be fixed on the first object to be fixed. on a fixed object. The snap-type pressing mechanism can be used together with the guide rail, and the position of the object to be fixed is arbitrarily selected. By sliding the snap-type pressing mechanism to the corresponding position on the guide rail, the fixing can be completed by pressing.

The beneficial effects of the invention are as follows: the operation of the snap-type pressing mechanism is extremely simple, one press realizes the pressing, and one clamp releases the fixation, and the operation efficiency is very high; and the fixed object is fixed by elastic force, adapting to the environment of thermal expansion and contraction Application; multi-level self-locking slot design, suitable for fixing various objects of different heights.

Description of drawings

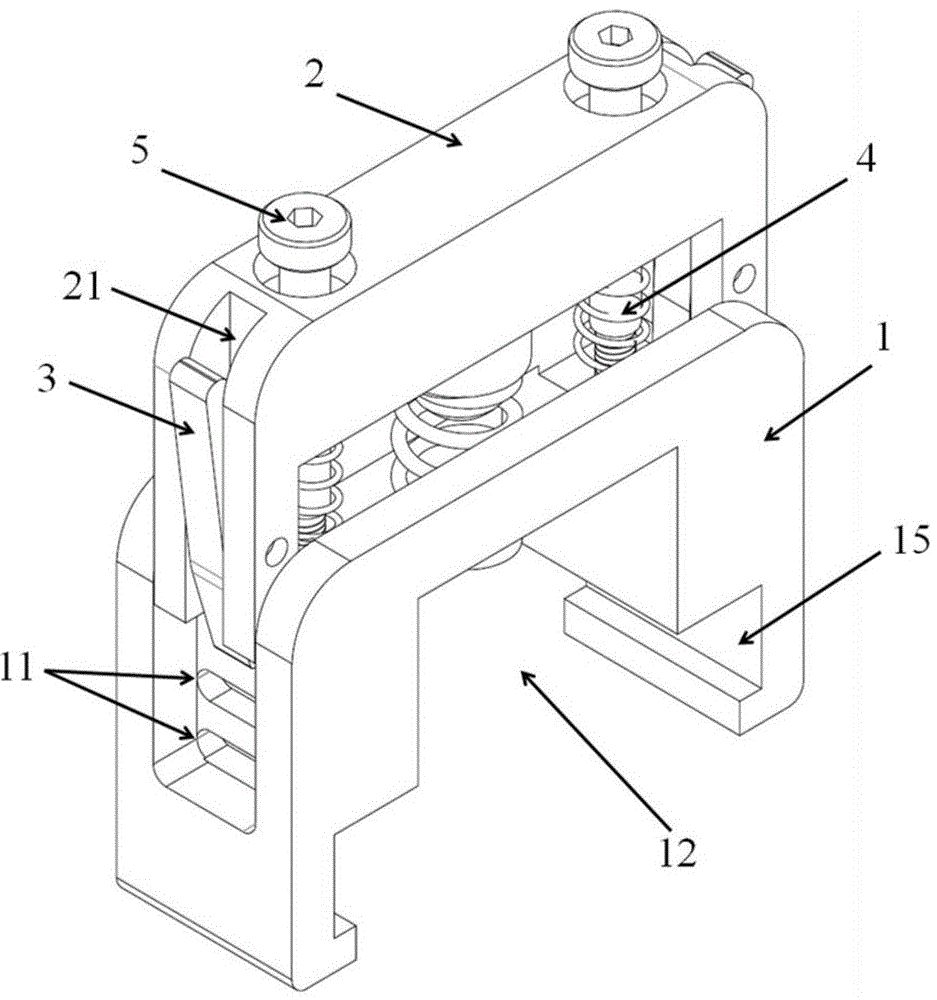

Fig. 1 is the overall structure diagram of a snap-on pressing mechanism of the present invention;

2 is a structural exploded view of a snap-on pressing mechanism of the present invention;

FIG. 3 is a structural diagram of the connection between a snap-on pressing mechanism and a guide rail according to the present invention.

Detailed ways

In order to make the objectives, technical solutions and advantages of the present invention clearer, the present invention will be further described in detail below with reference to the accompanying drawings and embodiments.

Example 1:

As shown in FIGS. 1 to 2 , a snap-on pressing mechanism of the present invention includes a clip seat 1, a pressing block 2, a hook 3, an elastic block 4, and a guide rod 5. The elastic block 4 includes a first elastic block 41. The second elastic block 42, the pressure block 2 is connected to the card seat 1 through the first elastic block 41, the guide rod 5 penetrates the pressure block 2 and is fixedly connected to the card seat 1, and the pressing block 2 is oriented along the guide rod 5 Press and move, or move along the guide rod 5 under the action of the first elastic block 41. The hook 3 is connected to the pressure block. 2. Insert the hook 3 into the self-locking groove 1 and lock the pressing block 2 on the card seat 1. The bottom of the card seat 1 is provided with a fixing groove 12 for placing the object 6 to be fixed, and one end of the second elastic block 42 is fixed It is connected to the bottom of the pressing block 2 , and the other end is connected to the object to be fixed 6 by elastic fit after pressing the pressing block 2 .

The side of the card holder 1 is provided with a shaping chute 13, the pressure block 2 is connected in the shaping chute 13 and moves directionally in the shaping chute 13, the self-locking slot 11 is set on the inner wall of the shaping chute 13, press the pressure block 2 When the hook 3 is inserted into the self-locking slot 11 along the inner wall of the shaping chute 13 . The card seat 1 and the pressure block 2 are preferably designed as an arch structure. The card seat 1 is provided with an integral slot that matches the shape of the pressure block 2. The pressure block 2 can be matched and connected in the overall groove. The seat 1 moves up and down, and the shaping grooves 13 are arranged on both sides of the overall groove as a slide rail for the pressure block 2 to move up and down, which can limit the sliding trajectory of the pressure block 2 and prevent the pressure block 2 from shaking left and right.

The hook 3 includes a clip 31 and a rotating shaft 32. The pressing block 2 is provided with a clip slot 21. The clip 31 is arranged in the clip slot 21 and is fixed on the pressing block 2 through the rotating shaft 32, and the pressing block is on the side wall. There is a rotating shaft through hole 22, the rotating shaft 32 passes through the clamping strip 31, the rotating shaft through hole 22 fixes the clamping strip 31 in the clamping strip groove 21, the rotating shaft 32 is connected with the clamping strip 31, and the clamping strip 31 can rotate around The shaft 32 swings. The top of the clip 31 and the corresponding position of the clip slot 21 are provided with holes. The elastic block 4 includes a third elastic block 43. The third elastic block 43 is connected to the top of the clip 31 and the clip slot 21 through the holes. The top of the clip 31 is provided with an outward elastic force, and the bottom of the clip 31 is provided with a barb 33 through which the clip 31 is clipped into the self-locking groove 11 . The card holder 1 is provided with multi-level self-locking grooves 11 with different heights. The multi-level self-locking grooves 11 are designed to realize various self-locking heights and are used for pressing objects of different heights.

The pressure block 2 is provided with a guide hole 23. The guide rod 5 passes through the guide hole 23 and is fixed on the card seat 1. The top of the guide rod 5 is provided with a rod cap 51. The diameter of the guide hole 23 is larger than that of the rod body of the guide rod 5 and smaller than that of the rod. The diameter of the cap 51, when the pressure block 2 bounces up, the rod cap 51 tops the top of the column pressure block 2 and limits the height at which the pressure block 2 bounces. The guide rod 5 is a shaft screw, the first elastic block 41 is a spring, and the card seat 1 is provided with a threaded hole. And align the threaded holes, the shaft screw passes through the guide hole 23, and the spring is tightened in the threaded hole. The shaft screw is connected to the pressure block 2 and the card seat 1, and a spring is added in the middle, so that the pressure block 2 can be pressed down and automatically popped up along the rails on both sides of the card seat 1 with the shaft screw as the axis. The guide rod 5 and the first elastic block 41 can be connected on the same axis at the same time, which saves space and concentrates the force. The function of directional movement along the guide rod 5 is realized.

There is a boss 24 at the bottom of the pressing block 2, a through slot 14 is set at the corresponding position of the boss 24 in the card holder 1, the second elastic block 42 is a spring, one end of the spring is fixed on the boss 24, and the other end passes through the through slot The position 14 is attached to the object 6 to be fixed. After the pressure block 2 is self-locked, the elastic force generated by the compression and deformation of the spring compresses the object, which is suitable for the environmental application of thermal expansion and cold contraction

The first elastic block 41 , the second elastic block 42 and the third elastic block 43 are preferably springs, but are not limited to springs, and all structures that play an elastic role can achieve this function.

When the mechanism is pressing the object, the pressing block 2 is manually pressed to move down along the shaping chute 13 of the card seat 1, and the hook 3 slides against the card seat 1 under the action of the elastic force of the third elastic block 43. Until it moves to the self-locking slot 11, the hook 3 is locked into the self-locking slot 11, and the pressing block 2 is fixed at a certain height of the card holder 1 under the action of the first elastic block 41. At this time, the second elastic block 42 is also squeezed to the object 6 to be fixed, and under the action of the elastic force, the piece is pressed with the fixed object 6, and according to the height and the degree of force of the object 6 to be fixed, any level of self-locking slot 11 into which the hook 3 is inserted can be adjusted Inside; when unlocking, press the top of the clips 31 raised to both sides, disconnect the hook 3 and the self-locking slot 11, and bounce back to the original height under the action of the first elastic block 41 to complete the unlocking.

Embodiment 2:

On the basis of the first embodiment, the hook 3 includes a limit post, the bottom of the clip 31 is provided with a limit post hole, and the limit post is inserted into the self-locking slot 11 through the limit post hole. The barb 33 structure at the bottom of the clip 31 can be replaced with a limit post, which is connected to the clip 31. When the mechanism presses the object 6 to be fixed, the limit pole is in the open state, but the clip 31 slides to the When the self-locking slot 11 of the required height is required, the self-locking can be performed by pressing the limiting post to snap it into the self-locking slot 11 .

The snap-type pressing mechanism has, but is not limited to, the barb 33 or the limiting post for limiting the position. Other structures that can be snapped into the self-locking groove 11 to realize the self-locking function also belong to the protection scope of this case.

Embodiment three:

The snap-type pressing mechanism can be used alone: the object to be fixed 6 includes a first object to be fixed and a second object to be fixed, the bottom of the card holder 1 is fixedly connected to the first object to be fixed, and the second object to be fixed is placed on the In the fixing object groove 12, after the pressing block 2 is self-locked, the second elastic block 42 presses the second to-be-fixed object on the first to-be-fixed object.

As shown in FIG. 3 , the snap-on pressing mechanism includes a guide rail 7, and can also be used together with the guide rail 7: a guide rail groove 15 is provided at the bottom of the card holder 1, and the card holder 1 is connected to the guide rail 7 through the guide rail groove 15, and the guide rail 7 It is fixedly connected to the first object to be fixed, the second object to be fixed is placed in the groove 12 of the fixed object, slide the card holder 1 to the pressing station, press the pressure block 2 to self-lock and the second elastic block 42 will hold the second to-be-fixed object. The fixed object is pressed against the first to-be-fixed object. The guide rail 7 is preferably two guide rails 7, and the two guide rails 7 can also play a role in limiting the second object to be fixed, and the card holder 1 is preferably in the shape of an arch, and the guide rail groove 15 at its bottom just fits the two guide rails 7. to use.

The guide rail groove 15 designed at the bottom of the card seat 1 in the snap-on pressing mechanism realizes the pressing operation of the snap-on pressing mechanism at any position on the guide rail. The application of the snap-on pressing mechanism is not limited to the guide rail 7. It is fixed at a specified position, such as a test stand, repeatedly pressing the objects to be tested in batches one by one, waiting for the test, and releasing the test object after the test is over.

The working method of the snap-on pressing mechanism: put the snap-on pressing mechanism into the guide rail 7, place the object 6 to be fixed under the snap-on pressing mechanism, and press down the pressing block 2 to the corresponding group according to the height of the object The self-locking slot 11 is released, the hook 3 is self-locking, and the object is pressed. When you need to release the pressing and take out the object, you only need to press the top of the hook 3 inwards with your thumb and forefinger at the same time, and the hook 3 will release the self-locking. Automatically lift and release objects under the action of springs.

The above content is a further detailed description of the present invention in combination with specific preferred embodiments, and it cannot be considered that the specific implementation of the present invention is limited to these descriptions. For those of ordinary skill in the technical field of the present invention, without departing from the concept of the present invention, some simple deductions or substitutions can be made, which should be regarded as belonging to the protection scope of the present invention.

Claims (10)

1. A snap-on pressing mechanism, characterized in that it comprises a clip seat, a pressing block, a hook, an elastic block and a guide rod, and the elastic block comprises a first elastic block and a second elastic block. The first elastic block is connected to the card seat, the guide rod penetrates through the pressure block and is fixedly connected to the card seat, and the pressure block is pressed and moved in a directional compression along the guide rod, or the guide rod is moved along the guide rod under the action of the first elastic block. The guide rod moves up and down in a directional direction, the hook is connected to the pressure block, and the clip seat is provided with a self-locking slot matched with the hook. Locked on the card seat, the bottom of the card seat is provided with a fixture groove for placing the object to be fixed, one end of the second elastic block is fixedly connected to the bottom of the pressure block, and the other end of the second elastic block is connected to the object to be fixed after pressing the pressure block. Elastic fit connection. 2 . The snap-type pressing mechanism according to claim 1 , wherein the pressing block is provided with a guide hole, the guide rod passes through the guide hole and is fixed on the card seat, and the top of the guide rod is provided with a guide hole. 3 . There is a rod cap, the diameter of the guide hole is larger than the diameter of the rod body of the guide rod and smaller than the diameter of the rod cap. 3 . The snap-type pressing mechanism according to claim 2 , wherein the guide rod is a shaft screw, the first elastic block is a spring, the clip is provided with a threaded hole, and one end of the spring is threaded. 4 . The other end is closely connected to the bottom of the pressing block and aligned with the guide hole, and the other end is closely connected to the top of the card holder and aligned with the threaded hole. 4 . The snap-type pressing mechanism according to claim 1 , wherein the hook comprises a clip and a rotating shaft, the pressing block is provided with a clip slot, and the clip is arranged in the clip slot. 5 . It is fixed on the pressing block inside and through the rotating shaft, the clip is connected with the rotating shaft, the elastic block includes a third elastic block, and the third elastic block is attached and connected between the top of the clip and the slot of the clip. The top of the clip is provided with an outward elastic force, the bottom of the clip is provided with a barb, and the clip is clipped into the self-locking groove through the barb. 5 . The snap-type pressing mechanism according to claim 5 , wherein the snap hook comprises a limit post, the bottom of the clip is provided with a limit post hole, and the limit post passes through the limit post. 6 . The hole snaps into the self-locking slot. 6 . The snap-type pressing mechanism according to claim 1 , wherein the sides of the card seat are provided with shaping chute, and the pressing block is connected in the shaping chute and oriented in the shaping chute. 7 . Moving, the self-locking slot is arranged on the inner wall of the shaping chute, and the hook is stuck into the self-locking slot along the inner wall of the shaping chute when the pressing block is pressed. 7 . The snap-on pressing mechanism according to claim 1 , wherein the card holder is provided with self-locking grooves of multiple levels and different heights. 8 . 8 . The snap-type pressing mechanism according to claim 1 , wherein a boss is provided at the bottom of the pressing block, a through groove is provided at the corresponding position of the boss, and the second elastic The block is a spring, one end of the spring is fixed on the boss, and the other end of the spring is connected to the object to be fixed through the through groove. 9 . The snap-type pressing mechanism according to claim 1 , wherein the objects to be fixed include a first object to be fixed and a second object to be fixed, and the bottom of the card seat is fixedly connected to the first object to be fixed. 10 . On the object, the second object to be fixed is placed in the groove of the fixed object, and the second elastic block presses the second object to be fixed on the first object to be fixed after the pressing block is self-locking. 10 . The snap-type pressing mechanism according to claim 9 , characterized in that it comprises a guide rail, a guide rail groove is provided at the bottom of the card seat, the card seat is connected to the guide rail through the guide rail groove, and the guide rail is fixedly connected. 11 . On the first object to be fixed, the second object to be fixed is placed in the groove of the fixed object, slide the clip to the pressing station, press the pressure block to self-lock and the second elastic block will hold the second object to be fixed Press down on the first object to be fixed.
