CN111717525B

CN111717525B - Turpentine wet tissue

Info

Publication number: CN111717525B
Application number: CN202010531107.4A
Authority: CN
Inventors: 李娜
Original assignee: Third Peoples Hospital of Shenzhen
Current assignee: Third Peoples Hospital of Shenzhen
Priority date: 2020-06-11
Filing date: 2020-06-11
Publication date: 2021-12-31
Anticipated expiration: 2040-06-11
Also published as: CN111717525A

Abstract

The invention discloses a turpentine wet tissue, comprising a wet tissue body and a packaging bag; the wet tissue body is soaked with turpentine; the packaging bag is used for sealing the wet tissue body. The turpentine wet wipes provided by the present invention can be pre-made into small packages, so that they can be directly extracted and used when needed, which is very convenient and beneficial for medical staff to use.

Description

Turpentine wet tissue

Technical Field

The invention relates to the field of medical supplies, in particular to a turpentine wet tissue.

Background

In the process of clinical care, medical personnel often need to wipe the pollutant that probably causes infection such as remaining adhesive tape seal of patient's body during patient's recuperation, simultaneously, also can need to wipe residual pollutant on the medical equipment, in above-mentioned working process, need use the turpentine, traditional way is to pour bottled turpentine on the gauze, then go to wipe, like this, all need to carry bottled turpentine and gauze at every turn, very inconvenient.

Disclosure of Invention

The present invention is directed to solving, at least to some extent, one of the technical problems in the related art. Therefore, the invention aims to provide the turpentine wet tissue.

In order to achieve the above object, a turpentine wet wipe according to an embodiment of the present invention includes:

the wet tissue body is soaked with turpentine oil;

the packaging bag is used for hermetically packaging the wet tissue body.

The turpentine wet tissue provided by the invention can be pre-manufactured into small packages, so that the turpentine wet tissue can be directly extracted for use when in need, is very convenient, and is beneficial to medical staff.

In addition, the turpentine wet wipe according to the above embodiment of the present invention may further have the following additional technical features:

according to one embodiment of the invention, the packaging bag comprises a bag body and a sealing element, wherein the sealing element is detachably connected with the bag body and is used for sealing the bag body.

According to one embodiment of the invention, the bag body comprises a rear packaging sheet, a front packaging sheet, side packaging sheets and a sealing sleeve;

the side packaging pieces are made of hard materials, the side packaging pieces are arranged on two sides of the rear packaging piece and are connected with the rear packaging piece in a folding mode, the front packaging piece is arranged in front of the rear packaging piece, two sides of the front packaging piece are respectively connected with the two side packaging pieces, and the bottom of the front packaging piece is connected with the rear packaging piece; the rear packaging sheet, the front packaging sheet and the side packaging sheets jointly define a containing space for containing the wet tissue body;

the sealing sleeve is hermetically sleeved on the rear packaging sheet, the front packaging sheet and the upper end of the side packaging sheet and is used for being matched with the sealing element to seal the accommodating space.

According to one embodiment of the invention, the sealing sleeve comprises a first sealing sleeve and a second sealing sleeve, the first sealing sleeve and the second sealing sleeve are both of annular structures, the lower end of the first sealing sleeve is hermetically sleeved on the upper ends of the rear packaging sheet, the front packaging sheet and the side packaging sheets, and the upper end of the first sealing sleeve is connected with the second sealing sleeve in a folding manner;

the sealing element is used for clamping the first sealing sleeve and the second sealing sleeve when the first sealing sleeve and the second sealing sleeve are mutually folded so as to seal the accommodating space.

According to one embodiment of the invention, a plurality of adhesive strips are arranged on the inner surface of the front packaging sheet at intervals, the adhesive strips extend along the length direction of the front packaging sheet, and each adhesive strip is provided with easy-to-tear release paper;

when the easily-torn release paper is torn off, the pasting strip is suitable for being pasted on the rear packaging sheet so as to divide the accommodating space into a plurality of independent spaces.

According to one embodiment of the invention, the side packaging sheet is a thin plastic sheet.

According to one embodiment of the invention, the seal comprises a first clamping piece and a second clamping piece;

the first clamping piece and the second clamping piece are connected in a folding mode, a plurality of clamping holes are uniformly formed in the first clamping piece, and a plurality of buckles matched with the clamping holes are uniformly formed in the second clamping piece.

According to one embodiment of the invention, the sealing sleeve is made of an elastic material.

According to one embodiment of the invention, the tail end of the buckle is of a round structure.

Drawings

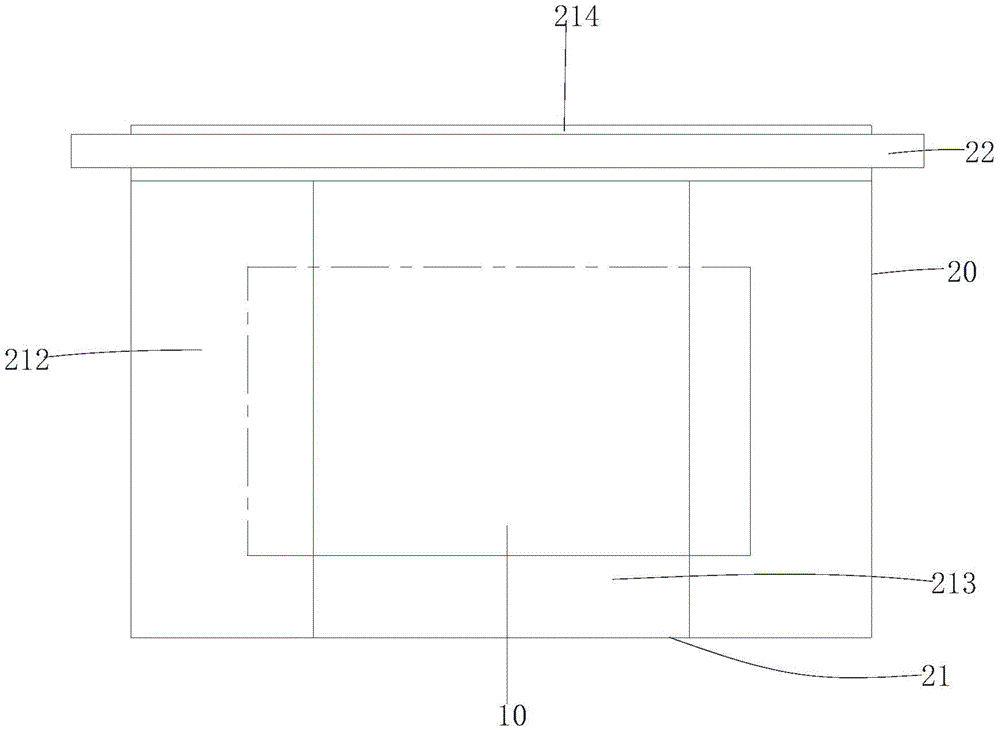

FIG. 1 is a schematic structural diagram of an embodiment of the present invention;

FIG. 2 is a schematic diagram of a package according to an embodiment of the present invention;

FIG. 3 is an enlarged partial schematic view at A in FIG. 2;

FIG. 4 is a schematic view of the structure of the wet towel body packed in the package according to the embodiment of the invention;

figure 5 is a schematic view of the structure of the sealing sleeve of the embodiment of the invention;

FIG. 6 is a schematic diagram of a seal according to an embodiment of the present invention.

Reference numerals:

a wet tissue body 10;

a packaging bag 20;

a bag body 21;

a rear packaging sheet 211;

a side packaging sheet 212;

a front packaging sheet 213;

adhesive tape 2131;

easy-to-tear release paper 2132;

a sealing boot 214;

a first sealing boot 2141;

a second sealing boot 2142;

the accommodation space 215;

a seal 22;

a first clamping piece 221;

card holes 2211;

a second clamping piece 222;

clasp 2221.

The implementation, functional features and advantages of the objects of the present invention will be further explained with reference to the accompanying drawings.

Detailed Description

Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are illustrative and intended to be illustrative of the invention and are not to be construed as limiting the invention.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.

In the present invention, unless otherwise expressly specified or limited, the terms "mounted," "connected," "secured," and the like are to be construed broadly and can, for example, be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.

Referring to fig. 1 to 6, an embodiment of the present invention provides a turpentine wet wipe, including a wet wipe body 10 and a packaging bag 20;

specifically, the wet tissue body 10 is soaked with turpentine oil;

the packaging bag 20 is used for hermetically packaging the wet tissue body 10.

Then, the wet tissue body 10 soaked with the turpentine is hermetically packaged in the packaging bag 20, so that the turpentine can be prevented from evaporating, and therefore, when the turpentine is needed to wipe the trace on the body of a patient or wipe medical supplies, the wet tissue body 10 can be directly taken out, and on one hand, the carrying is convenient; on the other hand, the utility model can be used quickly and conveniently, and the working efficiency of the medical staff can be improved.

Advantageously, in one embodiment of the present invention, the packaging bag 20 comprises a bag body 21 and a sealing member 22, wherein the sealing member 22 is detachably connected with the bag body 21 for sealing the bag body 21.

Thus, because the sealing element 22 is detachably connected with the packaging bag 20, after the wet towel body 10 in the packaging bag 20 is taken out, the packaging bag 20 and the sealing element 22 are both intact, so that the packaging bag 20 can be reused, and the cost is saved.

Advantageously, in one embodiment of the present invention, the pouch body 21 includes a rear packaging sheet 211, a front packaging sheet 213, side packaging sheets 212, and a sealing sleeve 214;

the side packing sheets 212 are made of hard materials, the side packing sheets 212 are arranged on two sides of the rear packing sheet 211 and are connected with the rear packing sheet 211 in a folding manner, the front packing sheet 213 is arranged in front of the rear packing sheet 211, two sides of the front packing sheet 213 are respectively connected with the two side packing sheets 212, and the bottom of the front packing sheet 213 is connected with the rear packing sheet 211; the rear package sheet 211, the front package sheet 213 and the side package sheets 212 together define a receiving space 215 for receiving the wet towel body 10;

the sealing sleeve 214 is hermetically sleeved on the upper ends of the rear packaging sheet 211, the front packaging sheet 213 and the side packaging sheet 212 and is used for matching with the sealing member 22 to seal the accommodating space 215.

In this way, by providing the side packing sheet 212 supported by a hard material, the width of the mouth of the bag can be increased, so that the piece of wet towel body 10 can be conveniently arranged in the accommodating space 215, and then the sealing is carried out by matching the sealing sleeve 214 with the sealing member 22. Also, the side packing sheet 212 made of a hard material may be attached to the surface of the front packing sheet 213, which may play a role of protection to some extent.

Advantageously, in one embodiment of the present invention, the sealing sleeve 214 includes a first sealing sleeve 2141 and a second sealing sleeve 2142, the first sealing sleeve 2141 and the second sealing sleeve 2142 are both annular structures, the lower end of the first sealing sleeve 2141 is hermetically sleeved on the upper ends of the rear packing plate 211, the front packing plate 213 and the side packing plates 212, and the upper end of the first sealing sleeve 214 is connected with the second sealing sleeve 2142 in a folding manner;

the sealing member 22 is used to clamp the first and

second sealing sleeves

2141 and 2142 when the first and

second sealing sleeves

2141 and 2142 are folded over each other, so as to seal the receiving space 215.

That is, the first sealing boot 2141 is integrally connected to the rear package panel 211, the side package panel 212 and the front package panel 213, and the second sealing boot 2142 is also connected to the first sealing boot 2141 in a folding manner, so when the wet towel body 10 is put into the package bag 20, the wet towel body 10 is firstly put into the accommodating space 215 from between the first sealing boot 2141 and the second sealing boot 2142, then the first sealing boot 2141 and the second sealing boot 2142 are folded along the folding line, and finally, the first sealing boot 2141 and the second sealing boot 2142 after being folded are clamped and fixed by the sealing member 22, so that the accommodating space 215 can be sealed, and air leakage is prevented. When needed, the seal 22 may be removed from the first and

second sealing sleeves

2141, 2142.

Advantageously, in another embodiment of the present invention, a plurality of adhesive tape 2131 are provided on the inner surface of the front packaging sheet 213 at intervals, the plurality of adhesive tape 2131 extend along the length direction of the front packaging sheet 213, and each adhesive tape 2131 is provided with an easy-to-tear release paper 2132;

the adhesive tape 2131 is adapted to be adhered to the rear packaging sheet 211 to divide the receiving space 215 into a plurality of independent spaces when the release paper 2132 is peeled off.

Therefore, during actual production, the wet tissue body 10 can be designed into two different specifications according to the large wiping area, the large-sized wet tissue body 10 can be designed for the large wiping area, and the small-sized wet tissue body 10 can be designed for the small wiping area to avoid waste; when the wiping area is large, the wet towel body 10 with a large specification can be used, and when the wiping area is small, the wet towel body 10 with a small specification can be used. Specifically, the adhesive strips 2131 divide the accommodating space 215 in the bag body 21 into a plurality of independent spaces, so that the space between two adjacent adhesive strips 2131 can be used for accommodating the small-sized wet tissue body 10, the wet tissue body 10 can be wound in order to facilitate the taking and placing of the small-sized wet tissue body 10, and the other space can be used for accommodating the large-sized wet tissue body 10, so that the wet tissue body 10 can be taken according to the requirements during use, and on one hand, the same packaging bag 20 can be provided with wet tissue bodies 10 of different specifications, so that the wet tissue bodies 10 can be selected according to the requirements, and the waste is avoided; on the other hand, the same package bag 20 can be provided with a plurality of wet towel bodies 10, which is also beneficial to use.

Of course, in other embodiments, the adhesive tape 2131 may be replaced with other structures as long as the accommodating space 215 can be divided.

Advantageously, in some embodiments of the present invention, the side packaging sheet 212 is a thin plastic sheet.

In this way, the thickness of the side packing sheets 212 is relatively small, and accordingly, the thickness of the packing bag 20 is prevented from being excessively large.

Advantageously, in some embodiments of the invention, the seal 22 comprises a first 221 and a second 222 clamping piece;

the first clamping piece 221 and the second clamping piece 222 are connected in a folding manner, a plurality of clamping holes 2211 are uniformly formed in the first clamping piece 221, and a plurality of buckles 2221 matched with the clamping holes 2211 are uniformly formed in the second clamping piece 222.

The sealing member 22 has the above structure, and when in use, the first sealing boot 2141 and the second sealing boot 2142 are folded, the first clamping piece 221 and the second clamping piece 222 are respectively located at two sides of the first sealing boot 2141 and the second sealing boot 2142, the corresponding buckle 2221 and the corresponding buckle hole 2211 are correspondingly clamped, and the first sealing boot 2141 and the second sealing boot 2142 can be clamped and fixed, so that the accommodation space 215 is sealed.

Advantageously, in other embodiments of the present invention, the boot seal 214 is made of an elastomeric material.

Thus, the problem of poor sealing effect caused by damage in the process of clamping the first clamping piece 221 and the second clamping piece 222 can be avoided, and recycling is facilitated.

Advantageously, in still other embodiments of the present invention, the ends of clasp 2221 are rounded.

Thus, the smooth structure of the clip 2221 has no corners, so that the sealing boot 214 is not damaged, which is advantageous for ensuring the sealing effect.

In the description herein, references to the description of the term "one embodiment," "some embodiments," "an example," "a specific example," or "some examples," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

Although embodiments of the present invention have been shown and described above, it is understood that the above embodiments are exemplary and should not be construed as limiting the present invention, and that variations, modifications, substitutions and alterations can be made in the above embodiments by those of ordinary skill in the art without departing from the principle and spirit of the present invention.

Claims

1. a turpentine wet tissue, is characterized in that, comprises:

The wet tissue body, the wet tissue body is soaked with turpentine;

a packaging bag, which is used for sealingly packaging the wet tissue body;

The packaging bag includes a bag body and a sealing member, and the sealing member is detachably connected to the bag body for sealing the bag body;

The bag body includes a rear packing sheet, a front packing sheet, a side packing sheet and a sealing sleeve;

The side packaging sheet is made of hard material, and the side packaging sheet is arranged on both sides of the rear packaging sheet, and is folded and connected with the rear packaging sheet, and the front packaging sheet is arranged on the rear packaging sheet The front of the sheet, and the two sides of the front packaging sheet are respectively connected with the two side packaging sheets, and the bottom is connected with the rear packaging sheet; the rear packaging sheet, the front packaging sheet and the side packaging sheet To accommodate the accommodation space of the wet wipe body;

The sealing sleeve is sealed and sleeved on the upper ends of the rear packaging sheet, the front packaging sheet and the side packaging sheet, and is used for cooperating with the sealing member to seal the accommodating space;

The inner surface of the front packaging sheet is provided with a plurality of adhesive strips at intervals, the plurality of adhesive strips extend along the length direction of the front packaging sheet, and each of the adhesive strips is provided with easy-tear release paper;

When the easy-tear release liner is torn off, the sticking strip is suitable for sticking on the rear packaging sheet, so as to divide the accommodating space into a plurality of independent spaces.

2 . The turpentine wipes according to claim 1 , wherein the sealing sleeve comprises a first sealing sleeve and a second sealing sleeve, and the first sealing sleeve and the second sealing sleeve are both annular structures, and the The lower end of the first sealing sleeve is sealed and sleeved on the upper ends of the rear packaging sheet, the front packaging sheet and the side packaging sheet, and the upper end of the first sealing sleeve is folded and connected to the second sealing sleeve;

The sealing member is used for clamping the first sealing sleeve and the second sealing sleeve when the first sealing sleeve and the second sealing sleeve are folded with each other, so as to seal the accommodating space.

3. The turpentine wet tissue according to claim 2, wherein the side wrapping sheet is a thin plastic sheet.

4. The turpentine wipes according to claim 3, wherein the sealing member comprises a first clamping piece and a second clamping piece;

The first clamping sheet and the second clamping sheet are folded and connected, and the first clamping sheet is evenly provided with a plurality of clamping holes, and the second clamping sheet is evenly provided with a plurality of clamping holes corresponding to the clamping sheet. Snaps for hole fit.

5 . The turpentine wet wipes according to claim 4 , wherein the sealing sleeve is made of elastic material. 6 .

6 . The turpentine wipes according to claim 5 , wherein the end of the buckle is a smooth structure. 7 .
